Barred Rock coop and pen

  1. Ur-ur-ur-urrr
    This is my new pen that will be used for the chicks I hatched in early December and on New Year's Day.

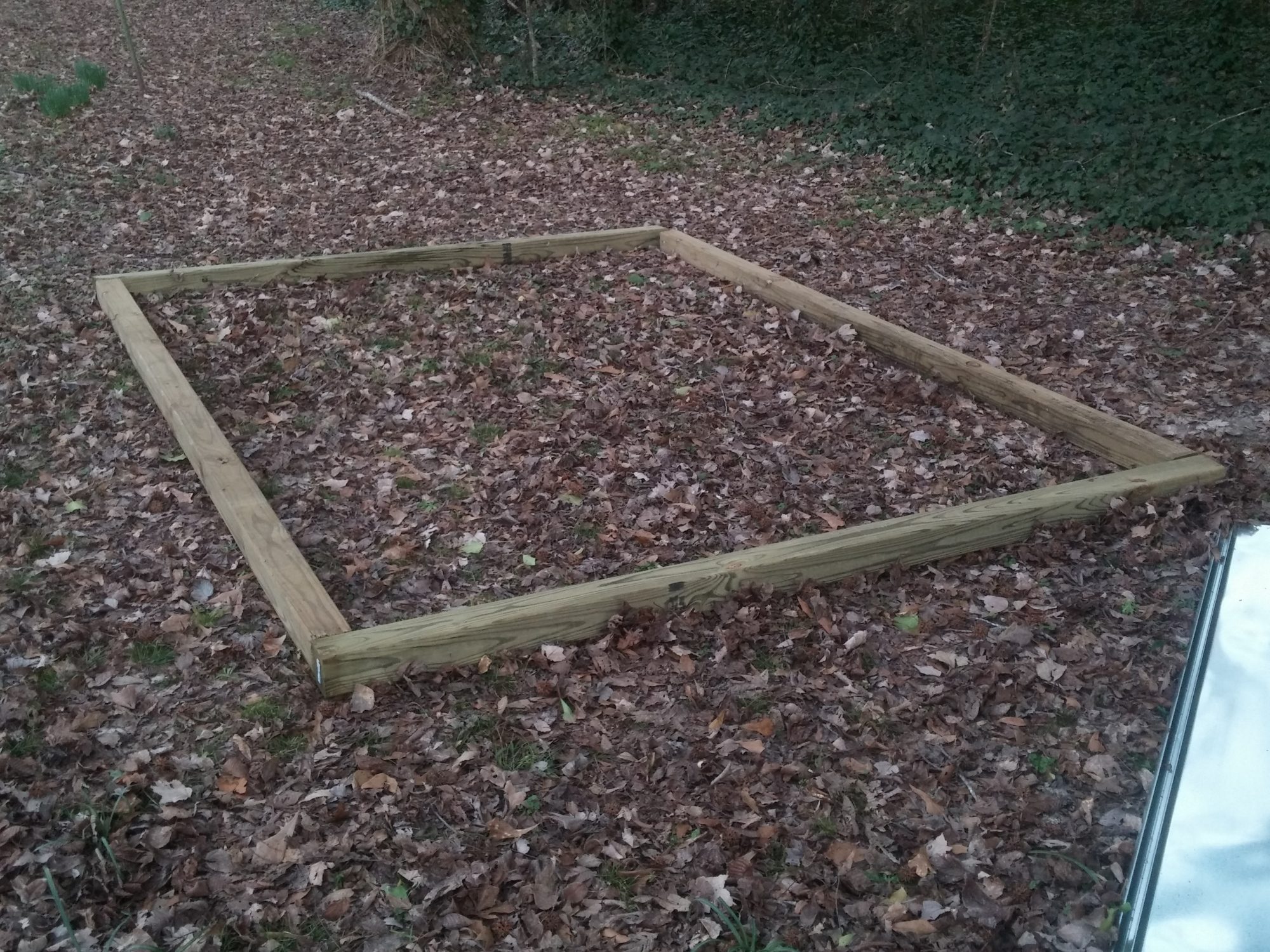

    I started by forming a square base out of 4"x4"x10' treated posts... which equals roughly 100 square feet of run.

    [​IMG]

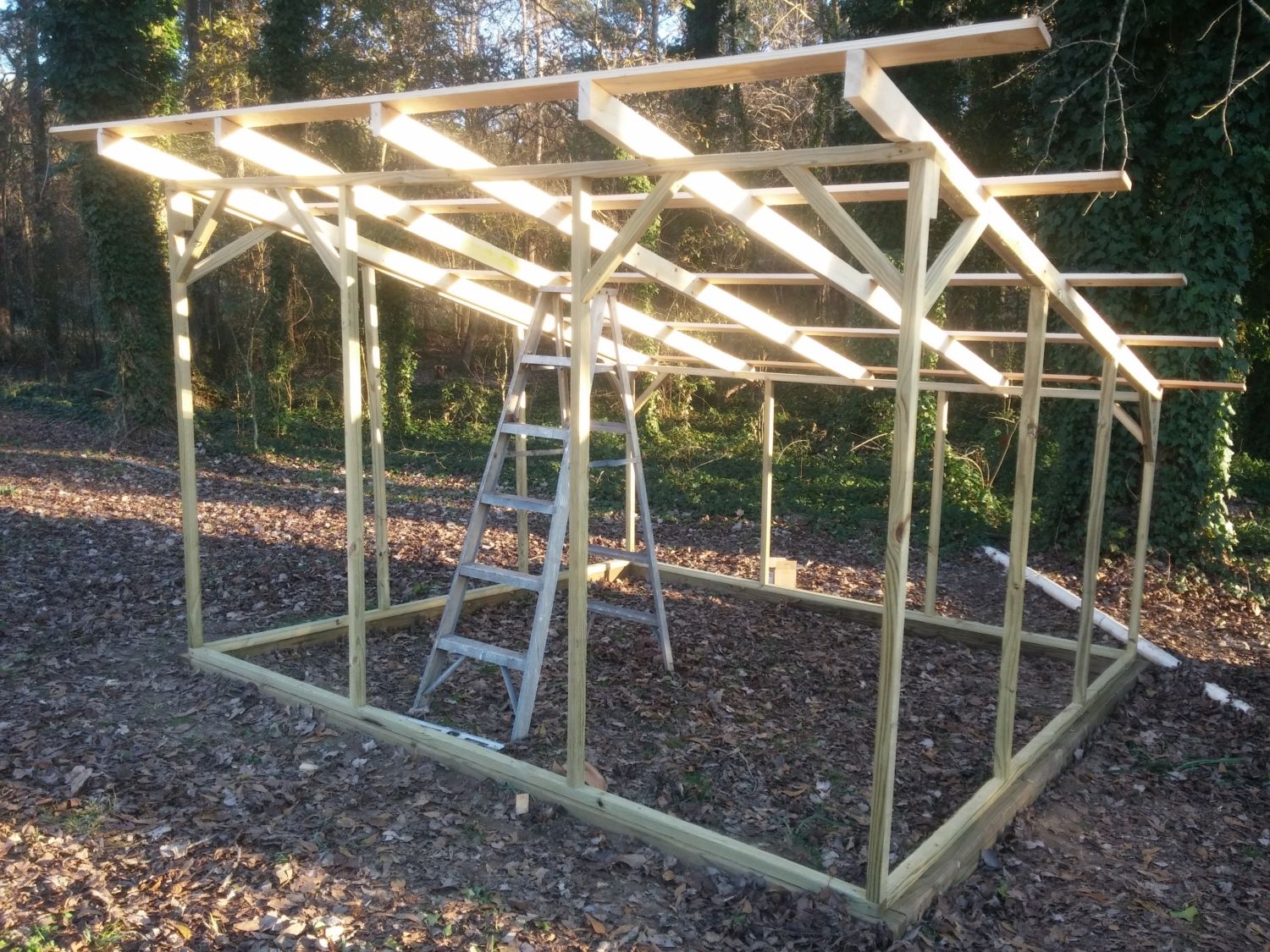

    Since the roof will be fairly light, I ripped treated 2"x4"s to form the wall studs. Birdsmouth rafters and slats are spaced at 30" centers.

    [​IMG]

    It was a little wobbly, but adding upper corner braces, lower "V" braces, and plywood on the rear made it plenty strong.

    [​IMG]

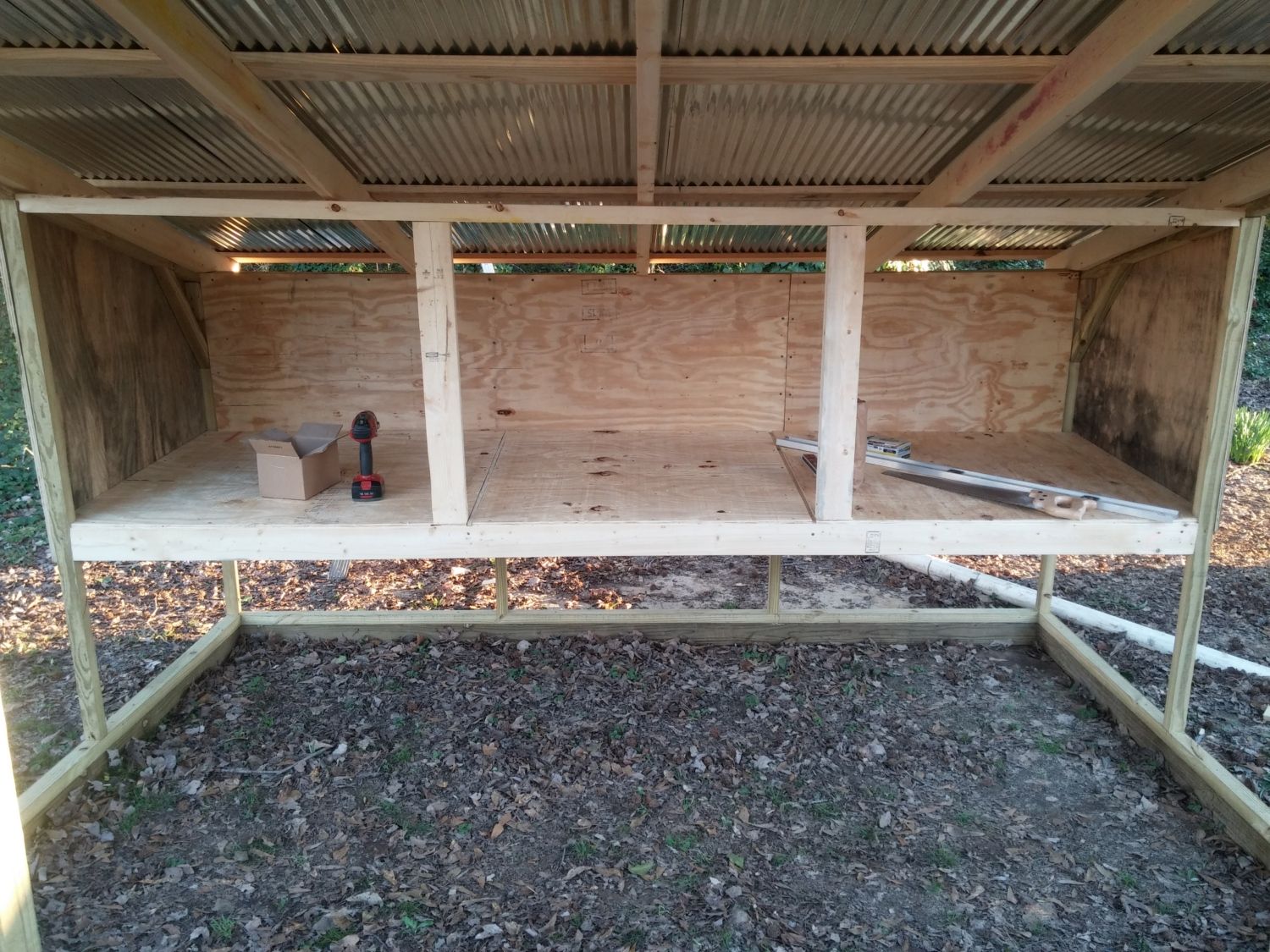

    Elevated coop will maximize floor space. The coop has slots in the floor (to install 2 partitions) to create 3 smaller coops. Adding two divider walls in the run will create 3 separate breeding pens with individual coops. This should be sufficient for 4 large fowl (1 roo and 3 hens) per pen.

    [​IMG]

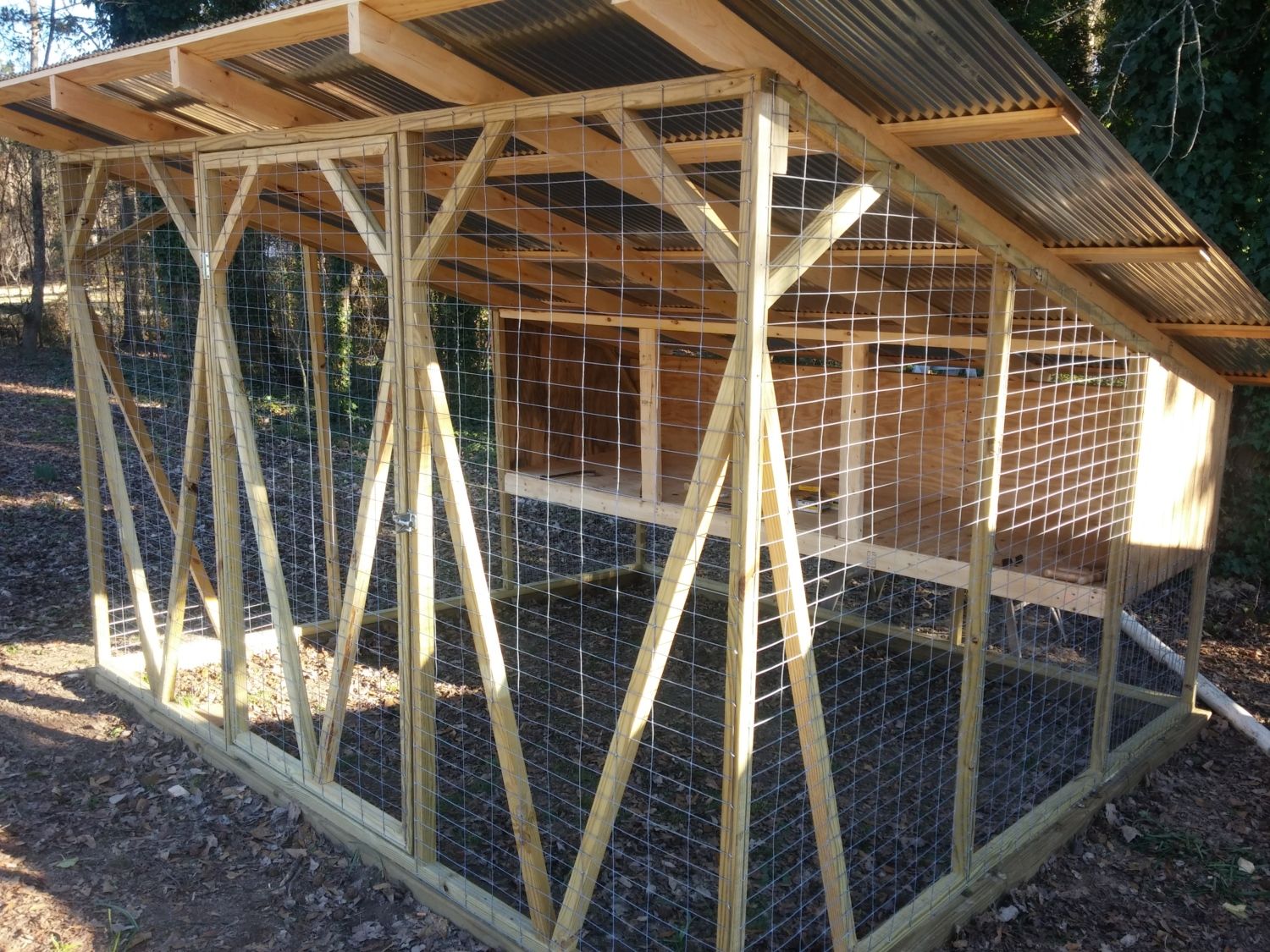

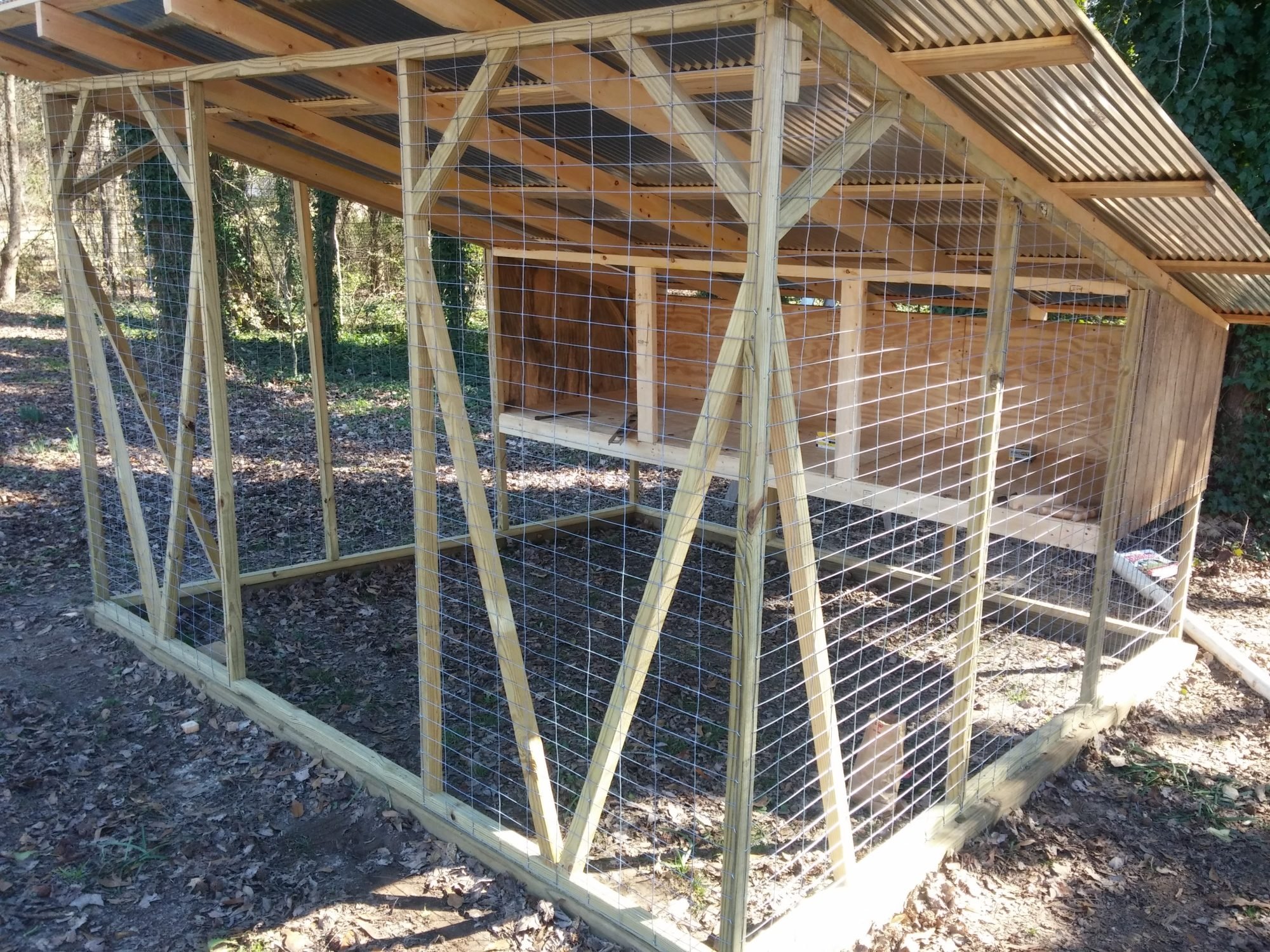

    With the wire hung.

    [​IMG]

    Door built and installed.

    [​IMG]
    [​IMG]

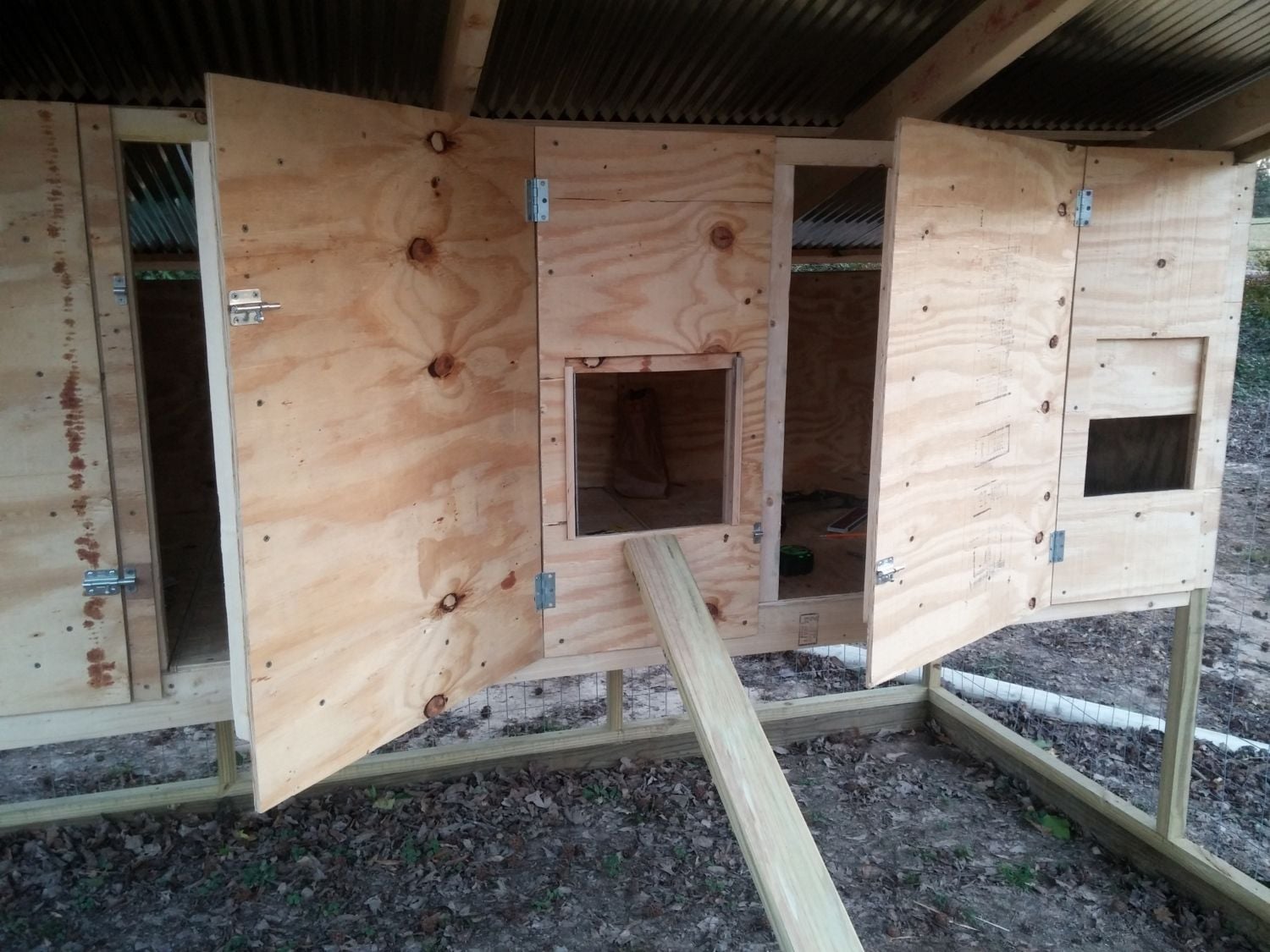

    Two of the doors and (internal/vertical) sliding pop doors installed. These will be operated on a pulley system. Pop door on right halfway opened, and board propped up in front of left pop door to simulate ramp:

    [​IMG]
    [​IMG]
    [​IMG]

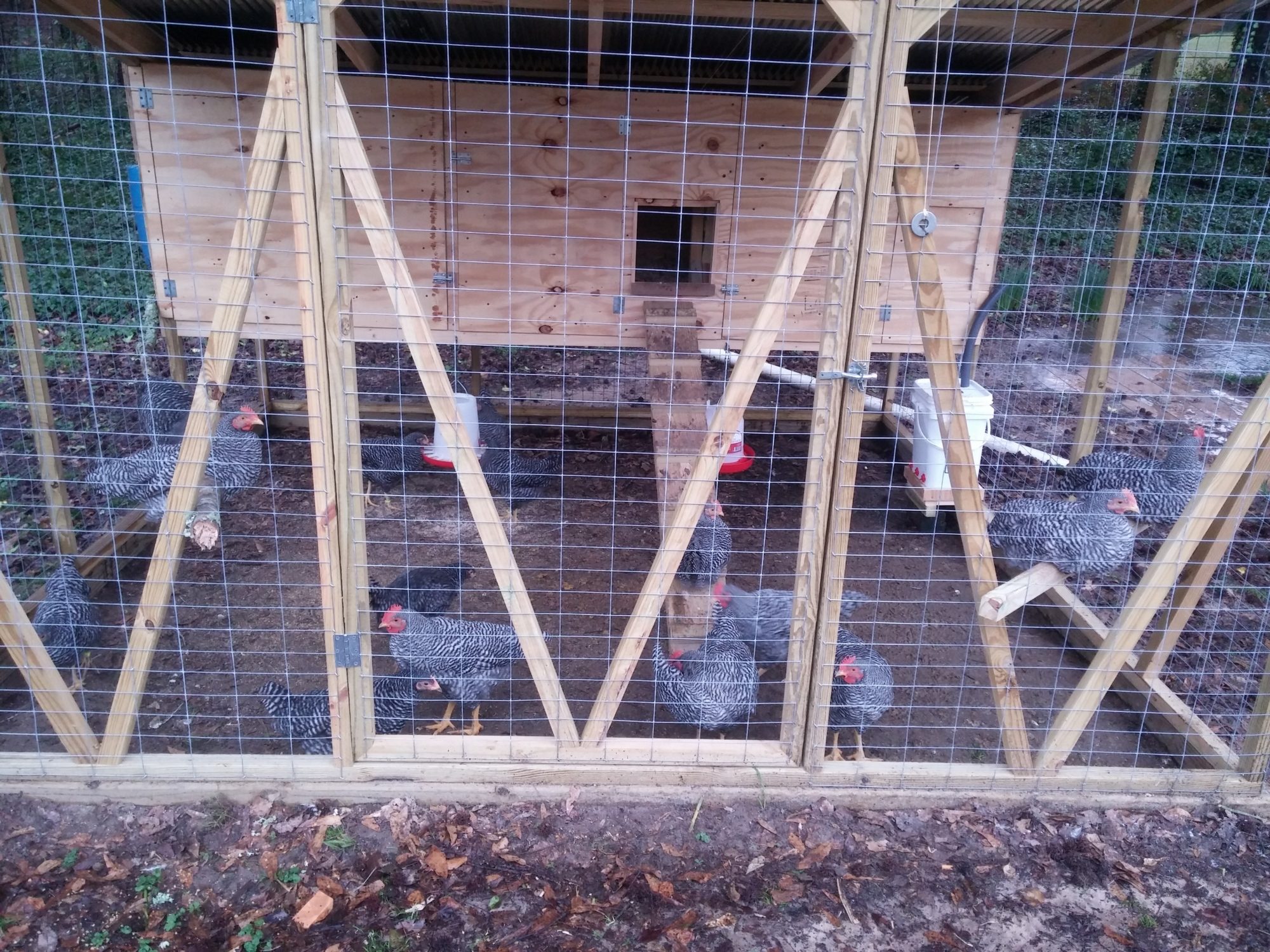

    The metal washer to the right of the front door operates the pop door on the coop, which gets closed every night. I also added a larger, homemade 5 gallon water container with horizontal poultry nipples (right side). I've culled all the roosters except for one, so there's plenty of space for 7 birds. A couple of the BR pullets have started laying, so I added a couple of nesting boxes to the rear of the coop.
