"O" Family Chicken Coop

By LeeO, Dec 11, 2012 | Updated: Apr 20, 2013 | | |
Tags:
Rating:
5/5,
  1. LeeO

    [​IMG]

    Our latest addition to our small 31+ acre hobby farm here in the Ozarks.

    [​IMG]
    The ground breaking. Our 3 sons were a big help digging the holes for the posts. The youngest was probably bringing us lemonade from the house :)

    [​IMG]
    Basic frame 10'x10'. We sealed the floor to help preserve it.

    [​IMG]

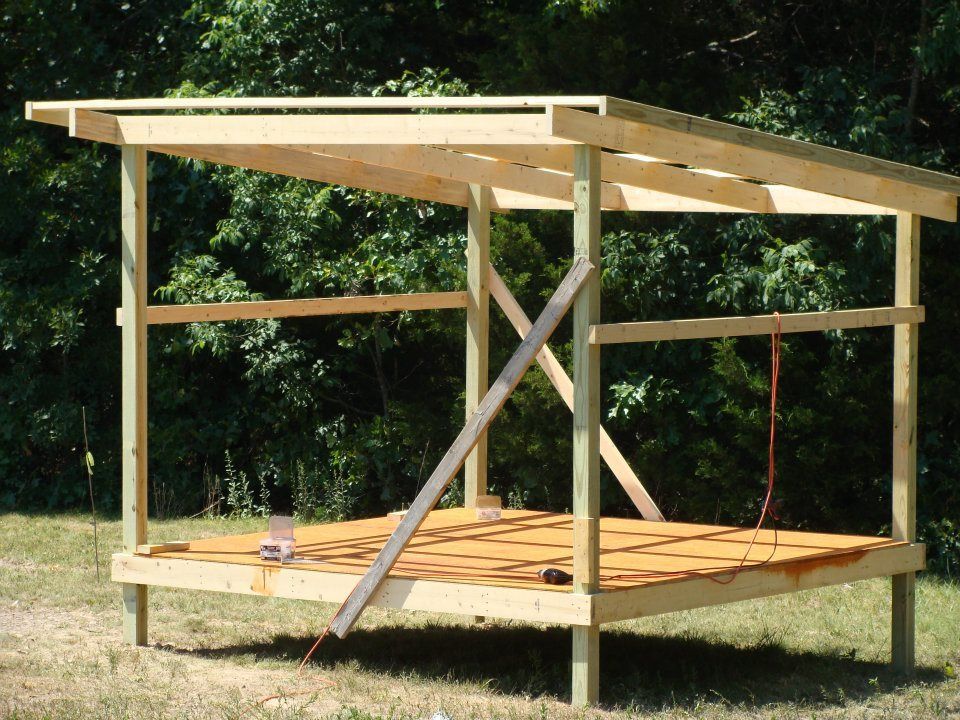

    Added the roof frame 12'x12' with an approximate 1' overhang all the way around.

    [​IMG]

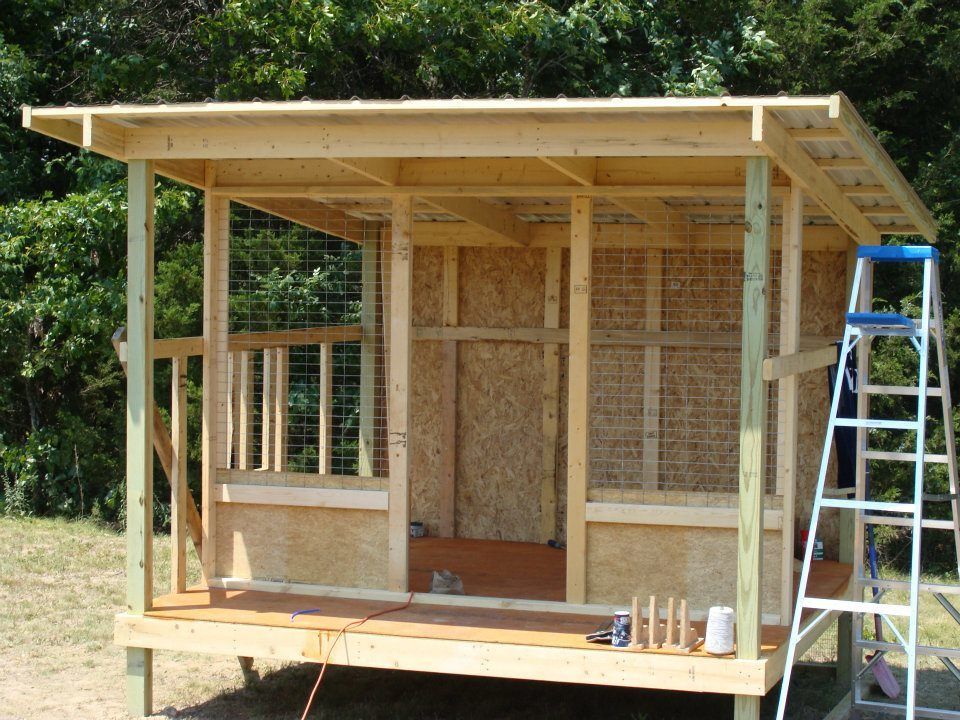

    Metal roof installed and the interior partition wall is in place. We are leaving a 3'x10' entry area for the food storage.

    [​IMG]

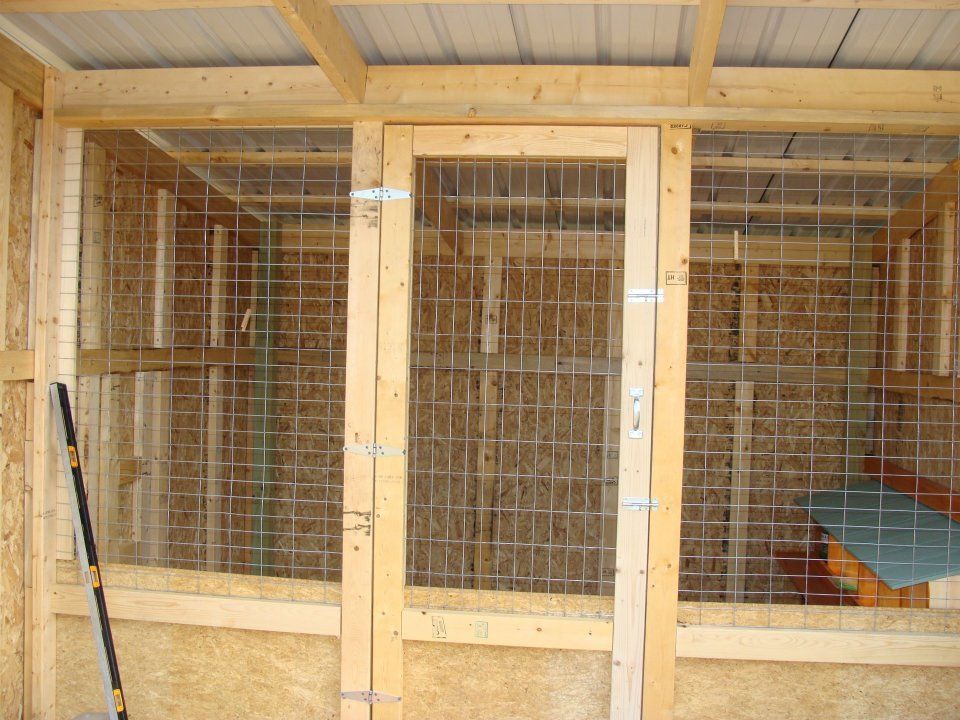

    Interior partition wall complete.

    [​IMG]

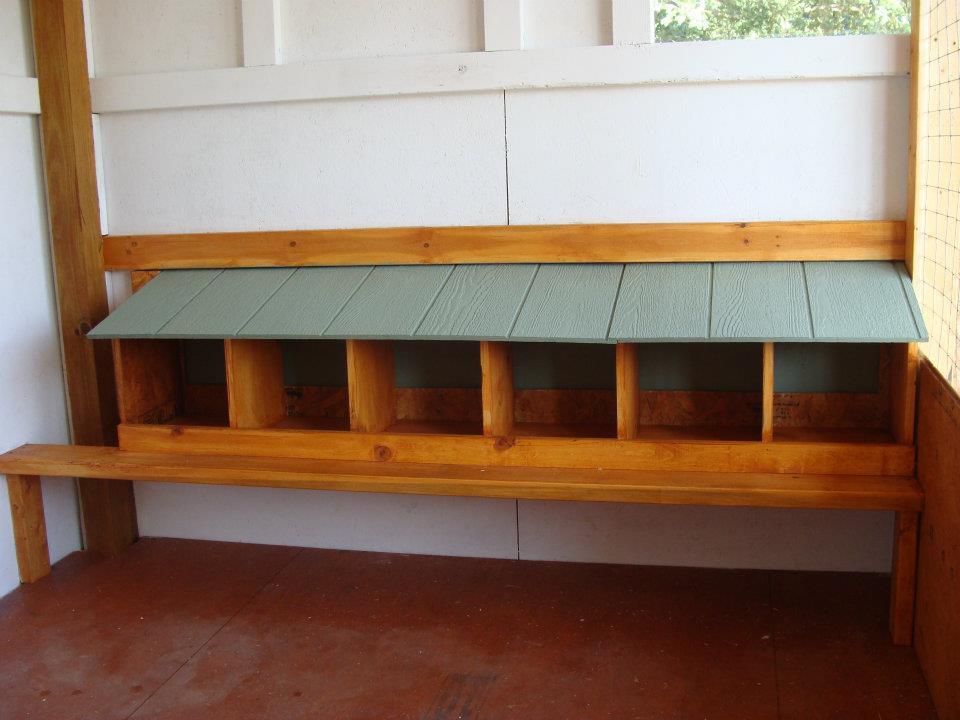

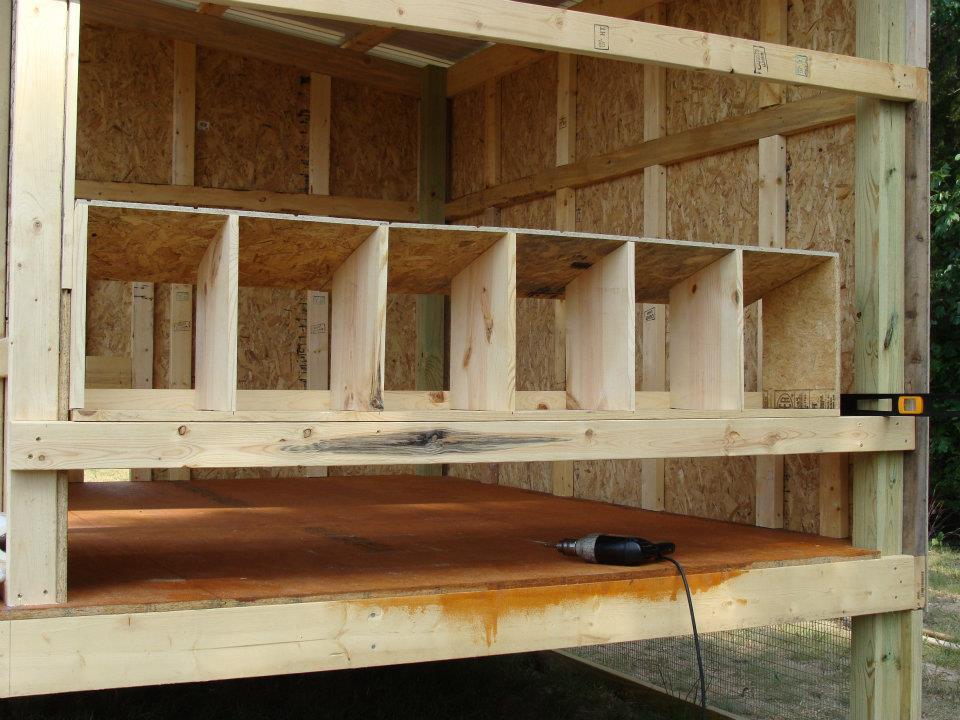

    We installed 6 nesting boxes that will have outside access for egg collection.

    [​IMG]
    Our 8 year old painting.

    [​IMG]
    Our 11 year old painting.

    [​IMG]
    Our 13 year old painting.

    [​IMG]

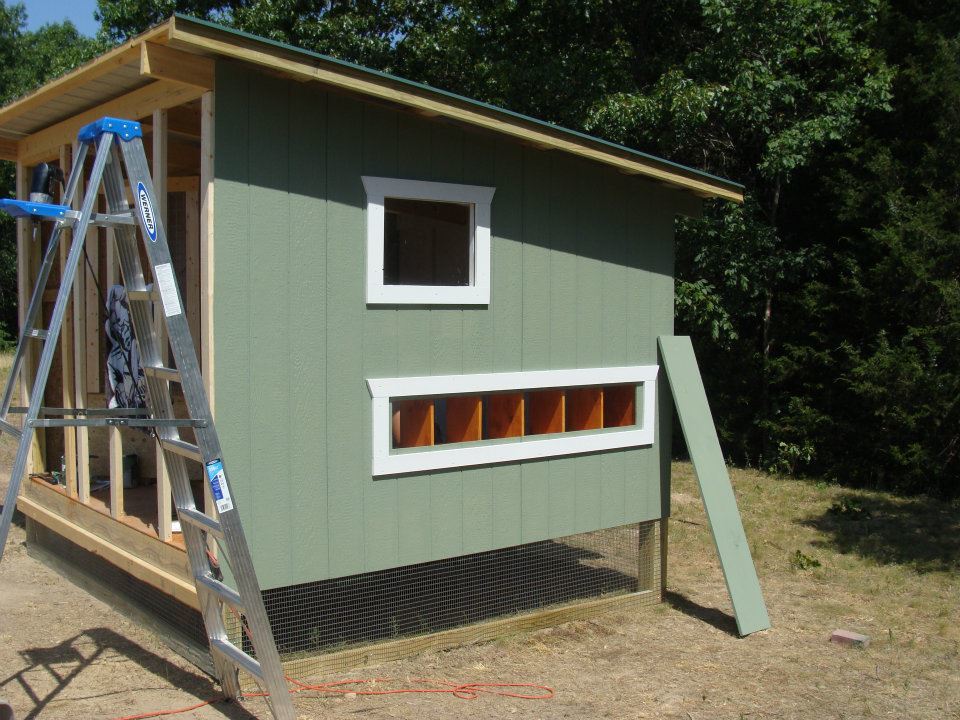

    We are ready to install the access door (1"x12"x6' pine board) for the nesting boxes..

    [​IMG]

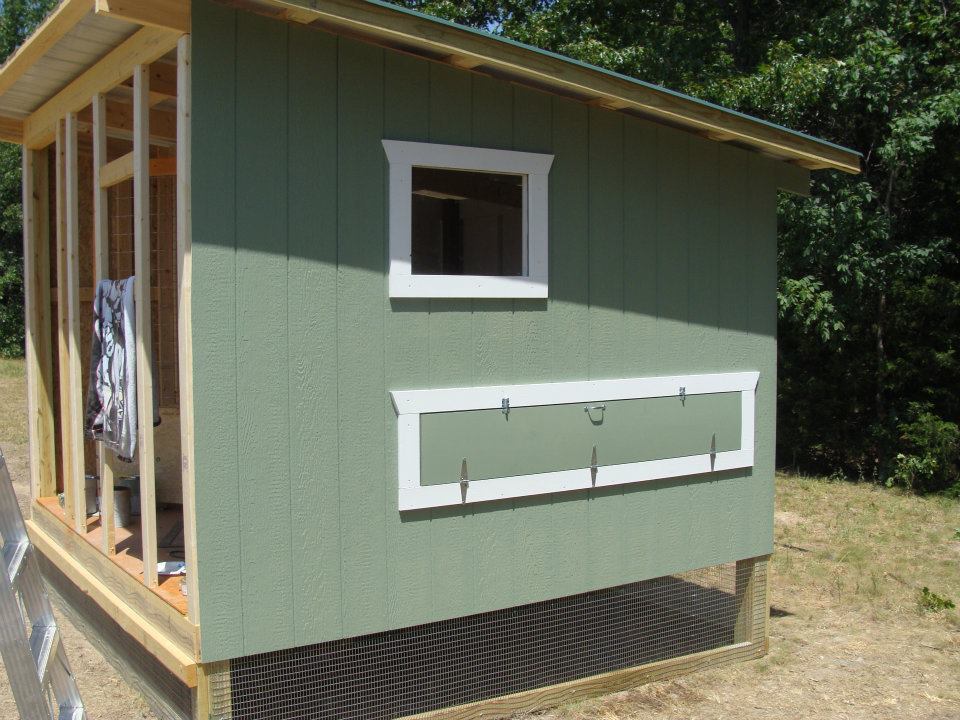

    The access door to the nesting boxes is installed. We are thinking about placing a "Fresh Eggs" sign above the door once we find the one my wife and I can agree on :)

    [​IMG]

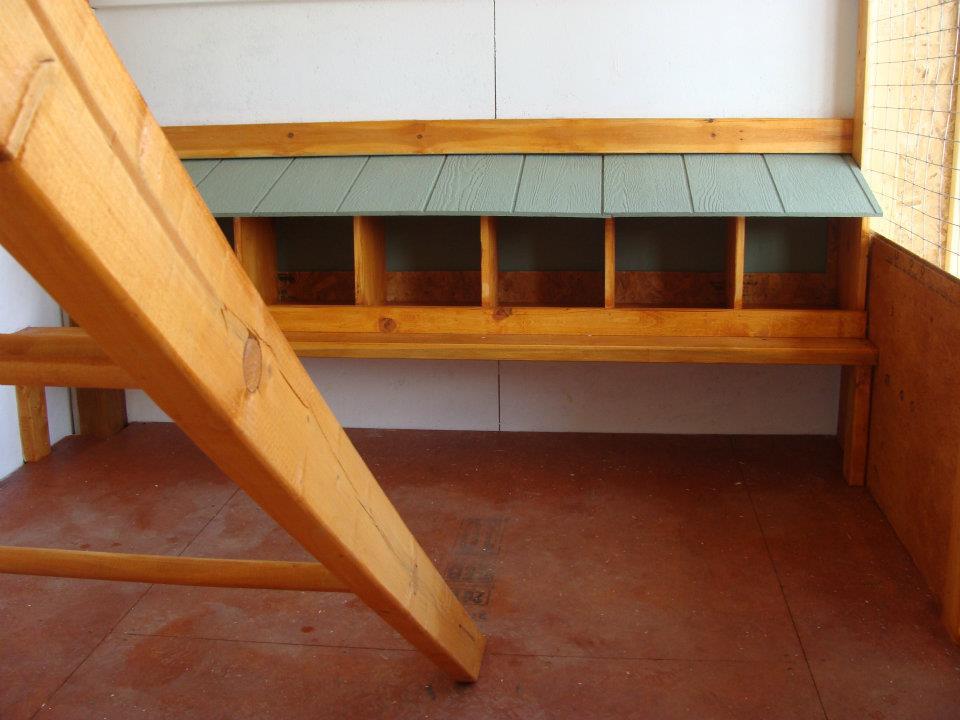

    Inside view of the nesting boxes.

    [​IMG]

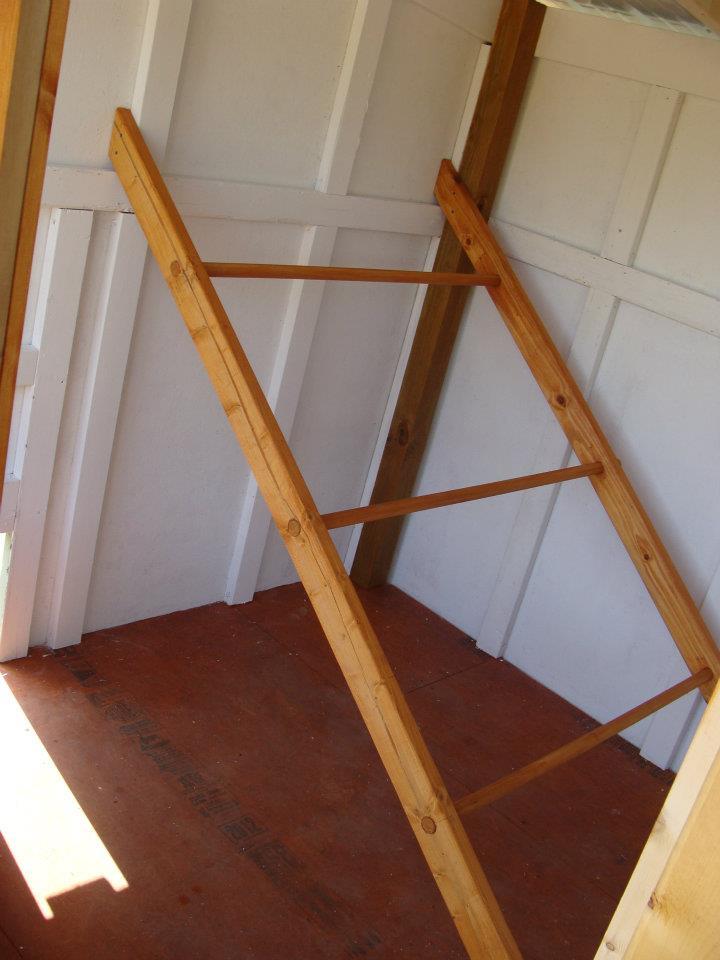

    The roost has a total of 12' of roosting space using 3 each 1" diameter by 4' long dowel rods for a more natural foot grip to provide enough space for those that may be claustrophobic and want to sleep alone :)

    [​IMG]
    Not shown is the hanging waterer and directly to the right is a homemade pvc feeder that can be filled without entering the coop.

    [​IMG]

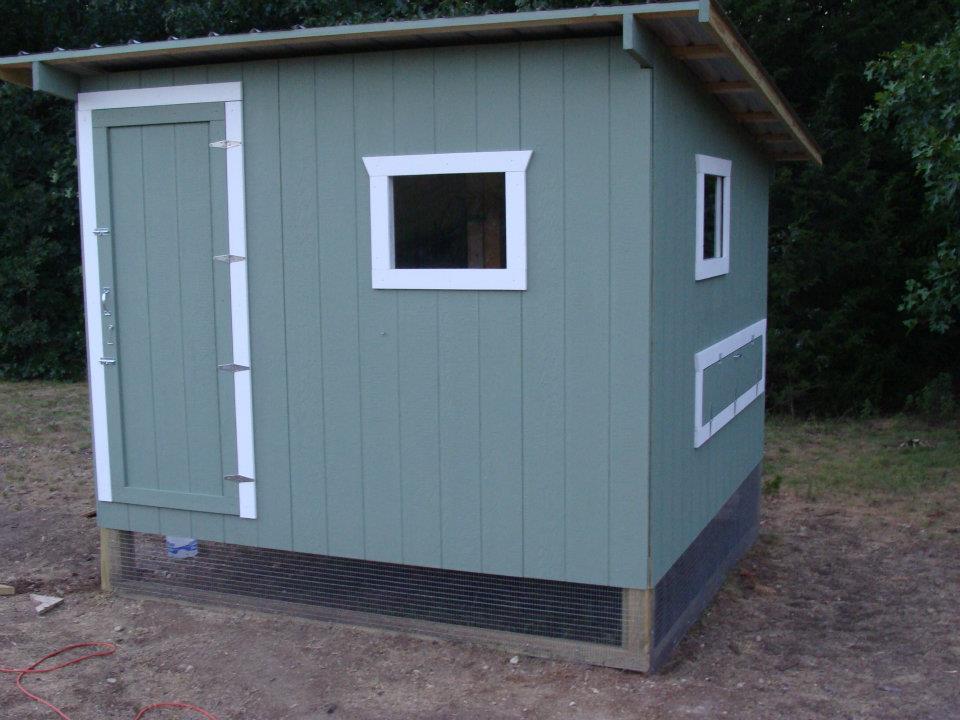

    The coop is almost done and now we need to start working on the attached 20'x20' chicken run.

    [​IMG]
    My mom and sister came to visit so they jumped in and lent a helping hand as well.

    [​IMG]
    Look at daddy's little helpers!

    [​IMG]

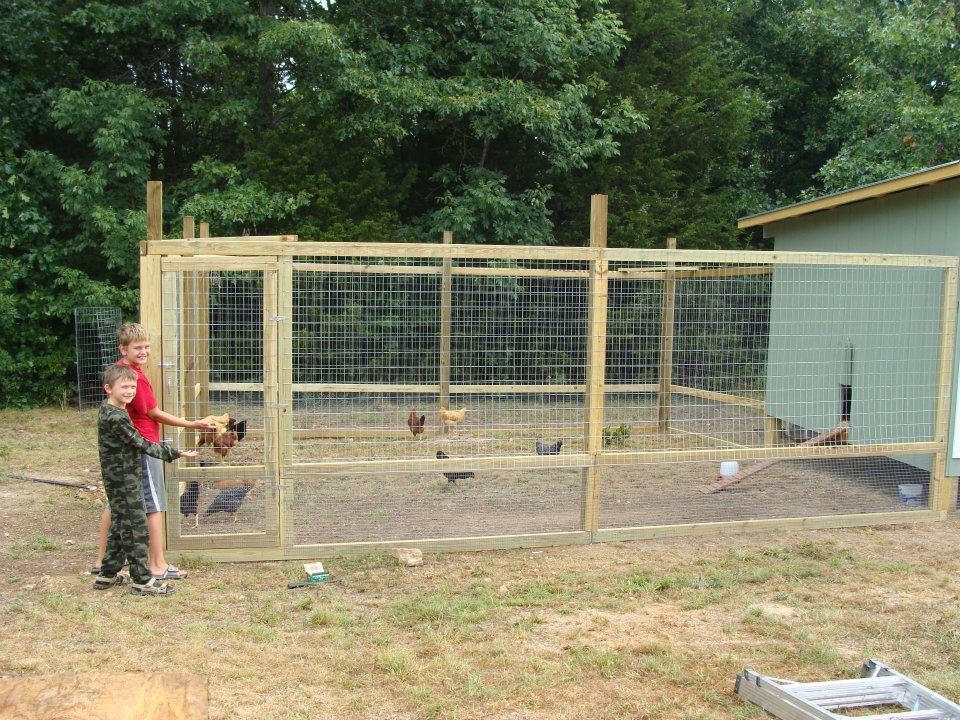

    They are so proud of our accomplishment.

    [​IMG]
    Time to cut the tops of all the posts and install the center post, framework, and wire over the top of the run.

    [​IMG]

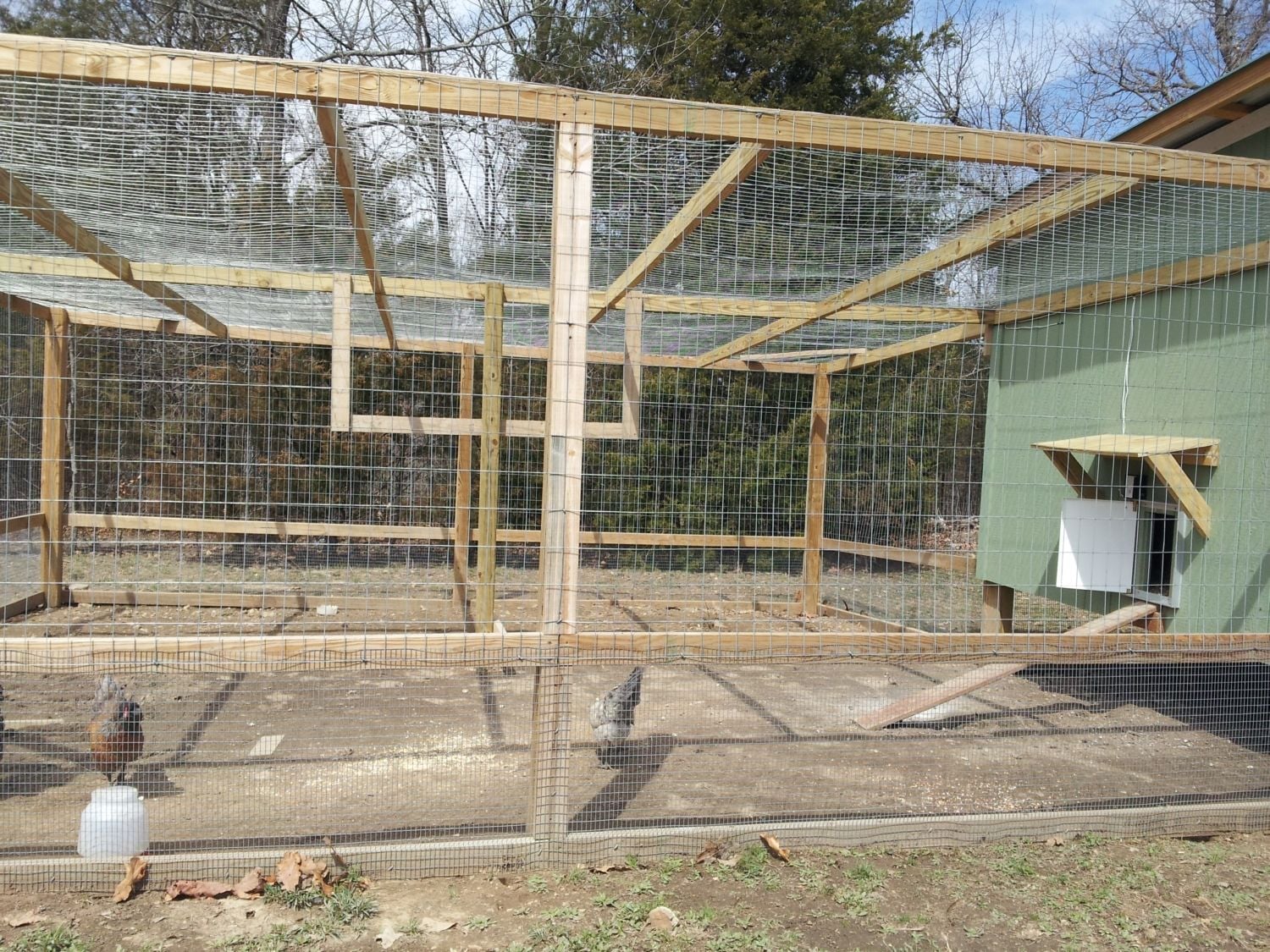

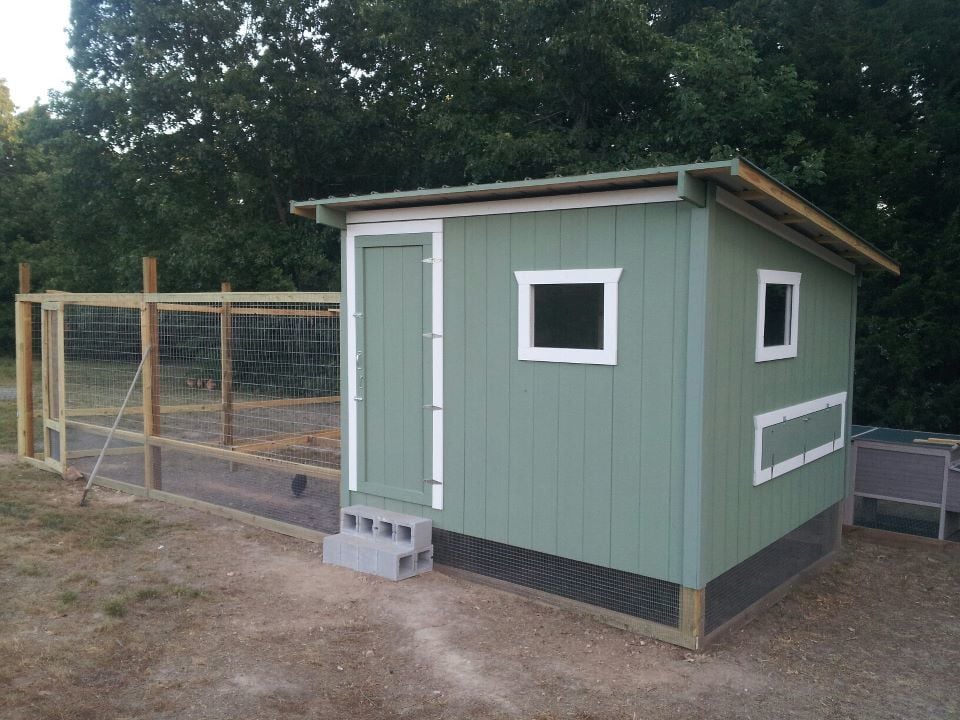

    The girls and Slick (our Brown Leghorn Rooster) have almost 600 square feet. A 500 sq ft run counting the 100 sq ft that is under the 10'x10' coop. 1"x4" trim boards around the doors, windows, corner, and top. We left a 1 1/2" vent all the way around the top of the coop for ventilation. Placed vinyl down inside the 3'x10' entry way/dry storage area. The windows are 18"x24" heavy plexiglas. We attached a separate latch to the door to keep it open to help prevent the flock from overheating on those hot summer days. The run is 7 feet high and is now fully enclosed. I had 2 extra pressure treated 2x4's left over so I made a "field goal shaped" roost for them to play on out in the run. I recently added a solar powered automatic door and built a small awning above the door to prevent snow and ice build up from preventing it's proper operation.

    [​IMG]

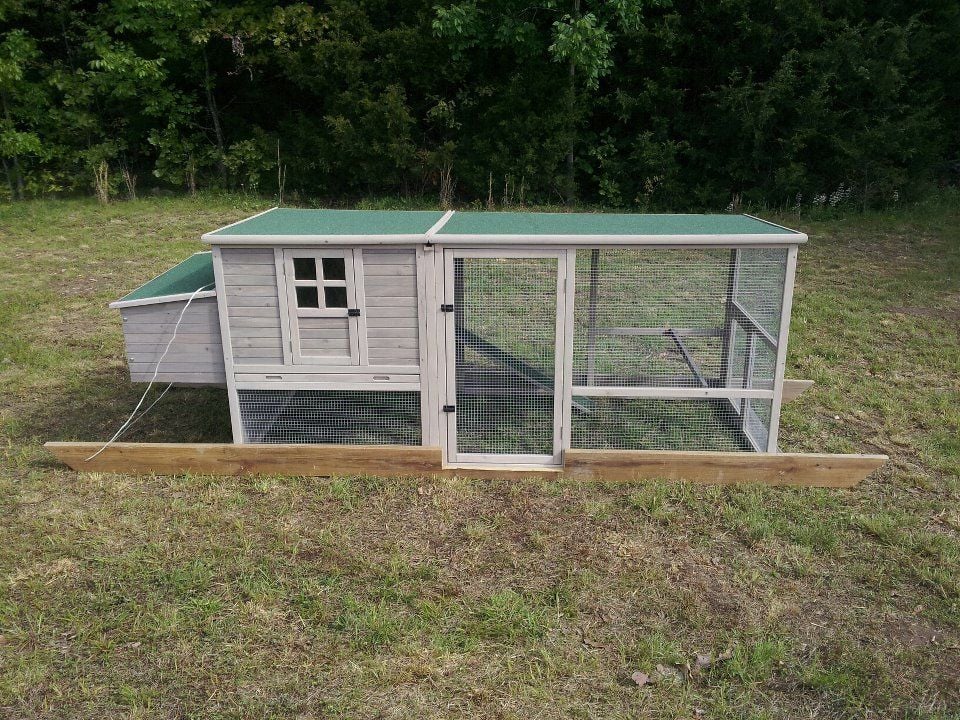

    We bought this kit and made some modifications to it by adding some skids and a pull rope. This is where they spent the first 3 months of their lives and now it sits behind the main coop and will be used as a brooder, we are planning to hatch out and raise some additional chicks to increase our flock this spring.

    [​IMG]
    Slick, the undisputed "Cock of the Walk"

    Thanks for viewing our family project!!!
