Purina Inspired Coop

By fused1013, Sep 19, 2013 | Updated: Sep 19, 2013 | | |
  1. fused1013
    I say inspired because we changed quite a bit on it. We started out with a budget of $250. We did not make it, we came in at around $400. (and we used a lot of lumber etc. we already had here). The only nails we used were on the shingles, everything else was screwed.
    [​IMG]
    This is to house 5 pullets (hopefully) currently in the house that I will probably be putting out on Tuesday. We extended the plans to 4'x 8' to include an attached run which we tried to make as "fortress-like" as possible. We made the nest box 24" instead of 36" and I'm not exactly sure how my husband did the roof framing but it made the venting 2" instead of 1-1/2"
    [​IMG]

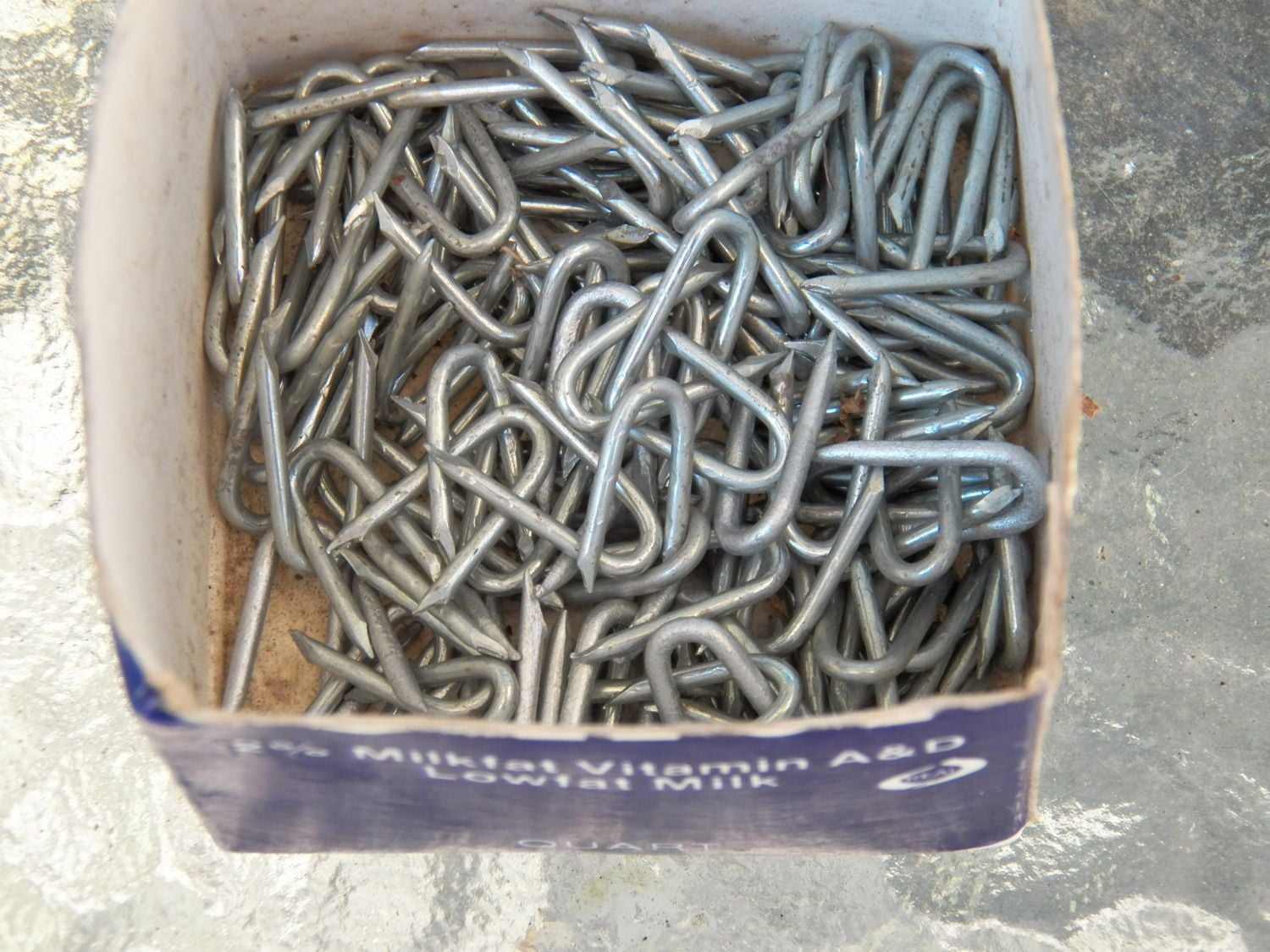

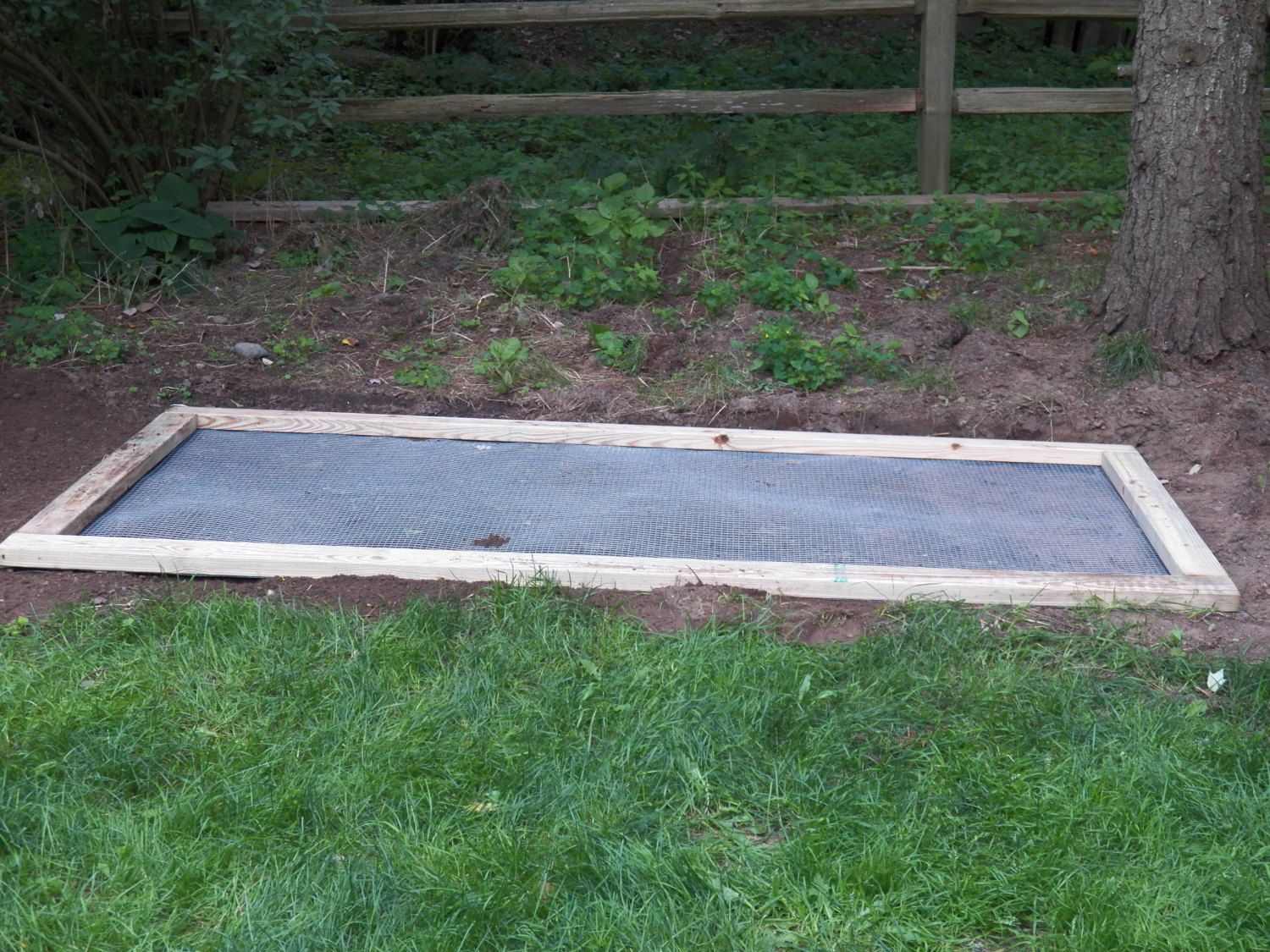

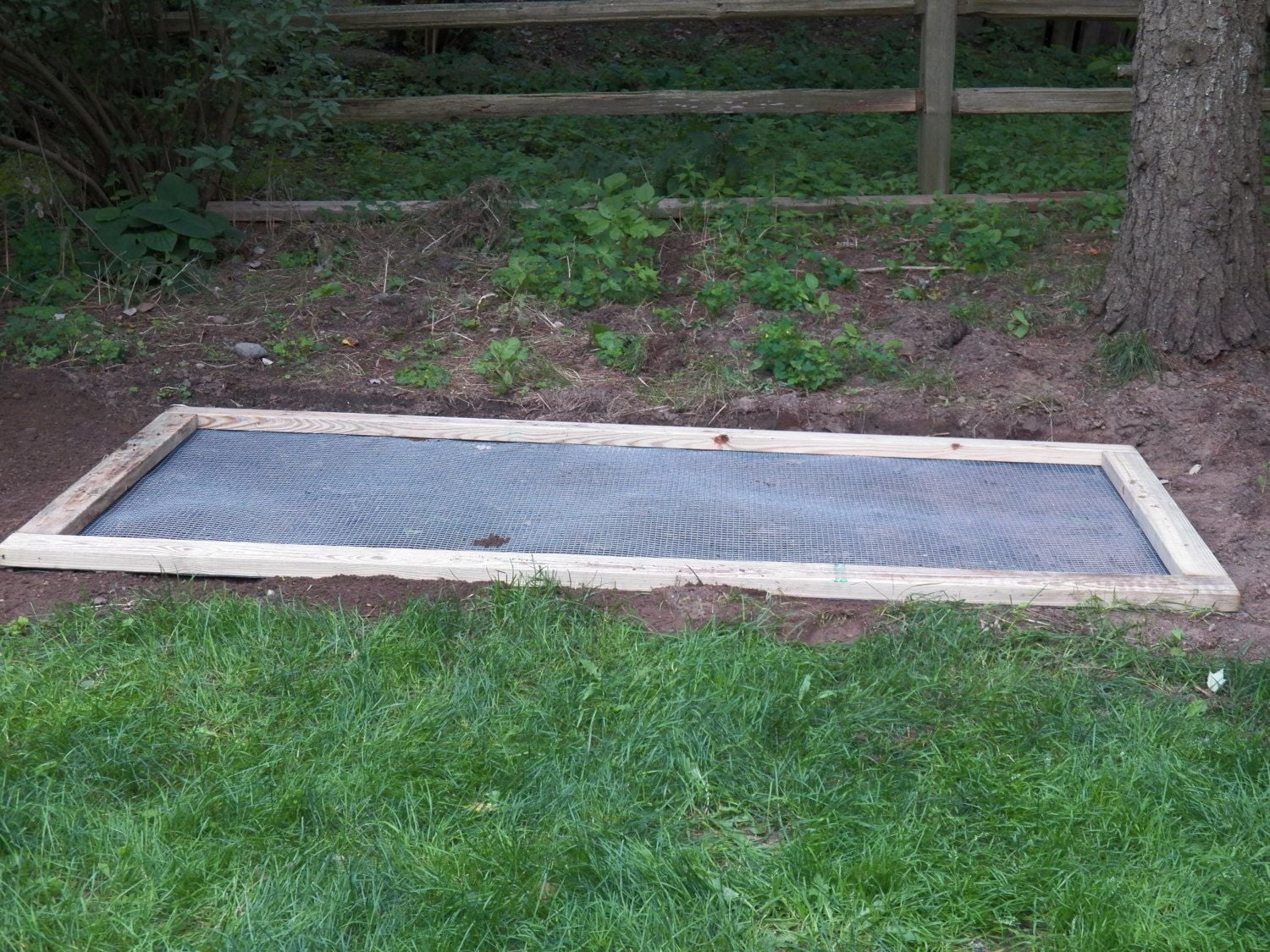

    We used treated 2"x 4"s as the base and attached the hardware cloth with fence staples (it's not that crooked I took the shot at a weird angle).
    [​IMG]
    [​IMG]

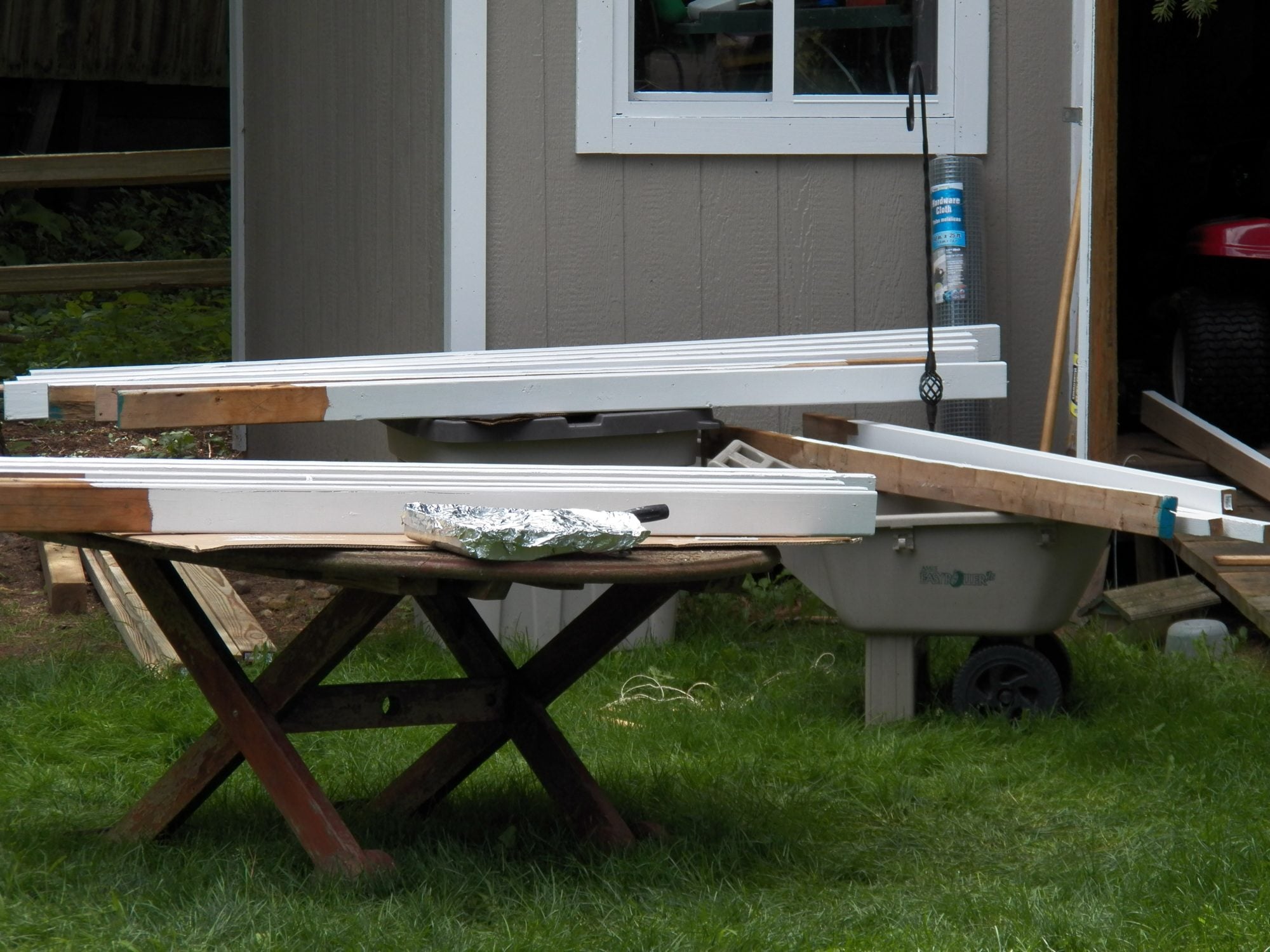

    I painted the lumber prior to construction.
    [​IMG]

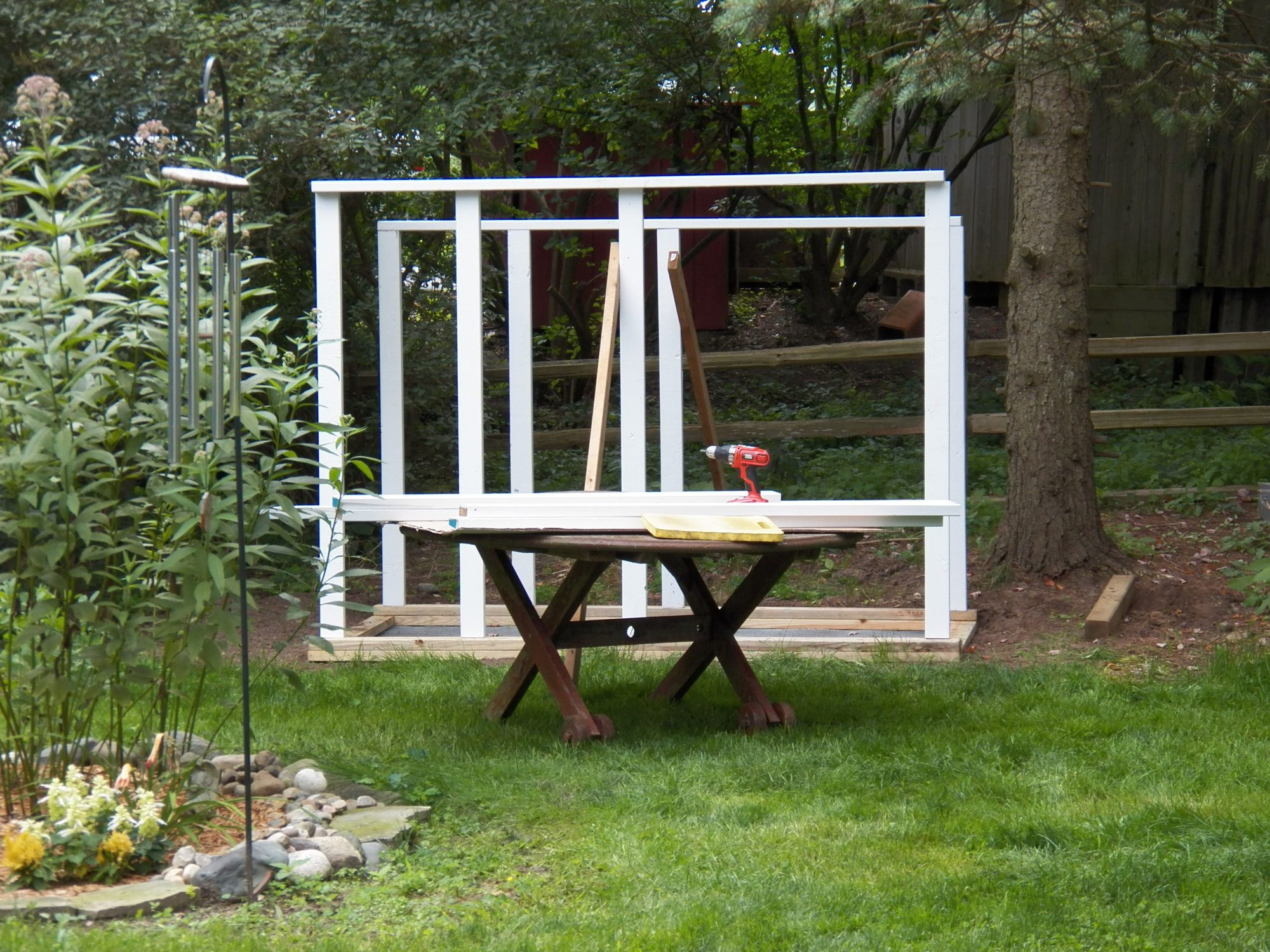

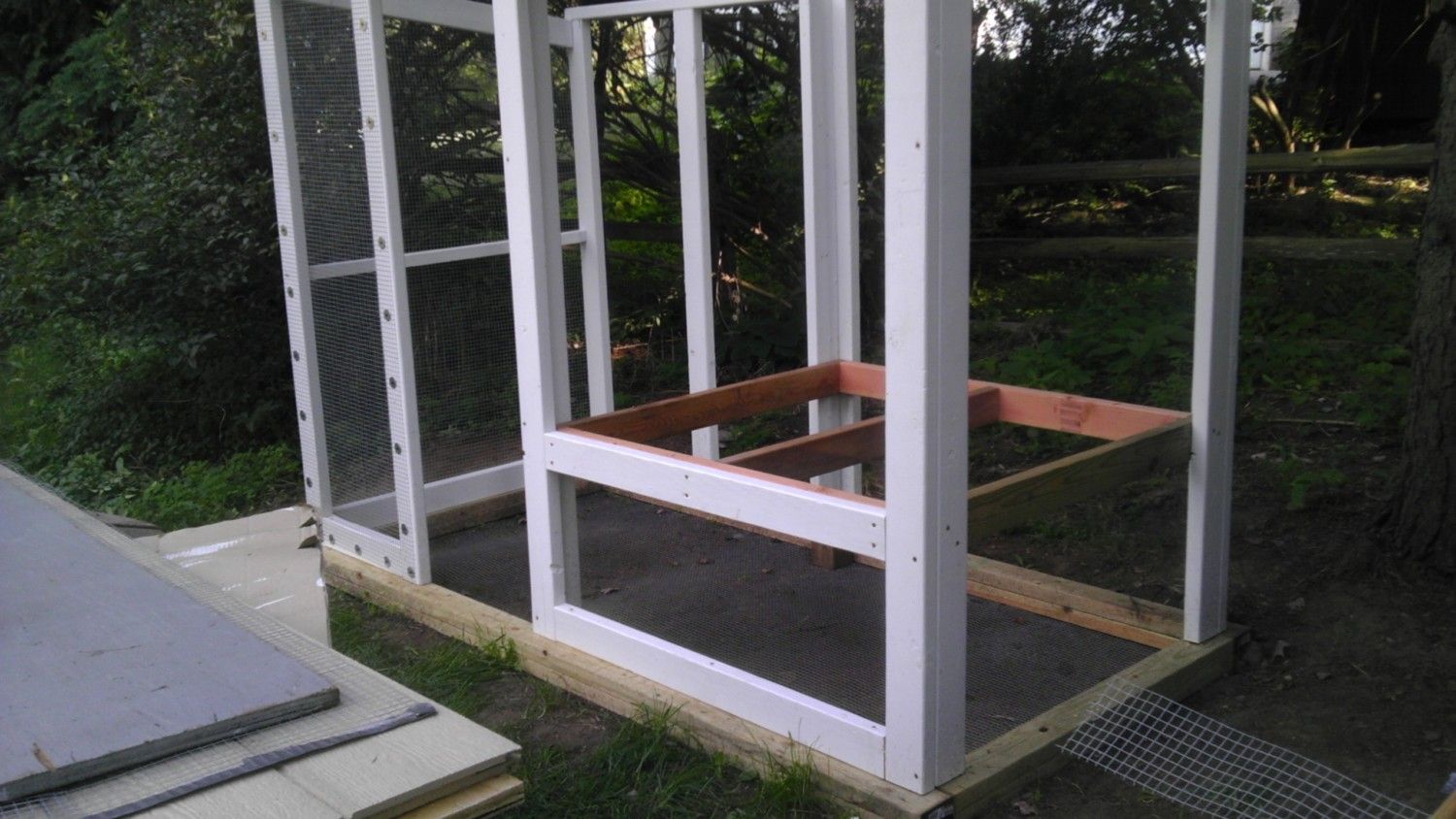

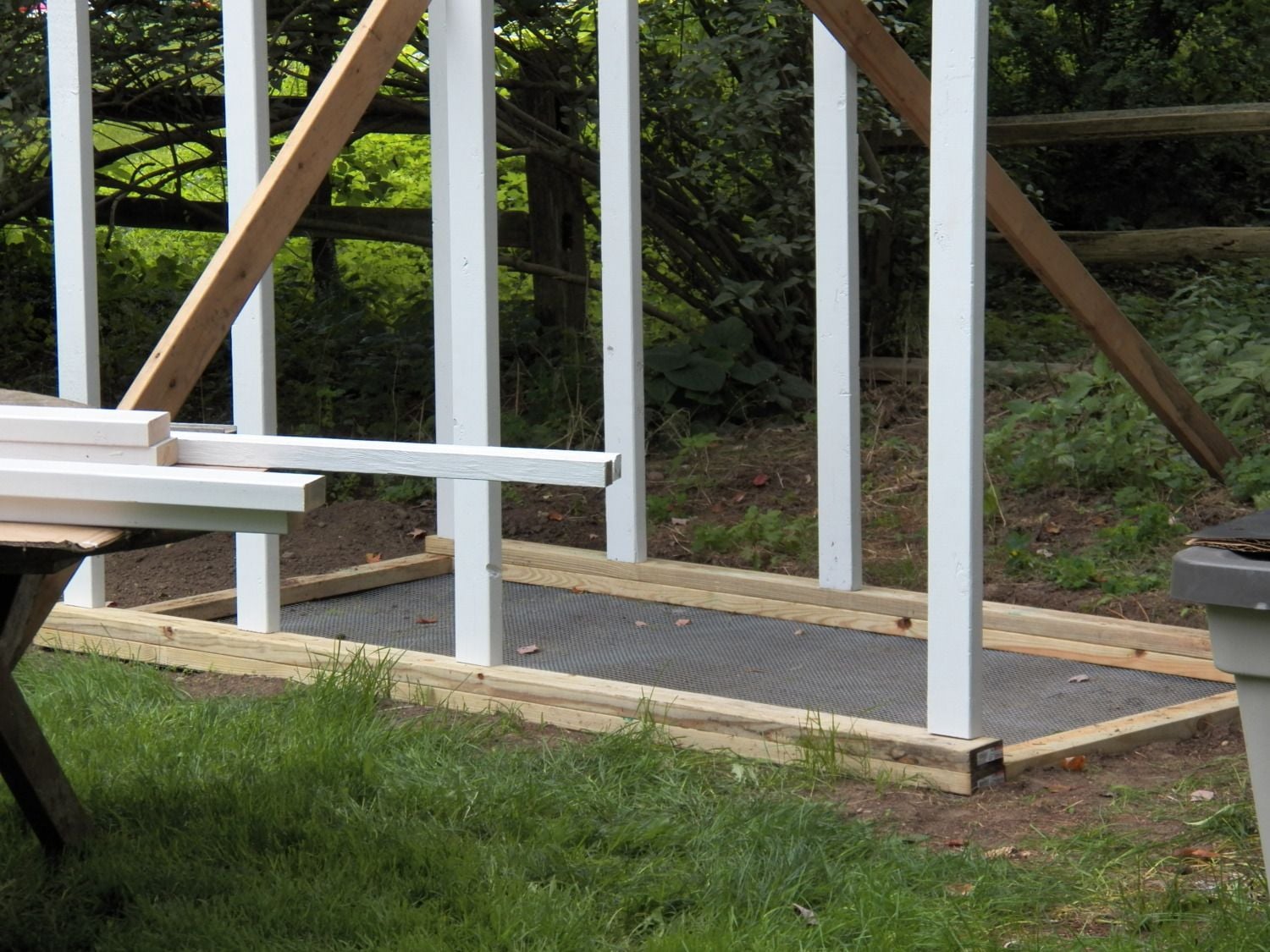

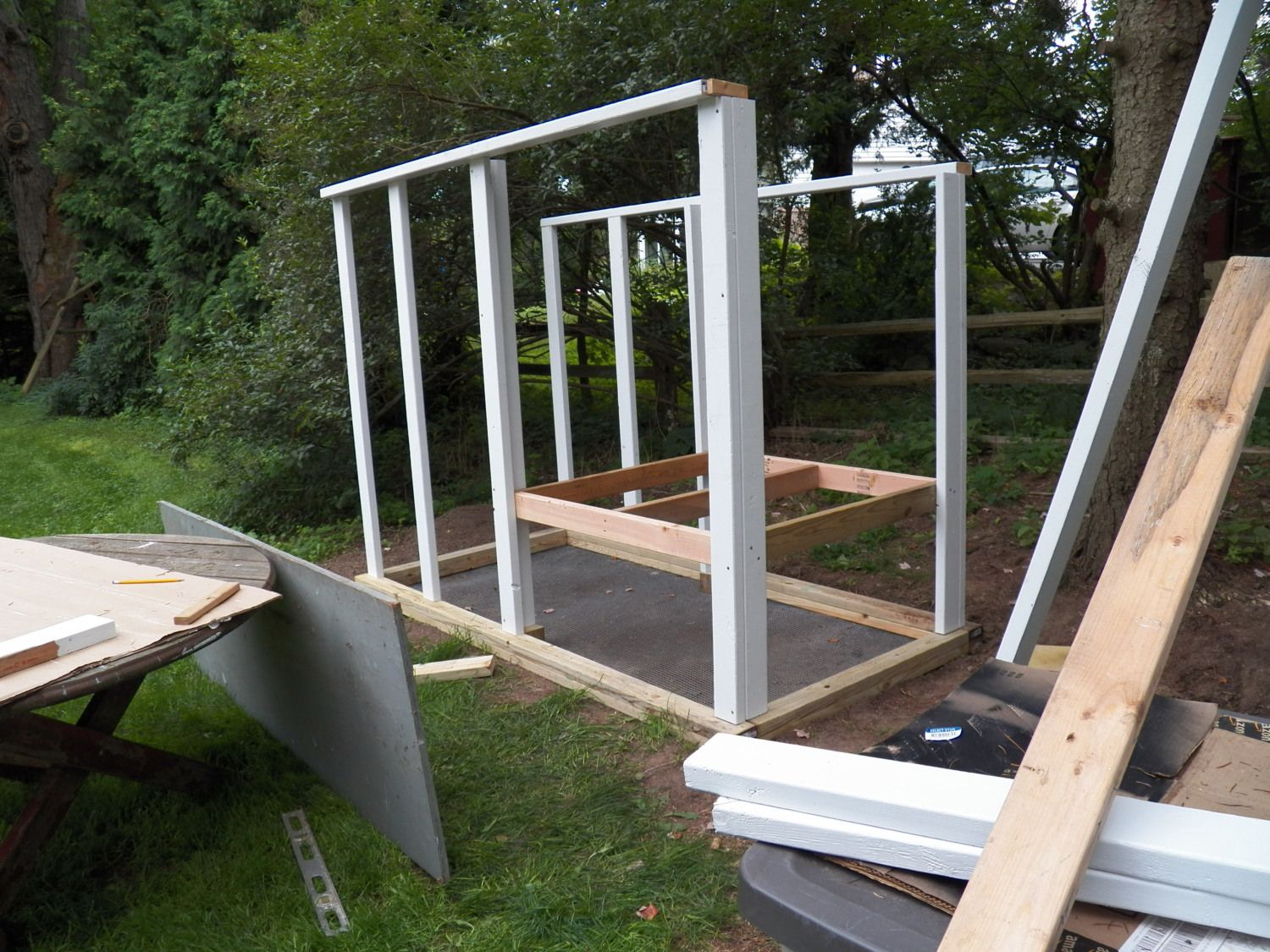

    Frame started, we constructed it on treated 2'x4's which we then attached to the bottom frame (this made it a lot easier to assemble than if we used 4'x4's)
    [​IMG]
    [​IMG]

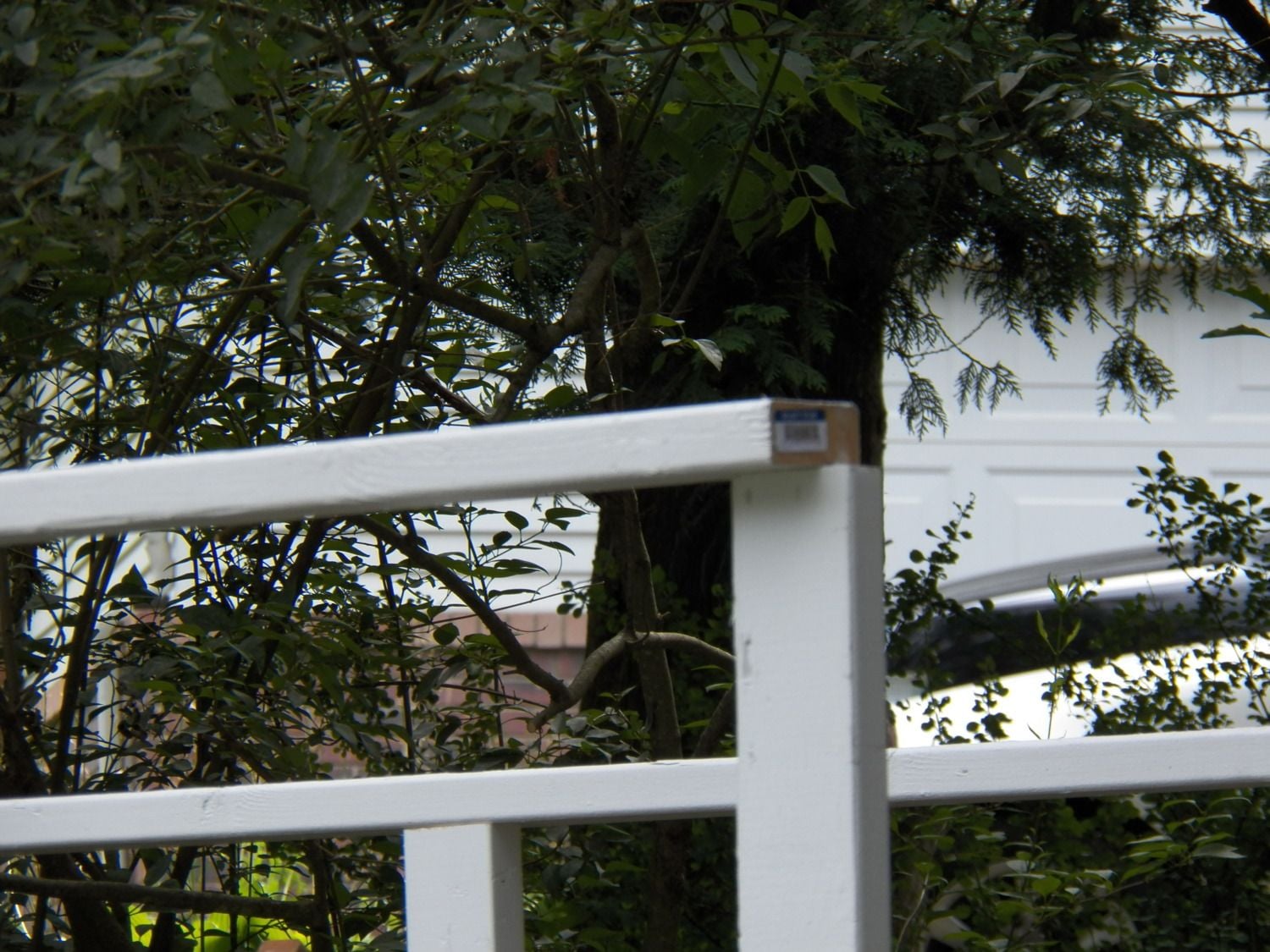

    note, we somehow bought the 92" instead of 8' (I inserted a 1"x 2" to compensate pictured further below)
    [​IMG]

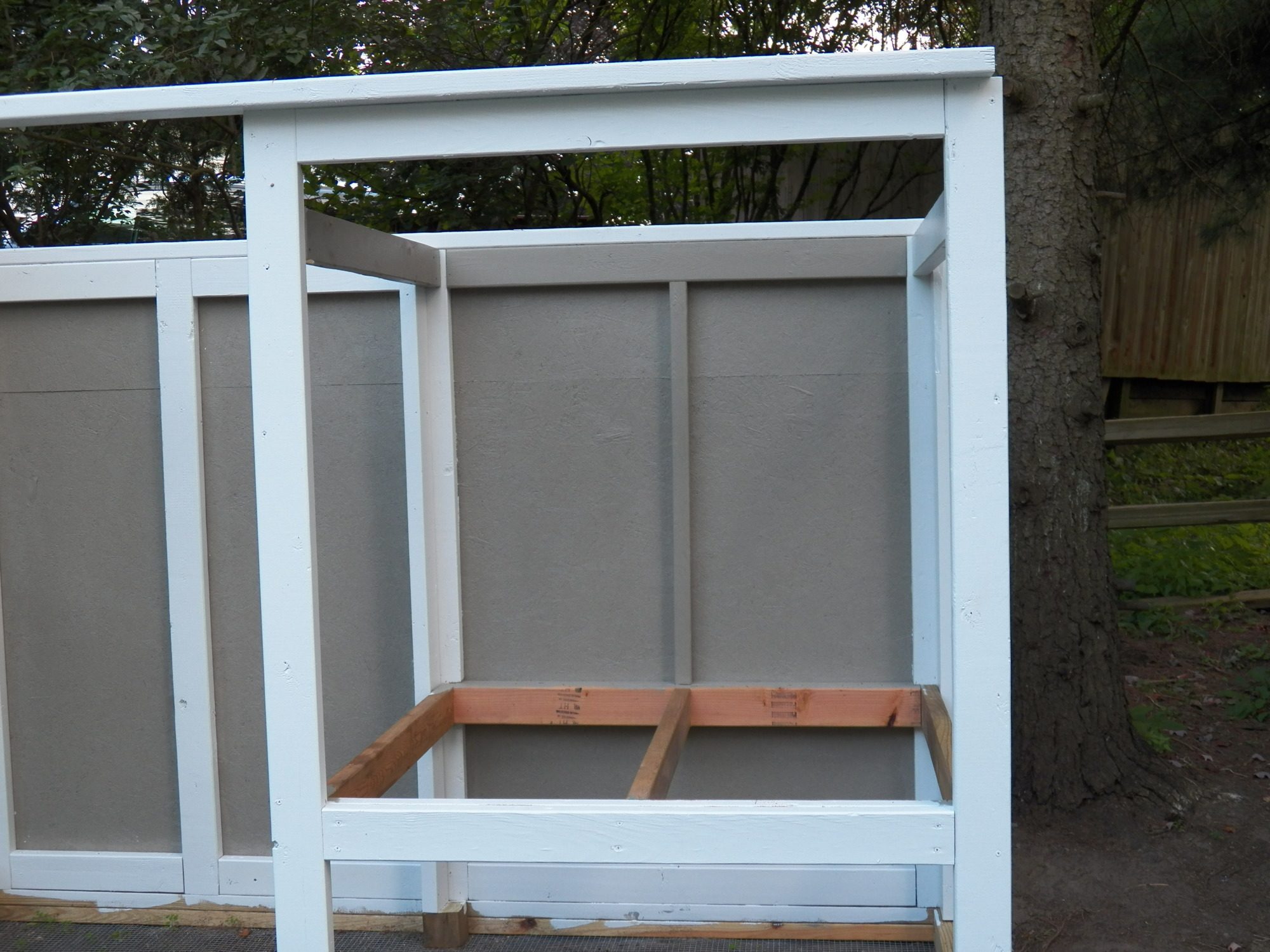

    The platform structure for the hen house.
    [​IMG]
    Getting ready for the hardware cloth, leather gloves, duct tape and aviation snips. The best way I found to deal with it is to gently roll it in the opposite direction and lengthwise as well. Be careful not to bend it too much it will weaken it.
    [​IMG]

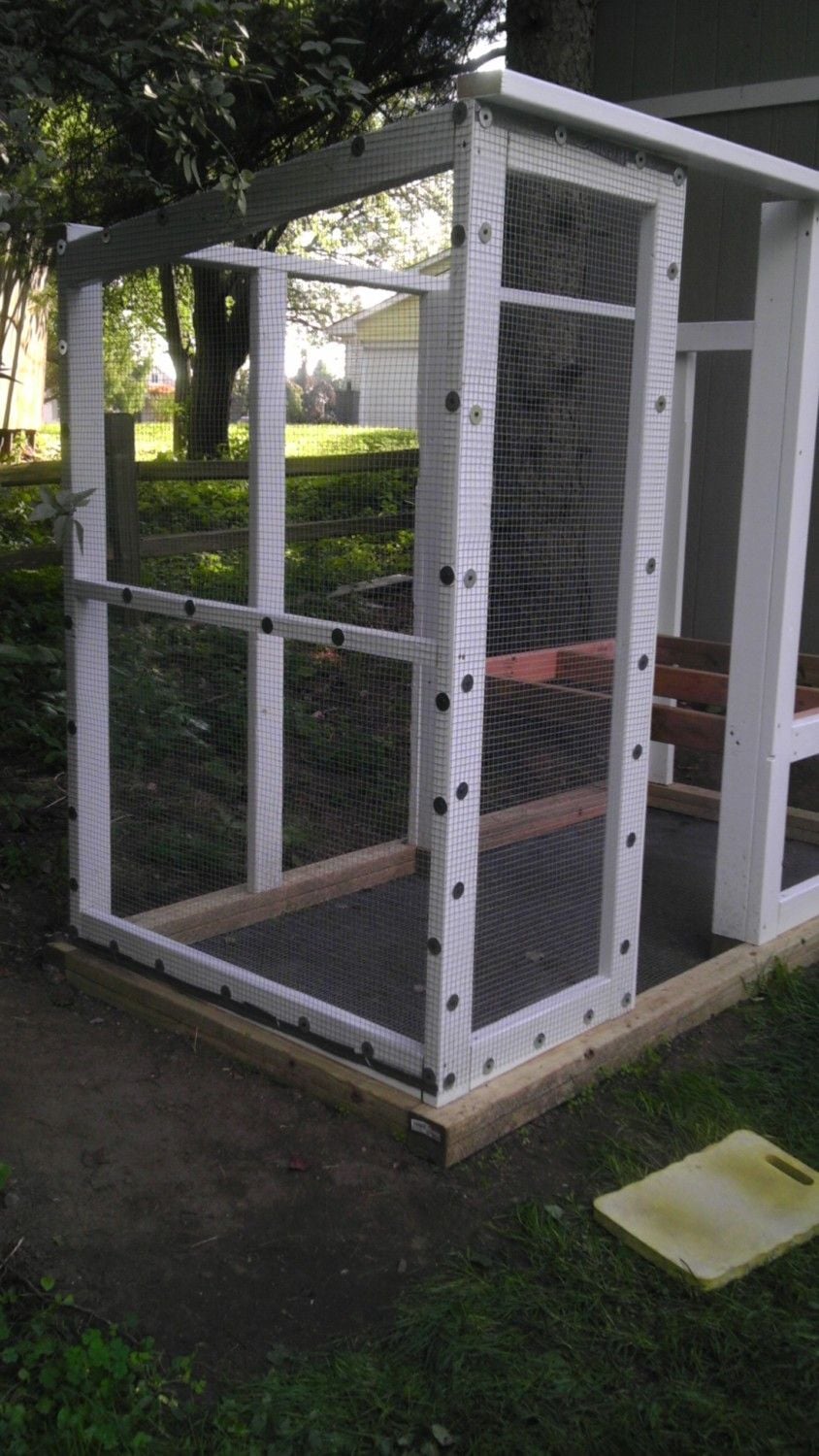

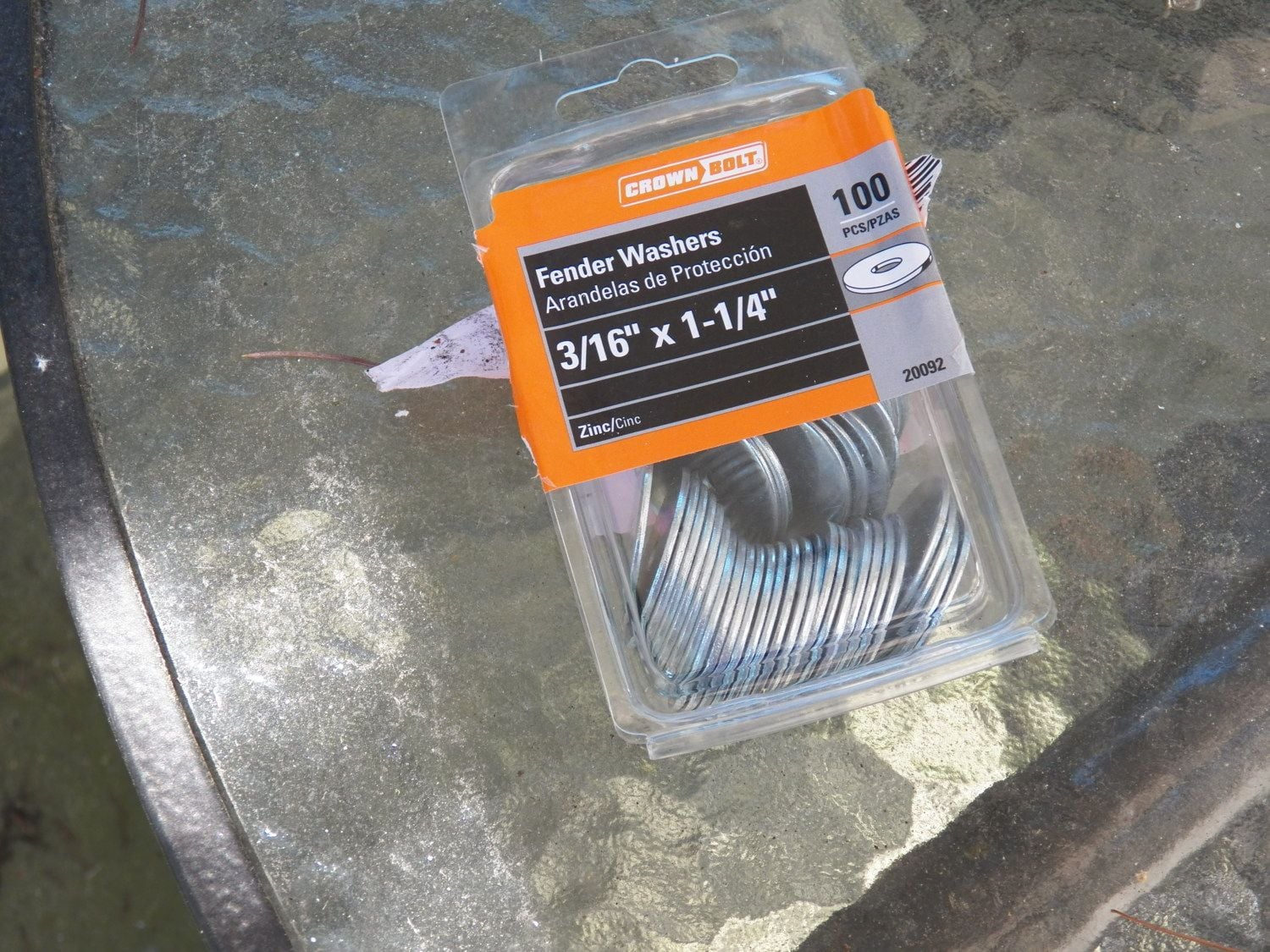

    up on 2 sides, we used fender washers (they were about $17.00 for 100).
    [​IMG]
    It also helps a LOT to have 2 people put it up.
    [​IMG]
    [​IMG]

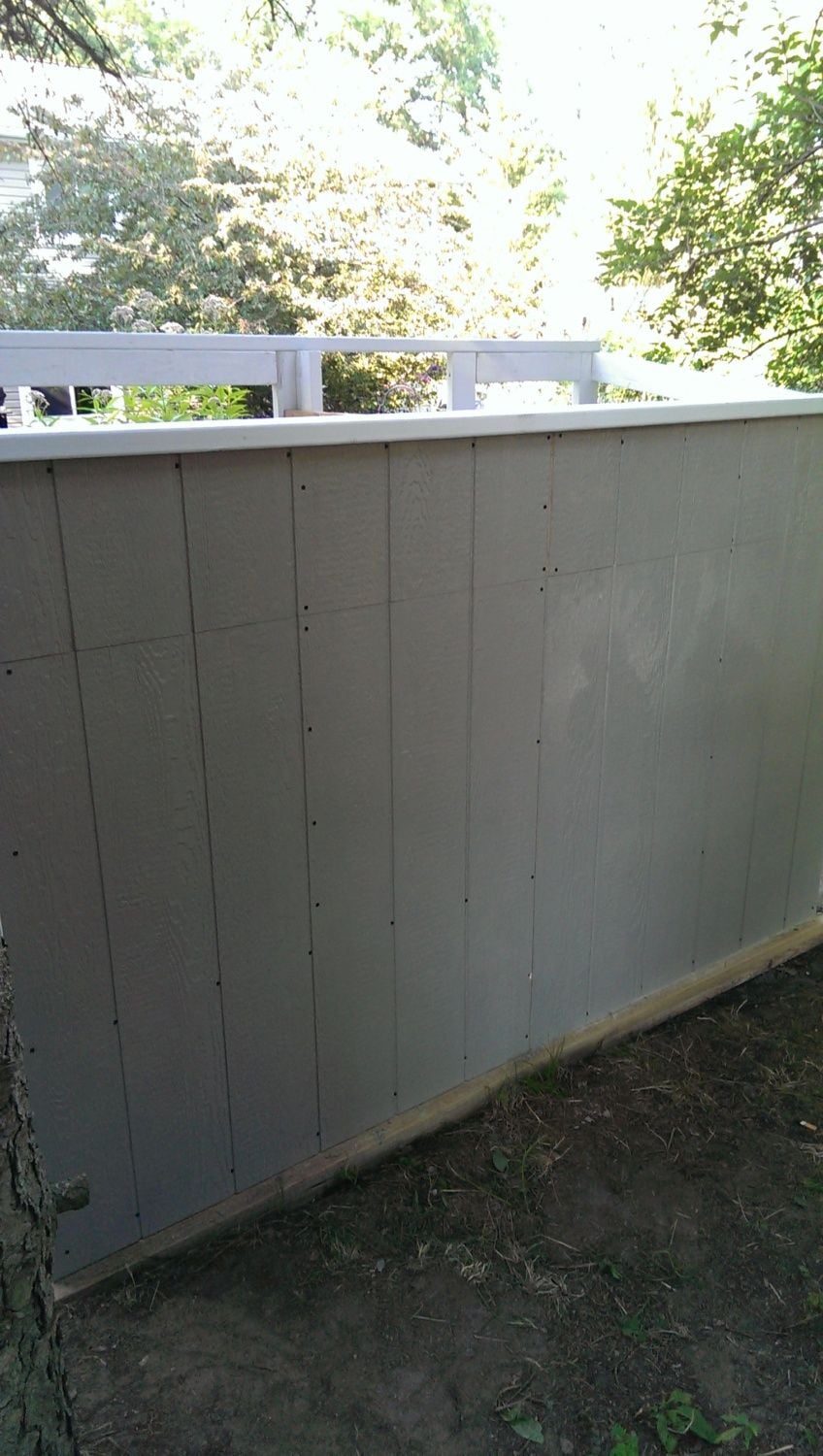

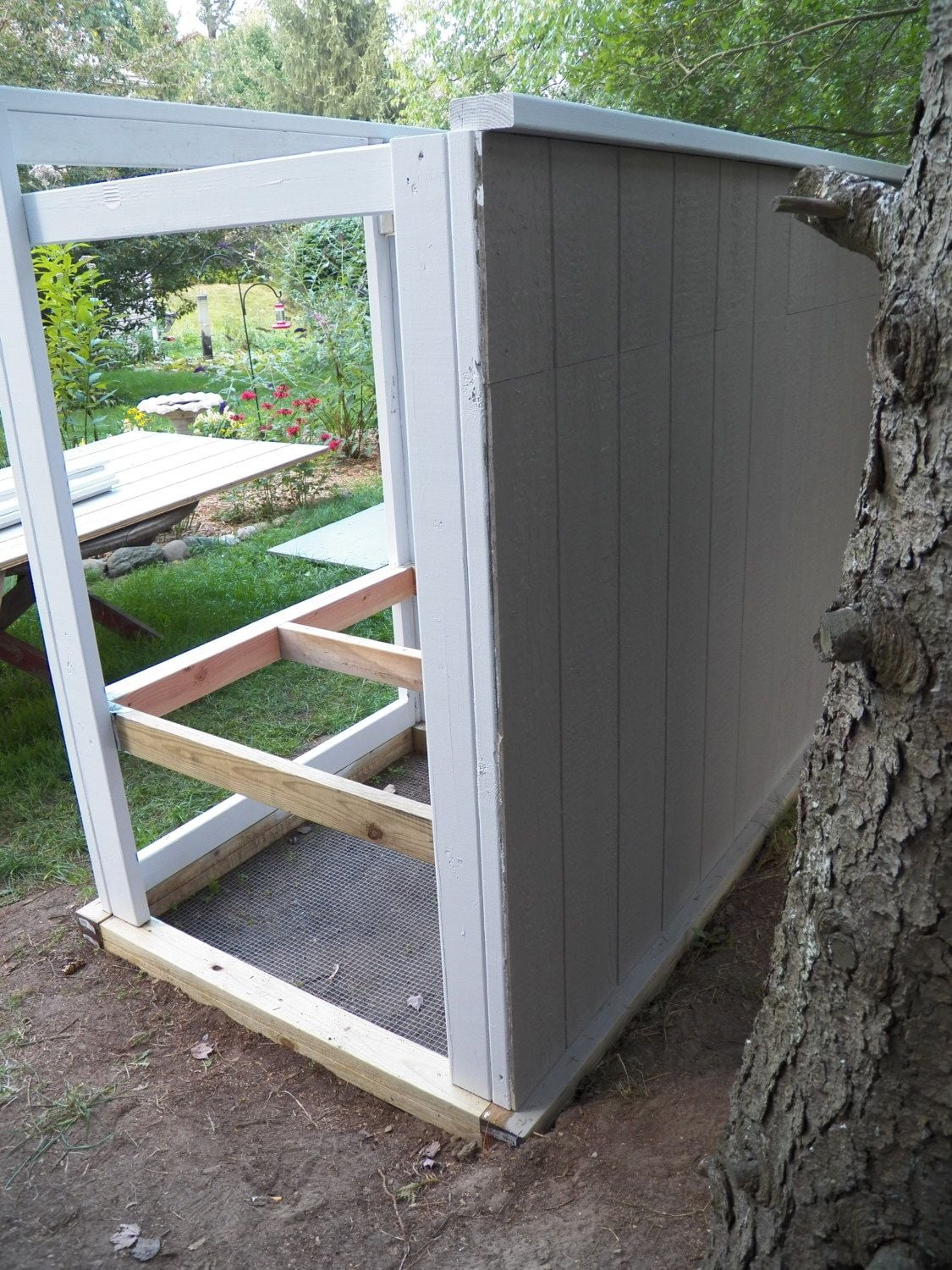

    we sided the whole back with smart siding that I pre-painted.
    [​IMG]

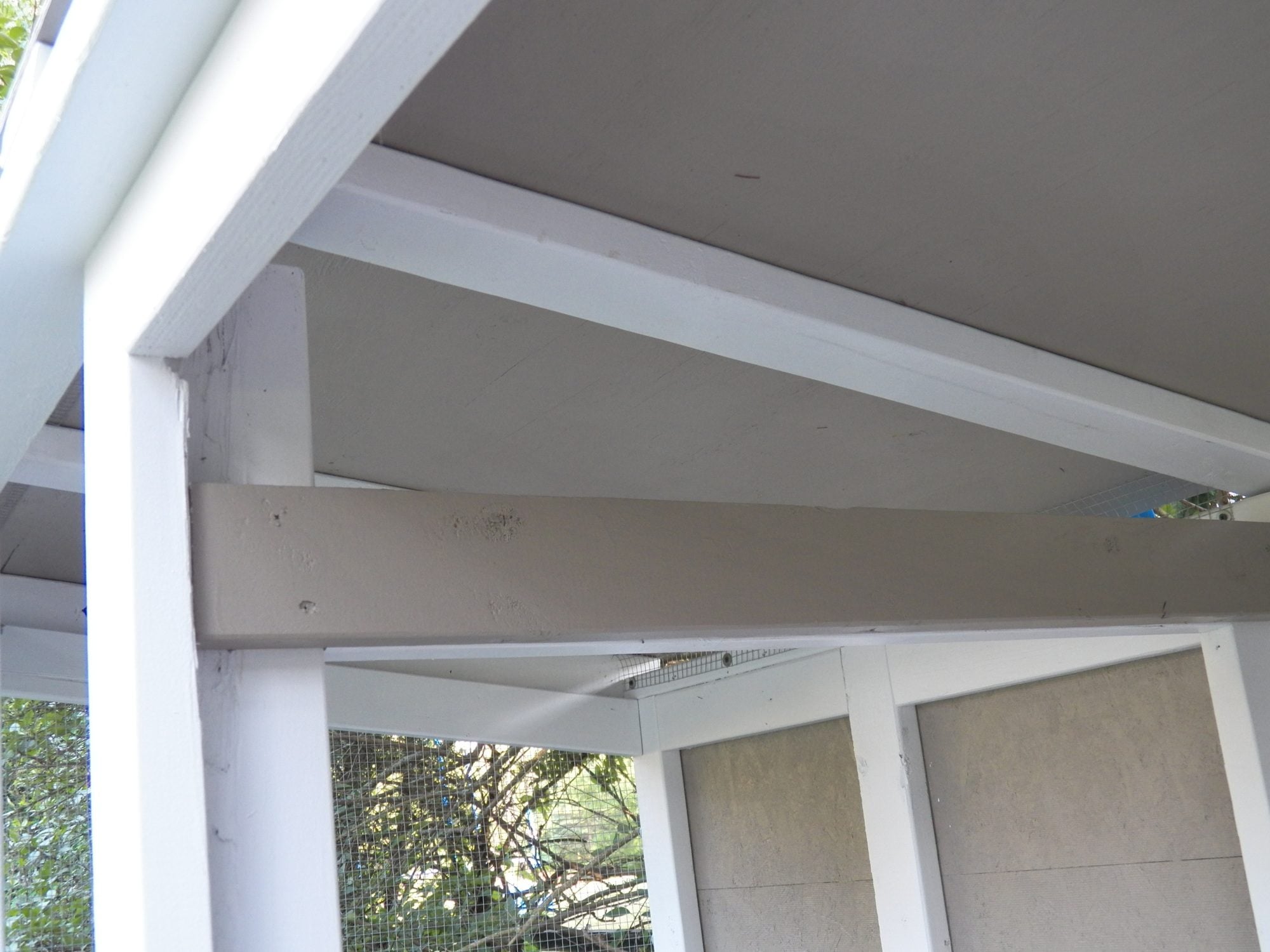

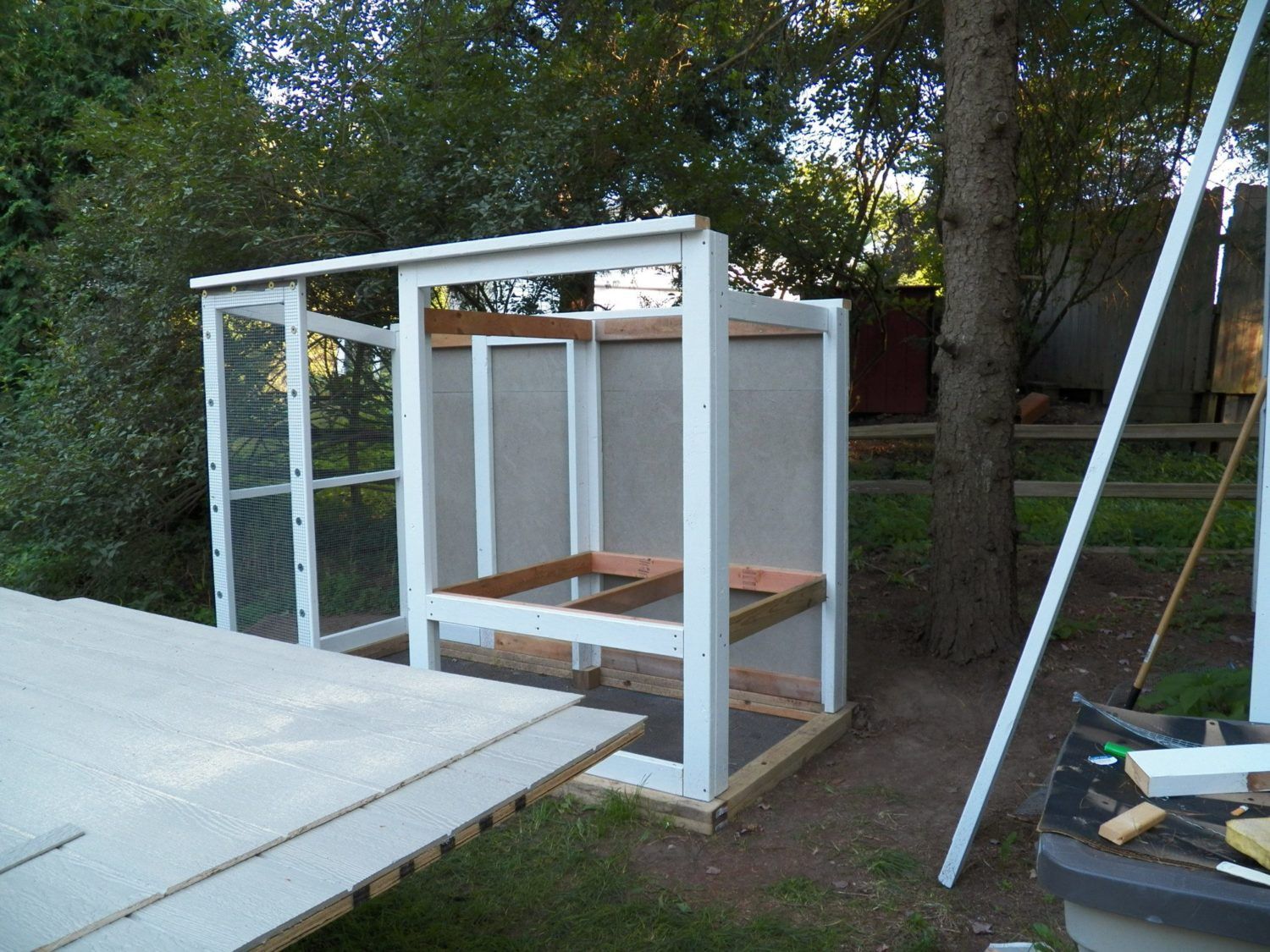

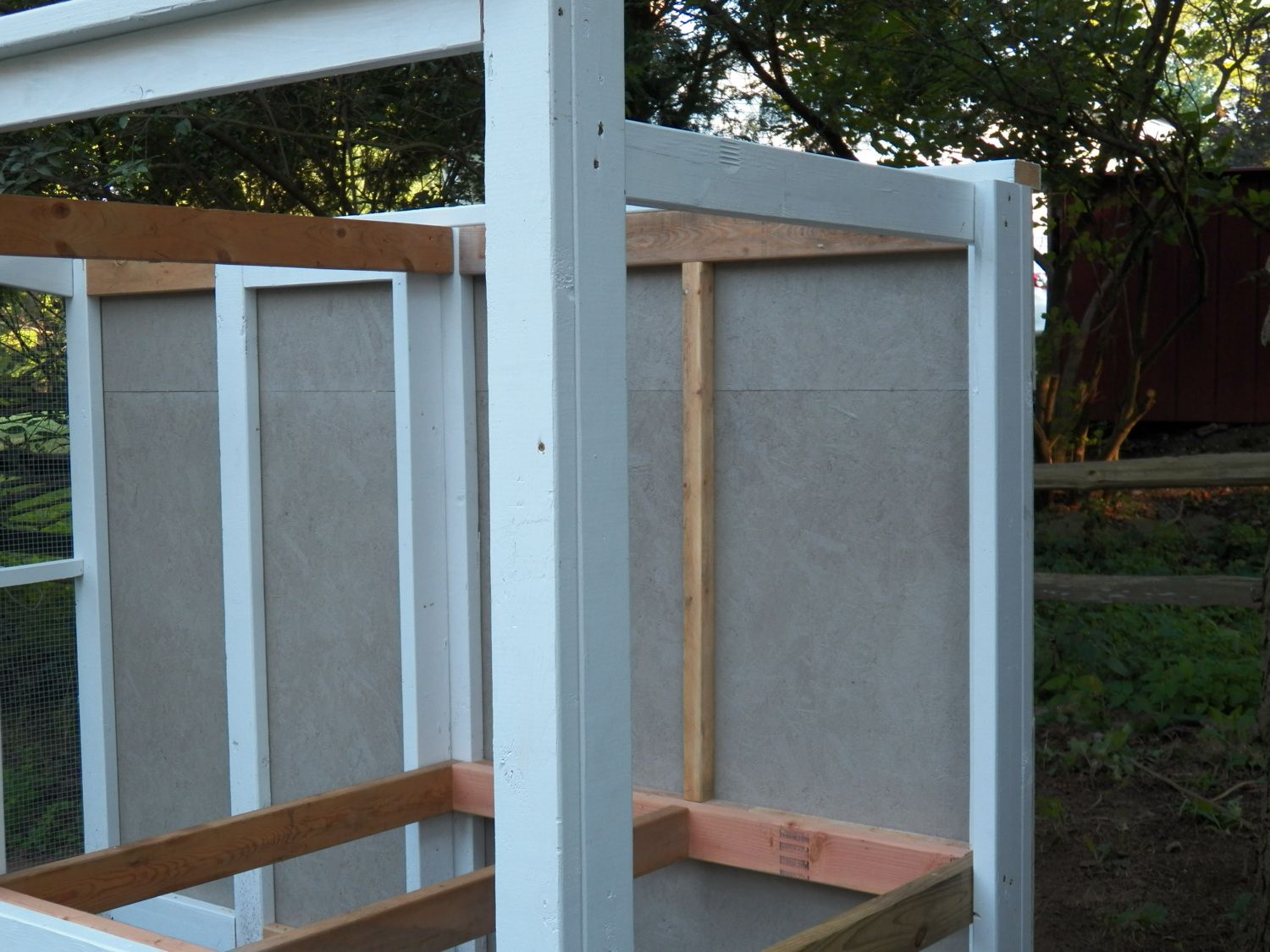

    more framing, the back 2"x 2" is to add support to the pieced siding in the hen house.
    [​IMG]
    [​IMG]
    backside
    [​IMG]

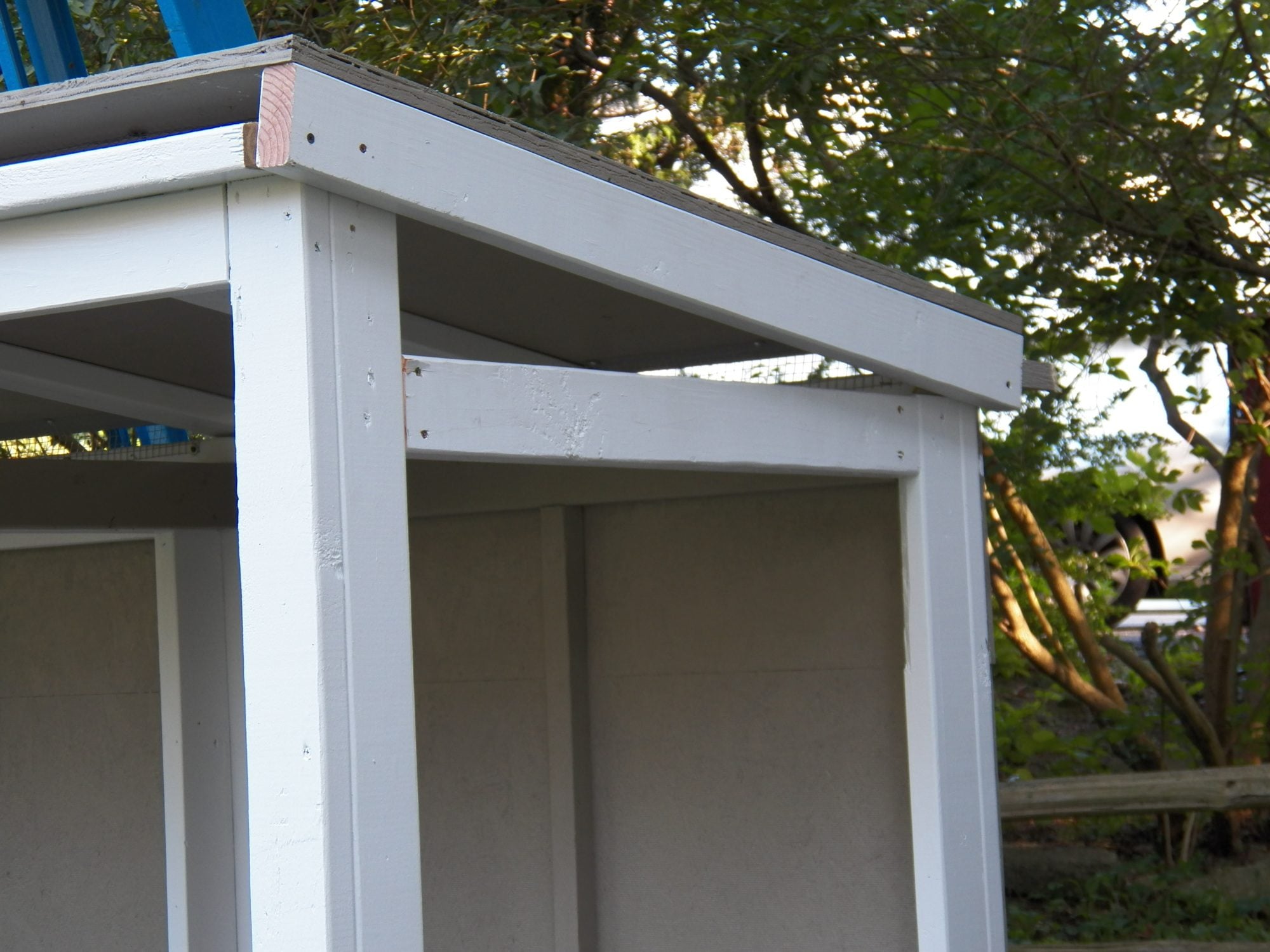

    side view
    [​IMG]
    painted the rest of the trim
    [​IMG]

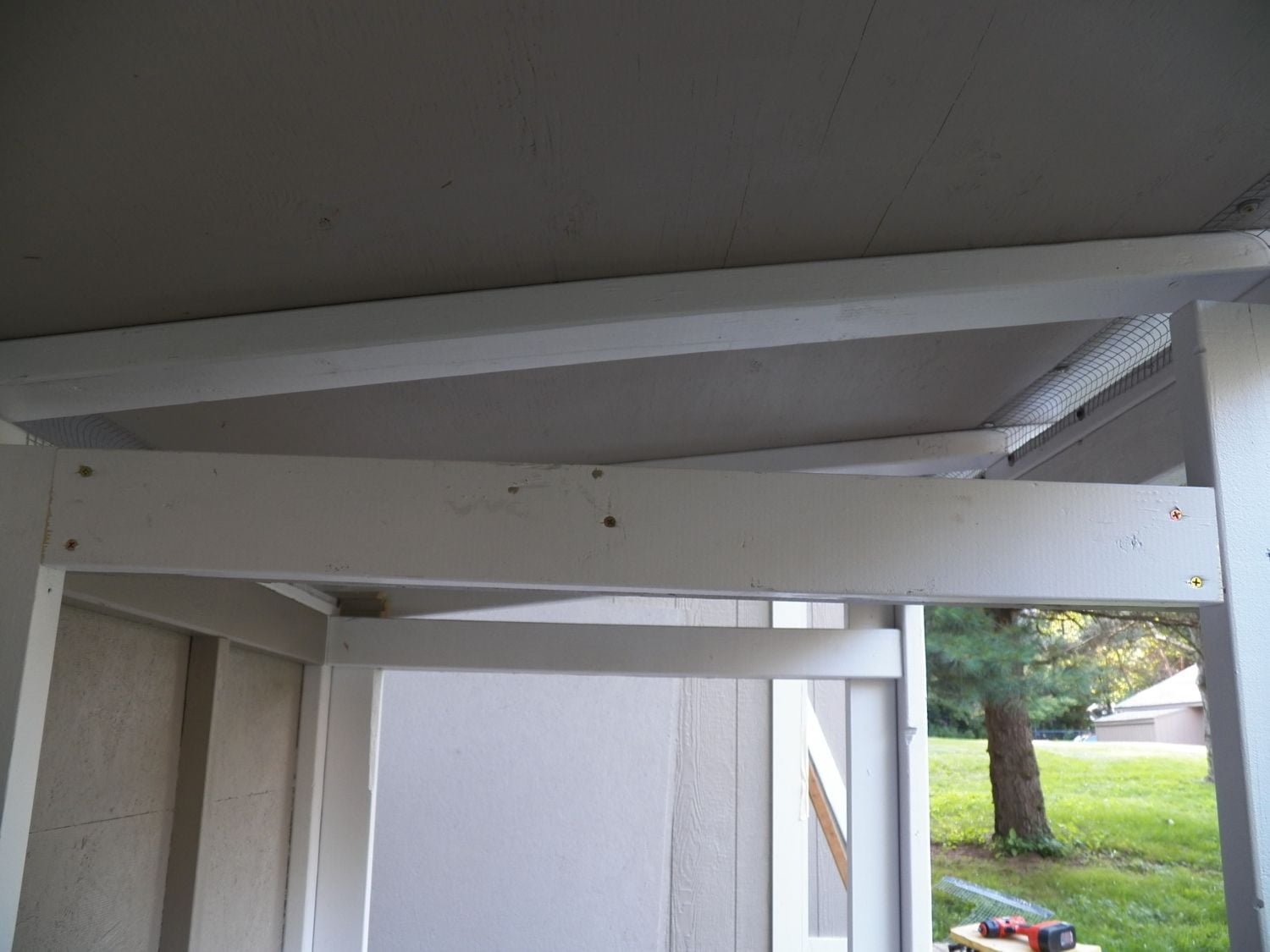

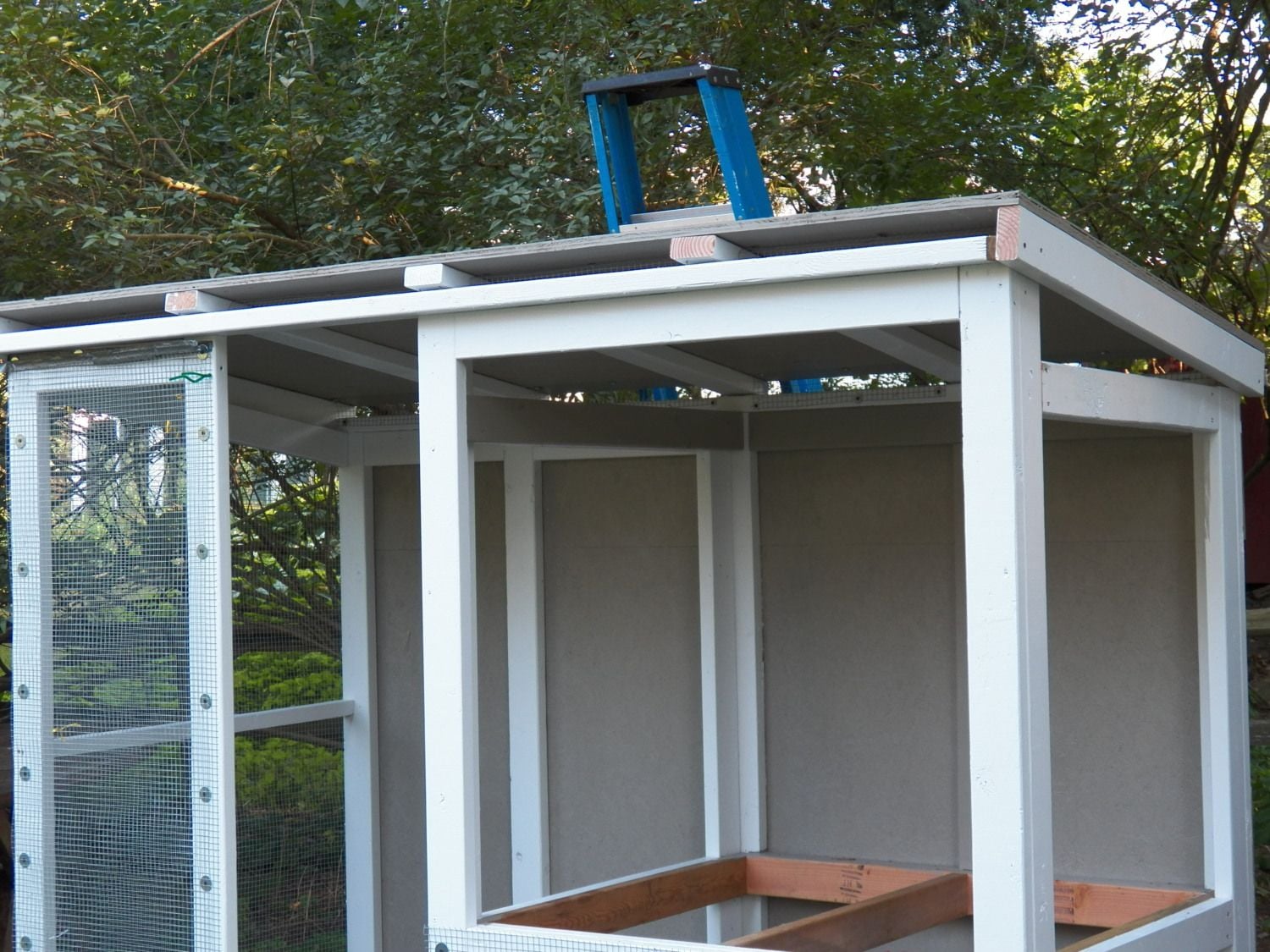

    roof structure up, I painted the inside portion of the plywood
    [​IMG]

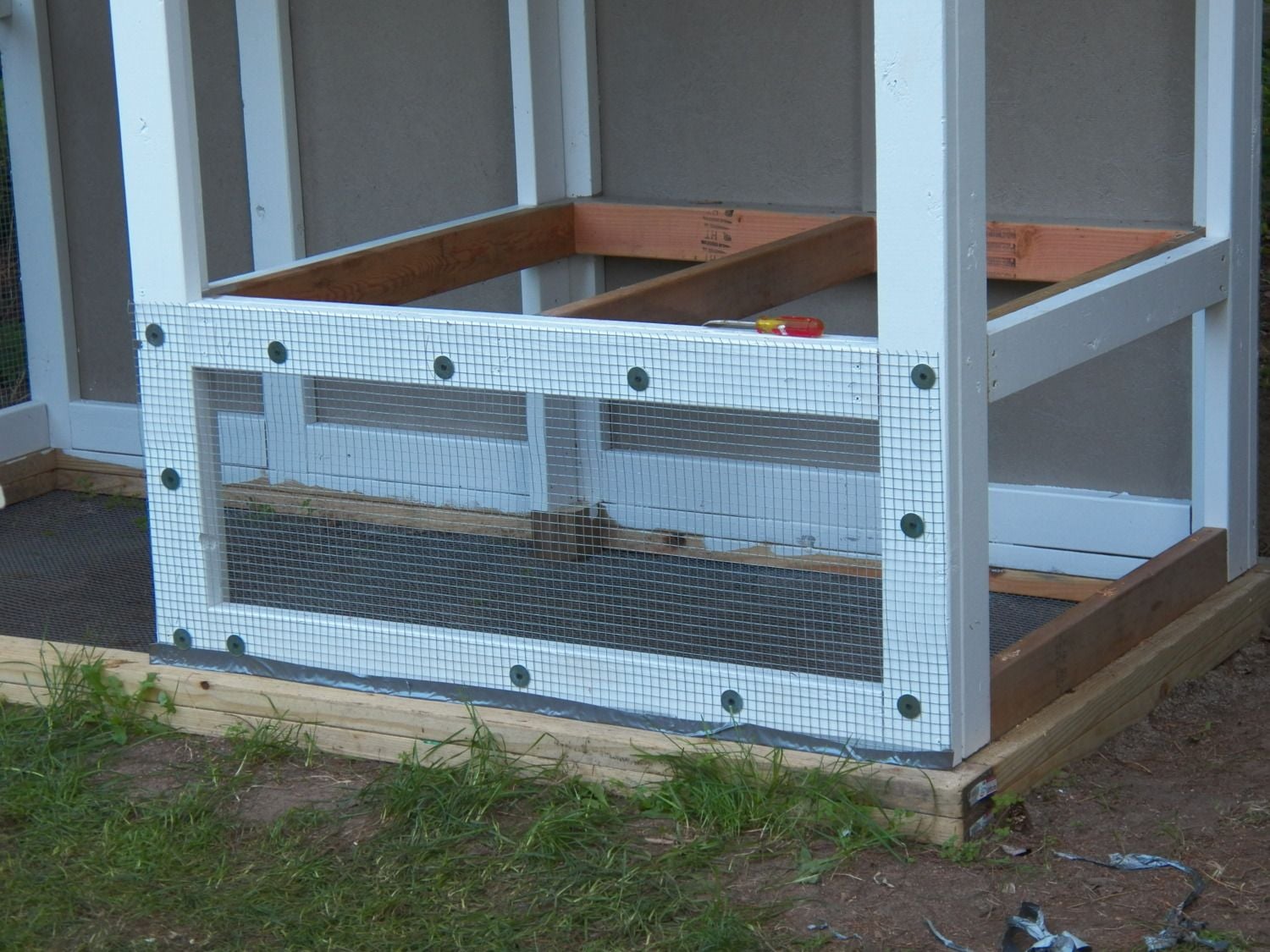

    bottom front hardware cloth
    [​IMG]
    hen house side support
    [​IMG]
    other side
    [​IMG]

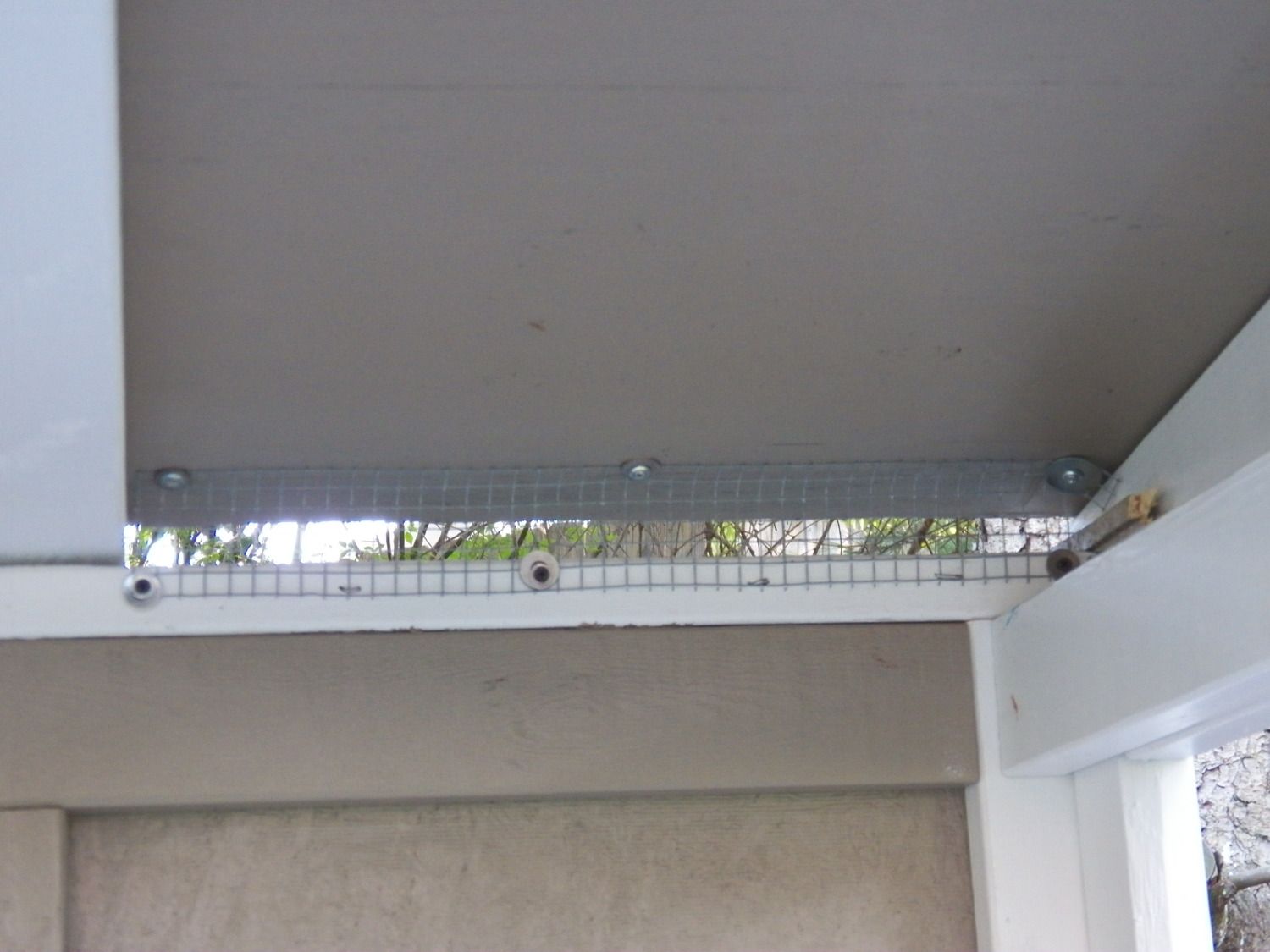

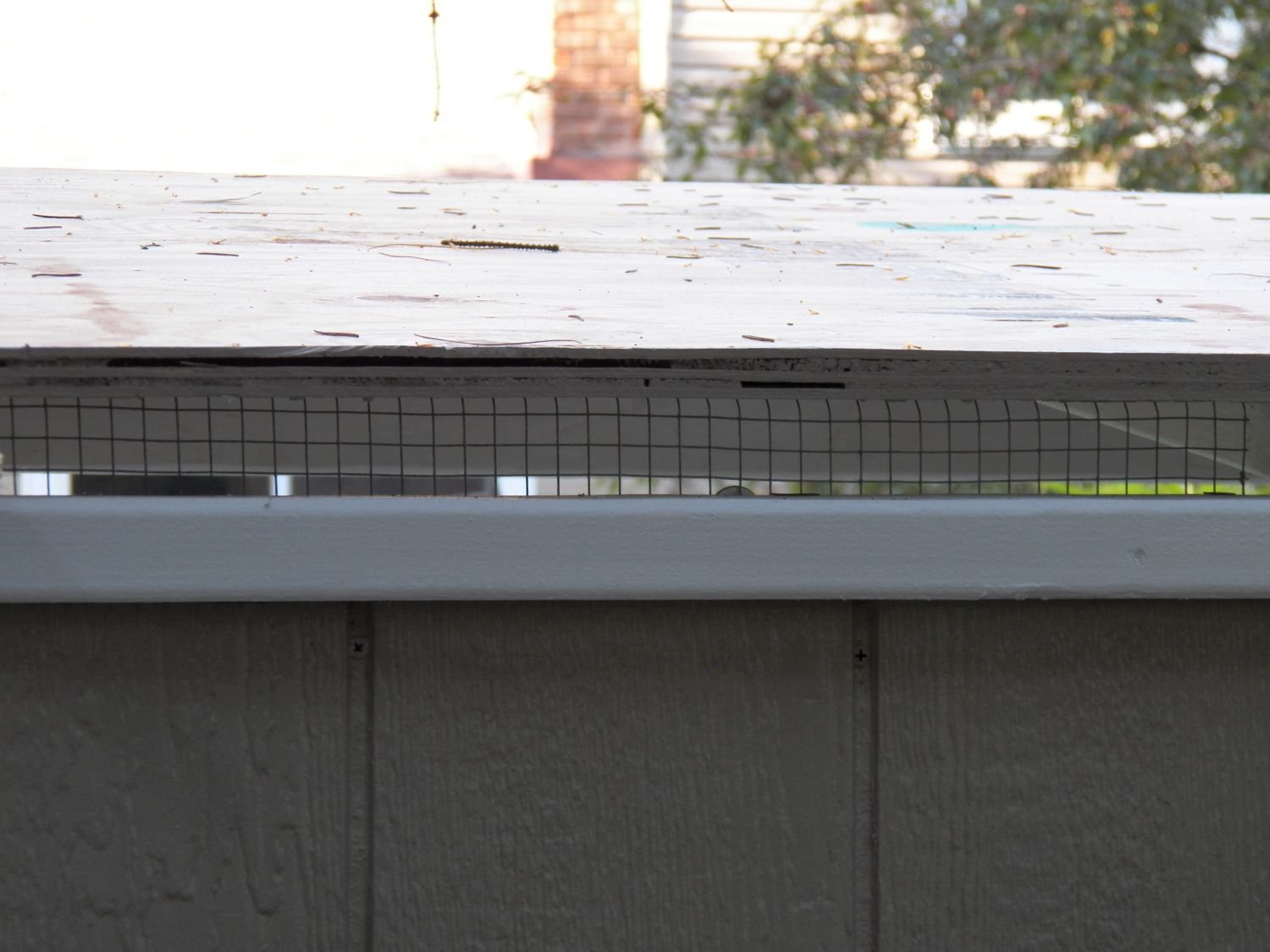

    hardware cloth on venting
    [​IMG]
    close-up of the back-side of vent
    [​IMG]

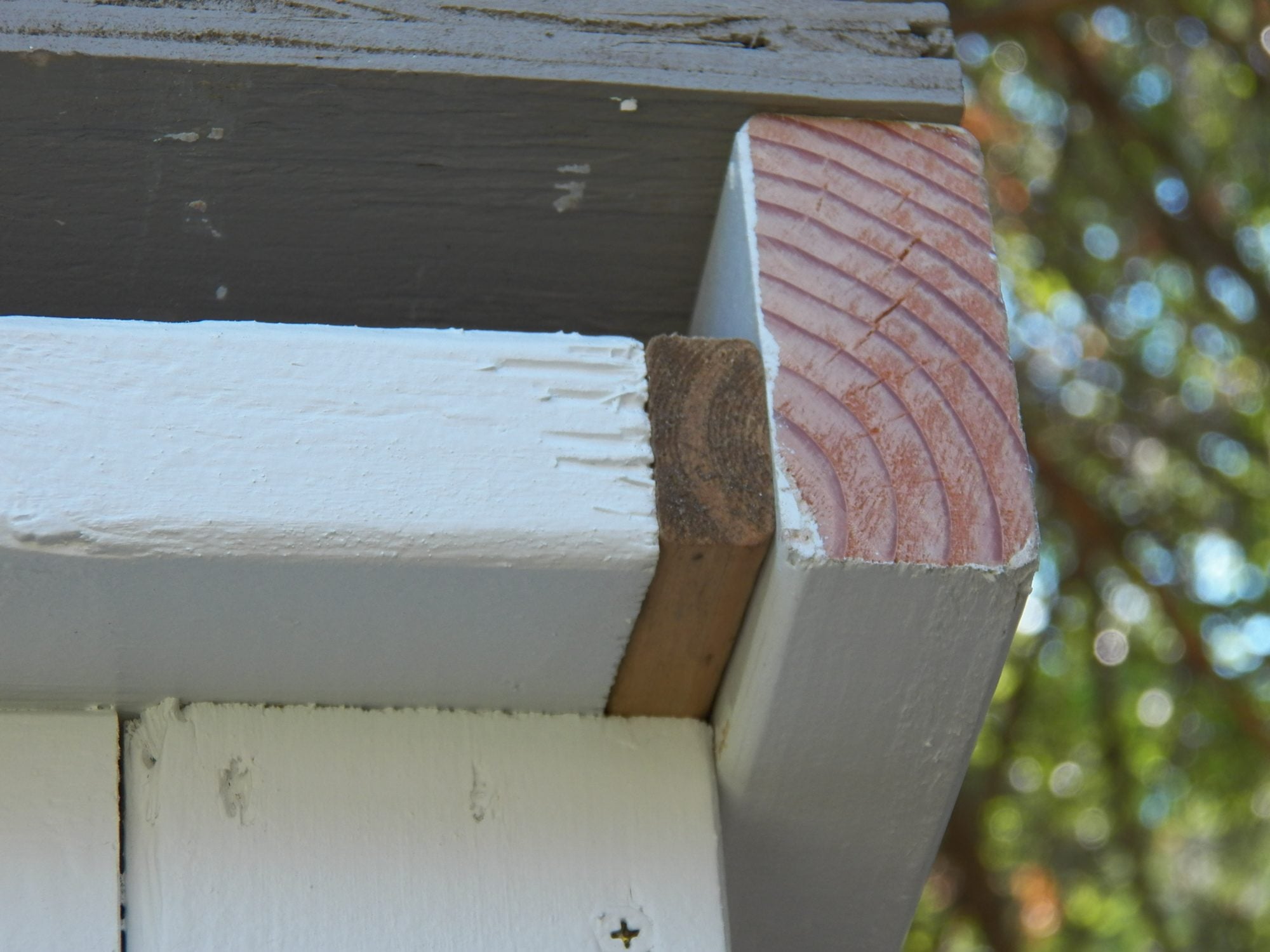

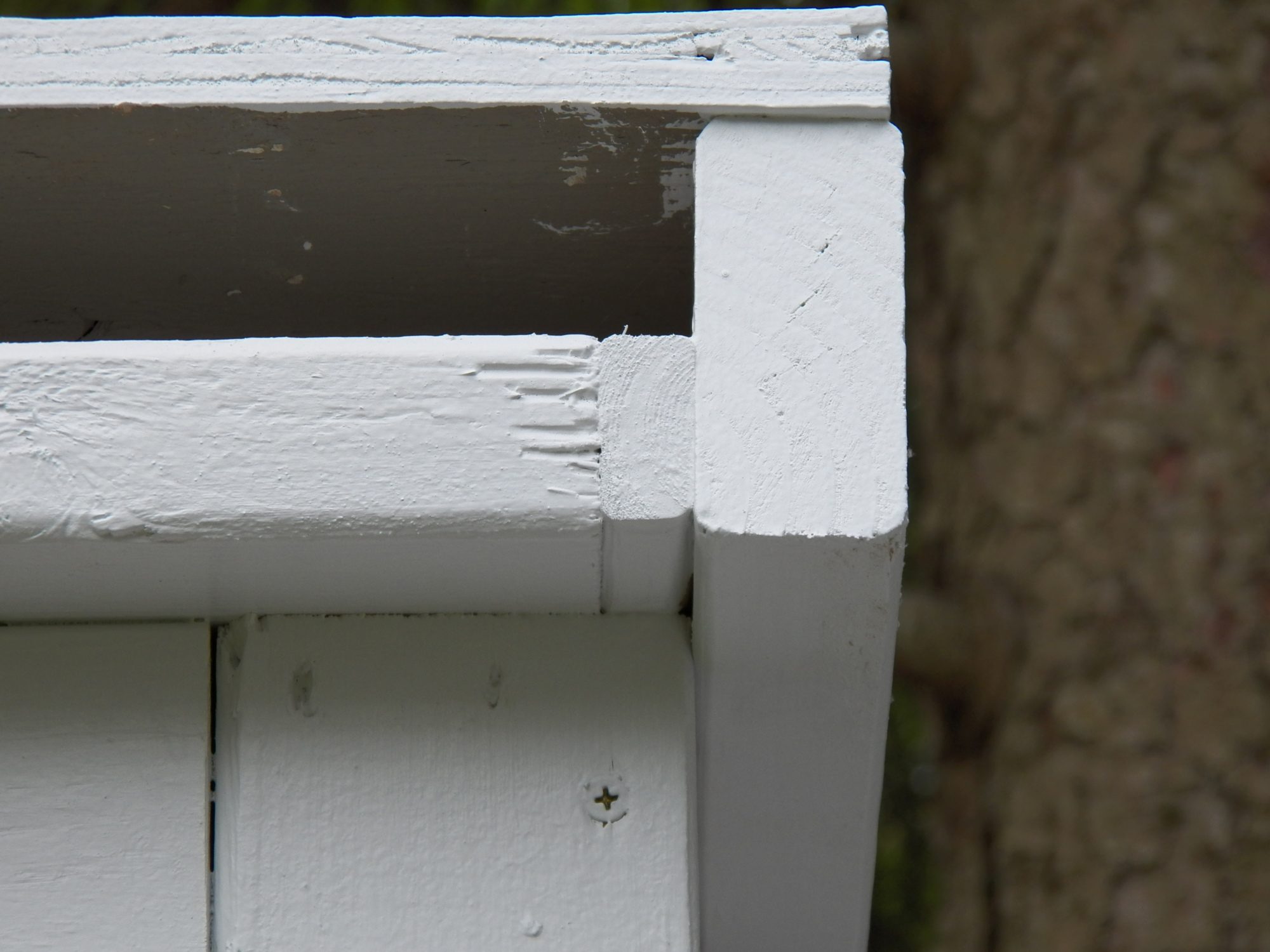

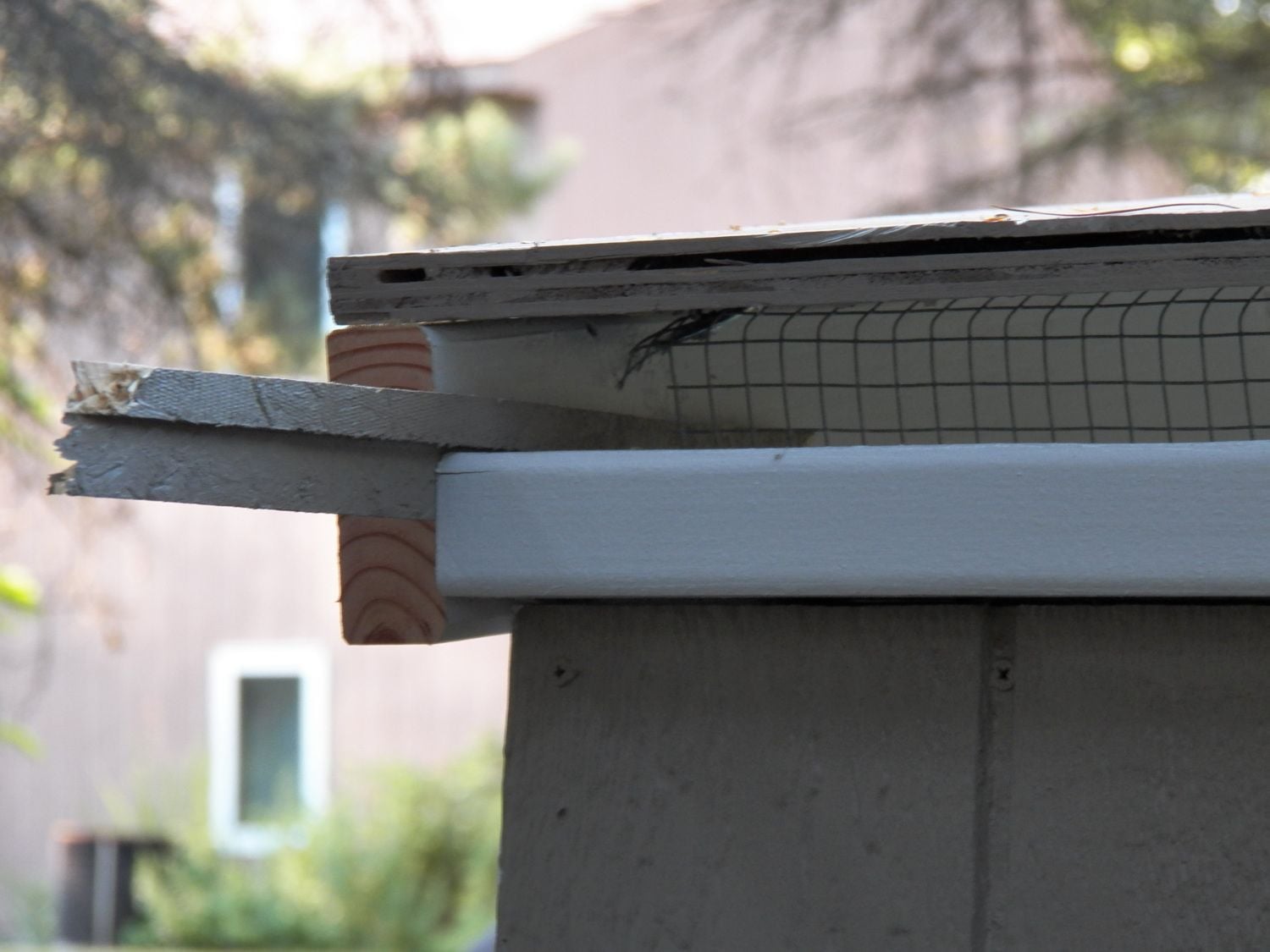

    another compensation (backside of the "oops" not quite 8'ers)
    [​IMG]

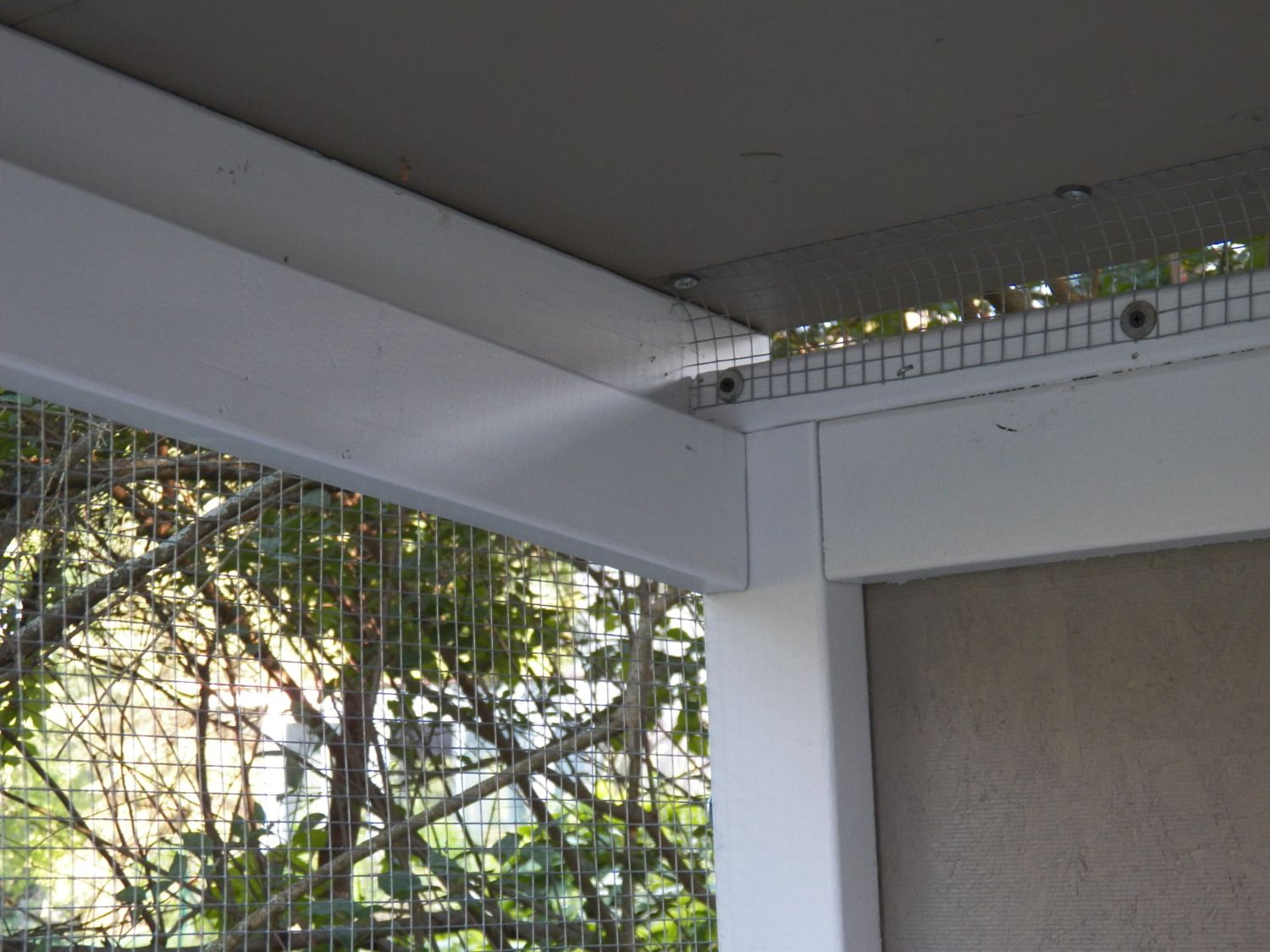

    inside, assorted washers/screws to anchor the hardware cloth
    [​IMG]
    it's mainly to keep out small rodents. It was a pain to get up but it's nice and tight now

    [​IMG]
    the front compensation
    [​IMG]
    and, painted
    [​IMG]

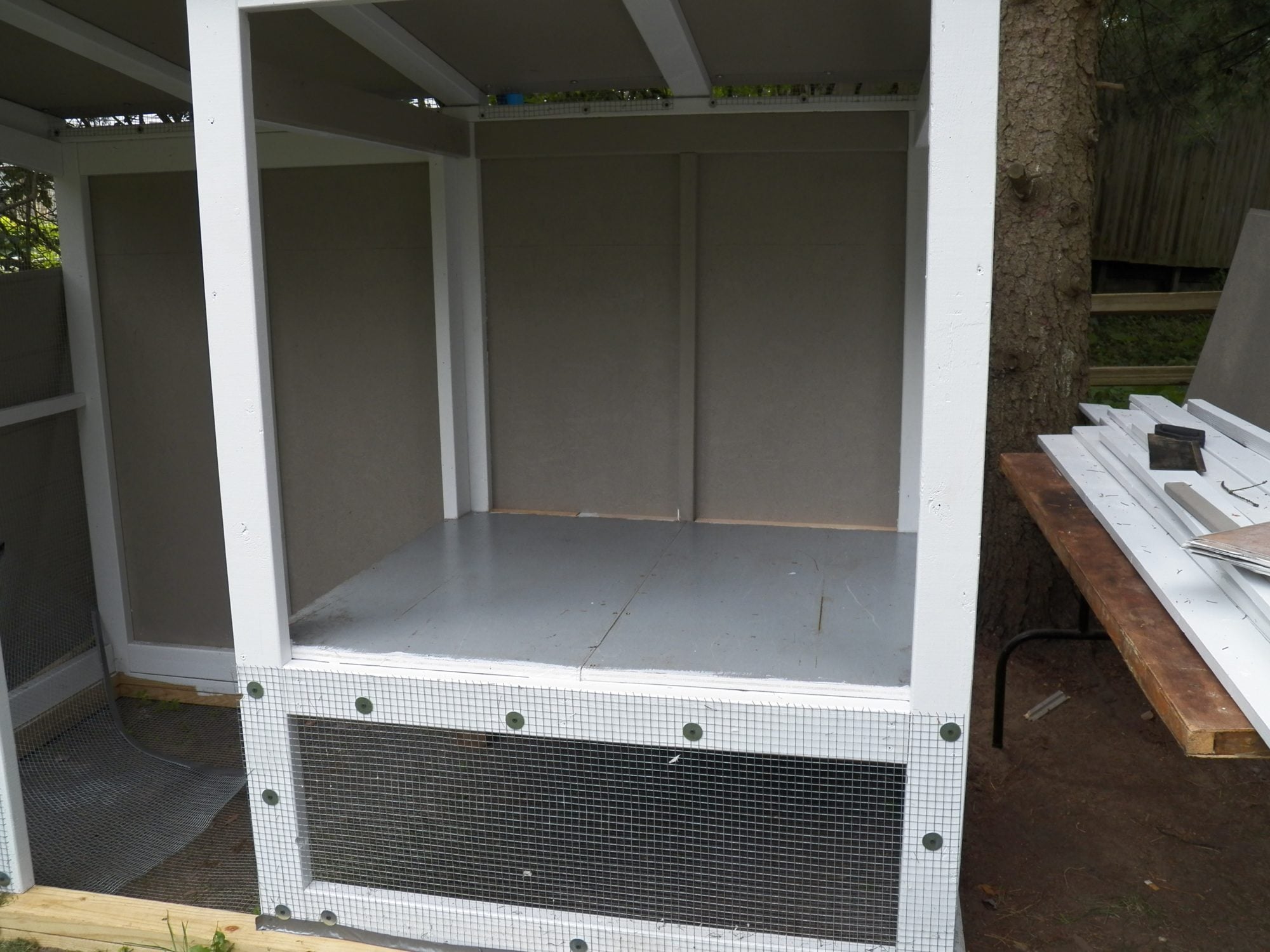

    hen house platform in
    [​IMG]

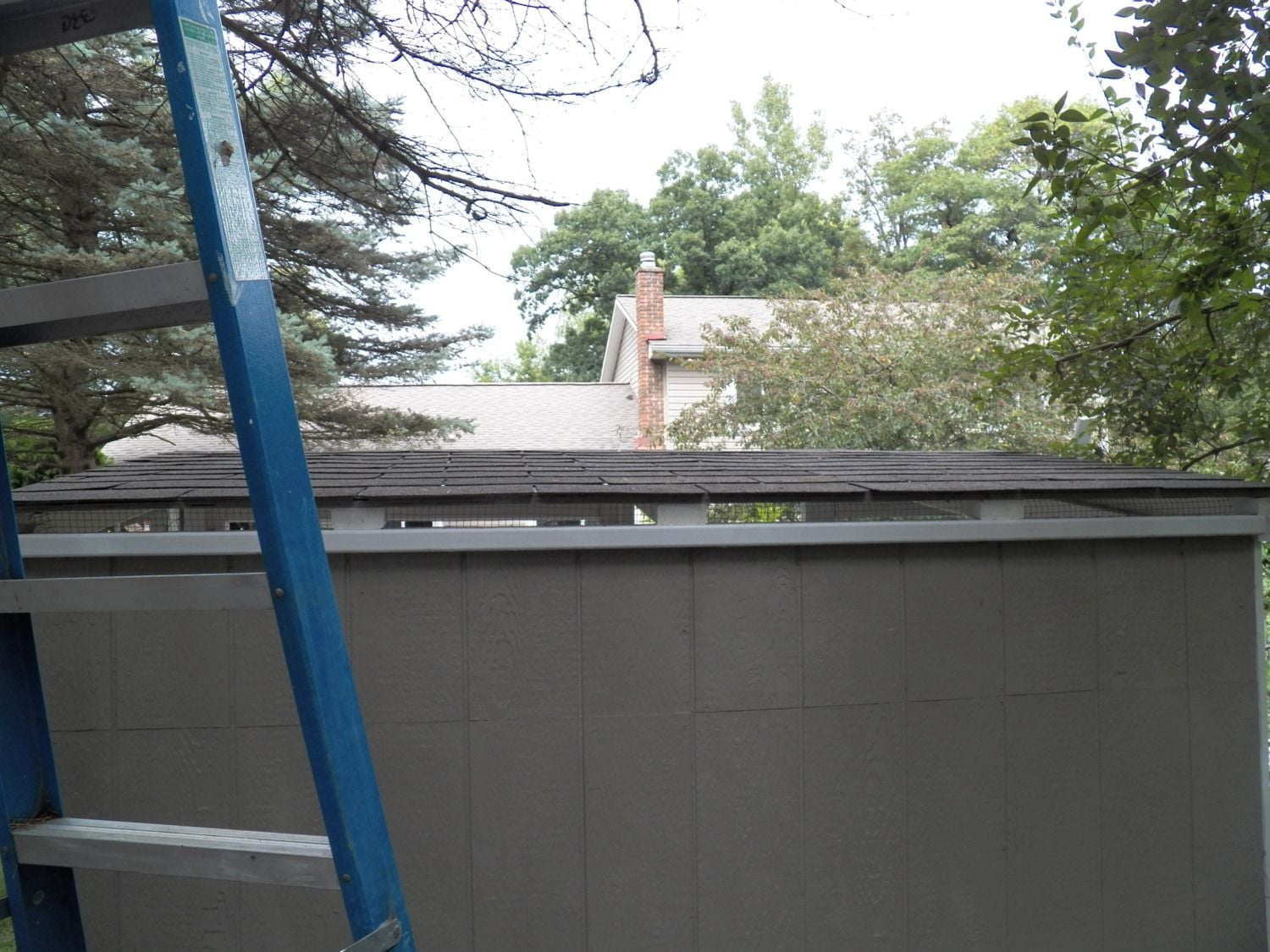

    roof shingled
    [​IMG]

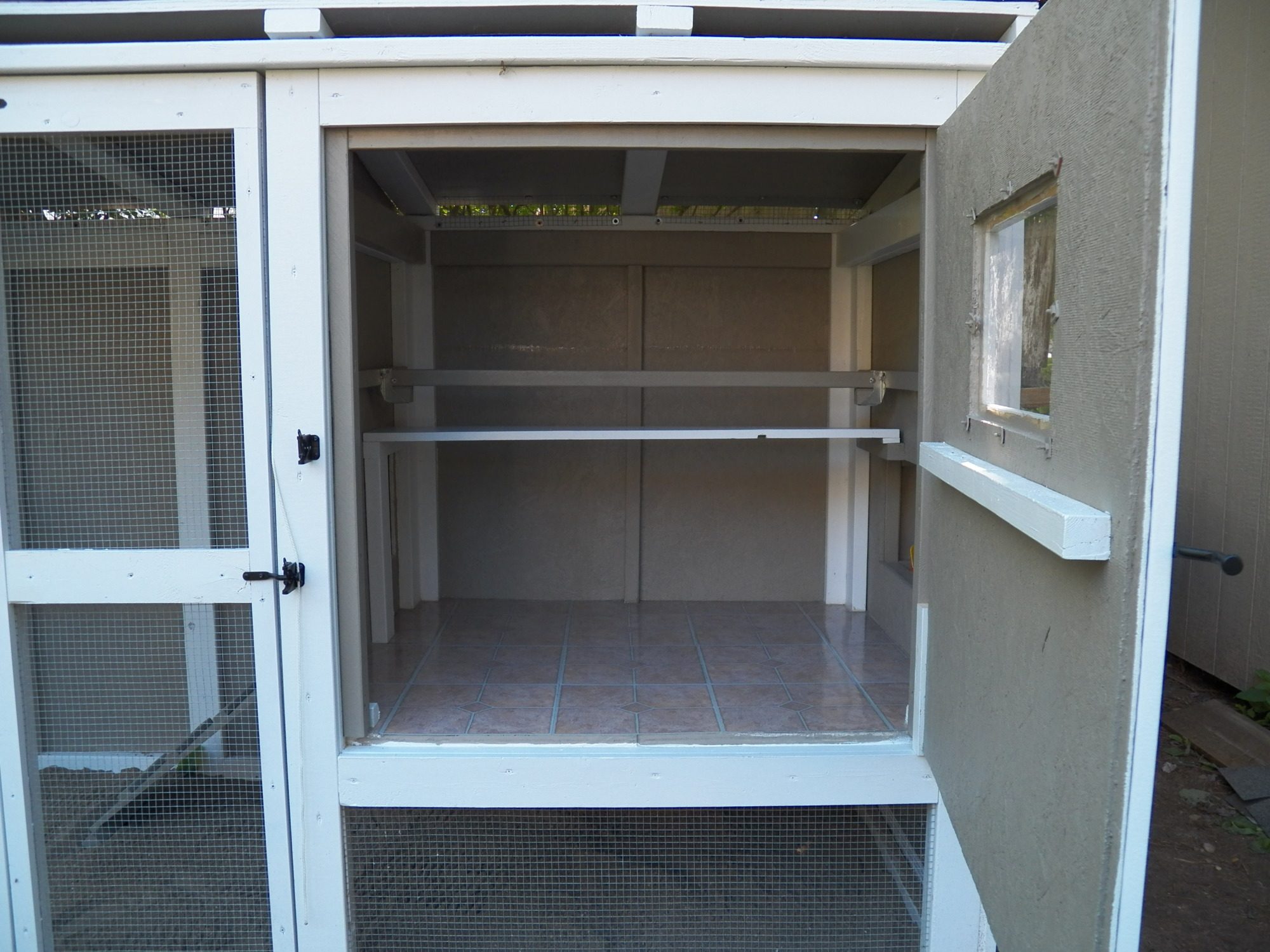

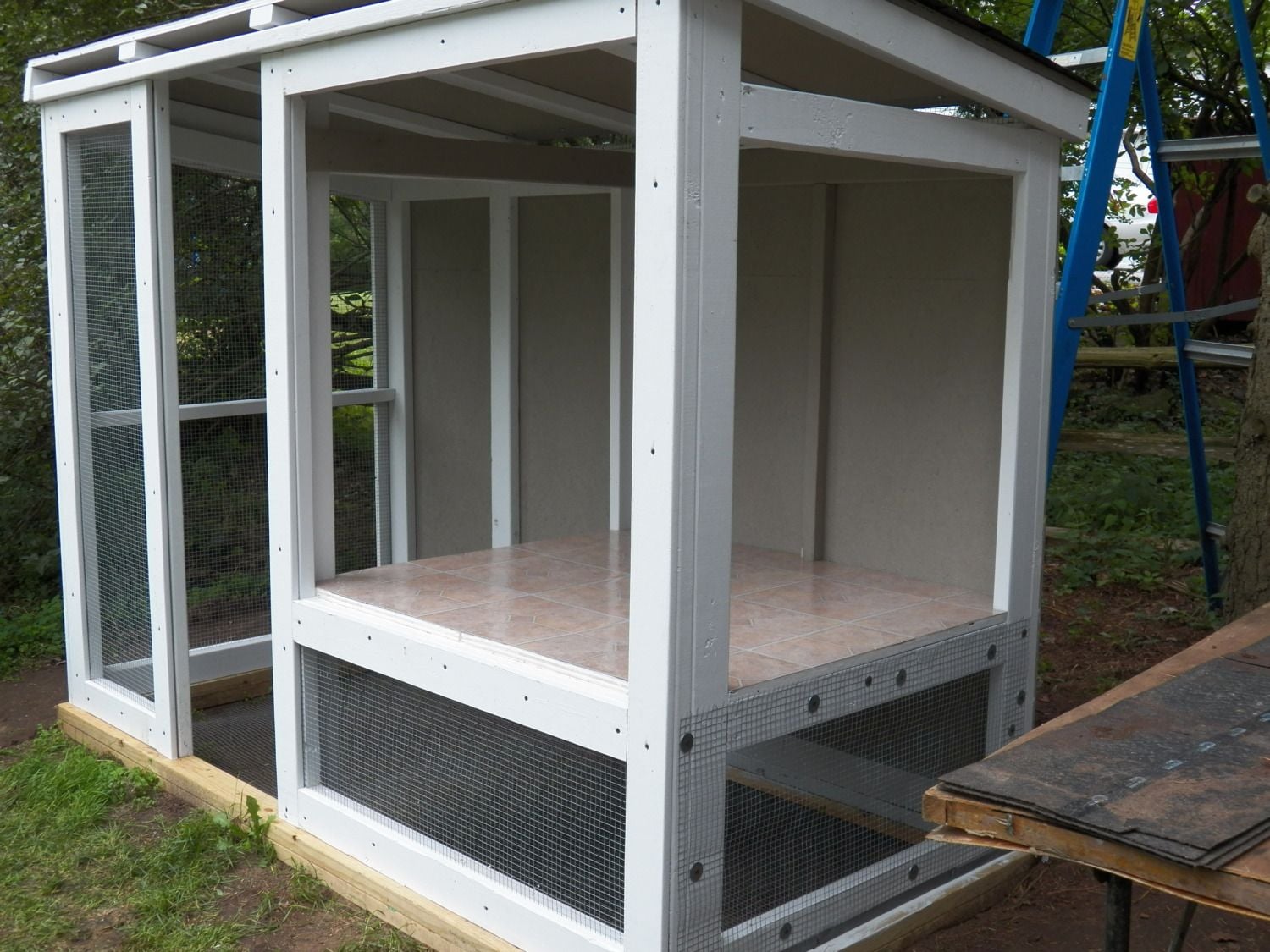

    hardware cloth was all trimmed out with painted 1"x 4"s and I installed tiles on the floor.38 ea. at Lowe's....buy a couple extras if you are going this route

    [​IMG]

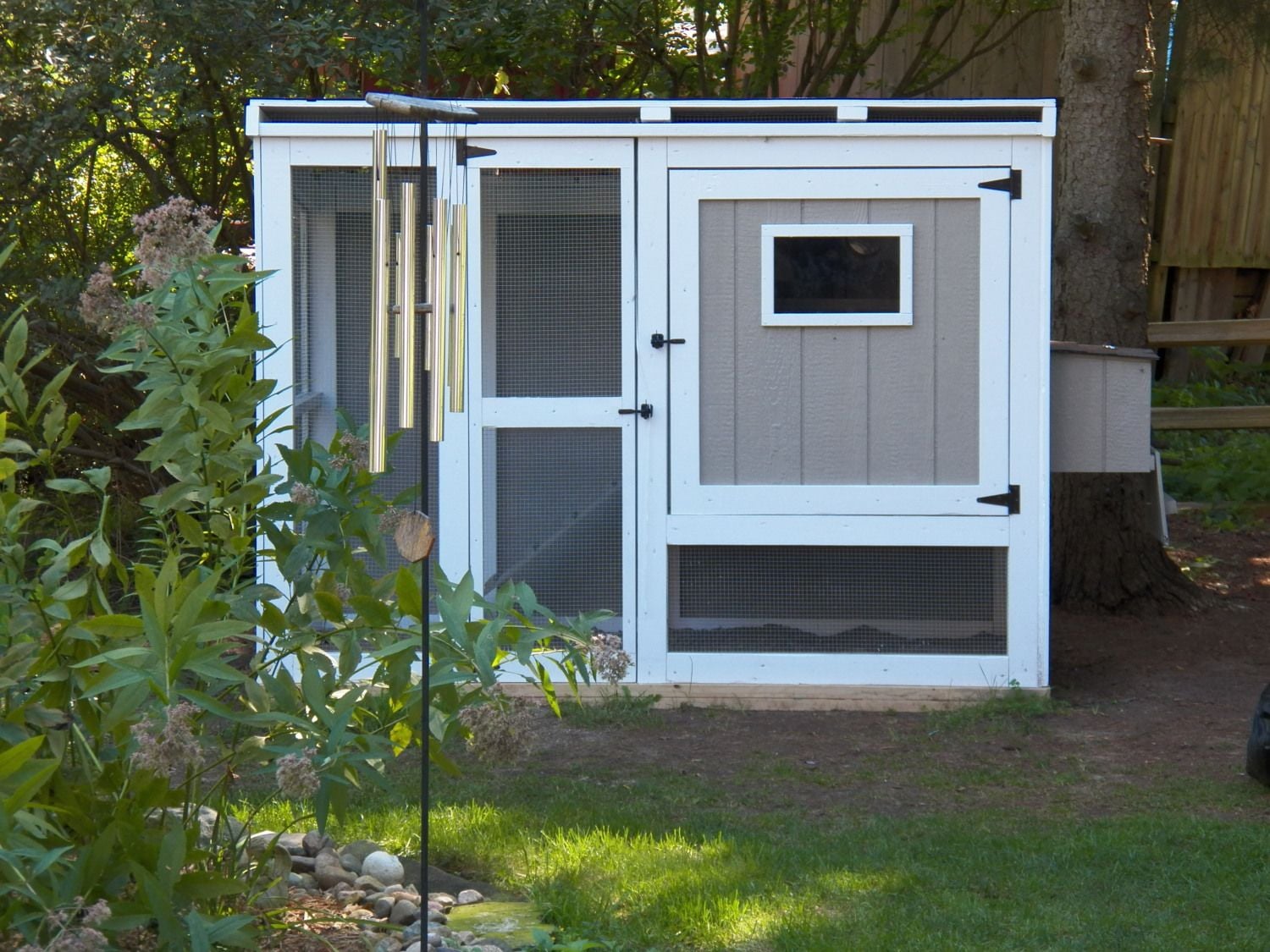

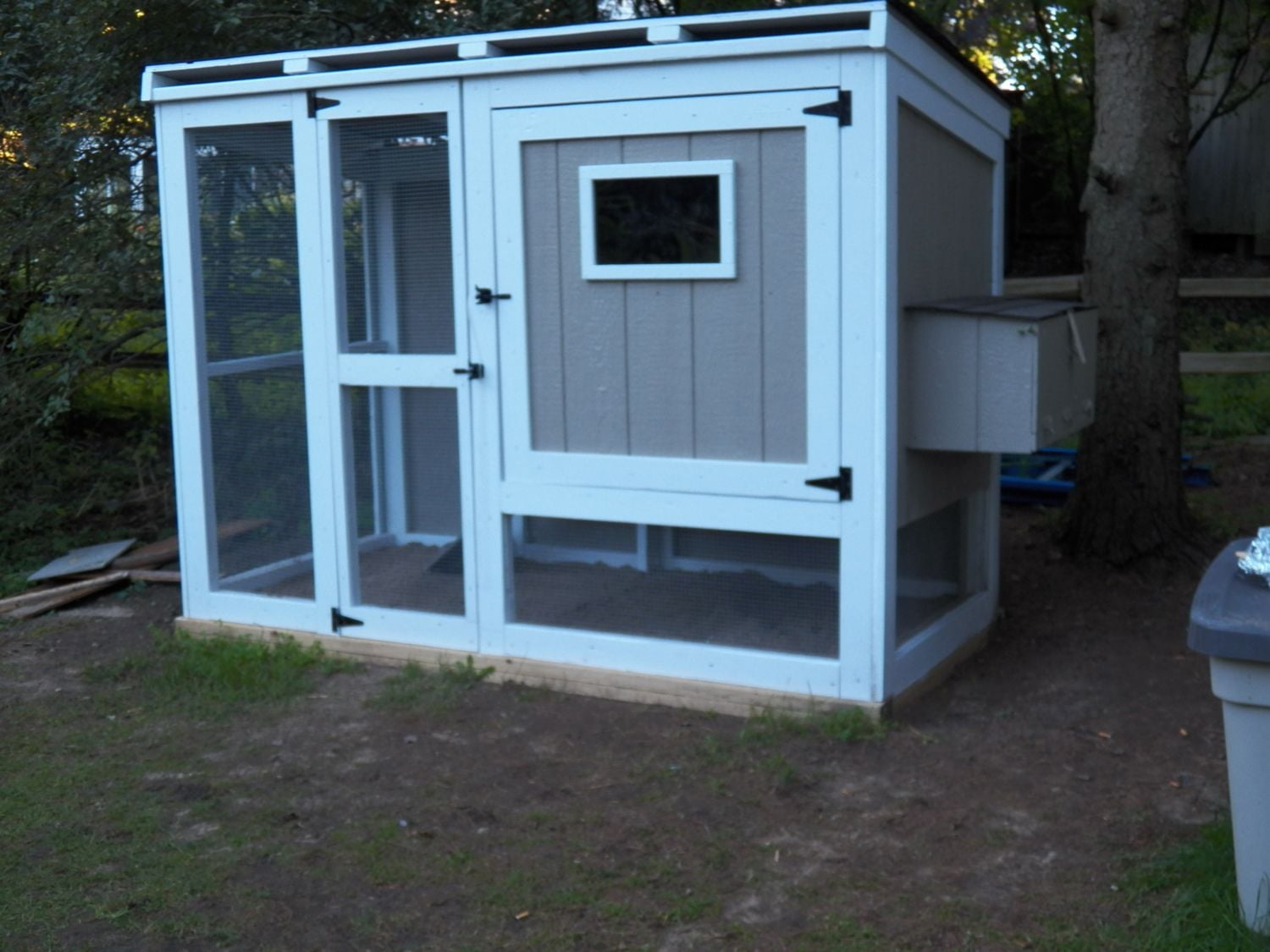

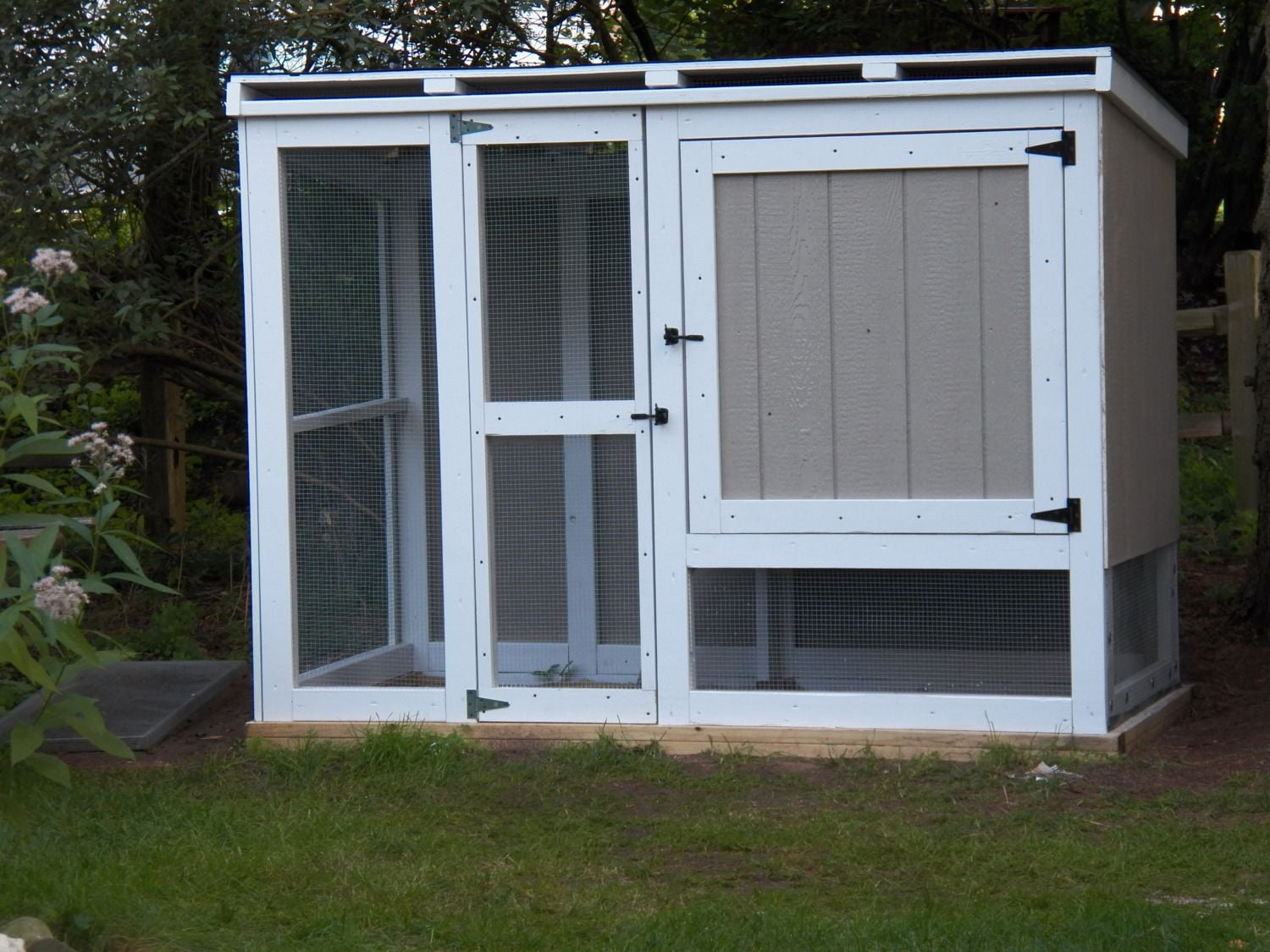

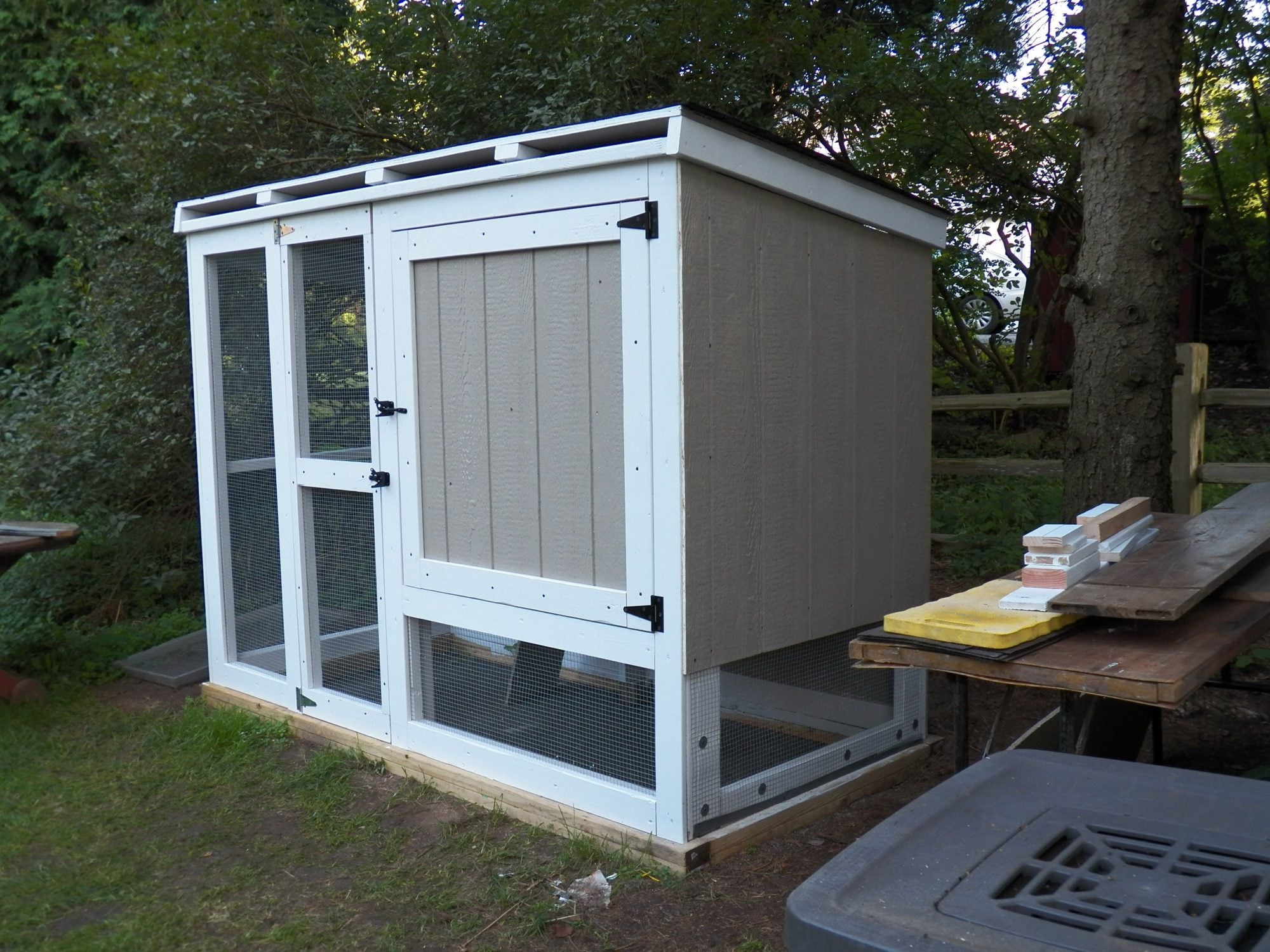

    doors and hardware installed
    [​IMG]

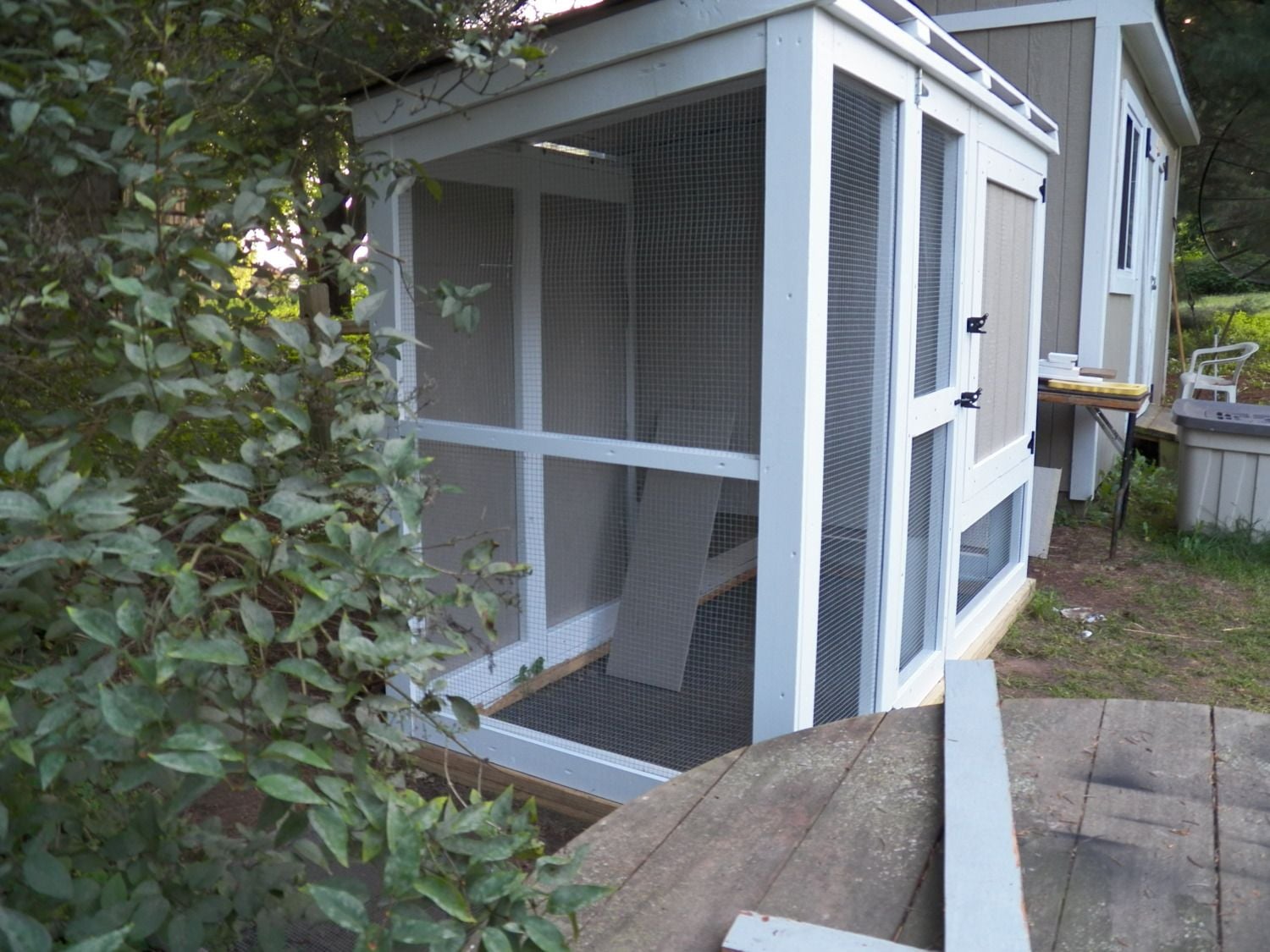

    side view
    [​IMG]
    the other side
    [​IMG]

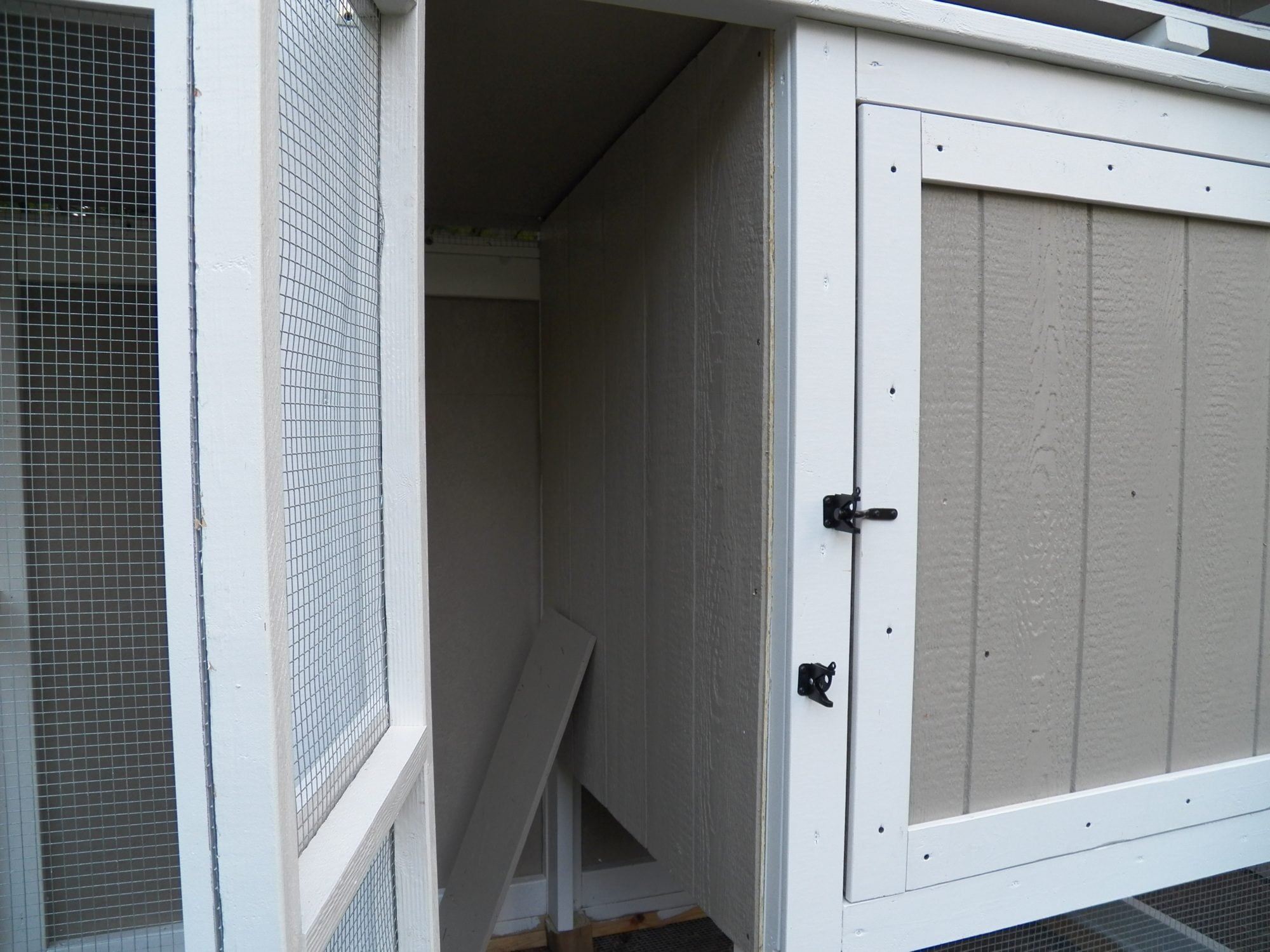

    inside of run
    [​IMG]

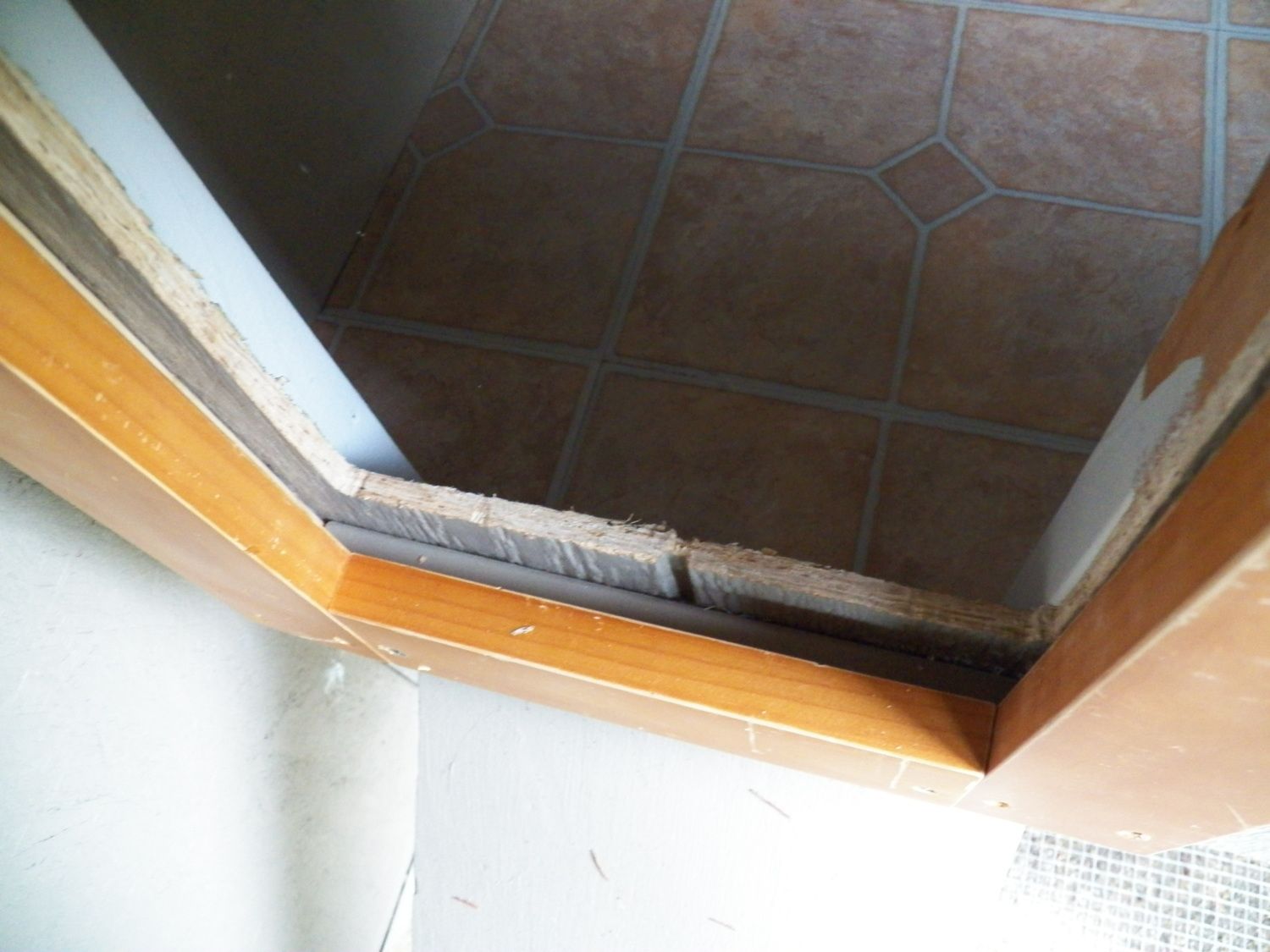

    2"x 2"s framing out the door way.
    [​IMG]

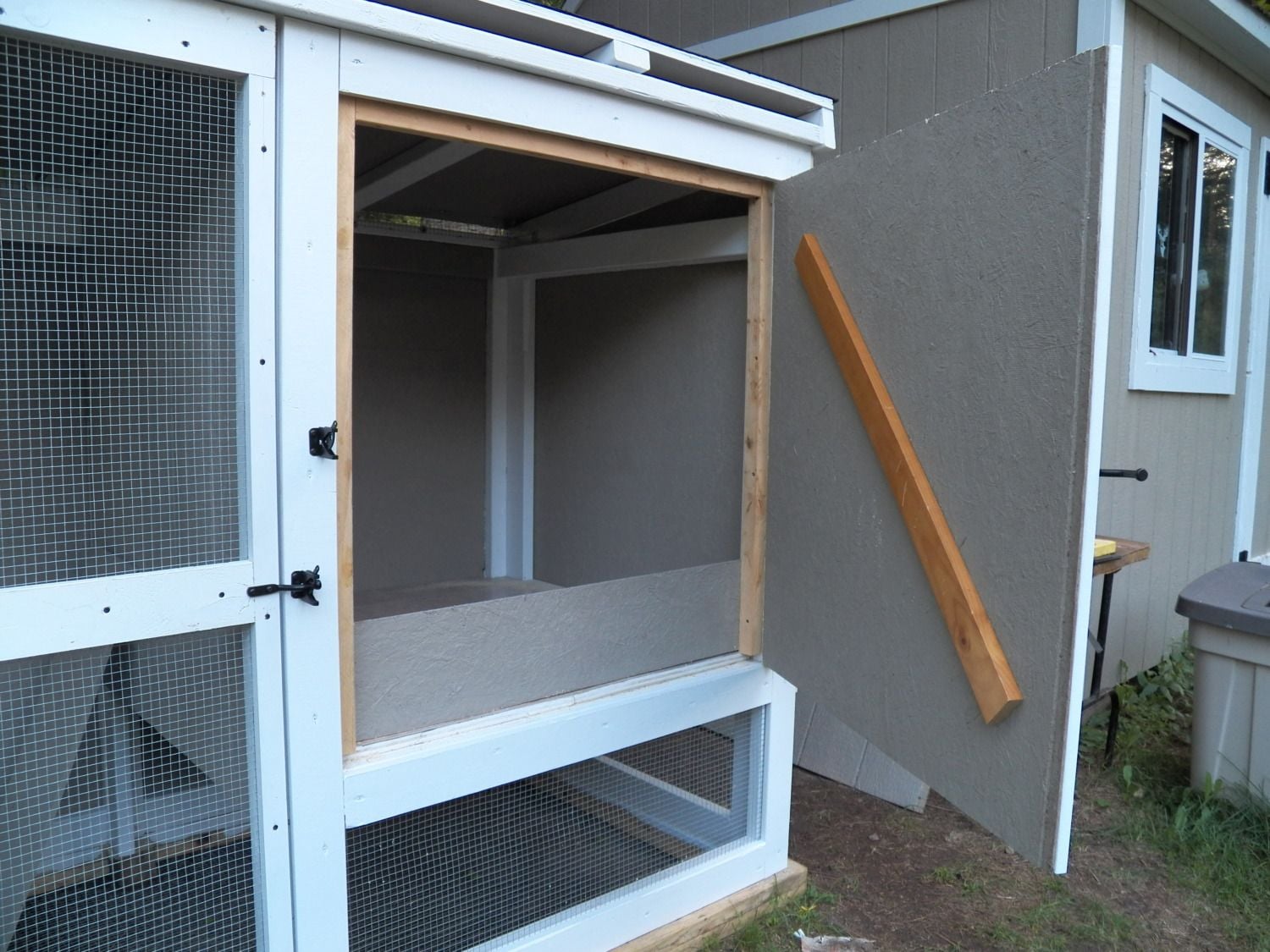

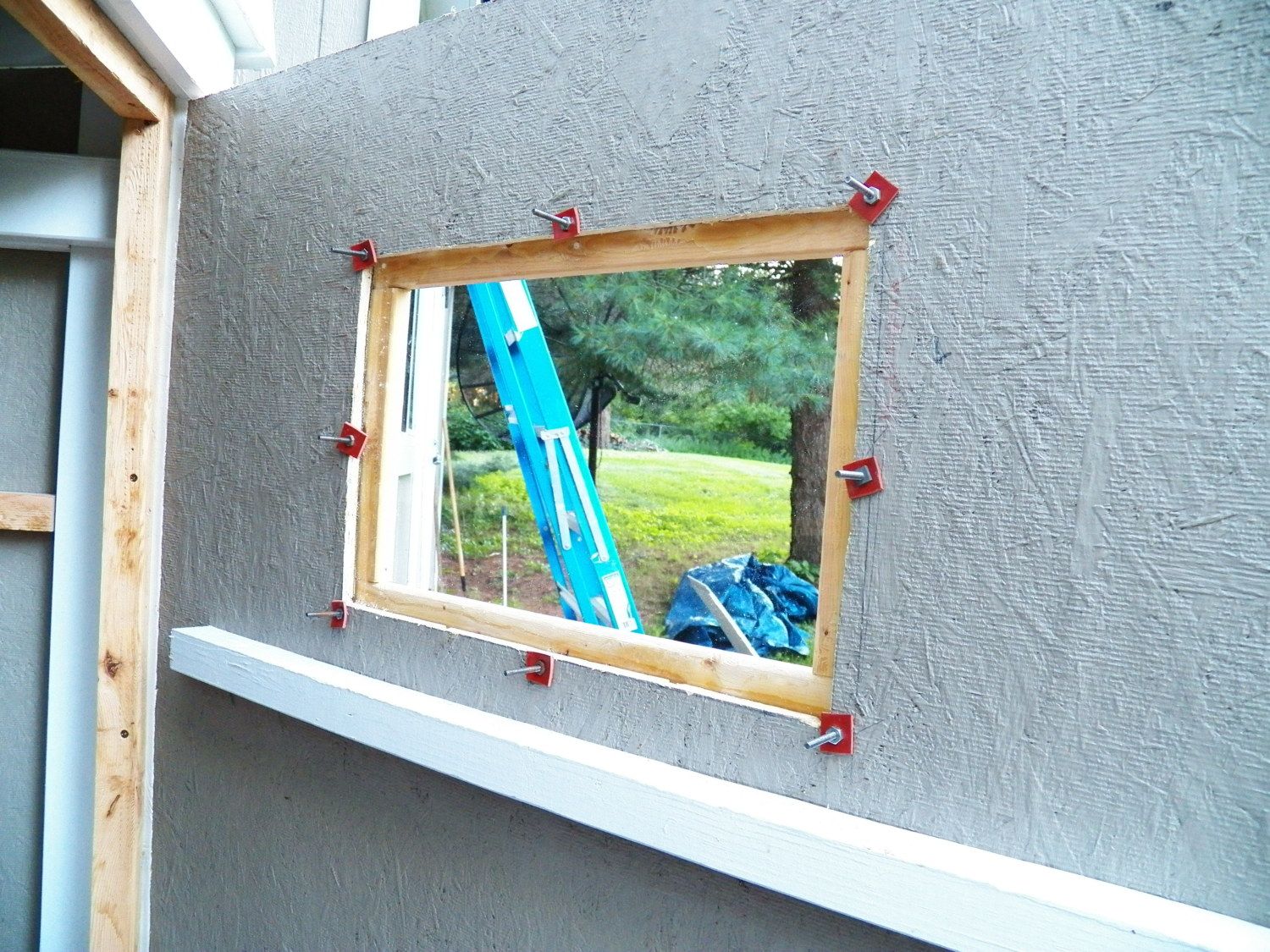

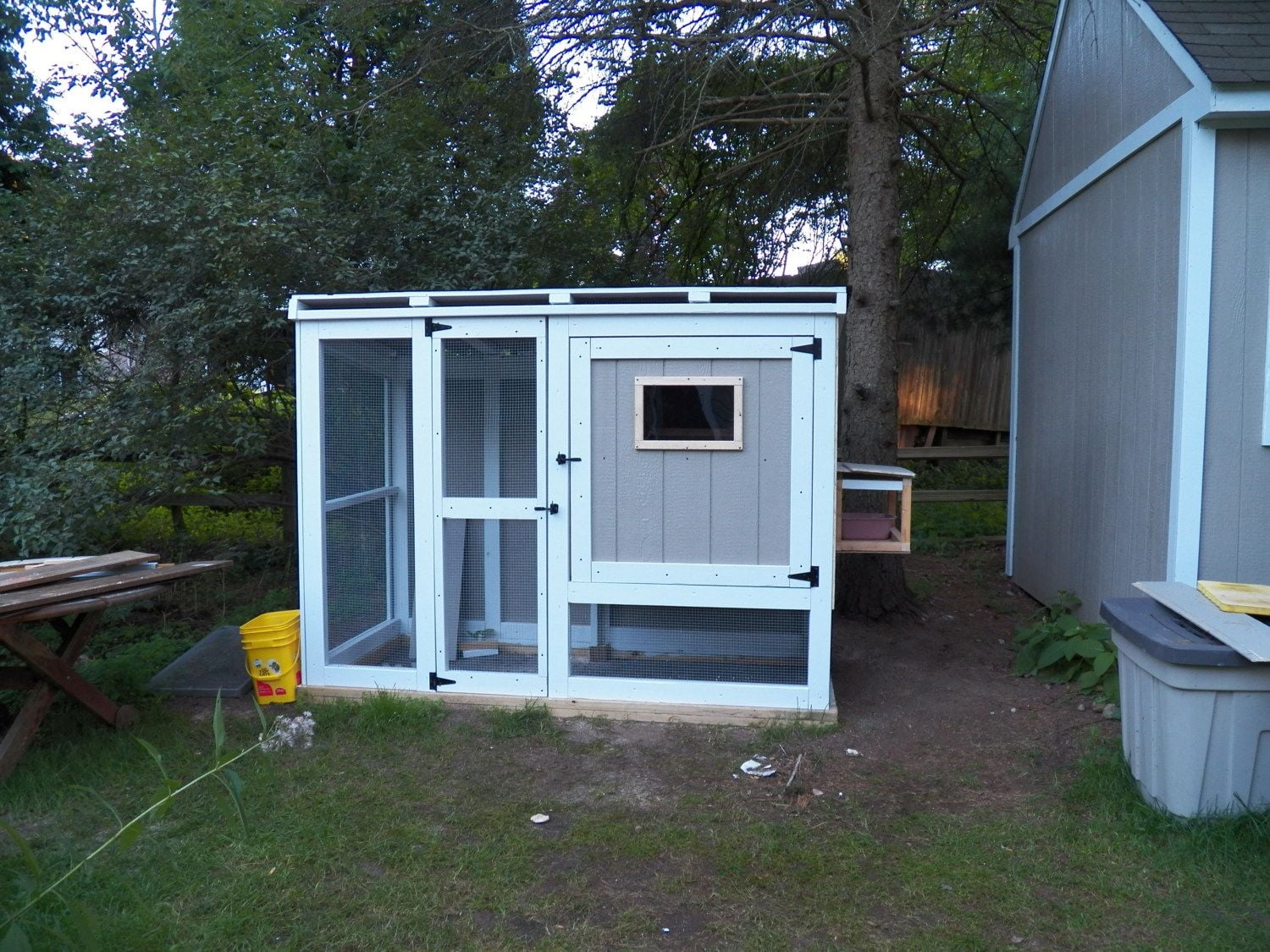

    holes cut, we figured out how to get a window in
    [​IMG]
    1"x 2"s for framing, plexi-glass cut to size at Lowe's

    [​IMG]

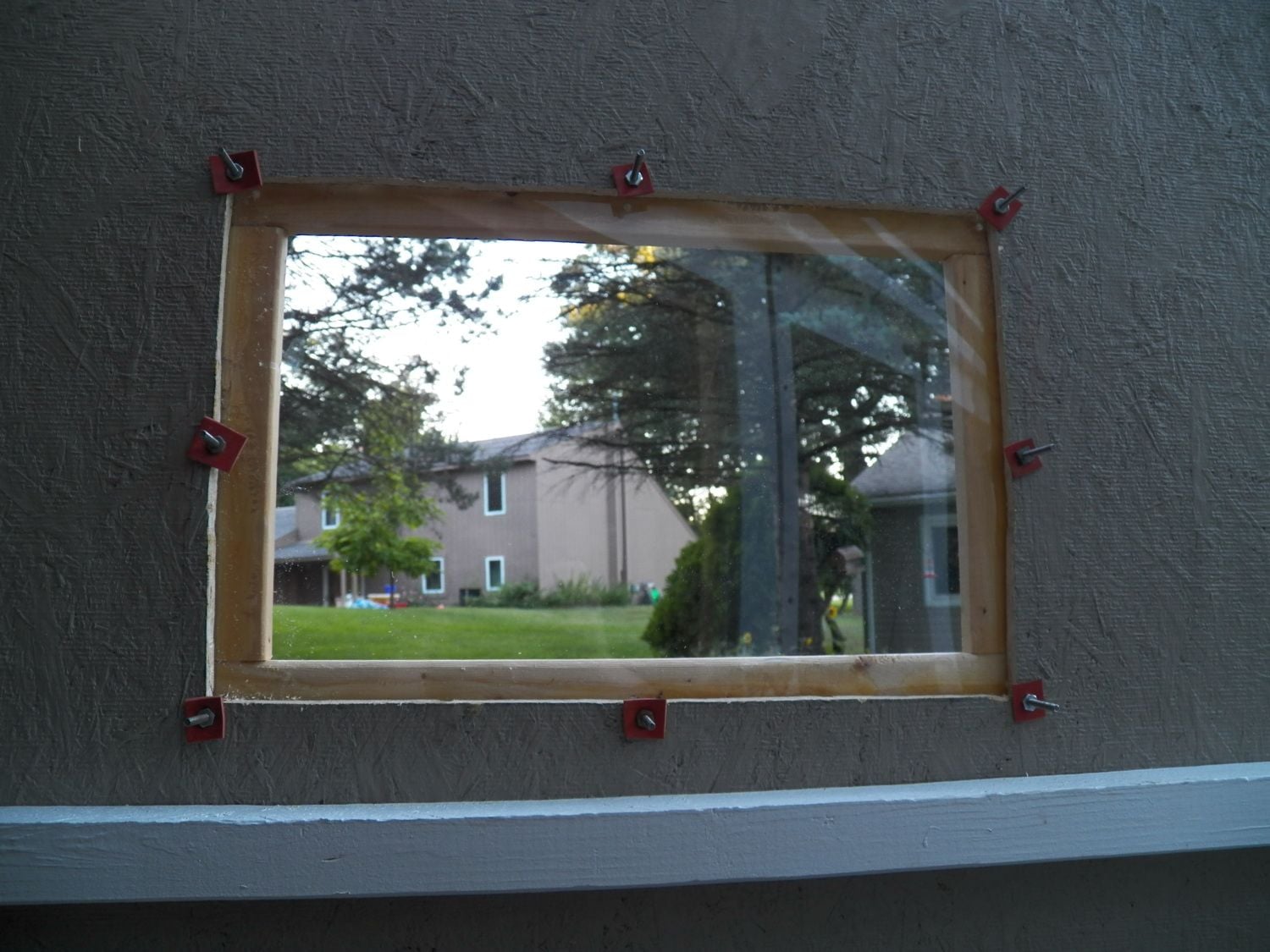

    I made my own washers out of hose gasket rubber
    [​IMG]
    they look lame but they work
    [​IMG]

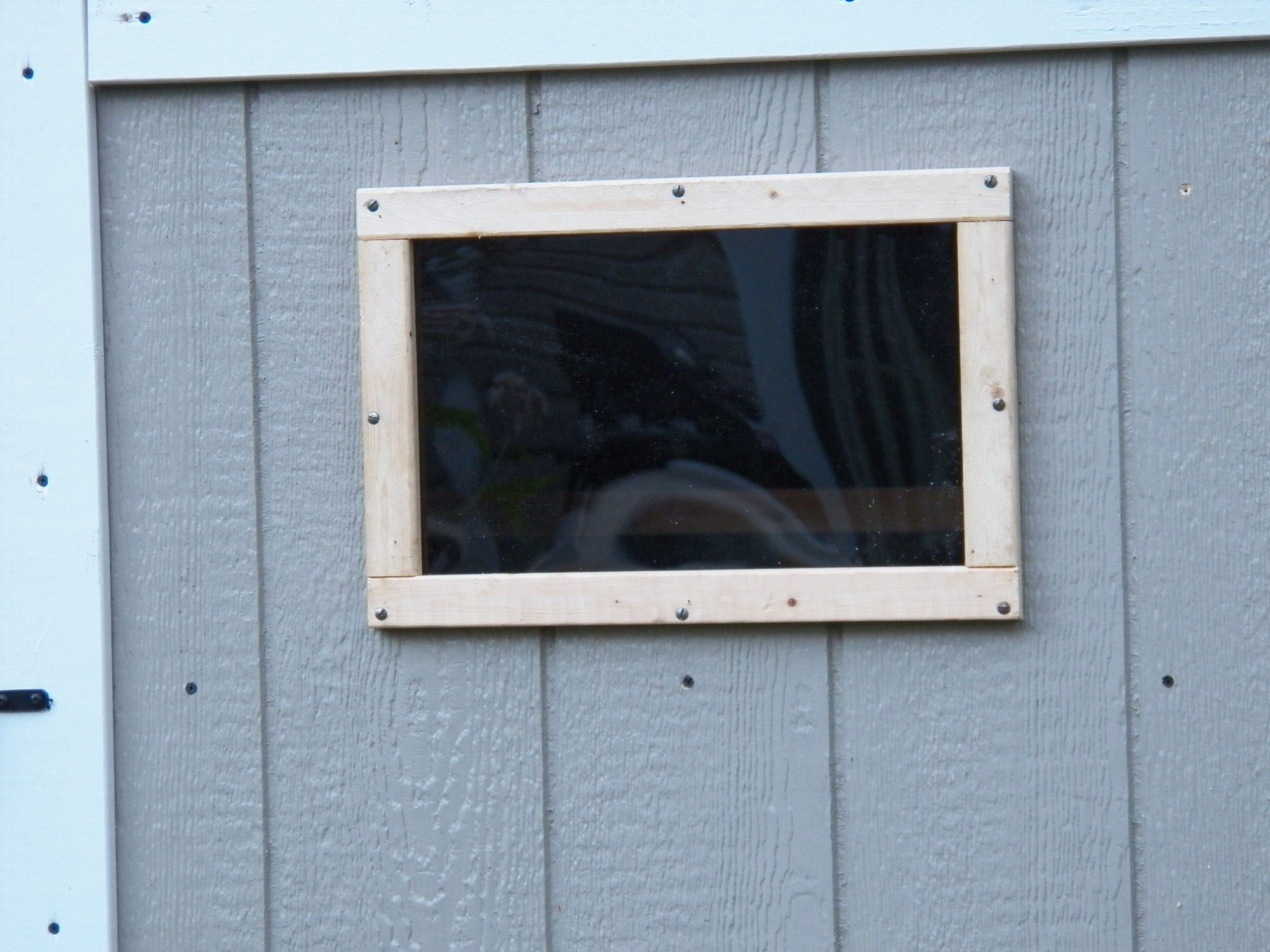

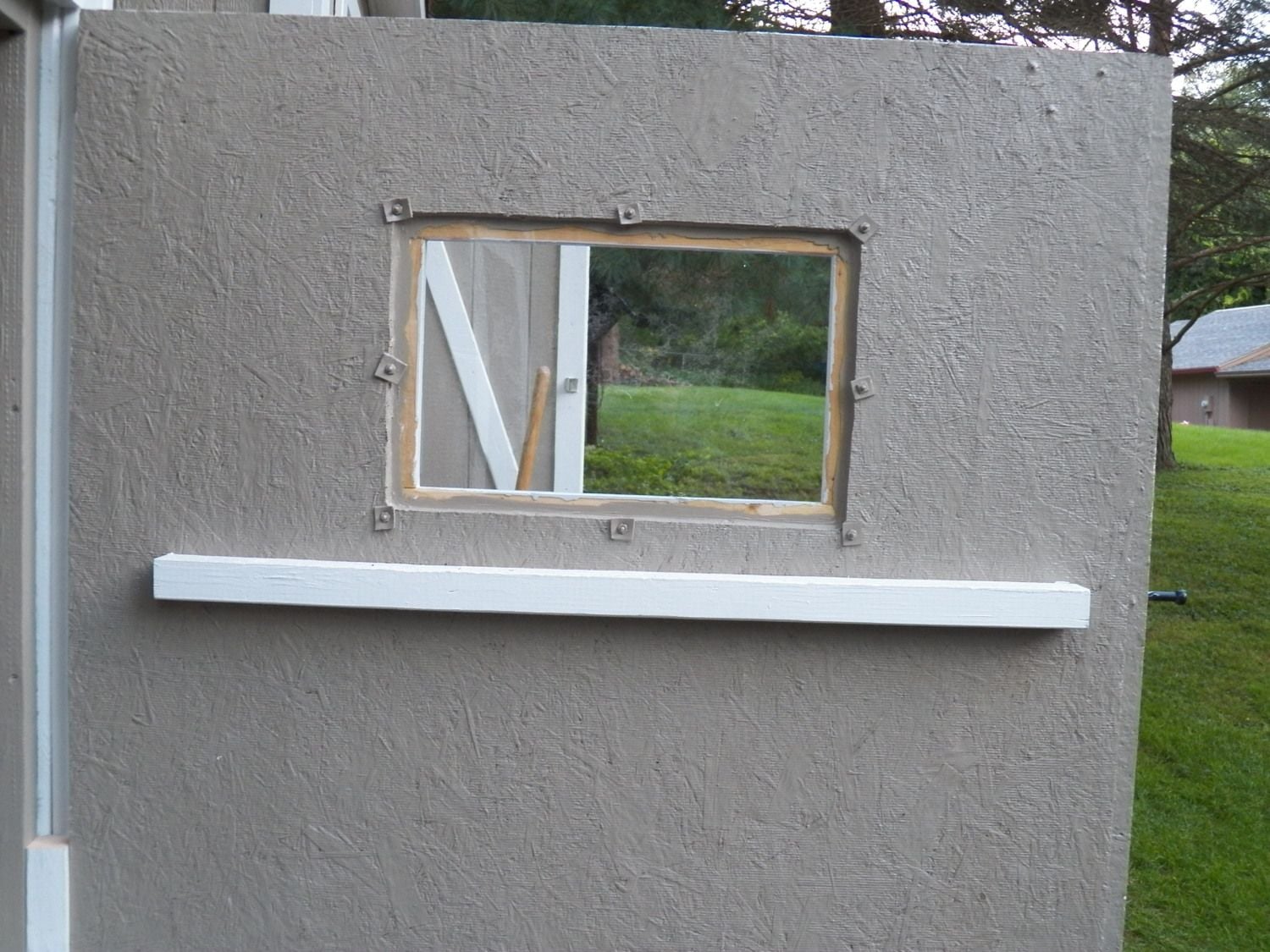

    I cut the screws down with bolt cutters, used a lot of caulk because DH made the hole a tad big and painted over it all. A little less conspicuous :)
    [​IMG]

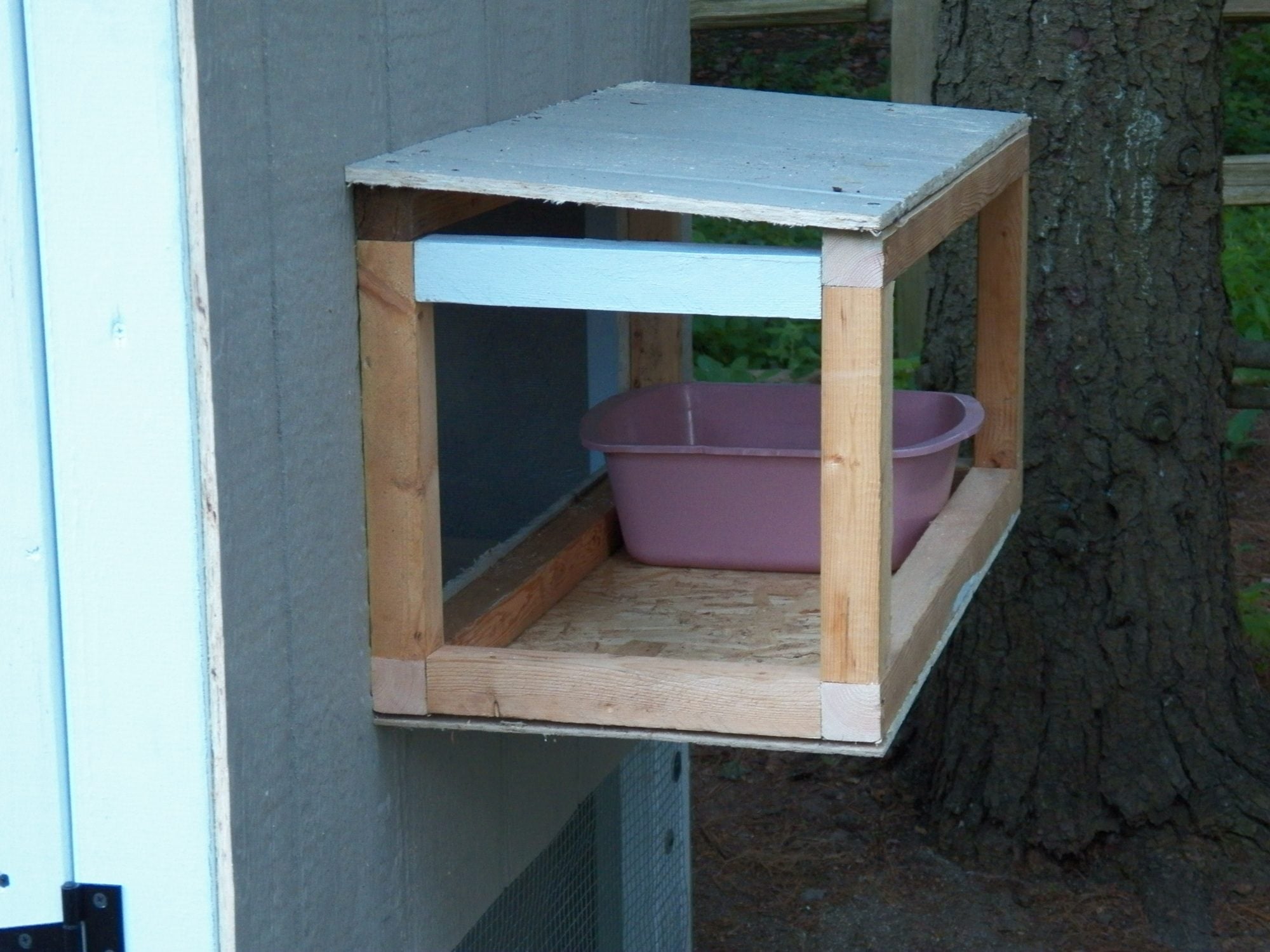

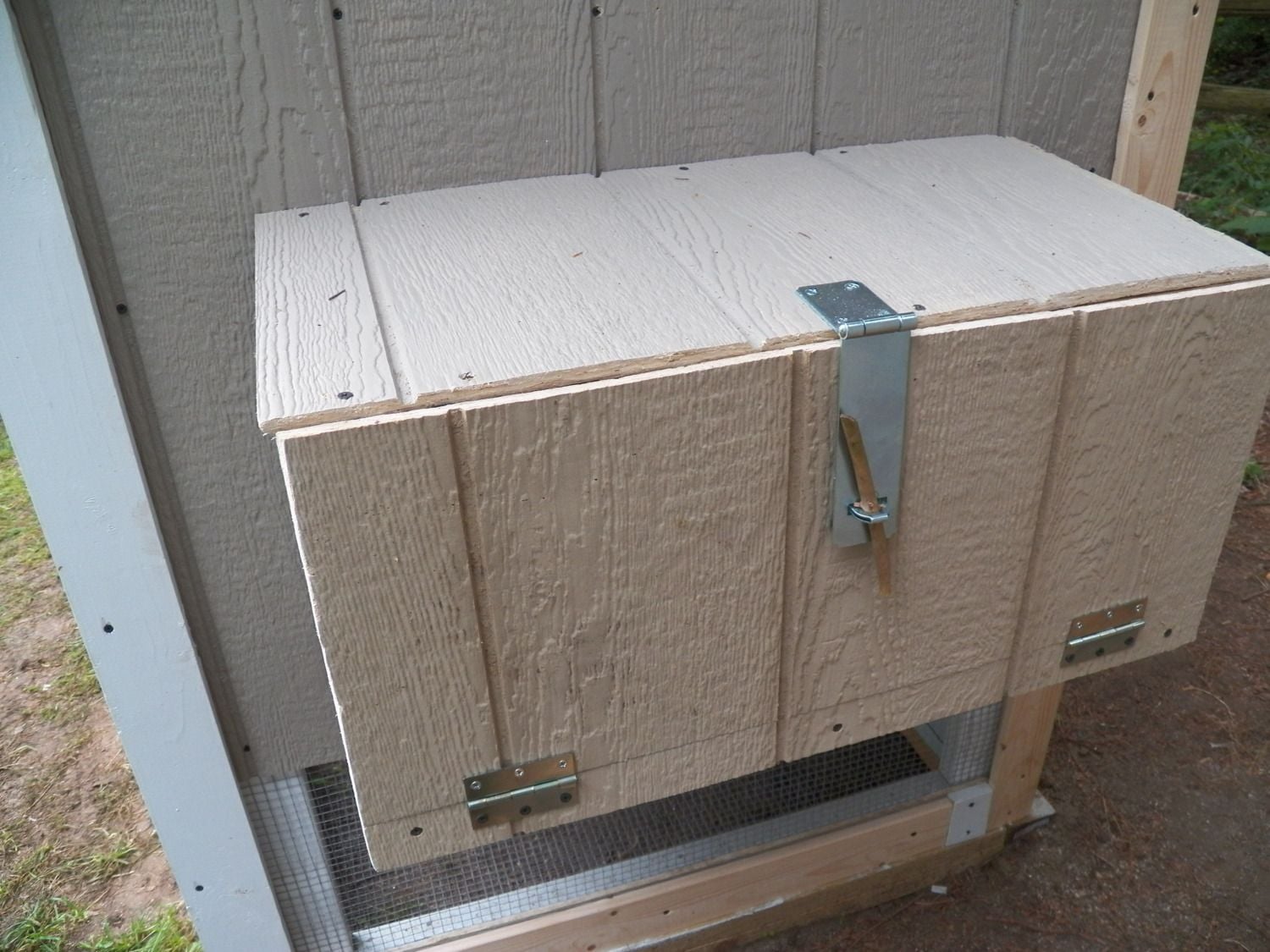

    nest box framing
    [​IMG]
    side view
    [​IMG]

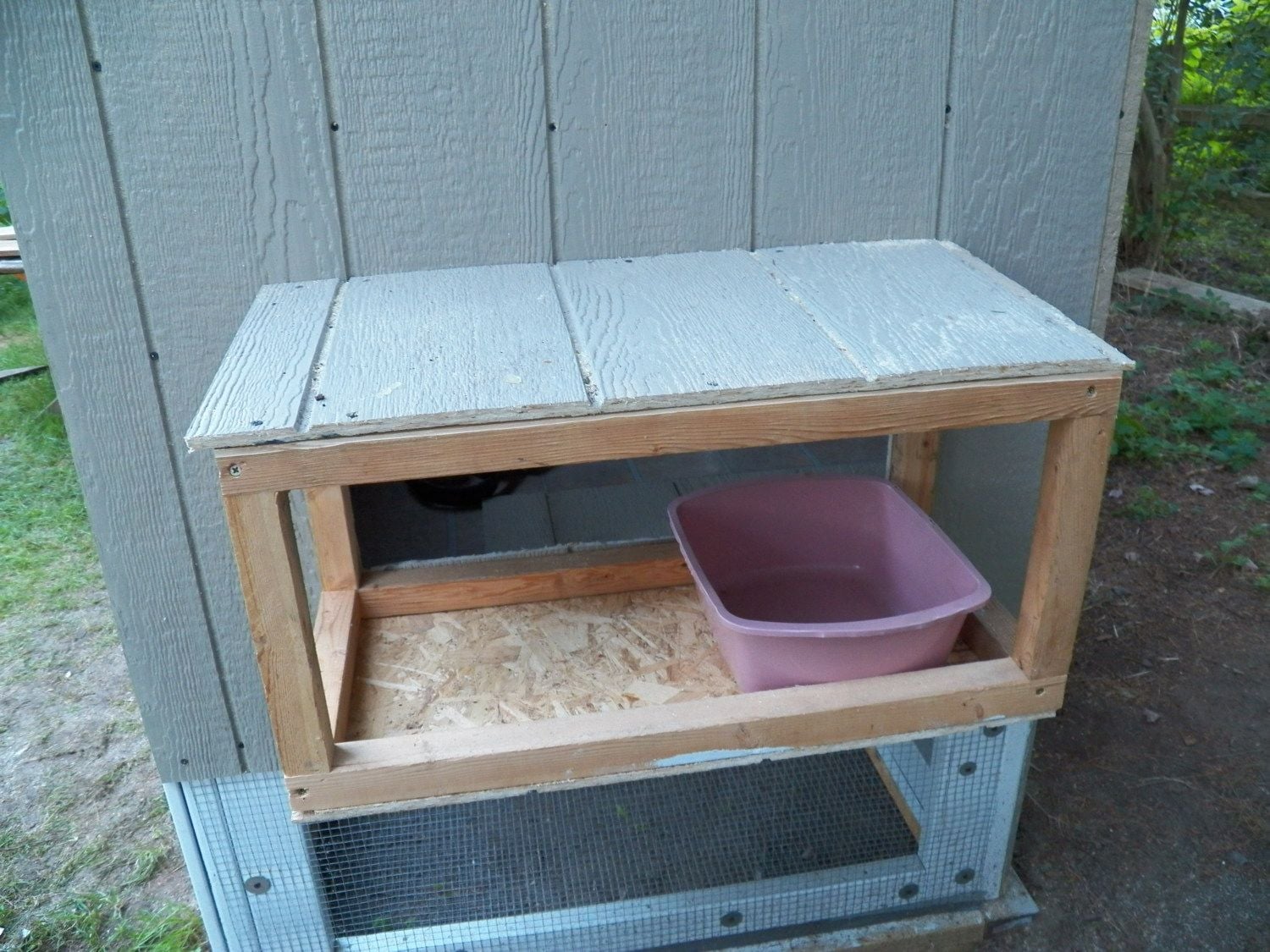

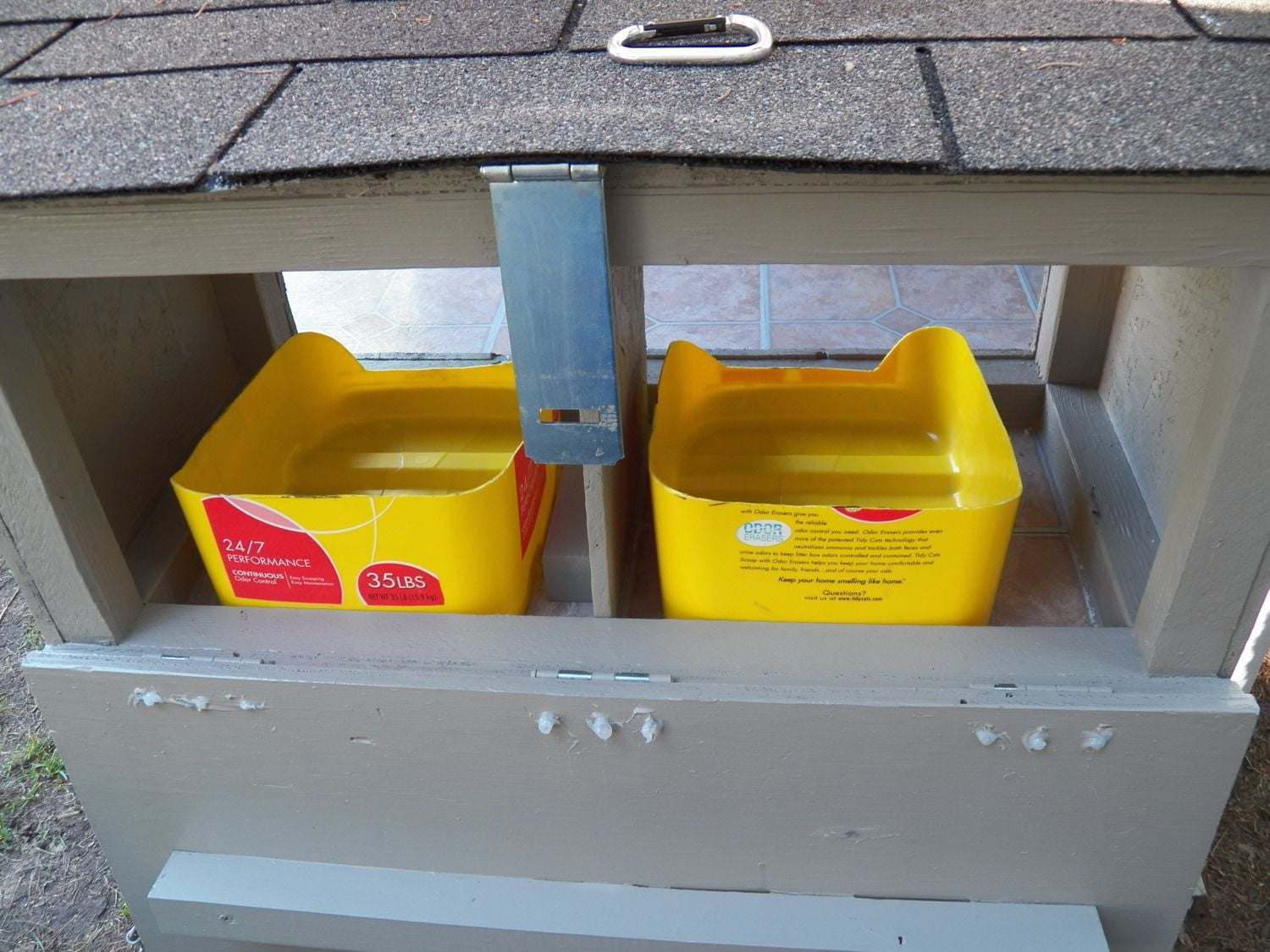

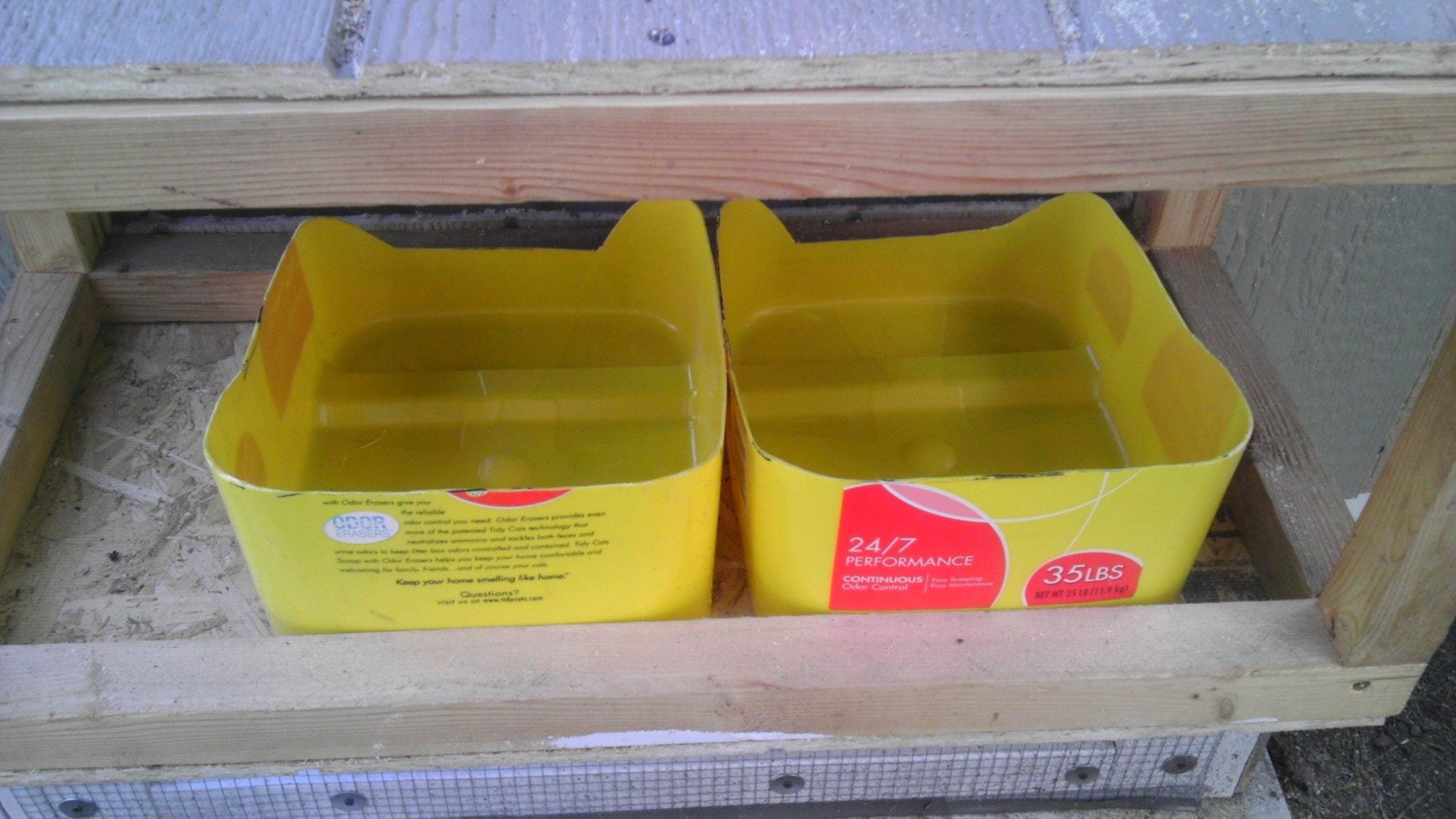

    I didn't have 2 exact sized hospital pans so I cut down cat litter buckets
    [​IMG]
    I thought this was done until I painted it and the front warped grrr[​IMG]
    we had to use this awful looking plywood
    [​IMG]
    I was able to sand, caulk and paint it so it didn't look horrendous[​IMG]

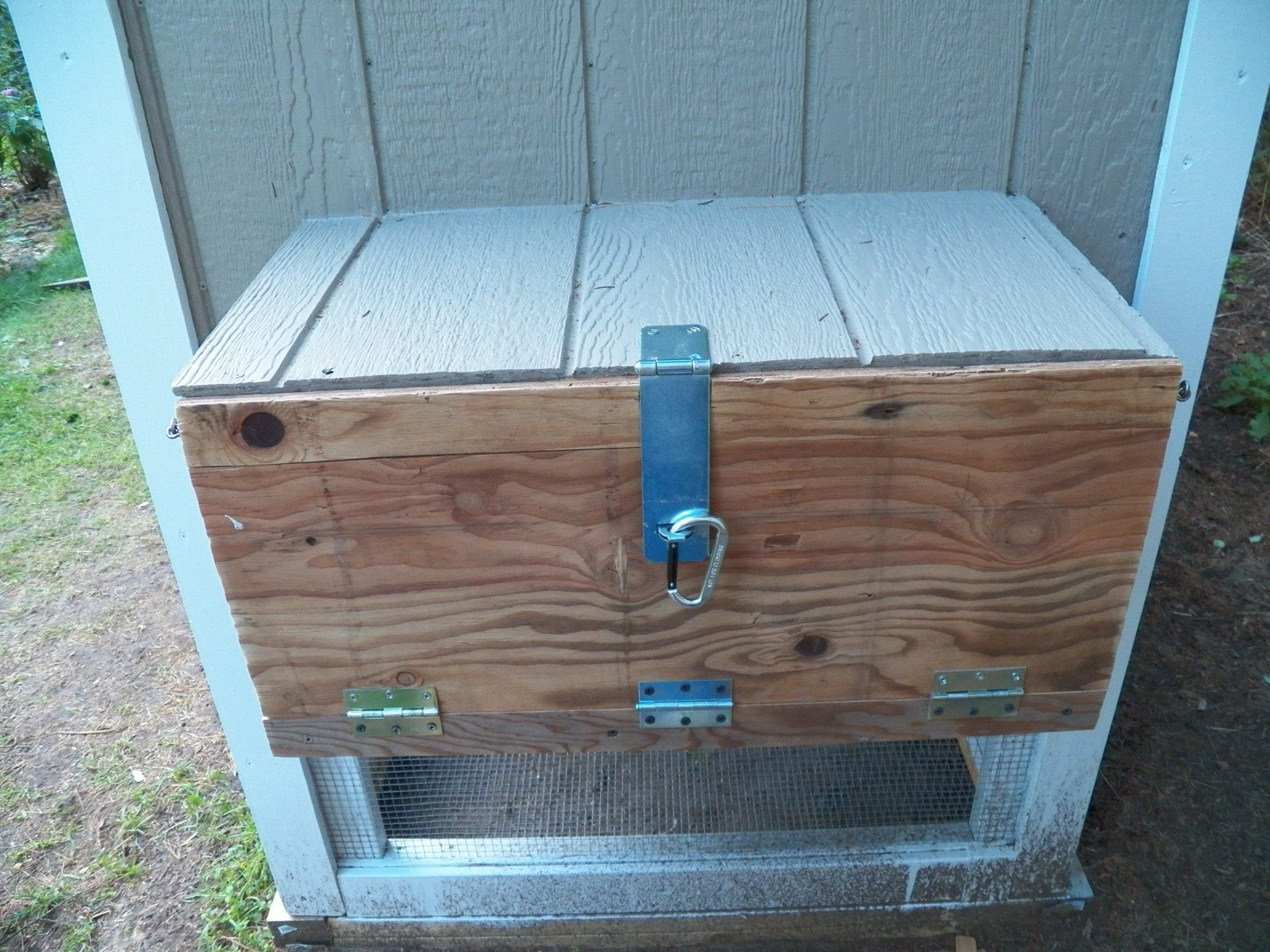

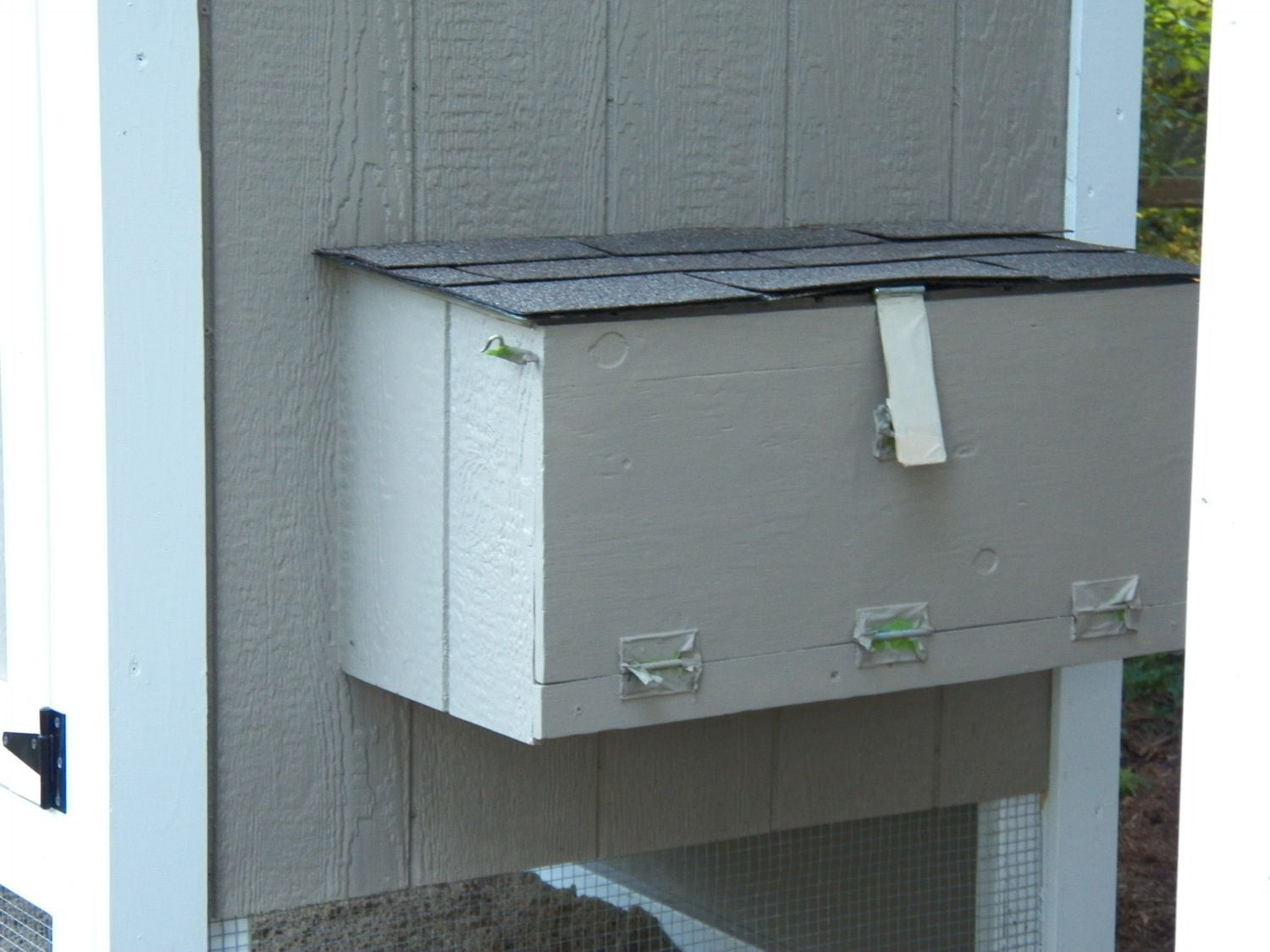

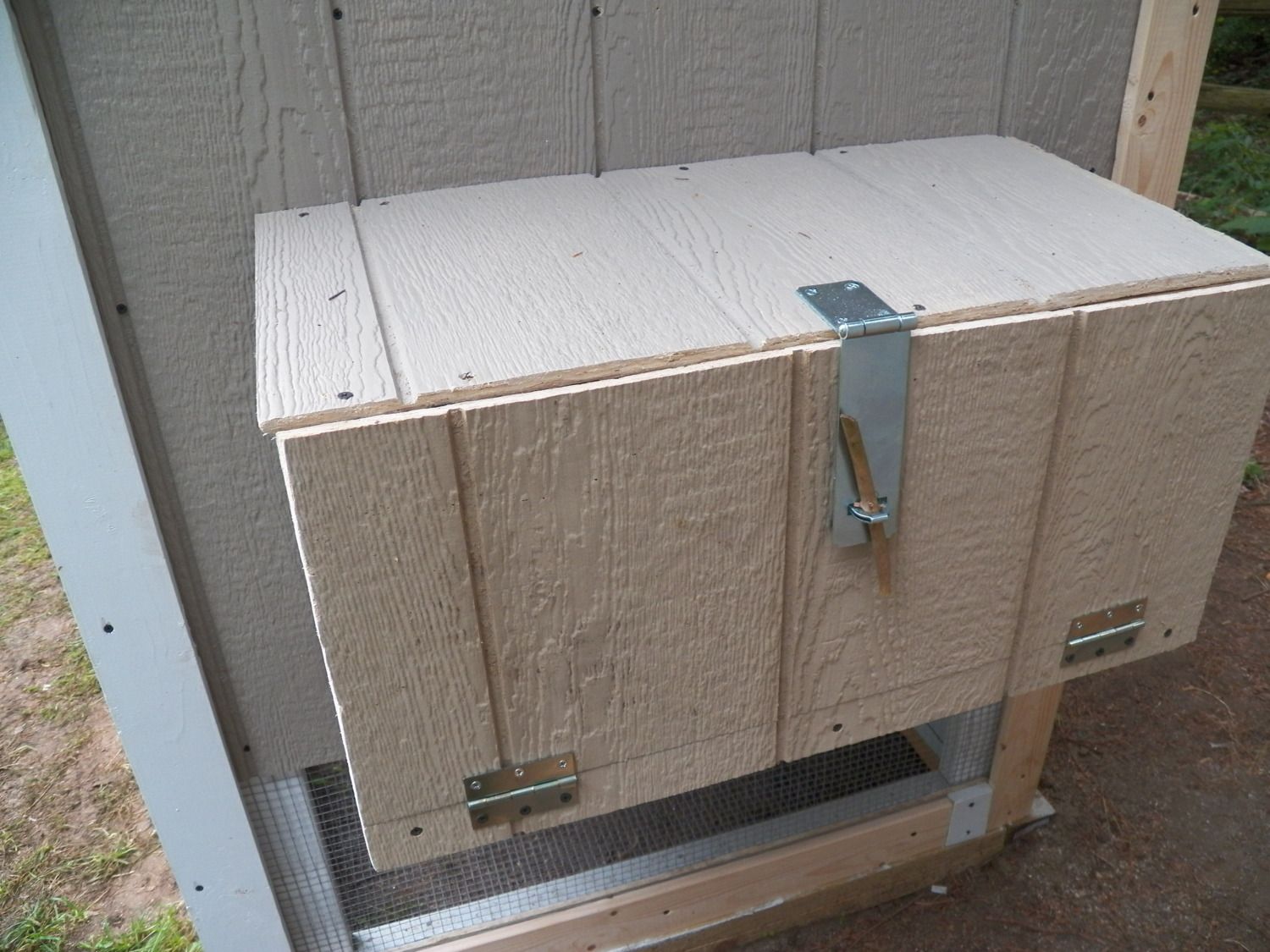

    I siliconed all the screws but I may cut them and re do it again. we still need to notch out around that hasp.
    [​IMG]

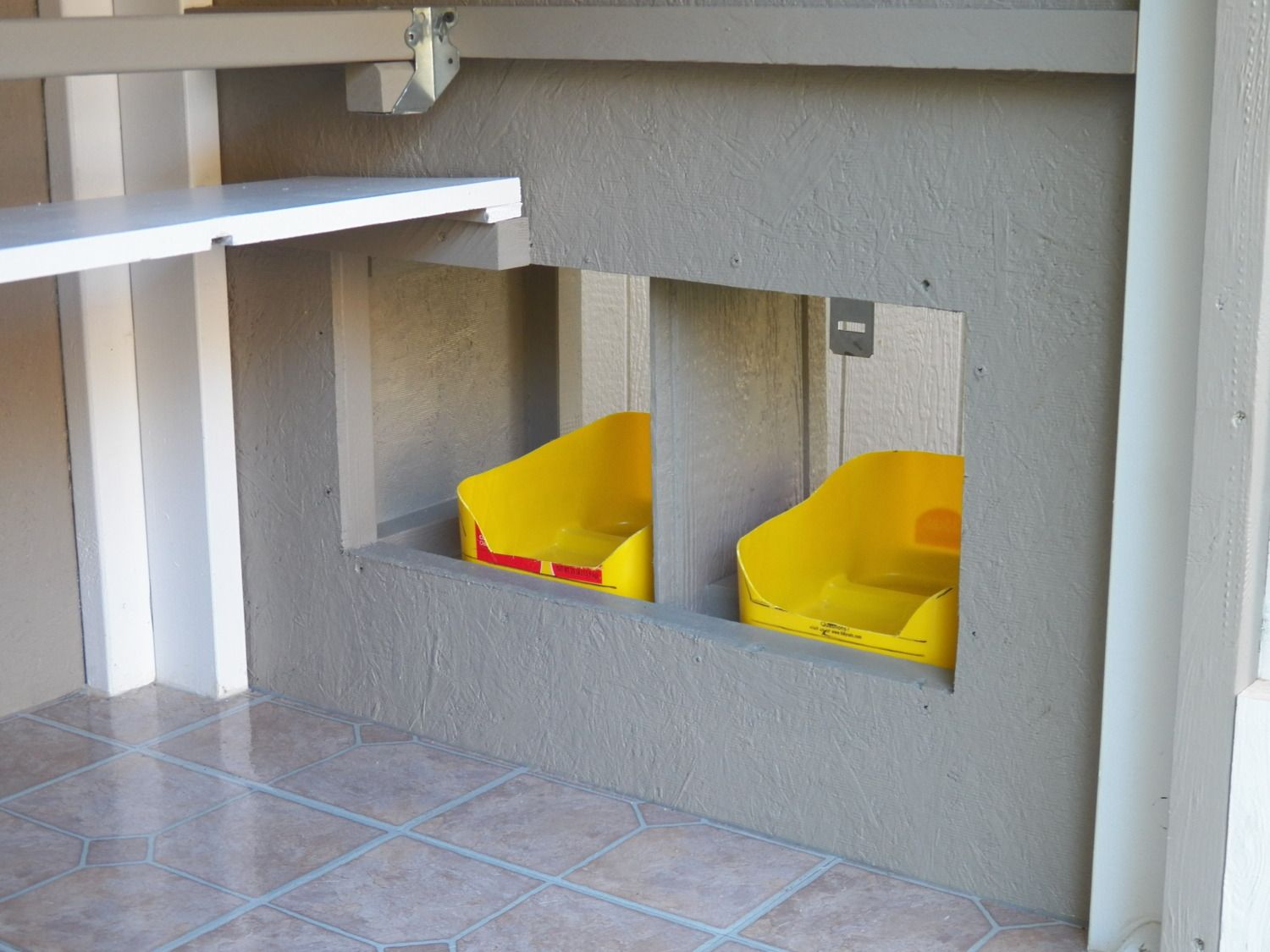

    The nest box divider is removable
    [​IMG]

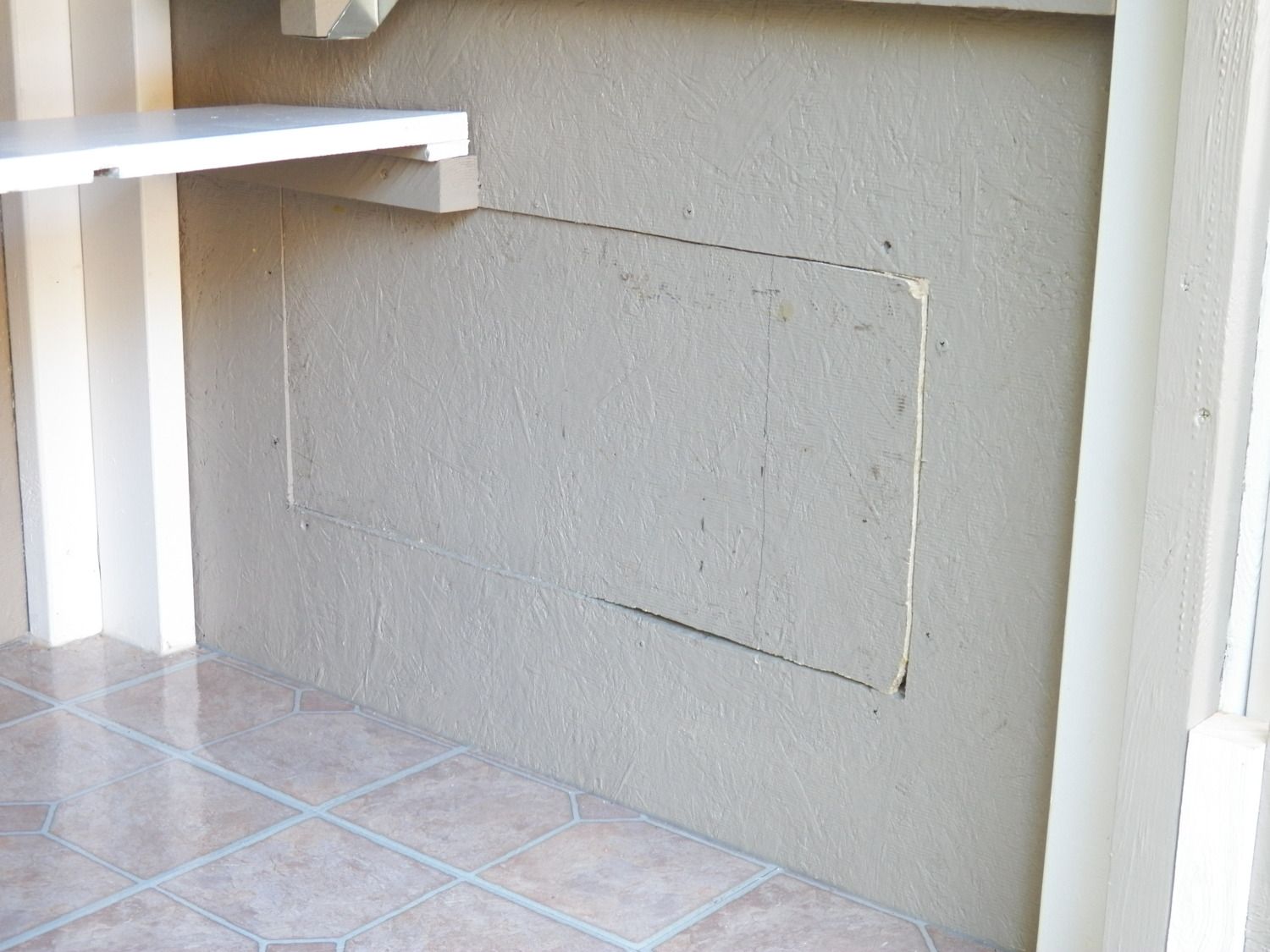

    I saved the piece we cut for the nest box, it's wedged back in until they are old enough to lay
    [​IMG]

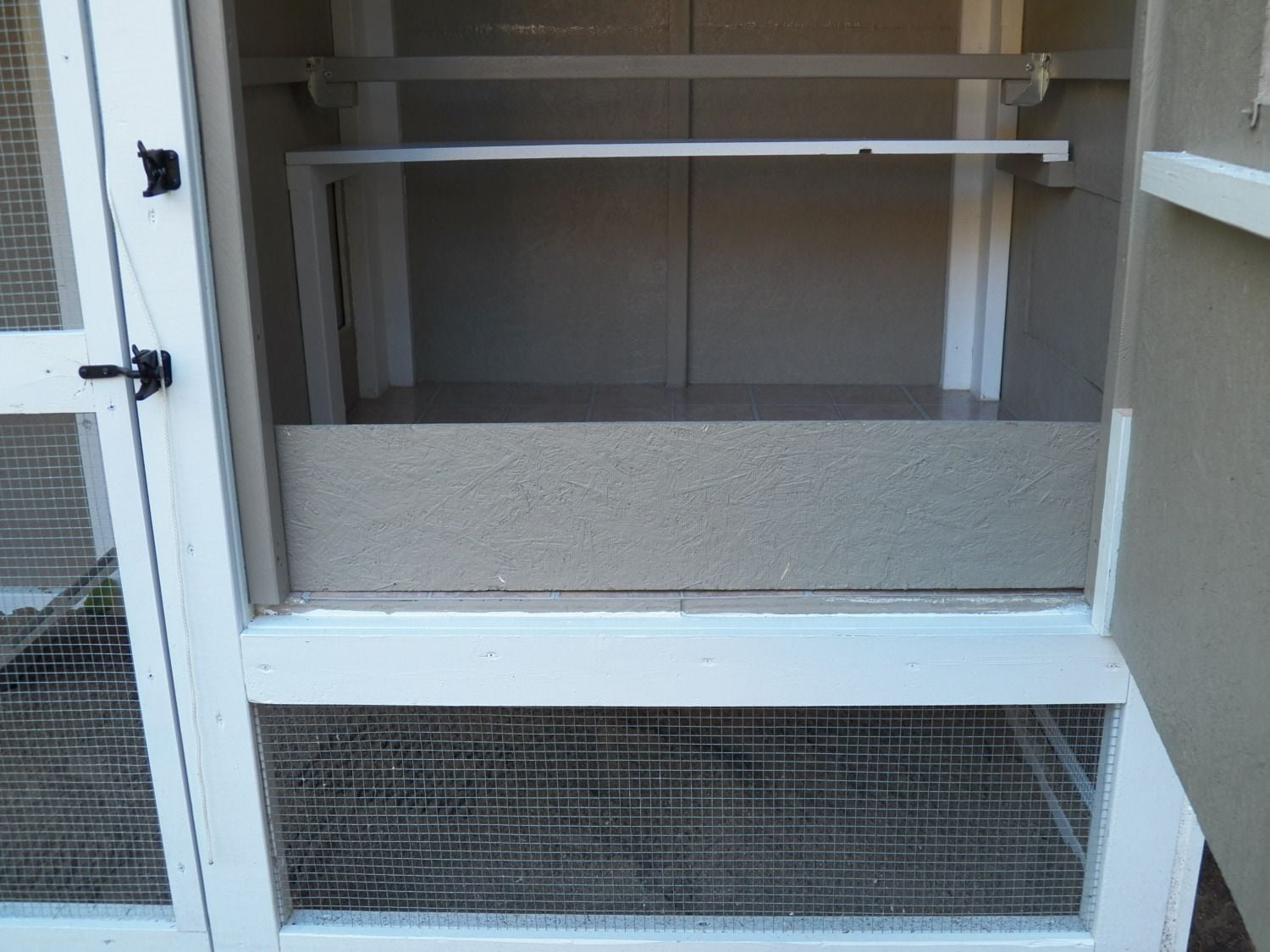

    Note the poop board, it was a pretty warped piece so I glued some shims on, cut them down and painted them. Removable kick board (I plan on doing deep litter in the house and sand in the run)
    [​IMG]
    removable roost, removable poop board
    [​IMG]

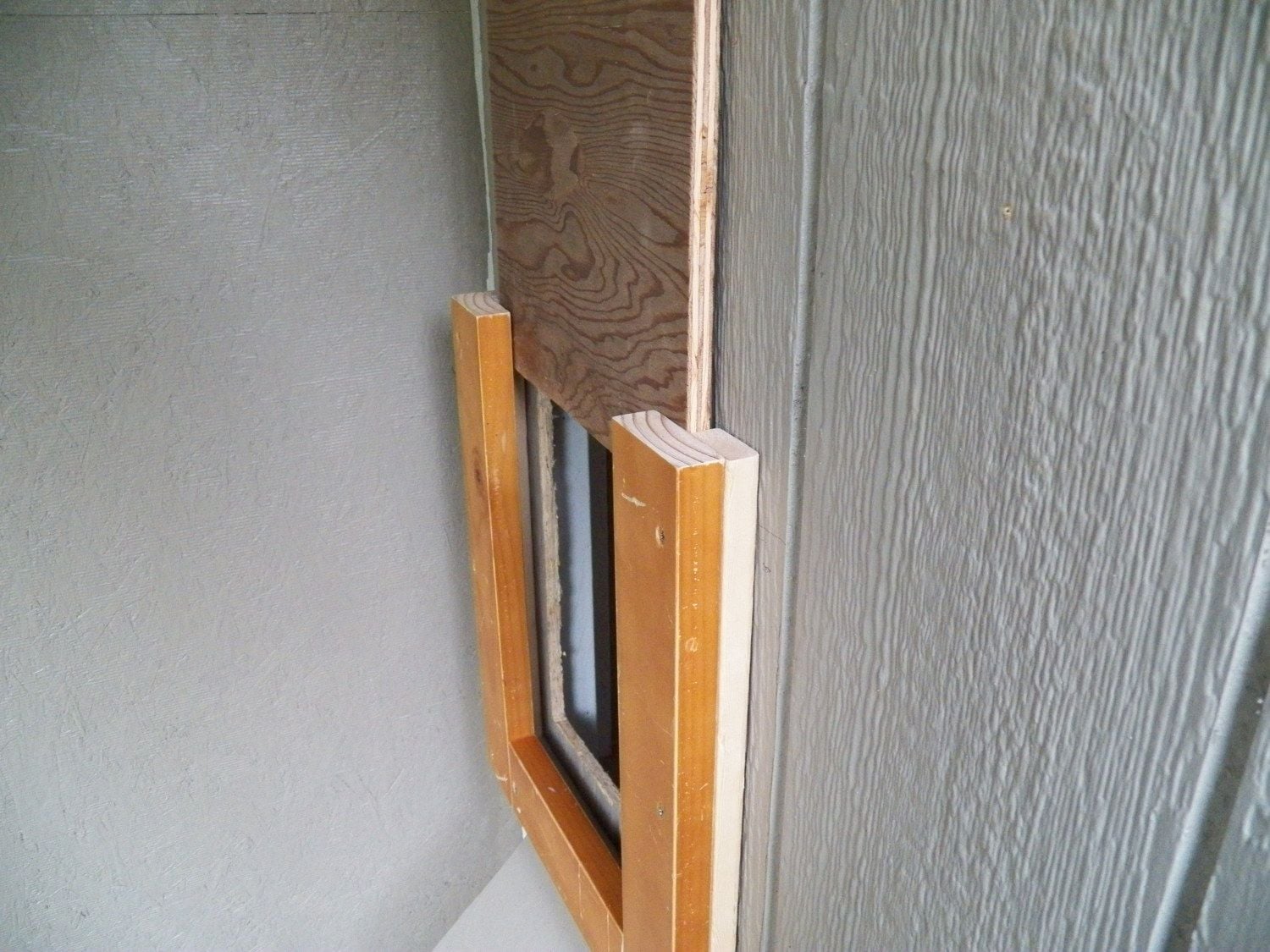

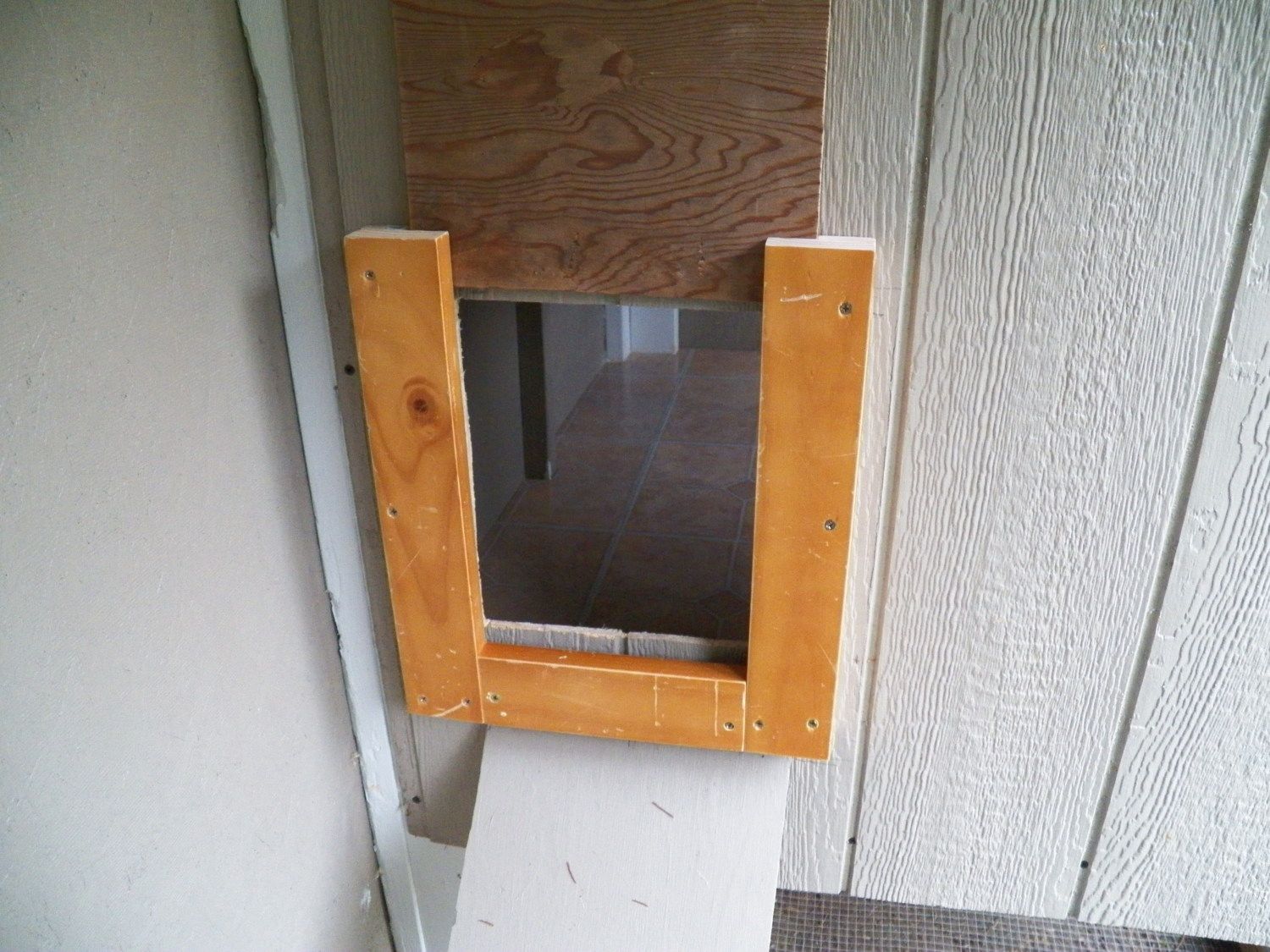

    pop door assembly, scrap 1"x 3"s with 1"x 2"s attached at the outer edges and bottom
    [​IMG]

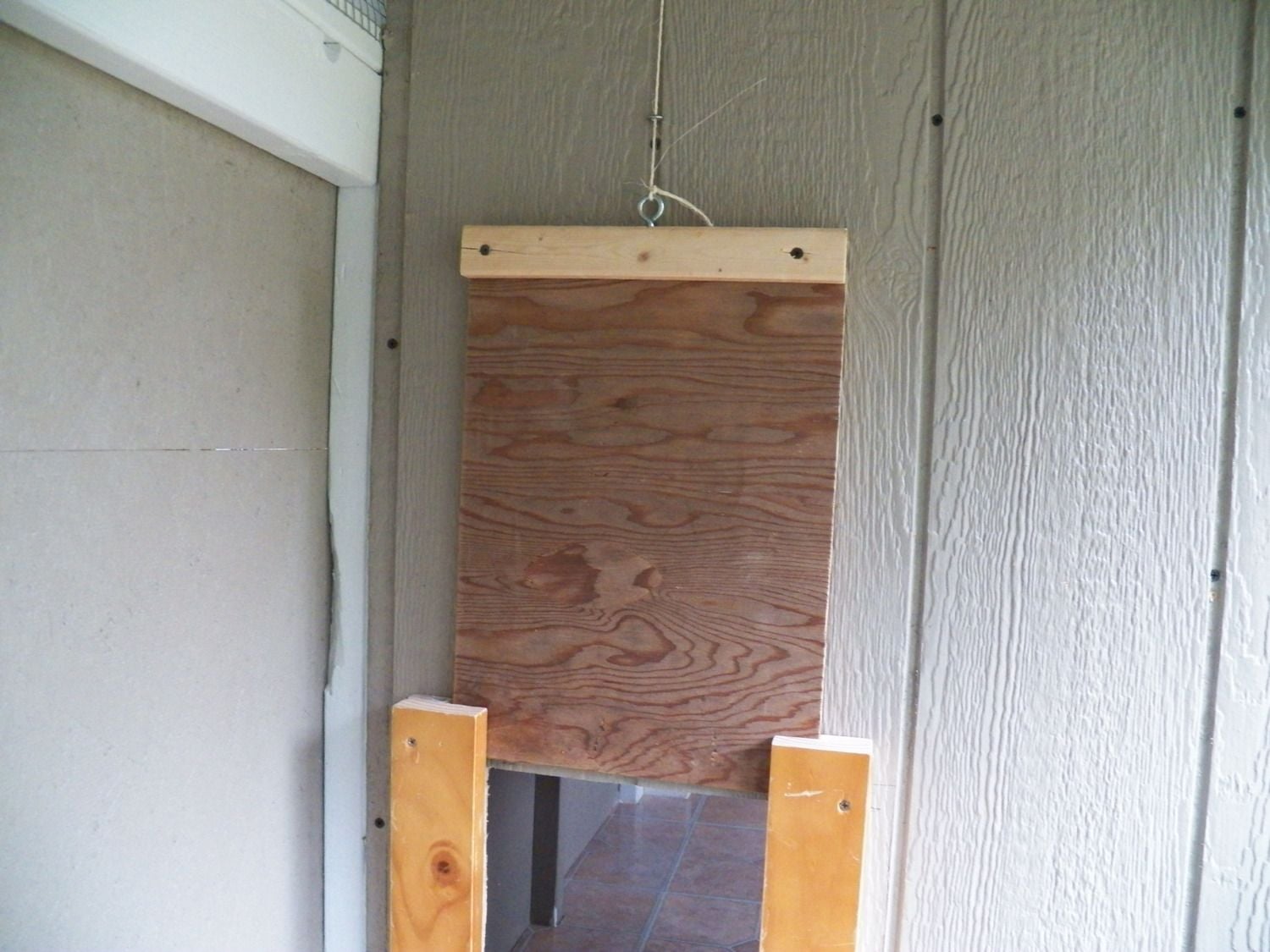

    scrap piece of plywood with a 1"x 2" at the top (sisal was for trial run)
    [​IMG]
    [​IMG]

    [​IMG]

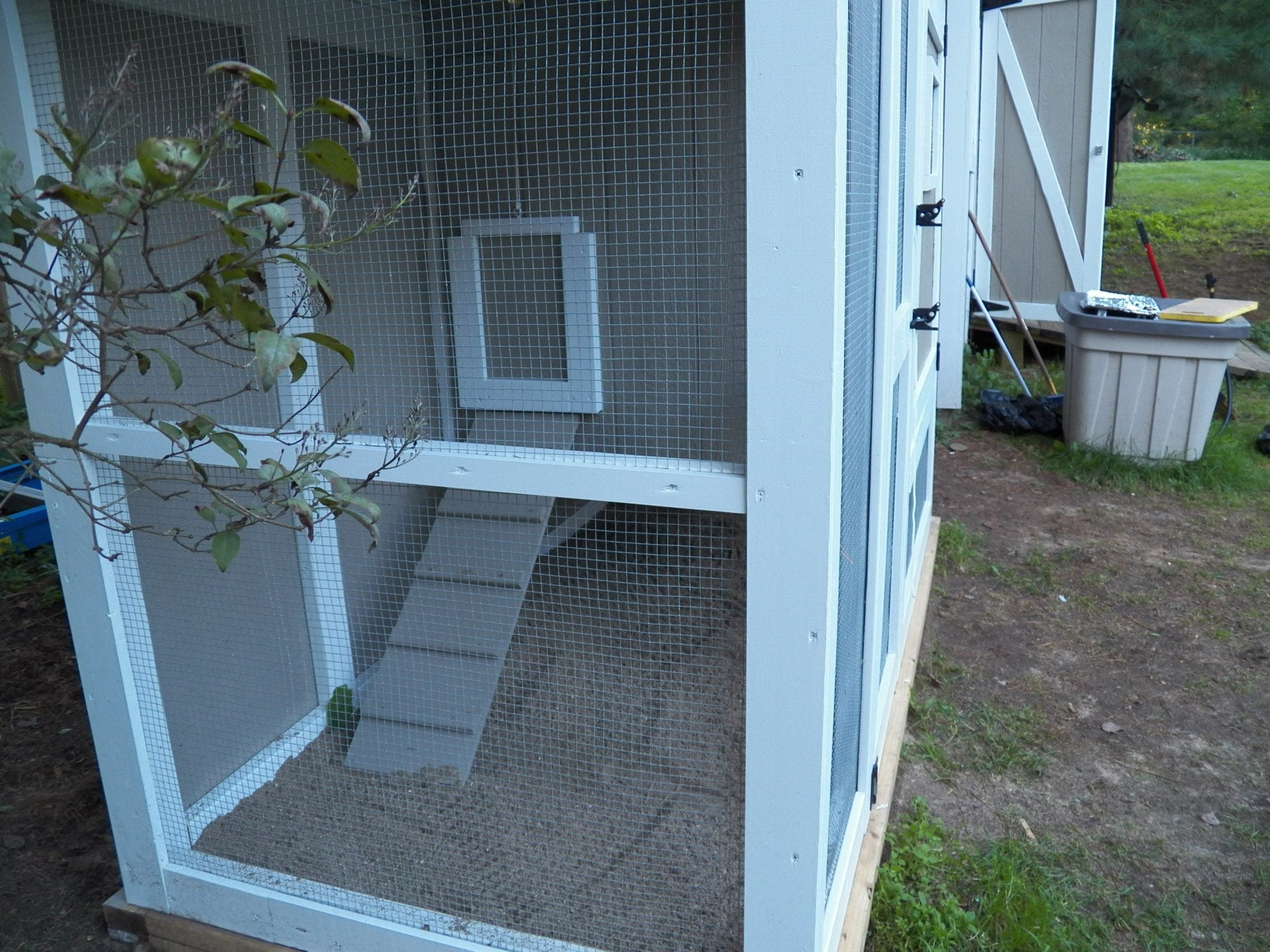

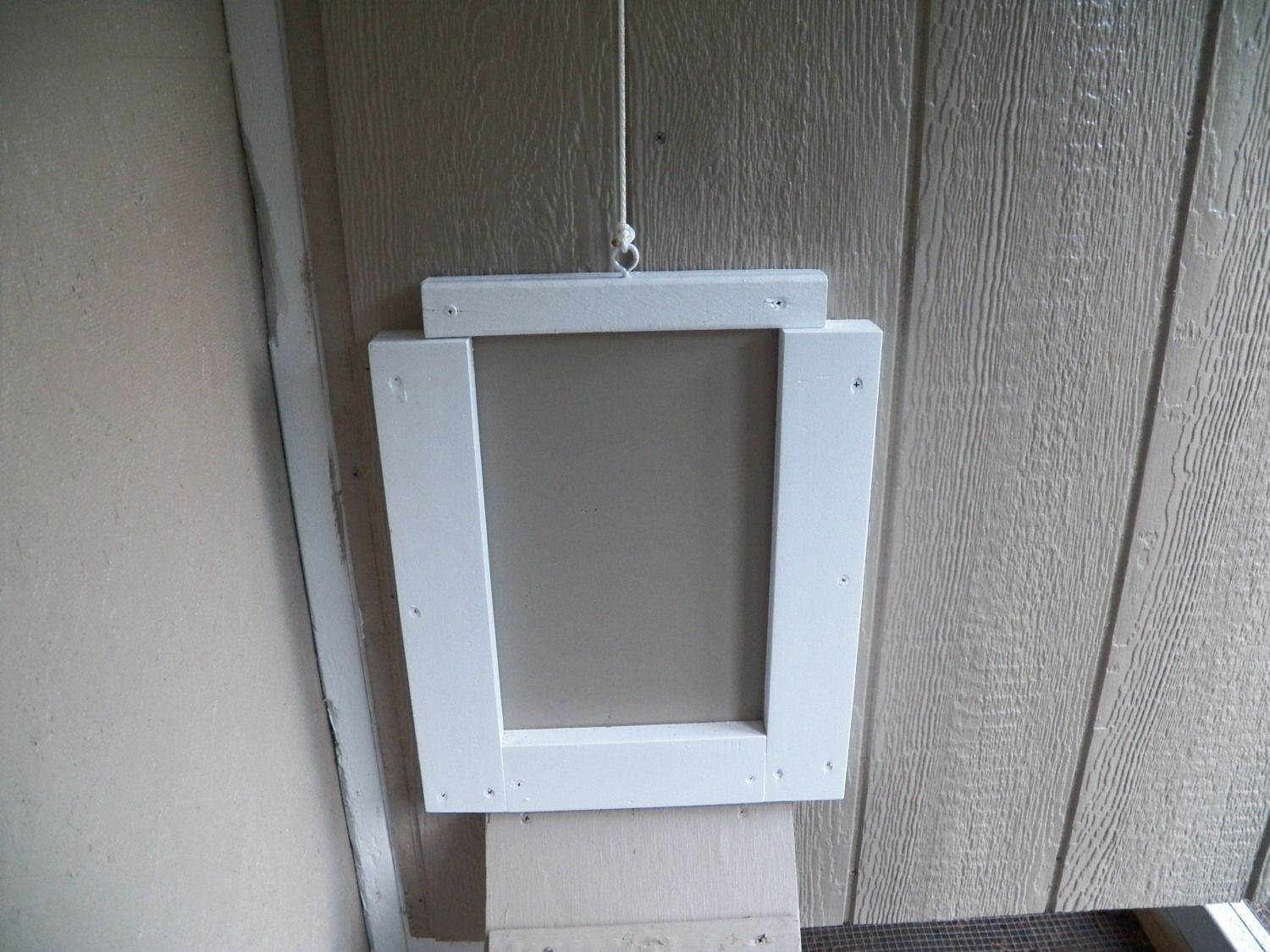

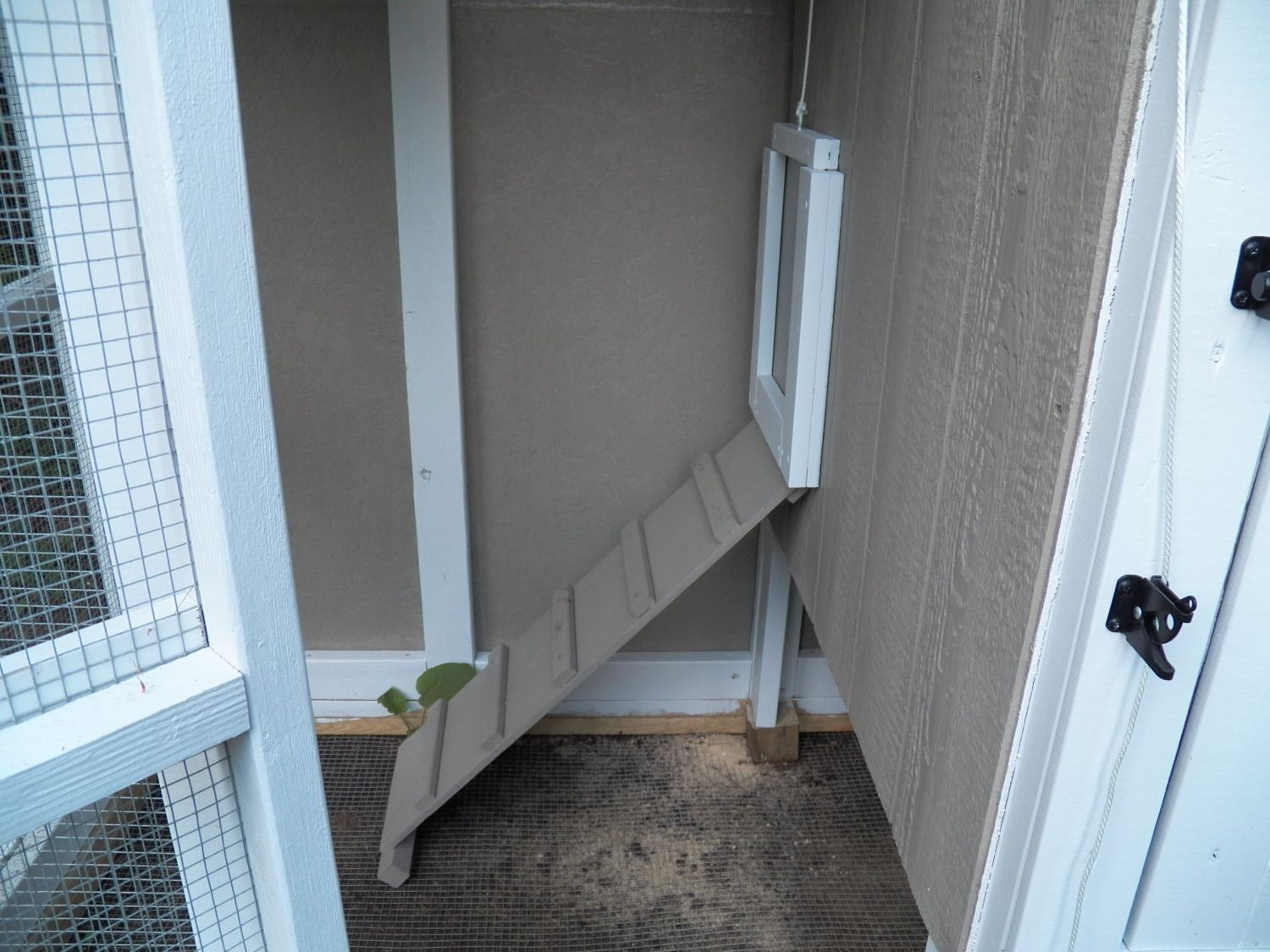

    painted, added chicken ladder
    [​IMG]
    I'm proud, I did thismyself :)
    [​IMG]
    scrap of 1"x 2" for a stop
    [​IMG]

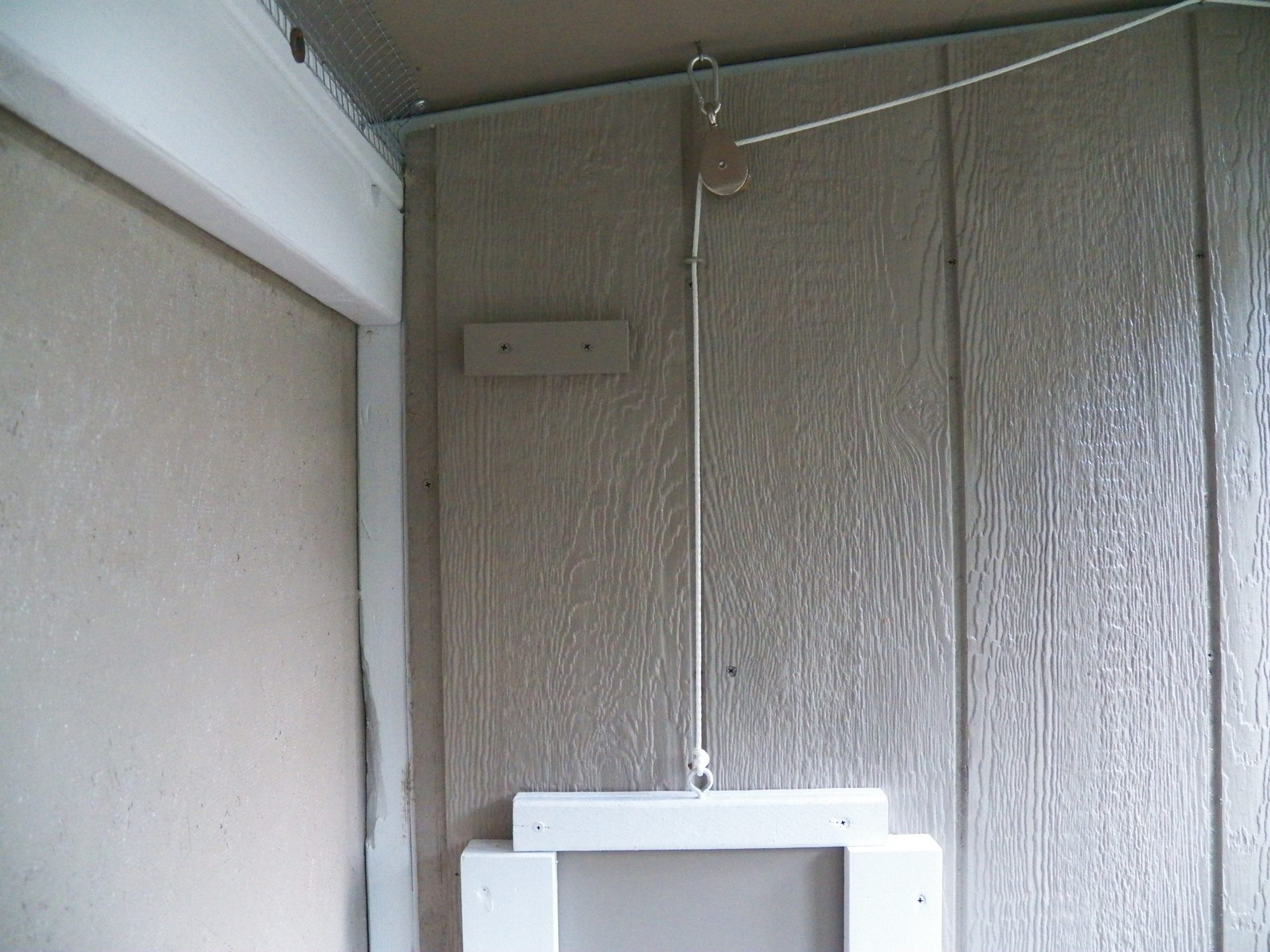

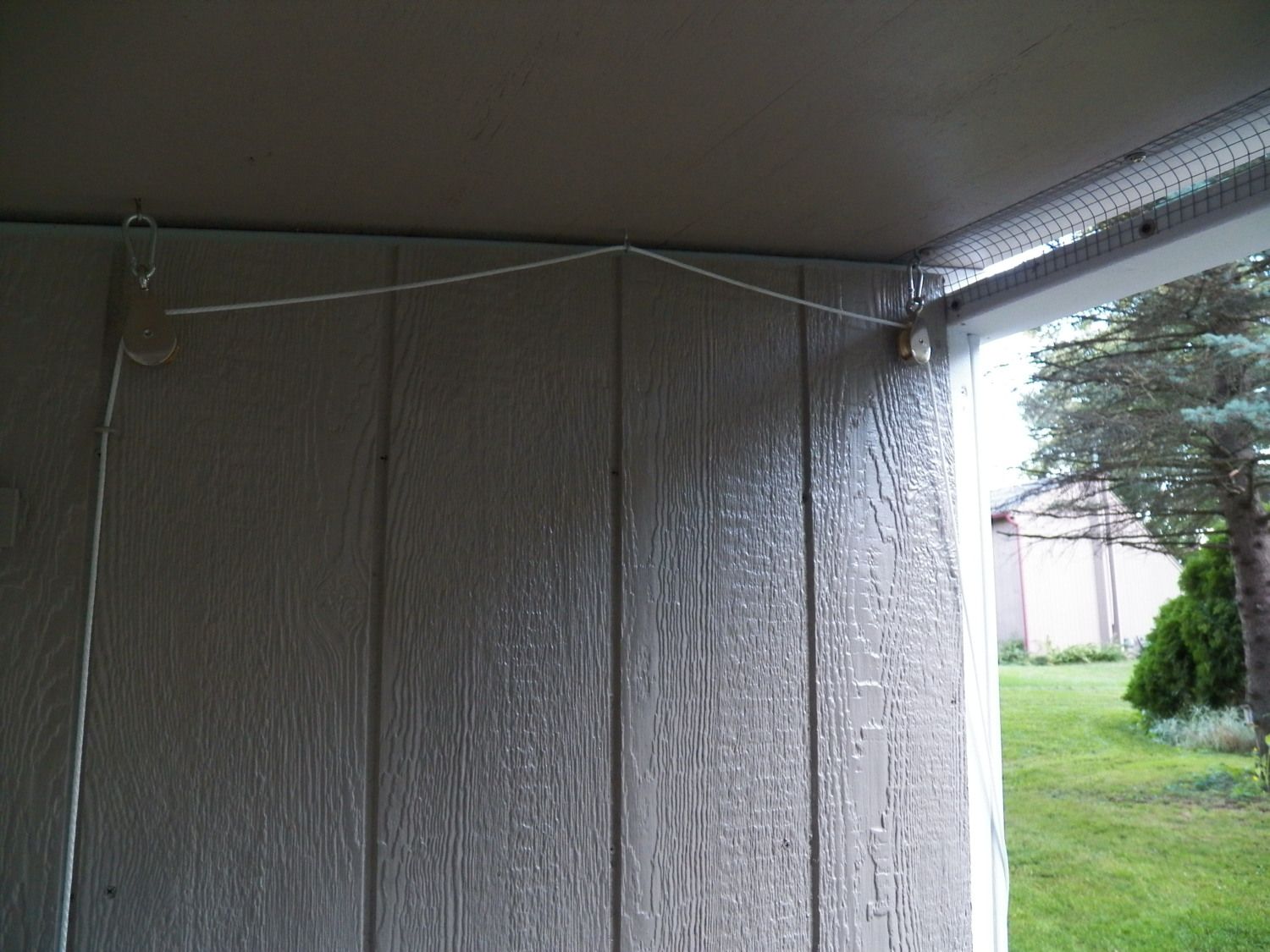

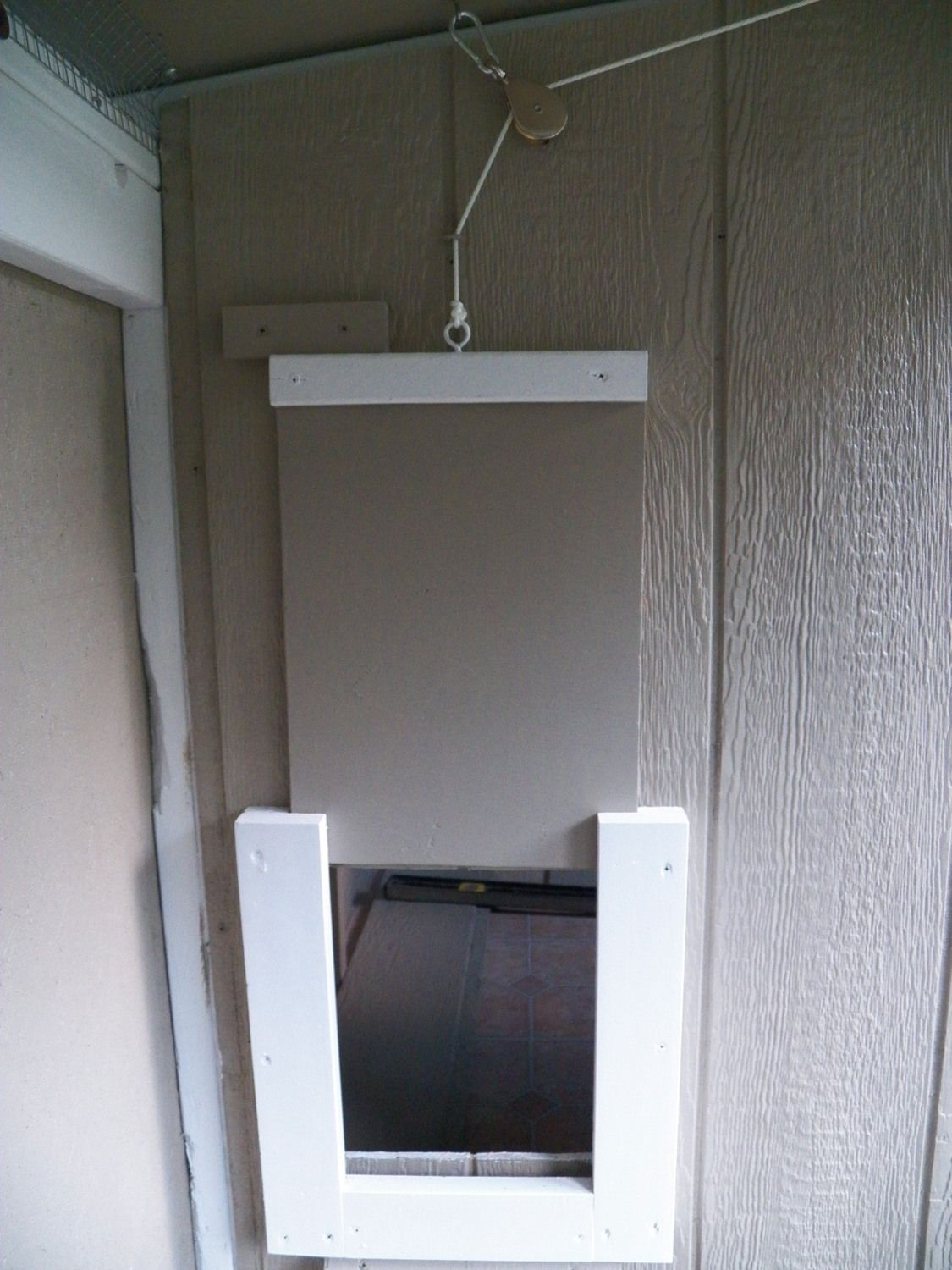

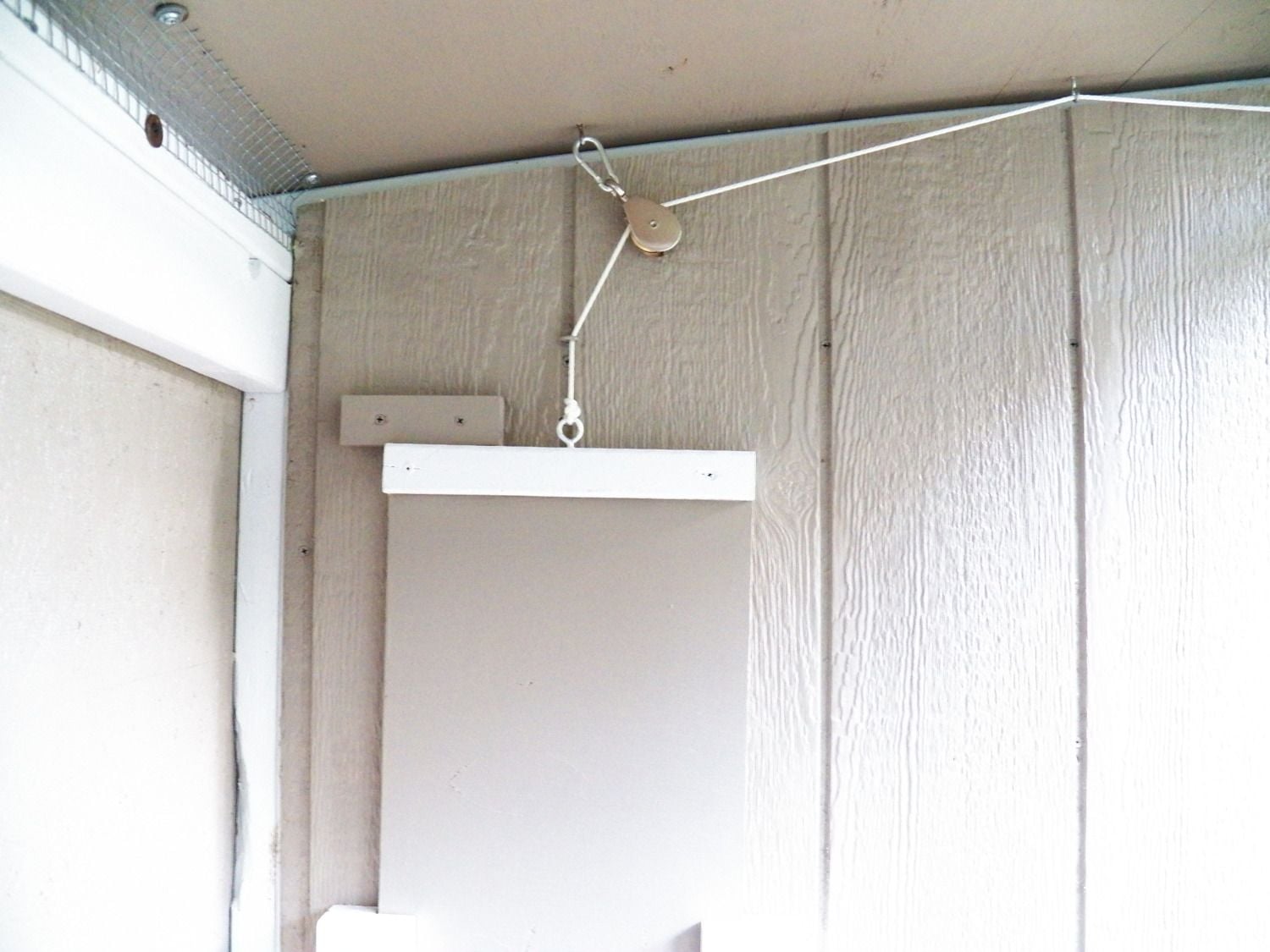

    small pulleys and carabiners installed
    [​IMG]

    [​IMG]
    [​IMG]

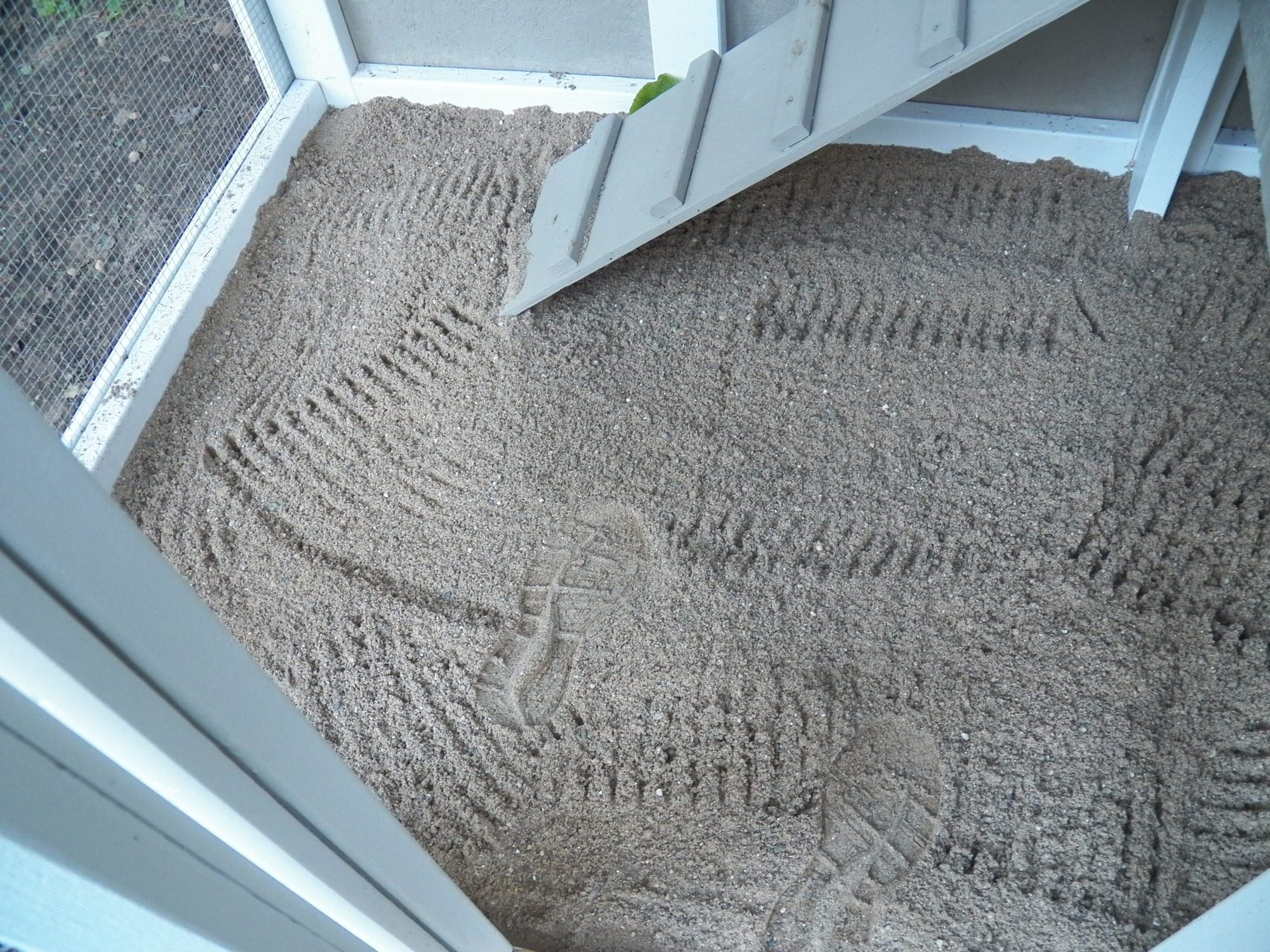

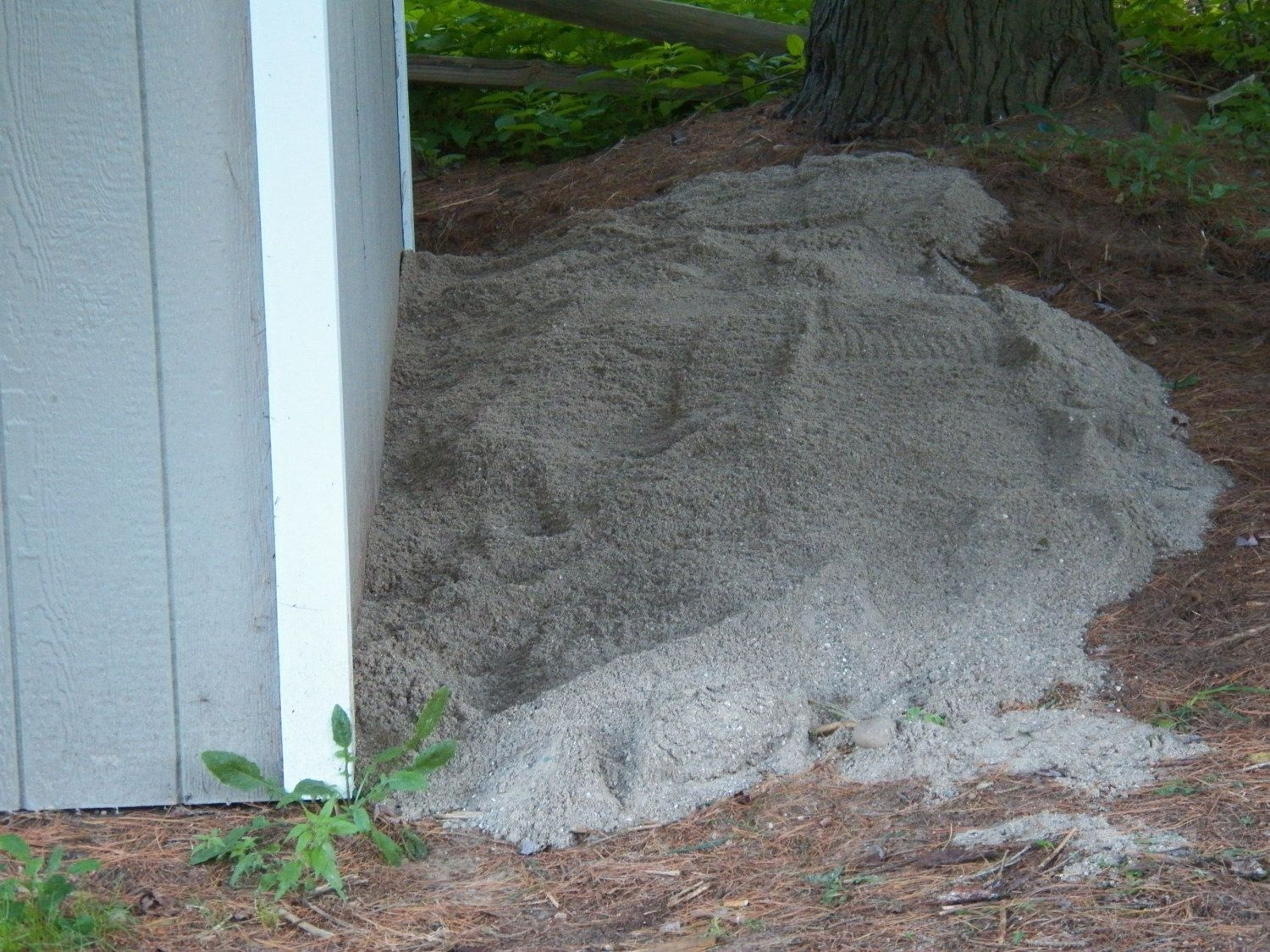

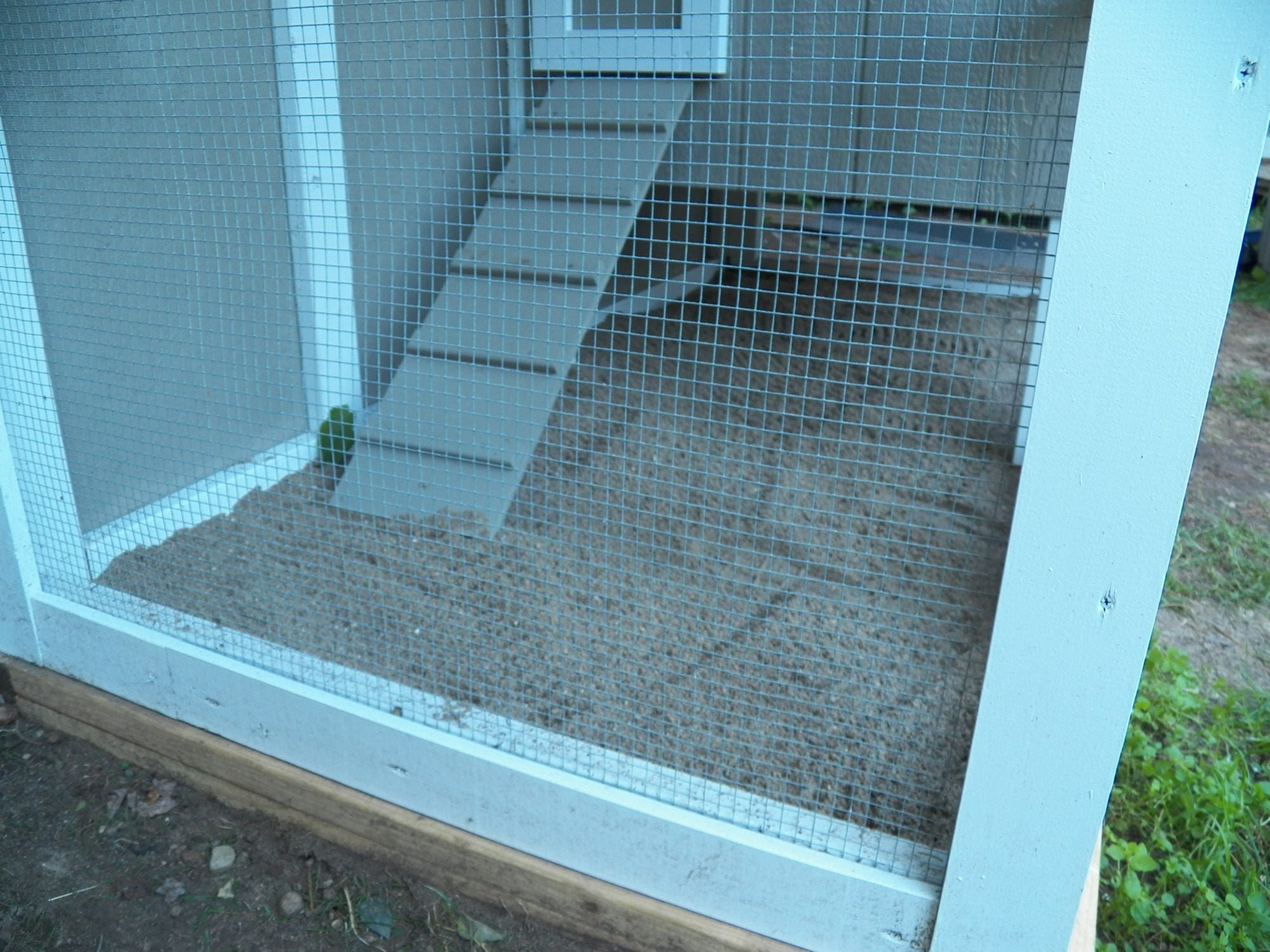

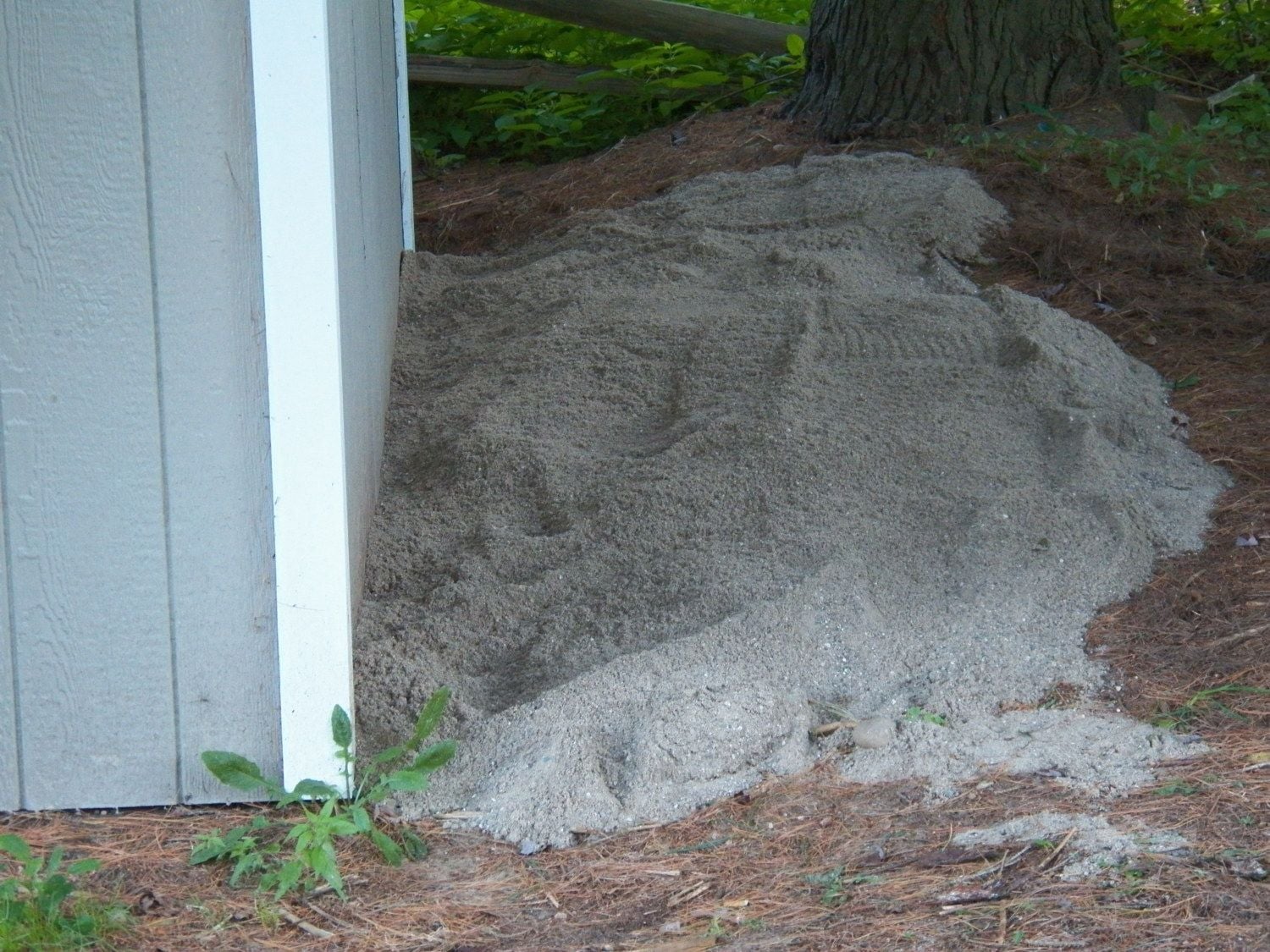

    1/2 a yard of sand is a lot! This is all left over after filling the coop with 4-5"

    [​IMG]
    On the ladder I did a base coat then did the 2nd coat with sand mixed in for better traction
    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]

    [​IMG]

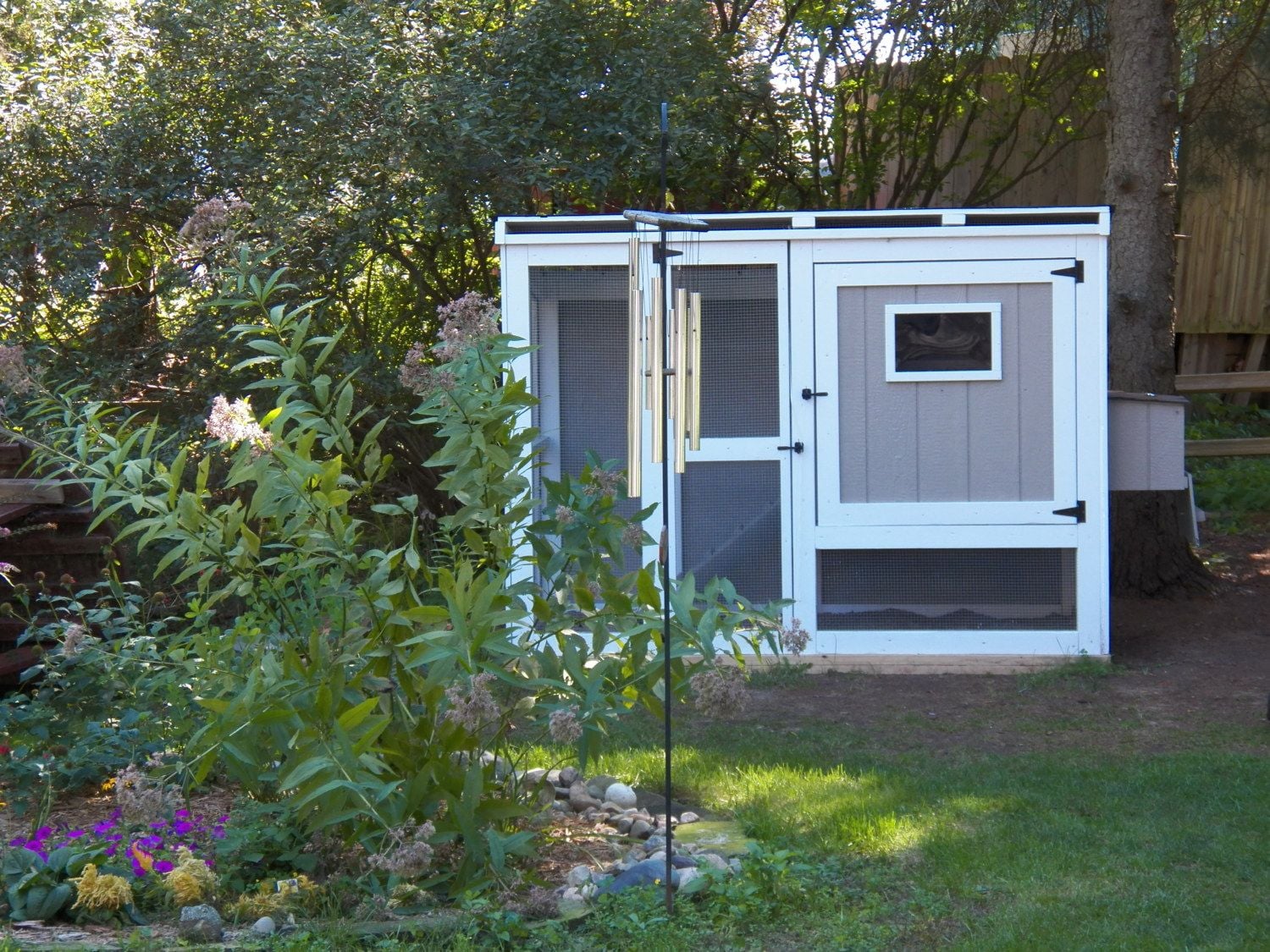

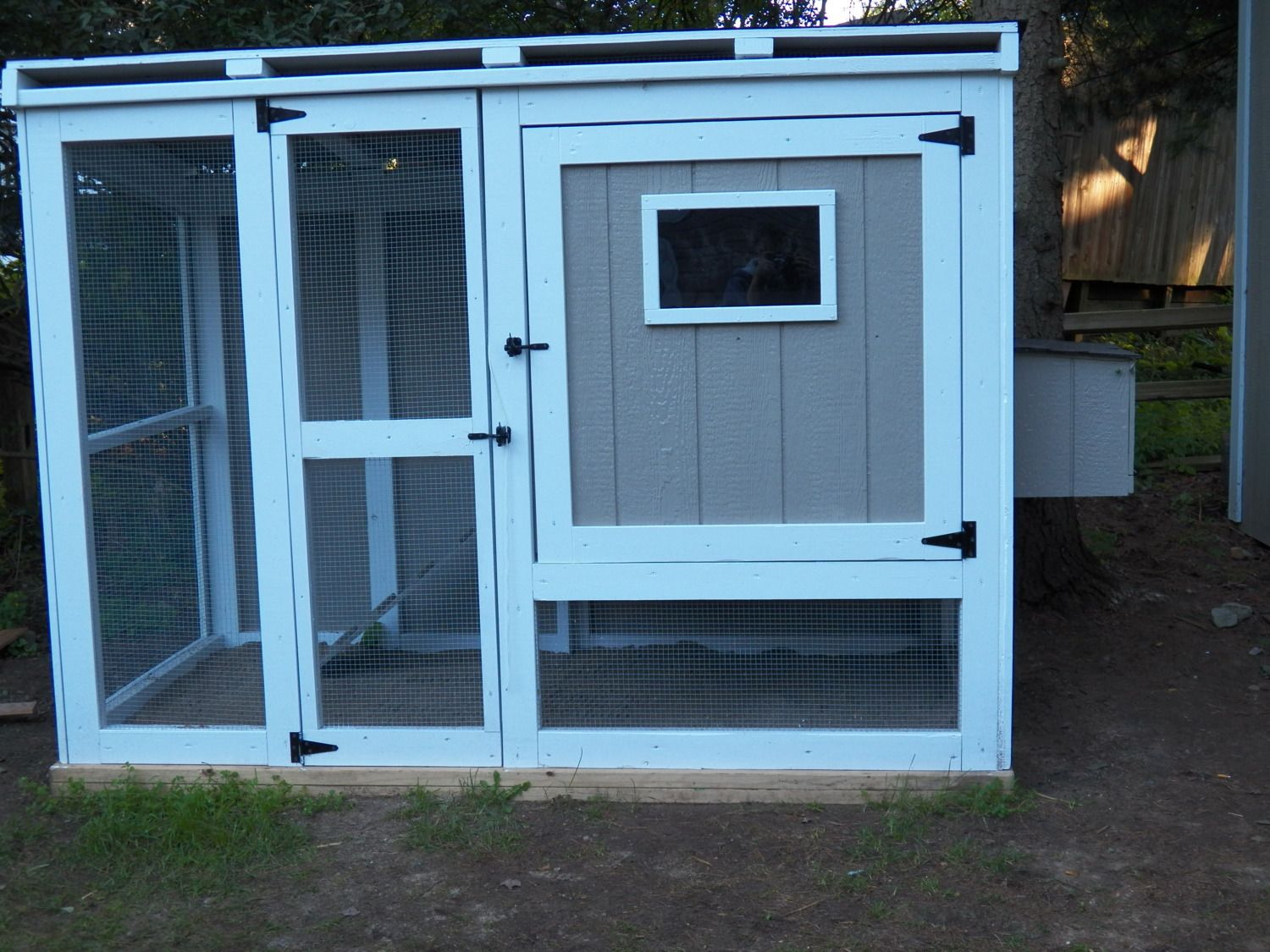

    I still have to caulk a few things and put on a cord wrap but other than that we are done. I do plan on adding a bigger run without a "roof" next year. Feel free to ask me any questions
