    RANCHO CHICKACABRA
    I just finished my coop (aka Rancho Chickacabra), so I thought I would post the progress. I spent hours perusing all the coop designs on BYC and came up with a hodge-podge design of all the elements I liked best. I hope this helps anyone looking for ideas. Total cost of all materials: $440.00. Be sure to check your lumber/hardware store's "culled" pile of lumber. Previously cut dimensional lumber and plywood goes for pennies on the dollar and can save you a wad of cash. The metal roofing is not included in the cost as I already had scrap pieces left over from my patio roof.
    Step 1: Site selection and cedar clearing complete.
    [​IMG]

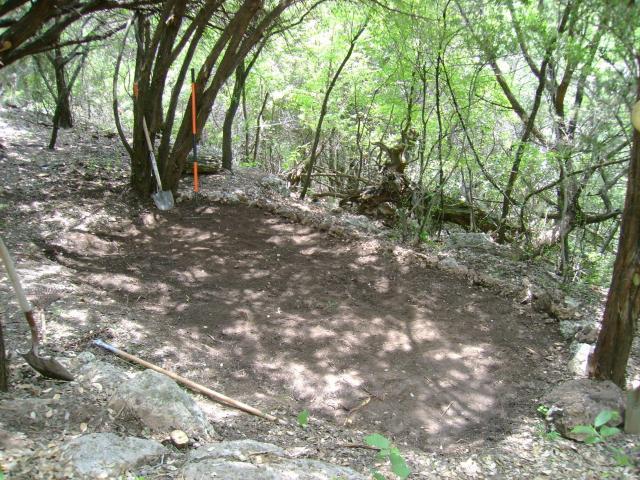

    Step 2: Sloping area leveled.
    [​IMG]

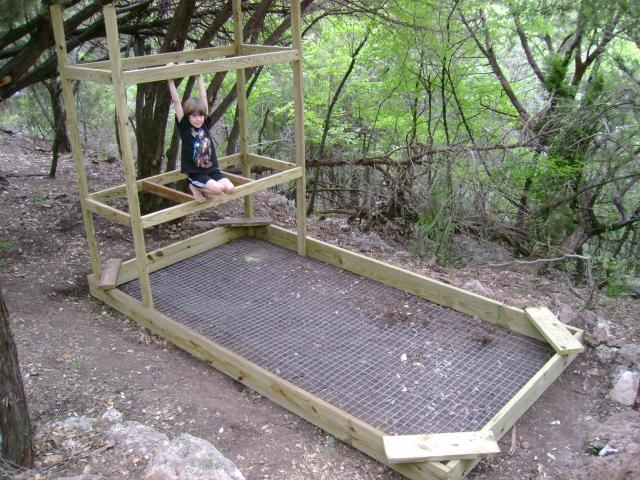

    Step 3: Base of run complete. Underside wired to keep out digging predators.
    [​IMG]
    Step 4: Coop framed.
    [​IMG]

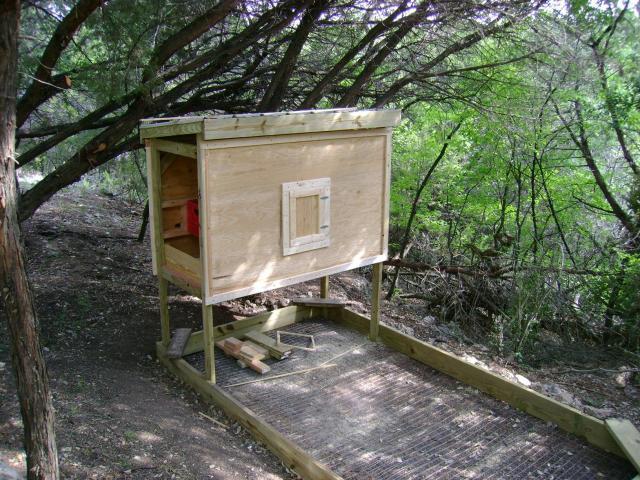

    Step 5: Coop floor and roof installed.
    [​IMG]

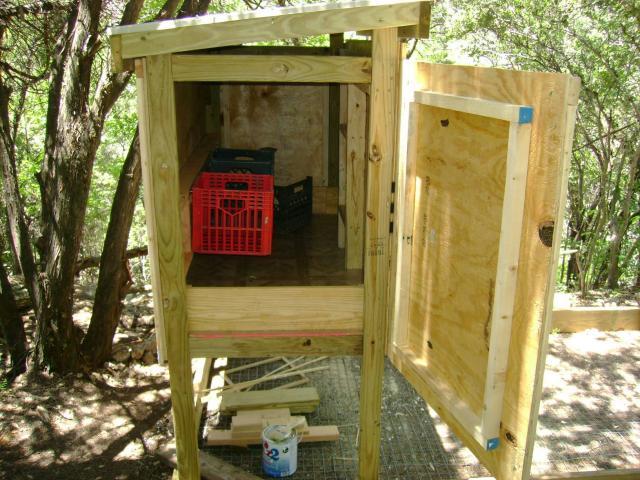

    Step 6: Roosting boxes (milk crates) installed. I used the crates upright, cutting entries and egg removal areas on front and back. I used them upright to keep the chickens from sitting on top of them and pooing all over them. I also installed cheap tile on the floor for easy cleanout. I plan on using the Deep Litter Method (DLM), so the removable 1x8's on the sides of the floor will allow easy removal of litter.
    [​IMG]
    Side view of roosting box/crates. Hanging on metal hooks for easy removal and cleaning.

    [​IMG]
    Step 7: Front door framed.
    [​IMG]

    Step 8: Front siding and door installed.

    [​IMG]
    Step 9: Rear siding and door installed.
    [​IMG]

    Egg extraction hatch.
    [​IMG]
    Step 10: Side doors installed for easy cleanout. The 1x8 near the floor holds in the litter, but pulls out to allow soiled litter removal.
    [​IMG]
    Step 11: Two coats of primer applied to seal wood.
    [​IMG]
    Step 12: NEON paint applied. I wanted burnt orange and white (Longhorns), but Chloe wanted pinks and other colors similar to "Hannah Montana's" coop. We compromised with neon . . .
    [​IMG]
    Step 13: Run framed.
    [​IMG]
    Another view of run framing.
    [​IMG]
    Step 14: Wire caging (1x1-inch welded) installed on all sides. Foxes, raccoons, and coyotes common in the area. A mountain lion was even sited on our road a few days ago. Hopefully the welded wire can keep them all out . . .
    [​IMG]
    Step 15: Interior vents also covered with wire caging.
    [​IMG]

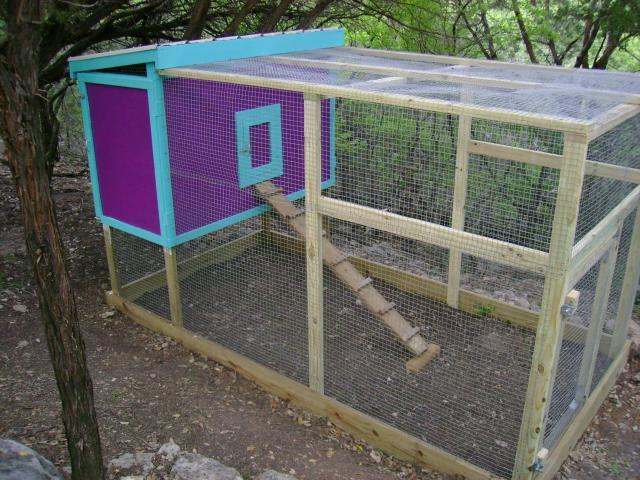

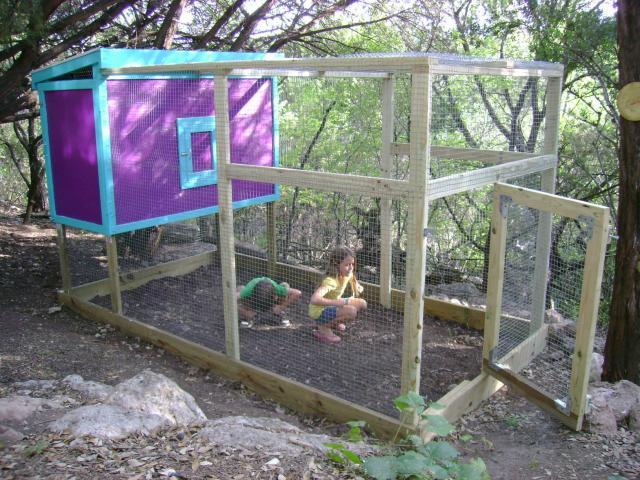

    Step 16: Ramp installed and coop complete.
    [​IMG]
    Step 17: Wyandotte pullets are here.
    [​IMG]
    [​IMG]
    [​IMG]
    WATCH FOR THE COOP NEXT YEAR DURING AUSTIN'S FUNKY CHICKEN COOP TOUR (http://fccooptour.blogspot.com/)

    Share This Article

Comments

To make a comment simply sign up and become a member!
  1. judyki2004
    Cool! The only thing I don't see is where they roost to sleep... I like that if you ever want to give them extra space is quite easy by adding a nest box right in the door you use to access the nests now! I love the colors too!
  2. pipsypeach
    Very similare to what I want to do. Thank you for the visual!
  3. hot93chick
    looks a lot like my coop. minus the neon paint. i love it though!
  4. michelle59
    This is exactly what I would like to build, any chance of giving the dimensions, etc... so I can a plan to give to the person that is building for me?
  5. Chicks753
    This is perfect! I'm considering copying this - any tips or "if I had to do it again" thoughts?
