Smallest Tallest Coop

By GopherBoyFarms, Jan 11, 2012 | Updated: Jul 30, 2012 | |
  1. GopherBoyFarms
    [​IMG]
    GopherBoy got up early this morning to start work on the coop.

    [​IMG]
    We had a little mole problem on the farm....
    so something had to be done.................
    [​IMG]

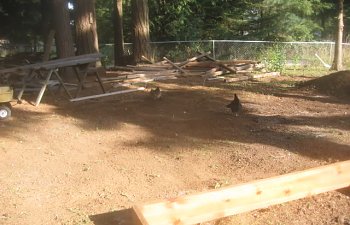

    After that commercial break......we found the area in the yard we wanted the coop


    maybe the chickens picked the spot....
    [​IMG]

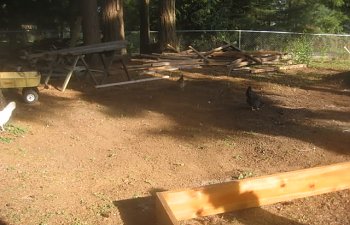

    the spot was then cleared and raked
    [​IMG]


    [​IMG]
    the legs have been attached and we needed the small boy child to make sure it was all level

    [​IMG]
    ok, we used old waterbed frame, and some poopy 4x4's we got from the fat dead mans place in Portland and now have the floor framed.

    [​IMG]





    [​IMG]


    [​IMG]

    this is juzt the starting sketch
    it will be 3'6" off the ground
    and the floor is 6'10" X 7'6" (so far)




    Here is the start of the front deck
    [​IMG]

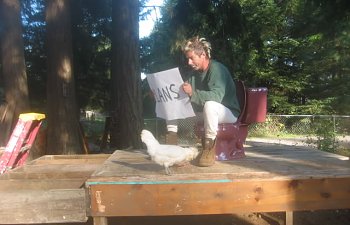

    GopherBoy got the floor sheeted and needed to take a break to look at the plans again.

    [​IMG]

    there always needs to be one of the flock there to see whats going on.
    [​IMG]


    [​IMG]
    Measure off the deck surface to the ground or pad.

    [​IMG]
    all measurements must carefully be written down on a block of wood, using anything else would not be professional

    [​IMG]

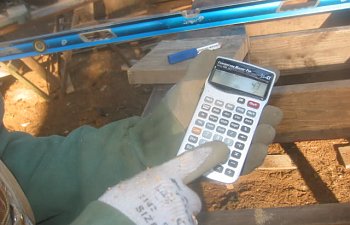

    using a construction calculator we figure out our rise for our steps.

    [​IMG]

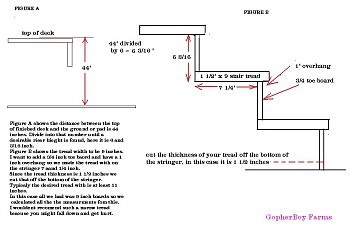

    mark on the framers square the rise and the desired tread width with a sharpie pen (more details on the measurements in the following drawing)

    [​IMG]
    line up both marks on the square to the edge of the board and trace them out.

    [​IMG]
    Skillfully cut the lines out with a skill saw then use a hand saw to finish the cuts

    [​IMG]
    On the last tread cut the thickness of your treads off the bottom, in this case the tread thickness is an inch and half

    [​IMG]
    there’s the stringer…being tested out.


    [​IMG]
    then we screwed the treads on


    [​IMG]

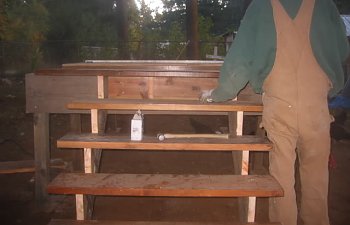

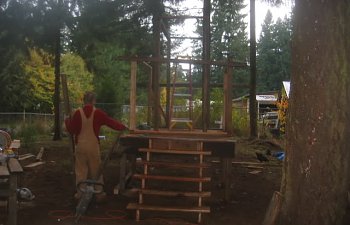

    done deal…..there are steps to the deck. Time to quiet for tonight


    [​IMG]

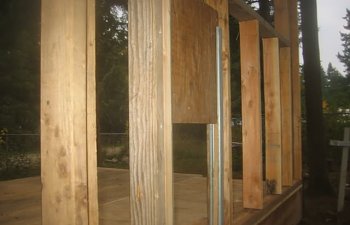

    One of the walls is up
    [​IMG]


    [​IMG]

    and the pop door in installed in the tracks
    closed:
    [​IMG]


    and opened:
    [​IMG]

    [​IMG]




    [​IMG]

    I wasnt supposed to get Lance in the picture
    [​IMG]

    Ok, this was the first attempt at the roof framing......

    WRONG
    [​IMG]


    after thinking about it all night, it's correct now, and a pattern has been made...
    CORRECT
    [​IMG]


    GopherBoy estimates that by the time it is done, it will be around 75 feet tall

    [​IMG]


    Todays word is patience. I cut all my rafter birds mouths wrong. But like anthing else you can fix it. Walk away figure it out go back. So I did but in the process of cutting the fix it boards I cut through my wagon. Ok walk away eat some lunch go back put on my gloves and one of the birds pooped in it
    [​IMG]..................walk way walk away

    [​IMG]


    [​IMG]


    Sometimes GopherBoy works to fast, and is really hard on his tools

    [​IMG]

    funny how his hammer breaks...and this was in his back pocket
    [​IMG]

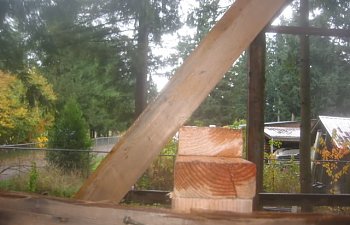

    This is how we are going to cut our rafter tails
    We don’t want them below the window so we squared off the window header to determine the length

    [​IMG]

    We square of this mark and transfer the line to the rafters at each end of the building
