100+lb capacity automatic chicken feeder with solar panel

Discussion in 'Feeding & Watering Your Flock' started by Urbanchicken62, Nov 21, 2015.

  1. Urbanchicken62

    Urbanchicken62 Out Of The Brooder

    54
    3
    43
    Sep 17, 2012
    Kingston, TN

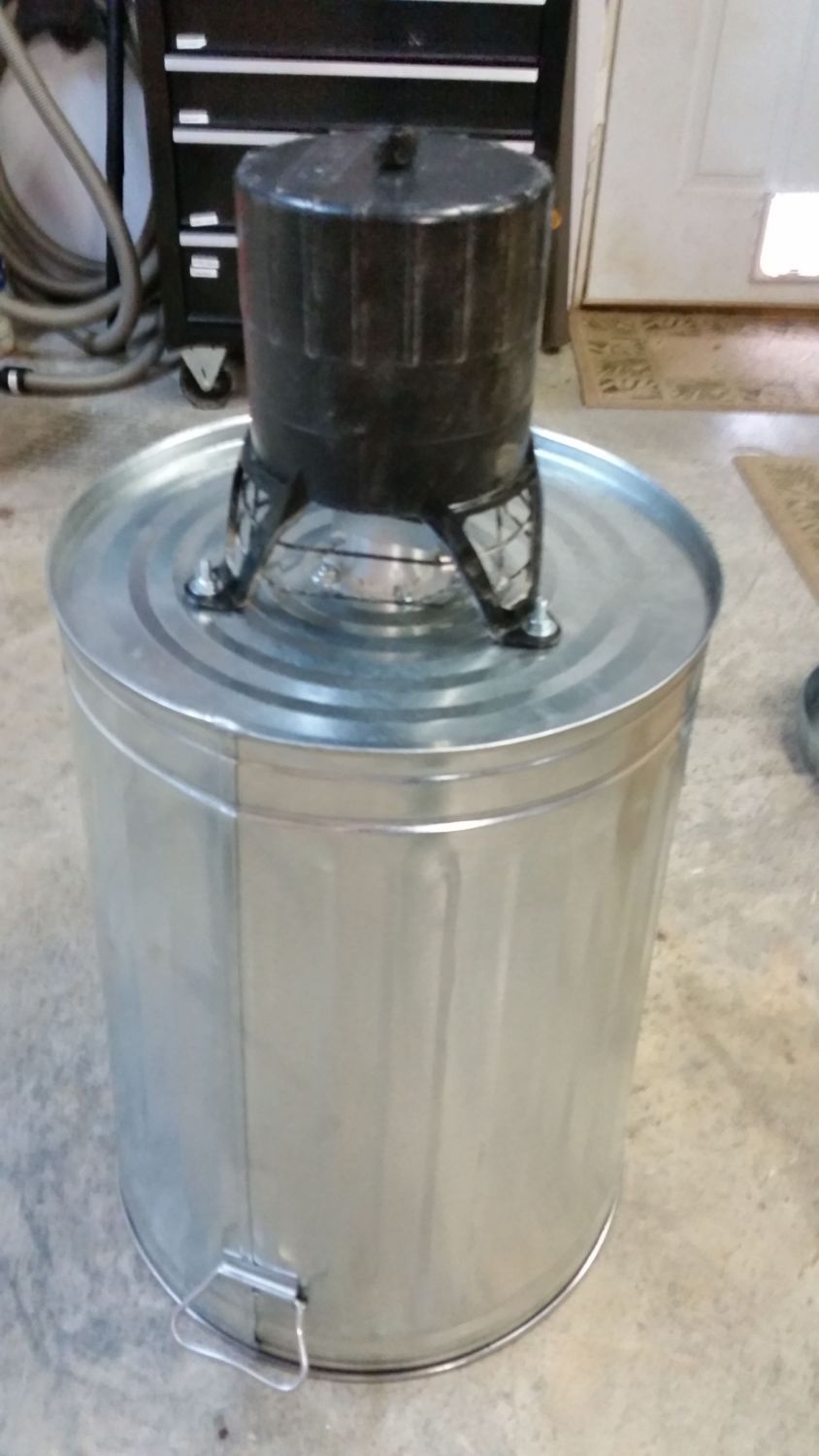

    Started with a Moultrie deer feeder that has multiple feeding times and adjustable feed duration. The feeder uses a 6v rechargeable battery and is charged by the solar panel that I added.

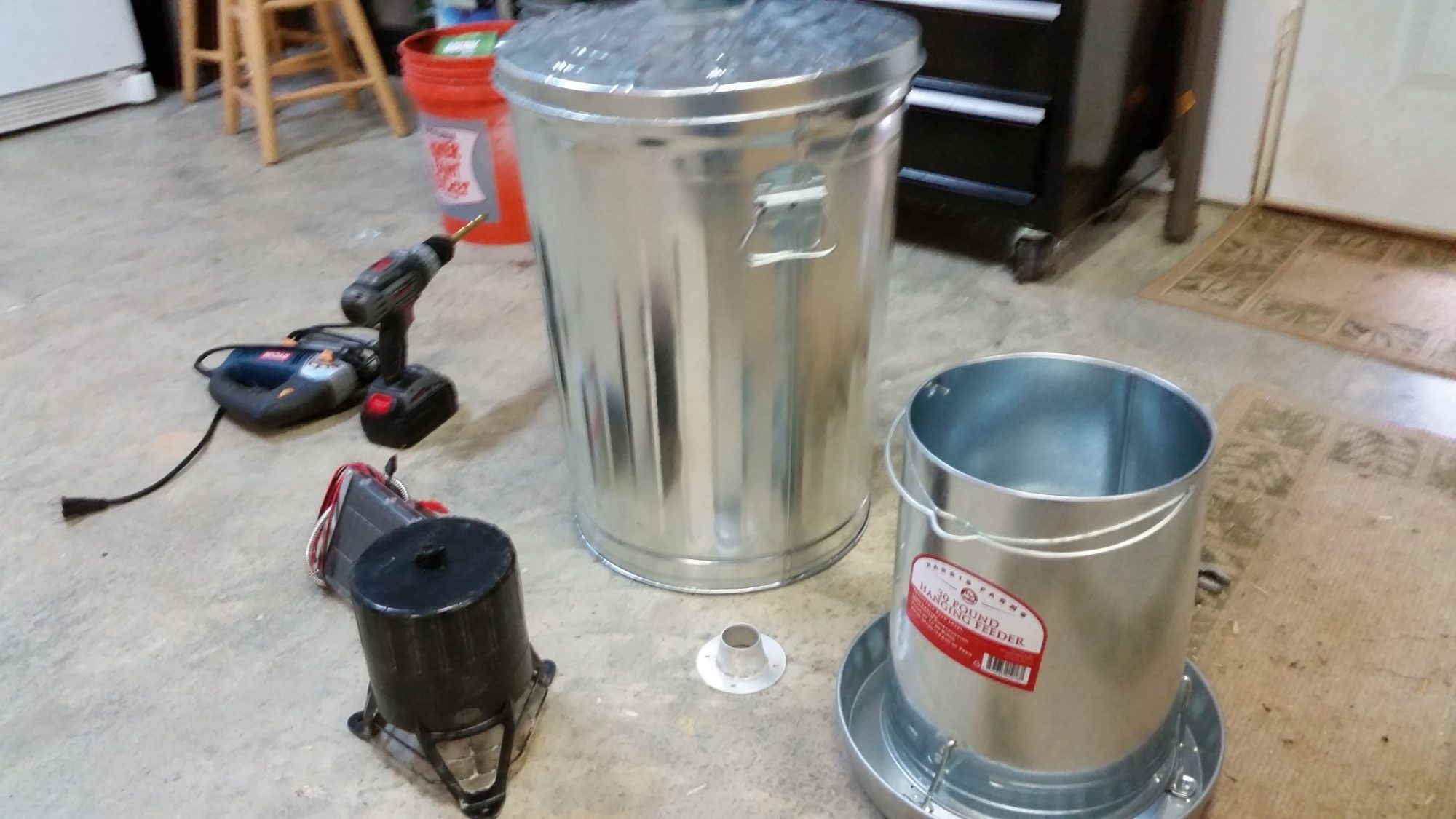

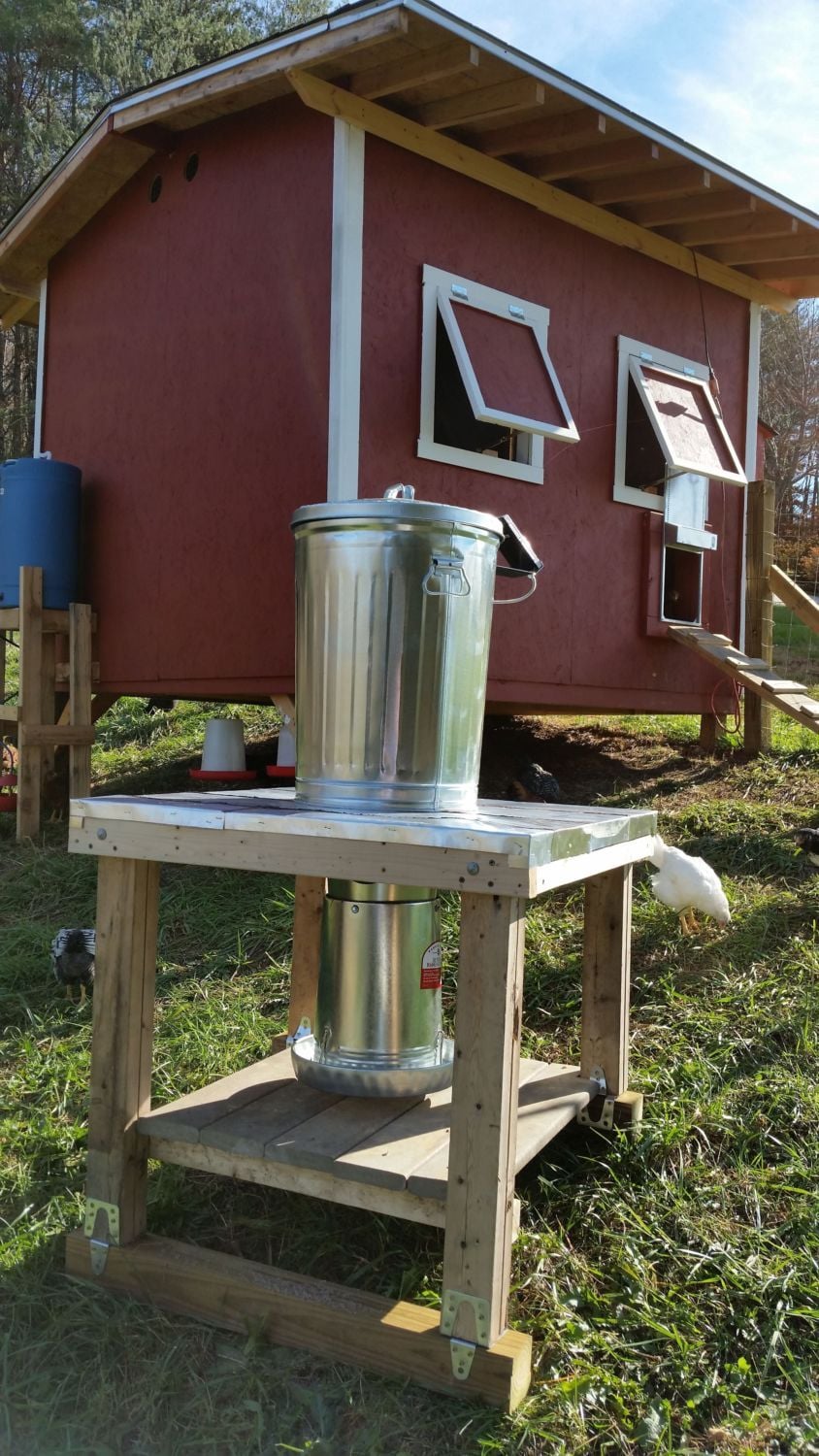

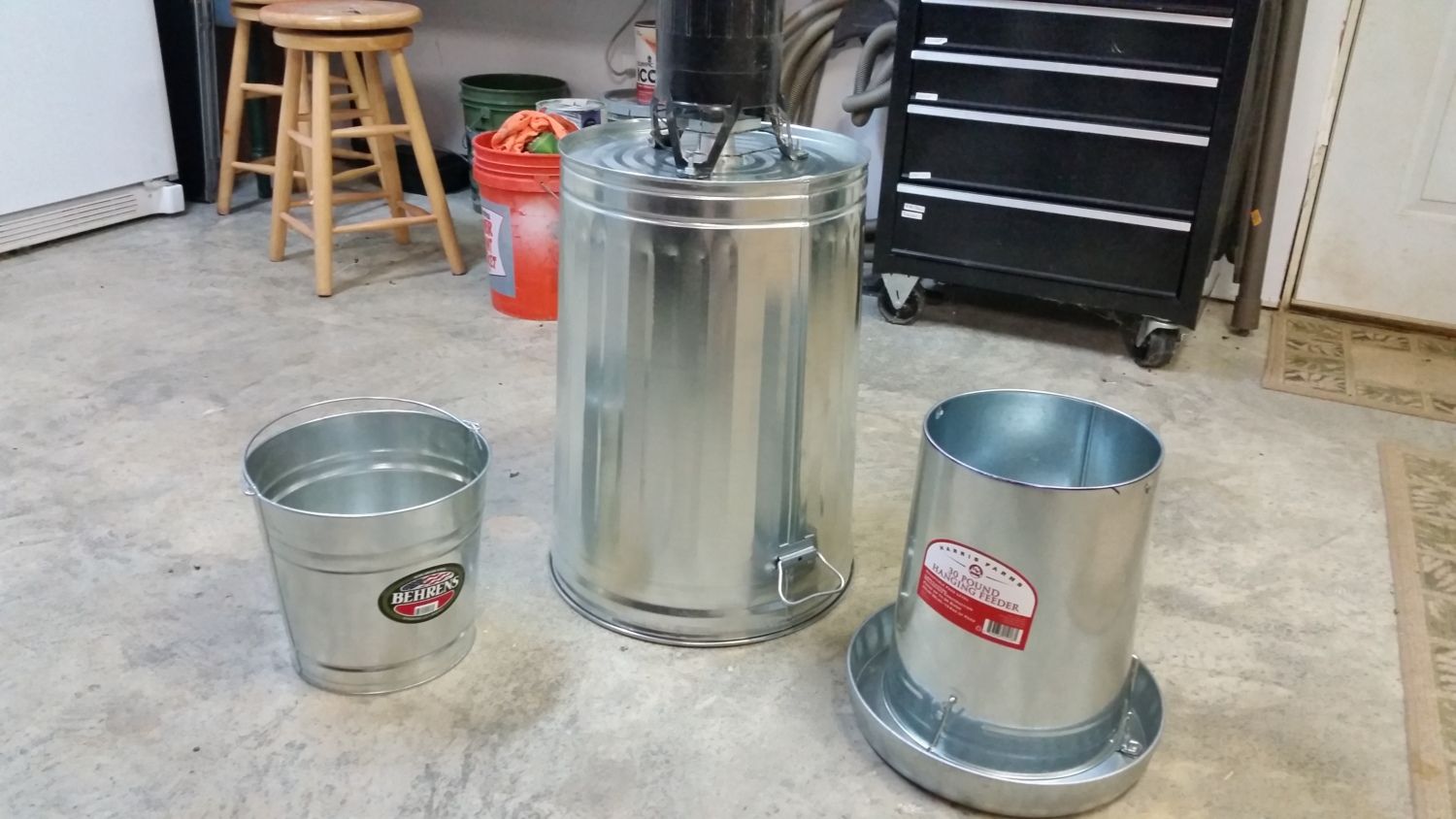

    Used a galvanized trash can, a bucket , and a 30lb capacity chicken feeder.

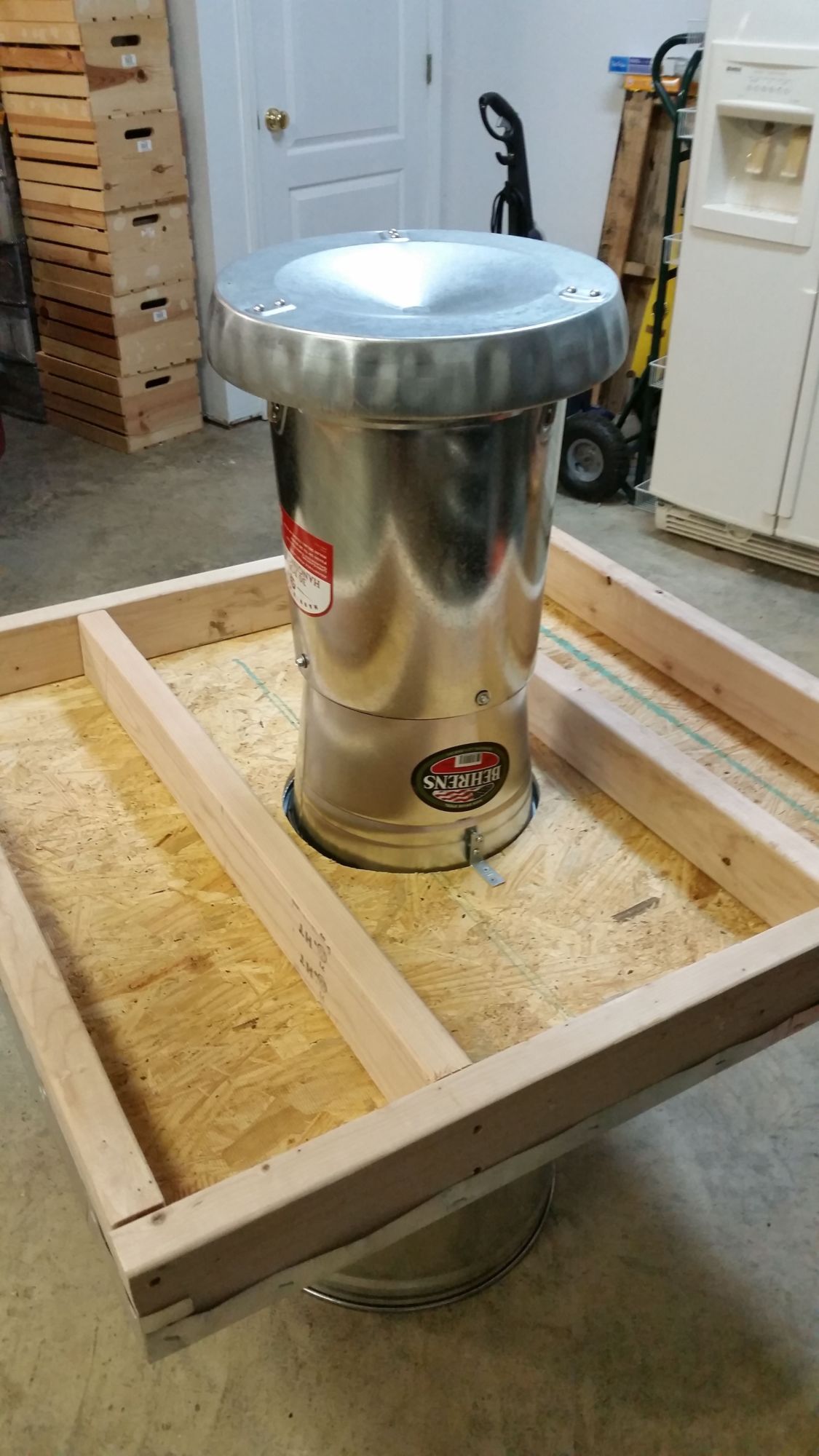

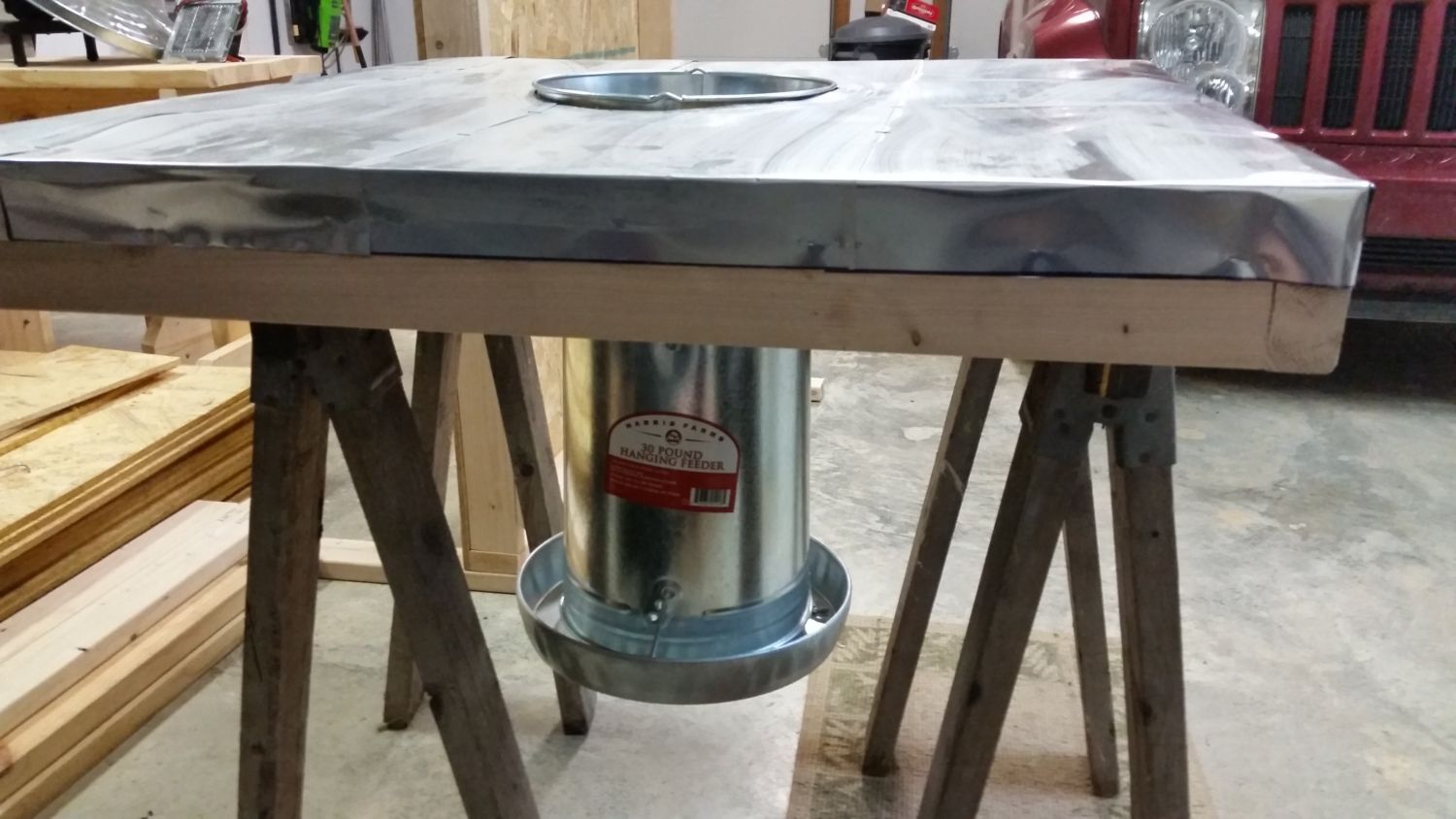

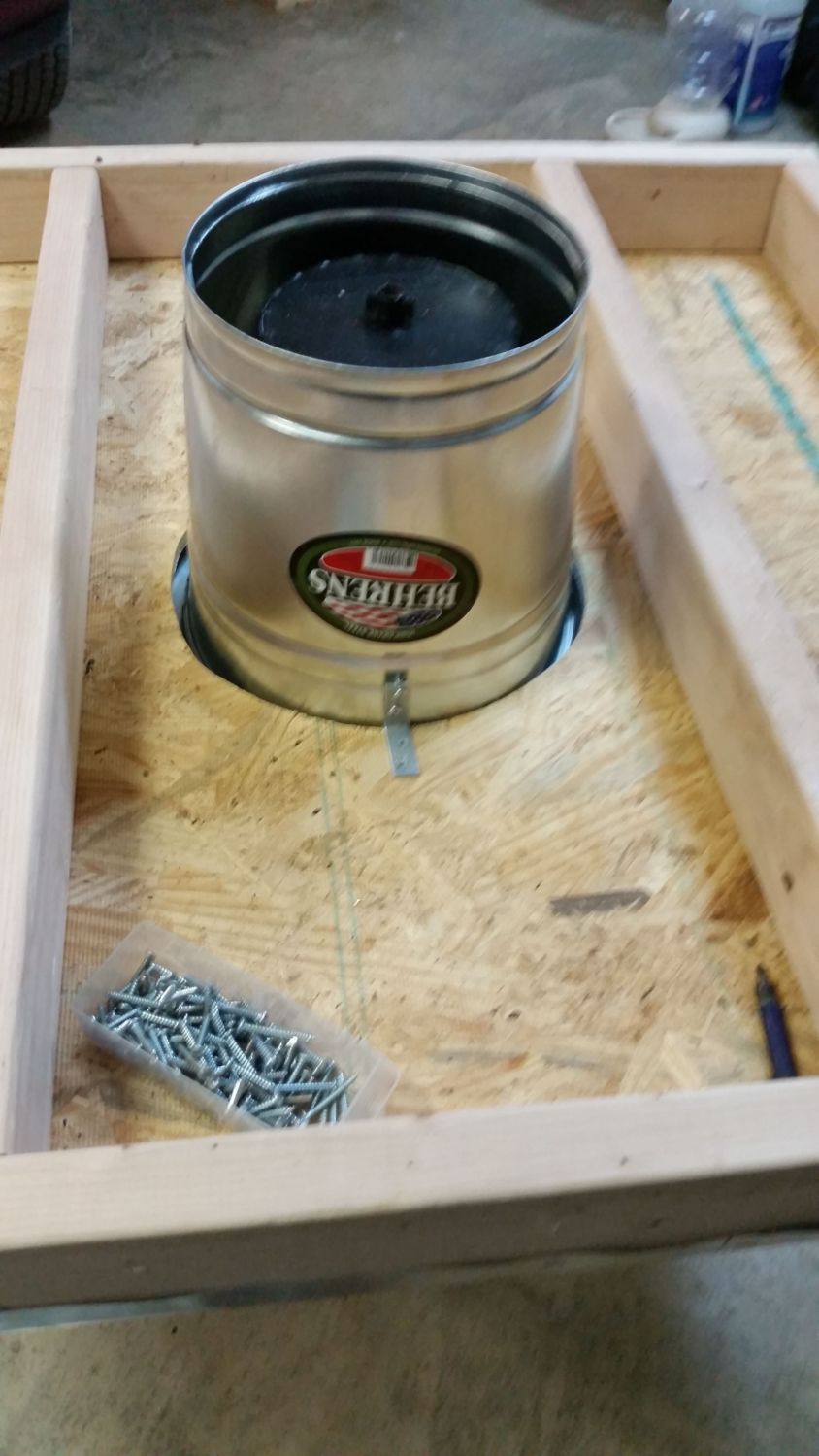

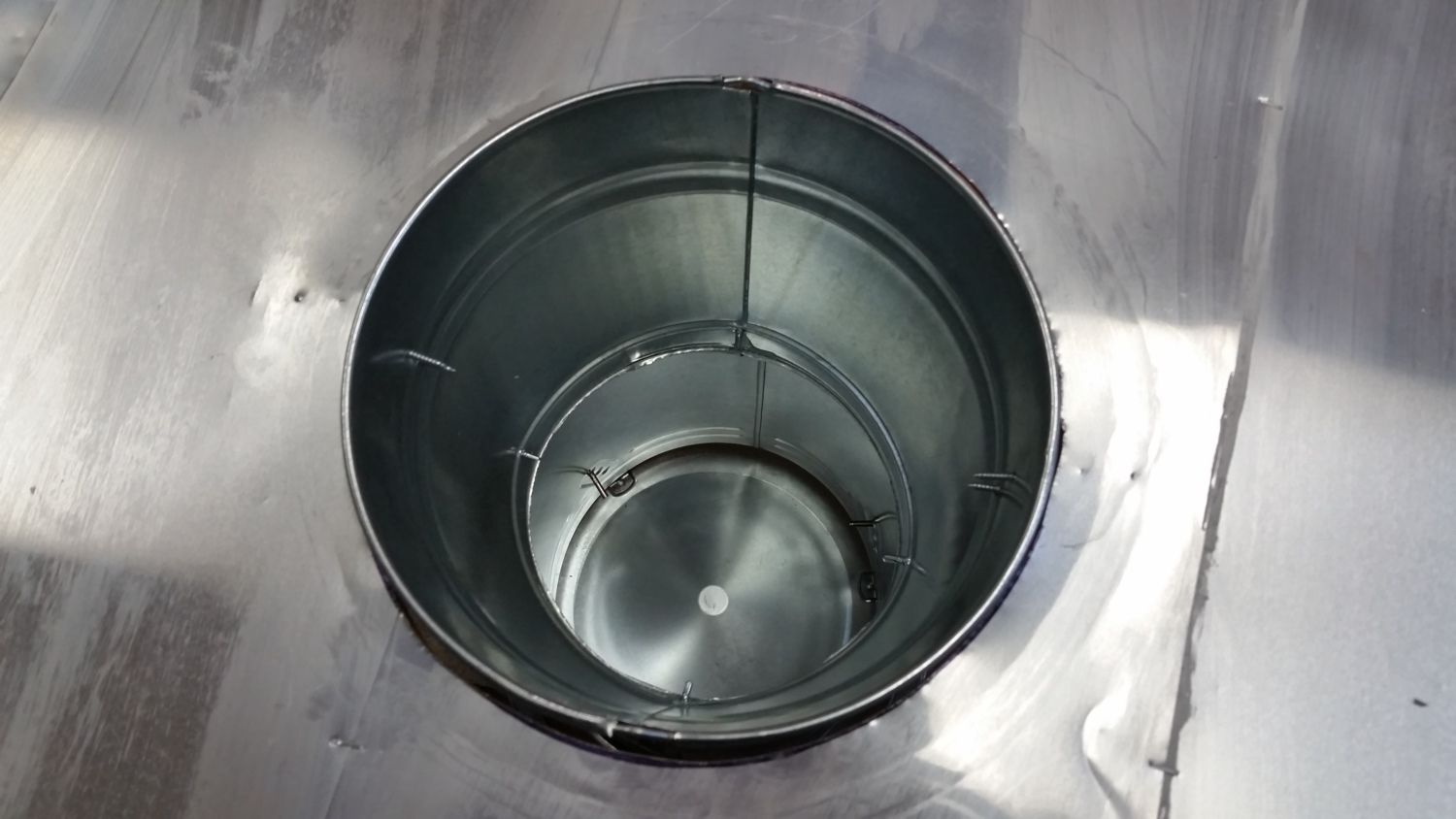

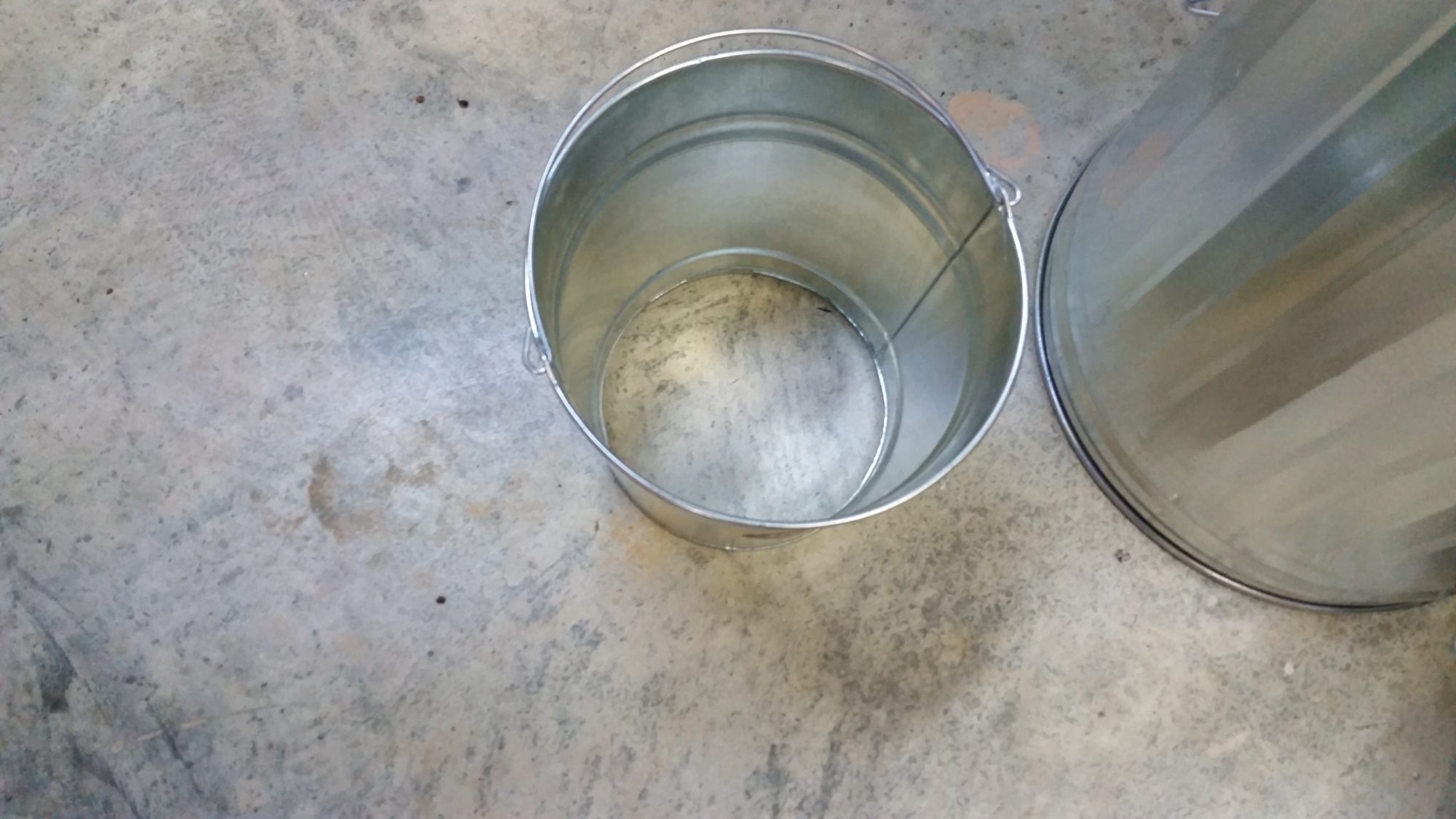

    I cut the bottom out of the bucket and attached it to the top of the 30lb chicken feeder. It acts as a funnel when the deer feeder spins to deflect and drop the feed down into the chicken feeder.

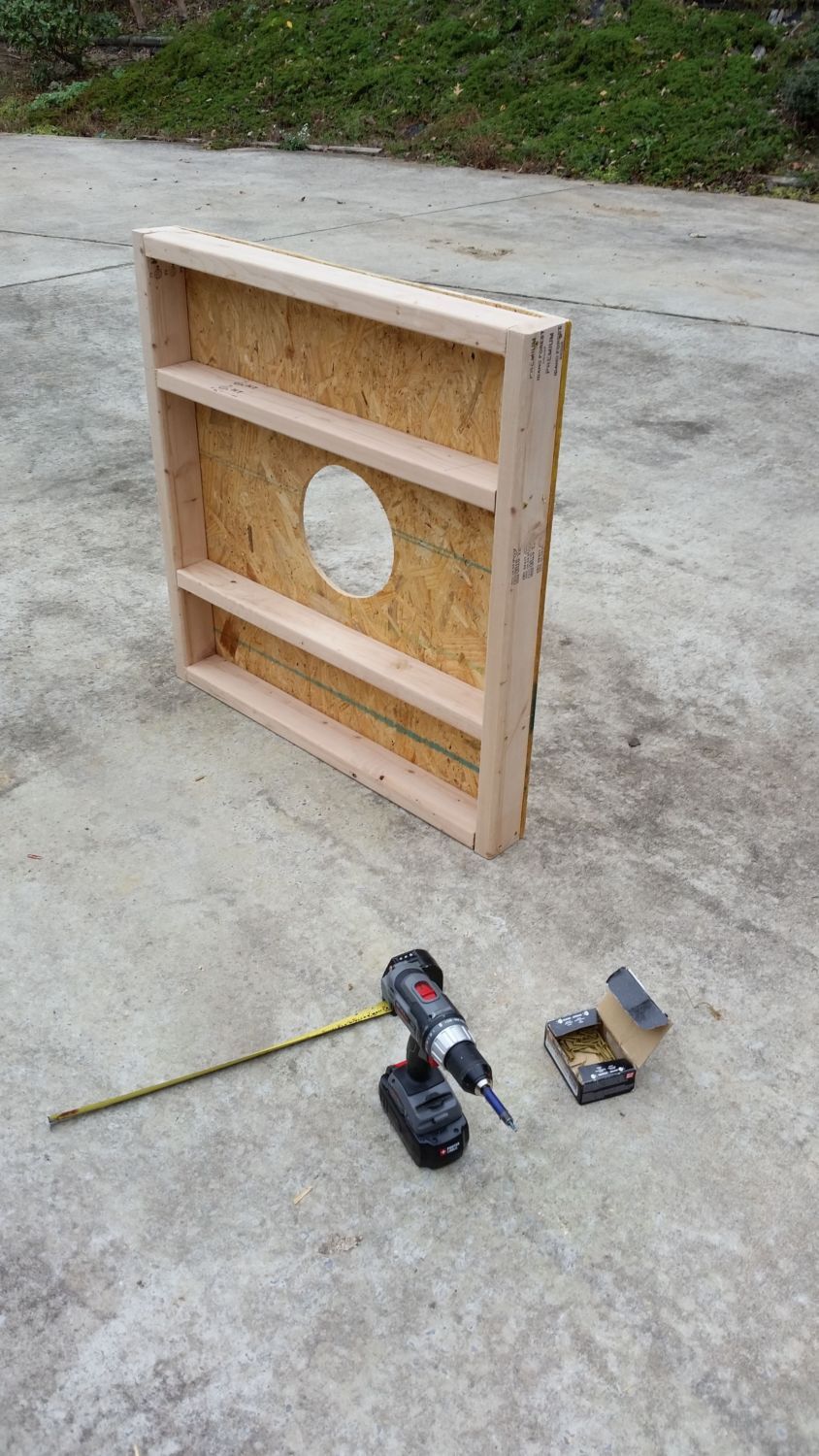

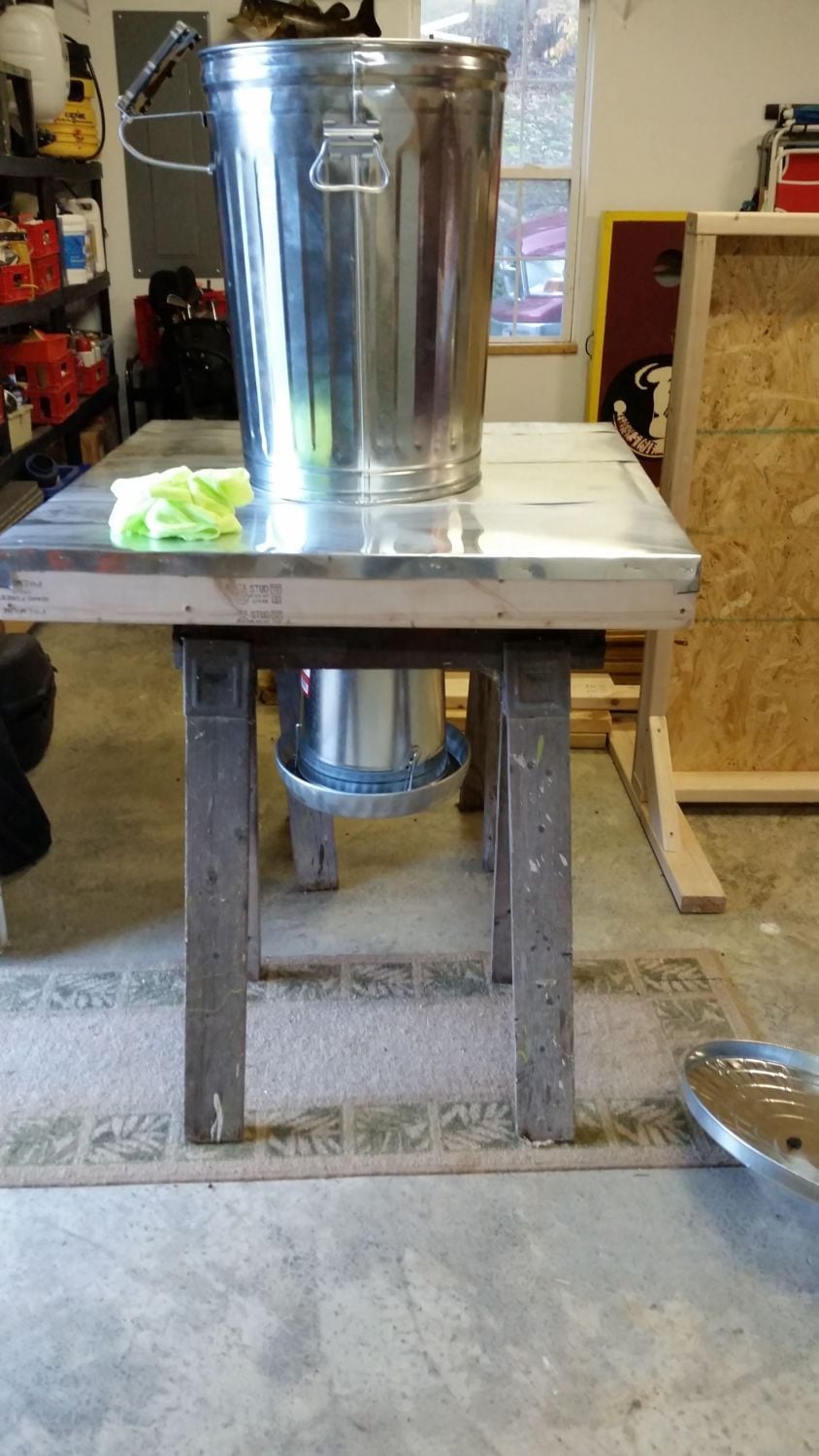

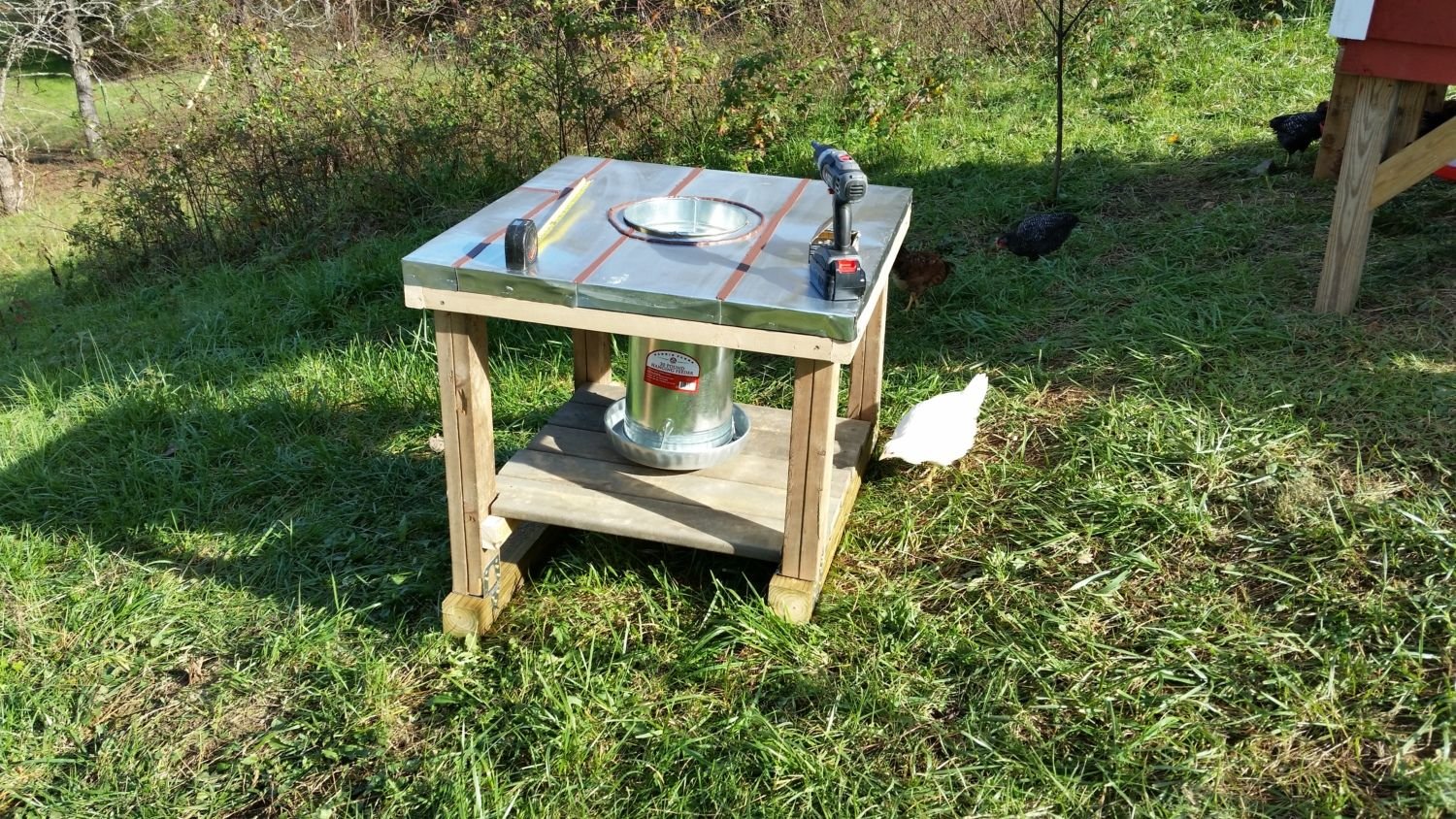

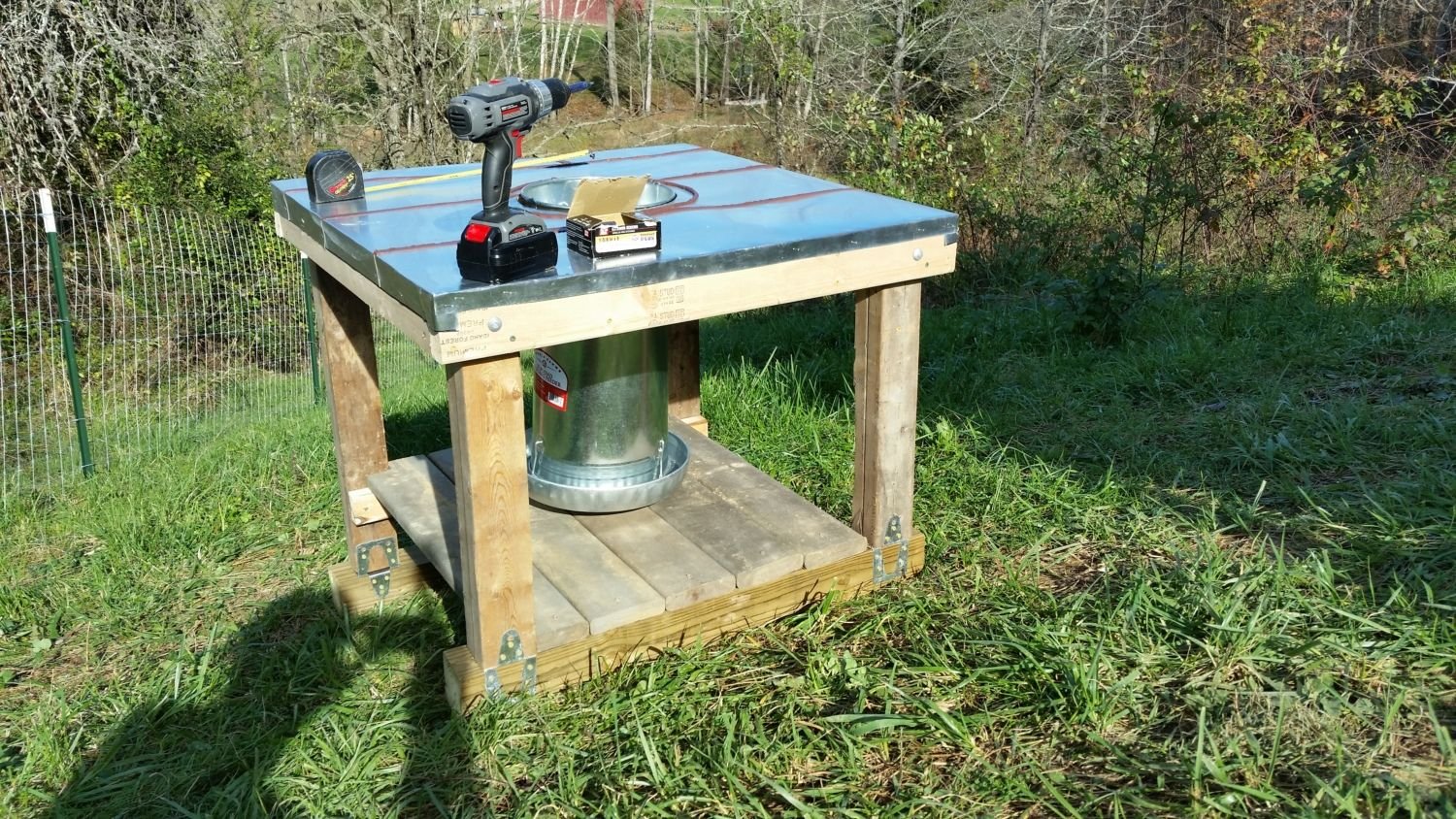

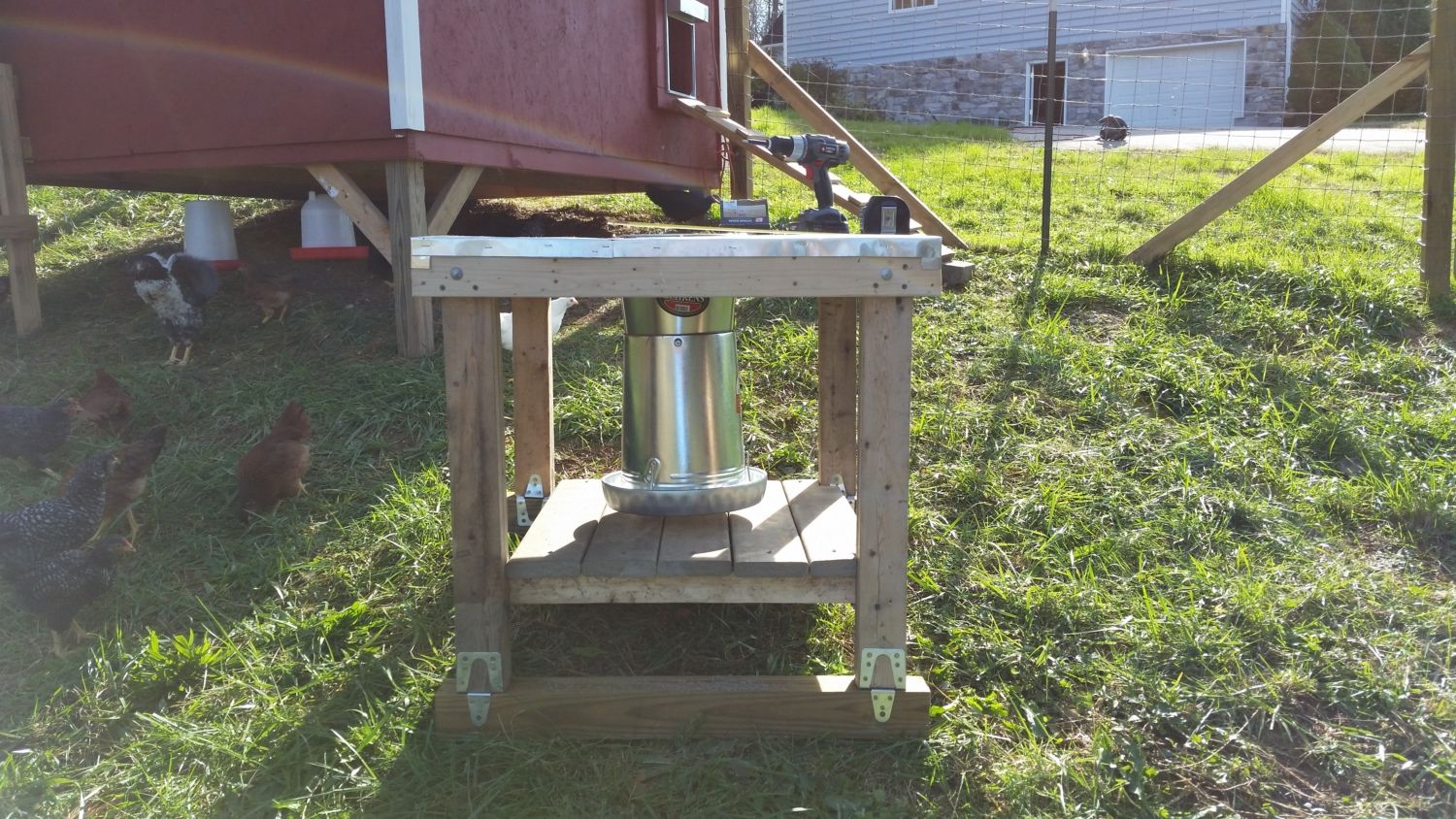

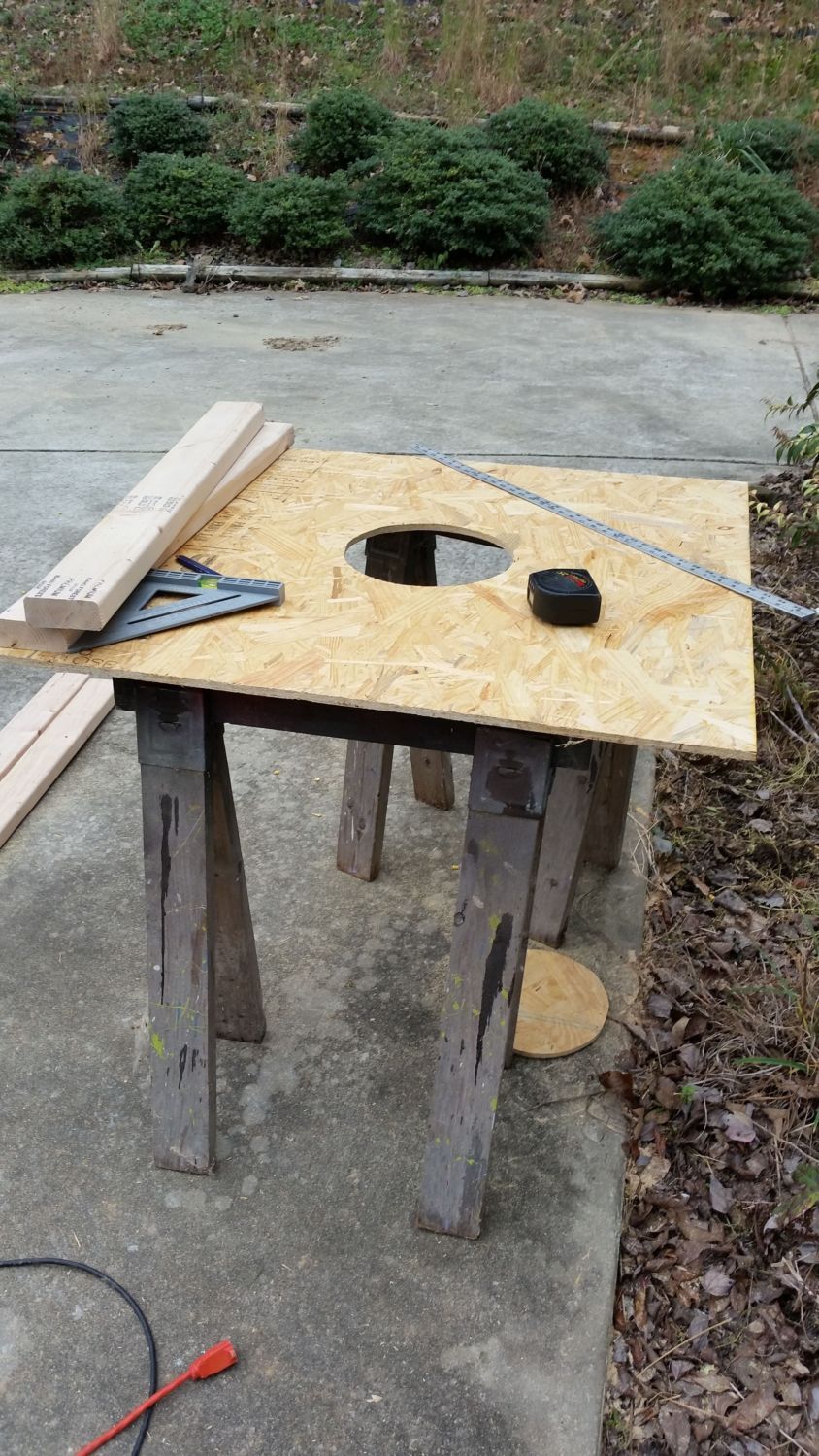

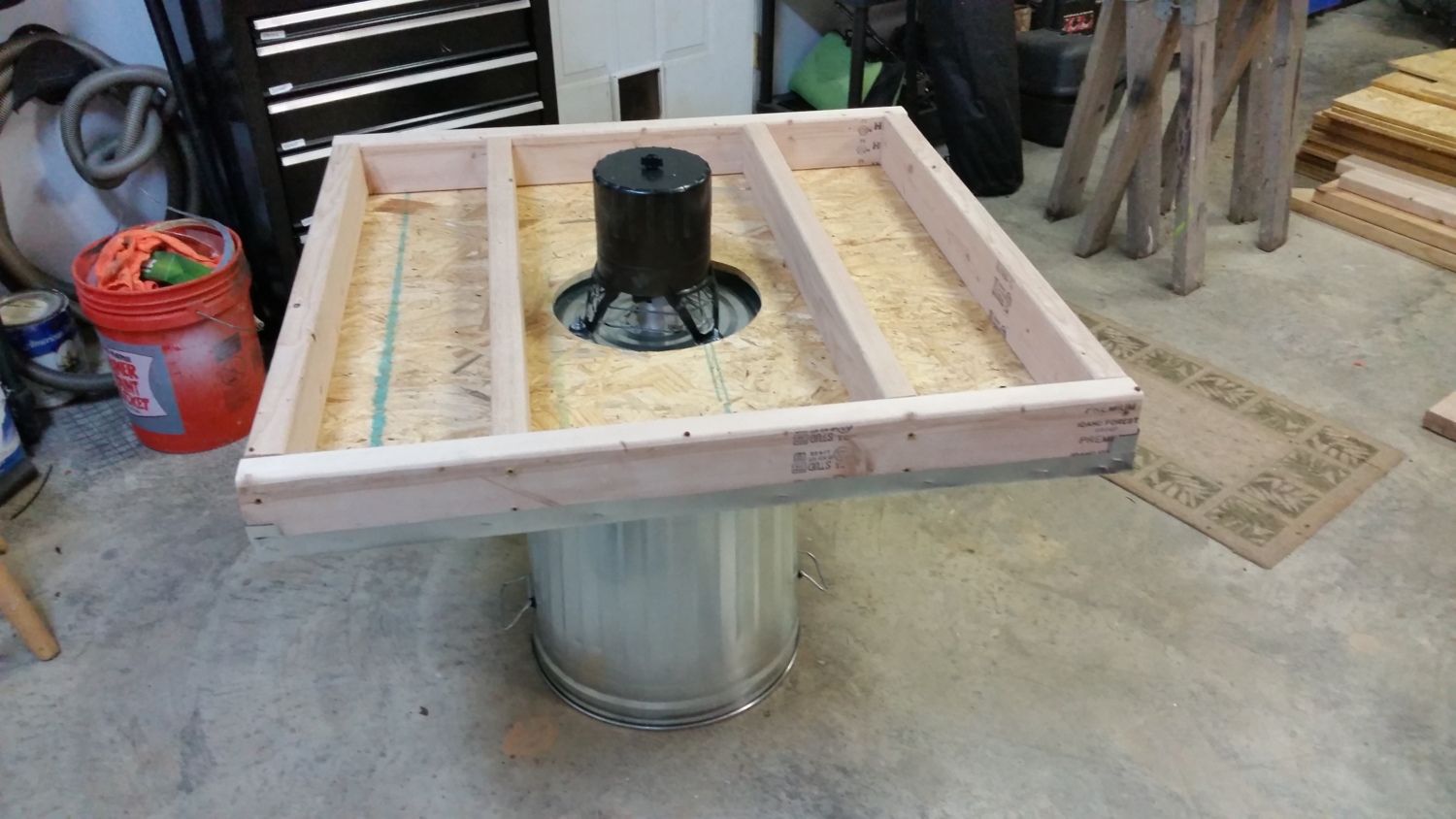

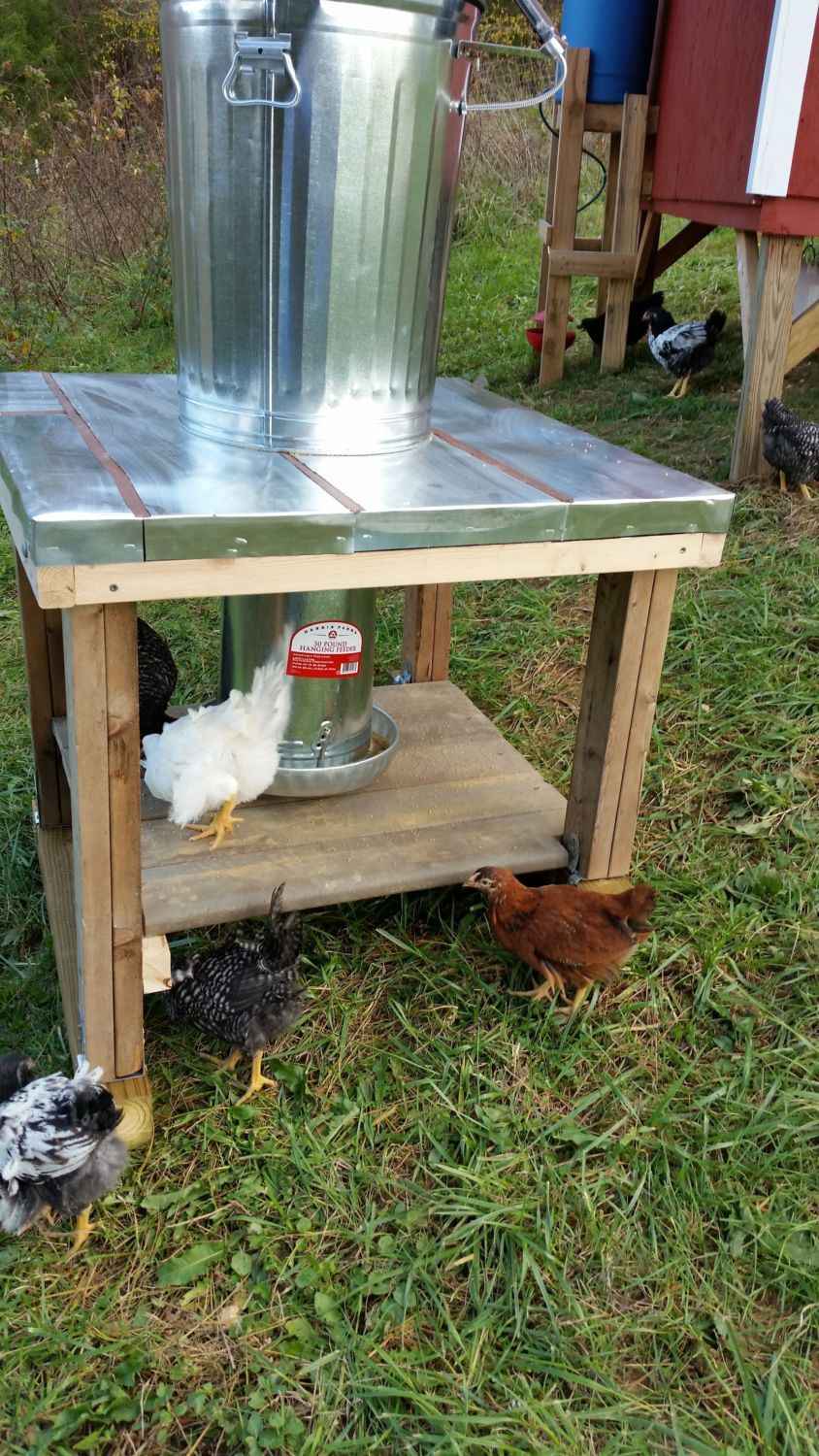

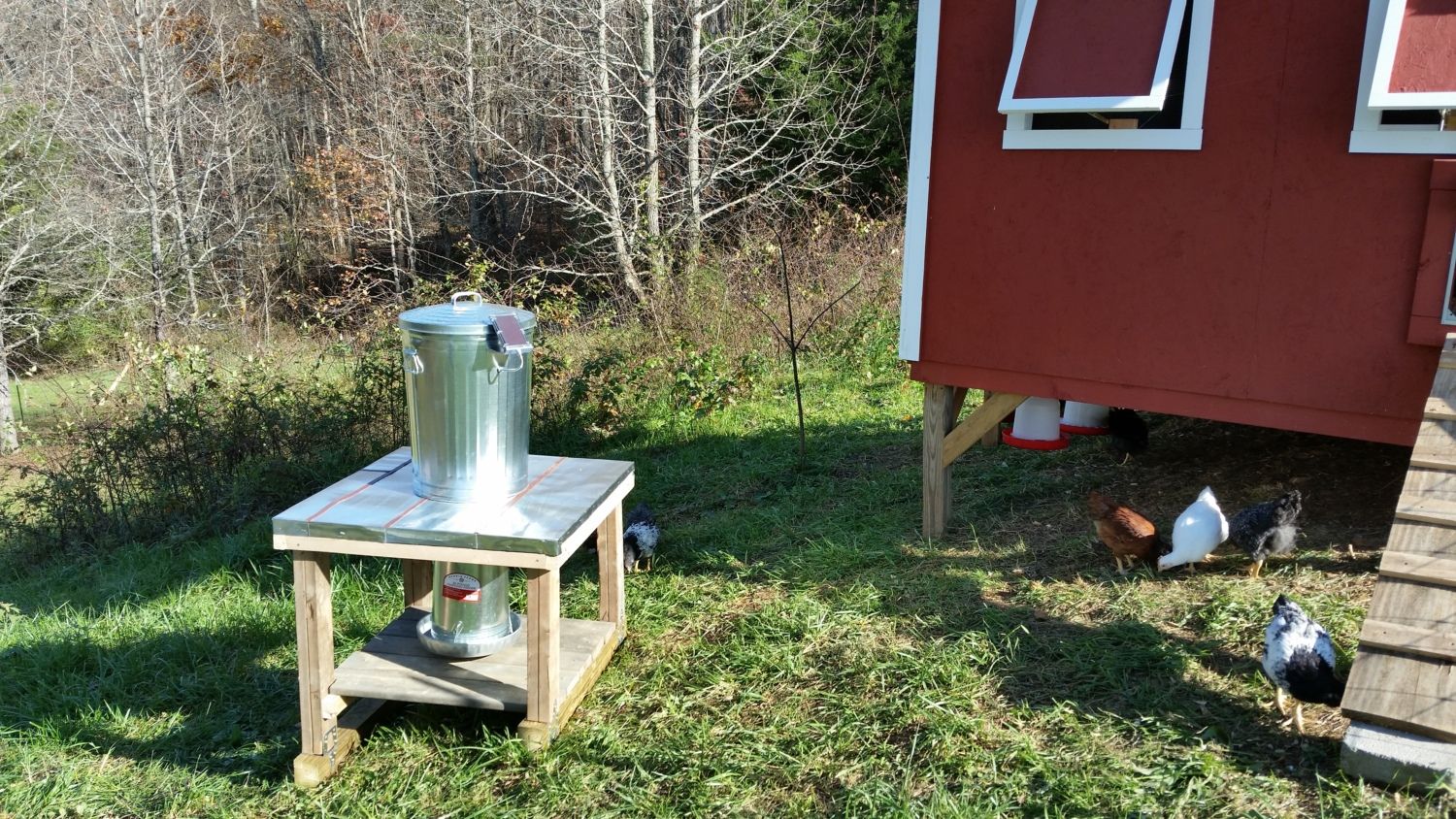

    Built a feeder table to set the trash can on and attach the feeder underneath. Had to build the table with legs longer on one side due to chicken yard being on a slope. The deer feeder is set to feed for 10 seconds twice a day. Seems to be about right. Need to get that right so no feed is left at night. We have tons of raccoons that I would prefer not to feed.

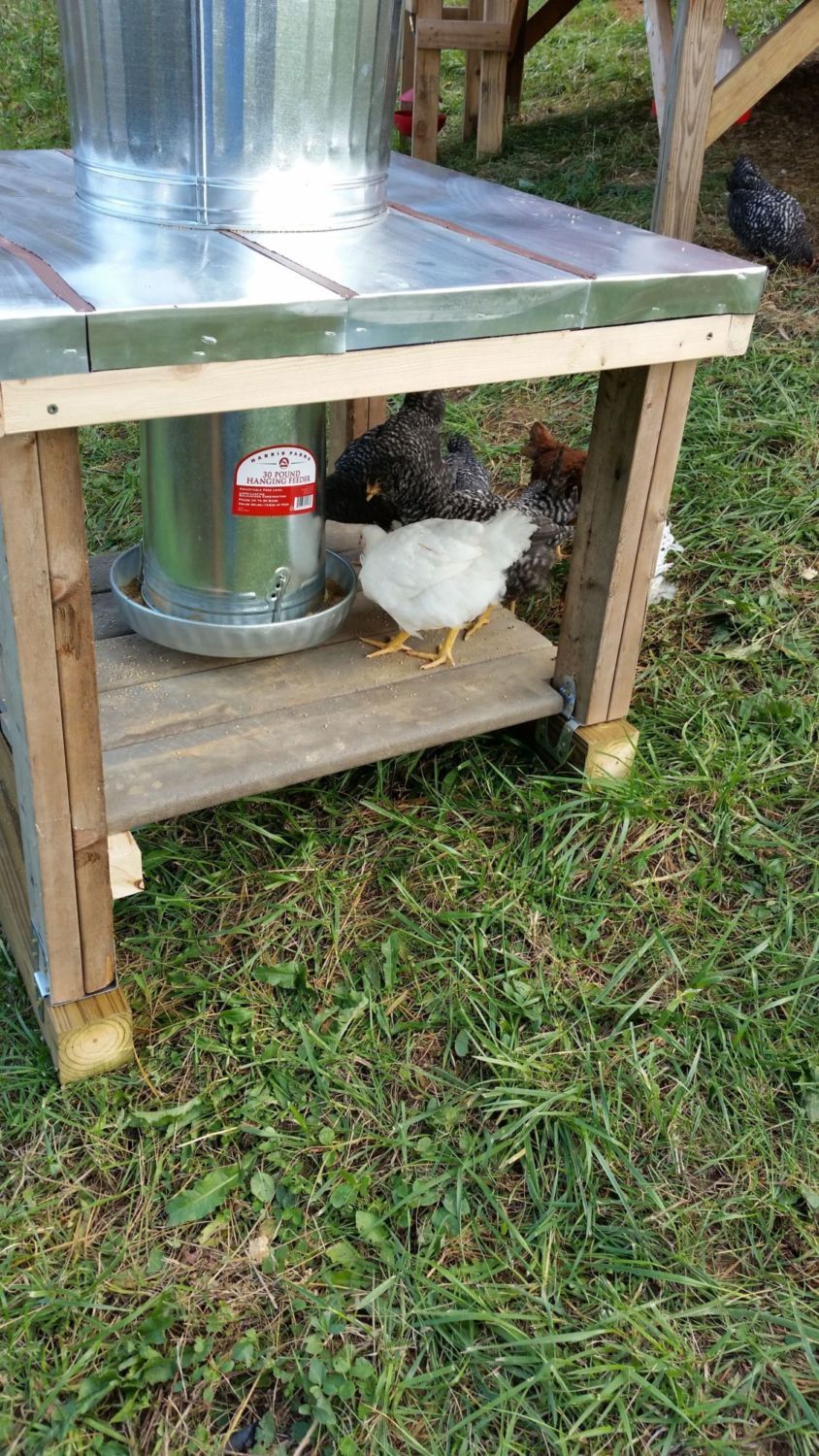

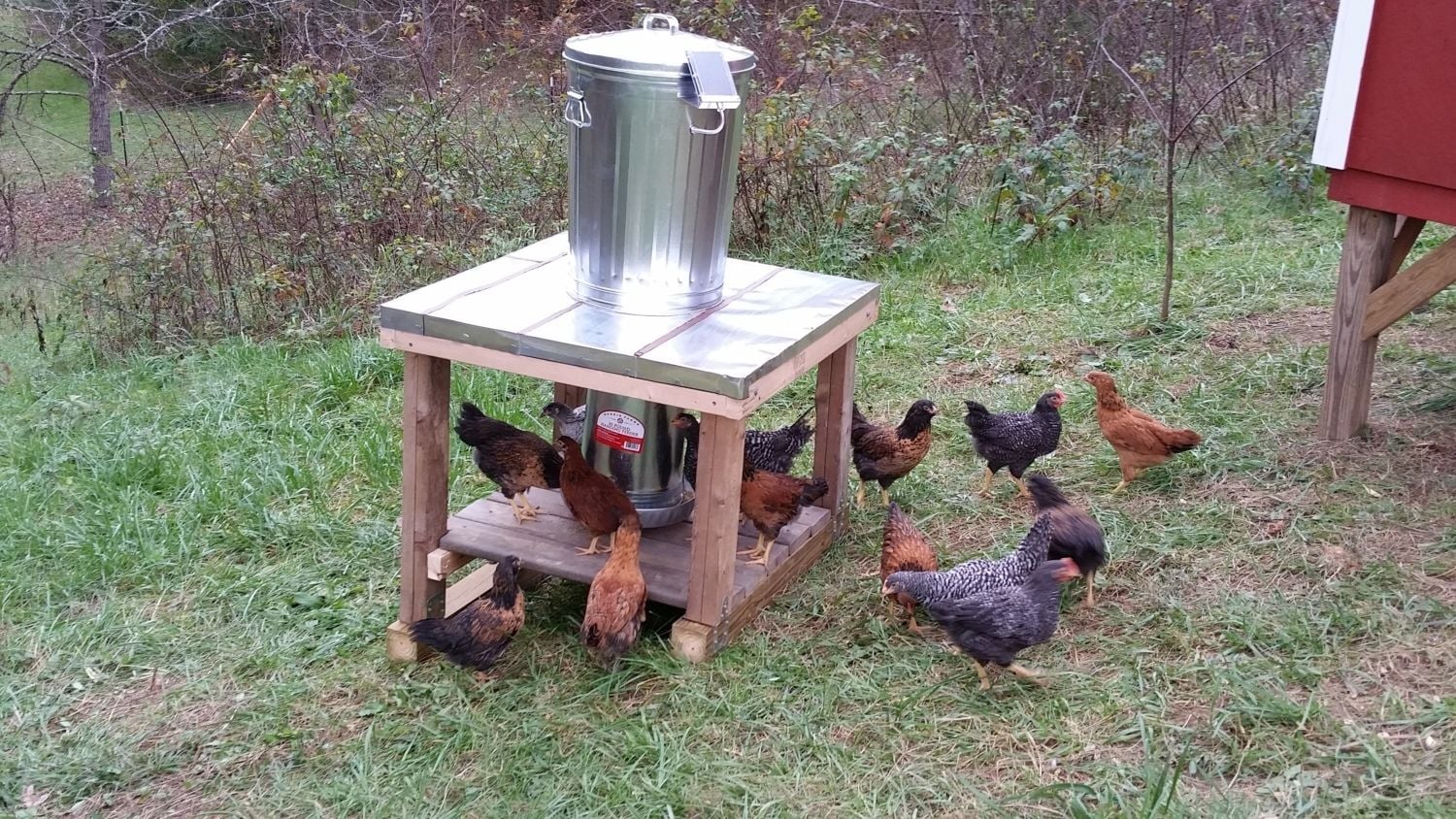

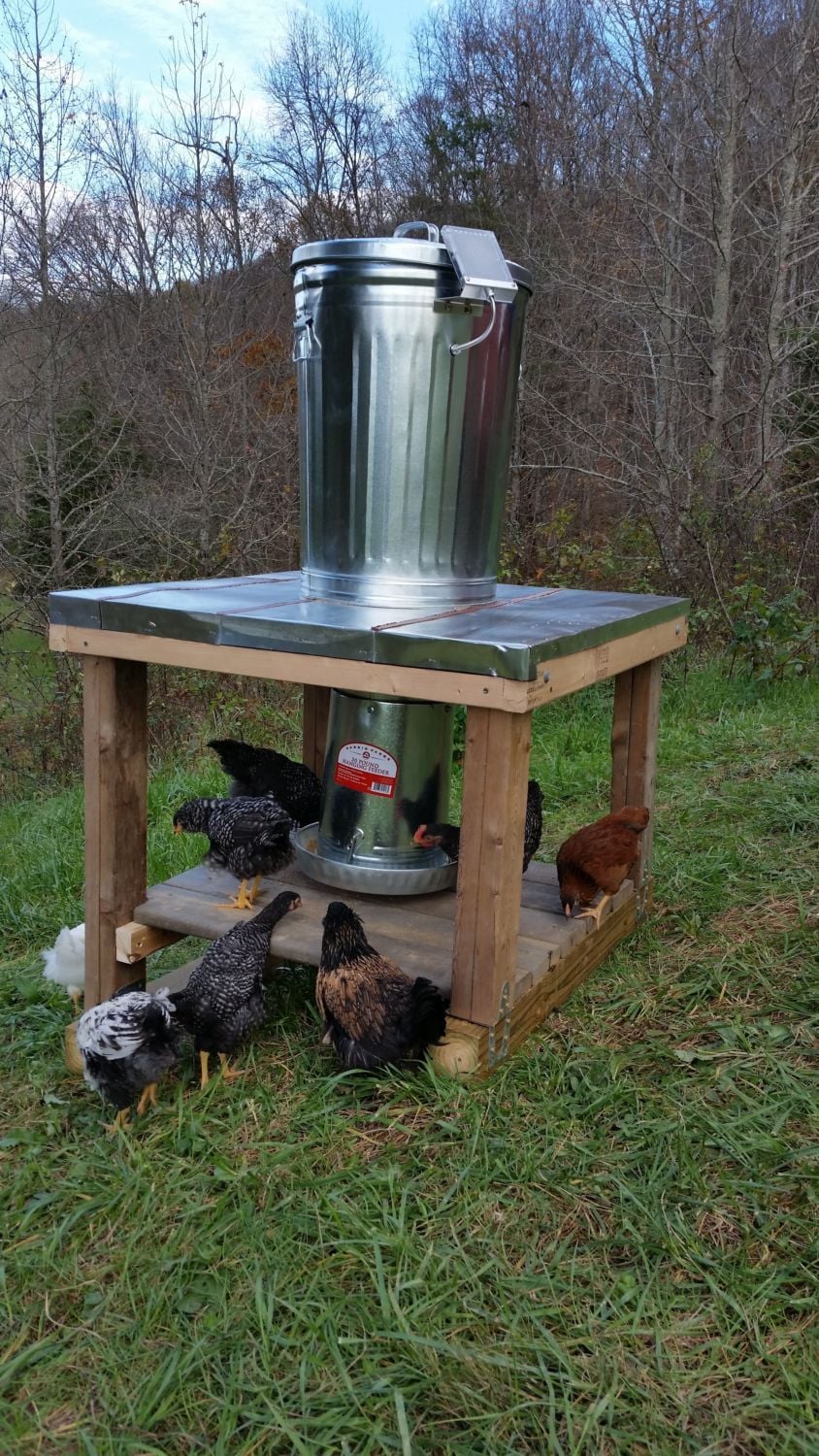

    It took the chickens about 10 seconds to figure it out!




    [​IMG][​IMG]



    [​IMG]





    [​IMG][​IMG]



    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG][​IMG]


    [​IMG]

    1 person likes this.
  2. perchie.girl

    perchie.girl Desert Dweller Premium Member

    1 person likes this.
  3. Hholly

    Hholly Chillin' With My Peeps

    1,329
    171
    178
    Jul 3, 2015
    Amo, IN
    That's cool![​IMG]

  4. Marandaise

    Marandaise Out Of The Brooder

    27
    2
    26
    Oct 31, 2015
    This is really cool!

  5. Urbanchicken62

    Urbanchicken62 Out Of The Brooder

    54
    3
    43
    Sep 17, 2012
    Kingston, TN
    So how do I link to another forum without duplicating the post?

  6. Urbanchicken62

    Urbanchicken62 Out Of The Brooder

    54
    3
    43
    Sep 17, 2012
    Kingston, TN
    Cut the feed time back to two feedings of 5 seconds each. May have to adjust back up as the girls get bigger but 10 seconds was way too much.

  7. perchie.girl

    perchie.girl Desert Dweller Premium Member

  8. scottcaddy

    scottcaddy Overrun With Chickens Premium Member


  9. aart

    aart Chicken Juggler! Premium Member

    34,453
    7,664
    596
    Nov 27, 2012
    SW Michigan
    My Coop
    That is pretty slick!!

    If you have coons, better lock that lid down up top.

  10. mirandaleecon

    mirandaleecon Chillin' With My Peeps

    693
    43
    103
    Aug 29, 2014
    Panama City, FL
    That is awesome! We built something similar just for storage, basically a trashcan on a table with a spout at the bottom. Yours is way better! How many chickens are you feeding? And can you let us know how much one trash-can full lasts you? We have about 25 chickens and it seems to last us about two weeks, although I'm not usually the one to fill it so I may be way off on that.
