A Twist on a 5 Gallon Spring Water Jug Gravity Fed Poultry Waterer ~ Sally Sunshine

Discussion in 'Feeding & Watering Your Flock' started by Sally Sunshine, Sep 14, 2015.

  1. Sally Sunshine

    Sally Sunshine Cattywampus w/crappy Inet Premium Member

    55,320
    4,554
    588
    Aug 23, 2012
    Pennsylvania
    My Coop
    Sharing here to help others!
    https://www.backyardchickens.com/a/...ug-gravity-fed-poultry-waterer-sally-sunshine

    [​IMG]


    A Twist on a 5 Gallon Spring Water Jug Gravity Fed Poultry Waterer


    I needed a big waterer for our 26 meat birds desperately, then I saw the idea of this system on a google image search but after some thought, I realized that I needed to make a few changes, because when your a woman carrying a 5 gallon jug of water and flip it over you don't want to mess around trying to align anything, and I didn't want to mess up my water jugs either by drilling holes and adding any bolts, etc. The coffee container can move wherever it wants in that bucket and you can just flip the 5 gal jug into the bucket quick without having to fuss with all that weight in one hand! And its gravity fed of course. We have two water jugs, so I can carry one along to the meat birds to replace the other, then rinse and sun dry until the next day, repeat. Here is a link to a water jug if you dont use them from walmart or someplace already. I had asked for mine on CL in a general sales post, got three replies and ended up with freebies! Thats always a plus!
    The site has several sizes and buy two get a discount, but again local CL works best, just type and ask!
    https://www.gogreenbottles.com/water-bottles/5-gallon-bottles/5-gallon-pc-water-bottle-crown-top.html


    15 minutes is all you should need if you have the supplies!


    SUPPLY LIST:
    5 galon bucket (cheap at lowes, homedepo and WallyWorld)
    5 gallon water jug
    Coffee Containter (I used Maxwell house, Foldgers is red and that IS the going Color for Poultry waters)
    You betcha that's all folks! [​IMG]

    TOOLS:
    Sharpie
    Tape Measure
    Drill
    3/4" paddle bit
    2" Drill bit/hole saw (you can make drill holes to start dremel and then just drem/jigsaw out entirely instead of holesaw)
    Dremel or jigsaw


    HERE YOU GO!

    Measurements are in images, pretty self explanatory!
    [​IMG]

    [​IMG]


    [​IMG]


    follow around the jug 4" as seen below and then for the last set of holes I just "center eyed them up"
    Because its JUST A chicken waterer people!
    [​IMG]


    [​IMG]




    Its such a complicated system, isn't it?
    NOT [​IMG]
    [​IMG]

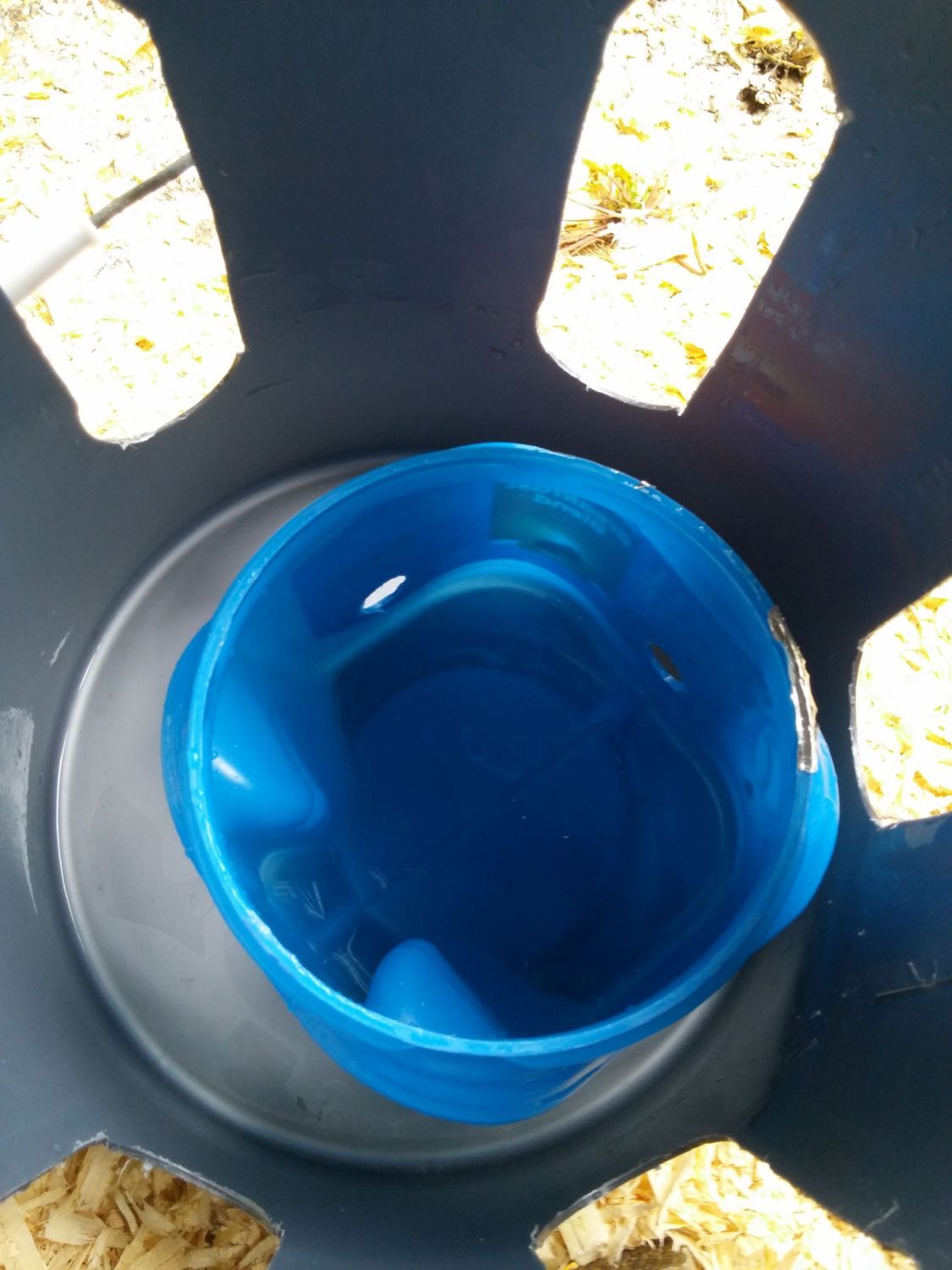

    Coffee container with two holes in it ..
    at 2" from bottom to top of holes, and 3/4" drill paddle bit

    [​IMG]



    Again, before purchasing, try posting on CL or local FB pages and ASK for water jugs like this,, you will be surprised at responses!
    The kind with handles are awesome!
    We also use them for WATER BACK UP (its the "doomsday prepper" in me [​IMG])

    [​IMG]

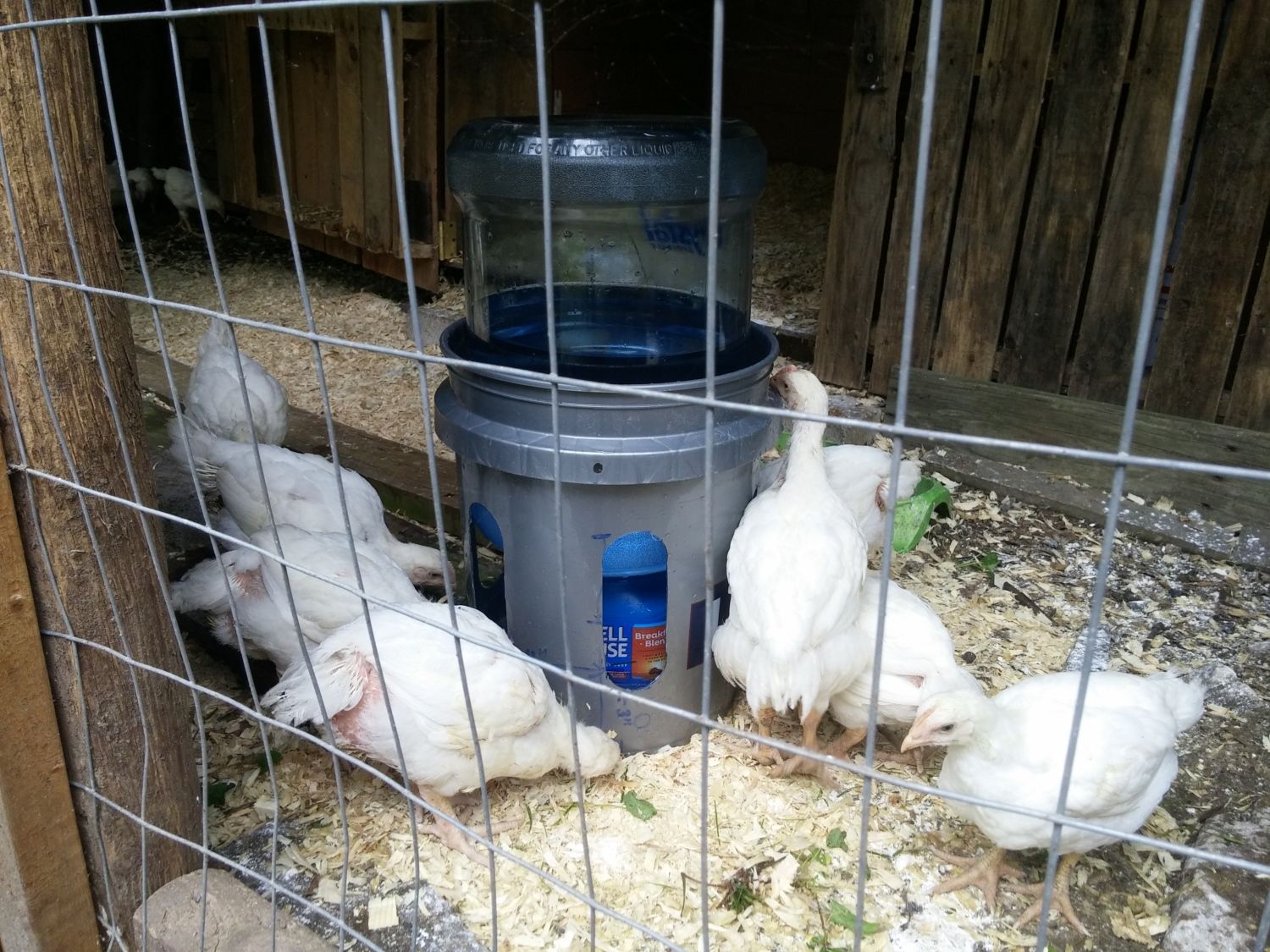

    It didn't take long for them to start pecking at the system and find the water! [​IMG]

    [​IMG]









    Disclaimer: Please note this information is offered as friendly advice only and,
    whilst I have made every effort to ensure it is accurate,
    I can not be held responsible if it proves not to be useful in your case! [​IMG]


    [​IMG]

    Sally Sunshine

    Hatching 101 ~ Guide to ASSISTED Hatching ~ CABINET COOLER INCUBATOR ~ CoolerBATOR ~
    Mushy Chick Disease ~ Duckling Care ~ HAWKS OH MY! ~ Fermented Feed ROCKS!
    Processing Support Group ~"Nasty Chicken Butt" ~
    Pallet Hinkel Haus~ PINTEREST Chickens ~ Getting the Flock out of here ~ CHICK LIGHT BOX




    Last edited: Sep 14, 2015
    1 person likes this.
  2. TwoCrows

    TwoCrows Show me the way old friend... Staff Member

    31,373
    3,886
    538
    Mar 21, 2011
    New Mexico, USA
    [​IMG] I have GOT to give this a try!!! Thanks for sharing Sally!! [​IMG]

  3. Sally Sunshine

    Sally Sunshine Cattywampus w/crappy Inet Premium Member

    55,320
    4,554
    588
    Aug 23, 2012
    Pennsylvania
    My Coop
    you betcha @TwoCrows! let me see it when your complete! someone suggested in the other thread to add an aquarium heater in the winter, not a bad idea!

  4. TwoCrows

    TwoCrows Show me the way old friend... Staff Member

    31,373
    3,886
    538
    Mar 21, 2011
    New Mexico, USA
    Sally, I will! And the heater idea is not bad either. I can't believe we are already having to think about winter and freezing water!! Ha!

  5. Sally Sunshine

    Sally Sunshine Cattywampus w/crappy Inet Premium Member

    55,320
    4,554
    588
    Aug 23, 2012
    Pennsylvania
    My Coop
    I now right! eeeekkkk my toes are cold already!

  6. 10AcreChick

    10AcreChick Chillin' With My Peeps

    302
    34
    81
    Sep 6, 2015
    Central Missouri
    I made this last night after the birds spent a day locked in their house by accident (DH!) [​IMG] They are free range, so I didn't have water in their house; when I let them out, they almost drowned themselves in the community water bowls under the hydrants drinking so much! This was SOO easy to make, I already had all the supplies. Also a good way to get ACV to the chickens without giving it to all the other animals (though it probably wouldn't hurt them). As far as heating it in the wintertime, I think I will just wrap a heating pad (protected in a pillow case) around the top of it and plug it into my NEWLY wired chicken coop (thanks DH, you are forgiven!).[​IMG] It does take a little practice to flip that jug over without losing too much water, though! [​IMG]

    Wonderful and EASY!

  7. kssilkiemama

    kssilkiemama Out Of The Brooder

    39
    1
    26
    May 20, 2015

    Do you have a picture of this? I would love to see it!:D

    Never mind...:rolleyes: I started from the last post and read upward...mum just now saw the first post...

    Last edited: Mar 16, 2016
  8. 10AcreChick

    10AcreChick Chillin' With My Peeps

    302
    34
    81
    Sep 6, 2015
    Central Missouri
    It seriously works, you just have to have the holes at the right heighth. I have yet to see my chickens drink from it, but I suspect they will when I lock them in this weekend! They've been hiding too many eggs from me!
