Automatic Coop Door

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by Jdratlif, Oct 20, 2014.

  1. Jdratlif

    Jdratlif New Egg

    8
    0
    9
    Oct 17, 2014
    Metro Detroit, MI
    I was wondering if anyone has installed an automatic door for their coop? My definition of an auto door would be one that opens the door at a set time in the morning and then closes the door at a set at night.

    I ask because I want a plan in the event I am not home for a couple days. The door I am thinking about actuating is the access to the secured run. I am not worried about locking my birds out at night as they have good roosting instincts and head inside like clockwork each night.

    Any thoughts? If you want to leave negative comments about my idea, I would appreciate positive alternative ideas. Do not just reply that I should not do this. Thank you.

  2. Wxguru

    Wxguru Chillin' With My Peeps

    269
    24
    83
    Sep 2, 2014
    ARKANSAS
    I think it is a great idea. There was someone on here who made a homemade version for about $30 vs. what you would pay a company for one. I am going to be doing the homemade version here in a couple of weeks.
    Not many people want to go out in the pouring rain to let chickens out...it would be nice to have a door that did that for you automatically! :)

    1 person likes this.
  3. rfeyer

    rfeyer Out Of The Brooder

    53
    7
    33
    Apr 12, 2014
    Johnstown New York
    1 person likes this.
  4. tcstoehr

    tcstoehr Chillin' With My Peeps

    416
    44
    94
    Mar 25, 2014
    Canby, Oregon
    Many people on this forum have posted their experiences with commercially available as well as DIY models of automatic chicken door openers. Search this forum for "automatic chicken door". Do the same on YouTube. Make sure you have plenty of time and coffee available.

  5. the43k

    the43k Chillin' With My Peeps

    220
    18
    93
    Feb 21, 2013
    Princeton, New Jersey
    I don't sell these, but its the best opener out there

    [​IMG]

    1 person likes this.
  6. happybooker1

    happybooker1 Chillin' With My Peeps

    359
    58
    151
    Oct 4, 2012
    North of Houston Texas
    I just replaced my coop door with a slide-up-&-down pop door & auto door opener today! My original pop door was hinged on the side & held open by a hook 'n eye so I had to replace it.

    It did close on time with the timer & everyone was inside. I need to make a few adjustments & cover the door with cedar planking but so far I'm happy!!

  7. the43k

    the43k Chillin' With My Peeps

    220
    18
    93
    Feb 21, 2013
    Princeton, New Jersey
    Does you door open with timer or light sensor?

  8. the43k

    the43k Chillin' With My Peeps

    220
    18
    93
    Feb 21, 2013
    Princeton, New Jersey
    I always find youtube helpful for just about anything

  9. Guido

    Guido Out Of The Brooder

    16
    1
    24
    Nov 6, 2014
    Mold North Wales
    I'd been playing with some light controlled DC motor drivers earlier this year, was at the breadboarding stage (prototype) I was trying to overcome an issue regarding a set delay to stop the thing being overly jittery but had not managed to get past that without needing to spend ££££ solving it. I might have another go soon.

    The basic circuit works fine but I was concerned with issues like PIR floodlights triggering the door, but it's a work in progress at least.

  10. Indoroowet

    Indoroowet Out Of The Brooder

    69
    5
    49
    Oct 9, 2014
    Nothern Utah
    I have been looking at many ideas, people have come up with to make an automatic door opener,
    and the *designs* range from simple to rocket science type ...

    This is what I have come up with, from looking at many of those ideas *out there*.
    You can not really get any simpler ... , I think !

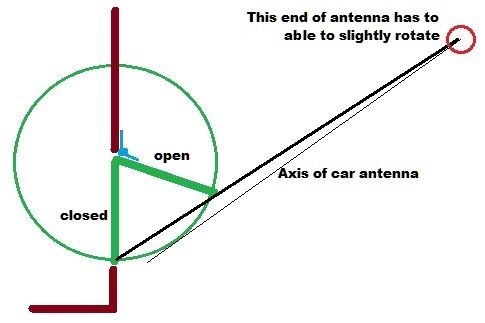

    Use a flip up door, to make the opening movement simple and with the least amount of *friction*.
    A flip up door tends to self-close !
    I added a lever to the bottom of the door to create a lower force to open the door.
    [​IMG]

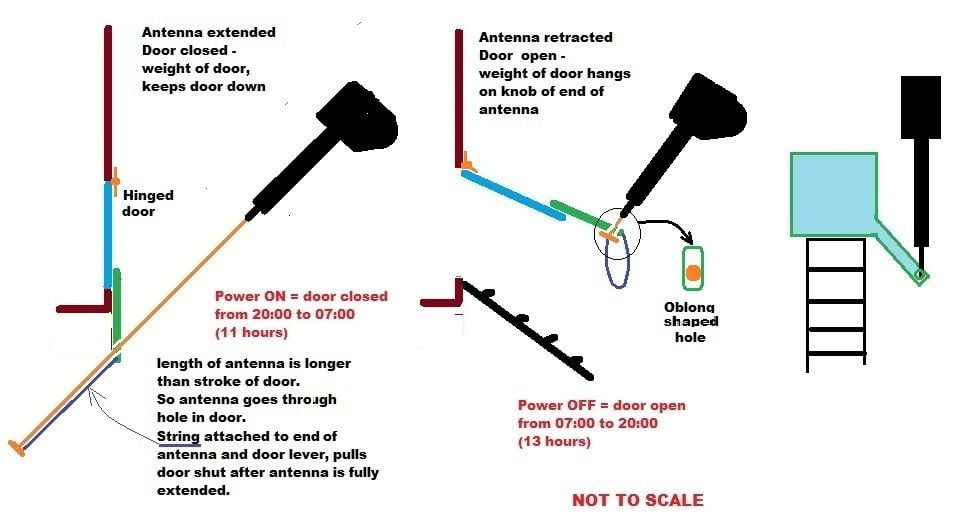

    The antenna HAS to be a FULLY Automatic Car antenna.
    The stroke of the Antenna has to be somewhat as shown below.
    [​IMG]


    The battery tender is the *guts* of an old *nonworking* emergency battery.
    Since the opener uses power ONLY during operation,
    I think that the walwart 110 in -12 vdc out, charger may not be required after all.

    [​IMG]

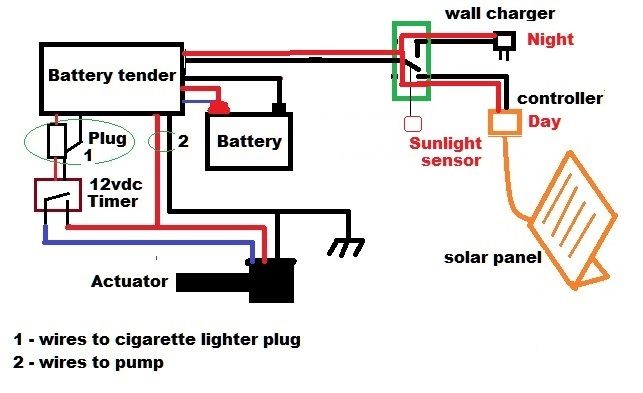

    Below a simple way to connect. Just add a wallwart battery tender from Harbor Freight.
    http://www.harborfreight.com/automatic-battery-float-charger-69594.html
    The timer is this one:
    http://www.amazon.com/gp/product/B008999RYY/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

    [​IMG]

    If you want to use a 110 volt timer, you have to modify the *innards* of the timer
    to allow the switch to be used as a *switch only*.
    Disconnect the 110 volts from the internal switch.

    BTW, the antenna has a built in clutch.
    If for some reason the door gets stuck, the antenna stops,
    and just sits there until the next cycle comes along ....

    Last edited: Nov 15, 2014
    1 person likes this.
