cabinet incubater for chickens

Discussion in 'Incubating & Hatching Eggs' started by juniormathis, Nov 8, 2014.

  1. juniormathis

    juniormathis New Egg

    5
    0
    7
    Nov 5, 2014
    plans to build a chicken incubater need help bad

  2. Aphrael

    Aphrael Chillin' With My Peeps

    1,363
    83
    148
    Jan 21, 2013
    Texas
  3. HatchCraft

    HatchCraft Chillin' With My Peeps

    203
    17
    103
    Jan 15, 2011
    North Florida
    Ideas for basic cabinet incubator/hatcher construction. NO dimensioned drawings but, you get the general idea. Maybe photos will help you design your own.



    [​IMG]

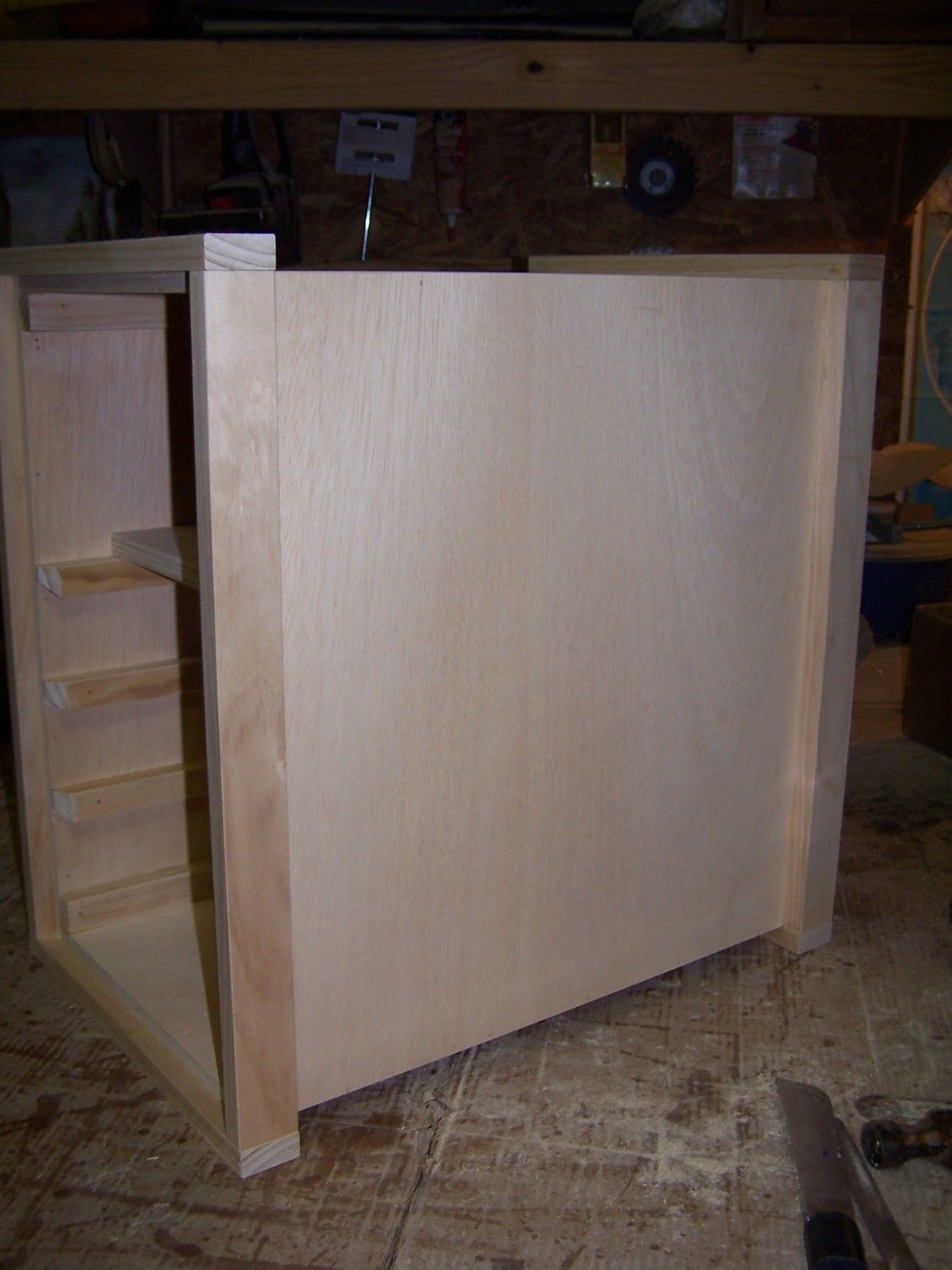

    [​IMG] Box constructed of 1/2" plywood with 3/4" framing.

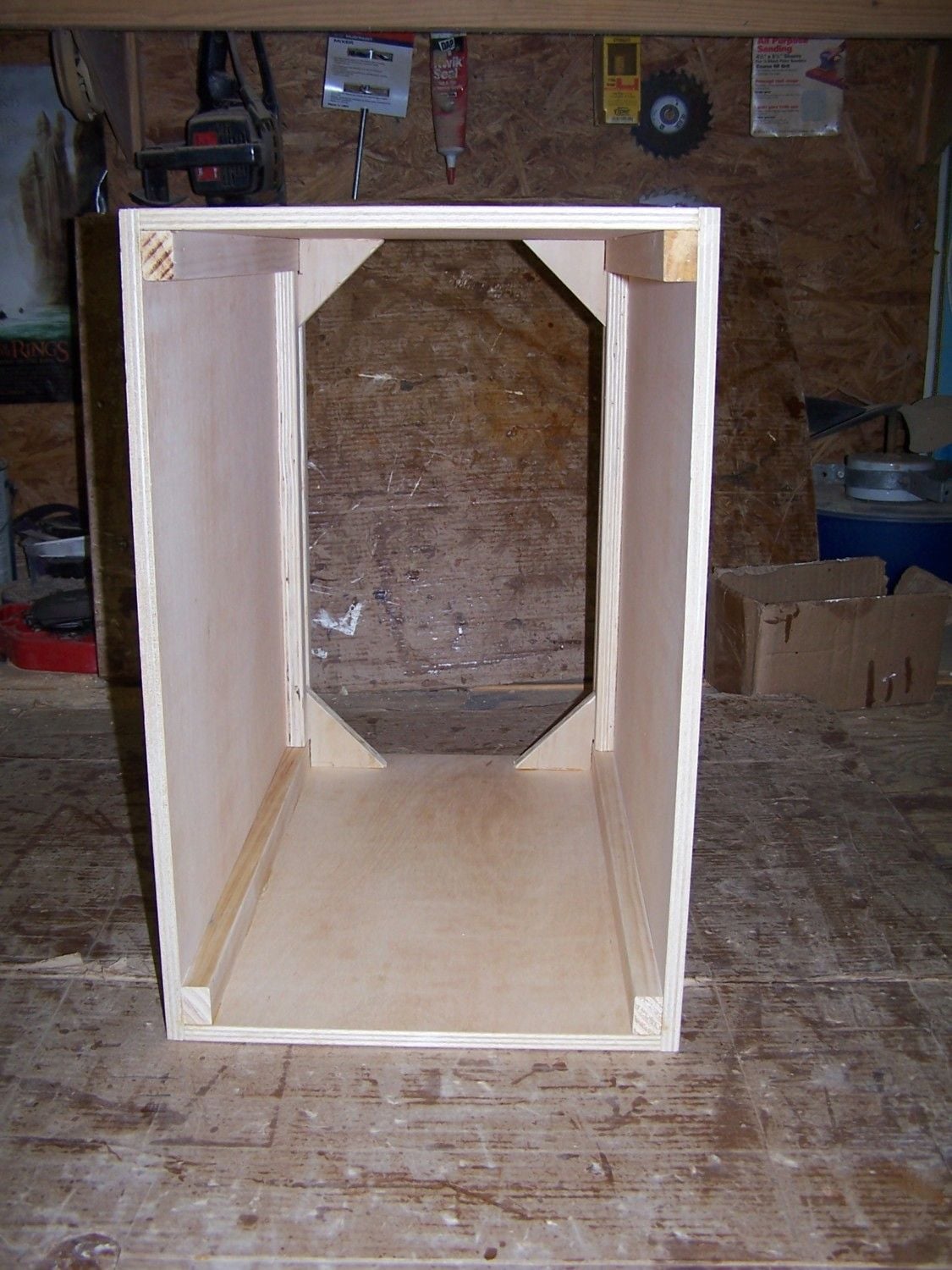

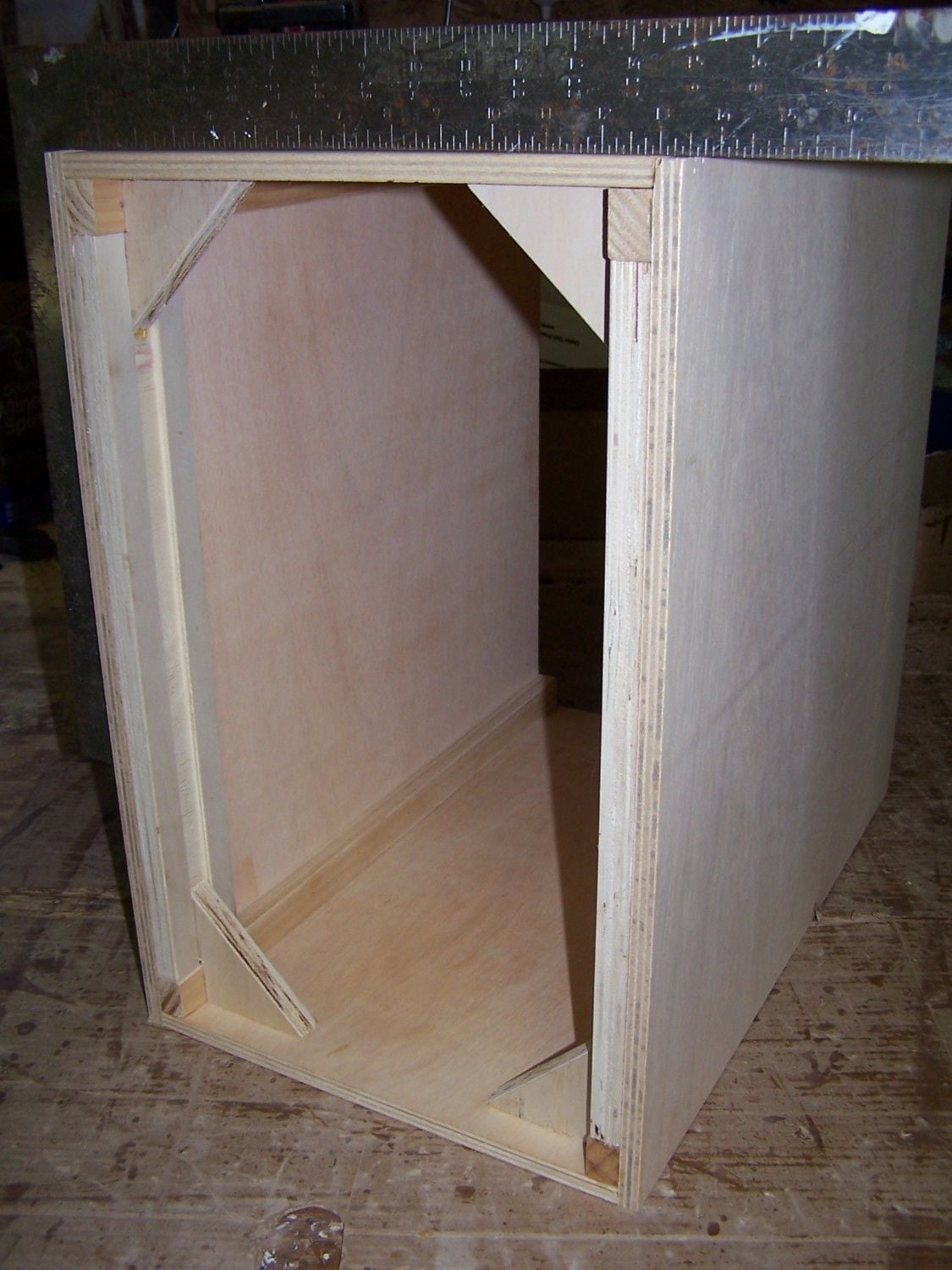

    [​IMG]corner bracing .

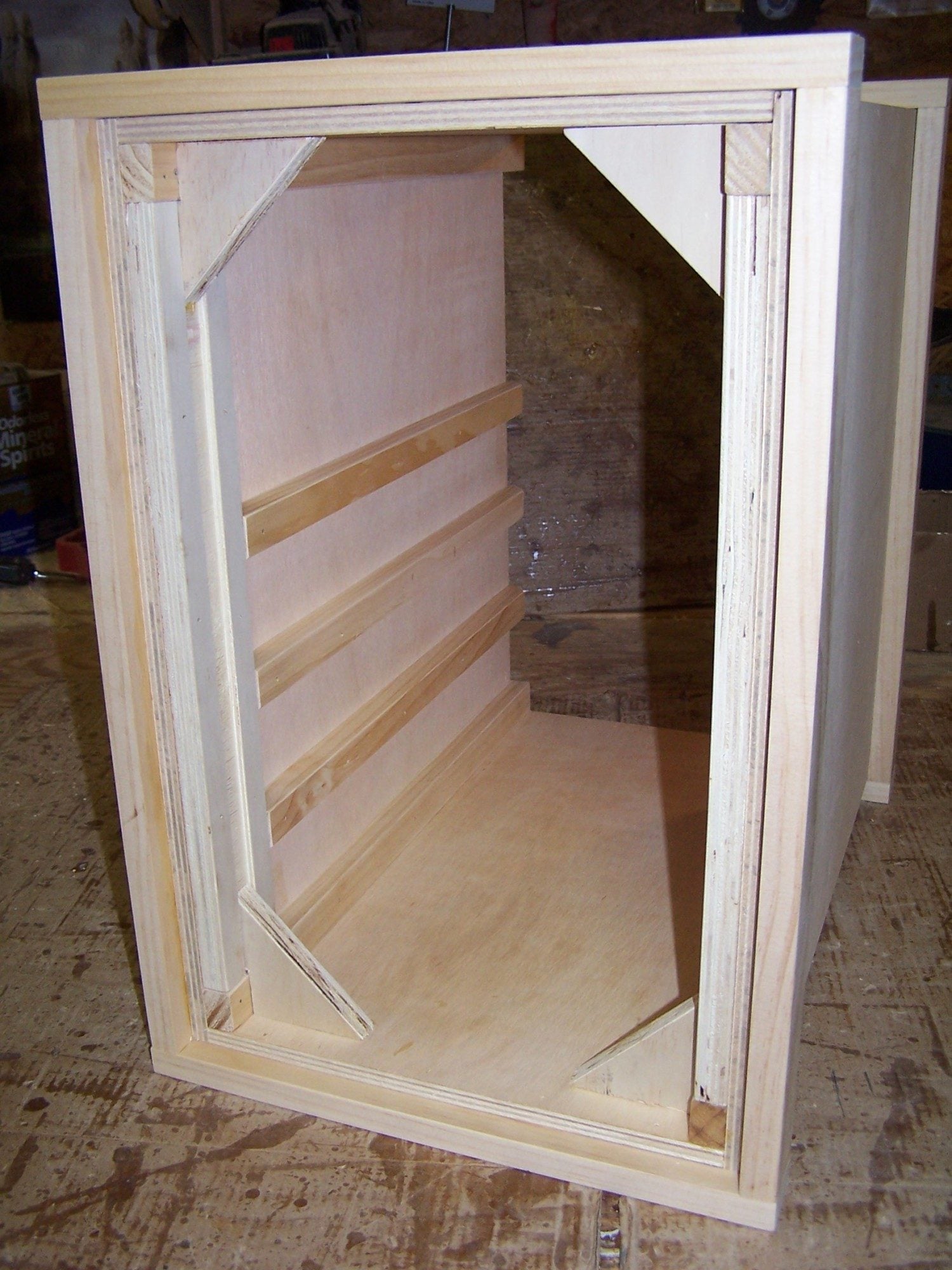

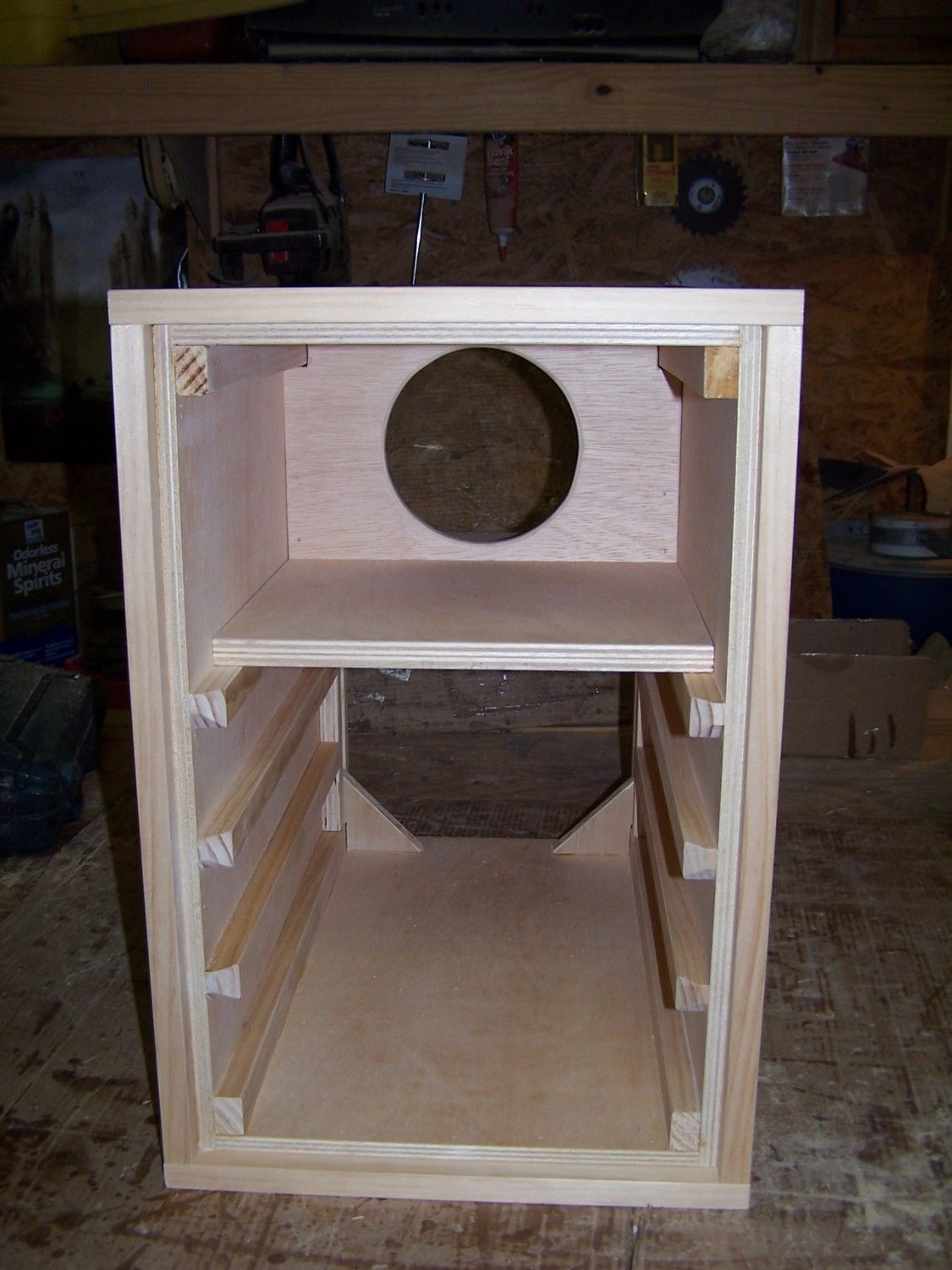

    [​IMG]Drawer rails and exterior framing installed.

    [​IMG]

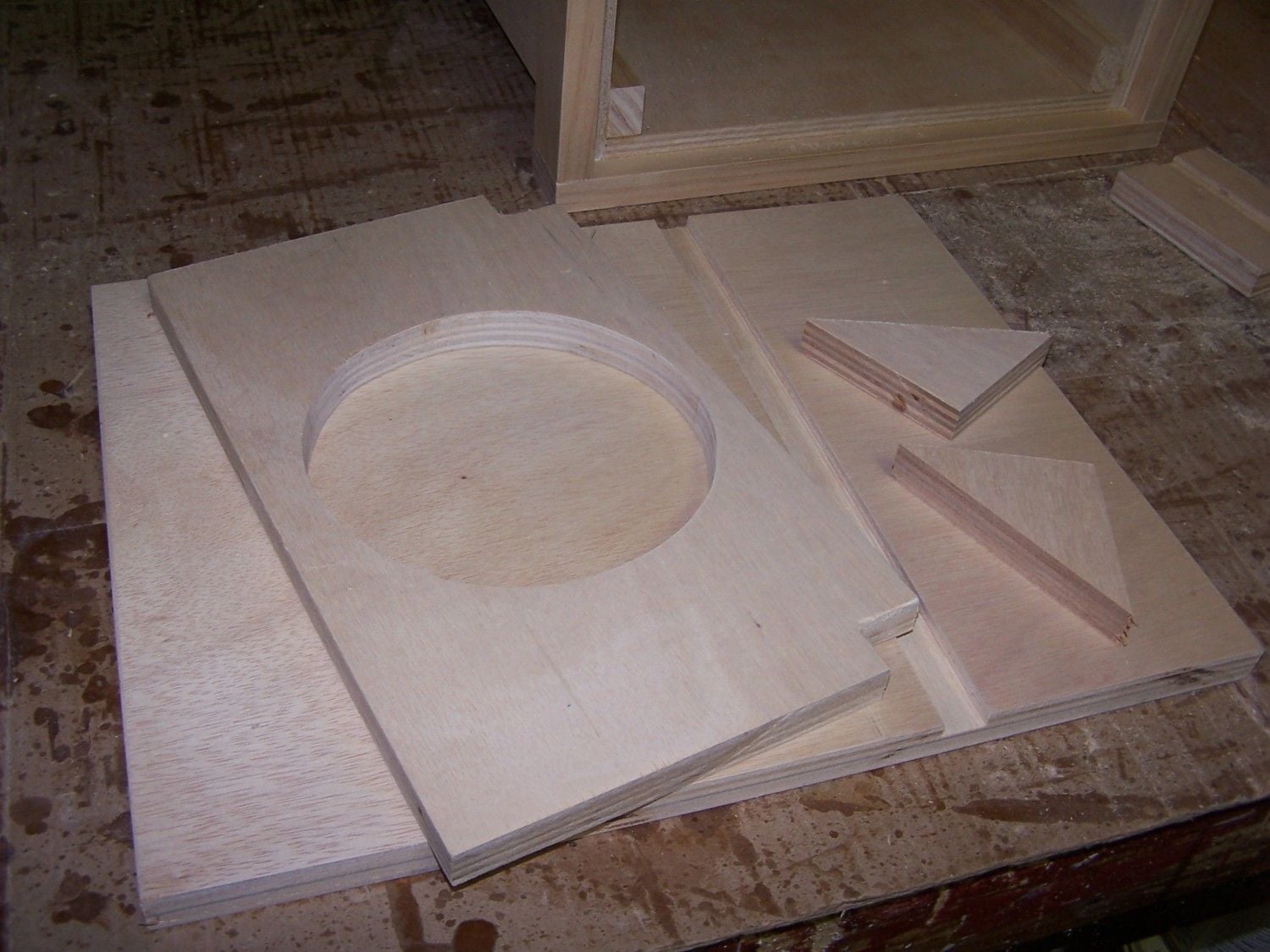

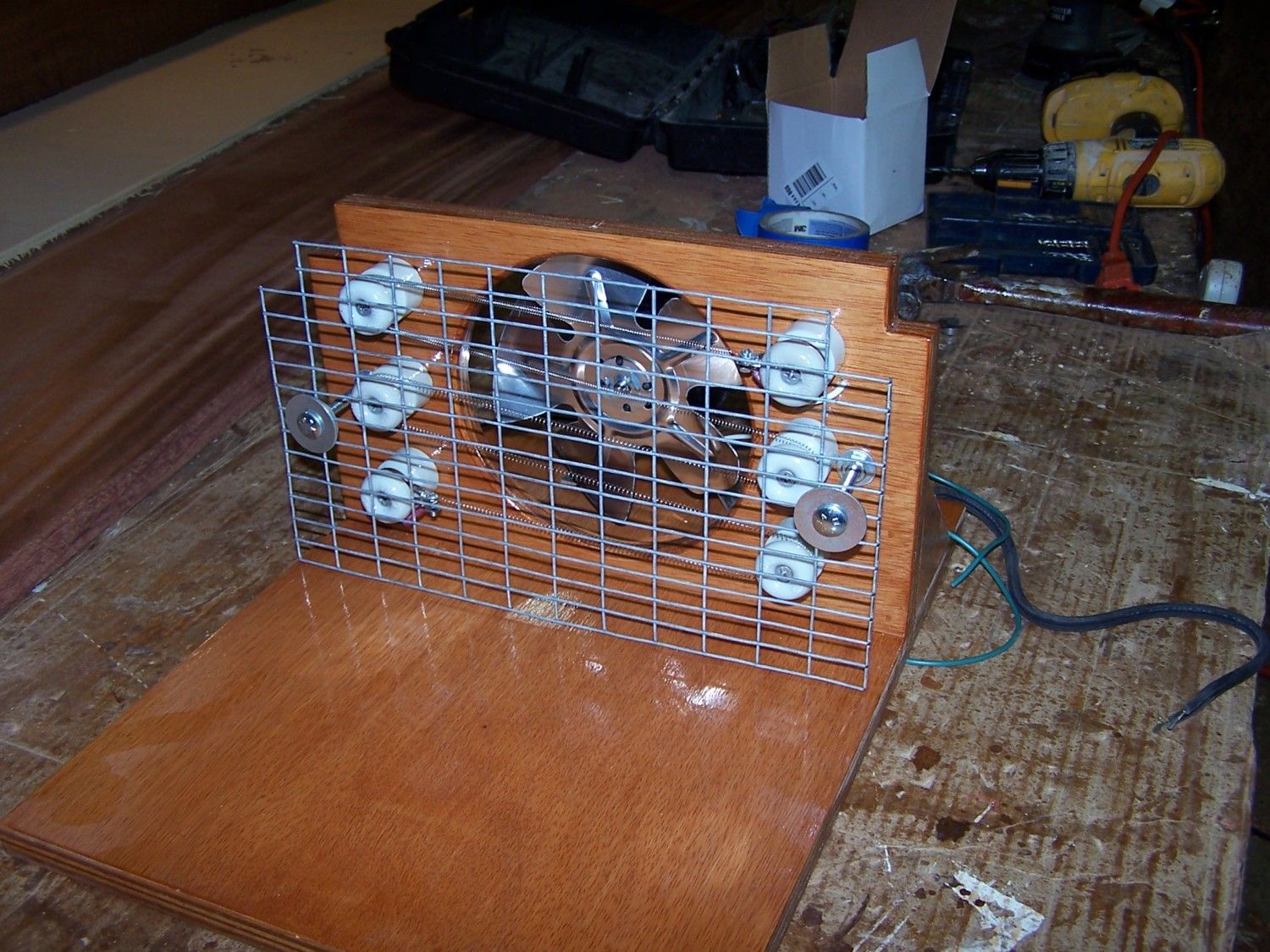

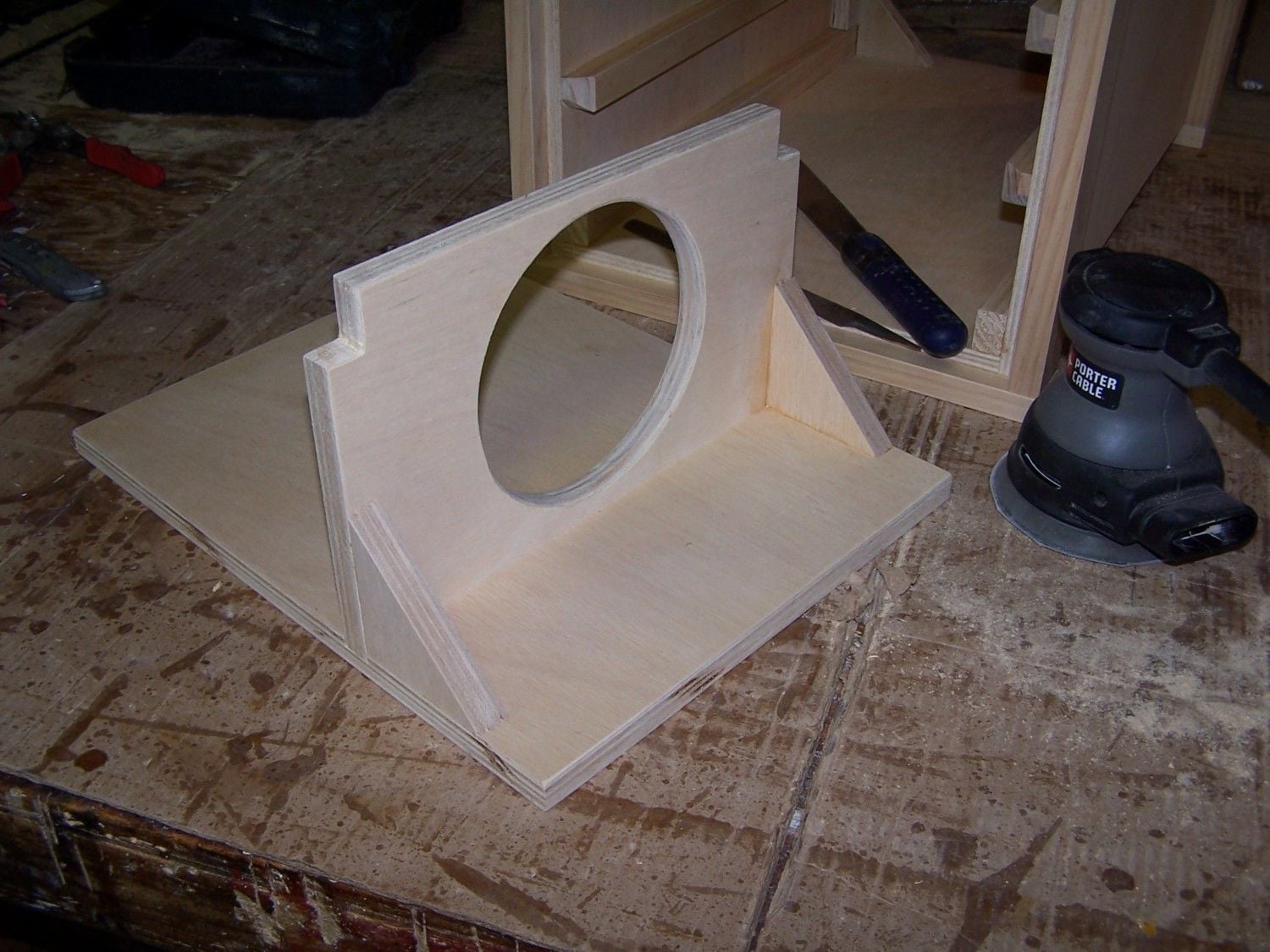

    [​IMG]Fan , heat element and humidity pan shelf.

    [​IMG] [​IMG]

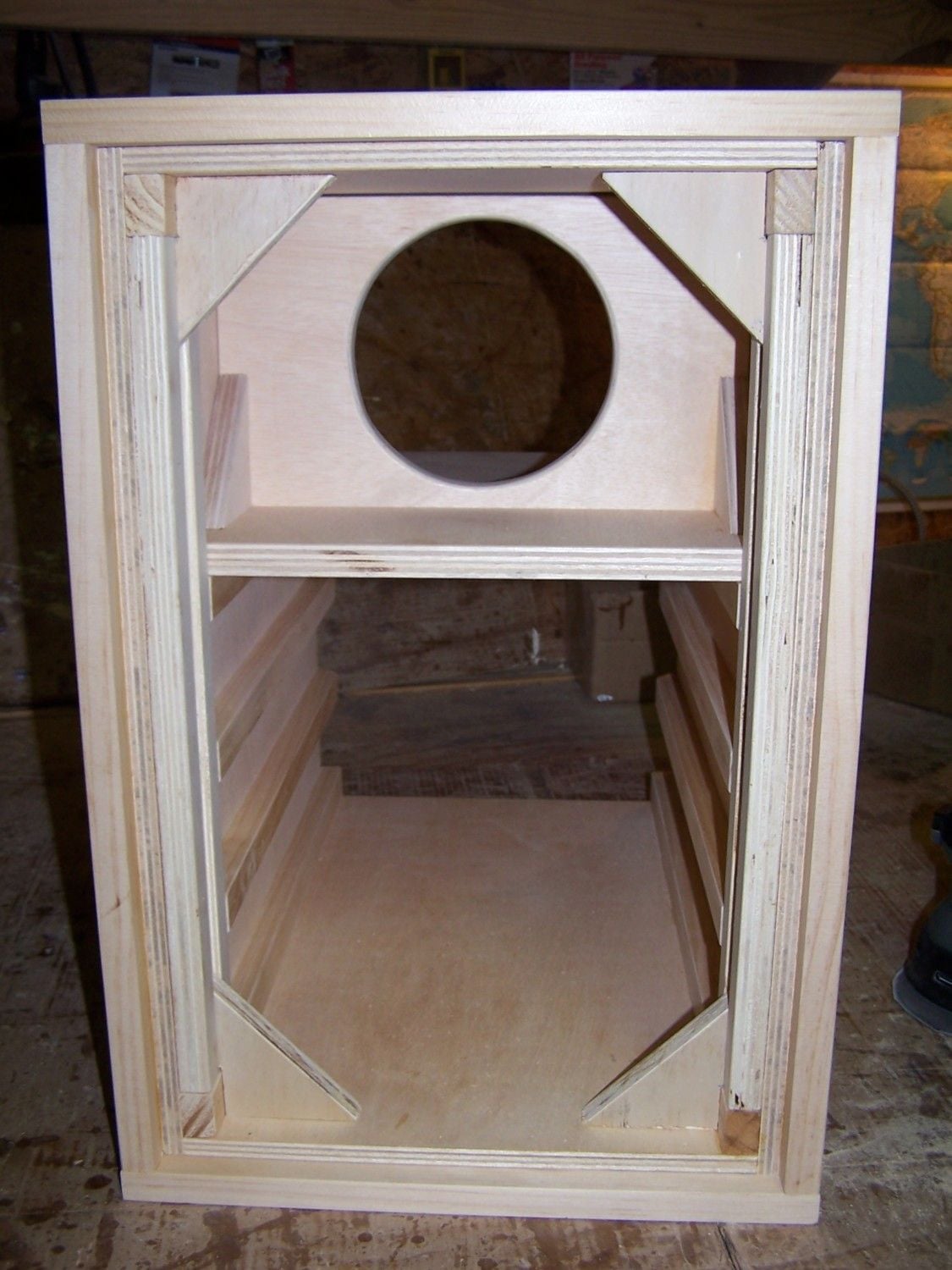

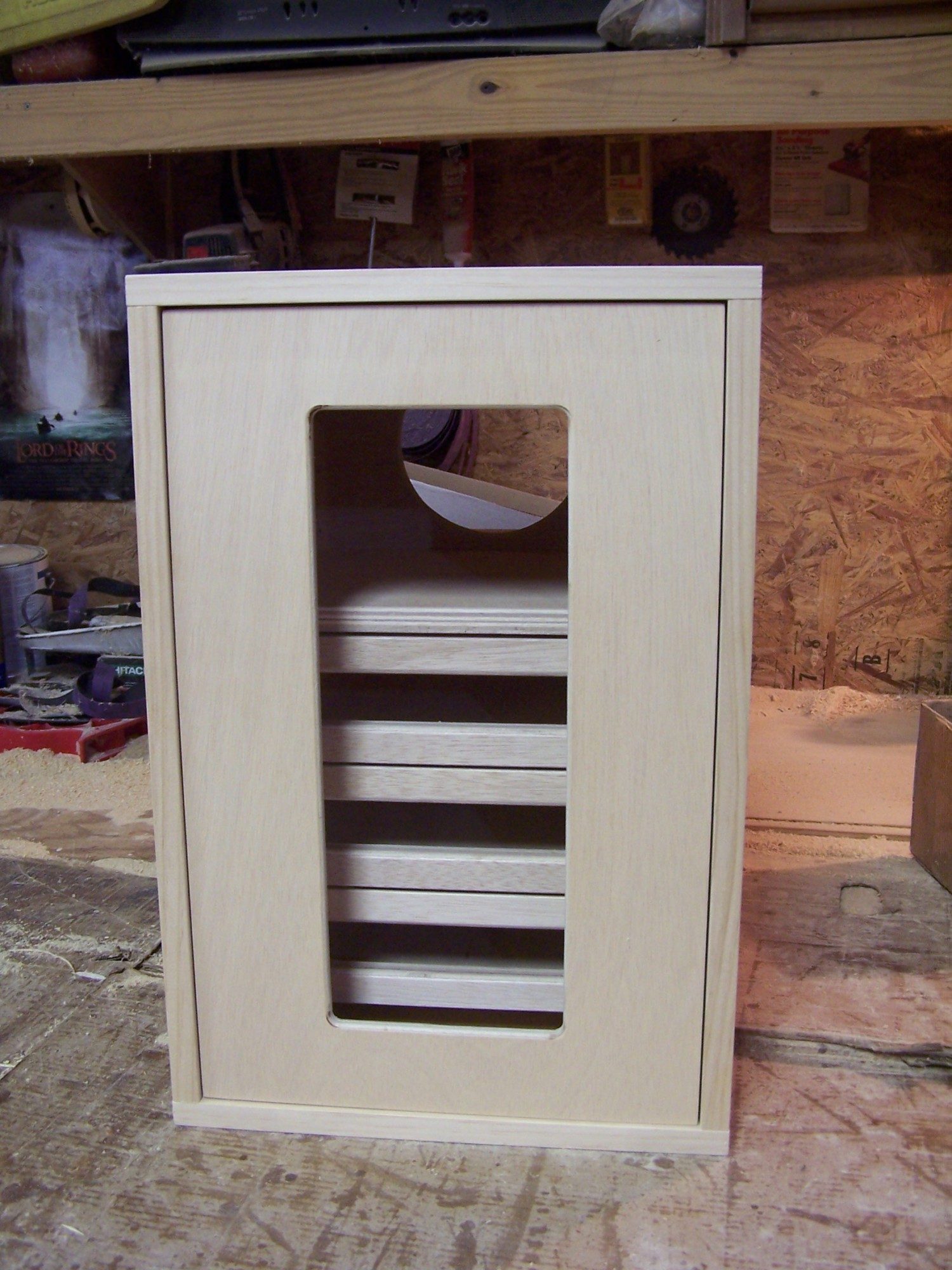

    [​IMG] Test fit fan shelf.Drawer [​IMG]Test fitting door.

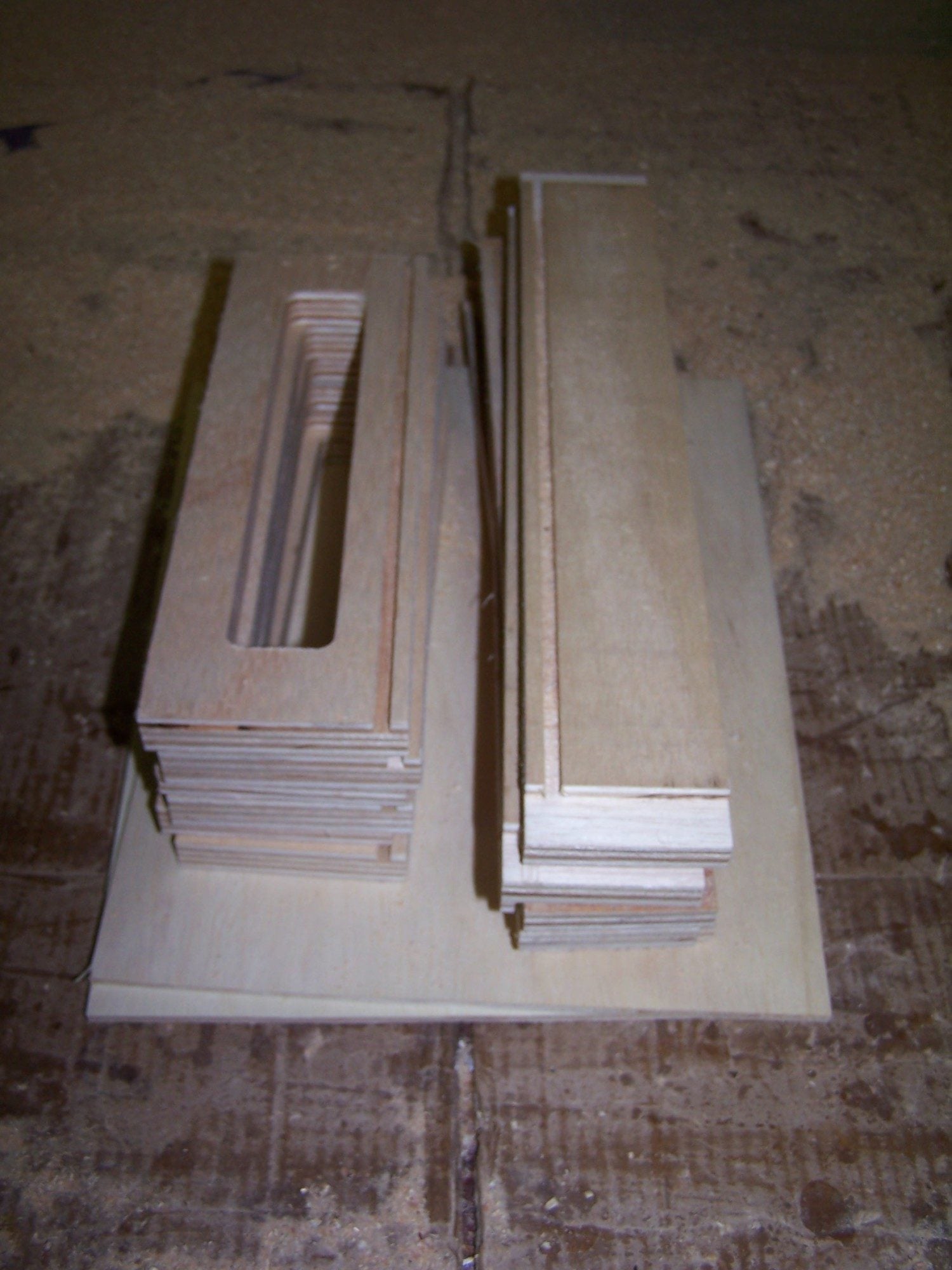

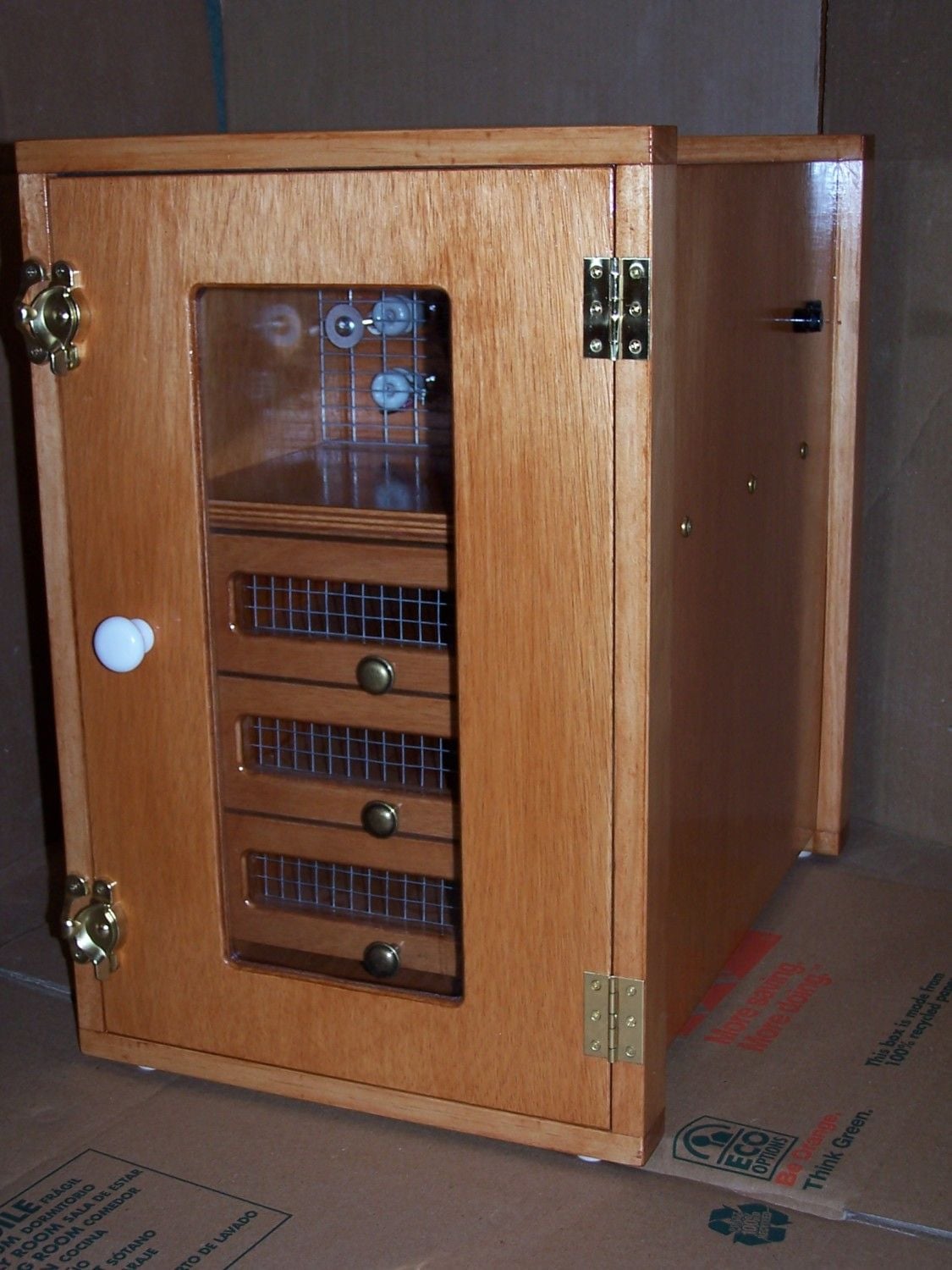

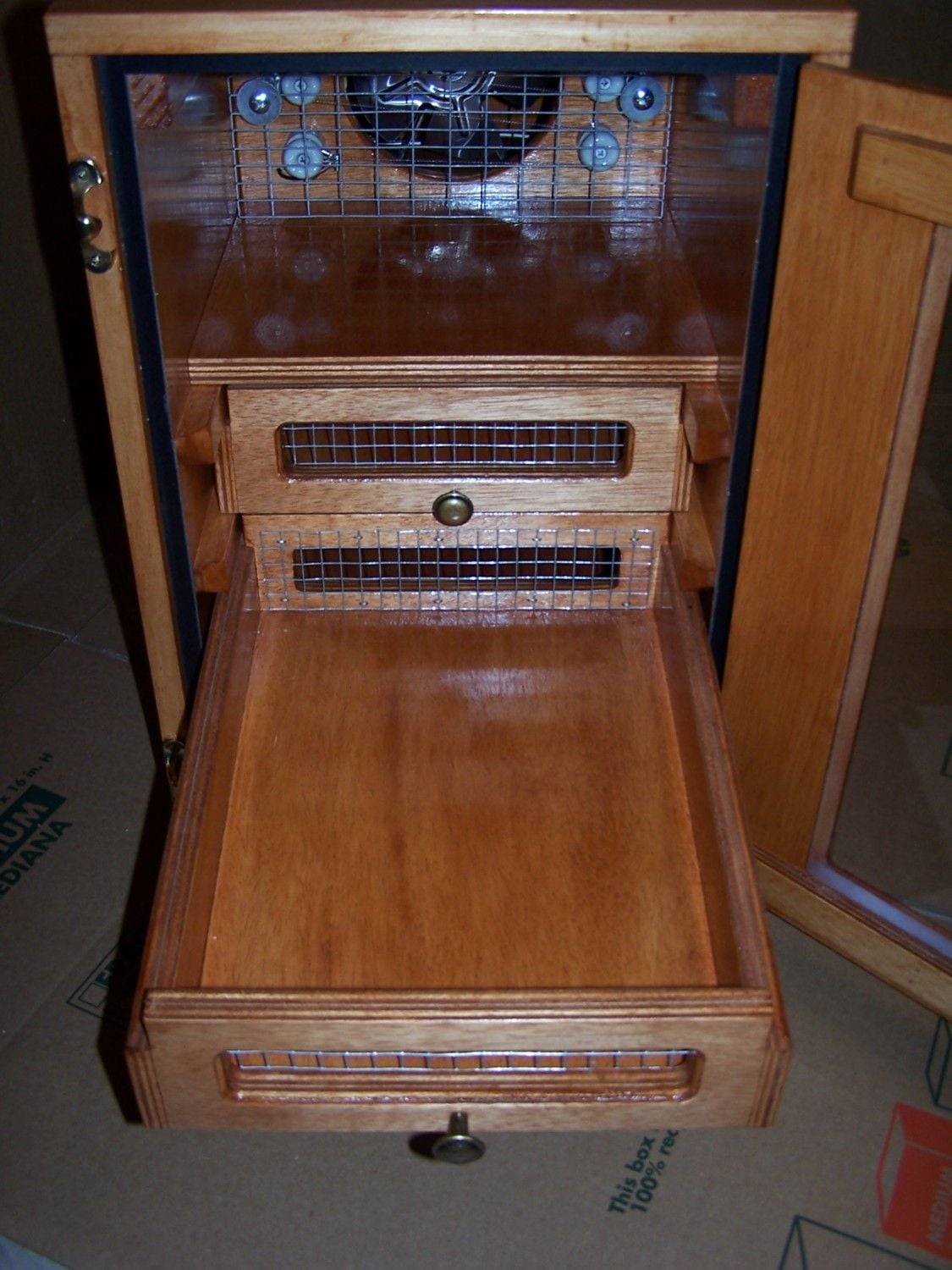

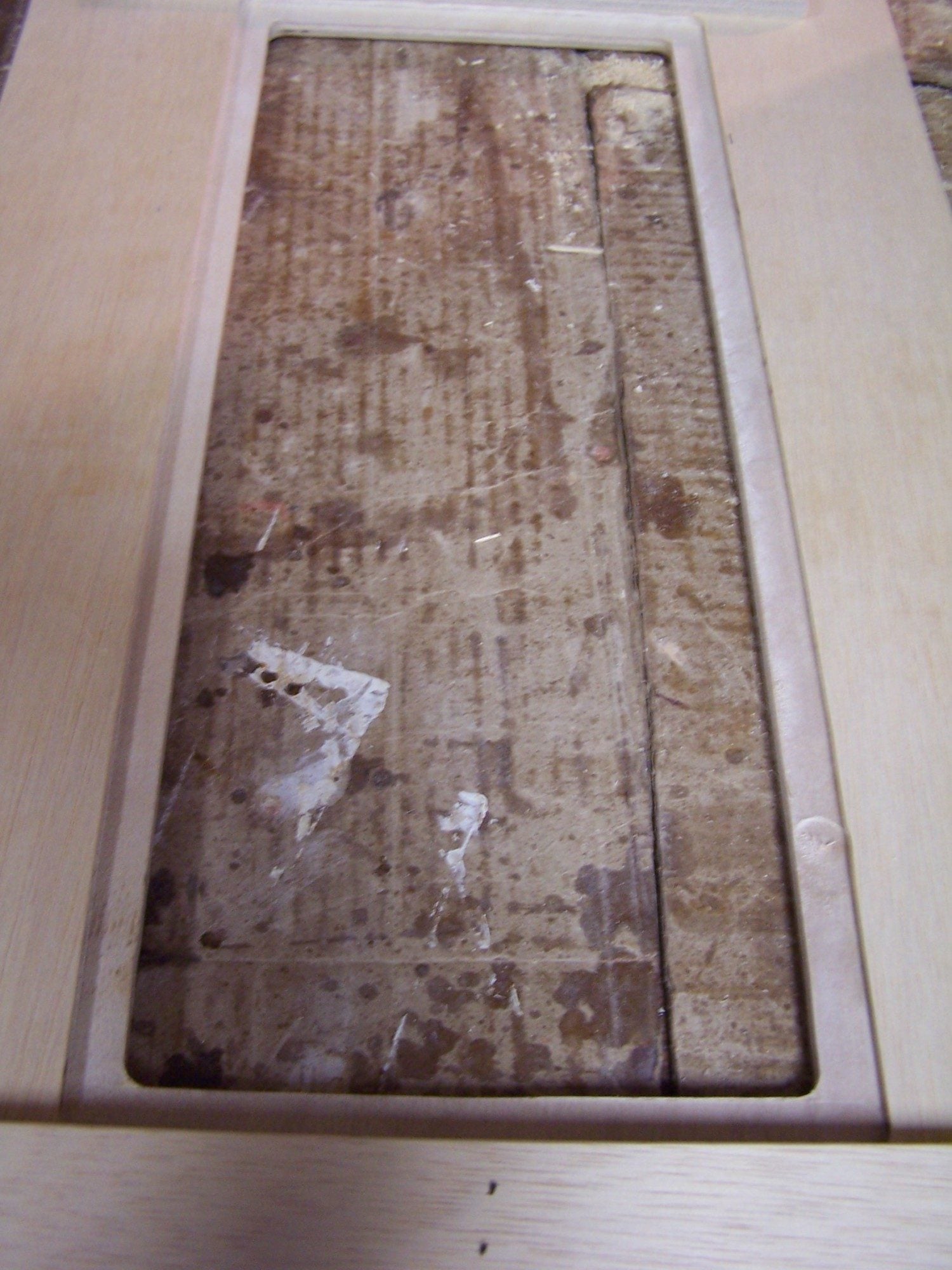

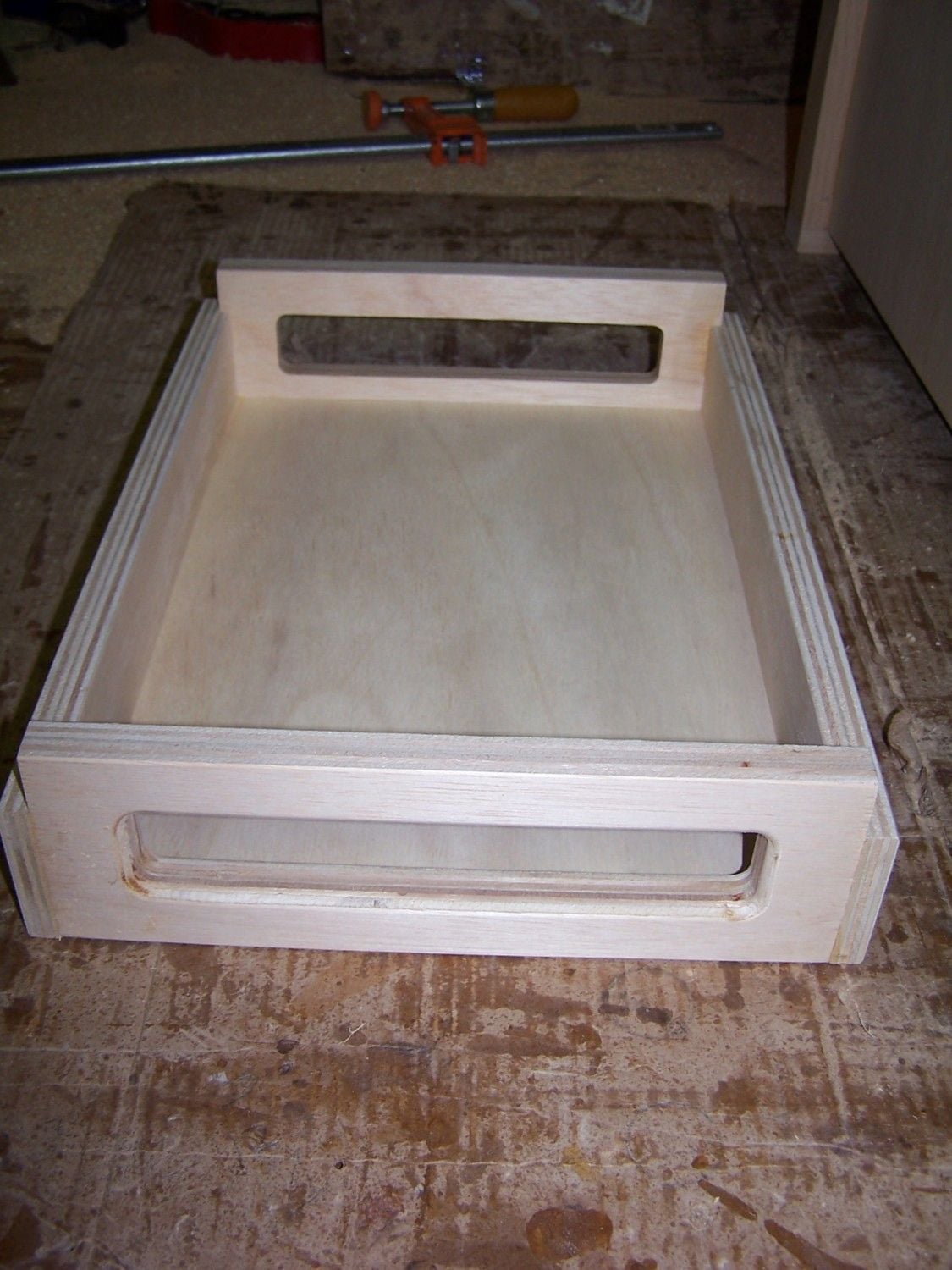

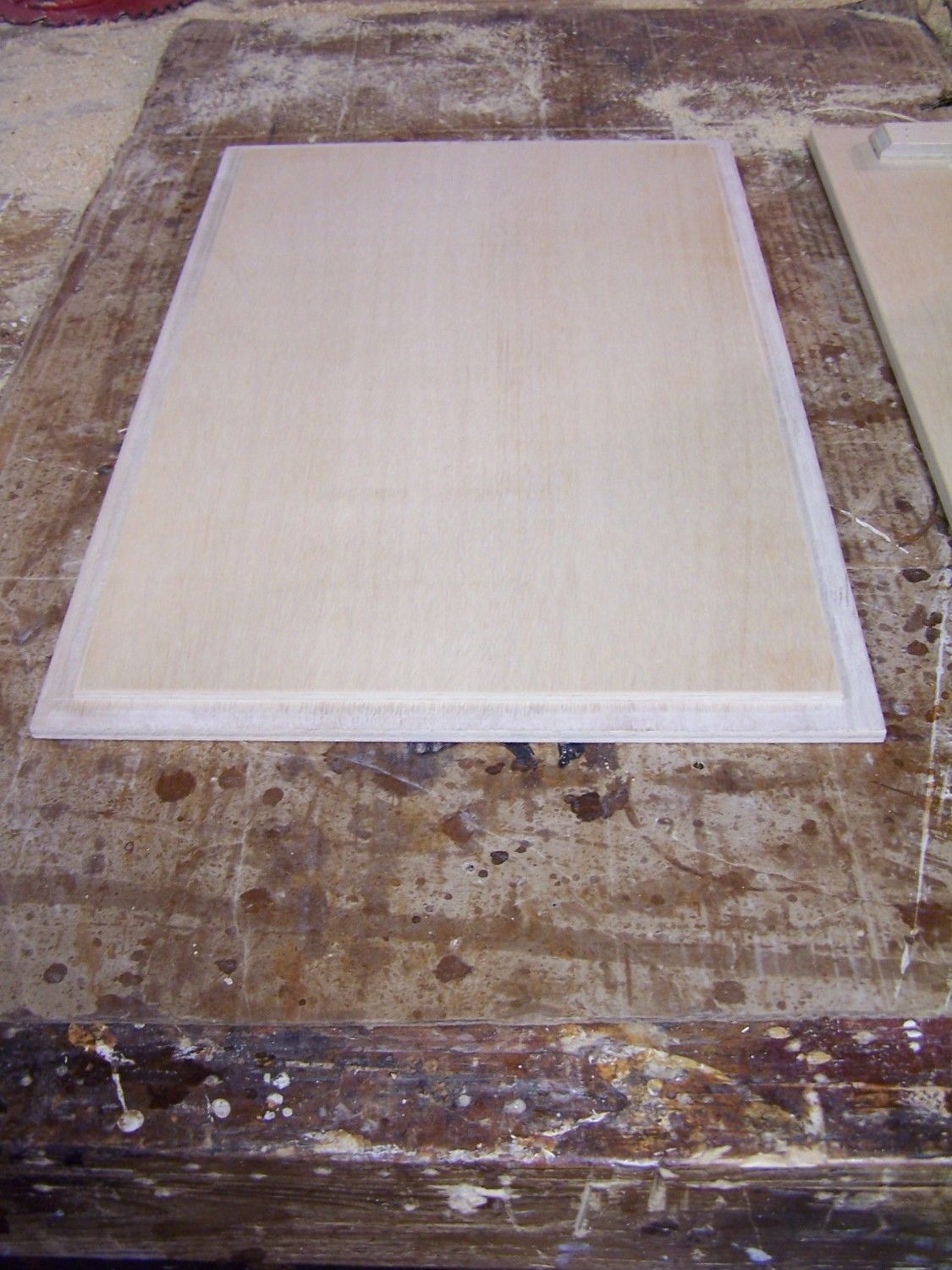

    [​IMG]Back routed for foam seal.[​IMG] Door routed to accept window[​IMG] [​IMG] Egg drawer.

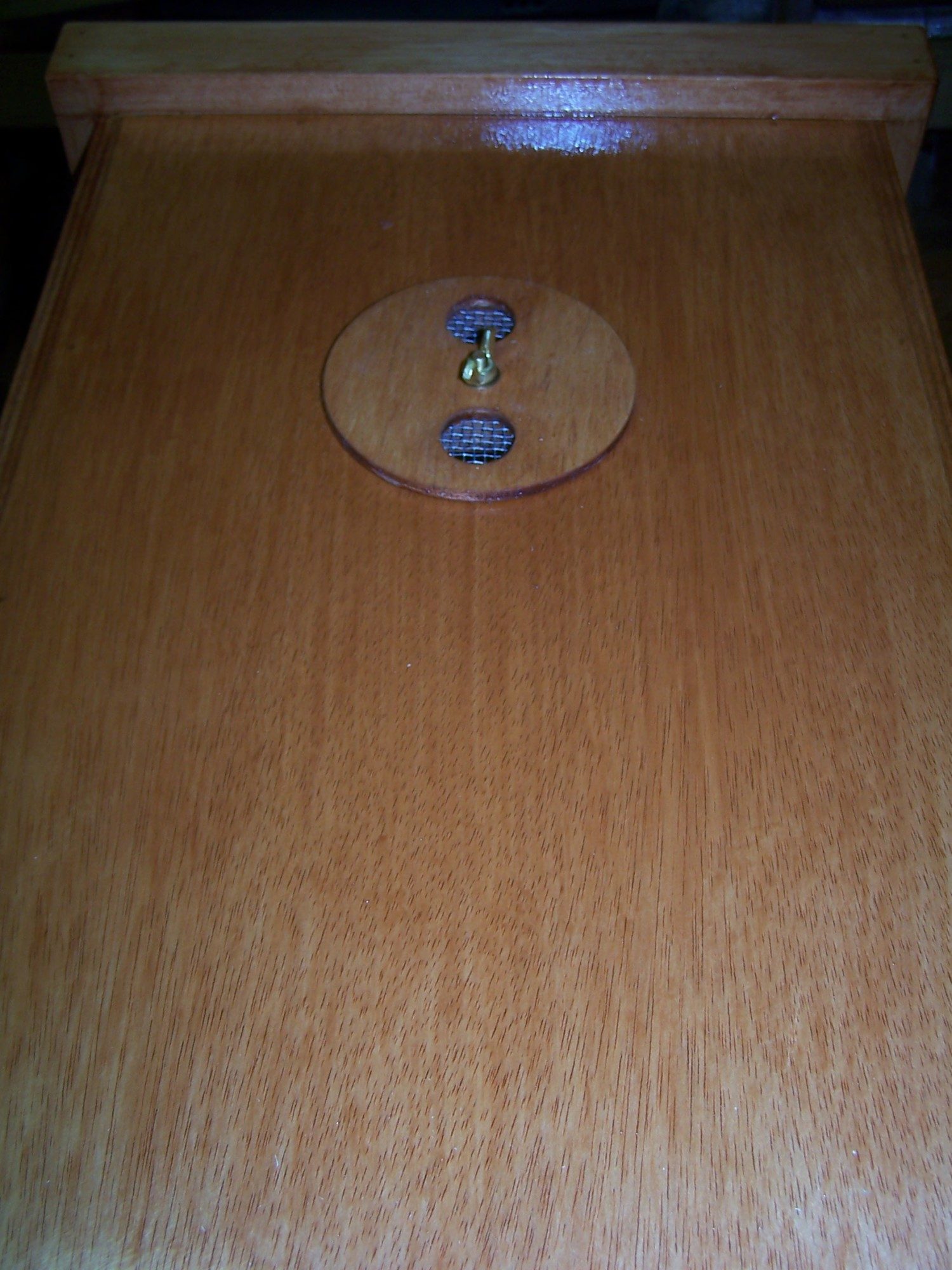

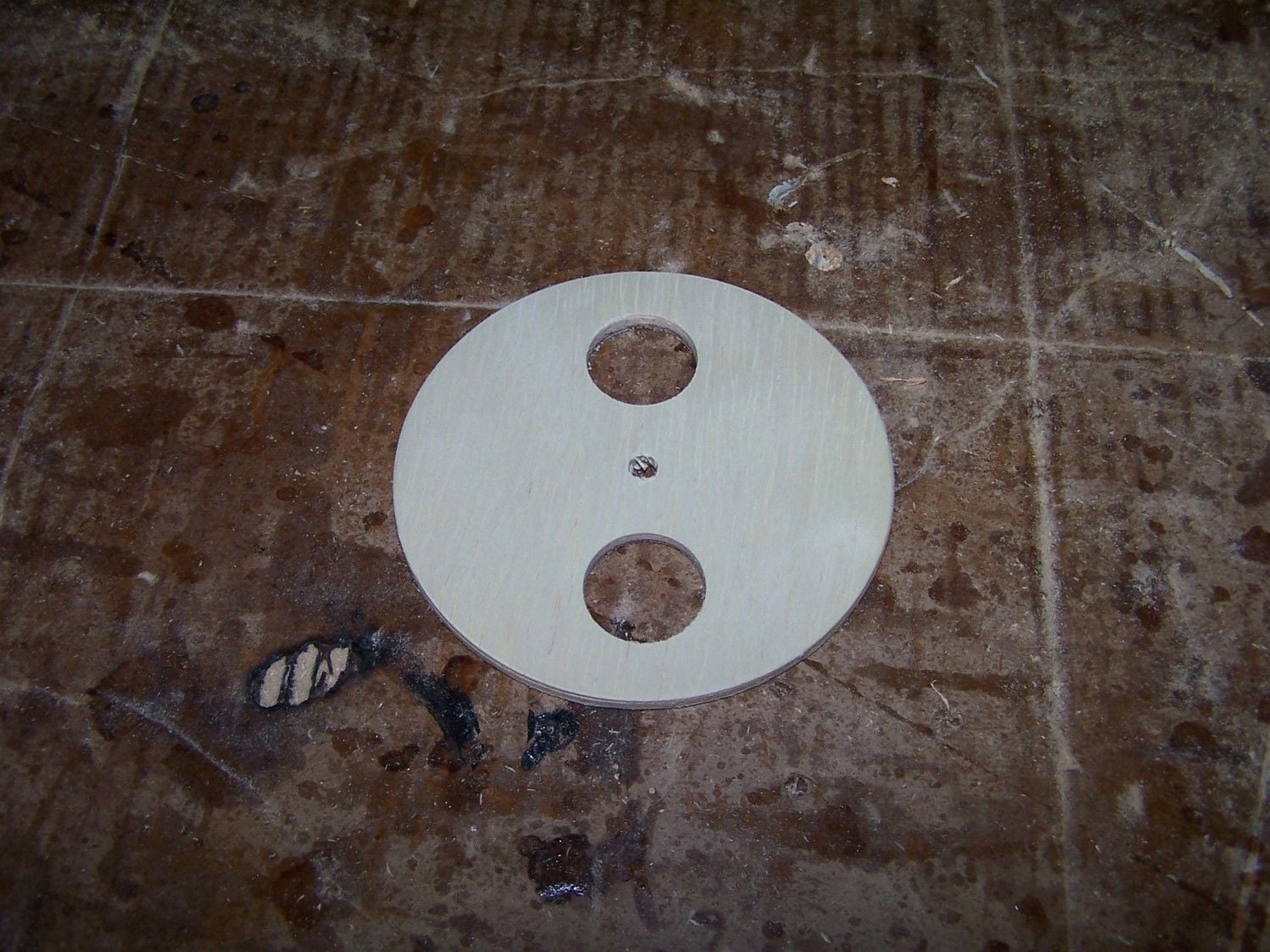

    [​IMG]Vent.[​IMG] Top mounted.


    [​IMG] Wafer thermostat installed.[​IMG]

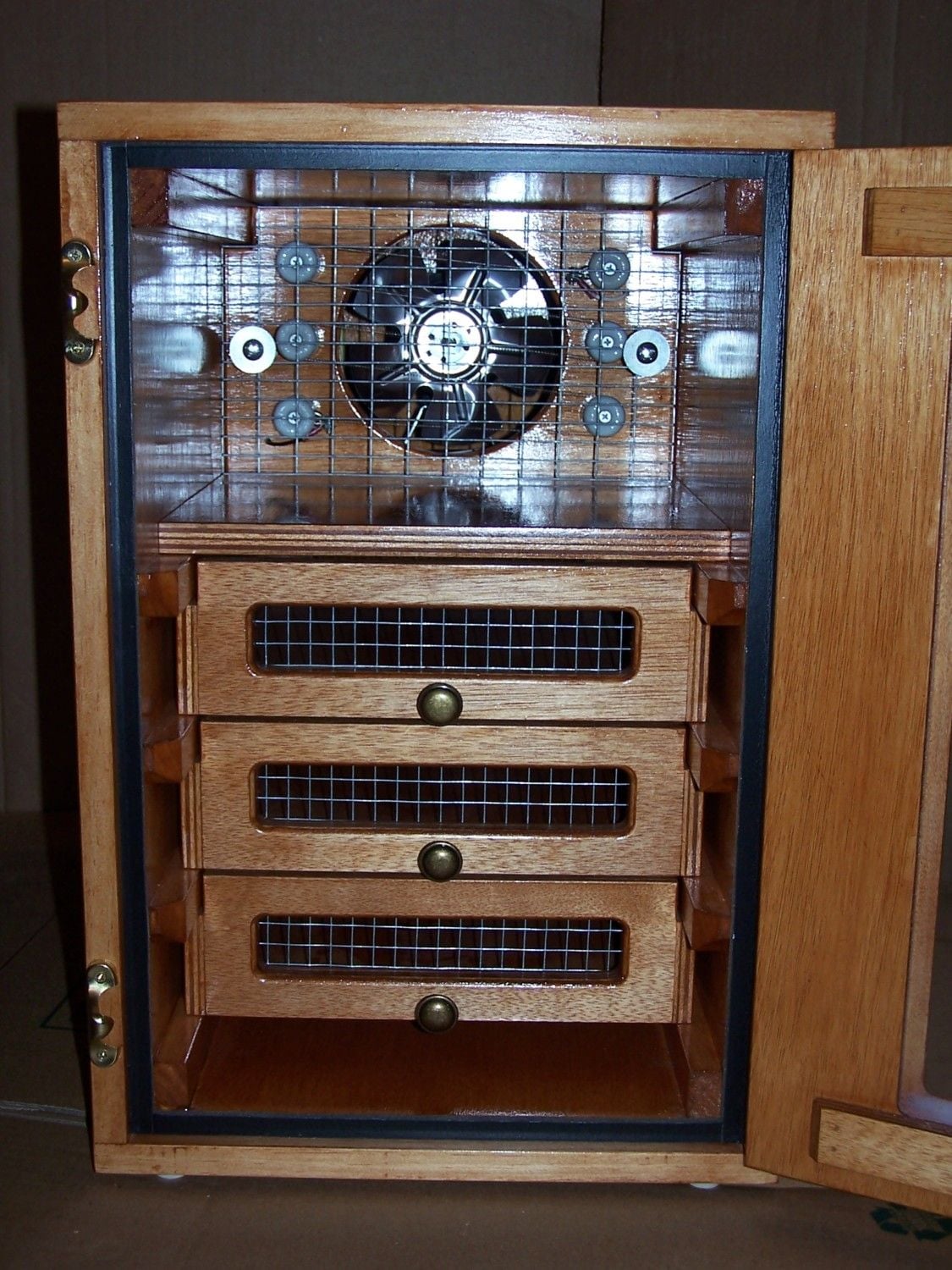

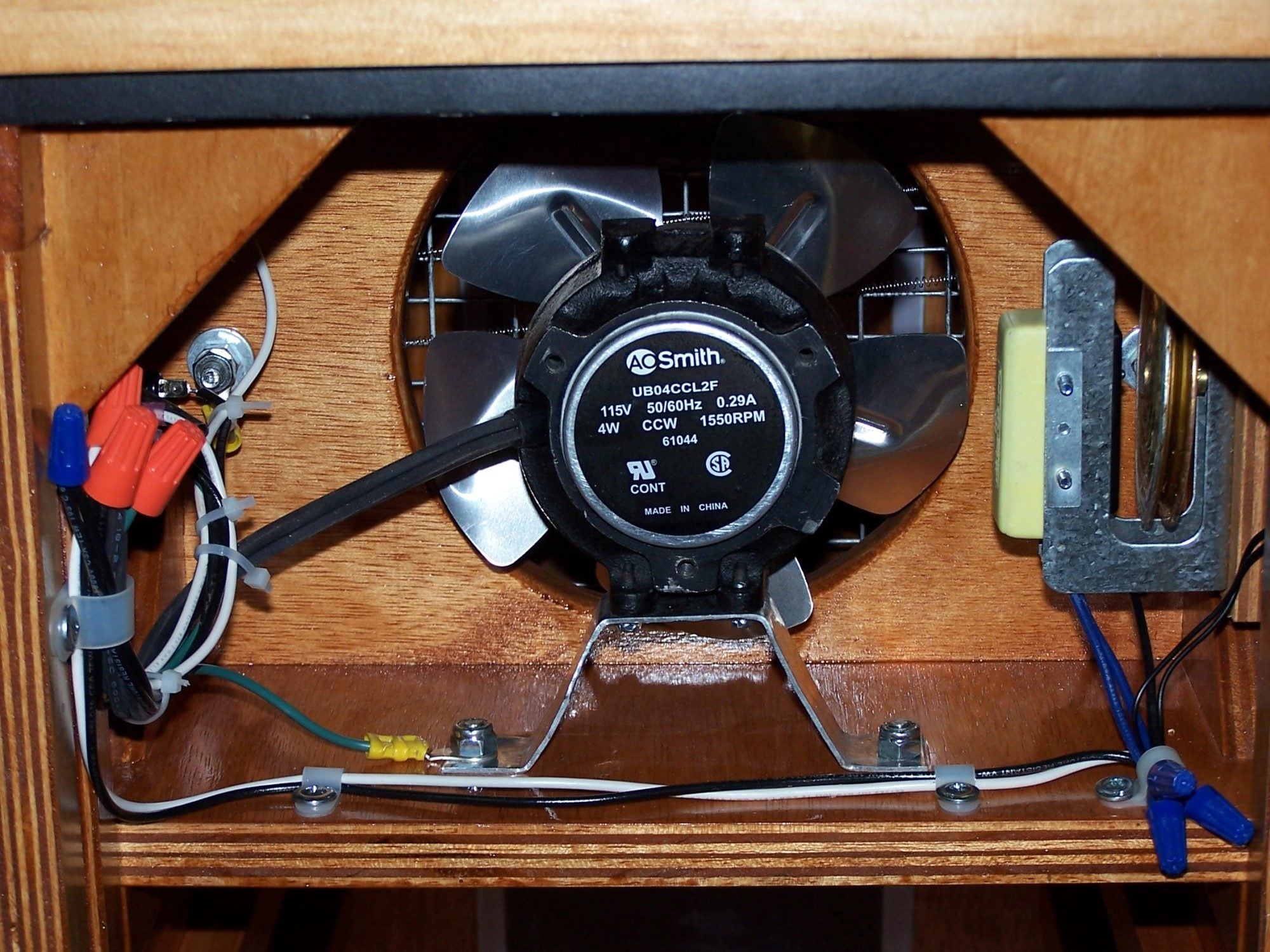

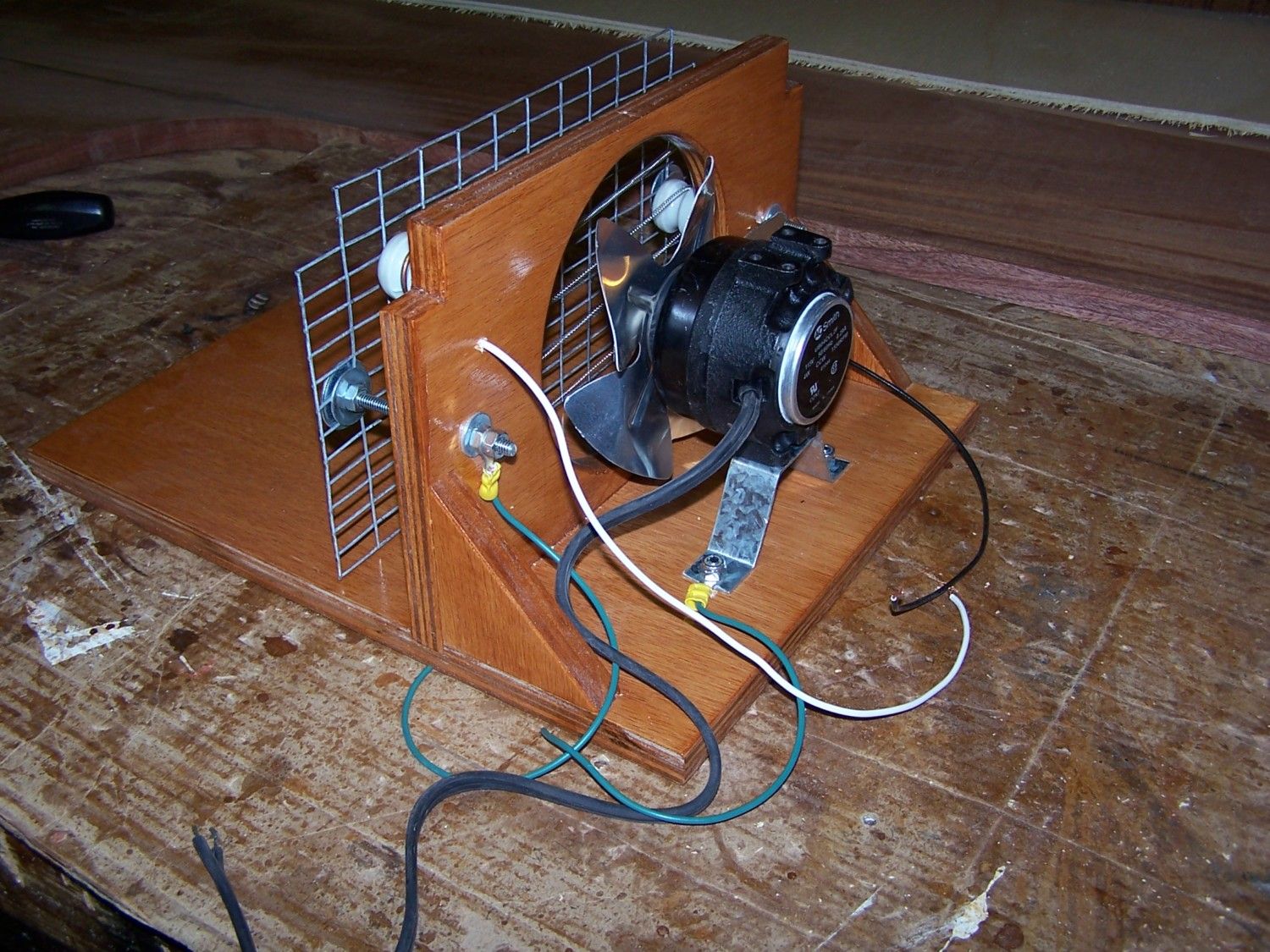

    [​IMG][​IMG] Fan and heat element.

    [​IMG][​IMG][​IMG]












  4. chad e

    chad e Out Of The Brooder

    81
    3
    33
    Jun 5, 2014
    For some reason the pictures say no image available. I would like to see your photos if you still have them.
