Chicken Palace Construction

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by chewy352, Mar 7, 2015.

  1. chewy352

    chewy352 Out Of The Brooder

    14
    0
    22
    Feb 15, 2015
    Our chicken experiment began last summer with 4 free range Golden Comets and a $50 budget for a coop. Now thanks to tax returns we have 17 Australorps and 6 White Silkie chicks in the spare bedroom and the race to complete their palace is on.

    Day One

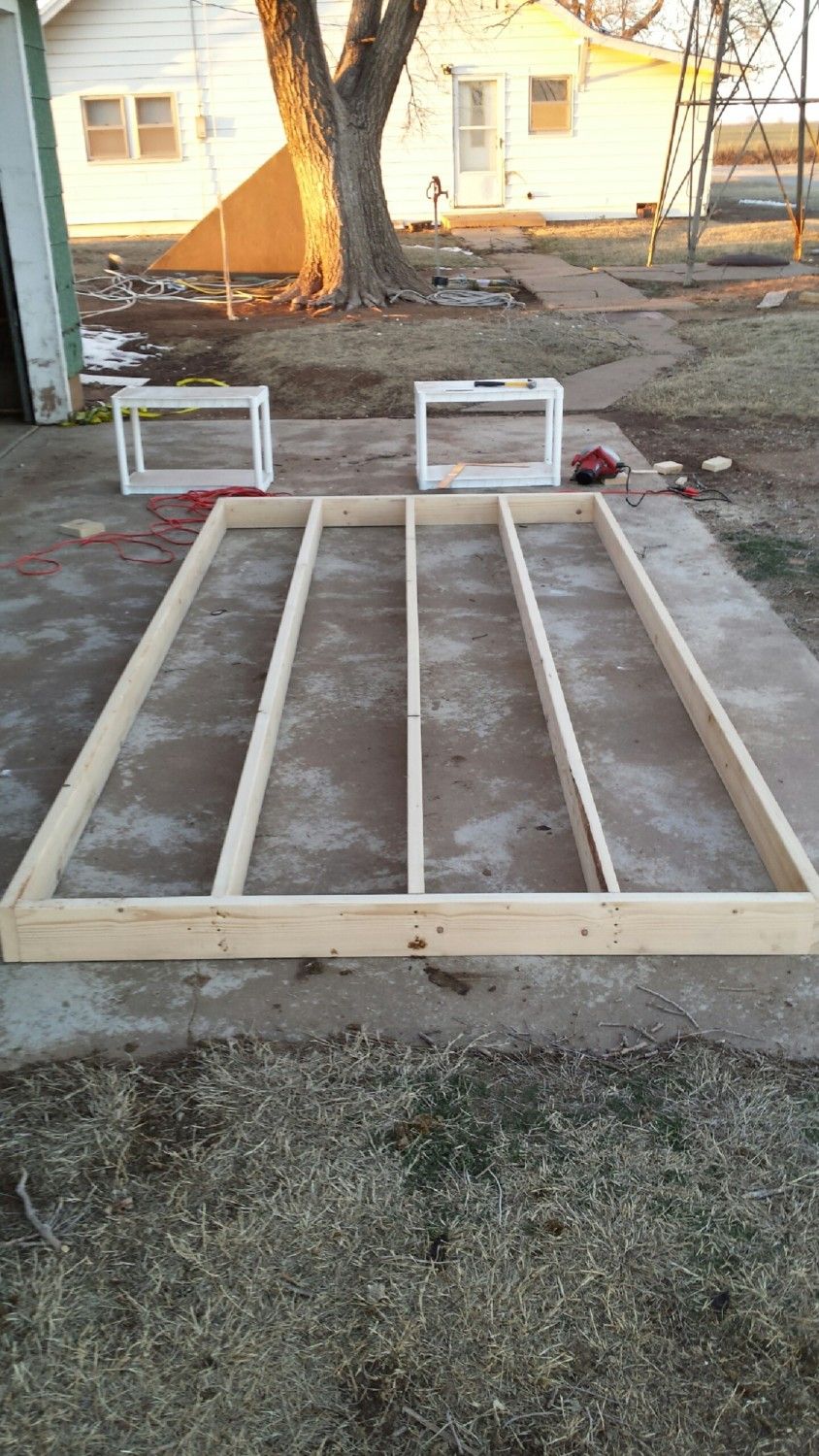

    12 Foot by 6 Foot 2X6 framing done.
    [​IMG]

    Day 2
    I added some 2X4s to aid in attaching the floor joists to the skids.
    [​IMG]

    Started notching the 6X6 skids.
    [​IMG]
    Day 3
    All the notches in the 6X6s and 4X4s completed.
    [​IMG]

    6X6s and 4X4s attached. I put 5 nails in each intersection.
    [​IMG]

    Skids completed.
    [​IMG]

    Floor attached to the skids. I messed up my measurements. The 2X6s were supposed to be centered on the 6X6s but this will work fine.
    [​IMG]

    Floor sheeting competed.
    [​IMG]

    Tomorrow I start framing the walls. Wish me luck.

  2. wildwestcoast

    wildwestcoast Out Of The Brooder

    looks like you are off to a good start :) I spent the day the same way, I have my floor done and framed one wall.

  3. chewy352

    chewy352 Out Of The Brooder

    14
    0
    22
    Feb 15, 2015
    Day 4
    Here's the back wall 5' X 12' with the studs 24" on center
    [​IMG]

    Side walls 5' X 5'5"
    [​IMG]

    Front wall is 6' X 12'. The front wall will have the human door, Chicken door in the human door, 2 windows, and 2 sets of 2 nest boxes.
    [​IMG]

    Here is the framing of the window with wire mesh on it and the framing for the nest boxes to slide into.
    [​IMG]

    Framing for the doors.
    [​IMG]

  4. PapaChaz

    PapaChaz Overrun With Chickens

    2,833
    618
    301
    May 25, 2010
    NW Georgia
    looking great so far! love the posters who keep the progress documented regularly so we can follow along! thanks!

  5. eatwhatyougrow

    eatwhatyougrow Chillin' With My Peeps

    231
    20
    78
    Dec 30, 2013
    I sure hope you have some way to move that monster when your done building it...looks good!

  6. chewy352

    chewy352 Out Of The Brooder

    14
    0
    22
    Feb 15, 2015
    I was just going to harness all the chickens up to it and sit on the roof with a whip. It's their home, they ought to move it right?

    I have a 1/2 ton pick up. Not sure it will pull it but I have access to bigger trucks if need be. The dimensions are also made to fit on a U haul utility trailer if we ever have to move.

  7. aart

    aart Chicken Juggler! Premium Member

    32,734
    5,484
    556
    Nov 27, 2012
    SW Michigan
    My Coop
    LOL!! Have a vivid pic of that in my head now.

    Did you angle cut the ends of the skids?

  8. eatwhatyougrow

    eatwhatyougrow Chillin' With My Peeps

    231
    20
    78
    Dec 30, 2013
    That's probably the best way to move it. Aart is right angles cut on the skids

  9. RR1011

    RR1011 Out Of The Brooder

    51
    5
    31
    Dec 16, 2014
    Ohio
    Great so far! About to start framing my walls, this is helpful. Im new to building.

  10. FrankA

    FrankA Out Of The Brooder

    66
    6
    33
    Mar 8, 2015
    Long Island NY
    Looks great! keep us posted.
