DIY Automatic Coop Door with Electrical Schematic

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by Tom Kennedy, May 23, 2016.

  1. Tom Kennedy

    Tom Kennedy New Egg

    9
    0
    7
    Apr 16, 2016
    [​IMG]

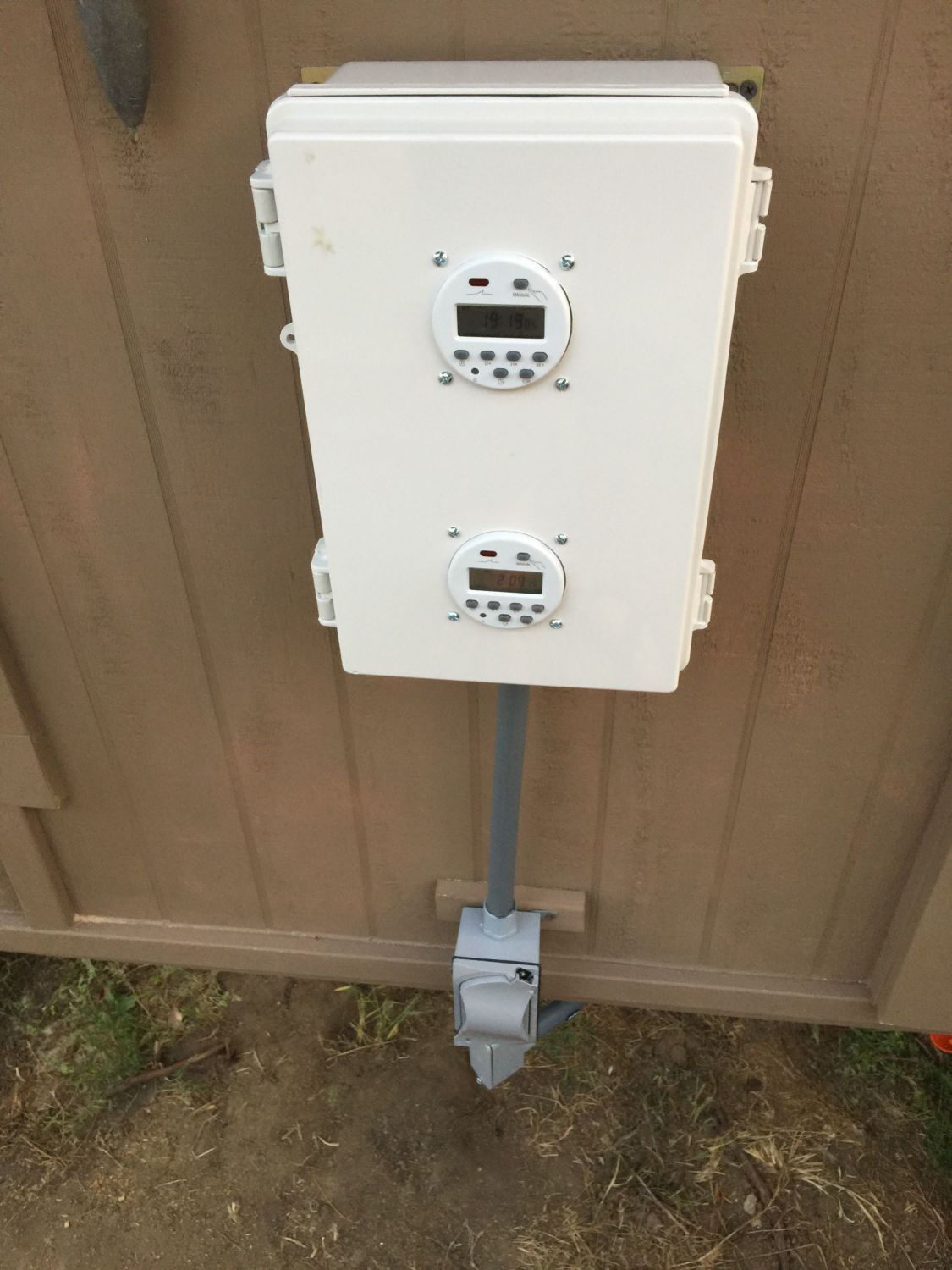

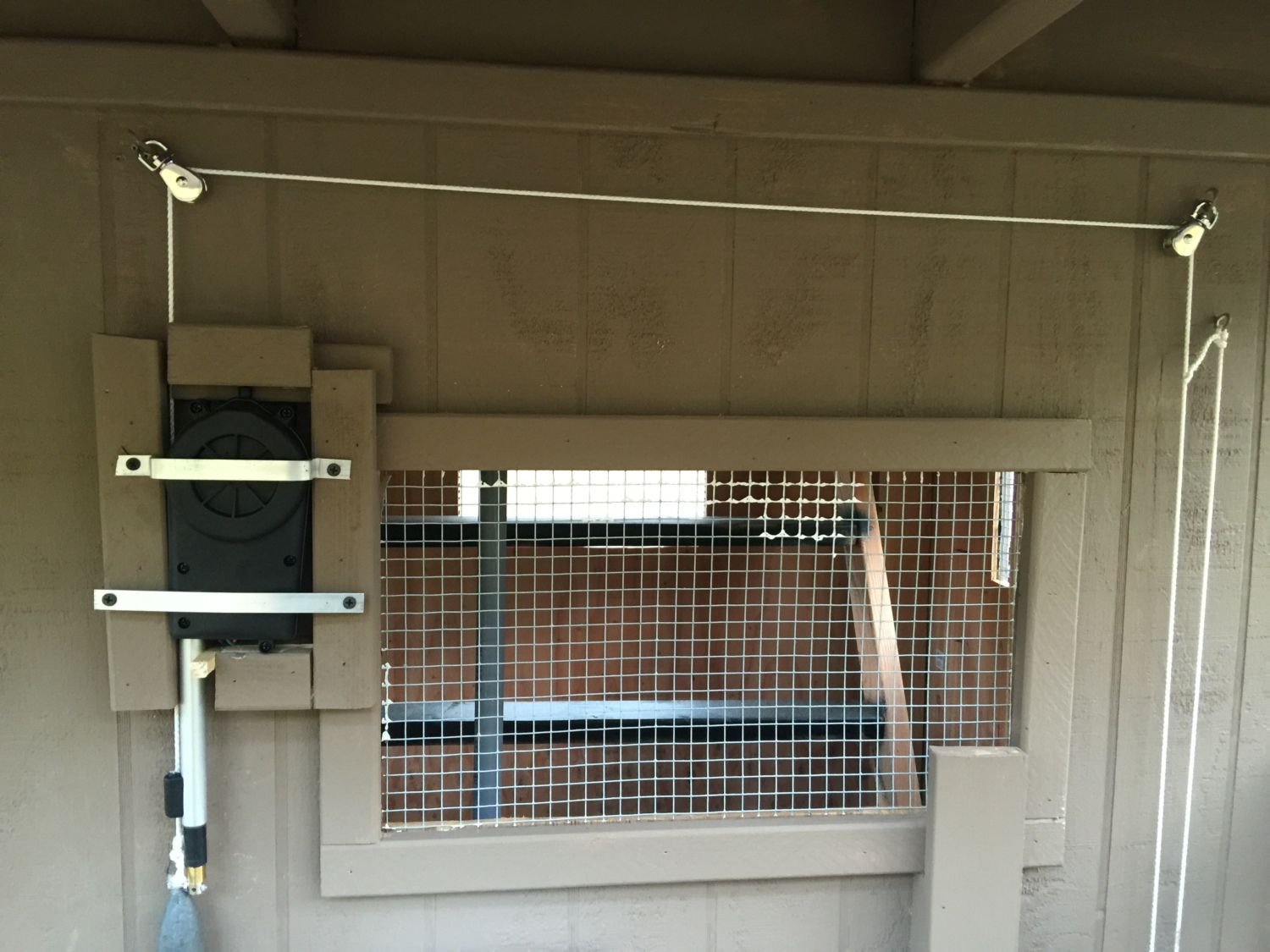

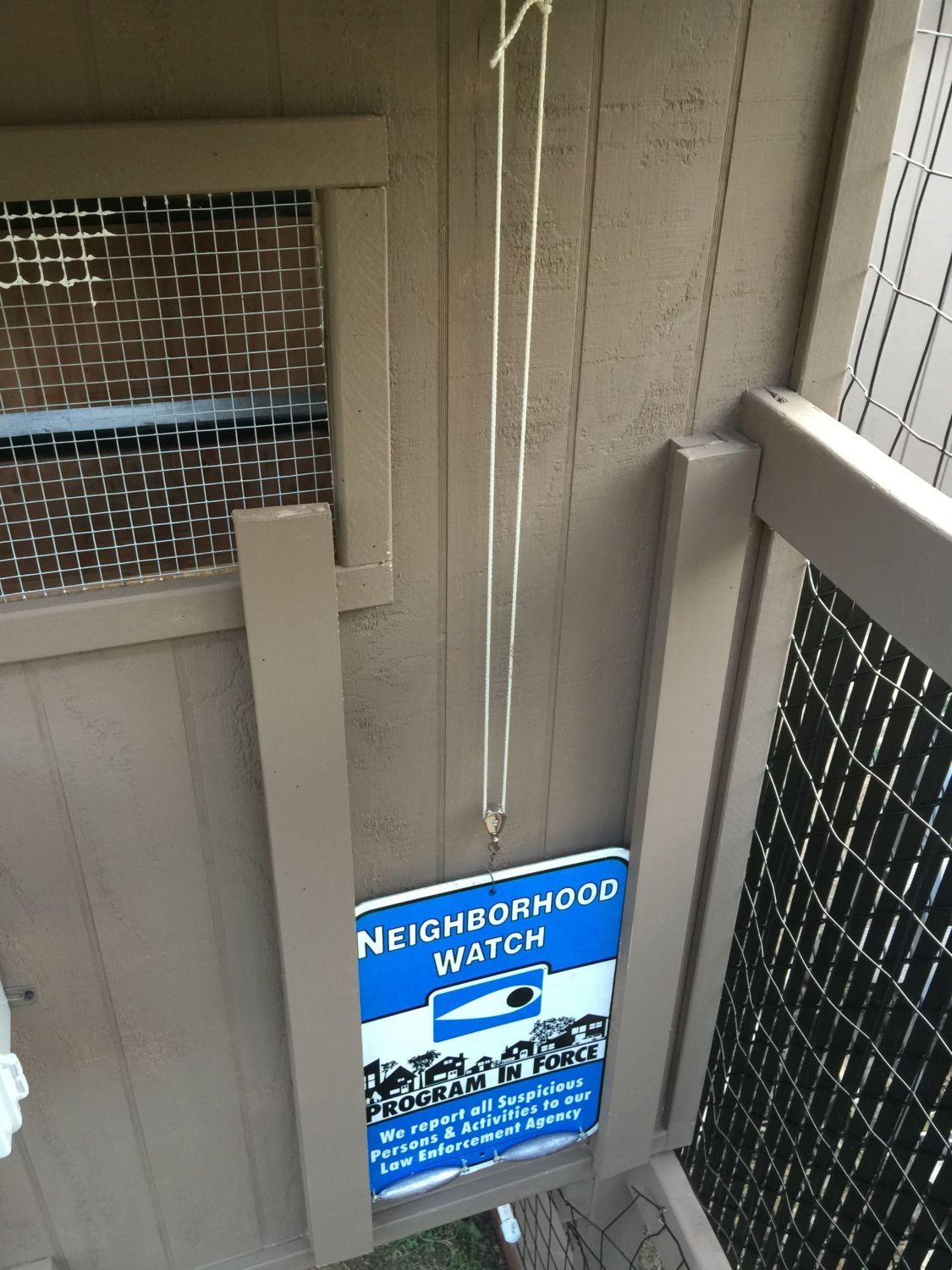

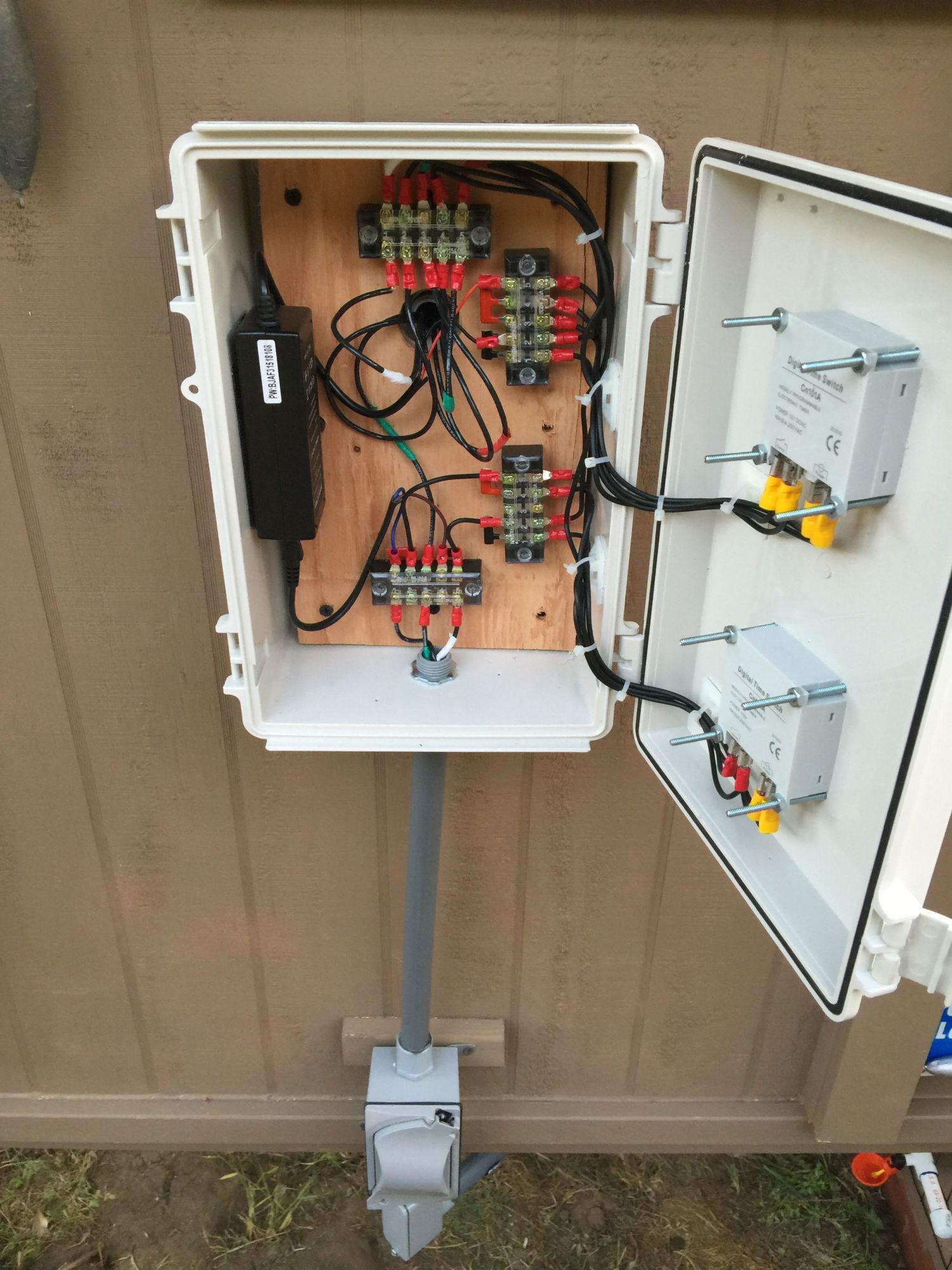

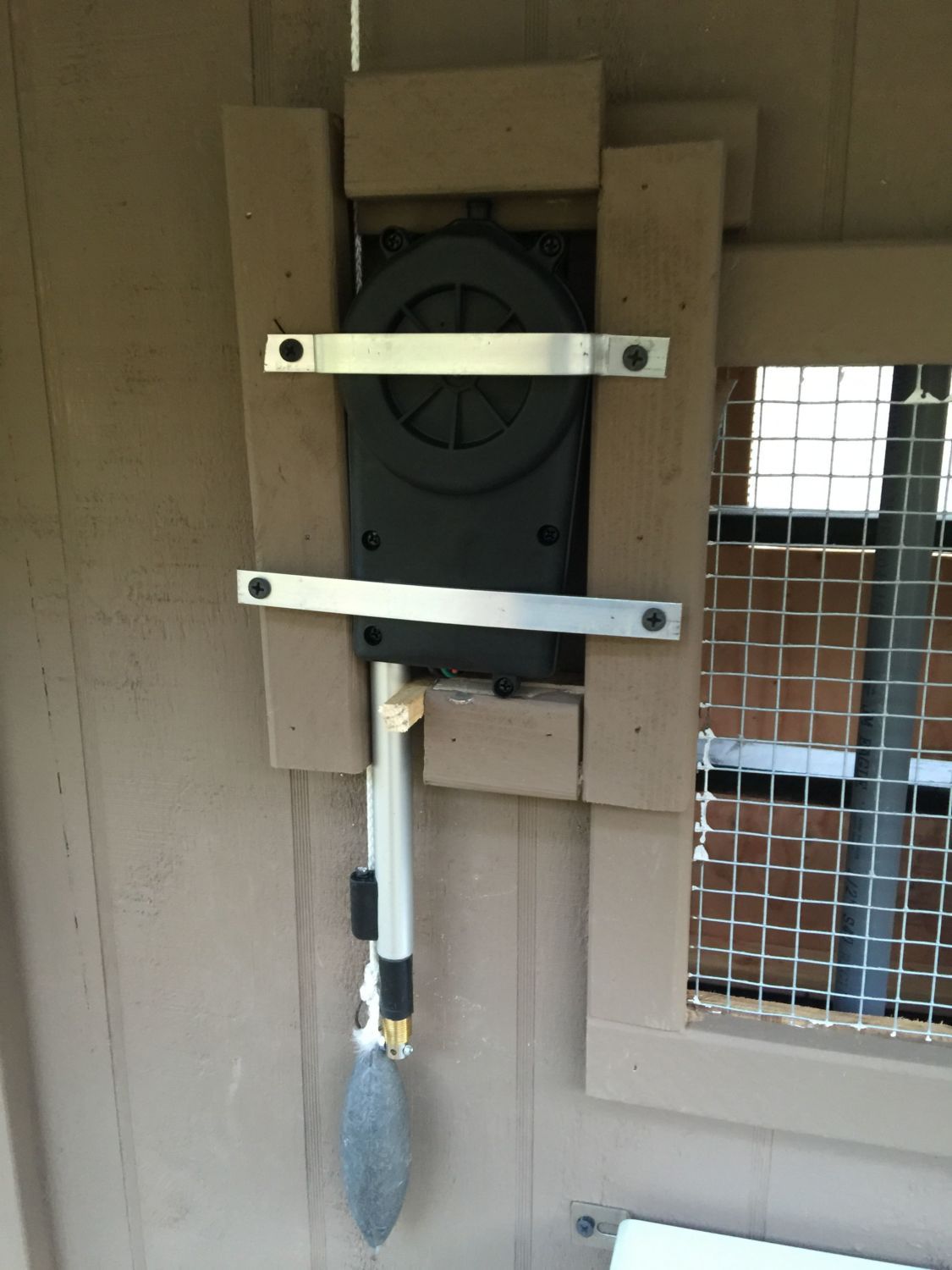

    Greetings - this is my take on the car antenna coop door. I used a NEMA rated electrical box from Amazon (<$20) along with some CN101 timers (~$10 each) and some cheap terminal strips from Amazon (~$12). Some wire, pulleys and a few other items and here we are! I added the light so I can get 14 hours of light on the hens during the winter and just in case I want to look in at night.

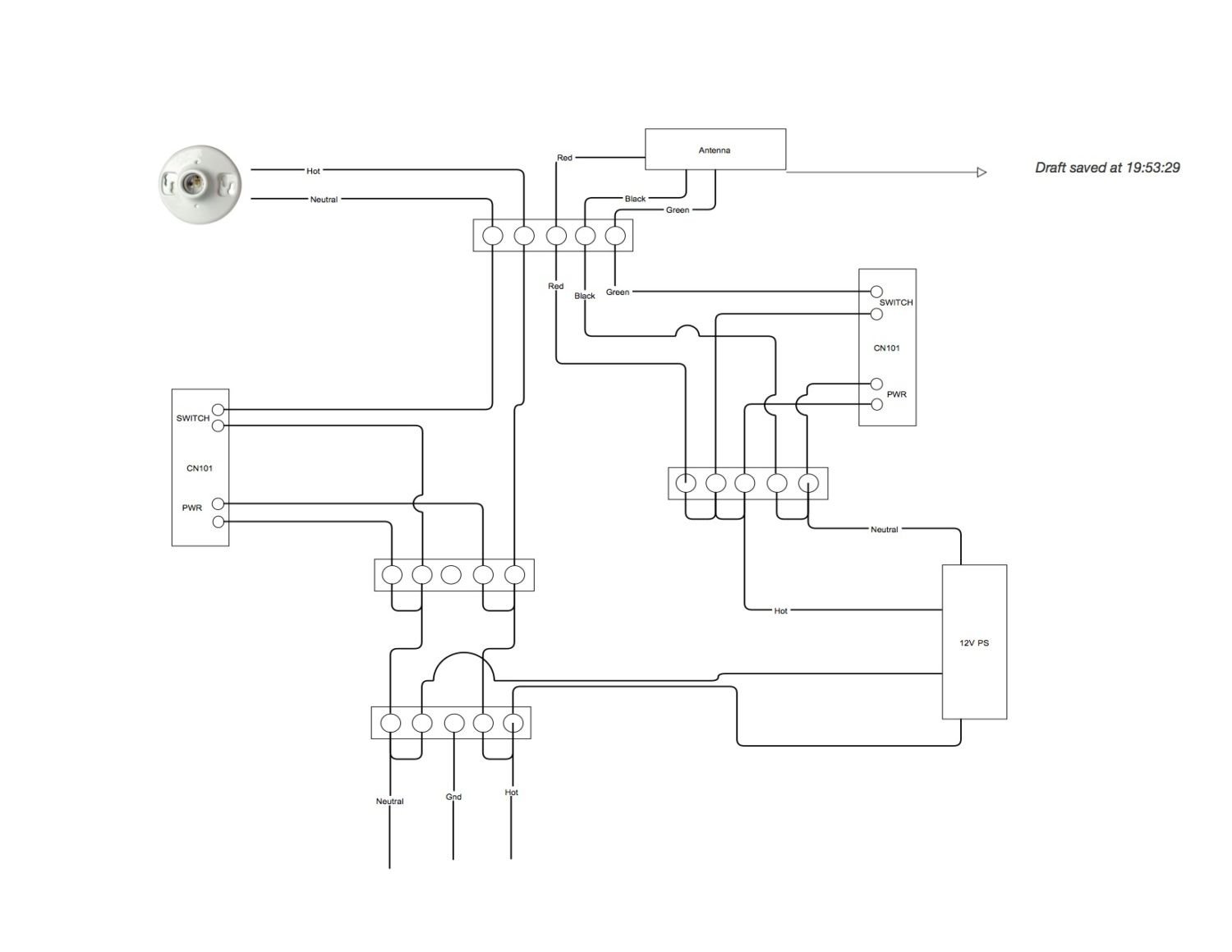

    I created a schematic of the controls that shows how the wiring works.

    Fun project - now to get the birds in there!
