DIY incubator Help

Discussion in 'Incubating & Hatching Eggs' started by JMoriarty111012, Nov 3, 2016.

  1. JMoriarty111012

    JMoriarty111012 Just Hatched

    25
    2
    14
    Sep 5, 2016
    Dallas, TX

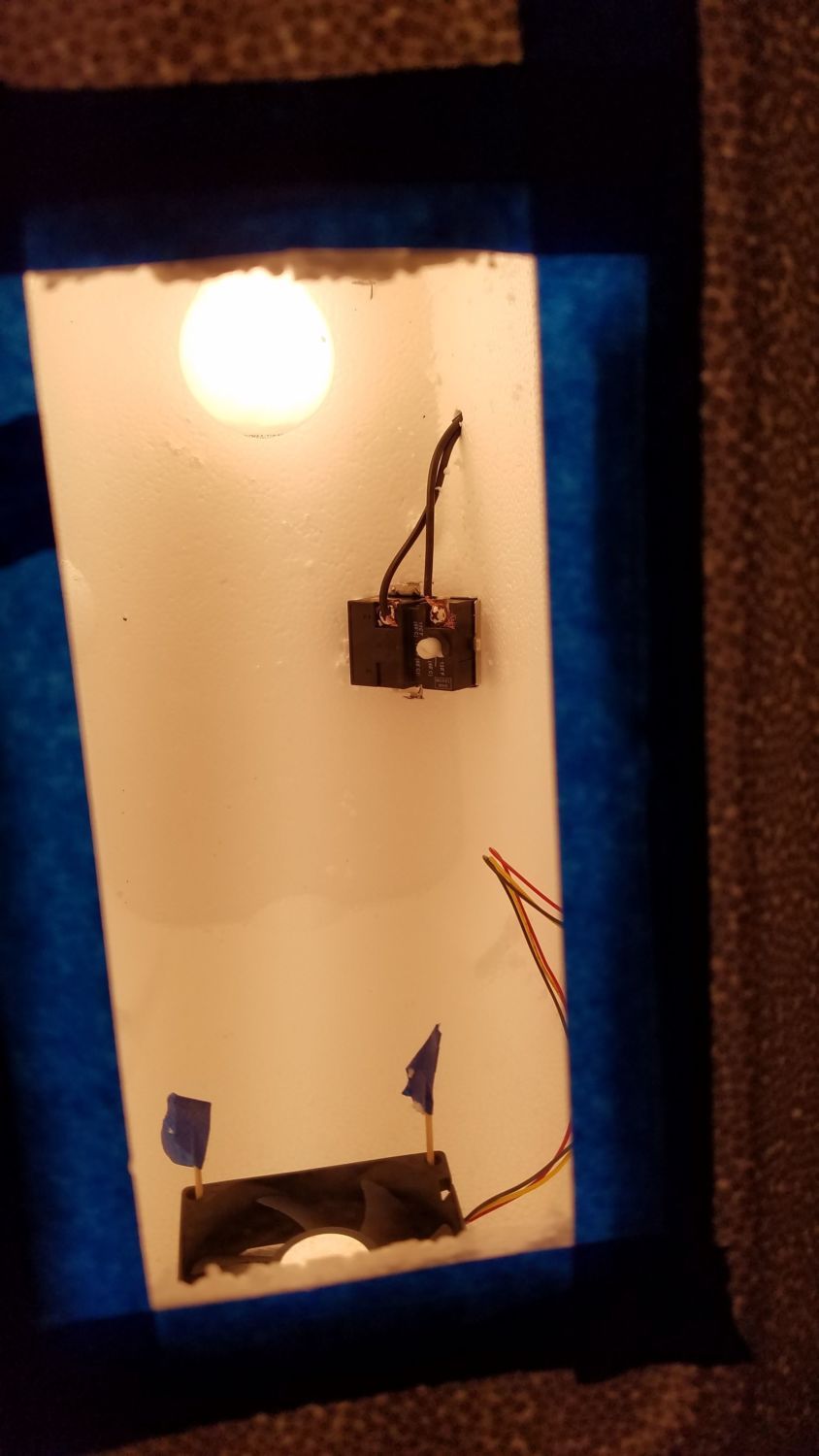

    So, we built an incubator last night. I'm have problems with huge temperature fluctuations though. It's going up to 113° before the bulb shuts off and dropping to 83.7° before it turns on. The hot water thermostat I bought is a low end one with what's supposed to be a low of 90°. I've built one before but it's been almost 10 years. I'm not sure what's wrong with it. [​IMG]
    There is a screen that'll go over everything, but it's a pain to remove and replace until I get it regulated.

  2. cavemanrich

    cavemanrich Overrun With Chickens

    3,470
    1,339
    296
    Apr 6, 2014
    Melrose Park Illinois
    I believe your problem is in the thermostat. It has a too large kick in to kick off span. Also know as temperature differential. I did heating and air many years ago. Only thing I can suggest is get a different type of temperature control. You may consider a simple dimmer switch, and once you have incubator running in a stable ambient, the one setting should maintain the temperature steady. That Is what I would try first. JMO.
    WISHING YOU BEST and [​IMG]

  3. JMoriarty111012

    JMoriarty111012 Just Hatched

    25
    2
    14
    Sep 5, 2016
    Dallas, TX
    Thank you for the advice and welcome. :) I think you're right. I used the same thing way back when, but I'd like something easier to use anyways. With the dimmer switch, I would I keep the 'Bator from getting to hot though?

  4. Mak24456

    Mak24456 Chillin' With My Peeps

    142
    16
    54
    Aug 24, 2016
    NC
    I highly, highly recommend the STC 1000. They are relatively easy to wire and I can recommend a YouTube video that tells you everything if you decide to go with it. I got mine off eBay for less than 10 dollars.
    I used it in my homemade incubator, it maintained the temperature right between 99 and 100 for the entire time.
    I will admit I only had 4/18 hatch with one deformed, but I truly believe it wasn't a temperature problem because the eggs were shipped and the temp never spiked and stayed steady the entire time. :)

  5. cavemanrich

    cavemanrich Overrun With Chickens

    3,470
    1,339
    296
    Apr 6, 2014
    Melrose Park Illinois
    The STC1000 definatly THE BEST SOLUTION/OPTION... [​IMG] [​IMG]

    Last edited: Nov 4, 2016
  6. JMoriarty111012

    JMoriarty111012 Just Hatched

    25
    2
    14
    Sep 5, 2016
    Dallas, TX
    Definitely gonna have to check it out. Thanks all! Now I need to figure out where to get my eggs from lol. It's harder to find them than I thought it'd be.

  7. cavemanrich

    cavemanrich Overrun With Chickens

    3,470
    1,339
    296
    Apr 6, 2014
    Melrose Park Illinois
    Post in your state thread that you need some fertile eggs for your incubator. Local peeps are your best choice. Shipped eggs have a lower hatch rate than those you can pick up from near.
    Here is the largest Texas thread. https://www.backyardchickens.com/t/44/texas

  8. JMoriarty111012

    JMoriarty111012 Just Hatched

    25
    2
    14
    Sep 5, 2016
    Dallas, TX
    Thanks! I've been reading about the shipped eggs and it's rather discouraging. I've only ever hatched local chicken and duck eggs, but that was a long time ago (and 1200 miles ago lol).
