DIY Motorized Coop Door

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by HomeCastle, Oct 28, 2013.

  1. HomeCastle

    HomeCastle New Egg

    4
    1
    9
    Jun 12, 2013
    Michigan
    Hi everyone.

    I've been building my chicken coop over the last few months and I decided that it should have a motorized door for the coop. It was a fun project. I finished and installed it last week and it's been running great. I'll post some pictures and video of it in operation.

    Has anyone else here tried a build your own motorized door? It'd be cool to see what other people came up with.

    [​IMG]

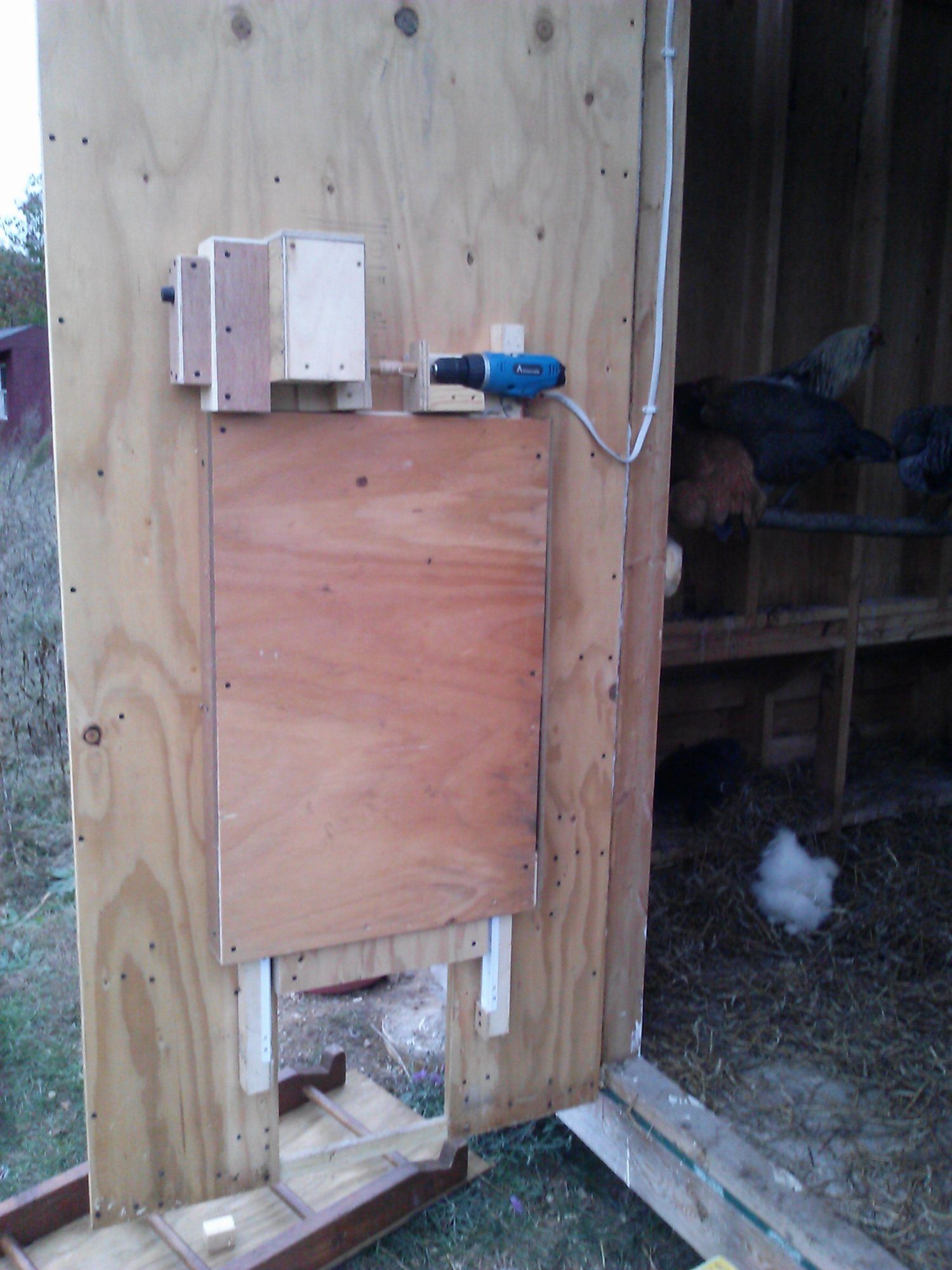

    Here's the full unit installed on the main door.
    [​IMG]

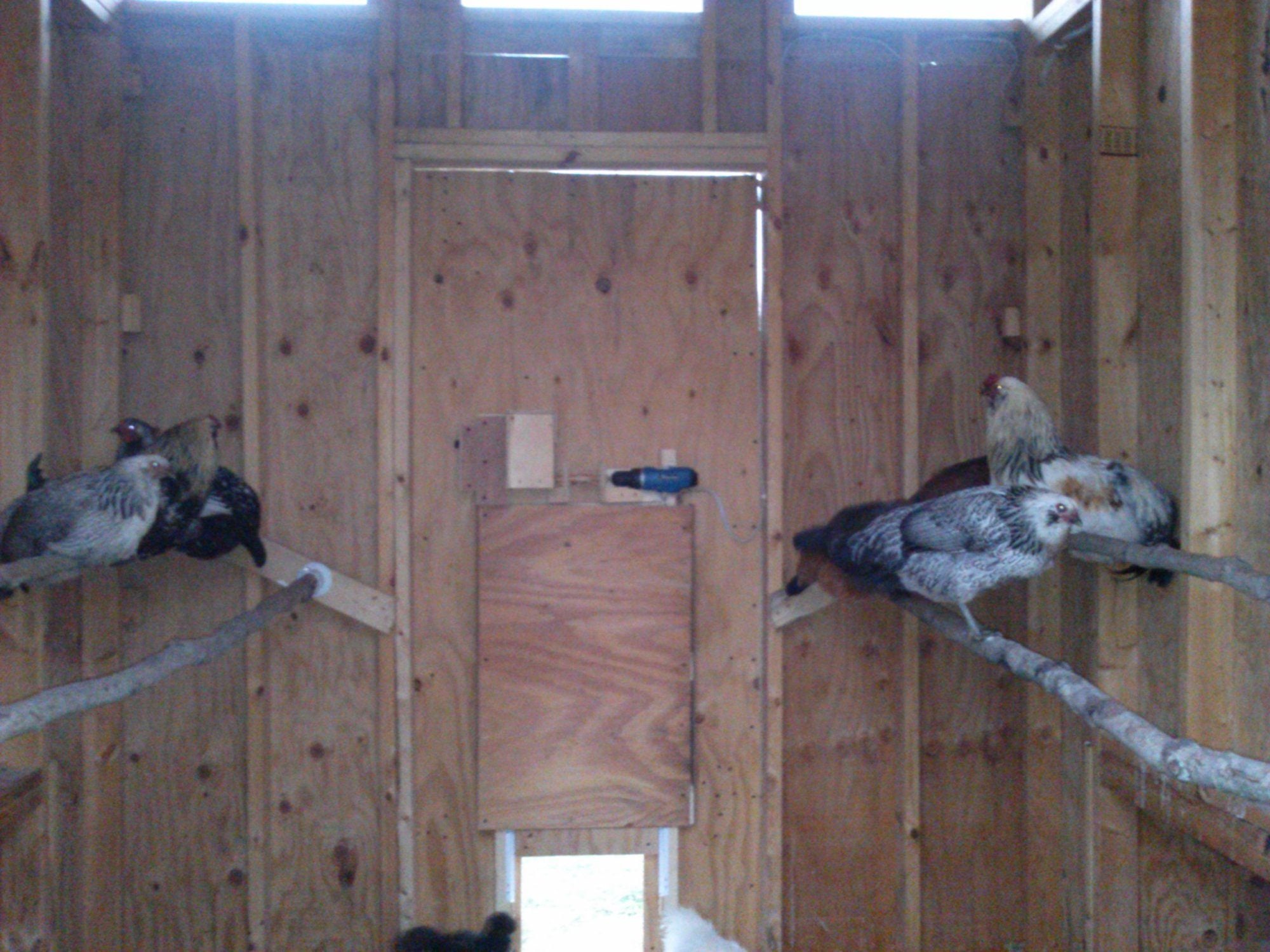

    Here's inside the coop.
    [​IMG]


    The motor comes from a drill, but the drill was a little to strong for the mechanics, so I added this speed controller to dial back the drill a bit. It has a cover plate that goes over this with a dial on it.
    [​IMG]

    1 person likes this.
  2. Weasleymum

    Weasleymum Chillin' With My Peeps

    308
    20
    148
    Aug 1, 2008
    Virginia
    That is really cool! How much did it cost to make? And could you outfit it with a timer, so that it opens and closes automatically?

    Last edited: Oct 28, 2013
  3. HomeCastle

    HomeCastle New Egg

    4
    1
    9
    Jun 12, 2013
    Michigan
    It would be fairly easy to replace the switch with a couple of timers. I'm out there every morning to do other chores as well, so it's no bother for me to just flip a switch on the side of the coop. But since it's going to start getting darker in the morning when I'm out there, I was thinking about hooking up a light sensor to trigger the opening and closing.

  4. Weasleymum

    Weasleymum Chillin' With My Peeps

    308
    20
    148
    Aug 1, 2008
    Virginia
    Thanks! My thinking is, that it would only be worthwhile for me if it is automatic, because otherwise it's just flipping a switch versus pulling a cord. Either way, you've got to be there doing it, and the actual act of tugging the door open or closed doesn't need to be made easier. BUT, if it made it so that you didn't have to be there to put the chickens up at night or let them out in the morning, that would be a huge benefit, and worth building the whole system for.

    1 person likes this.
  5. Hokum Coco

    Hokum Coco Overrun With Chickens

    3,311
    601
    306
    Dec 6, 2012
    New Brunswick,Canada
    Last edited: Nov 1, 2013
  6. Mudd Flapp

    Mudd Flapp New Egg

    5
    0
    7
    Oct 16, 2013
    Nice set-up. It would be super easy to add a light detector circuit to control you opener. I used an Arduino microprocessor and a photo resistor. I love my opener.

    [​IMG]
