Egg turner schematic

Discussion in 'Incubating & Hatching Eggs' started by Quyen Le, Sep 14, 2012.

  1. Quyen Le

    Quyen Le Chillin' With My Peeps

    323
    11
    101
    Jul 9, 2012

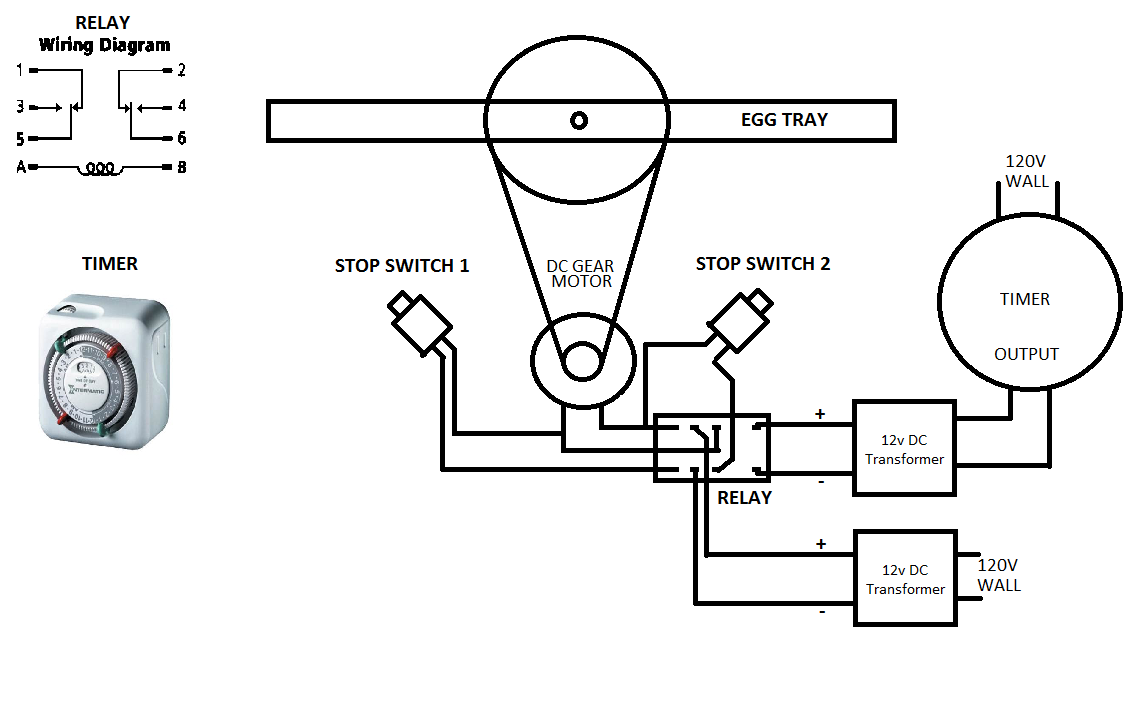

    Some asked me for egg turner's schematic. Here it is. Very unique since this is my design. If you plan to have an egg turner for less than 42 eggs, buy the egg turner that sell for hovabator incubator. If you plan to make egg turner for couple hundred to couple thousand eggs, this is a perfect turner for you. If you have any question, just ask, thanks.

    [​IMG]

    Last edited: Sep 14, 2012
    1 person likes this.
  2. Quyen Le

    Quyen Le Chillin' With My Peeps

    323
    11
    101
    Jul 9, 2012
    I have added escape door for hatched chicks and separate door for adding water, will add pictures later.

  3. Quyen Le

    Quyen Le Chillin' With My Peeps

    323
    11
    101
    Jul 9, 2012
  4. bcboy

    bcboy Chillin' With My Peeps

    136
    4
    73
    Aug 12, 2012
    Vernon
    Thanks for posting the egg turner schematic.
    Can you post the part-price list please.
    Did you get the parts local or online?
    [​IMG]

  5. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Hi Quyen Le,

    Thanks for posting the egg turner schematic!!... Very helpful, as I intend to build a small cabinet incubator and this is just what I was looking for.

    I think I understand how it works (newbie), but please bear with me in a couple of issues:

    1 - When one of the stop switches is activated, the energy to the motor is cut (motor stops) AND the current is reversed... Meaning the next time the circuit is activated (next ON period from the timer) the motor rotates in the other direction... Is this correct?

    2 - As I'm using a small rotisserie motor that works on AC 220V, I think I can dispense with both transformers if I use a 220V coil DPDT relay... What do you think?... Is this doable?...

    Thanks for your help.

    Regards

  6. genepittman

    genepittman Out Of The Brooder

    21
    0
    22
    Aug 5, 2013
    Sounds like you have it figured out.

  7. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Hi genepittman,

    Thanks... It made sense.

    However, I believe my AC rotisserie motor transformerless circuit idea is out of order...

    The problem is (unlike in a DC motor), in a single-phase AC motor it's not possible to control the sense of rotation just by swapping the current polarity... AC = Alternating Current... Duh!!... [​IMG]

    Maybe this can be worked around... Mechanically?... Humm...

    Regards

    Last edited: Sep 19, 2013
  8. tkalito

    tkalito New Egg

    6
    0
    6
    Mar 24, 2012
    hello.. it will be great to have the numbers of the relay on the upper hand corner written down at the relay on the diagram, that way will be easier for me to understand what wires are connected to what... thanks..

  9. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Hi tkalito,

    Not my schematic (or idea) but I believe it's a direct tracing, when using any common DPDT relay.

    Cheers


    [​IMG]



    [​IMG]

    Last edited: Jan 8, 2014
  10. Bikal

    Bikal New Egg

    1
    0
    6
    Oct 19, 2014
    [​IMG]

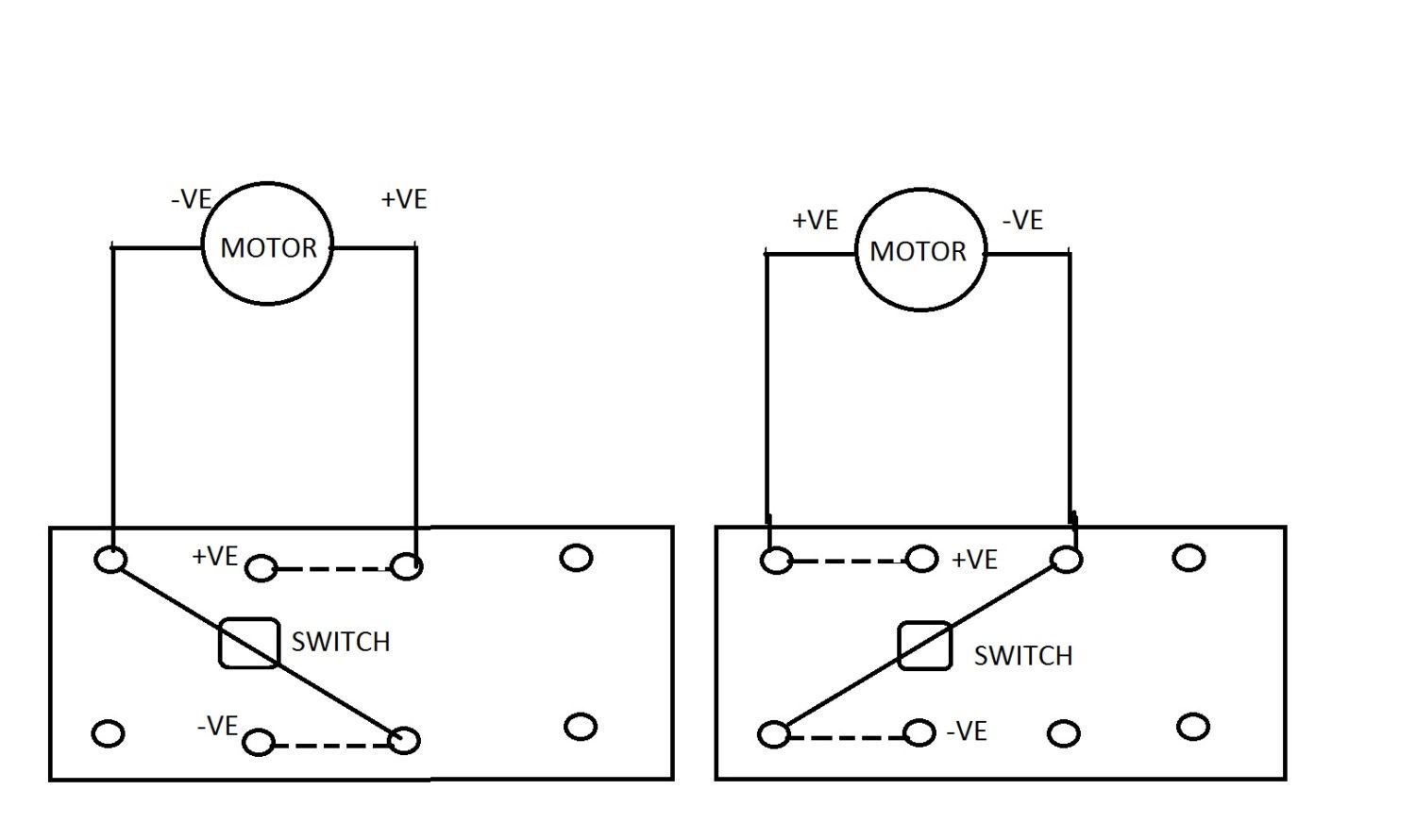

    Actually this is how it works right. Please correct me if I am wrong.
    Thank you.
