egg turner

Discussion in 'Incubating & Hatching Eggs' started by natquail, May 1, 2017.

  1. natquail

    natquail New Egg

    5
    0
    4
    May 1, 2017
    Hello All,
    First time building an incubator...spent one week building and calibrating temp and humidity...been running good for three days now....

    My 110V automatic egg turner came in today and I set everything up...once the egg tuner was powered up, it started to rotate, but too fast...instead of one rotation per 2 hours, it was in seconds...the spec on the motor is 3r/min...

    after doing some research, I realize the speed is controlled by the incubator controller...is this correct...

    My incubator is a DYI and there is no controller....is it possible to put in a timer to rotate the eggs fast for 15 mins at a time...

    thanks

  2. PD-Riverman

    PD-Riverman Overrun With Chickens

    5,000
    1,199
    366
    Jan 14, 2012
    Conway SC
    Does the motor have some spec's on it, working voltage, etc? If its turning way to fast I would think the voltage it to high??

  3. natquail

    natquail New Egg

    5
    0
    4
    May 1, 2017

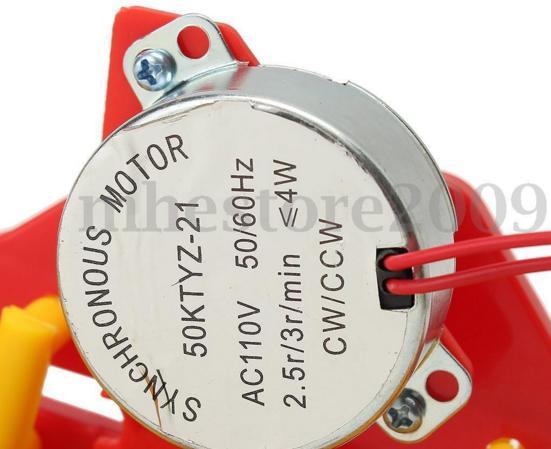

    its a 110ac motor with 2.5r/3r/min spec

    I attached a pic of the motor[​IMG]

  4. ChickenChaser43

    ChickenChaser43 Chillin' With My Peeps

    60
    11
    51
    Apr 21, 2016
    Central Pa
    The 3r/min means 3 revolutions per minute. It sounds like you are correct that it needs a controller. I believe it turns clockwise and counter clockwise with the voltage being reversed by the controller. The motor you are probably looking for turns 1/240 a minute or a quarter of a turn an hour and is plugged directly to an ac source,

  5. natquail

    natquail New Egg

    5
    0
    4
    May 1, 2017
    I was afraid of that....so is OK to turn the eggs that fast while incubating :)

  6. ChickenChaser43

    ChickenChaser43 Chillin' With My Peeps

    60
    11
    51
    Apr 21, 2016
    Central Pa
    Not constantly. But 3 or 4 times a day yes.

  7. natquail

    natquail New Egg

    5
    0
    4
    May 1, 2017
    until I get a new motor, do you think running it (constantly 30mins) 4 times a day would be ok

    thanks

  8. ChickenChaser43

    ChickenChaser43 Chillin' With My Peeps

    60
    11
    51
    Apr 21, 2016
    Central Pa
    I think that would be too much movement. The eggs would be tilted side to side 90 times in that 30 minute time frame. The 1/240 motor tilts the eggs 6 complete times in a 24 hour period. Using the face of a clock for reference, the 1/240 motor basically tilts the eggs from 10 to 2 in a 4 hour period then from 2 to 10 in the next 4 hour period and repeats the process every 4 hours. Your motor does the 10 to 2 tilt in 20 seconds. Your motor would make 90 complete revolutions in 30 minutes. Every revolution tilts the eggs from 10 to 2 or 2 to 10.
    In my opinion, it would be better to "manually" turn them once or twice or three times a day, by plugging the turner in and unplugging for 20 seconds. That is until you get the correct motor. I would be willing to bet that a hen doesn't turn every single egg in her nest 6 times a day every day.

  9. natquail

    natquail New Egg

    5
    0
    4
    May 1, 2017
    thanks all for your help...I will manually turn during the test run until I get new motor...
