Engineering a Watering System

Discussion in 'Feeding & Watering Your Flock' started by bigredfeather, Sep 3, 2009.

  1. bigredfeather

    bigredfeather Chillin' With My Peeps

    2,194
    29
    211
    Oct 1, 2008
    Yorkshire, Ohio
    I have a few of those little red watering nipples I want to use. I am wanting to be able to attach them to a short piece of hose then connect two or three of them to the bottom of a five gallon bucket. The problem I am facing is how to attach the hoses to the bucket with a leak free connection.

    Has anyone ever done this? What type of connector did you use to make the hose/bucket connection?

    Any ideas proven or unproven would be appreciated.

    Thanks.

  2. rebelcowboysnb

    rebelcowboysnb Confederate Money Farm

    Just stick a hole in the bucket, stick the hose in an silicone it up.... They make a fitting just for that, its a threaded tube with a lock nut but I dont know what its called.

  3. trilyn

    trilyn Chillin' With My Peeps

    Apr 13, 2009
    East Syracuse
    Go to either Home Depot or Lowe's or any other hardware store with a plumbing department (they all have 'em) and tell them what you're doing. Most places have people fairly knowledgeable about this kind of thing ( I don't mean waterers, but plumbing in general) they should be able to hook you up! Good luck and have fun with this! The nipples rock and make your life so much easier!!

  4. hplowe

    hplowe Out Of The Brooder

    62
    0
    39
    Jun 22, 2009
    Newnan, GA
    I have 5 of them, but my chickens show NO intrrest [​IMG] and is a Food grade 5 gallon bucket and PVC OK for the waterer?

    Last edited: Sep 3, 2009
  5. Bear Foot Farm

    Bear Foot Farm Overrun With Chickens

    5,545
    225
    288
    Mar 31, 2008
    Grifton NC
    Quote:The bucket and PVC are fine.
    You need to take away ALL other water sources so they will learn to use the nipples

  6. cw

    cw Chillin' With My Peeps

    Jan 11, 2009
    green co.
    have you considered gallons per min, head pressure, fire protection, line maintance cost etc.. for your litle water system? you probably qulify for grants, so that will help you financially,



    now on the serious side, what about a calve nipple bucket? should be threaded for the nipple. just find an adapter and you should be good to go

  7. hplowe

    hplowe Out Of The Brooder

    62
    0
    39
    Jun 22, 2009
    Newnan, GA
    Quote:The bucket and PVC are fine.
    You need to take away ALL other water sources so they will learn to use the nipples

    I have, and they still show little interest, wil they dehydrate?

    I figured the red, and the shiny would intrest them alot

    Last edited: Sep 3, 2009
  8. beer0clock

    beer0clock New Egg

    1
    0
    6
    Sep 8, 2009

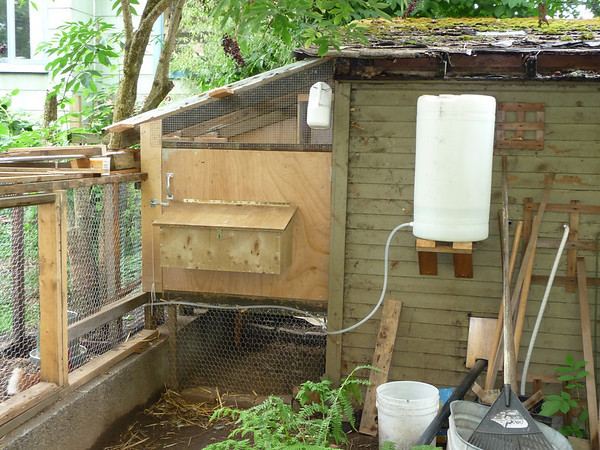

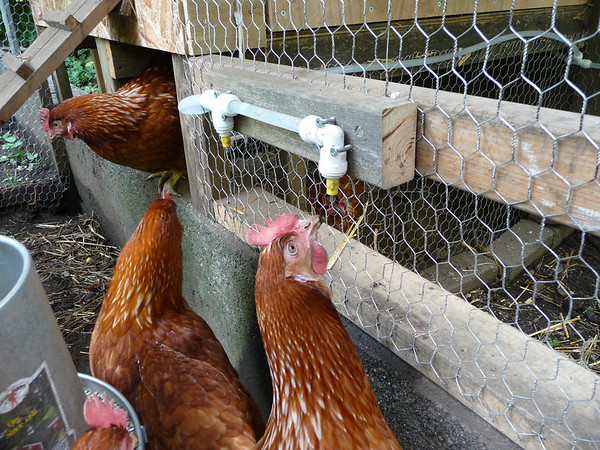

    Here's a few photos of my watering system. I used 3/8" poly tubing and john guest fittings. It's not as cheap as pvc but this is my first coop and I wanted the option of reconfiguring the system. I wrapped the threads of the nipples with a bunch of teflon tape and threaded them into the tubing. As far as the water drum was concerned, I drilled a 3/8" hole in the side and used a 3/8" npt fitting wrapped with lots of teflon.

    As far as teaching your hens to use the waterer goes, use a chopstick to push up the piston and get a stream of water going. It'll take the girls about 10 seconds to come over and investigate.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
