Finally have my homebuilt Incubator up and running

Discussion in 'Incubating & Hatching Eggs' started by scotter, Nov 7, 2013.

  1. scotter

    scotter Chillin' With My Peeps

    118
    12
    93
    May 11, 2013
    S.W. Missouri
    [​IMG]

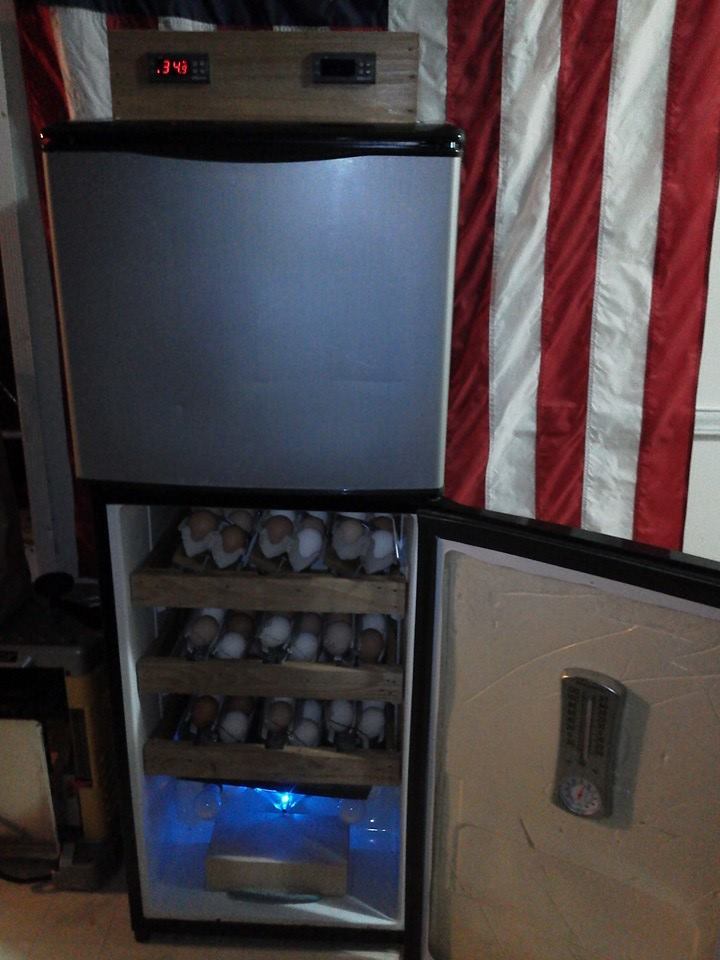

    It's a work in progress, and it's my first attempt at a hatch. I still need to build three more wire egg holders for the incubator (you can see the temporary egg cartons on the top tier). Also need to install window in the hatching compartment (freezer section).

    So far everything has gone fairly smooth except that on day 2 of the first set I pulled the probes to calibrate the controllers and forgot to shut down or monitor the heat. the cabinet shot up over 104 for about 20 min. don't know if I poached them or not but will candle in a few days.

    The incubator hold 90 eggs.

  2. sumi

    sumi Égalité Staff Member

    36,047
    7,574
    646
    Jun 28, 2011
    Rep of Ireland
    If it was only 20 minutes they should be o.k. If the core temperature of the eggs got to 104* you can toss them, but the core temperature takes awhile to rise and fall, so fingers crossed and best of luck with your hatch!

  3. scotter

    scotter Chillin' With My Peeps

    118
    12
    93
    May 11, 2013
    S.W. Missouri
    All the eggs are in the wire baskets now and air circulation should at it's best. I noticed the humidity has dropped and have added a water reservoir in the bottom.

  4. scotter

    scotter Chillin' With My Peeps

    118
    12
    93
    May 11, 2013
    S.W. Missouri
    [​IMG]

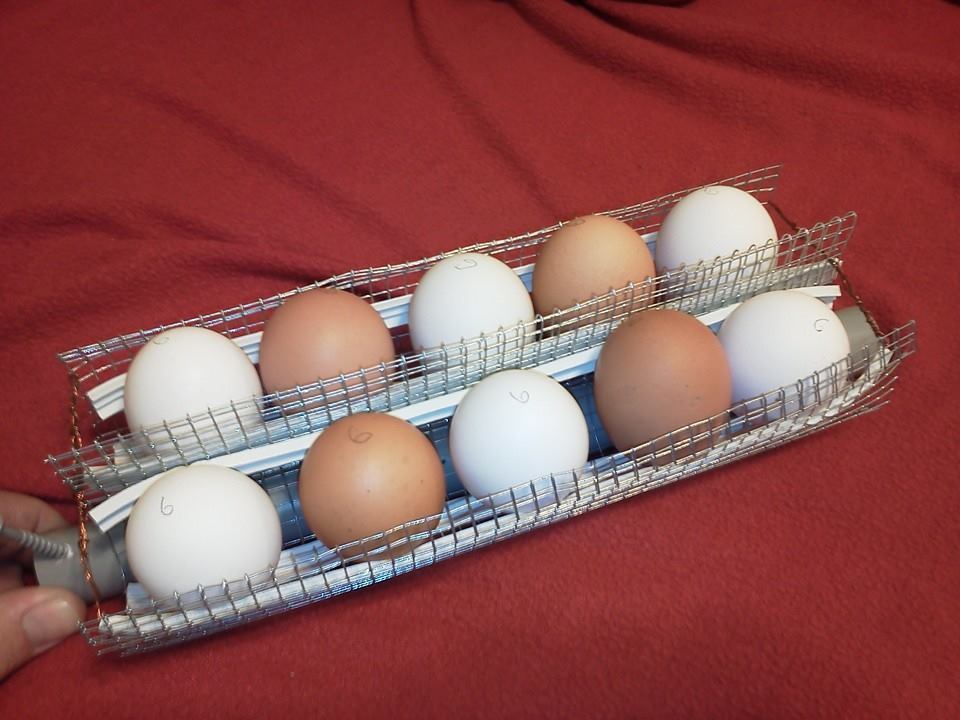

    Here is one of the baskets I built for the incubator. It's just some hardware cloth screwed to a pvc pipe. The white strips are weatherstripping to help pad and secure the eggs. The screw by my hand is the tipping lever, it also keeps the baskets from rolling all the way over.

  5. scotter

    scotter Chillin' With My Peeps

    118
    12
    93
    May 11, 2013
    S.W. Missouri
    [​IMG]

    I candled a dozen eggs from the first set that I was worried that I cooked and found ten of them were clearly fertile and I could observe heartbeats in at least 6 of them !!!

  6. Pancholoco

    Pancholoco Chillin' With My Peeps

    483
    18
    103
    Nov 12, 2012
    Sin, MX. now CA.
    You built it in automatic egg turners?

  7. scotter

    scotter Chillin' With My Peeps

    118
    12
    93
    May 11, 2013
    S.W. Missouri
    No they are not automatic. we just tip the baskets back and forth several times a day. The ends of the pipe act as a pivot. It will be easy to set it up as an auto turner at a later date, but for now we are enjoying the direct involvement in the process.

  8. Pancholoco

    Pancholoco Chillin' With My Peeps

    483
    18
    103
    Nov 12, 2012
    Sin, MX. now CA.

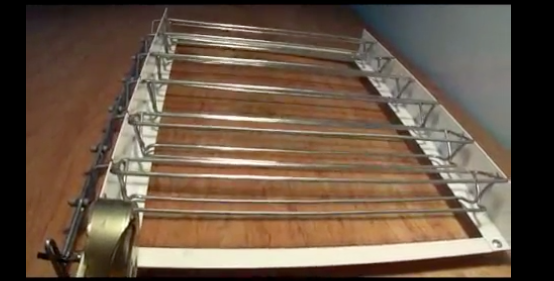

    I like this one
    [​IMG]

  9. scotter

    scotter Chillin' With My Peeps

    118
    12
    93
    May 11, 2013
    S.W. Missouri
    That is nice. I would need three of them assuming they would fit. Is it a commercial model or home built?

  10. Pancholoco

    Pancholoco Chillin' With My Peeps

    483
    18
    103
    Nov 12, 2012
    Sin, MX. now CA.
    Homemade one. I would like to build one of this, unfortunately I just found this picture surfing in the web. :(
