freeze proof nipple waterer

Discussion in 'Feeding & Watering Your Flock' started by yyz0yyz0, Feb 21, 2013.

  1. yyz0yyz0

    yyz0yyz0 Chillin' With My Peeps

    607
    75
    144
    May 2, 2012
    Saw this in my Mother Earth News Mag the other day and I really liked the idea. Takes a nipple waterer and turns it into a heated waterer for winter use pretty easy. You can leave it all together but unplugged for summer use or remove it for the summer and reinstall come cold weather. Uses water pipe heat tape to keep the water from freezing, I suppose in the really cold weather the nipples might start to develop ice on them.



    [​IMG]

    http://www.motherearthnews.com/mode...icken-waterer-zm0z13fmzhun.aspx#axzz2LYNCVRFQ

  2. StillwaterSarah

    StillwaterSarah New Egg

    7
    0
    7
    Oct 1, 2014
    We used an immersible birdbath heater to accomplish the same thing, and no, it doesn't keep the metal nipples from freezing in cold weather. Otherwise, it's a great solution.

  3. RonP

    RonP Chillin' With My Peeps

    If it doesn't keep the metal nipples from freezing in cold weather, then what is it a great solution for?

  4. thebesticanbe

    thebesticanbe Out Of The Brooder

    I have herd you if you can find copper tips for the nipples and use the heater the copper cuducts the heat and wont freeze but i cant fint the copper tips anywhere

  5. StillwaterSarah

    StillwaterSarah New Egg

    7
    0
    7
    Oct 1, 2014
    Great question. It seems like the birdbath heater keeps the water in the bucket from freezing and then the nipples can quickly thaw in the daytime. Far from a perfect solution for sure.

  6. yyz0yyz0

    yyz0yyz0 Chillin' With My Peeps

    607
    75
    144
    May 2, 2012
    This setup has performed flawlessly for me for 2 winters now. I have not seen any issues with frozen nipples with this setup and it been exposed to single digits below zero several times.

    I made some modification from the original design, I have 1/2inch rigid foam that is on the bottom of the bucket so the nipples protrude through that insulation which may contribute to them not freezing. I covered the foam with the lid from another bucket that i cut to fit and drilled out holes for the nipples. This keeps the chickens from pecking at the foam and also provides extra insulation for the nipples.

    I've taken some pictures of this setup before I put it out this year, I'll try to post them when I get home.

  7. StillwaterSarah

    StillwaterSarah New Egg

    7
    0
    7
    Oct 1, 2014
    Fantastic idea. We will give it a try as we have already dropped to 12 degrees here and had water issues!

  8. LilyBird

    LilyBird Out Of The Brooder

    80
    2
    36
    May 20, 2015
    Ontario Canada
    I'd love to see pictures.

    I

  9. yyz0yyz0

    yyz0yyz0 Chillin' With My Peeps

    607
    75
    144
    May 2, 2012
    Finally remembered to take some pics of the modifications I made to the Mother Earth News design

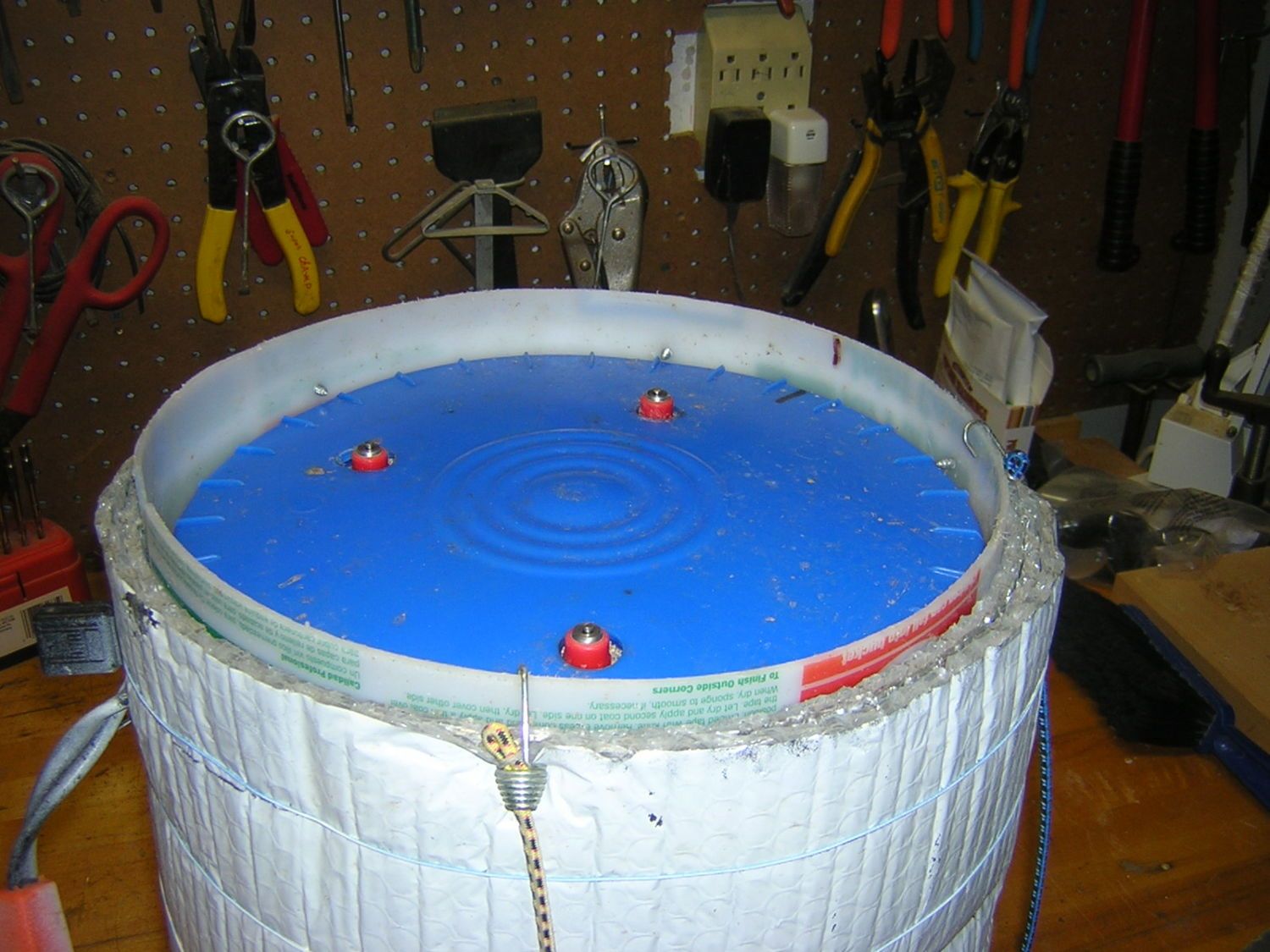

    View of the bottom with a blue lid cut to fit over the foam to protect it from the chickens pecking at it.
    [​IMG]

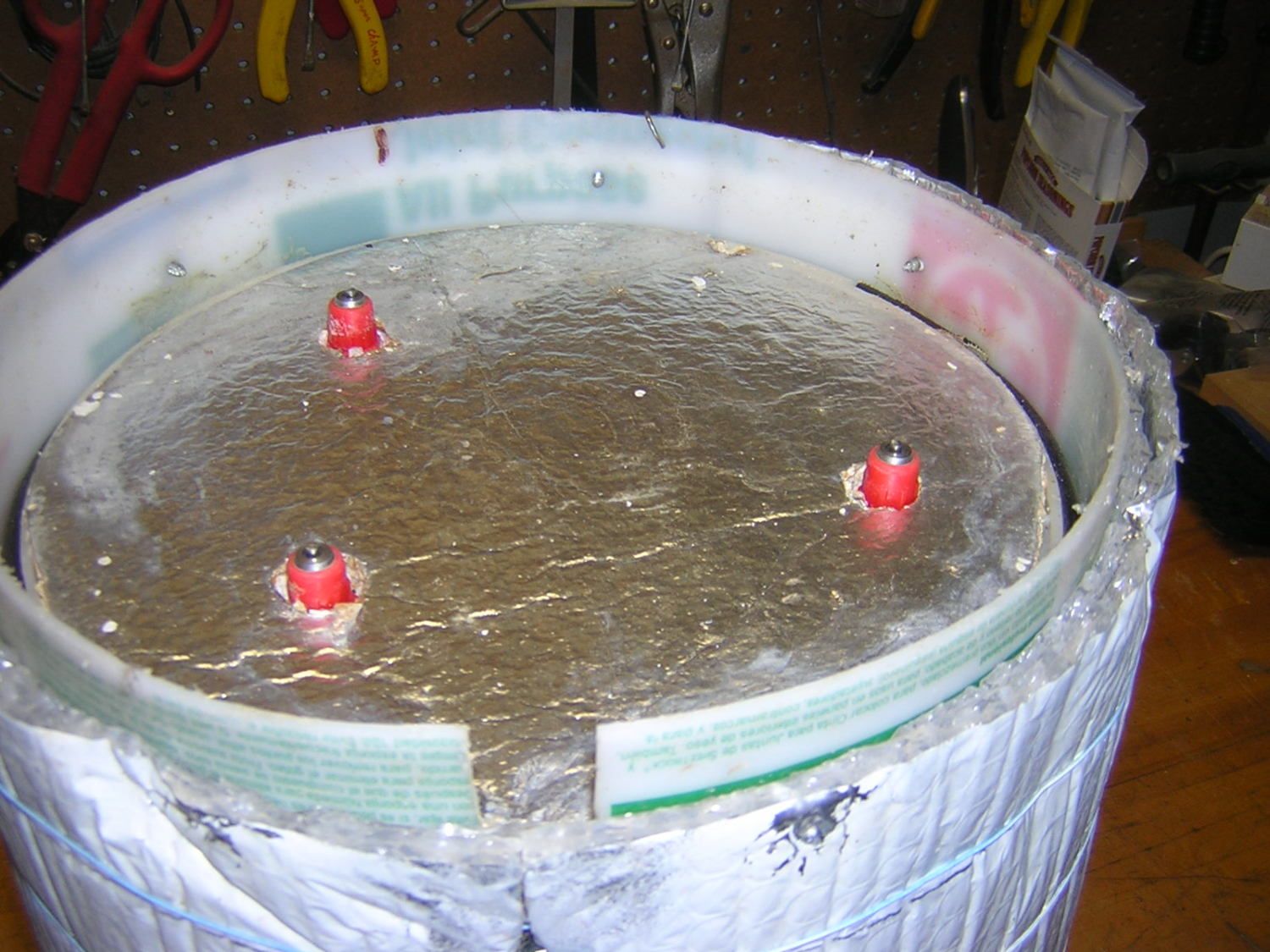

    !/2" rigid foam to insulate the bottom of the waterer and also provides insulation for the nipples. You can see the layers of foil bubble wrap insulation that provides the exterior insulation for the buckets.
    [​IMG]

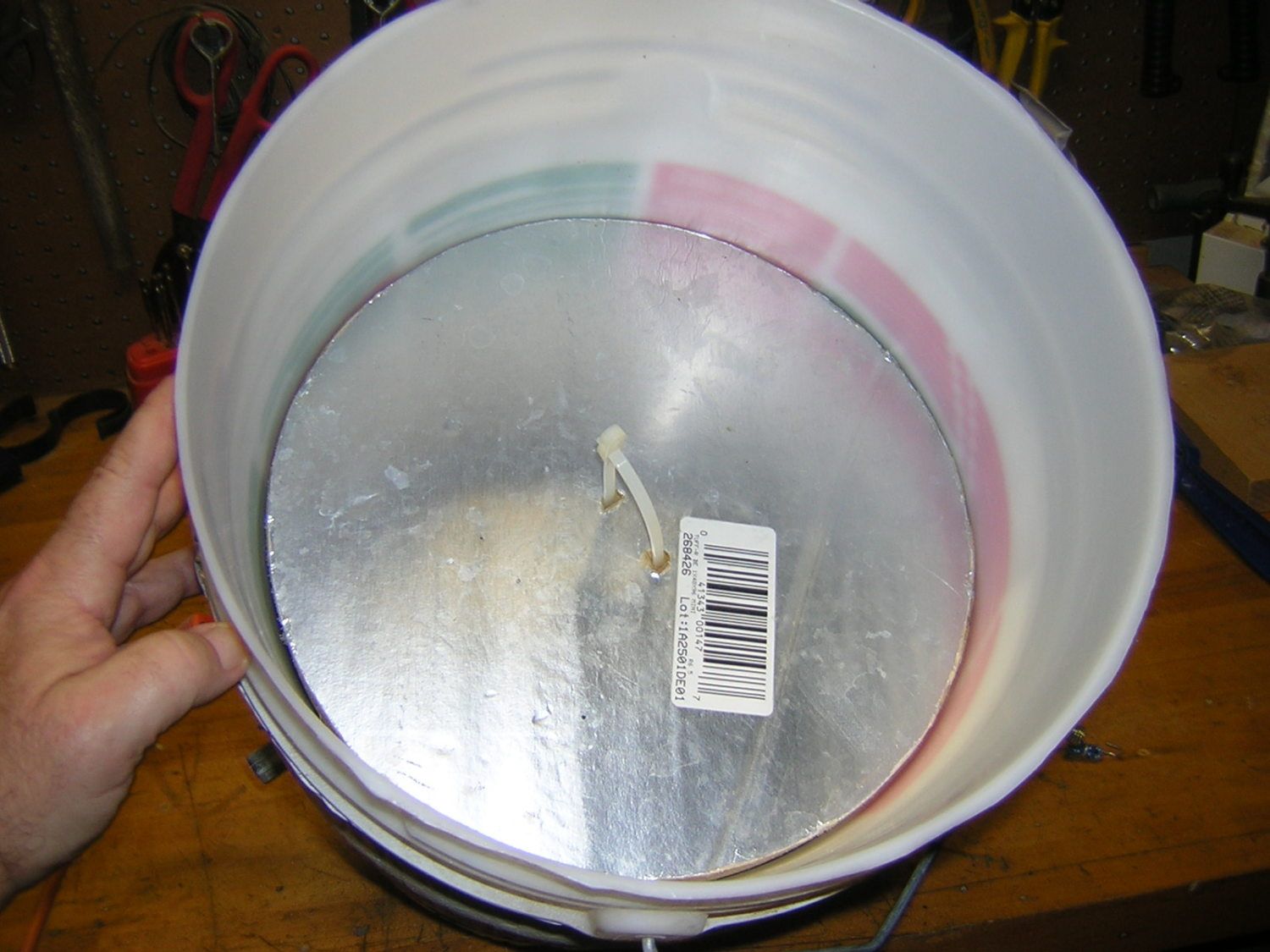

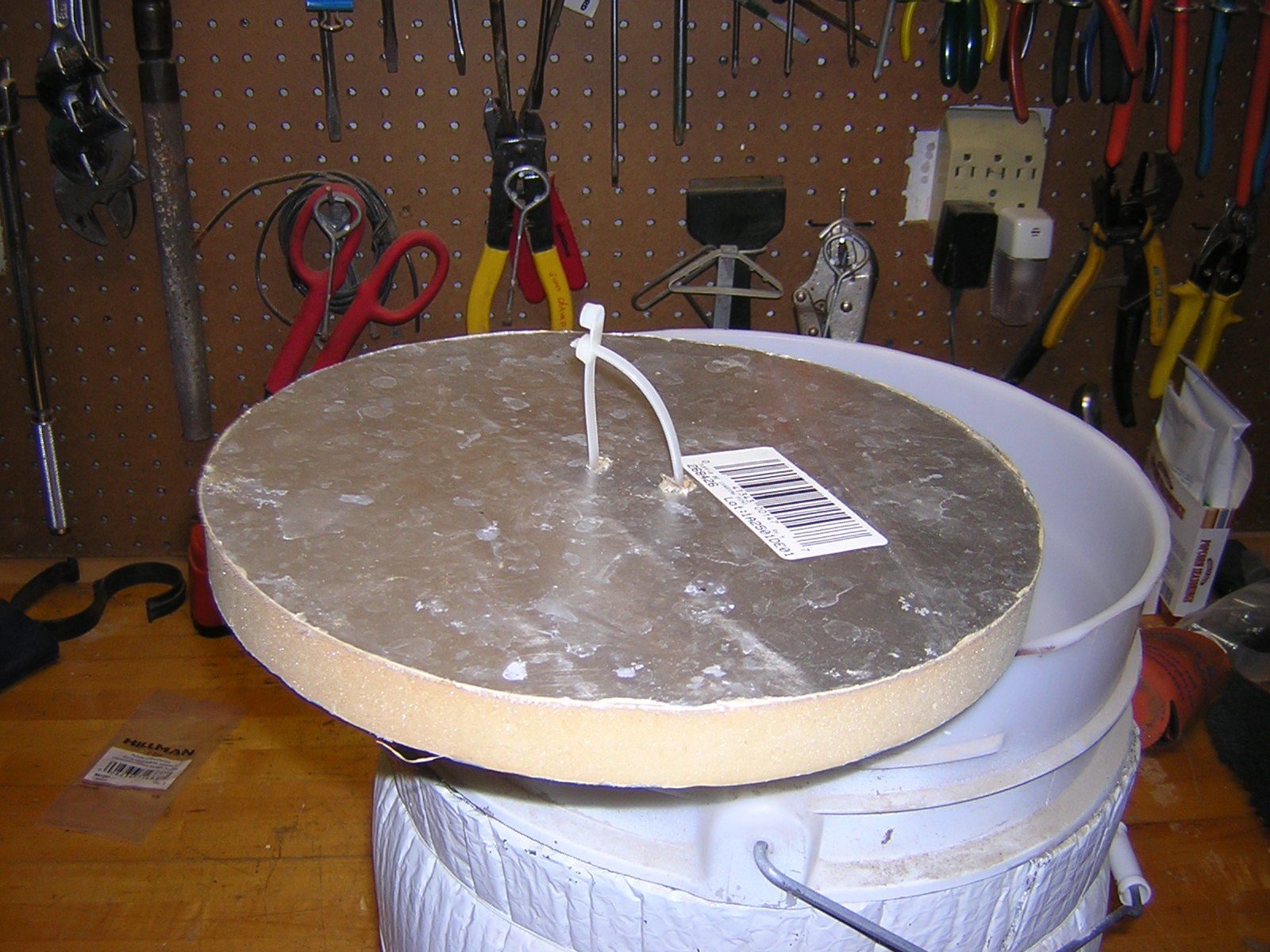

    1" ridge foam disk cut to fit inside the bucket just above the waterline.
    [​IMG]


    The foam goes about 1/2 way down inside the bucket. I only fill with water to below the foam insulator.
    [​IMG]

    With these mods this water system has dealt with temps into the single digits below zero with no freezing problems.

  10. ChickenCanoe

    ChickenCanoe Chicken Obsessed

    21,514
    2,458
    466
    Nov 23, 2010
    St. Louis, MO
    Thanks for the pictures.

    How cold does it get where you are?

    What is the wattage of the heat element?
