Home made incubator - now with hatching pics!

Discussion in 'Incubating & Hatching Eggs' started by Stingrayg4, Jun 20, 2011.

  1. Stingrayg4

    Stingrayg4 Chillin' With My Peeps

    189
    1
    91
    Apr 27, 2011
    Oklahoma
    I just finished my home-brew incubator. I have a question regarding ventilation. How do I know how many and what size the vent holes should be?

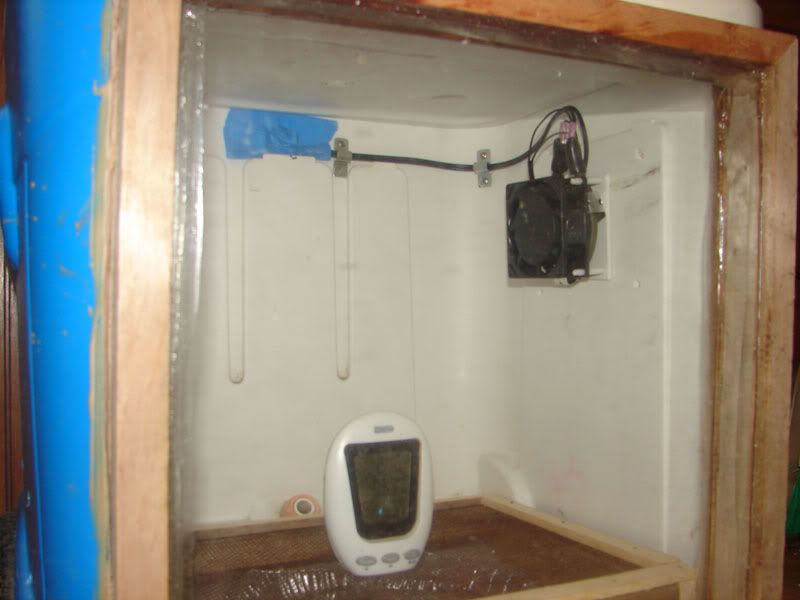

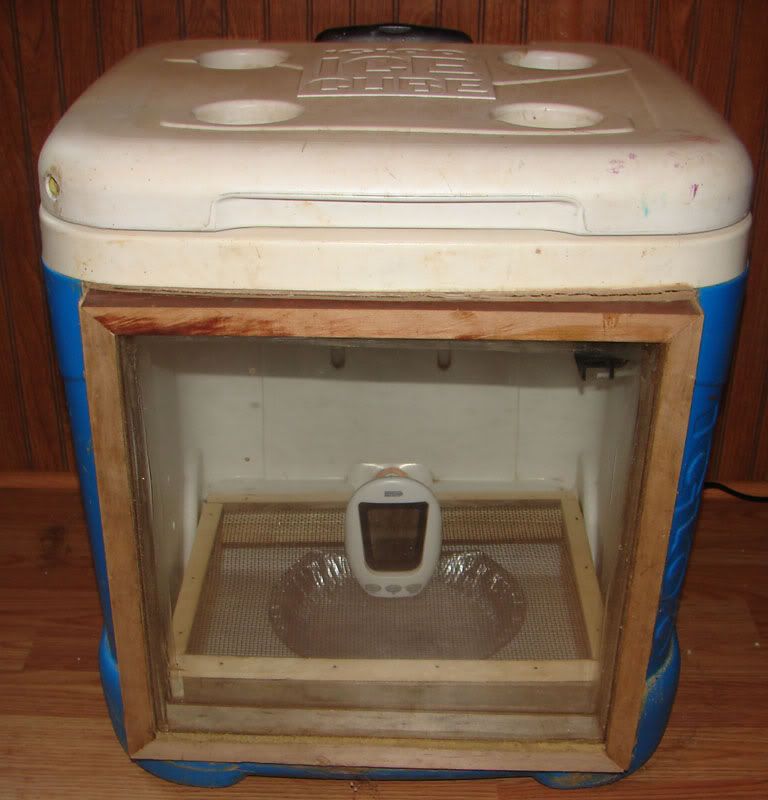

    Specs on the incubator: It's made from a cube shaped ice chest that is roughly 18 inches in each dimension. Heat is provided by a 150 watt AC Incukit, which has a fan. As it is I have four 3/16 inch holes by the fan, near the top, and then there are four holes of the same size on the opposite wall near the bottom. The drain hole near the bottom is also open, it is 3/8 inch. The top was hollow so I stuffed it full of foam padding. The window is double paned to better hold in the heat.

    A comment on the Incukit: it's been running for about 48 hours now and has been holding a steady temp within less than half a degree of 99.5° and humidity between 55% & 60%, this seems like a very good little product. I believe that this is going to be really great incubator once I determine how much ventilation it needs.

    [​IMG]

    [​IMG]

    -S

    Last edited: Jul 18, 2011
  2. midget_farms

    midget_farms Chillin' With My Peeps

    Apr 15, 2008
    Dunlap Illinois
    Great job on the incubator!

    I have learned the hard way that too much air is not a good thing.

    You should close 3 each of your holes top and bottom for the first 18 days and close them all for the hatch.

    When you have that much air turnover the water is sucked out of the eggs - they will do great up to the end, but be too sticky to hatch. Trust me I learned this the hard way.

    You need fresh air - but not a lot! One hole will be just about right in an incubator that size.

  3. Stingrayg4

    Stingrayg4 Chillin' With My Peeps

    189
    1
    91
    Apr 27, 2011
    Oklahoma
    Quote:Thank you very much. I'm really happy with how it turned out.

    Quote:Really? Only two holes that are a bit smaller than a quarter inch each? I wouldn't think that enough air would get in, I don't want the little critters to suffocate. As it is the humidity is right where it needs to be, wouldn't this indicate that it's not losing too much moisture? I'm sorry if it seems like I'm arguing with you, I appreciate the input! It's just that your answer was the opposite of what I expected (too much ventilation, when I was expecting it to be not enough).

    -S

  4. Wyogirl

    Wyogirl Chillin' With My Peeps

    821
    5
    138
    Apr 5, 2010
    Cody, WY
    Incukit??? what is it and if its that accurate where can i buy it LOL
    Ayda

  5. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    can that kind of cooler hold a hovabator/little giant egg turner

  6. Stingrayg4

    Stingrayg4 Chillin' With My Peeps

    189
    1
    91
    Apr 27, 2011
    Oklahoma
    Quote:It's a small unit that has the a thermostat, heating element and fan all in one easy to mount package. You can see it mounted on the right side in the pics. Got mine on eBay, but this place stocks them.

    http://incubatorwarehouse.com/index.php/150w-incu-kit.html


    Quote:No, I'm pretty sure it would be a bit too long in one dimension. My next project will be building an egg turner to fit it.

    So anyone else have any insight on my ventilation question?

    -S

    Last edited: Jun 21, 2011
  7. wowmanacat

    wowmanacat Chillin' With My Peeps

    729
    4
    131
    Apr 1, 2011
    Oak Grove AR
    I have a homemade incubator and I only have two vent holes and one of them now has a tube in it to put water in the bottom. The drain hole is also open all the time since all the wire is going throw it. I have had some very good hatch rates over the time that I have been at this. There are pictures on my blog.

    Last edited: Jun 21, 2011
  8. aprophet

    aprophet Chillin' With My Peeps

    3,799
    10
    209
    Jan 12, 2010
    chesapeake Va.
    I have a bator about that size I have a hole low at one end about 1" in diameter and a hole at the top of one end about the same diameter there is a little shutter to control the flow of air

  9. Doormantnt

    Doormantnt Chillin' With My Peeps

    229
    1
    121
    May 4, 2009
    Glen Burnie, MD
    On my mini-fridge bator, I used pill bottles. one high and one low for air flow. I still had to tape over bout half of a large pill bottle. They were bout 1 3/4" in diameter. and I cut that down to bout half that with tape.

    Good luck.

    TNT

  10. Stingrayg4

    Stingrayg4 Chillin' With My Peeps

    189
    1
    91
    Apr 27, 2011
    Oklahoma
    I appreciate the additional input! It's been running for about three days now. The temperature has crept up to 100.2°, which is as high as it's been so far. The temp range has been 99.2°-100.2° at this point. That still seems more than acceptable to me. Humidity has stayed right where it should be, currently 56%.

    [​IMG]

    Since humidity has been staying where it needs to be, I'll probably leave the vent holes as-is for my first hatch in it. I'm planning on hatching some turkeys on it's first run if I can manage to find some eggs. Turkey eggs are harder to find than hen's teeth around here.

    -S
