Hoop Run center height

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by ajlynco, Nov 28, 2011.

  1. ajlynco

    ajlynco Chillin' With My Peeps

    242
    1
    91
    Sep 7, 2011
    Reno, NV.
    I'm considering building an 6X10 hoop run. Approximately what would the center height be if I use the 16' cattle panels? Anyone with hoop run experience?

  2. jenjscott

    jenjscott Mosquito Beach Poultry

    3,701
    10
    223
    May 24, 2008
    Southeast Arkansas
    If you make it 10 feet wide and curve it evenly it will be 5 feet high in the center. Two panels give you a 10x 8+ run. The panels I get are a little over 4 ft. wide.

  3. nurse_turtle

    nurse_turtle Chillin' With My Peeps

    3,519
    69
    201
    May 28, 2011
    Foothills of NC
    .

    Last edited: Nov 28, 2011
  4. Zanna

    Zanna Chillin' With My Peeps

    1,767
    177
    198
    Oct 14, 2010
    Jefferson, Oregon

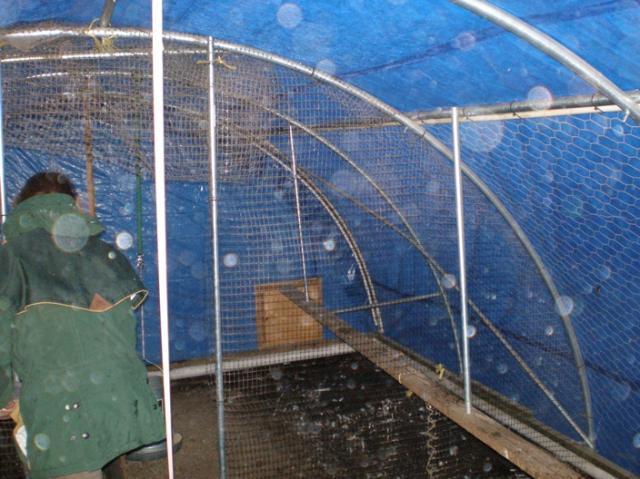

    We bought a hoop bender from e-bay. The hoops are 14' wide and about 6'tall. We used chickenwire/hardware cloth instead of the cattle panels and tarp all for winter, just the roof for summer. Built it on PVC pipe so it can easily be moved with a 4-wheeler or vehicle. Two people can also push it sideways. We leave it in the same place most of the time as the chickens free range all daylight hours and have cattle panels cut in half lengthwise driven into the ground to prevent predators from digging their way in. They are also easy to lift up and move.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  5. ajlynco

    ajlynco Chillin' With My Peeps

    242
    1
    91
    Sep 7, 2011
    Reno, NV.
    I think I'll use 2 panels and make it 8X8...should give me a center height of about 6' or so. I only have 6 chooks so that should be enough run.

  6. nurse_turtle

    nurse_turtle Chillin' With My Peeps

    3,519
    69
    201
    May 28, 2011
    Foothills of NC
    :p

    Last edited: Nov 28, 2011
  7. nurse_turtle

    nurse_turtle Chillin' With My Peeps

    3,519
    69
    201
    May 28, 2011
    Foothills of NC
    OK! If you build a run that is 6 feet wide by 10 feet long and use 16 ft panels hooped over top, your center height will be just over 7 feet. I'm totally sure this time, just had to check my algebra.

    If you choose the 8x8ft option, you only lose about 6-8 inches in height.

    Last edited: Nov 28, 2011
  8. ajlynco

    ajlynco Chillin' With My Peeps

    242
    1
    91
    Sep 7, 2011
    Reno, NV.
    Nurse_turtle-Thanks! A 6X10 it is! I'm 6'-2" and too old to be inside a run all bent over. I never was great at algebra...lol
