I got started on my coop today, 90% finished!

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by flyin-lowe, Feb 20, 2016.

  1. flyin-lowe

    flyin-lowe Chillin' With My Peeps

    352
    64
    99
    Jan 24, 2016
    Indiana
    We had a perfect 60 plus degree sunny day in Indiana, definitely not typical this time of year.

    Me and a good friend of mine (he's the carpenter) got a great start on my coop today.

    Details. The coop is 8x6 with 7 foot walls and 8 foot at the peak. I went with those sizes for a couple reasons. I wanted to minimize the number of sheets of smartside I had to buy. I also plan on making my run 6 foot tall, so this would allow me to get the top of my run under the overhang coming off the front. I might have to modify this because that is one mistake I made, I think the tops of the two front windows are over 6 foot, So I will have to angle mire HC top up when I attach to the front, should be no big deal. I had initially planned to have 6 foot walls so the gable vents I bought were too big once I changed to 7 foot walls. So I am going to buy new vents and install them later.

    I framed my walk in door and the pop door ten inches off the floor to make room for litter. I made a small 4 foot by 1 foot clean out hatch on the back that is flush with the floor so I can sweep out if needed. The windows were recently taken out by my friend on another job so they were free. The canopy windows on the front were brand new and still had the stickers on them. I also got the metal I am putting on the roof for free from a barn that was taken down.

    I still need to put the metal roof on, frame and build the doors, build external nest boxed to go off the back, and frame the corners and along the rafters. I am just going to put chicken wire under the overhangs instead of soffit for ventilation.

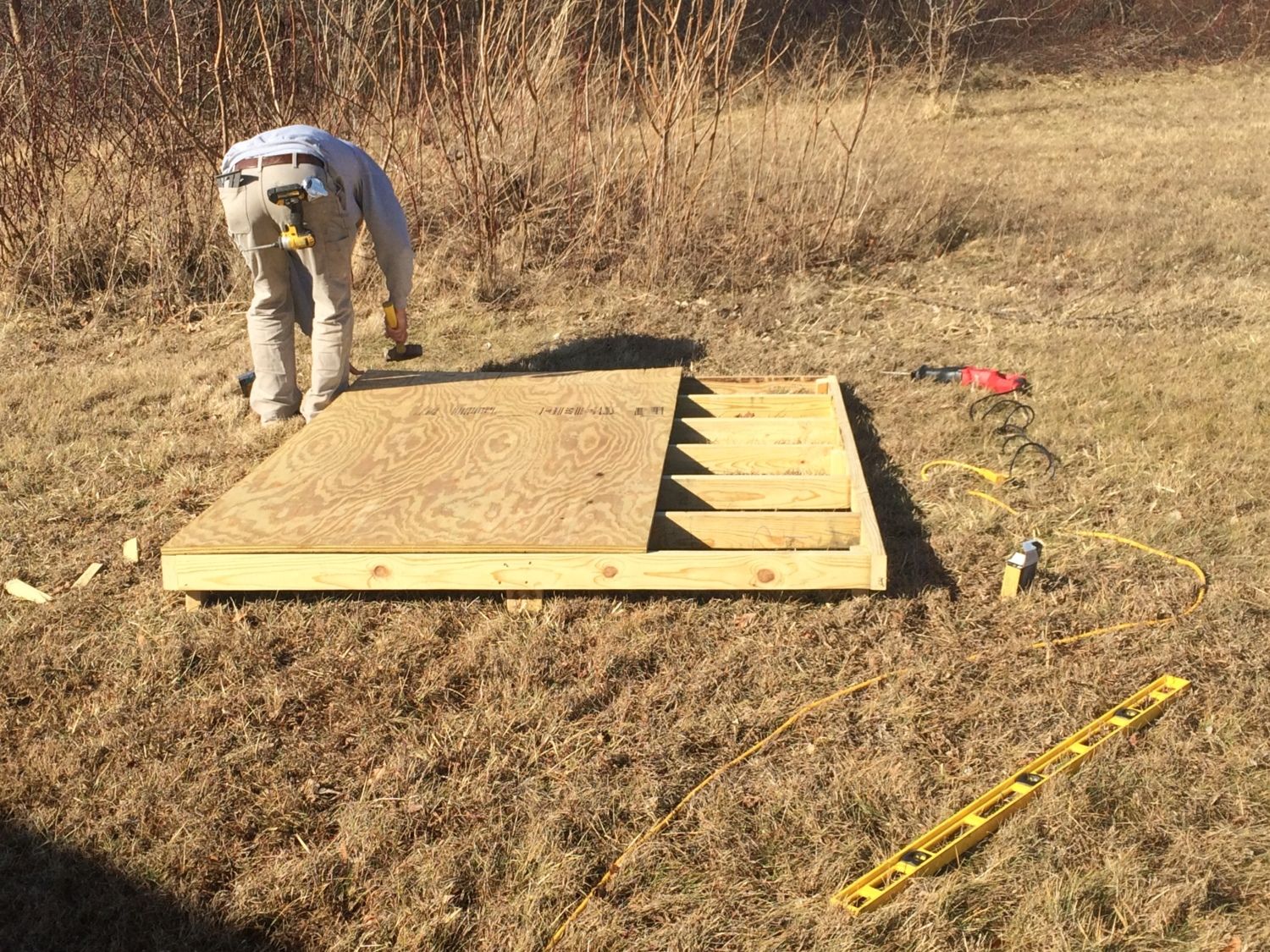

    Floor

    [​IMG]

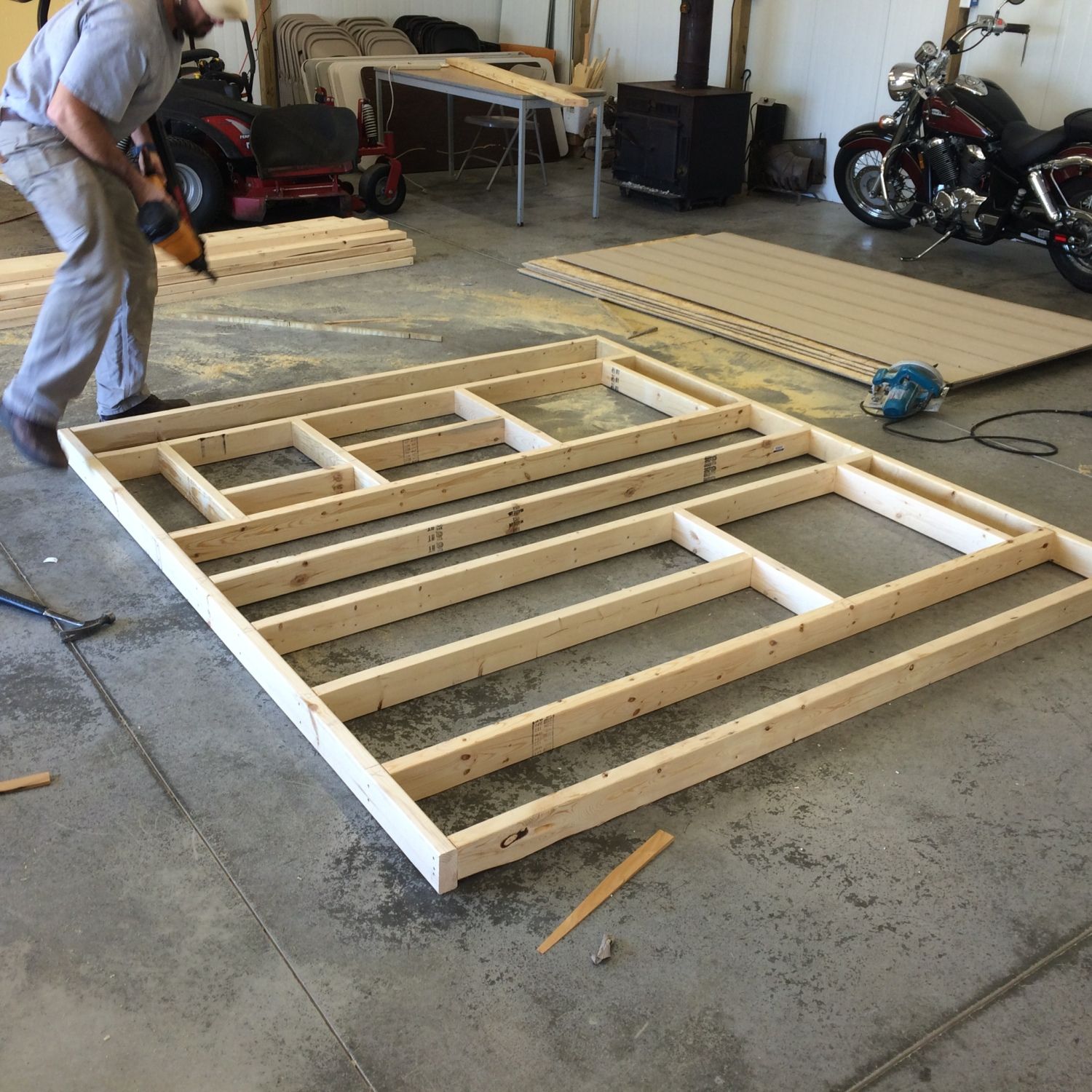

    Wall under construction

    [​IMG]

    Walls up
    [​IMG]

    Front and walk in door.[​IMG]

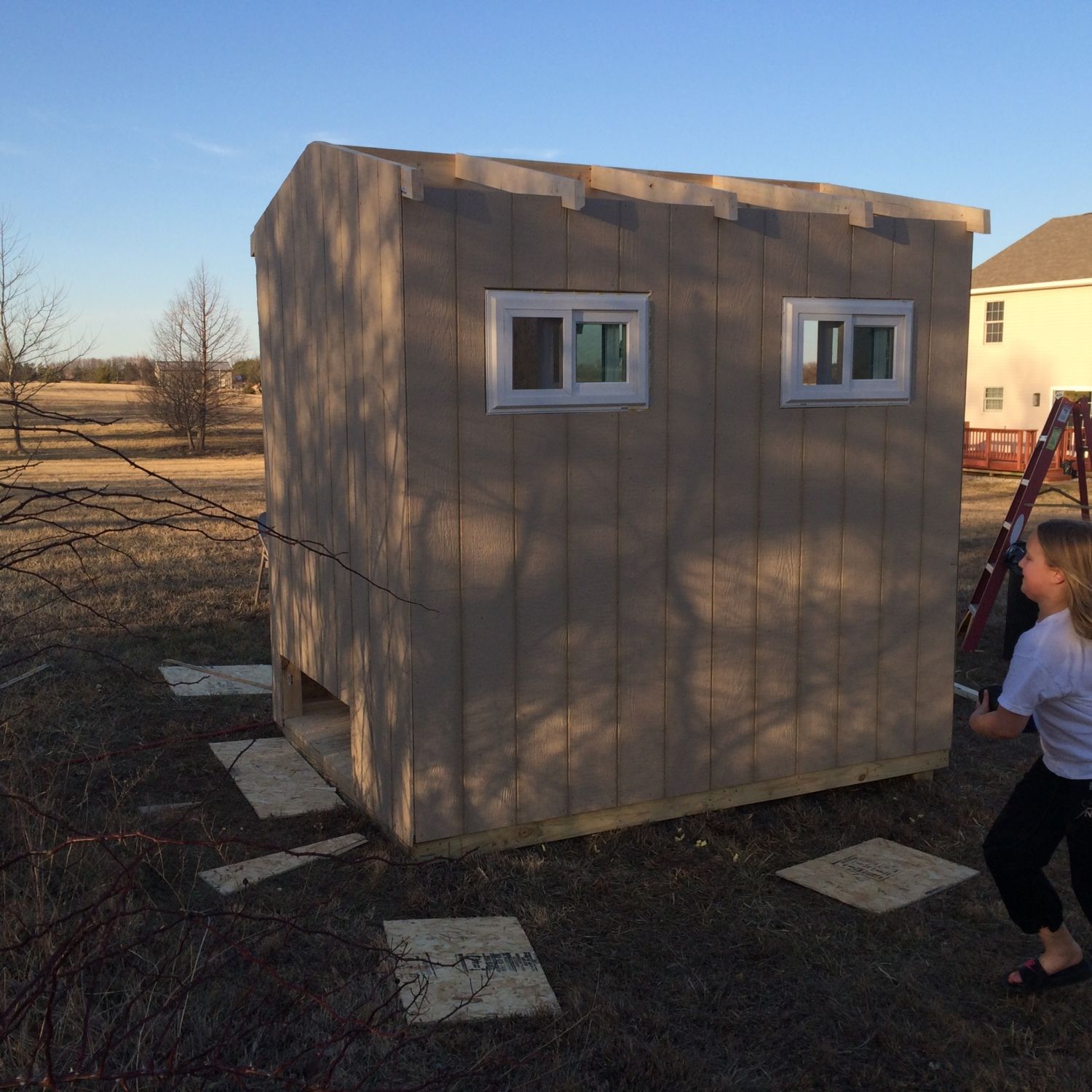

    Back side and clean out, nest boxes will go under these windows.

    [​IMG]

    Last edited: Feb 20, 2016
    2 people like this.
  2. chicklover 1998

    chicklover 1998 Chillin' With My Peeps

    1,615
    95
    118
    Sep 30, 2015
    Oskaloosa,Ia
    Looks good.

  3. Gridguru

    Gridguru Chillin' With My Peeps

    152
    24
    61
    Jan 30, 2016
    Dallas, TX area.
    Wow. That's some quick and impressive work! It looks like you started with a solid plan.

    Can i ask you a question... what did he use to attach the wall framing to the base? Just 3 1/2" screws into the floor joists, or something more substantial?

    Also, did you use a router to cut out the door, window, etc... in the siding after it was attached to the coop?

    Last edited: Feb 20, 2016
  4. flyin-lowe

    flyin-lowe Chillin' With My Peeps

    352
    64
    99
    Jan 24, 2016
    Indiana
    Used a passload nail gun and some very large nails to attach the walls to the floor and the walls to each other. We put siding up on three walls in full height sheets. Then we cut out the windows and doors from the inside using a "saws all". Then he made the rafters for each end and put those up. After the rafters were up used the "saws all" again to cut the sheeting gables along the edge of the rafters. When you use the framing as a guide for the saws all it goes really smoothly.

  5. Gridguru

    Gridguru Chillin' With My Peeps

    152
    24
    61
    Jan 30, 2016
    Dallas, TX area.
    Thanks. I am thinking a flush cut bit on a router would/should give me a perfect cut for all of the openings as well. I currently don't own a sawsall (I know, I know...man card in jeopardy).

    Last edited: Feb 20, 2016
  6. flyin-lowe

    flyin-lowe Chillin' With My Peeps

    352
    64
    99
    Jan 24, 2016
    Indiana
    I didn't own one until a year or two ago. I needed it for a project in my pole barn. I don't do a lot of building so I went to my local EZ pawn and picked up a Skill that looked brand new and it was only like $12.00. If I was a contractor it wouldn't hold up but for a few weekend projects it did just fine.

  7. Jensownzoo

    Jensownzoo Chillin' With My Peeps

    1,965
    290
    148
    Feb 7, 2016
    Saint Louis, MO
    I love my sawzall.

    And I am super-impressed at how quickly that coop went up! I do believe I will be stealing the idea for the sweep-out hatch...that would definitely come in handy.

  8. aart

    aart Chicken Juggler! Premium Member

    33,815
    6,958
    576
    Nov 27, 2012
    SW Michigan
    My Coop
    Nice awning windows!!

    Go deep with your roof over hangs......ventilation in eaves?

    Exterior nests?

  9. flyin-lowe

    flyin-lowe Chillin' With My Peeps

    352
    64
    99
    Jan 24, 2016
    Indiana
    Since I'm using metal that was given to me I won't have much of an overhang. The eaves will be covered in HC for ventilation.

  10. flyin-lowe

    flyin-lowe Chillin' With My Peeps

    352
    64
    99
    Jan 24, 2016
    Indiana
    And yes I'm adding external nest boxes off the back under the two small slider Windows
