Maiden Voyage of the coolerbator

Discussion in 'Incubating & Hatching Eggs' started by Torch404, Mar 9, 2015.

  1. Torch404

    Torch404 Chillin' With My Peeps

    218
    22
    133
    Jan 15, 2009
    Northern Cali

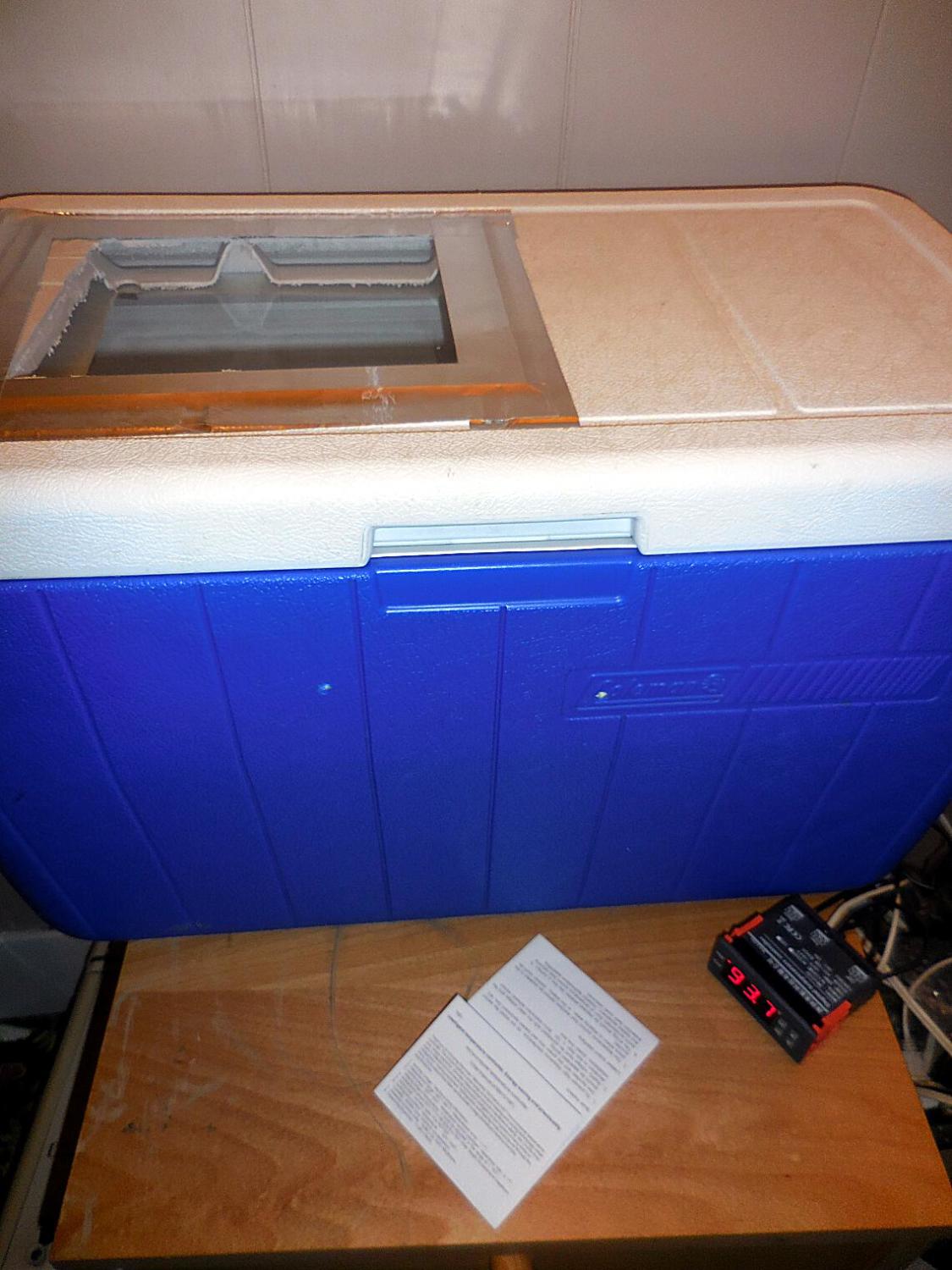

    I got the bug and decided to build a coolerbator. This will be my first time incubating.
    I made the light bulb/water heater thermostat version. I may have damaged the thermostat when modifying it. When I tested it thoughI was getting 4 degree temp swings minimum so that wasn't going to work.

    I ordered a cheap digital controller the MH1210 off ebay and while I waited for that to arrive I scrounged up a crock pot element.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    I did add a strip of aluminum foil along the cage so the heating strip wasn't blasting the eggs directly with heat.

    I was dreaming of an elaborate turning system but found when I put an egg carton in, it sat at almost the perfect tilt so I'll just spin the cartons around. I punched a pencil sized hole in the bottom of each egg pocket so their is air flow around the bottom of the egg.

    [​IMG]

    I'm really Eggcited about the eggs I got. They are a barnyard mix but one of the roos was a beautiful blue arucana and some of the hens were arucana as well. I should be able to separate the blue eggs and hopfully get some pure arucana as well, EE's at worst. :) The other roo they has was a jersey giant so hopefully I'll be able to separate them young.

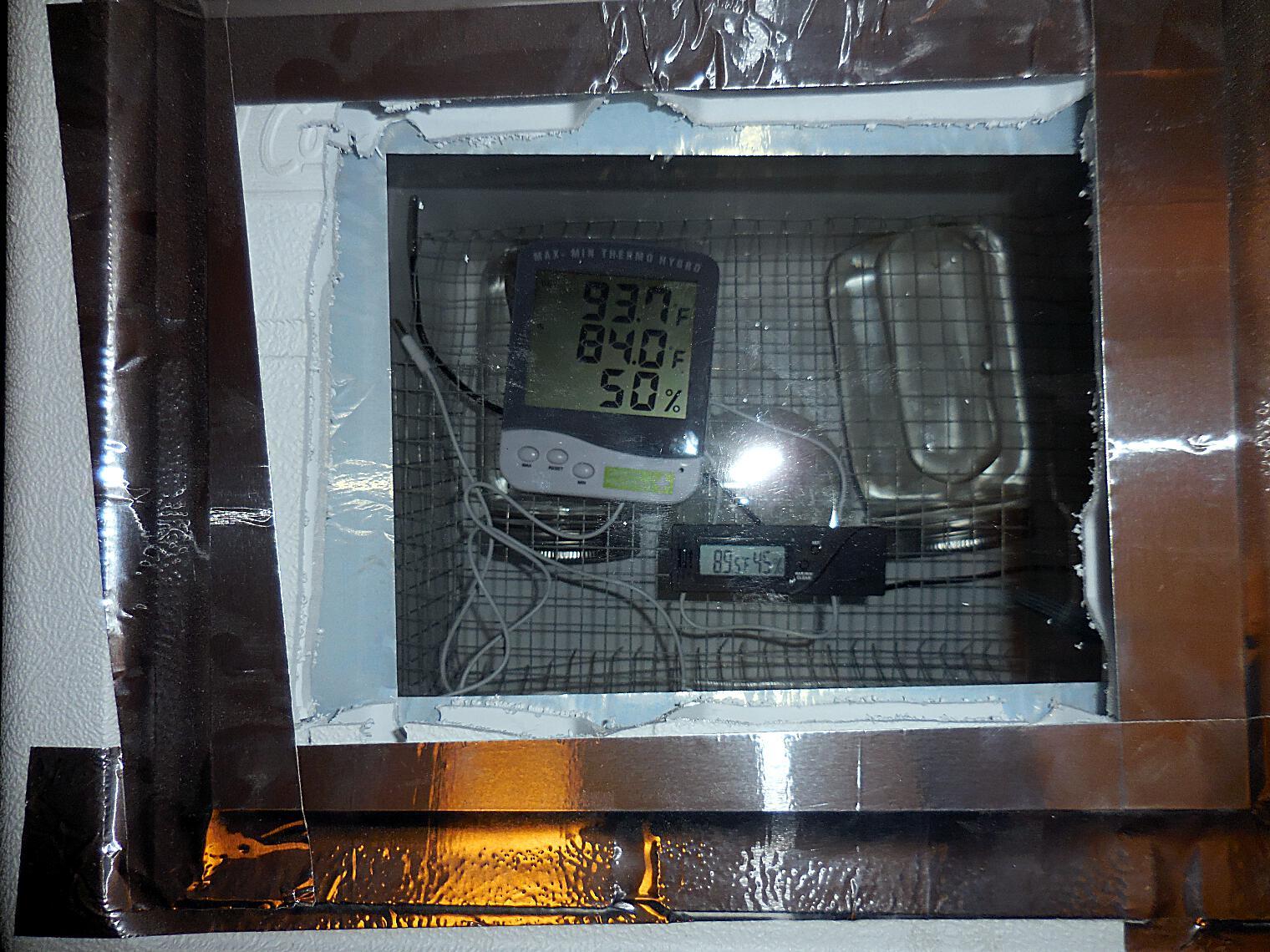

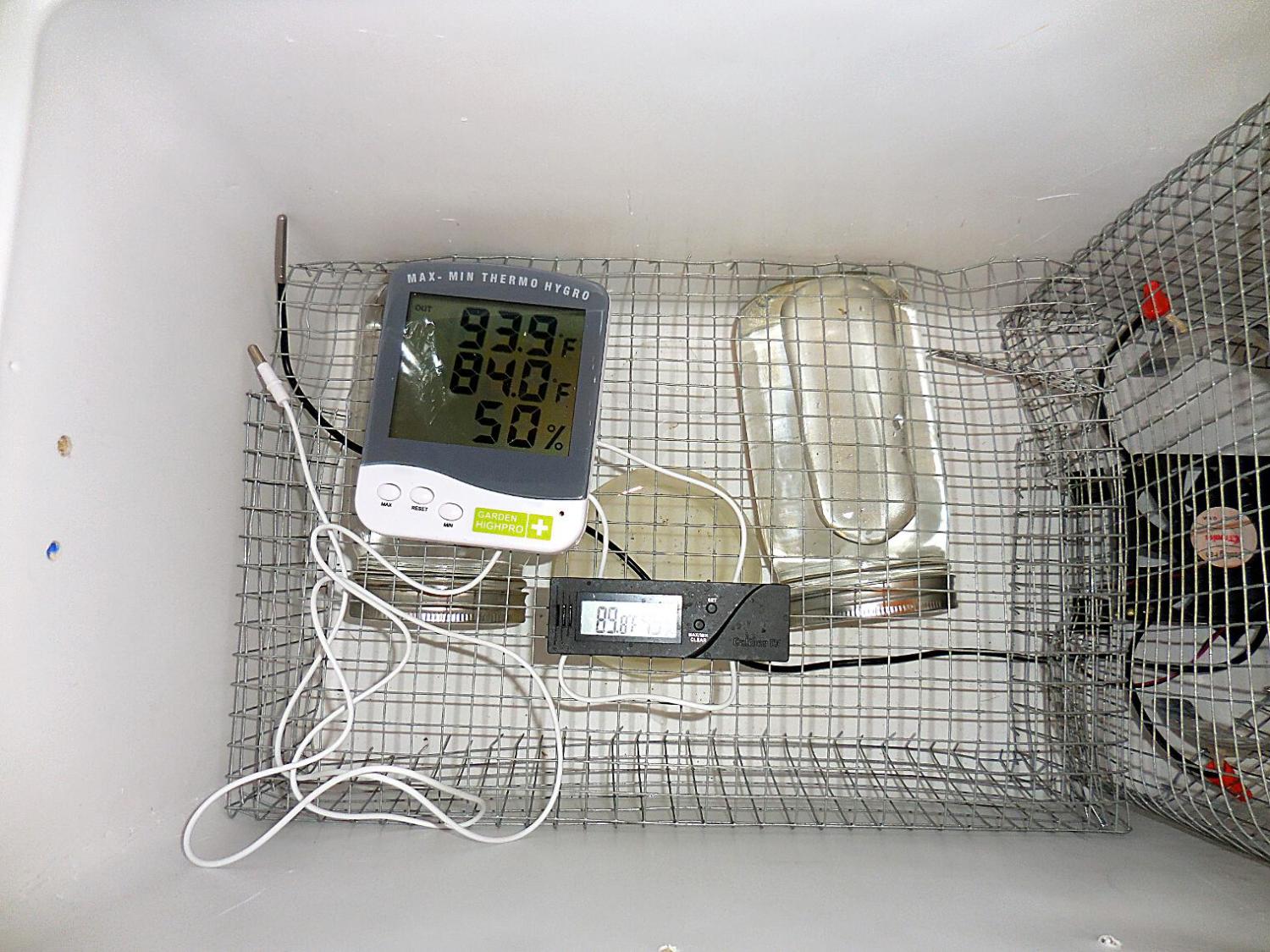

    I set eggs on the 7th and spent two days tweaking it. The digital controller's logic is sort of odd but I think I have it worked out. I'm getting a temperature gradient but right now it seems to be holding at 99.7 on one end and 101 at the other. Humidity is holding at 30-40%. I'm shifting the cartons so they cycle through the zones. My fan is not super strong or I haven't figured out the best position for it, but for now everything seems to be holding temp but I don't know how well it is circulating. The fan is pointing strait up at the lid blowing over the heating strip.

    I will update as I go thanks for checking in.

    Last edited: Mar 9, 2015
  2. Torch404

    Torch404 Chillin' With My Peeps

    218
    22
    133
    Jan 15, 2009
    Northern Cali
    At day 7 I can see viens in about 27 eggs. A couple were too dark to see through and some may have just been clears. I left them all in to be sure, I want a better candles light.

    Last edited: Mar 14, 2015
  3. lazy gardener

    lazy gardener Flock Master

    21,028
    10,627
    636
    Nov 7, 2012
    CENTRAL MAINE
    [​IMG]

  4. Torch404

    Torch404 Chillin' With My Peeps

    218
    22
    133
    Jan 15, 2009
    Northern Cali
    Candling random eggs and I dropped one of the good ones. Quickly did a search here and soon was dripping candle wax over the cracks. 12 more days hopefully they all make it.

  5. amynrichie

    amynrichie Chillin' With My Peeps

    342
    26
    121
    Jan 29, 2013
    Nebraska Panhandle
    [​IMG]

  6. Torch404

    Torch404 Chillin' With My Peeps

    218
    22
    133
    Jan 15, 2009
    Northern Cali
    This is the 2nd time my water went dry and my temperature started swinging around.

    Candled tonight took out six unfertalized. There were a couple welsummer eggs I couldn't quite see in but left them in.

  7. Torch404

    Torch404 Chillin' With My Peeps

    218
    22
    133
    Jan 15, 2009
    Northern Cali
    Lockdown initiated I only dumped the one egg I cracked and sealed up with wax as it seems to have stopped developing. 29 in we'll see how many come out.

    I put in some wet napkins and a sponge but it right now my humidity is 45% need to get it up a little higher.

  8. Torch404

    Torch404 Chillin' With My Peeps

    218
    22
    133
    Jan 15, 2009
    Northern Cali
    The hatch went great! Ended up with 21/29 eggs over 70%. I'm quite happy with that for my first time! I'm ready to clean it out and go again.

    One thing to note is that the screen that kept the fan / heating element enclosed had about 3/4in gap between that and the lid. One of the chicks some how made it up and over that. It didn't make it. I will be sure to fix that before the next try.

    Over all it works great everyone should make one.

    [​IMG]
    [​IMG]
