My Chichen Coop! Im goin GREEN with solar!

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by sticks22, Aug 5, 2008.

  1. sticks22

    sticks22 Chillin' With My Peeps

    107
    0
    119
    Aug 5, 2008
    Grove, oklahoma

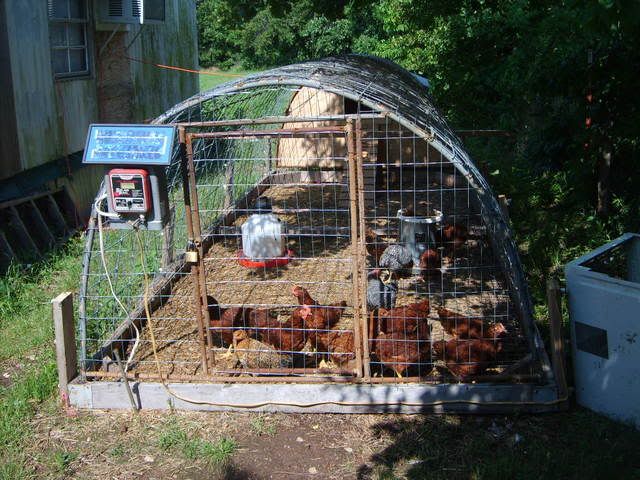

    Here is a few pics of my coop and hen house that I built this past spring. The total cost was about $130.00 out of pocket expense but the cost of a feeder and a waterer drove the cost up. Then I ordered my chickens from the net and that was another $45.00.

    Imfo:

    I went to lowes and I bought 3 pieces of cattle panels for about $25.00 each. Then I layed them out on the ground and stitch welded the pieces down the length (4 feet wide x 19 feet long). then using a ratchet strap I raised one side and wrapped the strap around it to give that domed shape. Then I built a wooden frame around the bottom which are recycled 2 x 6's from an old mobile home that we tore down. Then I bent and welded old 3/4 inch water pipe (also from the same mobile home) into a semicircular shape on both ends. At which time I also made the door which pivots on two old bolts that I inserted into a section of pipe and then welded the bolts to the top and bottom of the cross bar, so that the door will swing or hinge on the two bolts. On the side where the hen house is located I welded on about 15 metal tabs cut from 3/4 inch flat metal bar stock. Which I drilled a 1/4 inch hole to attach a 3/4 inch sheet of plywood. Then I cut out the hole for the hens to enter the hen house. Then with some leftover scrap wood I made a ramp to attach to the bottom of the doorway. Then after the coop was built I wrapped the whole thing with dog fencing (2 x 4 inch) making sure to turn the wire so that the squares in the wire were turned to the 2 inch heigth and 4 inch long.

    [​IMG]

    The Hen House:

    This hen house is made from recycled wood from the company that I work for. The planks were used on large rolls of shrink wrap that we used to shrink wrap packages of gas cans. They separated the large 100 lb rolls of plastic on the pallet.

    [​IMG]

    And last but not overlooked the best of all I got a solar powered electric fence charger! I bought this at a yard sale for $20.00. I cut short pieces of 2 x 6's and nailed them to the bottom of the frame to support the fence wire. I was in "cheap mode" when I decided the heck with using ceramic insulators for the wire. So I went to the plumbing section at lowes and I used 1/2 inch pvc elbows. The caps were a few cents cheaper but the elbows will allow the rain water to drain away from the electrified wire. So if anyone has anything similar Id like to here about it! Also Id appreciate any feedback!

    sticks22
    oklahoma

  2. SterlingAcres

    SterlingAcres Chillin' With My Peeps

    Apr 17, 2008
    Poconos, PA
    That's great! Good job! [​IMG]

  3. WestKnollAmy

    WestKnollAmy The Crazy Chicken Lady Premium Member

    10,060
    192
    361
    Apr 22, 2008
    upstate SC
    I like that! It turned out real nice![​IMG]

  4. Robin L

    Robin L Chillin' With My Peeps

    448
    0
    129
    Jun 12, 2008
    Wisconsin
    What a GREAT coop!

  5. moose

    moose New Egg

    8
    0
    7
    Jul 10, 2008
    dude, thats a great coop, i like the idea of the solar powered electric wire, i need that for mine since one of my dogs just broke in and killed 3 of my hens. Great job!!

  6. sticks22

    sticks22 Chillin' With My Peeps

    107
    0
    119
    Aug 5, 2008
    Grove, oklahoma
    I bet you dont have any problems with the solar fence charger for those pesky kritters! This was once used for cattle- wait till your dogs get zapped by this. NO MORE PROBLEMS!!! Trust me! It packs quite a punch. Its like sticking your finger in a light socket!

    sticks22
    oklahoma

    Last edited: Aug 6, 2008
  7. cmom

    cmom Hilltop Farm

    16,199
    642
    396
    Nov 18, 2007
    Florida
    My Coop
    [​IMG]
