My DIY automatic egg turner

Discussion in 'Incubating & Hatching Eggs' started by Daedalus62, Apr 13, 2015.

  1. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Hi all,

    First, a word of warning...

    Using the motor I used (dish turner motor repurposed from a scrap microwave oven), this it's not 100% perfect... This kind of motor (synchronous) is unpredictable in the direction of rotation (clockwise or counter-clockwise) when it starts running... For this design/concept to be flawless, you need a motor that always runs in the same direction... So, if you can find one [​IMG]

    That said, the materials... Besides the wood structure, a cheap electrical socket timer (modified), a microwave oven dish turner motor, a couple of micro-switches... And other bits 'n pieces..

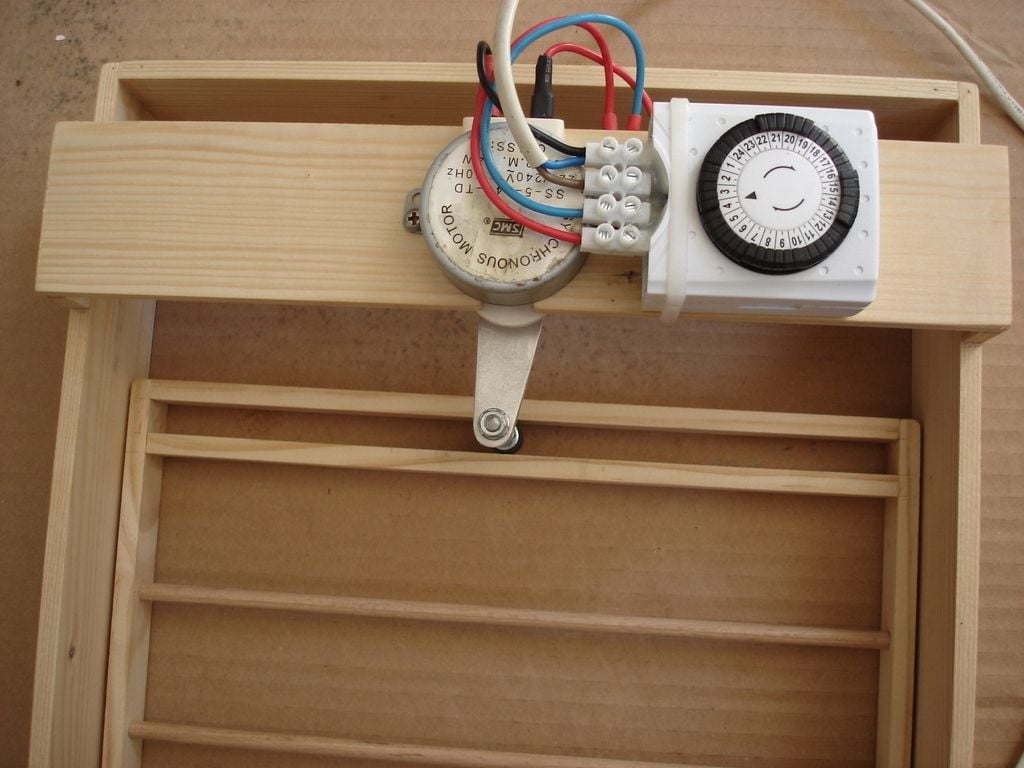

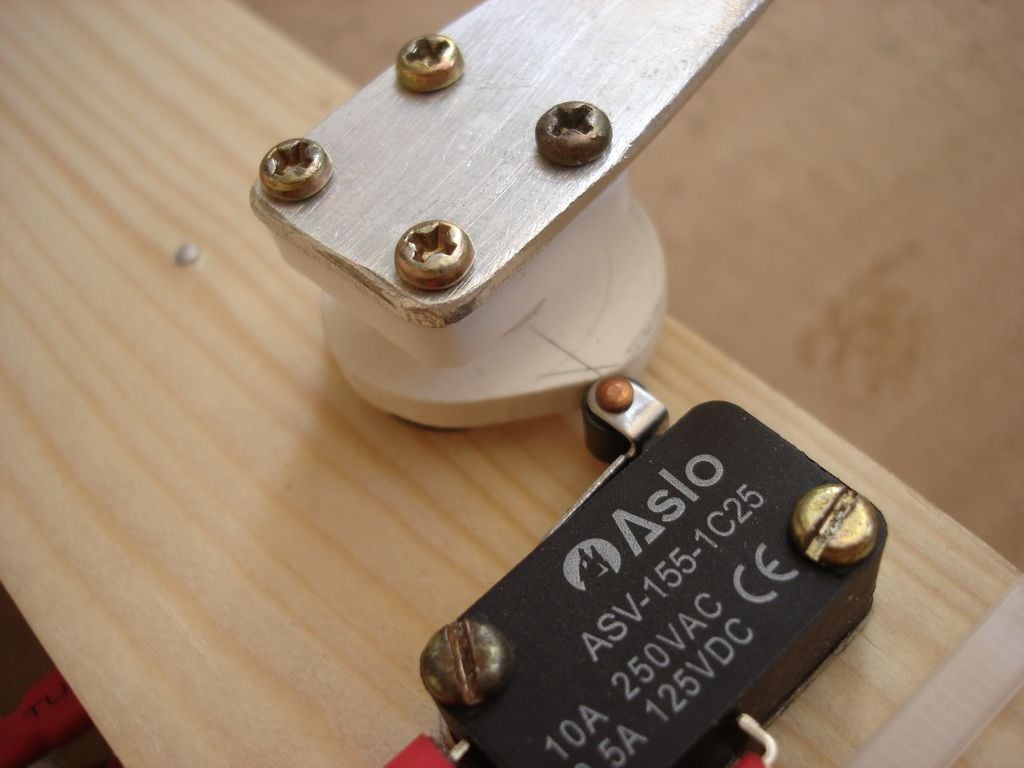

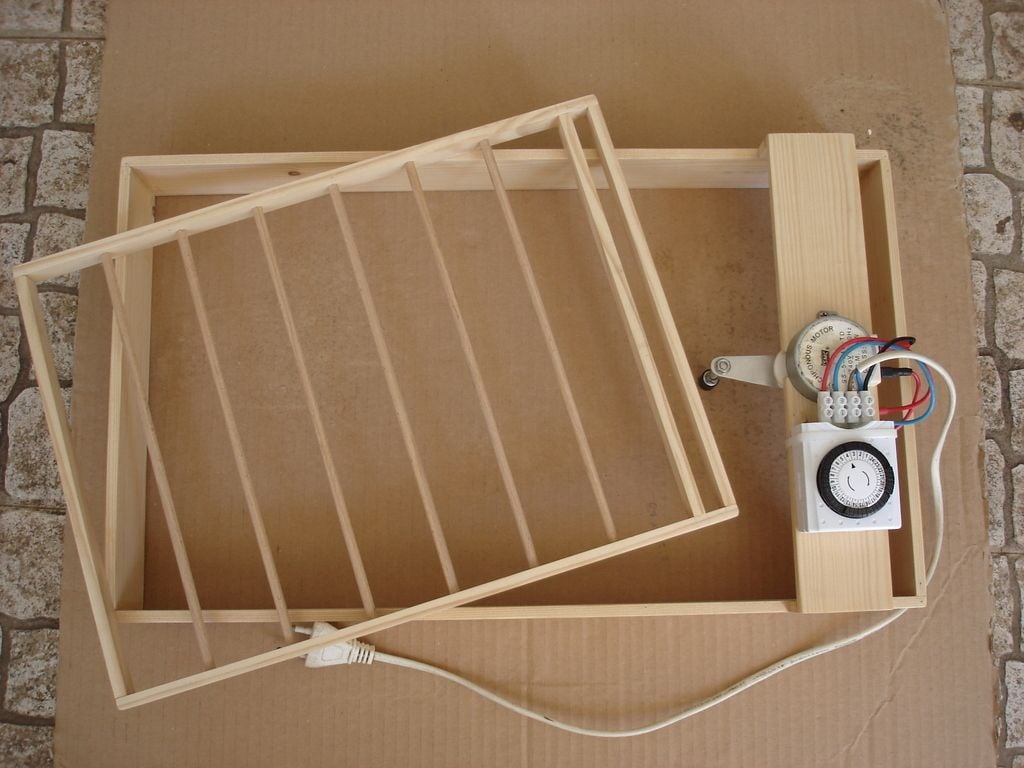

    Some photos...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    And videos...

    http://vid1140.photobucket.com/albums/n573/Daedalus62/Chickens/Vira Ovos/MOV01509_zpscqr5wj21.mp4

    http://vid1140.photobucket.com/albums/n573/Daedalus62/Chickens/Vira Ovos/MOV01504_zpsqtseuihp.mp4

    http://vid1140.photobucket.com/albums/n573/Daedalus62/Chickens/Vira Ovos/MOV01499_zpsnrgghoyk.mp4

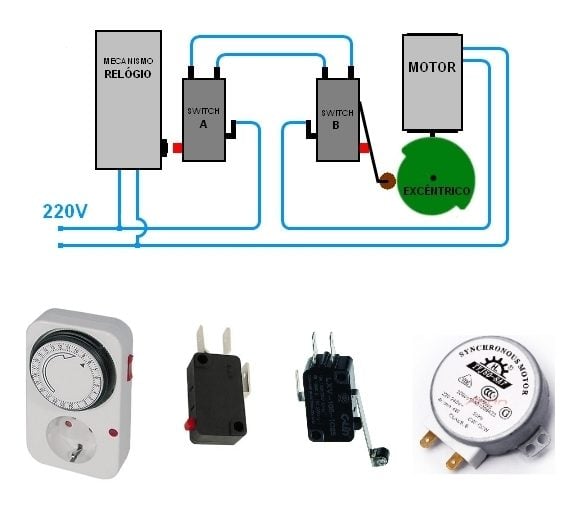

    Wiring scheme...

    [​IMG]

    Switch A goes inside the timer... It's a double contact/circuit micro-switch, replacing the original single contact one.

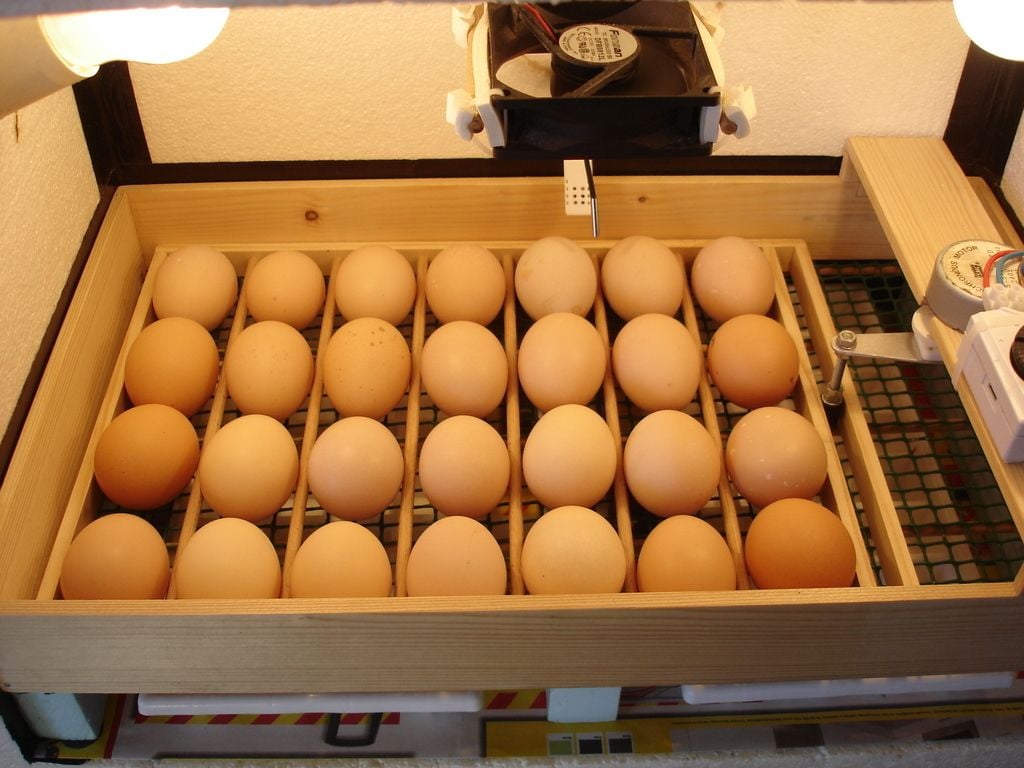

    All loaded up, in my homemade foamy bator (https://www.backyardchickens.com/t/868776/yet-another-cheap-diy-incubator), and ready to go!!...

    [​IMG]

    I programmed the timer to turn 8 x day... So, even if (in theory) it fails half the turns, I guess it'll be alright... I've had successful hatches in this bator, turning manually 3 x day [​IMG]

    BTW, the original idea for this concept is not mine... I got it online.

    Cheers [​IMG]

    Last edited: Apr 13, 2015
    1 person likes this.
  2. WalnutHill

    WalnutHill Overrun With Chickens Premium Member

    6,994
    2,182
    336
    Mar 16, 2014
    SE Michigan
    [​IMG]

    Brilliant and simple repurpose design. And lovely craftsmanship, too!

  3. ChickenCanoe

    ChickenCanoe Chicken Obsessed

    21,723
    2,687
    466
    Nov 23, 2010
    St. Louis, MO
    Thanks for posting. My incubator is big enough for 3 or 4 racks but I only have two turners and want to build one rather than buy 2 or 3 more turners.

    Last edited: Apr 13, 2015
  4. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Thanks!!... I try to keep things simple yet efficient.

    You're welcome!!... If you build something like this, try finding a motor that always runs in the same direction (not like mine!). Keep us posted.

    ...

    Thinking about it [​IMG]... I believe I can work around this problem caused by the synchronous motor... I just have to reposition switch B... Hummm... I'll do a test and let you know... In 3 weeks time... It's running a batch now [​IMG]

    Cheers [​IMG]

  5. darka4

    darka4 New Egg

    1
    0
    6
    May 1, 2015
    how did you do it :[​IMG]
    because the timer goes out only two contacts, but to you four?

  6. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Notice, like I mentioned before, that the wall socket timer has to be modified... Basically, replace the original single contact/circuit micro-switch that you find inside, with a double contact/circuit one...

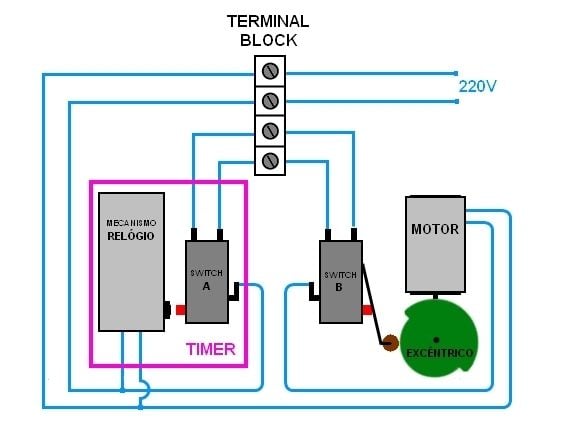

    I redrew my original circuit drawing, to include the terminal block you see in the photos... The pink box in the drawing is what's inside the wall socket timer.

    Hope this is clear... If not, please come again...

    [​IMG]

    Last edited: May 4, 2015
  7. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    BTW... Out of that 28 eggs test batch you see on my 1st post, I got 20 chicks this weekend... [​IMG][​IMG][​IMG]

    Of the remaining 8... 4 non-fertile, 1 stinker (removed at day 14) and 3 don't-know-what-happened... Might do an egg-topsy on these 3...

    Cheers [​IMG]

  8. sweetbanana

    sweetbanana Out Of The Brooder

    im thinking is there no other way to put two limit switches to make the motor turn all the time i.e 100%?

  9. Daedalus62

    Daedalus62 Chillin' With My Peeps

    147
    11
    71
    Sep 12, 2013
    Portugal
    My Coop
    Hi sweetbanana,

    I didn't do a video of the problem that occurs from using an unpredictable motor (direction of rotation wise), but let me try to explain...

    Please see my 2nd video: (http://vid1140.photobucket.com/albums/n573/Daedalus62/Chickens/Vira Ovos/MOV01504_zpsqtseuihp.mp4)...

    So the motor is running (completing his half-turn) and stops when the micro-switch is activated... Next time it starts running (after the programmed waiting time has passed), if the direction of rotation is not the same as last time, it immediately re-triggers the micro-switch... It stops on-the-spot, without completing the due half-turn... This happens every time the motor tries to start and the direction of rotation is different from last time.

    Cheers

    Last edited: Jun 17, 2015
  10. sweetbanana

    sweetbanana Out Of The Brooder

    oooh i get it now, so its better maybe if i can use my timer to turn after every, lets say 30 mins then tht way probability has it that it will definately make the required 3 times turns per day or more.
