My first chicken coop design....

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by ChickaChickaWow, Mar 15, 2012.

  1. ChickaChickaWow

    ChickaChickaWow Out Of The Brooder

    11
    1
    24
    Feb 29, 2012
    My Coop
    My wife one day out of the blue decides she wanted chickens, which means that I was put in charge of building them a cozy little coop.

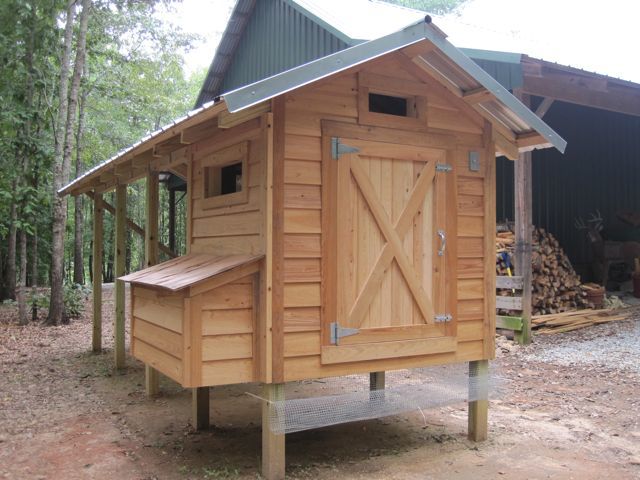

    I asked her to at least let me know kinda what she wanted and after searching through the medium coops on the site here, she decided se wanted something like this one by Hcarlsonlewis but with board and batten siding ... What did I get myself into [​IMG]

    [​IMG]


    That write-up was all I had to work off of. The only difference is we needed ours to be moveable so I modified the design somewhat to work on a base with 4x4 runners and made the coop a little bigger (6'x8')

    Let me just say that I am not an architect or even a carpenter, but I was able to come up with a design that somewhat resembles that coop with the exception of a covered run.

    Almost nothing in my design is on 16" or 24" centers, I just put studs where ever I needed them. For example, on the side with the next boxes, I spaced them at about 14.5" to end up with 13" for each nest box opening. On the walls with the window, I centered the window on the wall and split the difference on the other studs. Anyways, just wanted to let people know why I didn't bother to standardize anything.

    I did make the base 8' long so I wouldn't have to cut the plywood down in two directions, and I made the framing of the coop 3" narrower in each direction so that the wall girts will be out to the same dimension as the base and the board and batten can cover the walls and the floor base.

    Here is the plan that I drew up in AutoCAD before starting. It's not 100% complete because I haven't come up with a good design for the nesting boxes. I can update it here as I make changes. I was going to upload the CAD file, but it says I don't have the right privledges.. must need to be some kind of premiere chicken coop member.. LOL

    [​IMG]

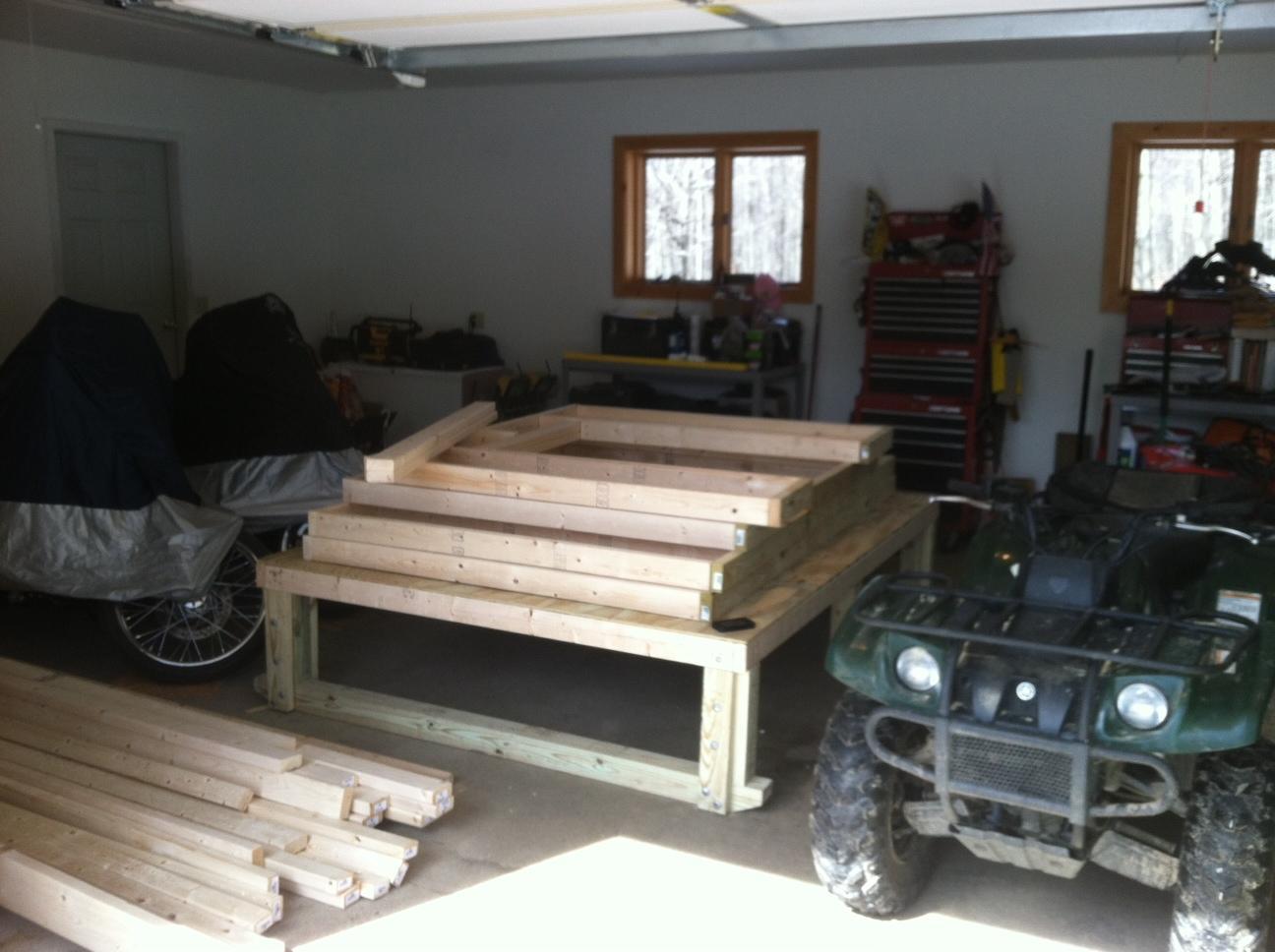

    As I said, I'm not an architect and in no way guarantee the design... In fact I don't even have it all the built, I only have the base complete and the four walls framed up.. This weekend I should be able to get the walls stood up and the rafters in place.

    [​IMG]

  2. jeepguy982001

    jeepguy982001 Chillin' With My Peeps

    1,138
    16
    138
    Oct 4, 2011
    athens, wv
    good luck with the build. At least you started with a plan I did a build as i go coup. It still needs painted but it does the job.

  3. Kay56

    Kay56 Chillin' With My Peeps

    134
    2
    81
    Jan 11, 2012
    Very nice coop...looks great. Any inside pics? Are you going to have a run attached?

  4. AnimalLady123

    AnimalLady123 Chillin' With My Peeps

    274
    2
    103
    Feb 8, 2012
    At the computer

    No actually you need to post 10 comments!! Good Luck!

  5. ChickaChickaWow

    ChickaChickaWow Out Of The Brooder

    11
    1
    24
    Feb 29, 2012
    My Coop
    Looks like in order to see enough detail on the design, you will need to click on the picture, then right-click save-as to be able to zoom in far enough to make out any details.

    Jeepguy982001... I'm into Jeeps myself. I have a 94YJ with 5.5" SOA, 2" BL, Waggy 44's F&R, ARB up front and a Detroit in the back.. all rolling on 37's with beadlocks

  6. Desirai

    Desirai Chillin' With My Peeps

    830
    13
    133
    Oct 12, 2011
    Alabama
    I love those plans! I'm clueless as to what exactly they mean but I can make some sort of sense out of them.

    Looks like you're off to a great start!! I hope I get to marry a handy hubby! :p

  7. ChickaChickaWow

    ChickaChickaWow Out Of The Brooder

    11
    1
    24
    Feb 29, 2012
    My Coop
    I got some more work done on the coop, pick up some of the future tennants, everything should be ready to go when they are old enough to go outside. Don't worry, they are in a much bigger box now, that is just the 'happy meal' box that they came in from Tractor Supply.

    [​IMG]

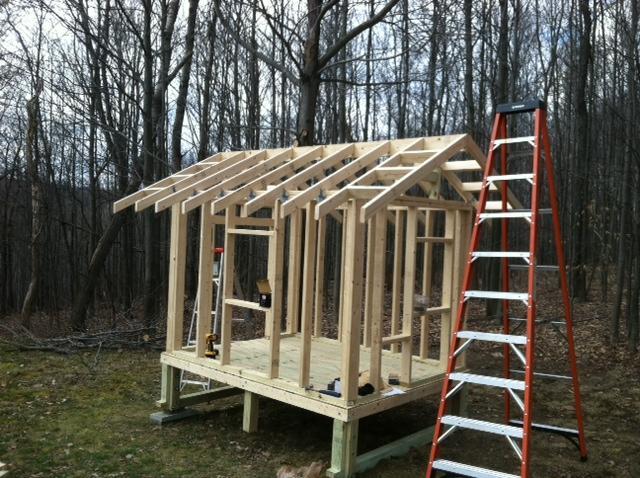

    Got the walls put up and finished framing the roof. Next step is to get the roofing on and put up some board and batten siding. After that's all done, the wife is going to do all the painting / staining,

    [​IMG]

    [​IMG]

    You can see more info at my coop page... https://www.backyardchickens.com/a/board-and-batten-coop-on-4x4-runners
