MY HOME MADE FORCED AIR INCUBATOR

Discussion in 'Incubating & Hatching Eggs' started by zuluchicken, Apr 7, 2015.

  1. zuluchicken

    zuluchicken Out Of The Brooder

    I always wanted to make my own incubator and now the job has been done. It is much more fun than buying one and I wanted to share my experience with fellow BYC members..

    The photos will tell the story but here are a few notes.

    1. I have cut a donated freezer in half and mounted the top half on a pedestal for easy access.

    2. In order to calibrate the thermostat I used an old school min/max thermometer to constantly record the minimum and maximum temperatures over a 24 hour period. I zeroed the instrument every morning during the tests. I also installed an electronic hygro/thermometer and to my delight both constantly recorded the same temperatures.during the 5 day test period, so the old school thermometer can now go back to its place outside our back door.

    3. The stones acts like batteries by storing energy (heat). The stones absorbs the heat and helps to stabilize the temperature inside the incubator by releasing the heat again during power outages or when I have to open the door to turn the eggs.

    4. The cup filled with water and a sponge helps to keep the humidity at a constant level.

    5. I have used the freezer's wiring and control panel and changed the compressor for the 60W globe and a higher calibrated thermostat for the original thermostat. (0C to 40C)

    6. I have been running tests for the past 5 days. The temp. varies between 37c and 39c and the RH between 44% to 46%.- all within the acceptable limits.

    7. Most of all, I had great fun making the incubator and I am looking forward to August when our breeding season starts here in South Africa. We are going into our winter now and it is too much of a challenge to keep the chickens warm.



    ELECTRONIC HYGRO/THERMOMETER
    [​IMG]


    DONATED OLD FREEZER
    [​IMG]

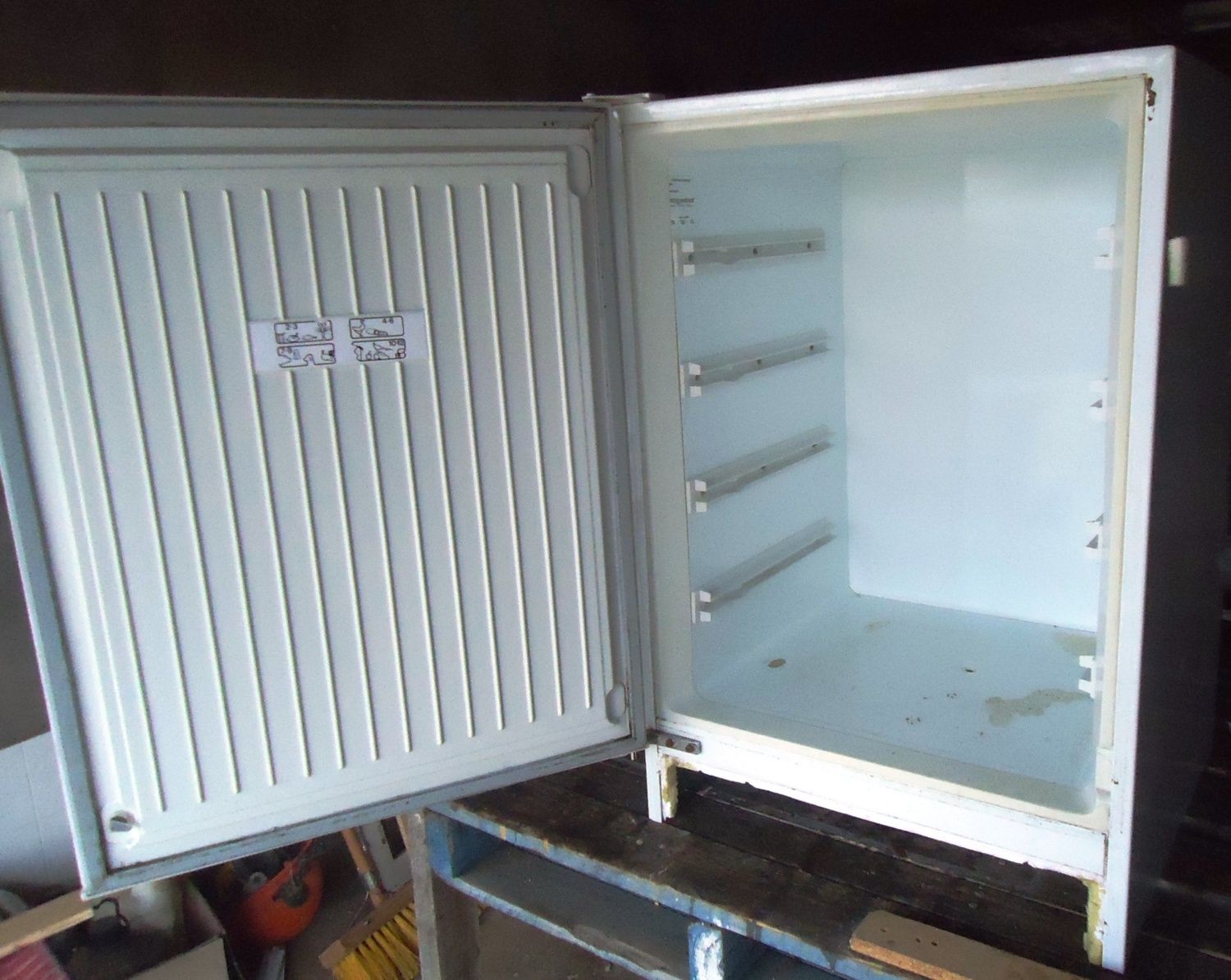

    FREEZER CUT IN HALF
    [​IMG]

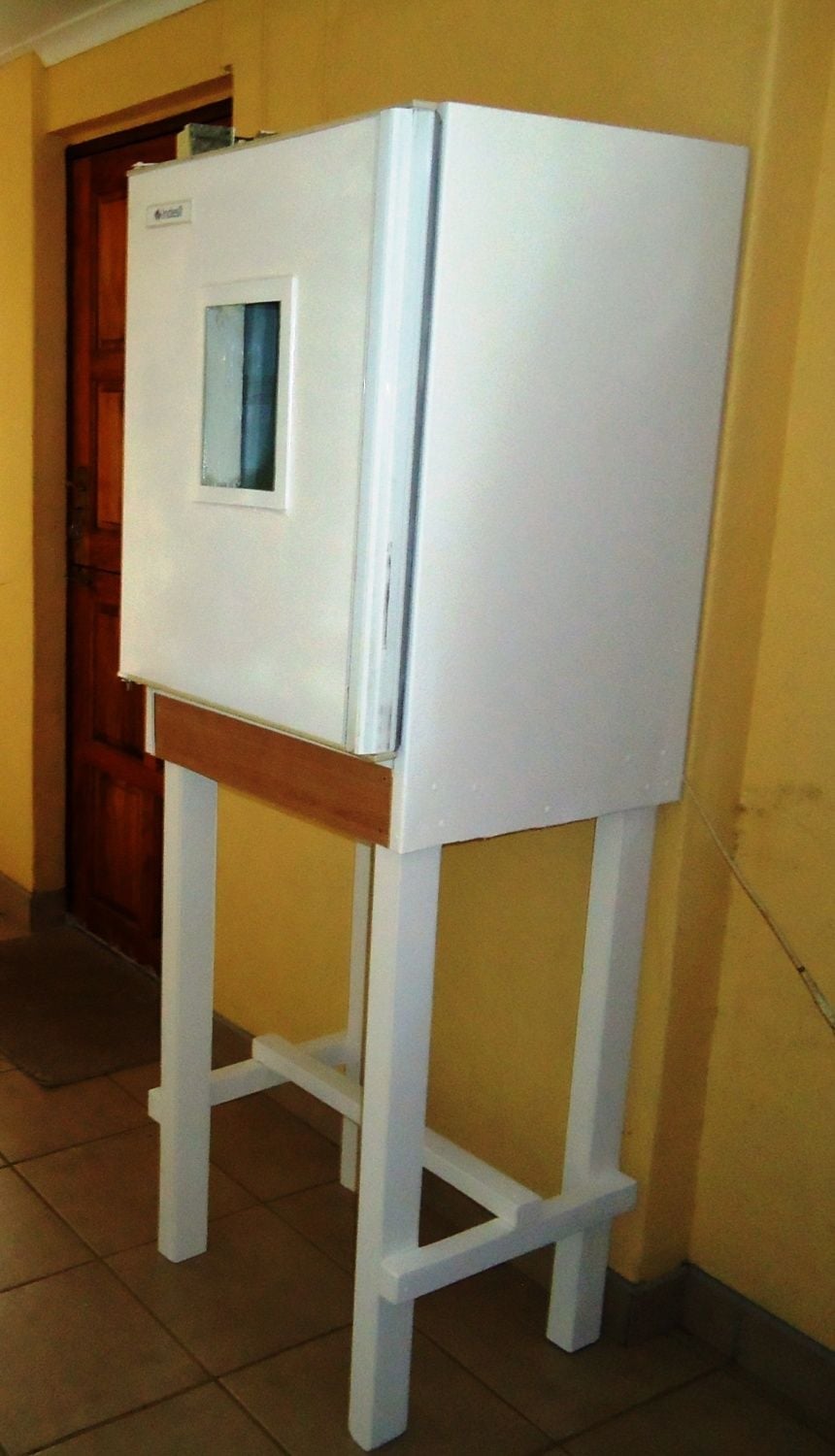

    FREEZER MOUNTED ON A PEDESTAL
    [​IMG]

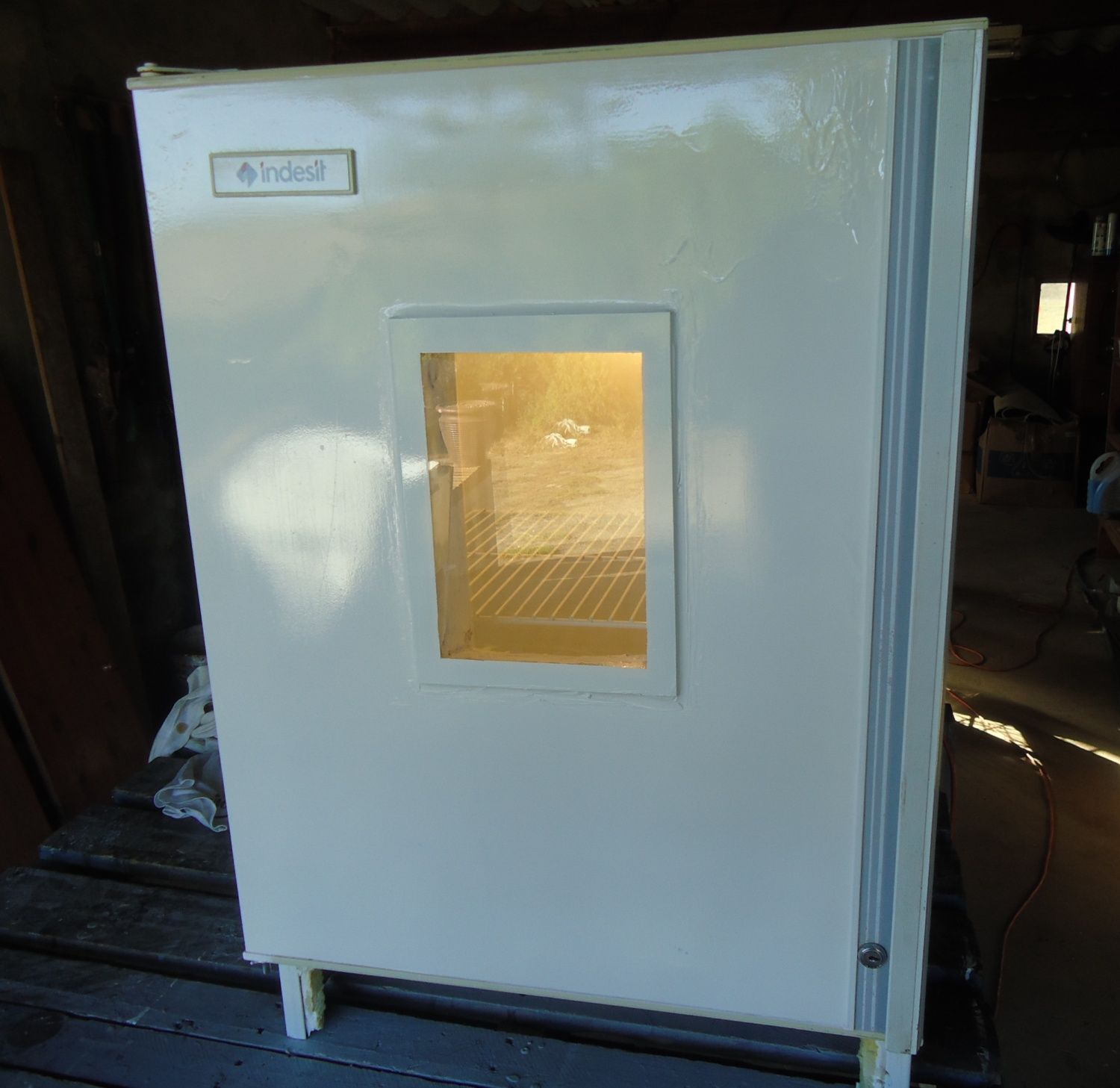

    DOUBLE GLASS WINDOW
    [​IMG]

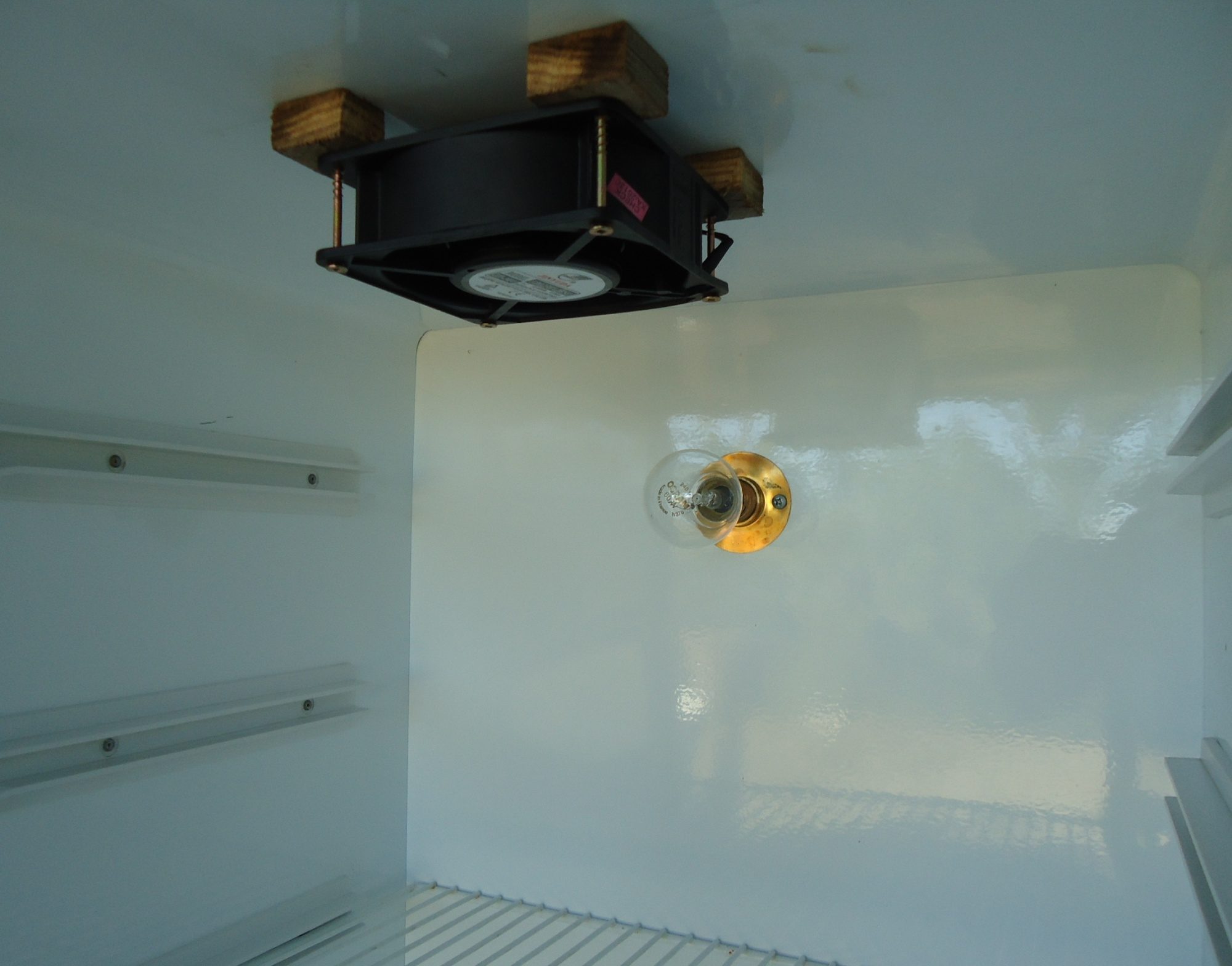

    FAN MOTOR AND 60W GLOBE
    [​IMG]

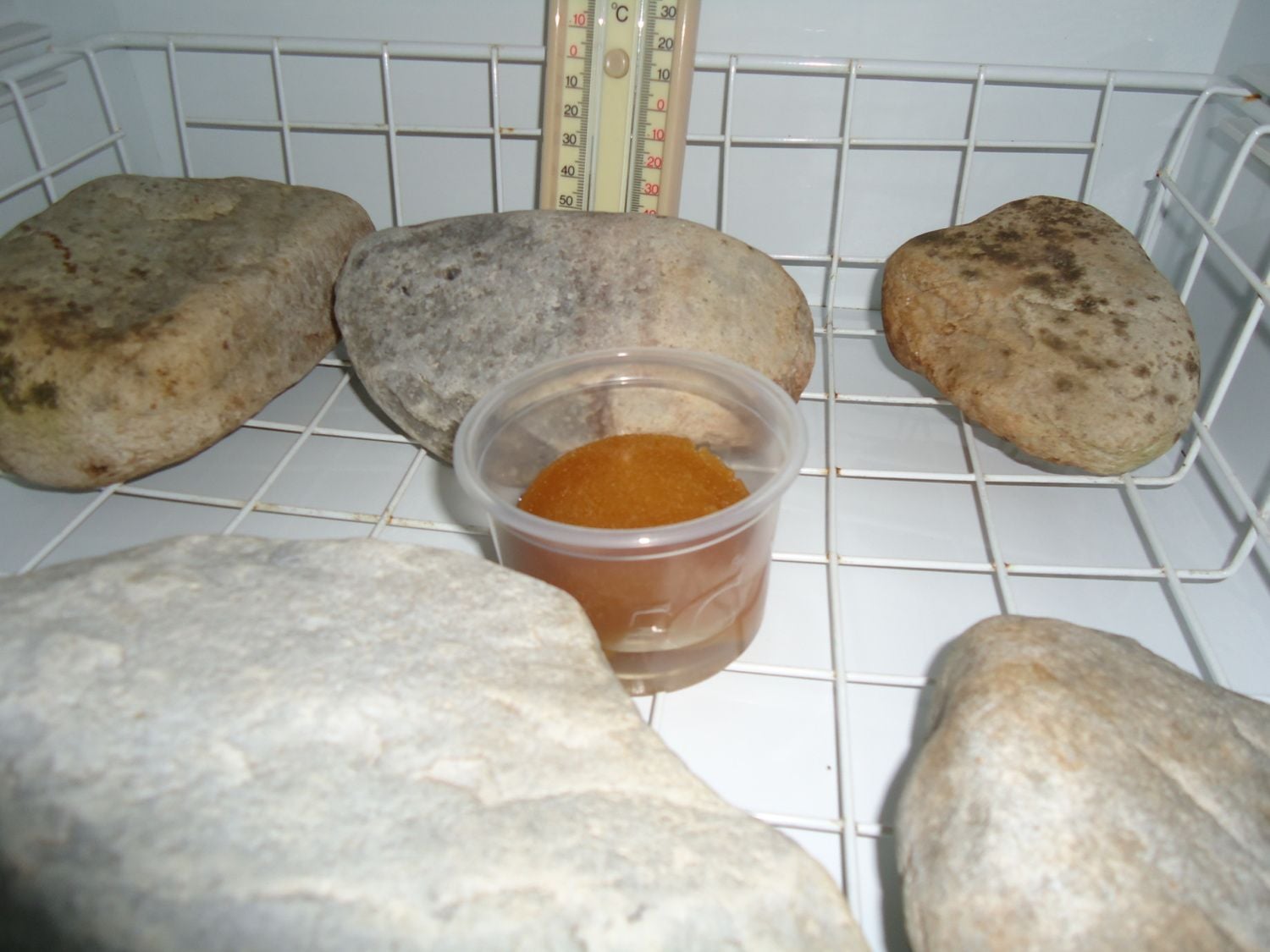

    CUP FILLED WITH WATER AND SPONGE
    [​IMG]

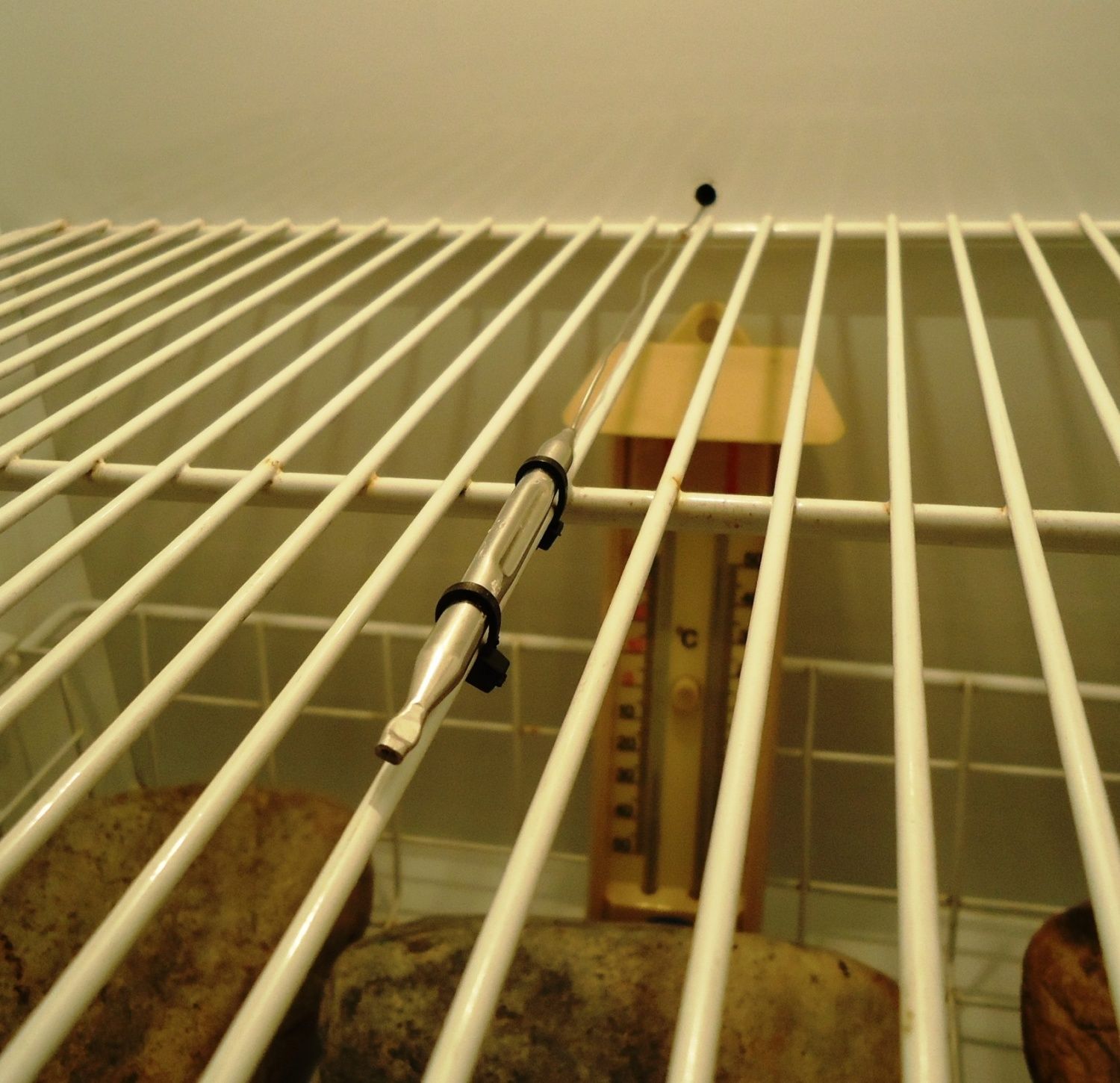

    THERMOSTAT PROBE
    [​IMG]

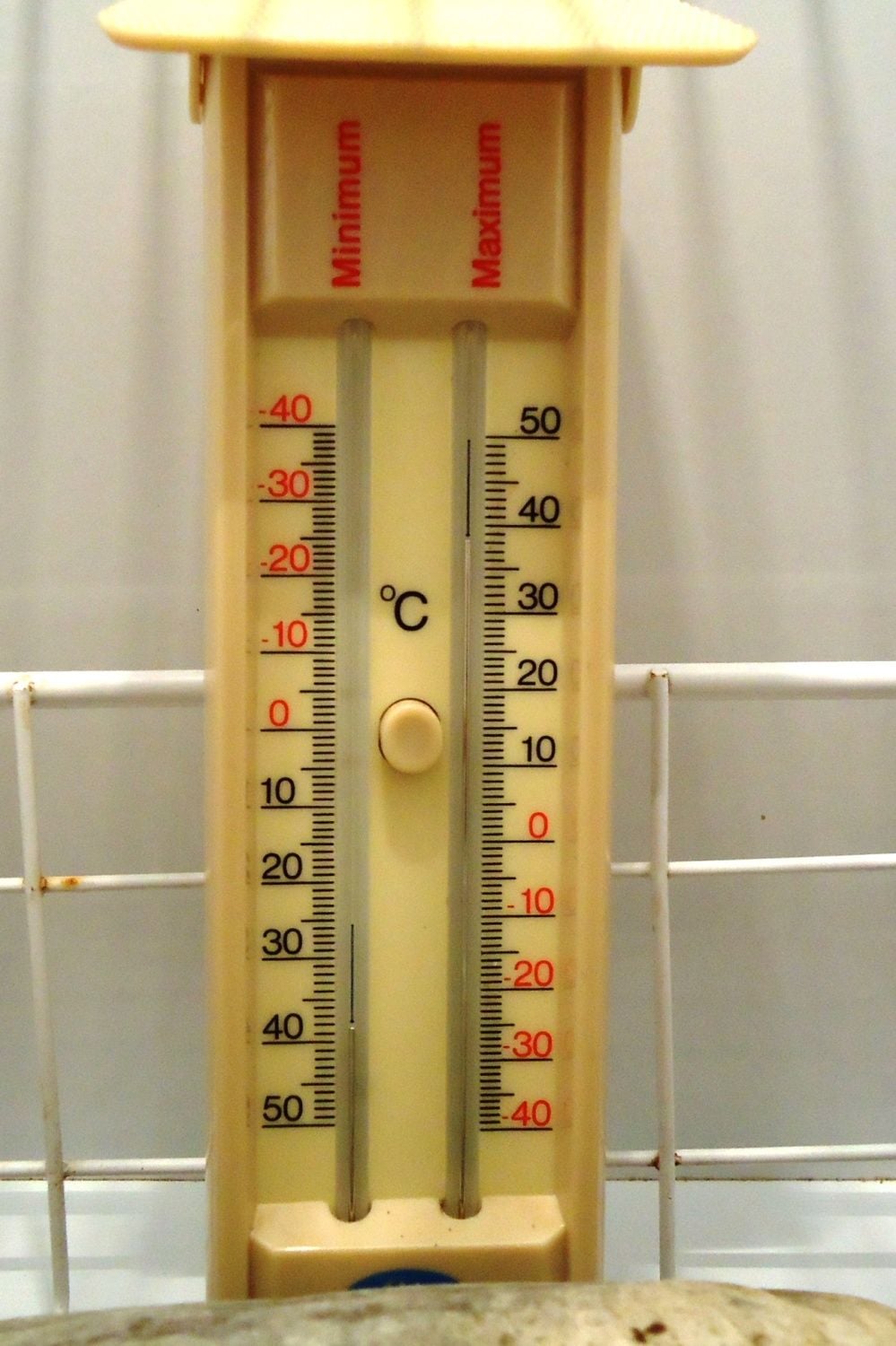

    OLD STYLE MIN/MAX THERMOMETER
    [​IMG]

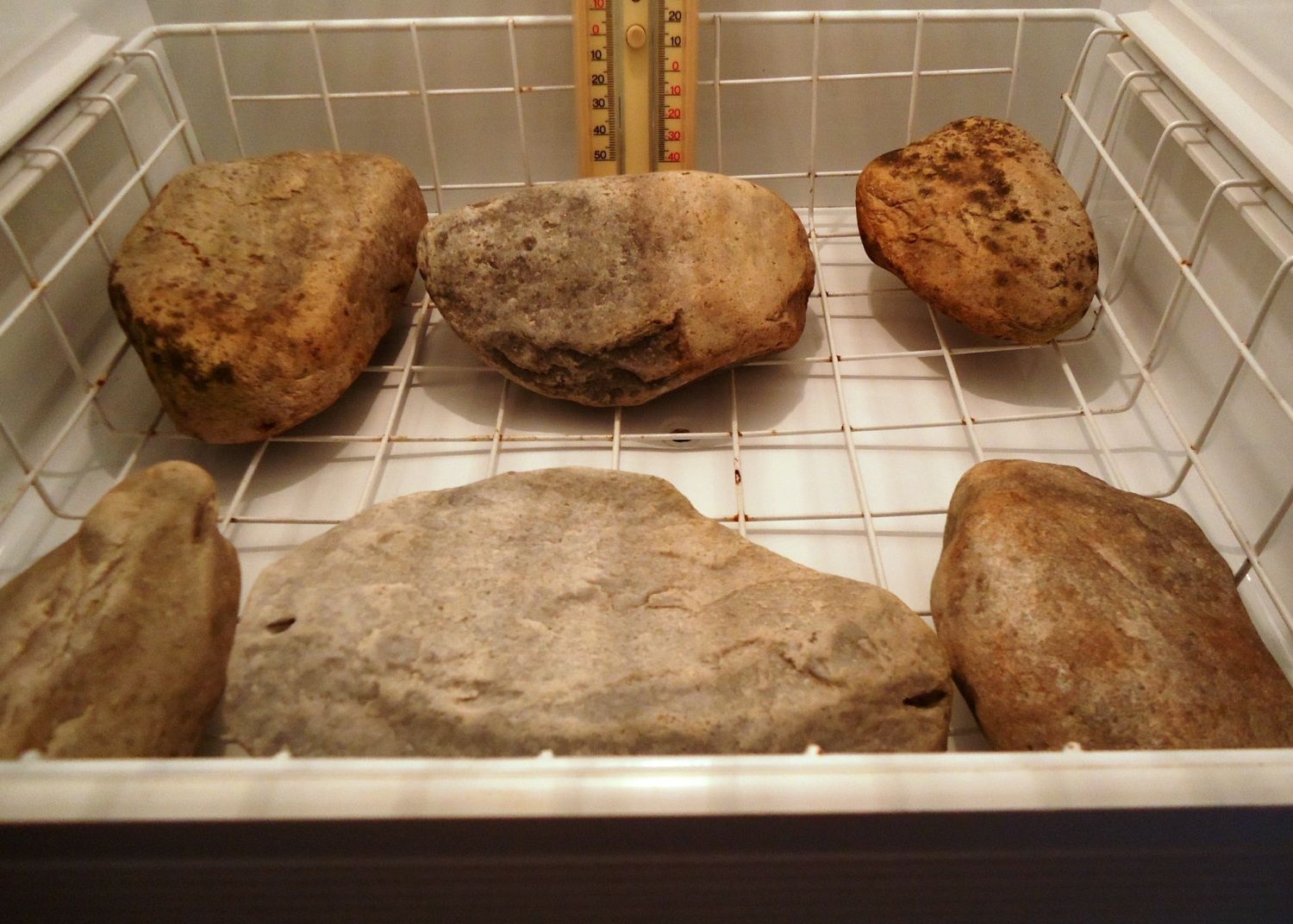

    ROCKS MAINTAINING THE TEMPERATURE
    [​IMG]

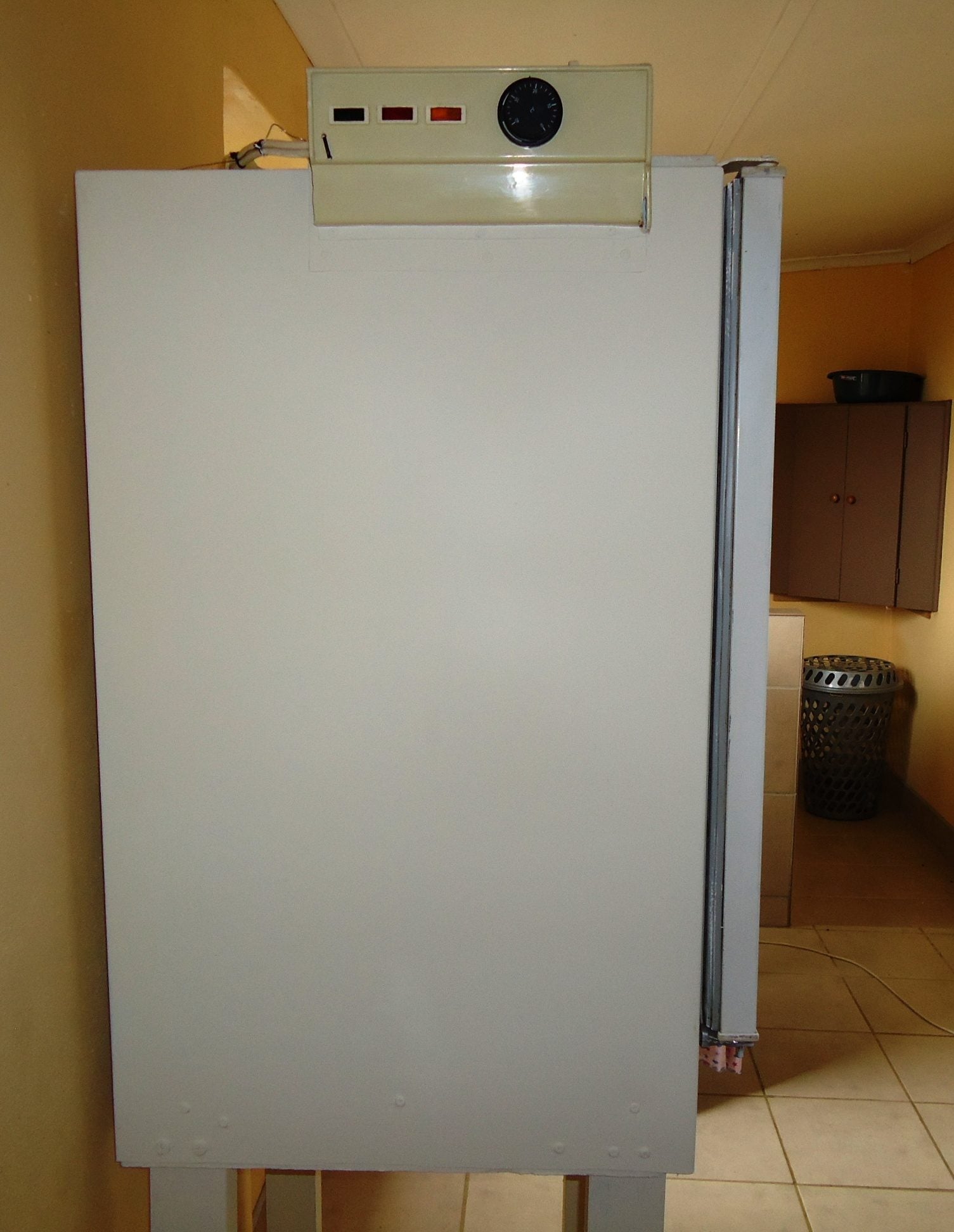

    CONTROL PANEL MOVED TO THE TOP LEFT SIDE FOR
    EASY ACCESS

    [​IMG]

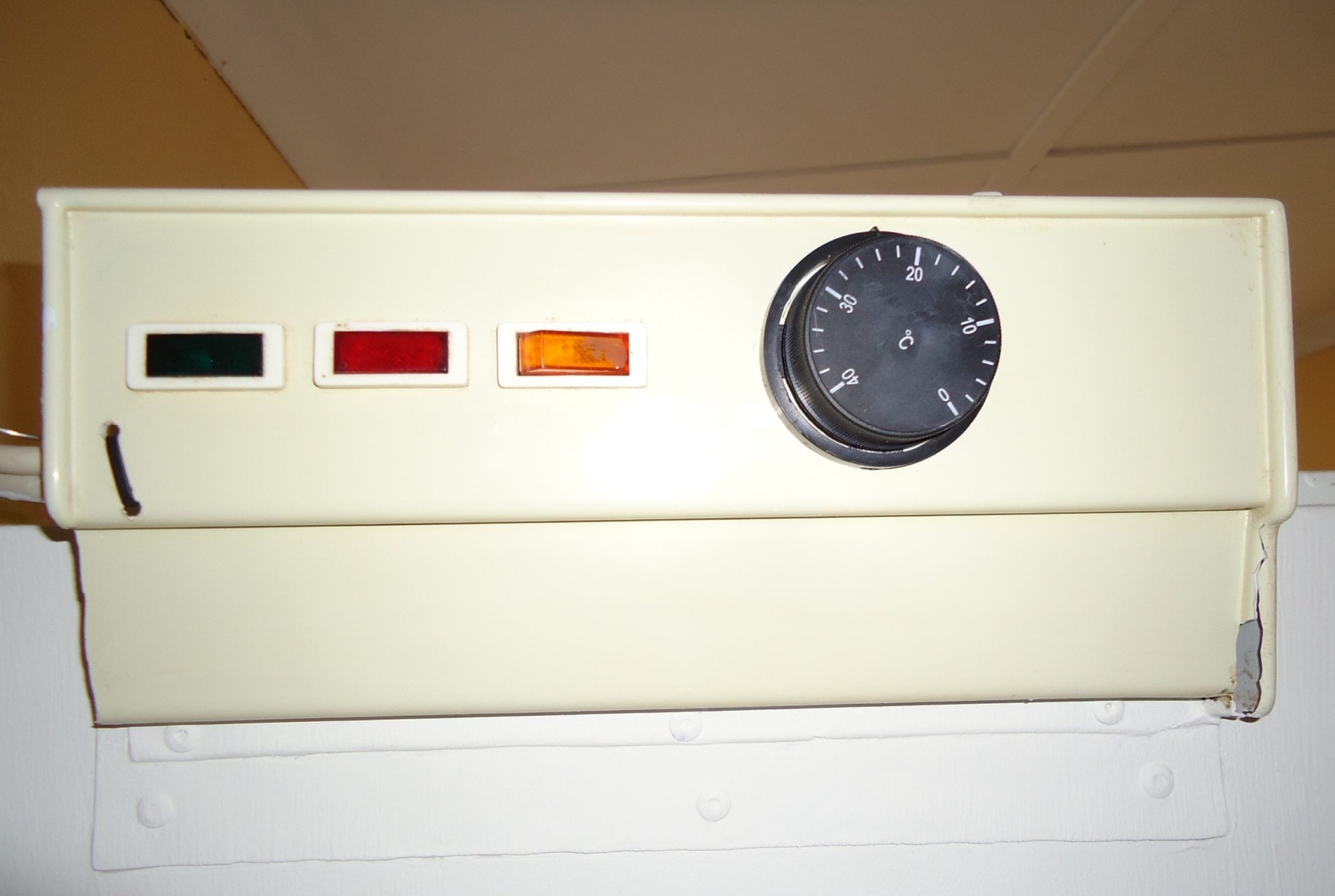

    CONTROL PANEL
    [​IMG]

    Last edited: Apr 20, 2015
    NorthTexasWink likes this.
  2. WalnutHill

    WalnutHill Overrun With Chickens Premium Member

    6,999
    2,210
    336
    Mar 16, 2014
    SE Michigan
    Very nice and attractive reuse of recycled materials! Let us know how it works.

  3. lazy gardener

    lazy gardener Flock Master

    23,461
    16,789
    686
    Nov 7, 2012
    CENTRAL MAINE zone 4B
    I'm truly impressed. Please keep this thread alive as you work through your hatch.

  4. zuluchicken

    zuluchicken Out Of The Brooder

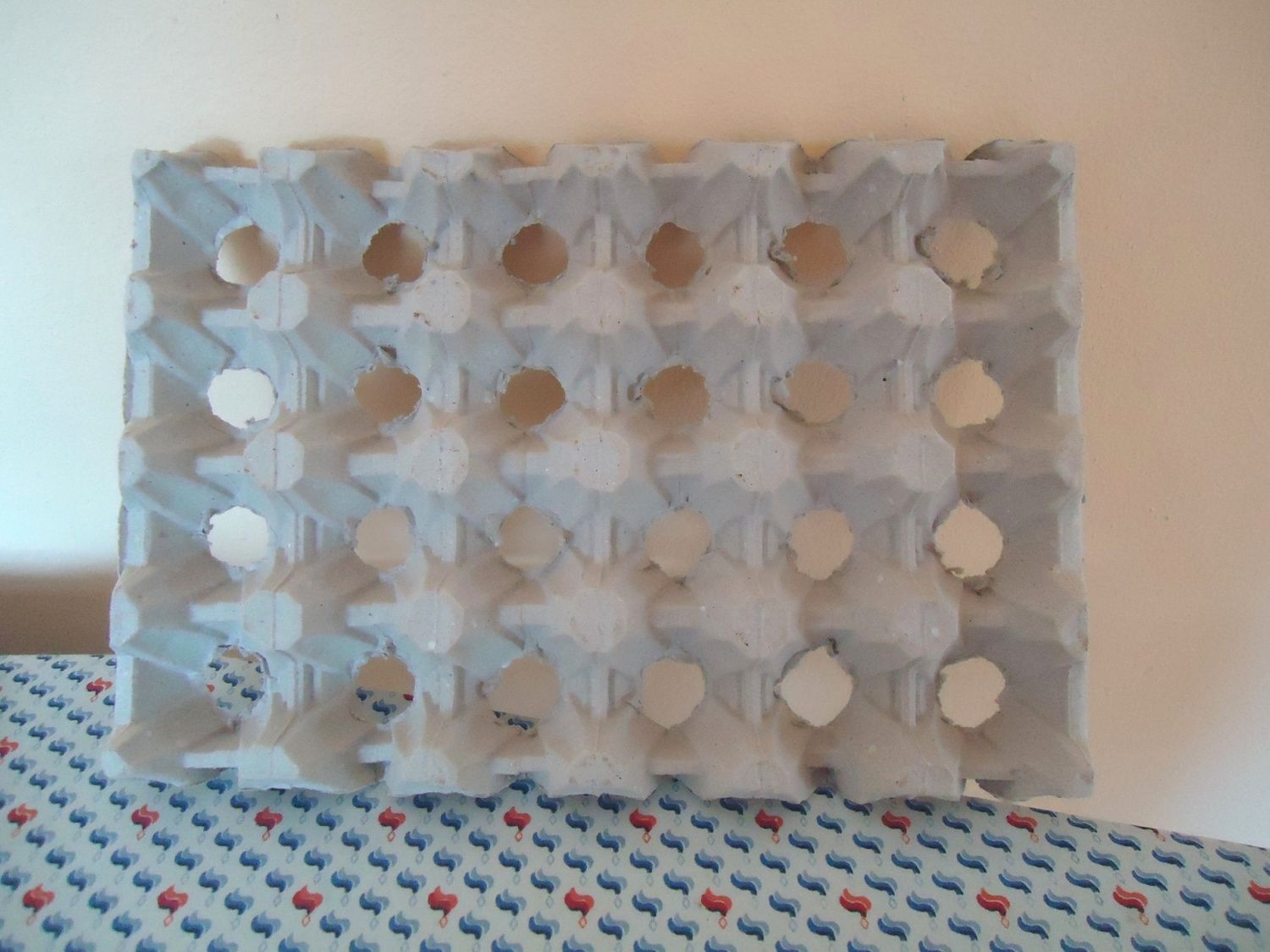

    I am using cut out egg cartons to increase the air circulation around the eggs, as can bee seen in the attached photo.
    [​IMG]

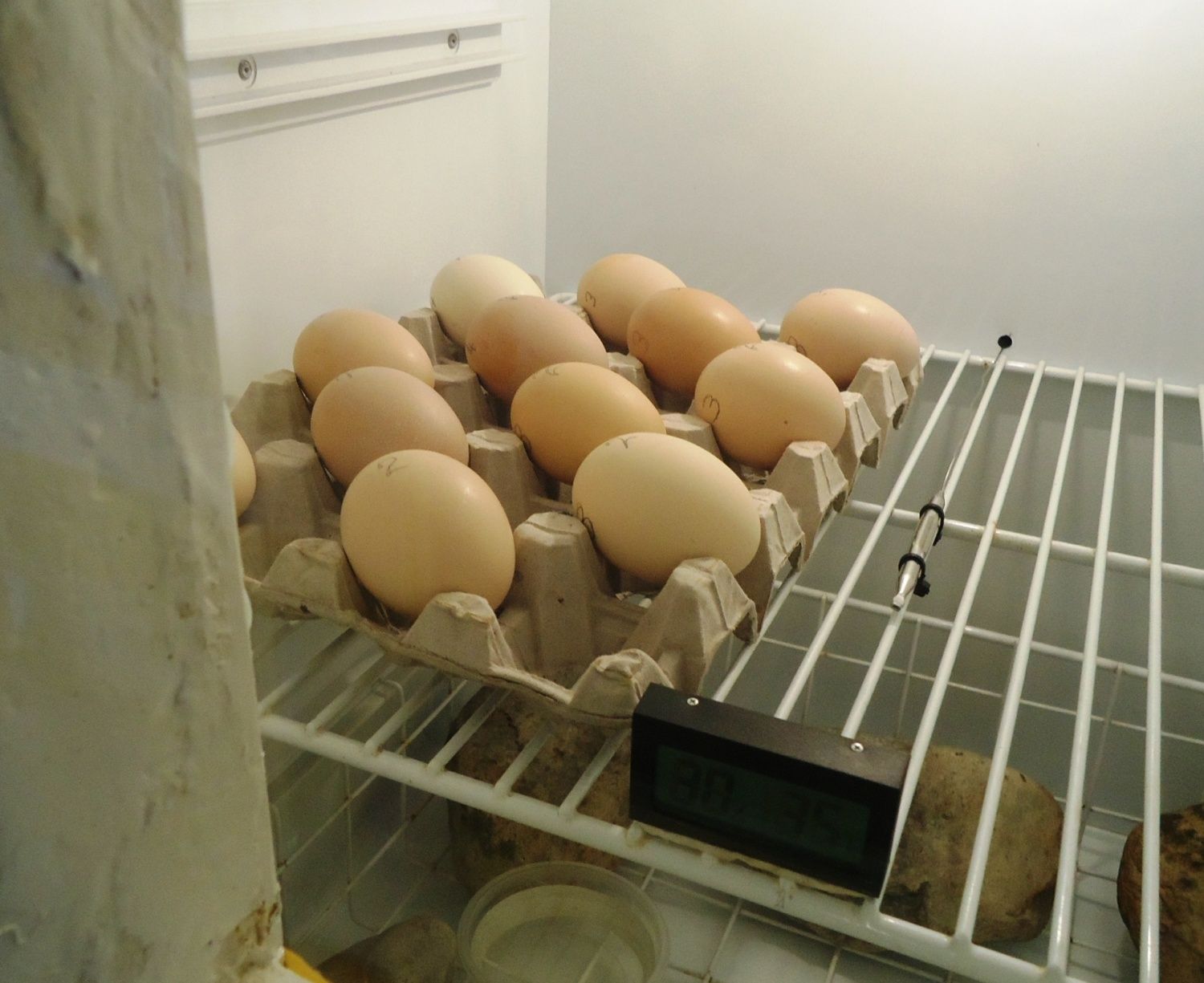

    I have set the 12 eggs lying on their sides with the sharp end pointing slightly downwards
    [​IMG]

    The eggs were candled on day 10 and I found 2 eggs not fertilized which I removed. I continued with the 10 eggs that were good. This morning on day 21 our first chicken arrived. These are Boschvelders, a tough South African breed. They are good layers, disease free and does not need much special food or attention. Lays trough out the year
    [​IMG]

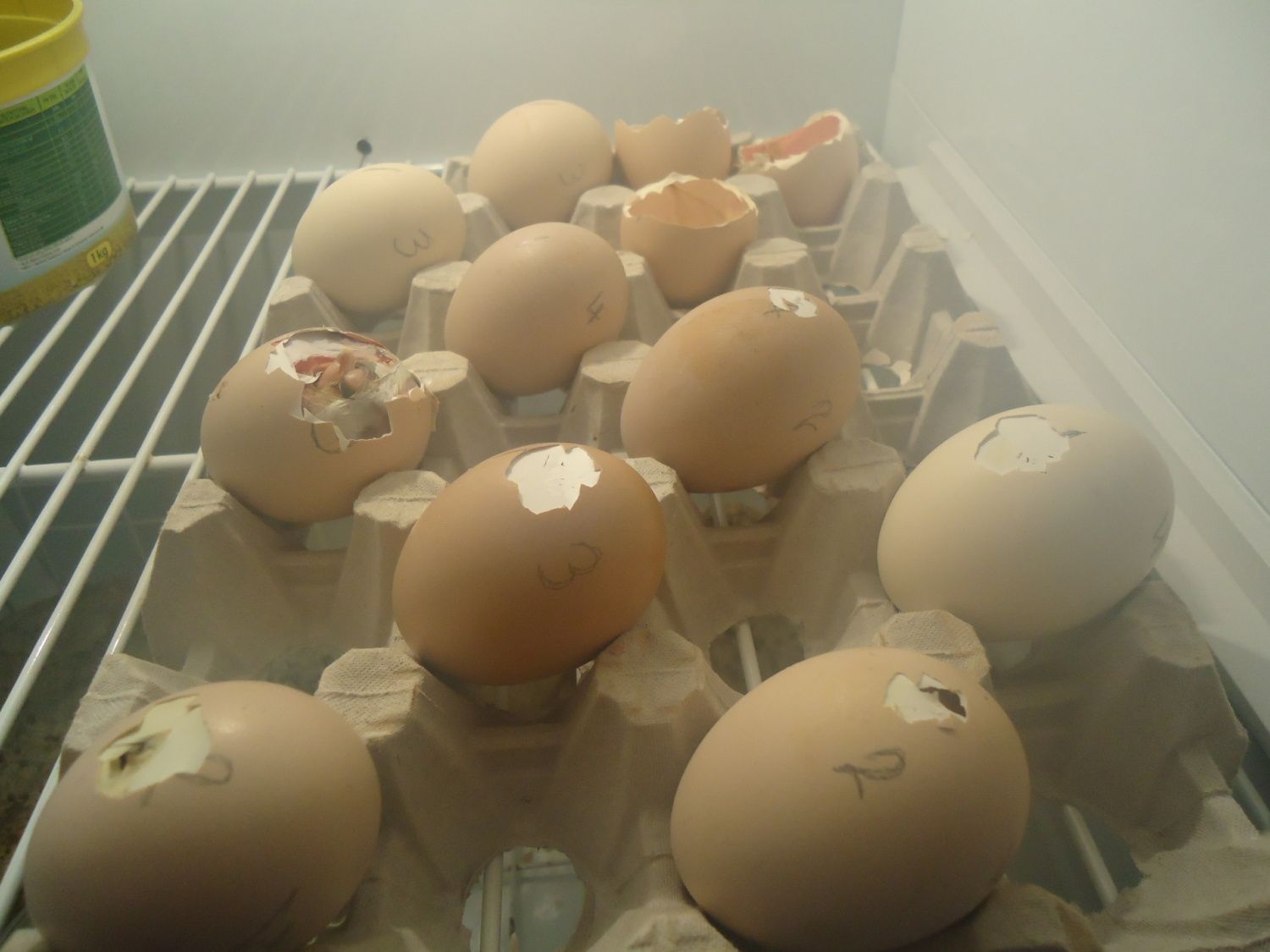

    By late this afternoon all 10 eggs have hatched giving me a 100% success rate with my first attempt using my home made incubator.
