My untested plan for nest boxes:

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by Manwilder, Apr 16, 2015.

  1. Manwilder

    Manwilder Out Of The Brooder

    16
    1
    24
    Apr 11, 2015

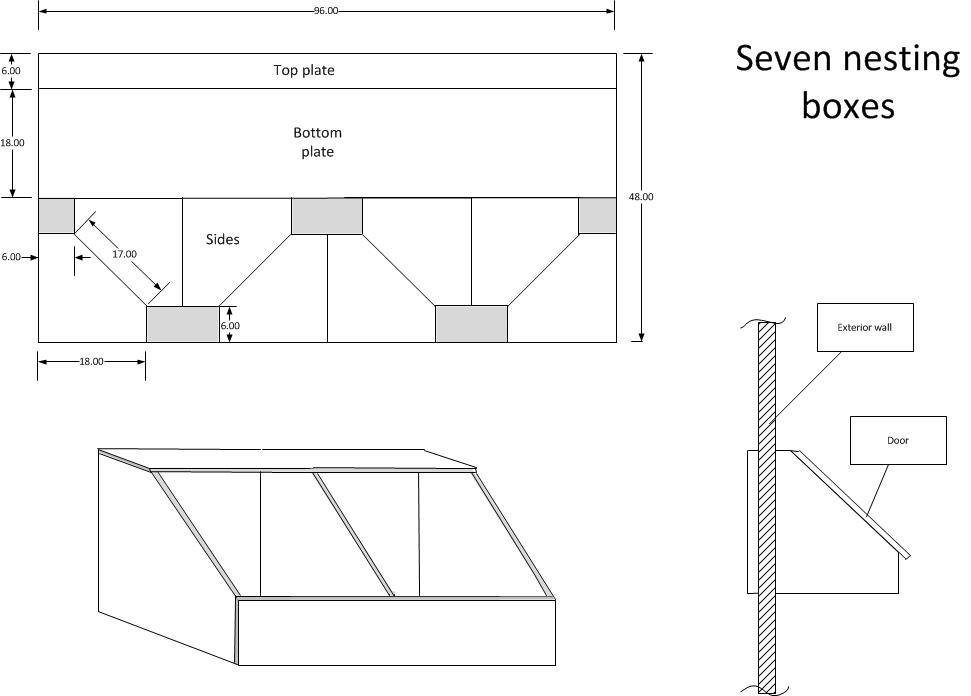

    This is a rough drawing of the boxes I plan to build this weekend. The grey areas are the extra parts that can be used as bracing for corners if needed. The holes are to insert a wooden dowel as a perch. If you make the long cuts first the rest of the cuts will be easier. I'm thinking of flipping it horizontally. My first coop build, so any advice would be greatly appreciated. Thanks.[​IMG]

    1 person likes this.
  2. Manwilder

    Manwilder Out Of The Brooder

    16
    1
    24
    Apr 11, 2015

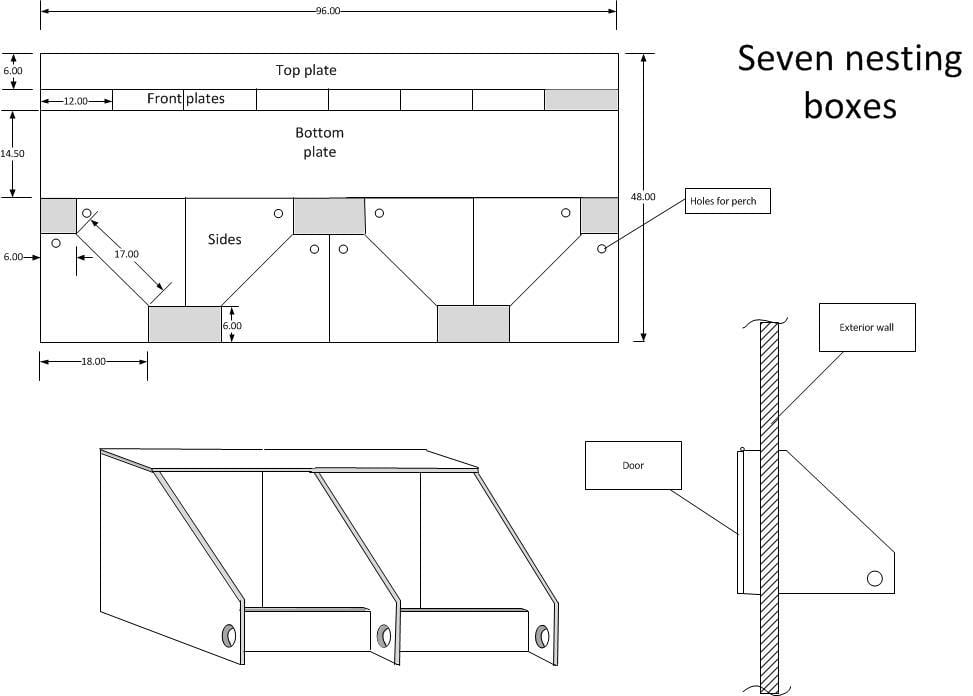

    With boxes flipped:
    [​IMG]

  3. Clemsonchickfan

    Clemsonchickfan Out Of The Brooder

    54
    10
    41
    Apr 12, 2015
    Sumter, SC
    There's nothing "rough" about those drawings! Very well thought out. I can't see the dimensions, how big will each box be when assembled?

    1 person likes this.
  4. Manwilder

    Manwilder Out Of The Brooder

    16
    1
    24
    Apr 11, 2015

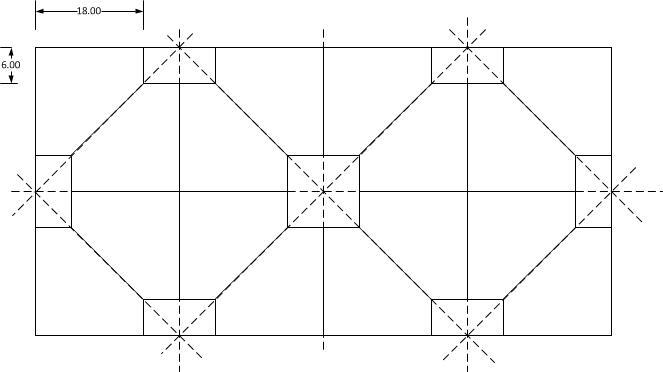

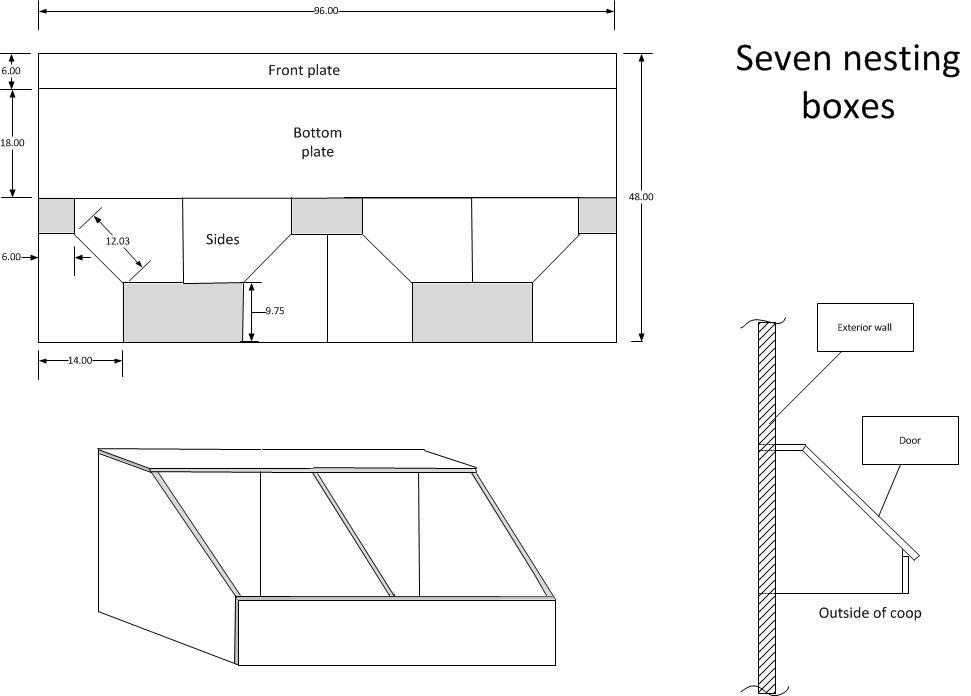

    If I figured this correctly they should be 12" wide by 18" deep and tall. The first drawing yields boxes 12"w x 14"d. The goal was to get as many boxes from a single 4x8 sheet of material as possible with minimal waste. This will give you sides for 14 boxes from one sheet:
    [​IMG]

    The dashed lines are cut lines.

    Last edited: Apr 16, 2015
  5. Manwilder

    Manwilder Out Of The Brooder

    16
    1
    24
    Apr 11, 2015

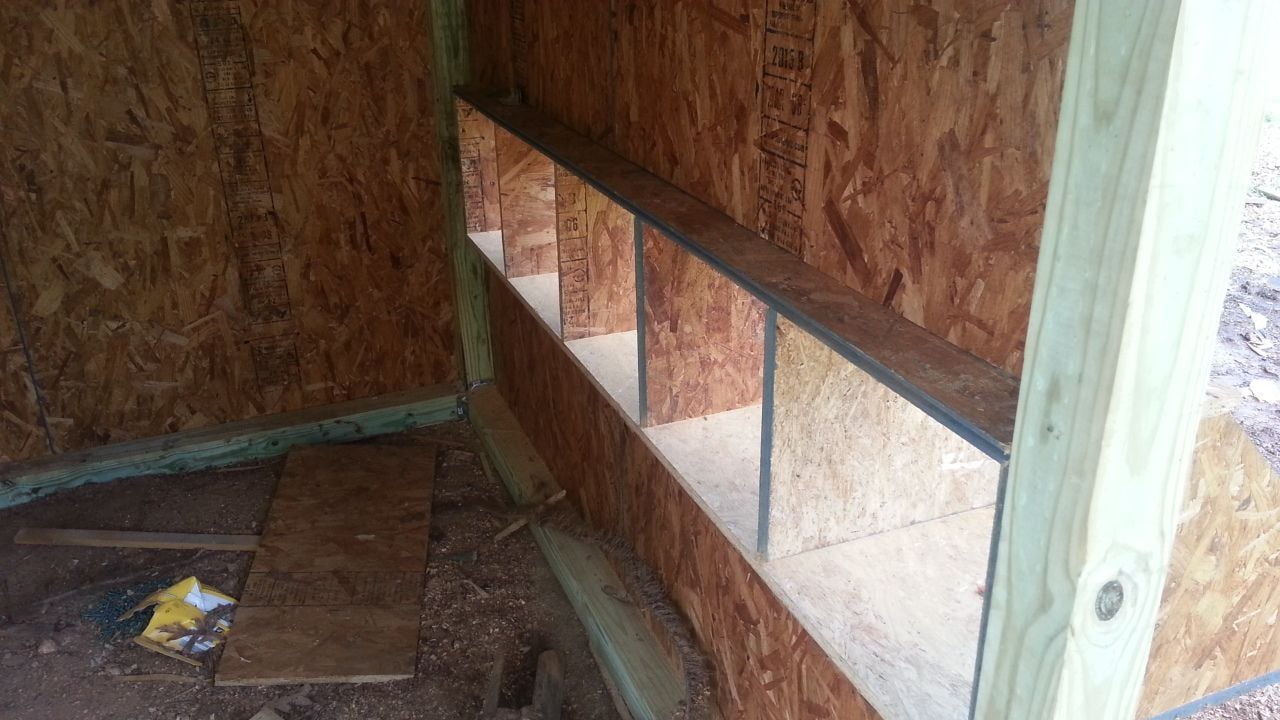

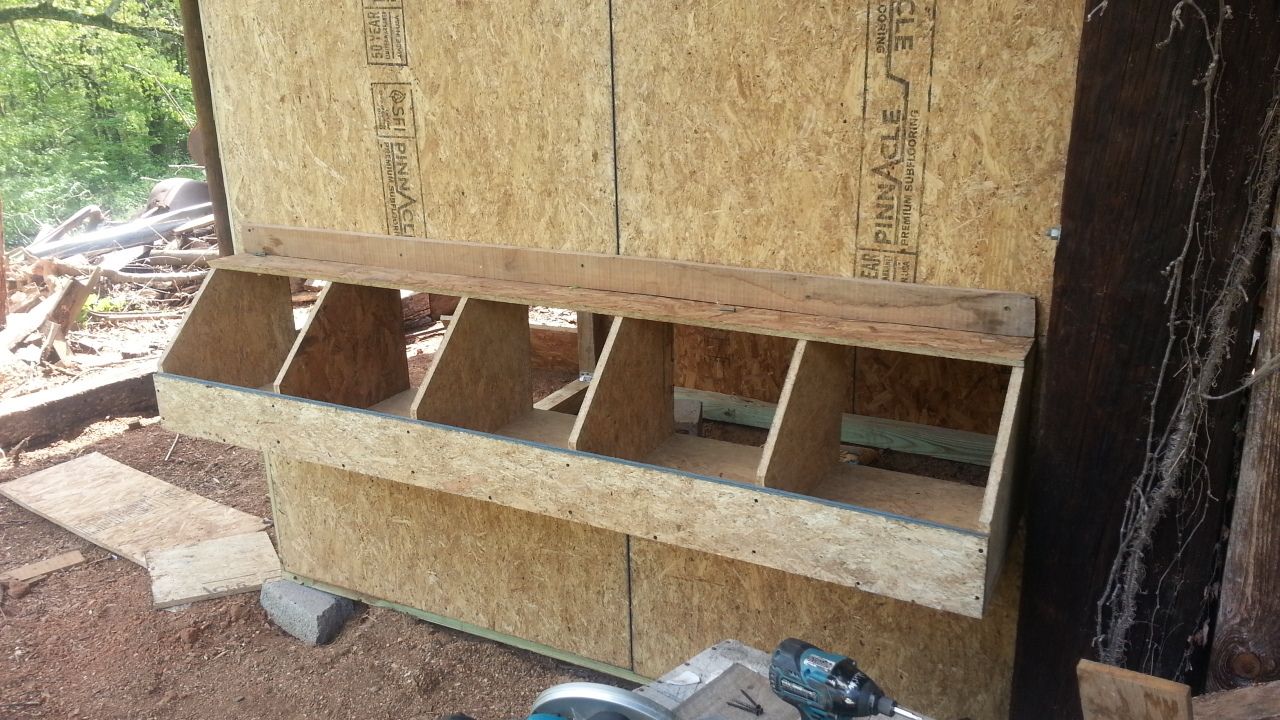

    Boxes are now installed. I reduced the number of boxes to five to allow more room in each one.[​IMG]

    [​IMG]

    [​IMG]

  6. cordless

    cordless Out Of The Brooder

    40
    1
    41
    Apr 15, 2016
    Campbellsport, WI
    So..... it's been a year. How do they like and use them? Are you happy with the results? What size did they end up being?

    I'm almost to this point in my build. Very curious ..... I like the way they look.

  7. ChickenMammX4

    ChickenMammX4 Chillin' With My Peeps

    917
    115
    123
    Mar 17, 2015
    SW Ohio
    Our boxes look to be the same design, except ours have a hinged "lid" that can be lifted for better cleaning access and allow a little extra privacy for the hens. Hens love them! Very cozy.

    [​IMG]
