New coop build 4'x8' - barn style design

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by Firefyter-Emt, Jun 6, 2016.

  1. Firefyter-Emt

    Firefyter-Emt Chillin' With My Peeps

    I started building my coop a bit late, and the poor chicks have been penned in our garden shed and let out in a small fence enclosure like prison inmates for the last month or so... But tonight, I had enough built on the coop to allow them to start to live in their new home! I have a little trim work and the nest box to build still (I am planning a roll out egg style) Plus, I need to fence in the coop and their run and once the rough cut pine is dry enough, it will need some barn red paint, but they can stay inside for a wile yet. We have 12 at the moment, but plan to cull the flock down to a running 9 hens and maybe a rooster. This year they are all RIR's, and I plan to swap out three each year so that we always have 6 hens that are one or two years old. When I swap out the hens, I will swap breeds.

    Well, you all want the photos so here we go...

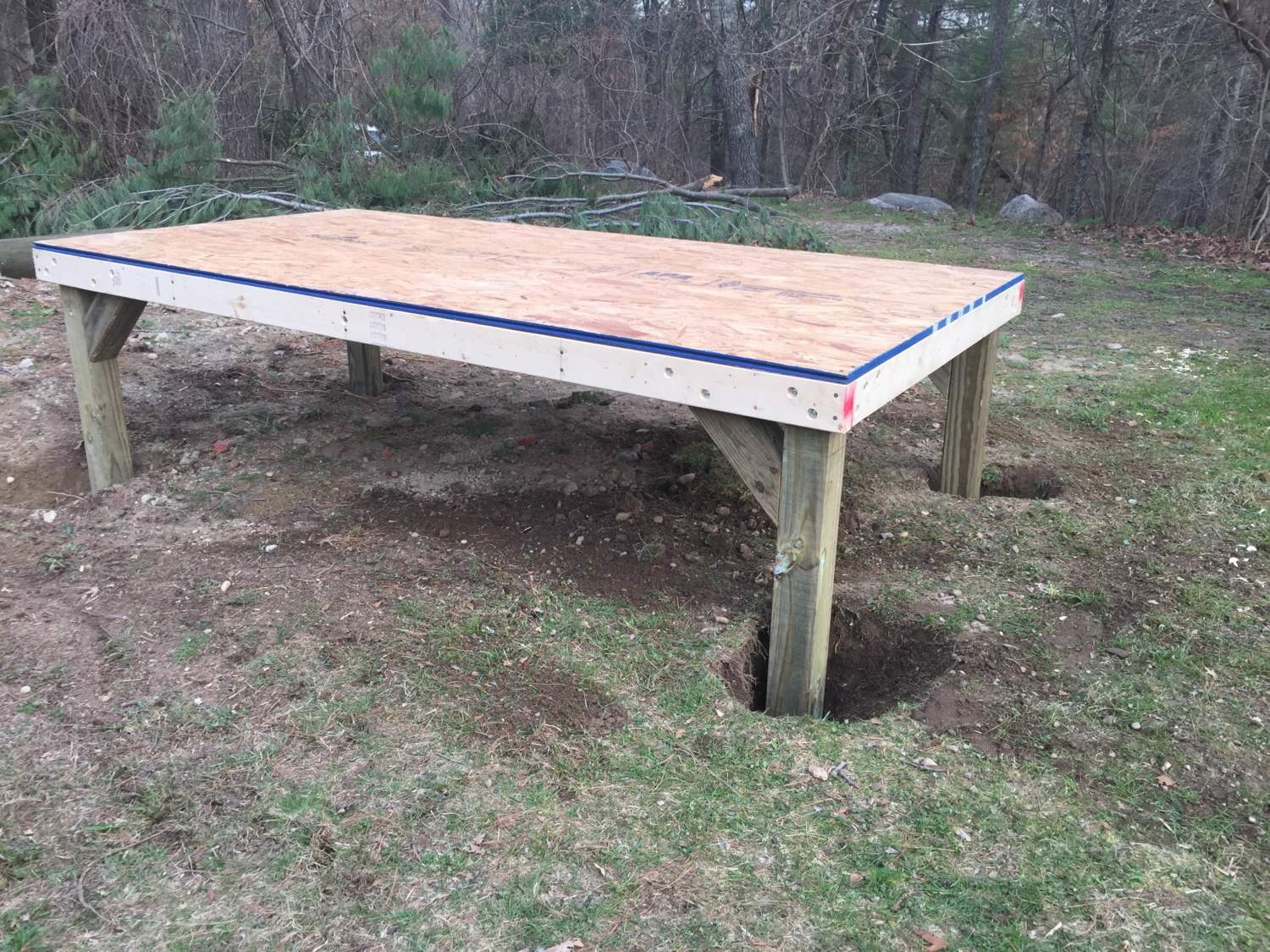

    Started out with a simple 4x8 base and pressure treated legs cemented in the ground.
    [​IMG]

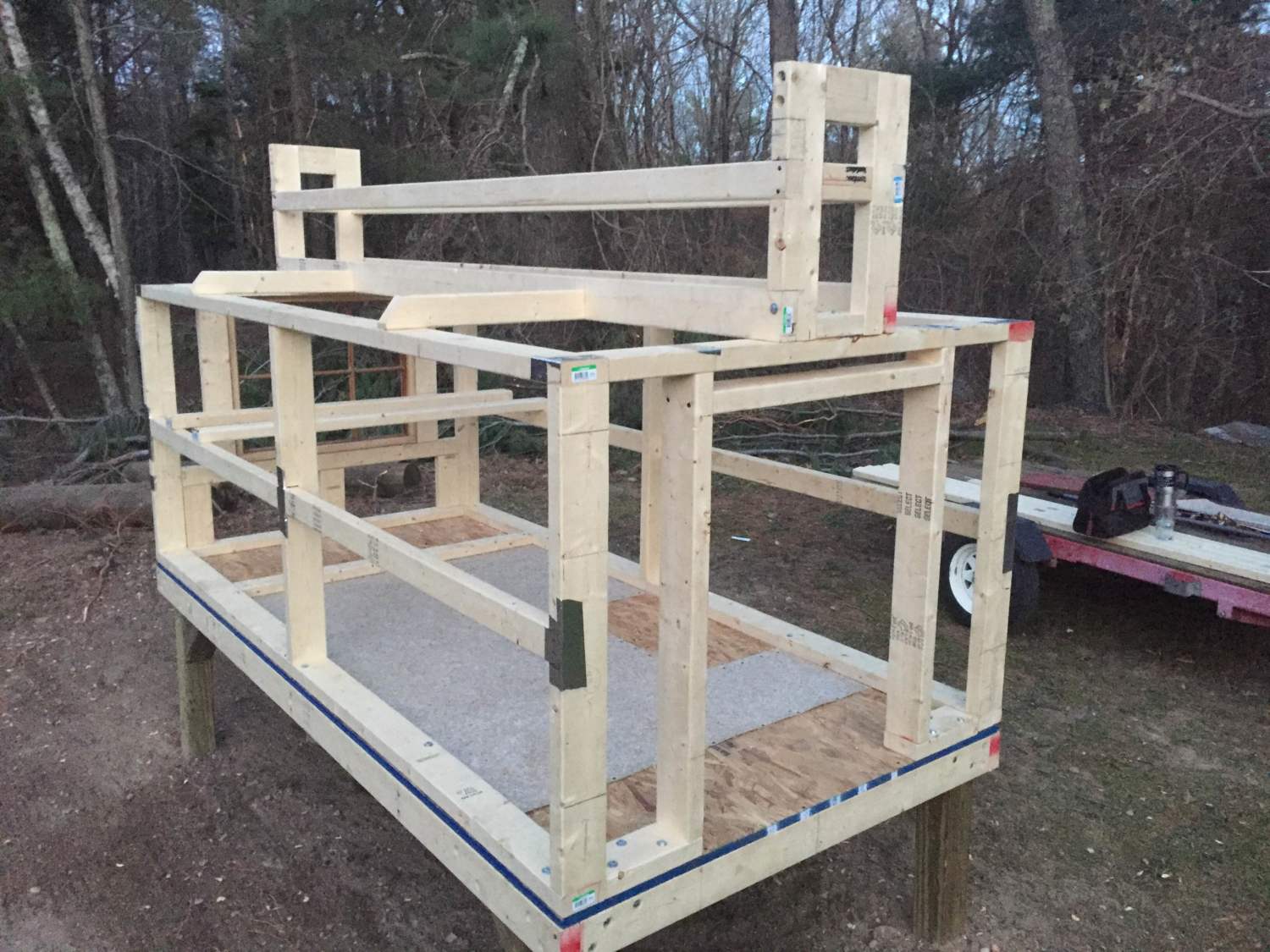

    Then some down and dirty wall framing and the start of the roof design.
    [​IMG]

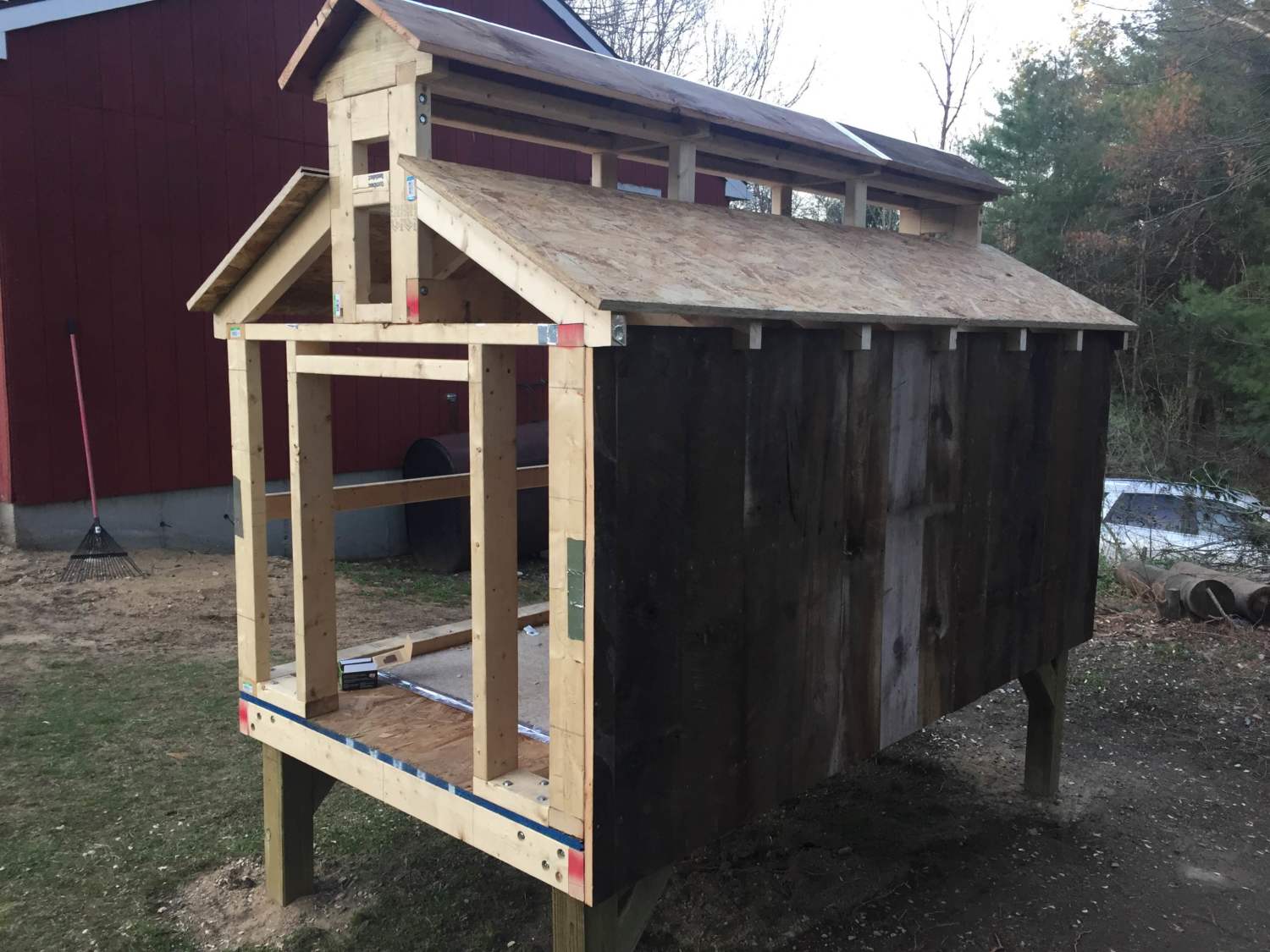

    Then onto the siding... I am using rough cut pine and batten siding, The RT side is done in reclaimed 100+ year old barn board.
    [​IMG]

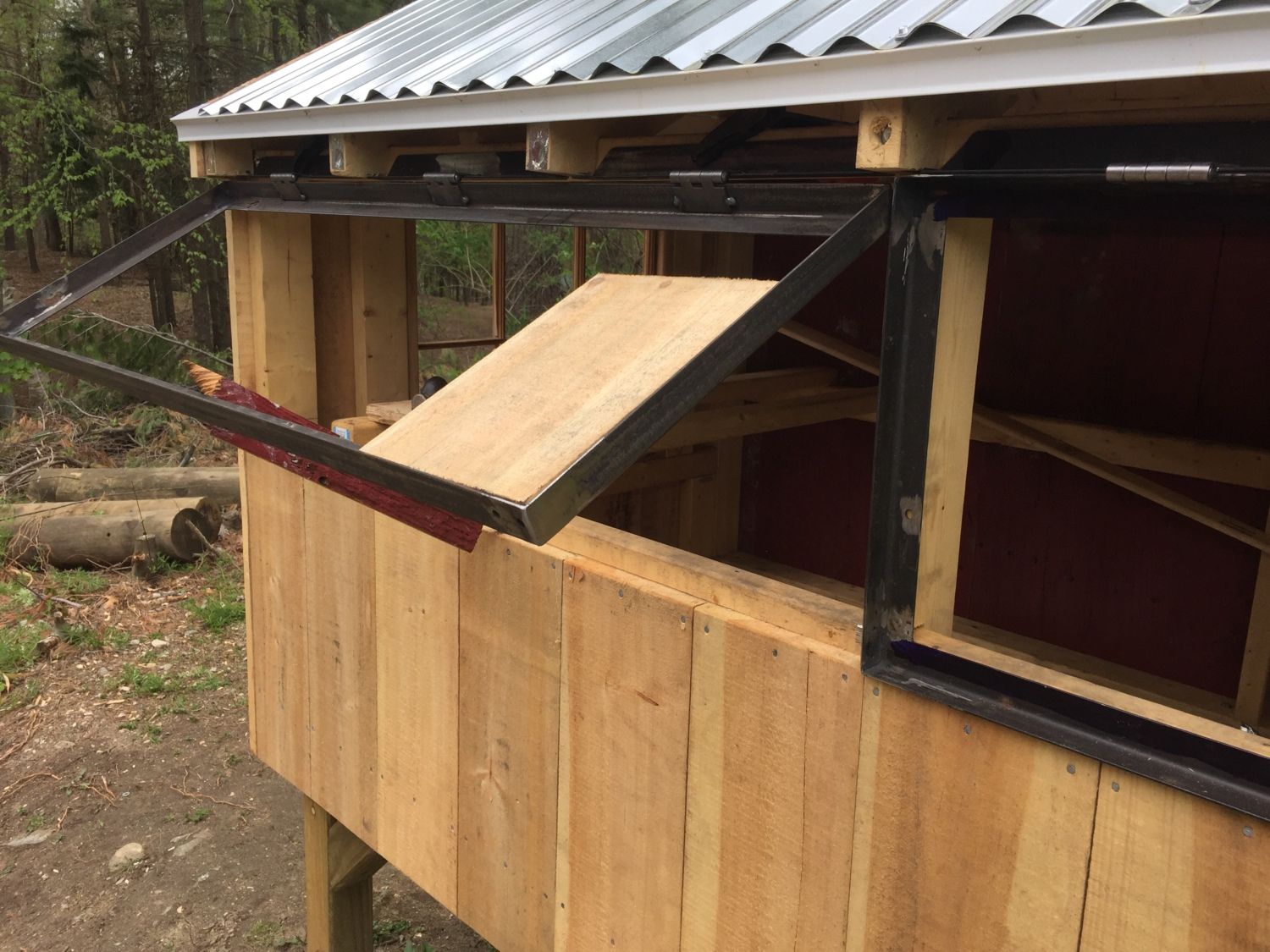

    For extra access inside, I made two hinged doors which I welded up from old bed frames. I may be redesigning this and hinge the doors so that the fold down, they are too low when open and I am not happy with them! These are not the egg doors, just access to give them food in the winter and to access inside.(You will also notice that I started to use the metal roofing, but decided to ditch it for shingles. I was not pleased with how crappy the tin roof at Lowe's really is...
    [​IMG]

    [​IMG]



    Here is the run side showing the floor access ramp The ramp is also reclaimed old lumber from the same barn the siding came from.
    [​IMG]

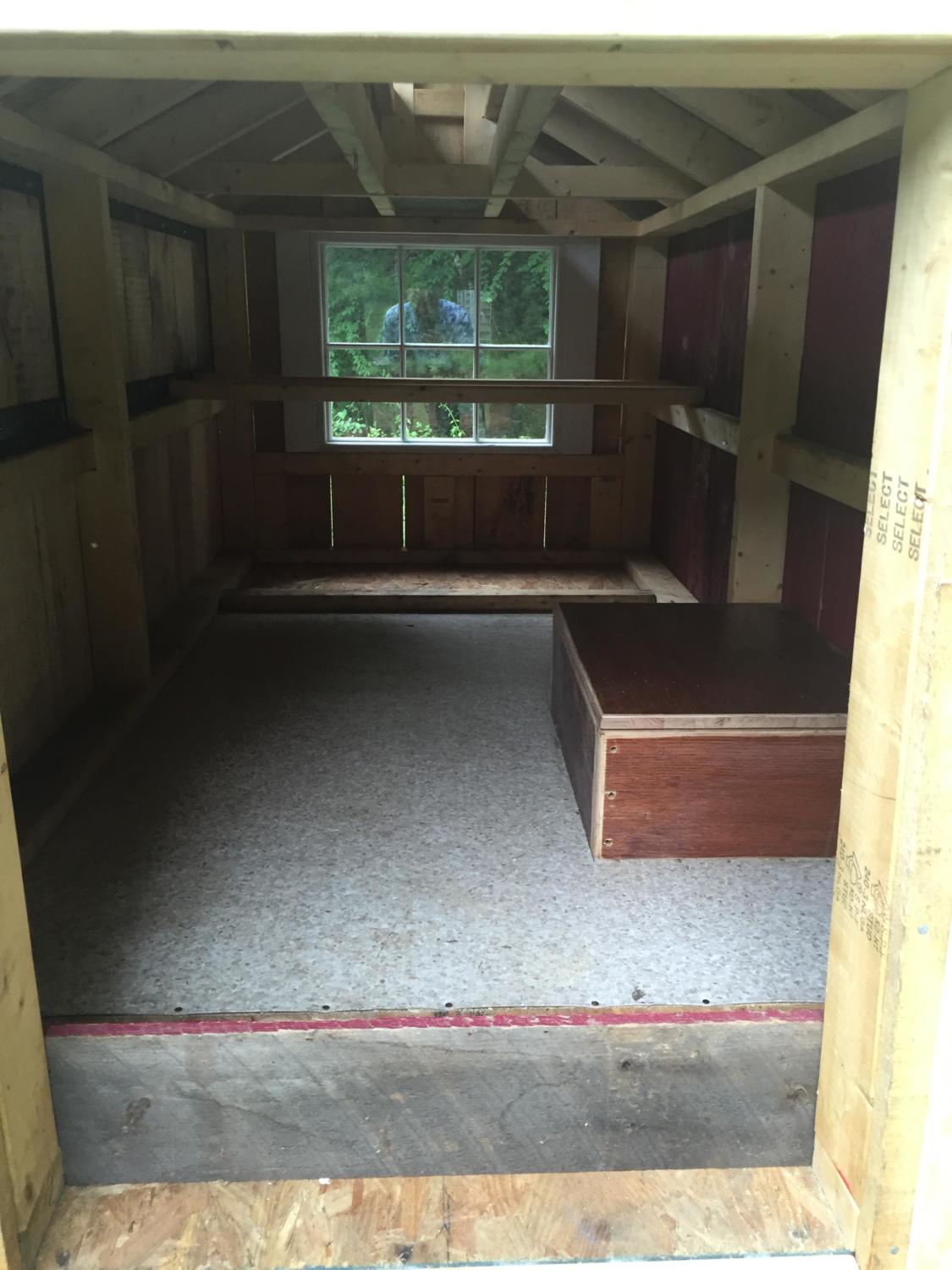

    Here's a view from the egg door showing the trap door shut on the nest box. I plan to cut a section about 4" wide from the wall, add hinges and a pretty slick outside mounted handle to open the trap door kind of like a wood stove door. More on that later... I still need to add a few batten boards under the window, but I need to pick up another rough cut board to rip down.
    Far back near the window are two 2x3" roost boards and eventually a "poop hammock" will be installed.
    The nest boxes will be up near the top of the height about a foot or so off the floor. My plan is that the egg collection will allow four next boxes to empty into one "tray" that is in between the door frame. The two side boxes will require sloped sides to channel the eggs into the collection tray, but I think it will all work when I am done.
    [​IMG]


    Here is the exit to the run with the trap door removed.

    [​IMG]


    I have saved the best for last... Here is what it looks like pretty much done, minus a little more trim work and paint.
    This is the back side with a fixed glass window that was cut down to work in this fashion, primed, and all the glass re-glazed. Like I said, I need to add a little more trim on this wall still.

    [​IMG]


    [​IMG]

    Last edited: Jun 6, 2016
    1 person likes this.
  2. Firefyter-Emt

    Firefyter-Emt Chillin' With My Peeps

    Huh... Quiet flock here nowadays...

  3. Jenna14Chicken

    Jenna14Chicken Chillin' With My Peeps

    1,072
    33
    111
    Mar 19, 2016
    OH.
    That is AWESOME!!!!!! Best coop I've seen !!!Great job! :) Do you want to come do mine? Lol

  4. Folly's place

    Folly's place Chicken Obsessed

    7,564
    2,054
    416
    Sep 13, 2011
    southern Michigan
    Beautiful! Mary

  5. TerryH

    TerryH Chillin' With My Peeps

    1,083
    245
    161
    Mar 12, 2016
    NW Arkansas
    My Coop
    Very cool! I like it!

  6. Firefyter-Emt

    Firefyter-Emt Chillin' With My Peeps

    Thanks all!
    A fun bonus which has been added by accident, is that not only can the chickens look out the window, the two year old's can stand on a step stool and look in! They are having a blast watching them...

    Now if I could just get them to use the roosts! I even added a nice ramp for them to use, but they want to cuddle on the floor! Any thoughts?

  7. Folly's place

    Folly's place Chicken Obsessed

    7,564
    2,054
    416
    Sep 13, 2011
    southern Michigan
    Some of my chicks aren't on their roosts yet either, but in time, they will figure it out. Mary

  8. TerryH

    TerryH Chillin' With My Peeps

    1,083
    245
    161
    Mar 12, 2016
    NW Arkansas
    My Coop

    Ours did the same. We waited for them to settle down and just picked them up and put them on the roosts for a couple of nights and they caught on.

  9. Firefyter-Emt

    Firefyter-Emt Chillin' With My Peeps

    Well, they are roosting all like pros... now if I can just get them to leave the coop by way of the trap door and enjoy the outdoors! I keep placing them on the ramp to exit via the floor exit, and they will walk down and walk around a bit and then go back in. I do not think any of them will leave on their own! Next trick is to start bribing them with food!
