oldclucks cabinet incubator build.

Discussion in 'Incubating & Hatching Eggs' started by oldcluck, Dec 16, 2012.

  1. oldcluck

    oldcluck Out Of The Brooder

    86
    5
    44
    May 16, 2011
    I have been debating purchasing a sportsman or building my own incubator for a while I have finally decided to build my own. So I will document that effort here. I am building a cabinet with interior mesurements of 16" wide, 31" tall and 30" front to back. I wanted it wide and tall enough to hold 3 egg turners plus a hatching tray. I will be using egg turners from my genesis and little giant incubators instead of building an egg turner. Material is 1/2" plywood (13/32").

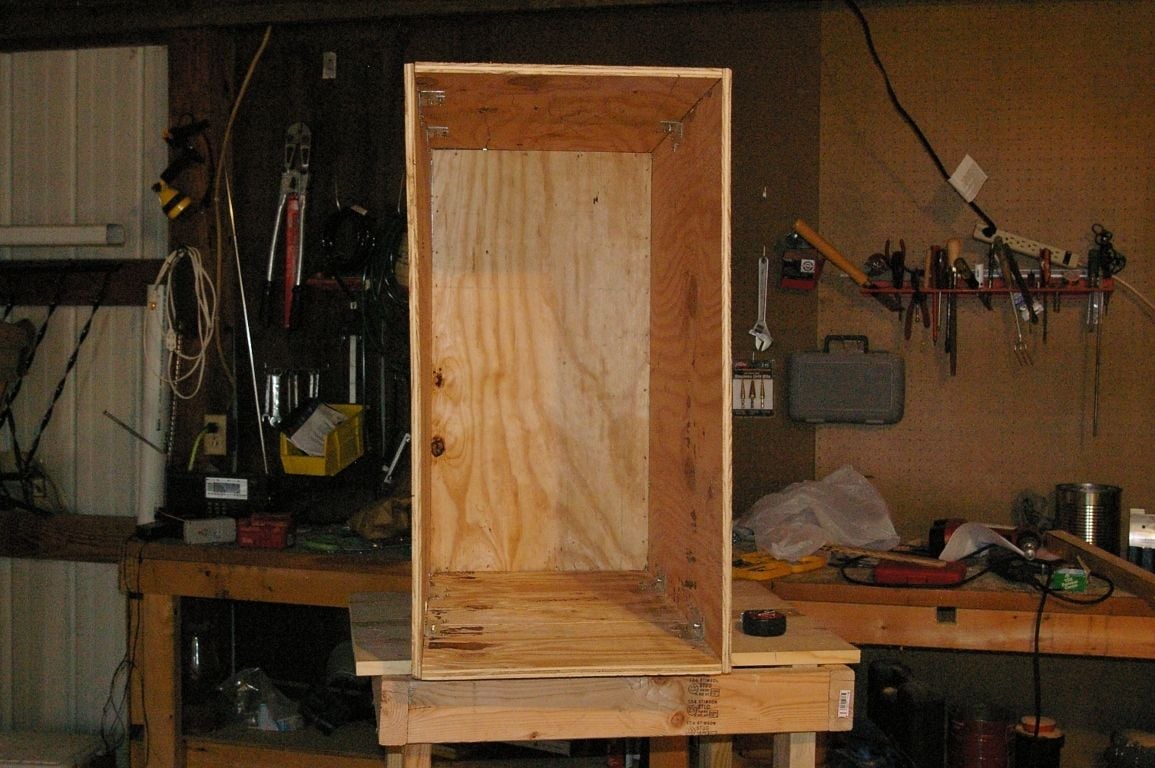

    Here is a picture of the bare cabinet.
    [​IMG]

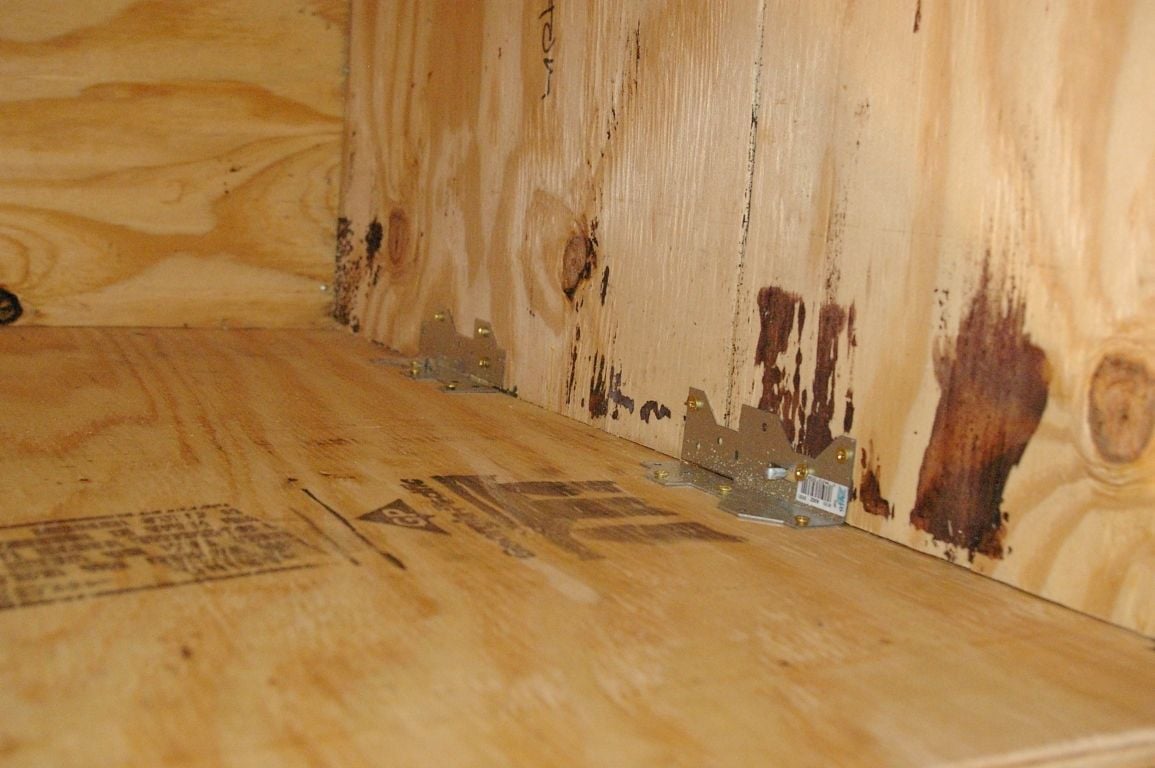

    I used simpson strong ties to attach the top and bottom to the sides. Top and bottom is also glued. These are what the strong ties look like.
    [​IMG]

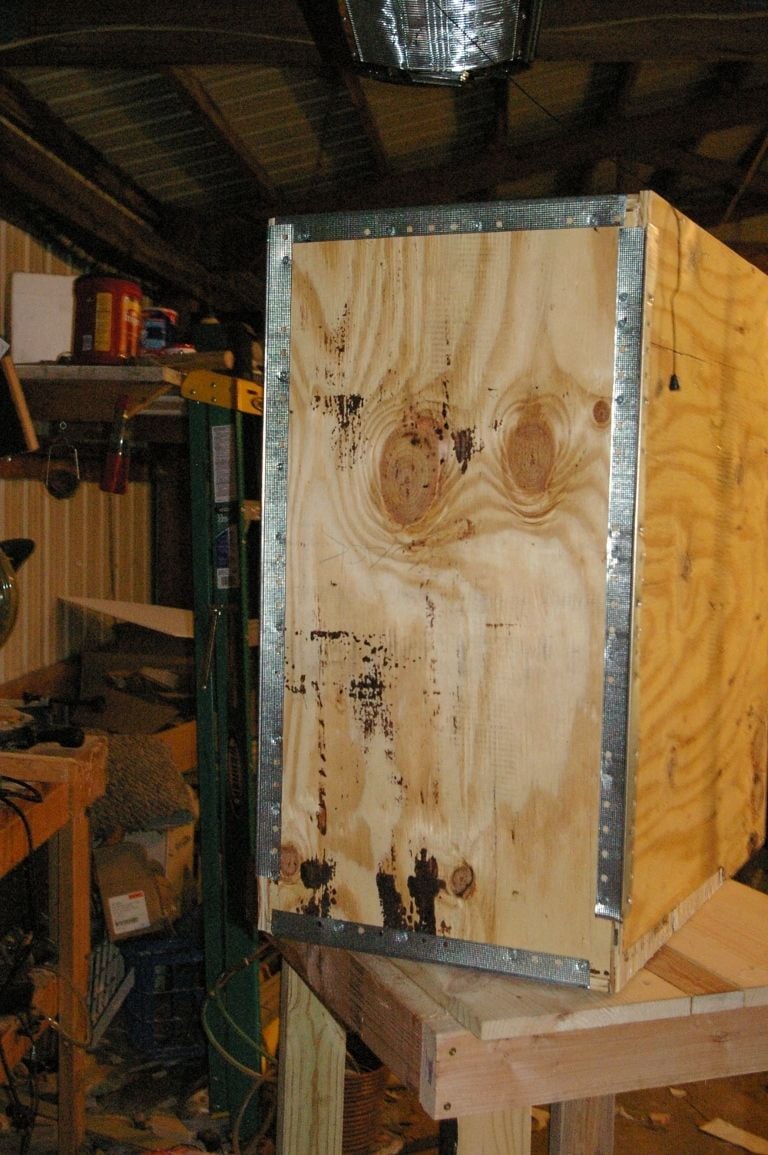

    For the back I ran out of simpson ties and not wanting to make a trip back to town i used glue and some metal edging used to trim drywall corners. They are a bit thin but worked well for this purpose.
    [​IMG]
    There will be a false back installed about 10" in front of the back it will have 2 fan holes at top and will not reach all the way to the bottom to make a barrier for air flow. i am using an incukit for heating and air flow. more to come later

    Last edited: Dec 16, 2012
  2. Sally Sunshine

    Sally Sunshine Cattywampus Angel <straightens Halo> Premium Member

    55,602
    5,166
    626
    Aug 23, 2012
    Pennsylvania
    My Coop
    GREAT work, DH and Daughter made a coolerbator!! I LOVE IT!! no more bought bators for me!!!

  3. oldcluck

    oldcluck Out Of The Brooder

    86
    5
    44
    May 16, 2011
  4. Sally Sunshine

    Sally Sunshine Cattywampus Angel <straightens Halo> Premium Member

    55,602
    5,166
    626
    Aug 23, 2012
    Pennsylvania
    My Coop
    I dont have sketchup on my laptop only on my pc.... can u snip or pdf a link

  5. oldcluck

    oldcluck Out Of The Brooder

    86
    5
    44
    May 16, 2011
  6. oldcluck

    oldcluck Out Of The Brooder

    86
    5
    44
    May 16, 2011

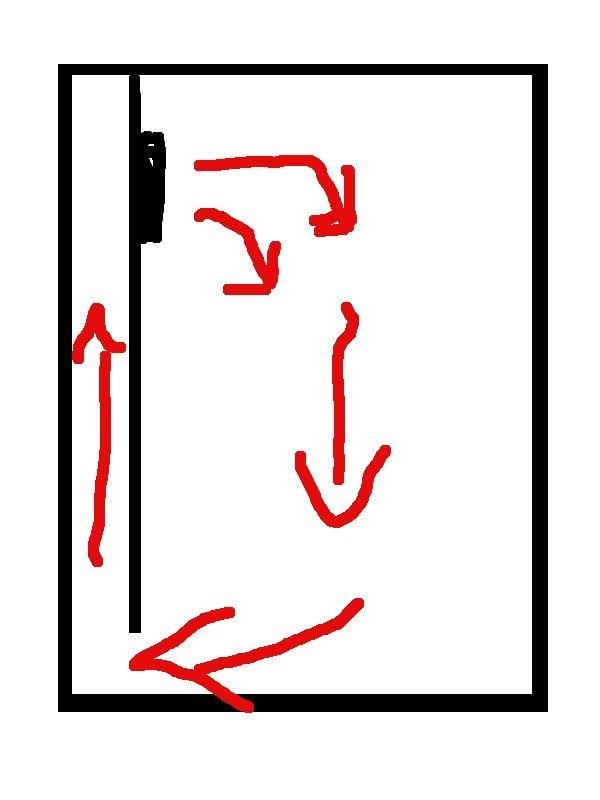

    The incukit has arrived and so has the weekend. Tonight I worked on the baffle or false back. The incukit is meant to be installed against the top of the incubator but I feel I can get a better airflow and more even temps top to bottom if I install it in the baffle so that air is constantly being circulated throughout the cabinet. See this diagram. excuse my poor art skills.
    [​IMG]

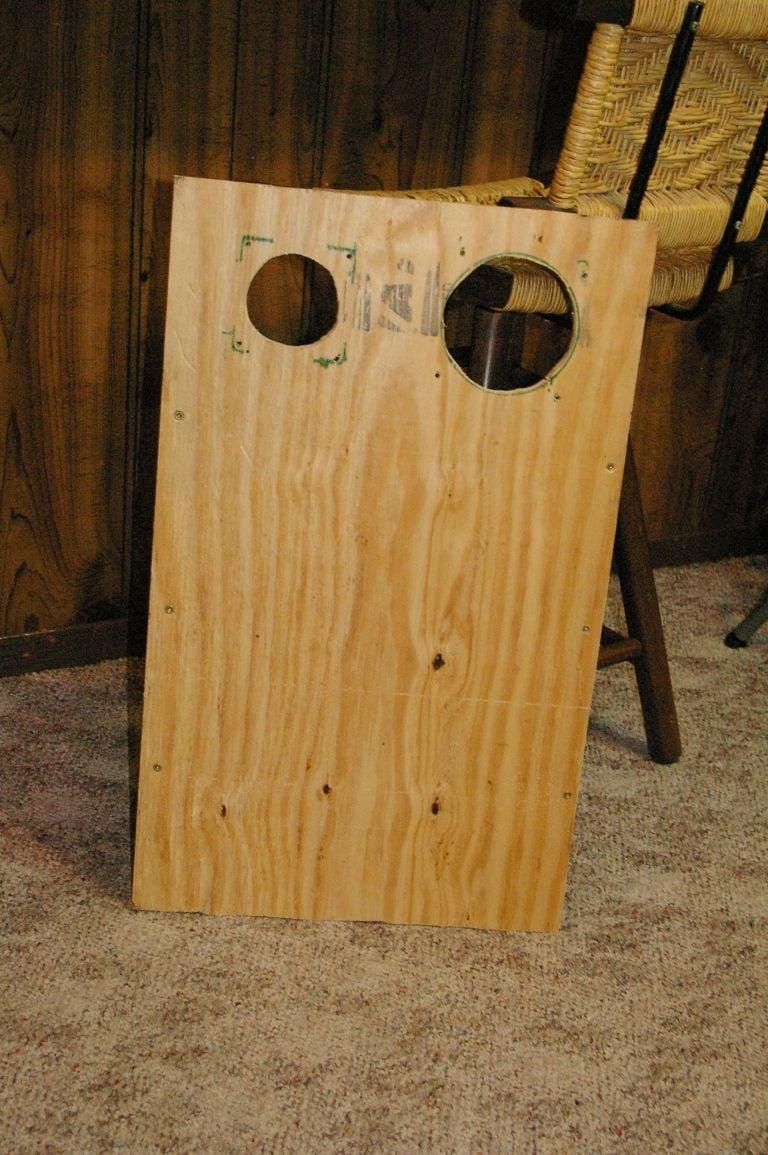

    Its not really hard to do this. just remove the plastic screws holding the grill onto the intake side of the fan and use some bolts going through the baffle and through the fan housing to a nut. Tomorrow I get the bolts but tonight I used a drill and jigsaw to make the mounting holes. I used the fan's metal grill as a marking guide. Here is what the baffle looks like before mounting the fans. I purchased an extra 80mm AC fan for additional airflow hence their are two different sized holes. More tomorrow after a trip to the hardware store.
    [​IMG]

  7. CelticOaksFarm

    CelticOaksFarm Family owned, family run

    12,308
    170
    323
    Sep 7, 2009
    Florida - Space Coast

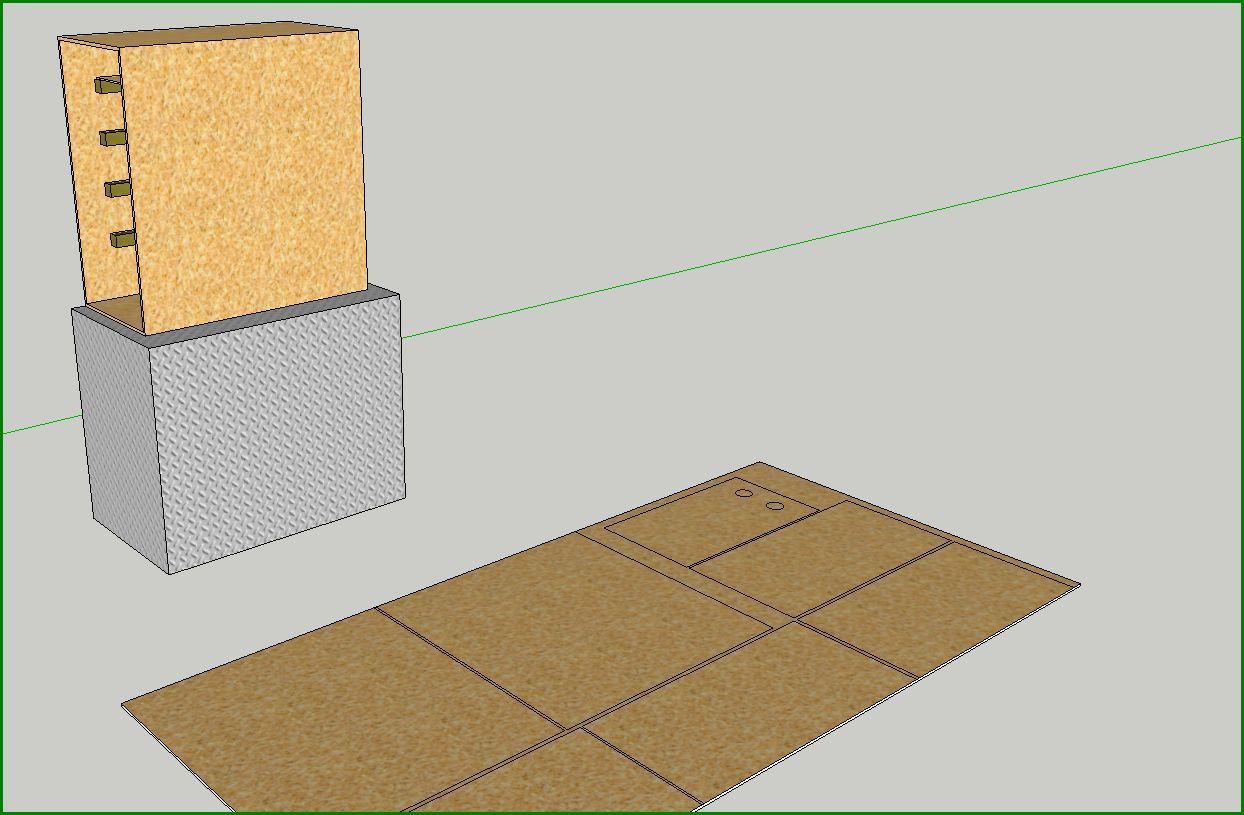

    here is the sketch up image


    [​IMG]

  8. CelticOaksFarm

    CelticOaksFarm Family owned, family run

    12,308
    170
    323
    Sep 7, 2009
    Florida - Space Coast
    could you give the dimensions of the cuts since you have it laid out to use 1 sheet of plywood? Do you plan a solid or door ot one with a window?

  9. Quyen Le

    Quyen Le Chillin' With My Peeps

    323
    11
    101
    Jul 9, 2012
    With material that thin, heat escape is spmething you should consider. I put my incubator (same thickness as yours) in a room and my room get really warm. I have to use foam to put around my incubator to keep the heat in. What thermostat are you using? What do you use for heat? Where do you put water? I think you need to add more fan power since the cabinet is quite large for those 2 fans. Hope you get everything figured out.

    Last edited: Dec 22, 2012
  10. oldcluck

    oldcluck Out Of The Brooder

    86
    5
    44
    May 16, 2011

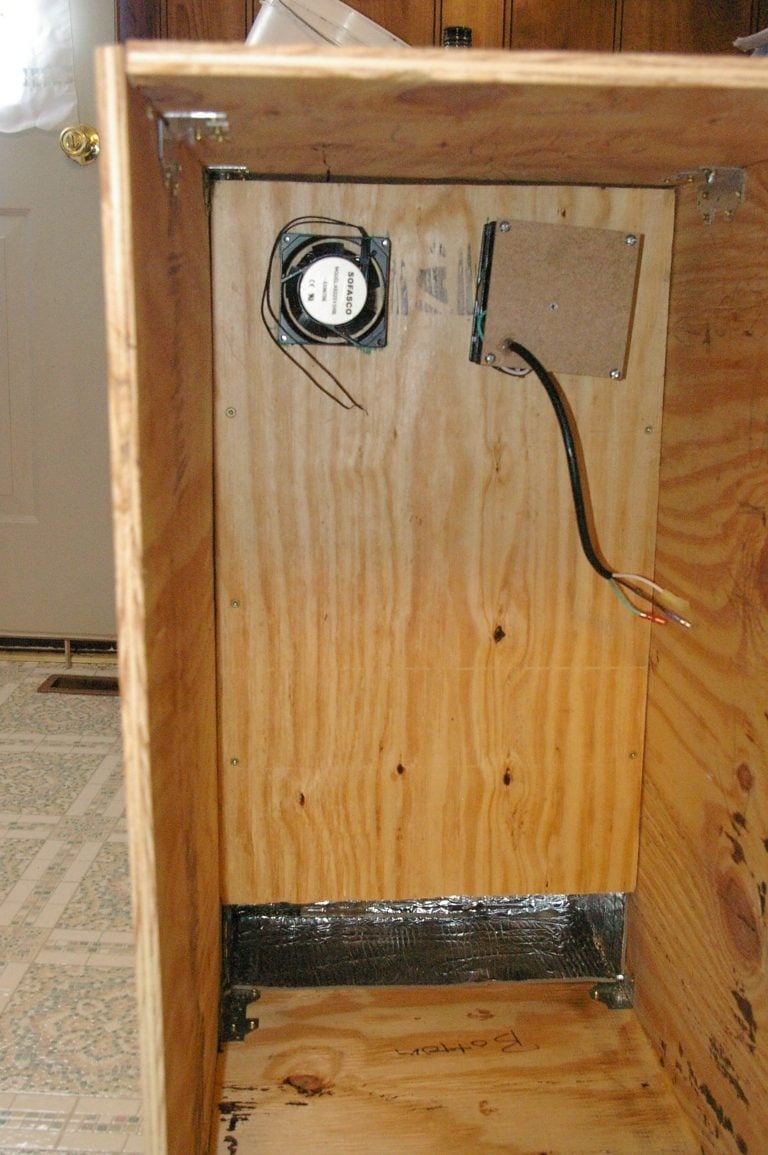

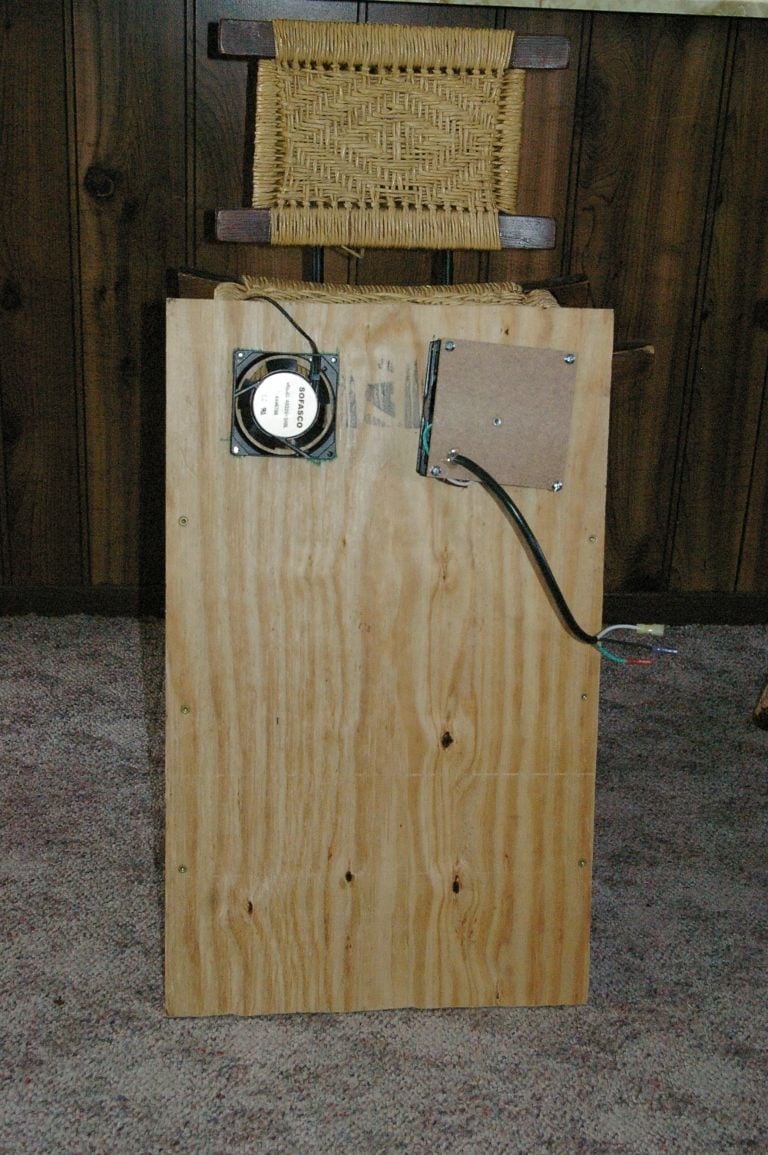

    Ok got a bit more done today. Mounted the fans to the baffle.
    [​IMG]

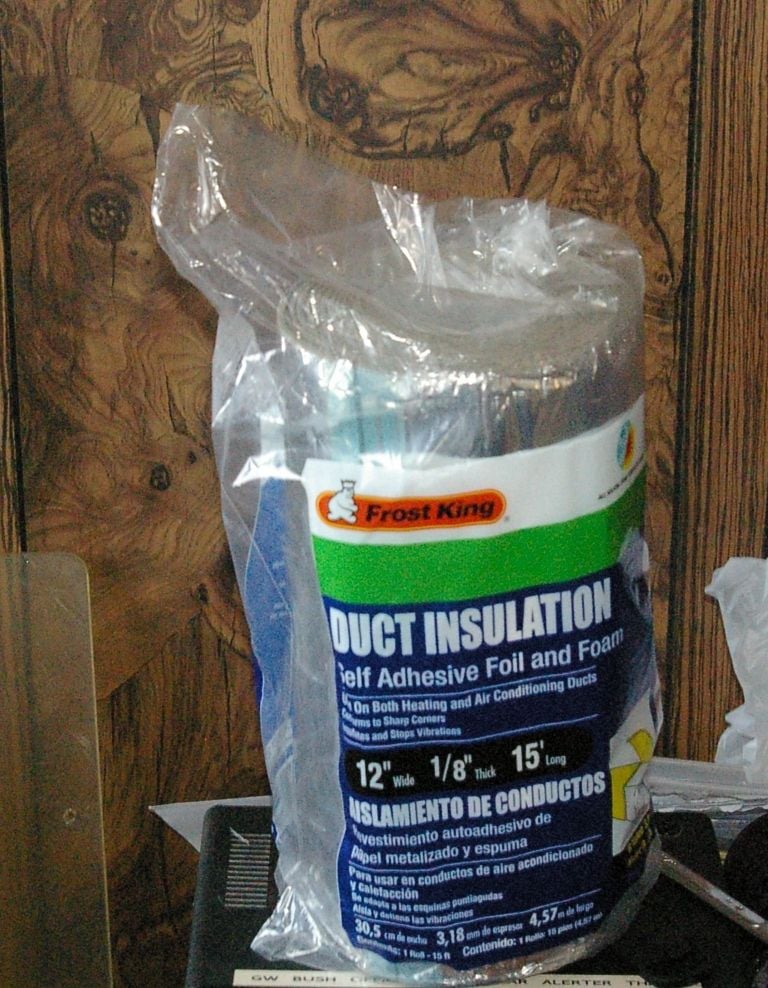

    Then I insulated the rear ducting area. I havent talked about insulation yet because I wasn't quite sure of what I was going to insulate with. I considered polystyrene board, and reflectex. Then I discovered this duct insulation. It is self adesive and foil backed. listed as r3 and is only 1/8" thick. I picked 2 rolls of this up at the local home depot.
    [​IMG]

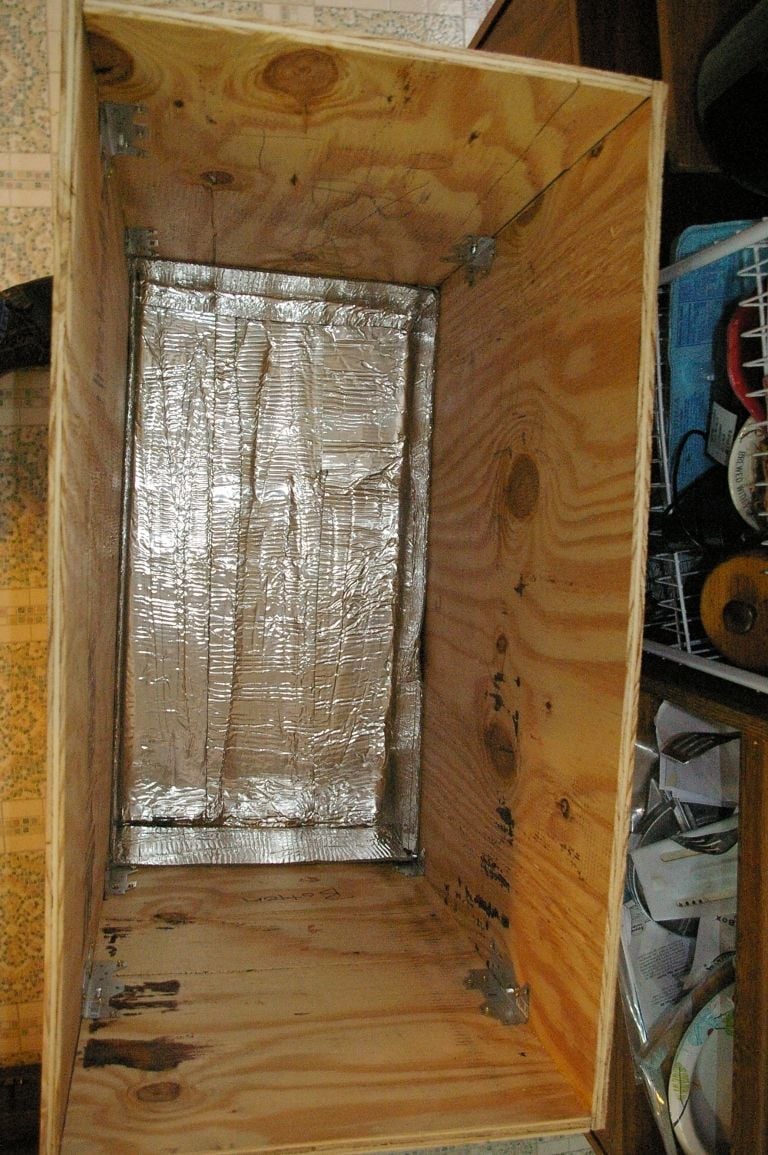

    Here it is applied at the back of the incubator. I then put some on the back of the baffle and put the baffle in.
    [​IMG]
    [​IMG]

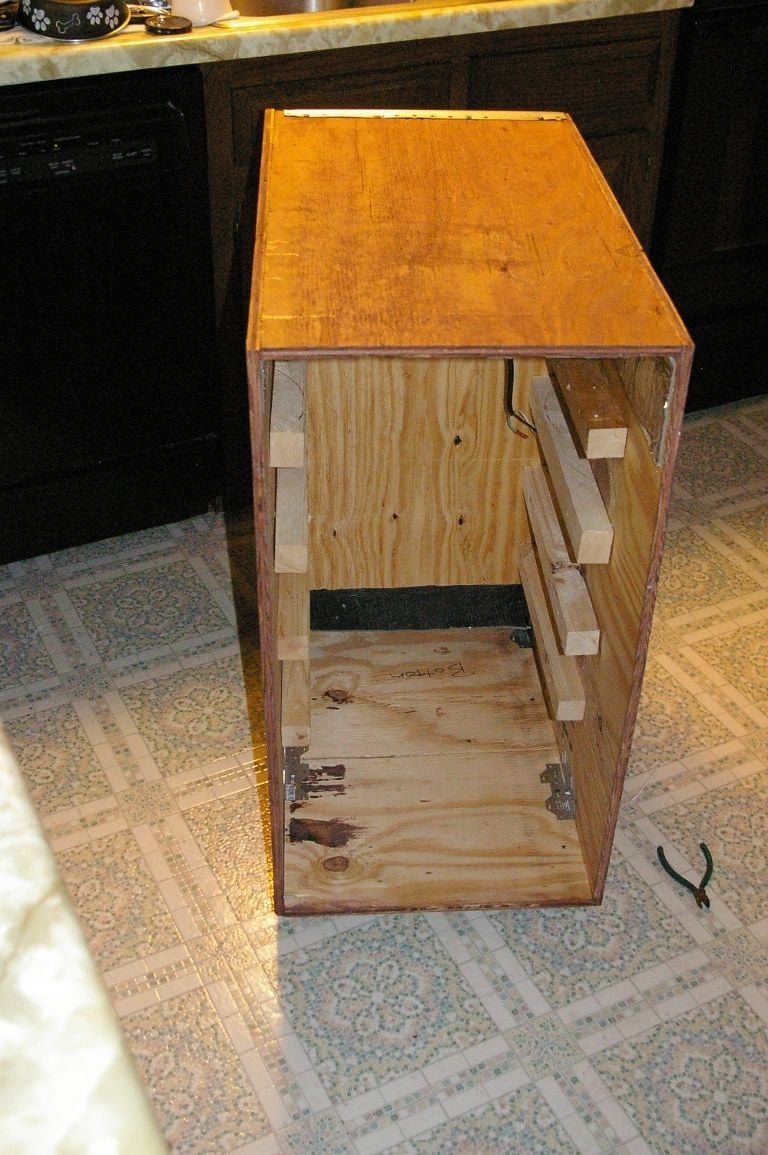

    Then I started putting the shelf brackets in and installed casters on the bottom so it can be rolled around.
    [​IMG]

    Tomorrow I will finish insulating, wire the heater and fan and add the door.
