POP door design

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by jrudolph305, Mar 1, 2013.

  1. jrudolph305

    jrudolph305 Chillin' With My Peeps

    123
    0
    109
    Dec 1, 2009
    Meadows of Dan, Va
    [​IMG]

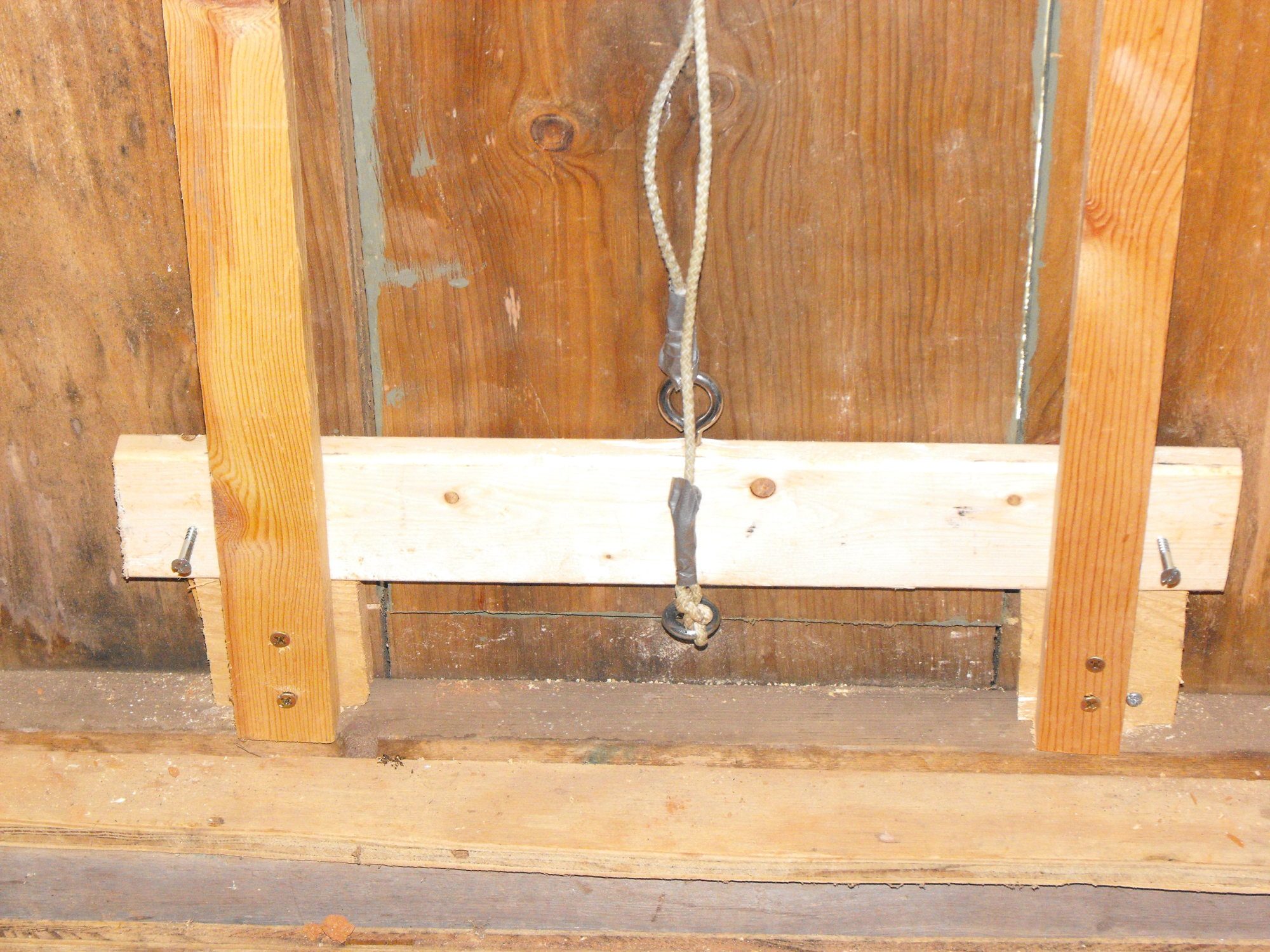

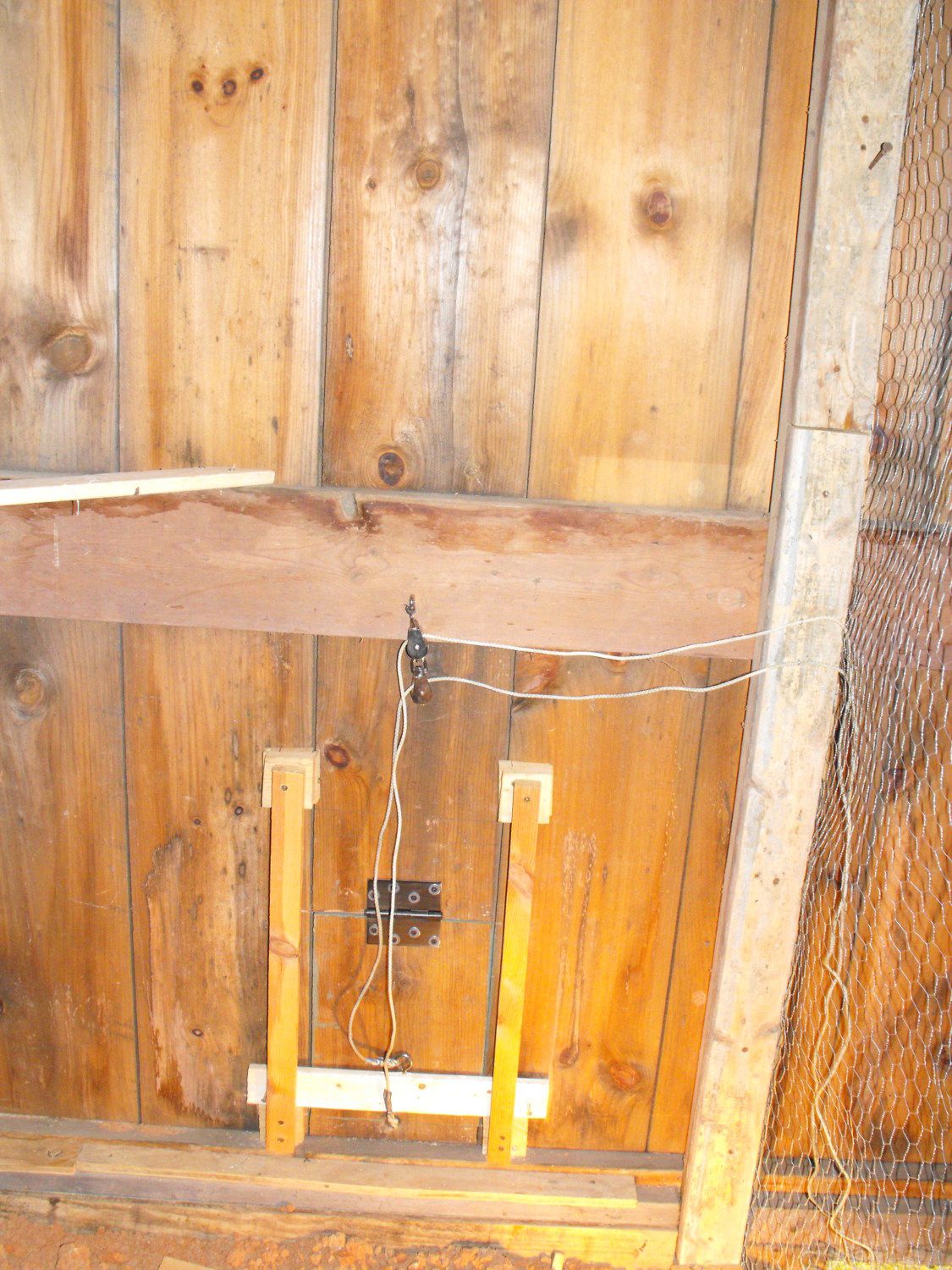

    Couple photos of my POP door. Used some eyebolts, pulleys to operate the door from inside the shed without going into the coop area. Then added a guillotine bar to lock the door at night. Rope goes thru the chicken wire and tied off.

    [​IMG]

  2. 4 the Birds

    4 the Birds Chillin' With My Peeps

    1,490
    89
    163
    Oct 15, 2010
    Westfield, Indiana
    Nice. I probably would have hinged the door with slide bar to the outside myself but your set-up looks good! This would allow the door to also serve as an awning if needed. I leave my pop door open to the run full time. This one is ramped up a little and has a little housing that serves as a wind block.

    [​IMG]

    Last edited: Mar 2, 2013
  3. ellie32526

    ellie32526 Chillin' With My Peeps

    423
    21
    103
    Oct 21, 2012
    North Texas
    Thanks for sharing. I like your idea. What did you use for the guillotine bar? Can you give us more details? We are trying to figure out how we want to do our pop door and were looking at different designs when I found yours.

  4. conny63malies

    conny63malies Overrun With Chickens

    5,189
    49
    288
    Mar 22, 2008
    Annetta Kentucky
    [​IMG] that is the door I came up with. Its roughly 10x12. I attached a rope, drilled a slighter bigger hole through the coop side and now i can open it from the outside. I just used some pieces of scrap that I had left over from the build. No real plan , just some 1x2 , 1x3 and eye bolts all slapped together with my nail gun. Just needs paint now

    Last edited: Mar 4, 2013
  5. jrudolph305

    jrudolph305 Chillin' With My Peeps

    123
    0
    109
    Dec 1, 2009
    Meadows of Dan, Va
    [​IMG]

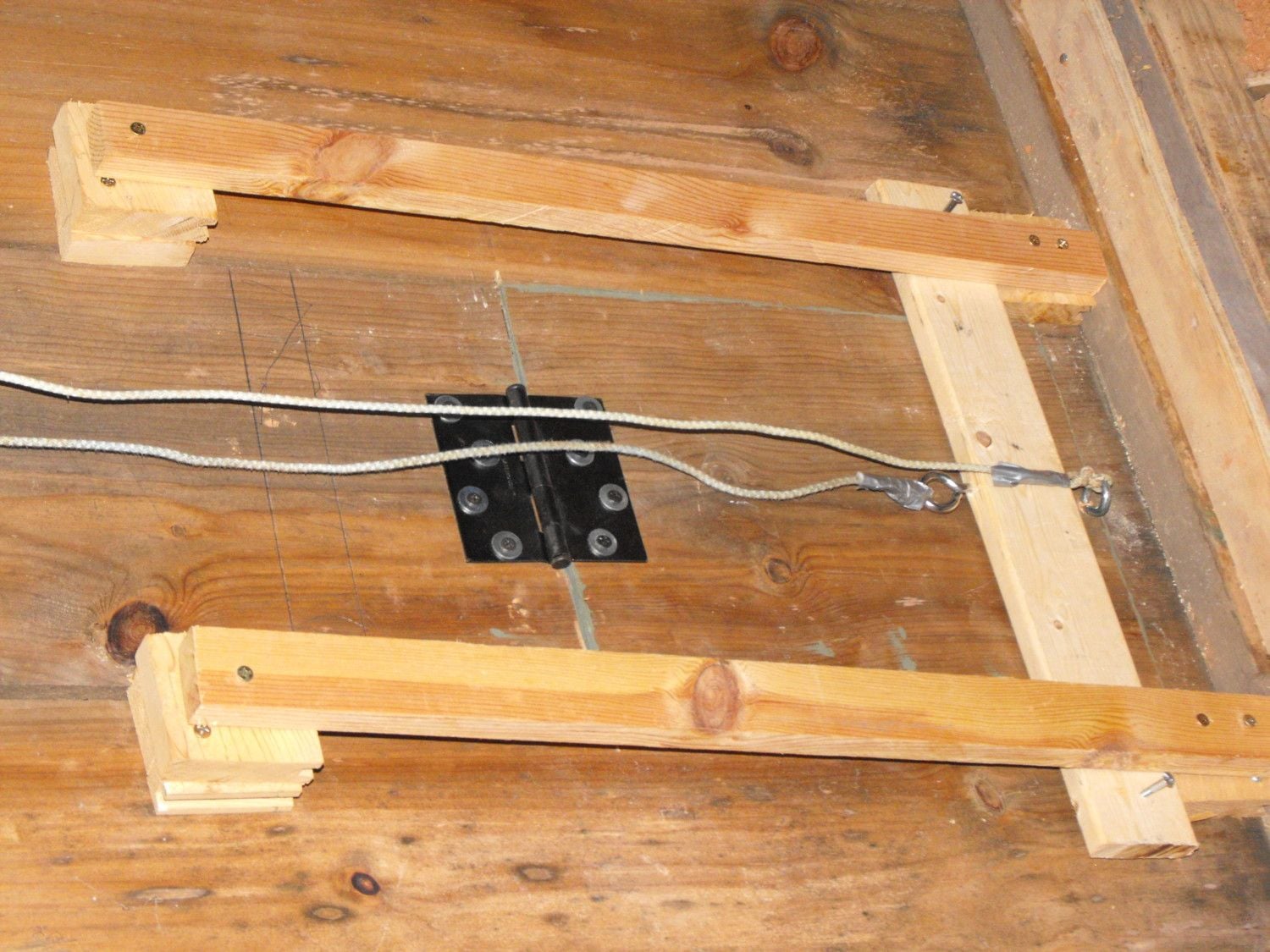

    Just a 1" X 3" board. Screws on the outside to keep in in the track.

    [​IMG]

    I had to add a 2nd shim on the top due to the extra thickness of the hinge. It actually made it fall smoother with the extra space but will still lock the door shut from being pushed open from the outside. Picture should have been rotated 90 degrees.
