Show me your homemade feeders!!

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by brownfarms, Jul 9, 2008.

  1. brownfarms

    brownfarms Chillin' With My Peeps

    169
    1
    121
    Jun 24, 2008
    San Diego Area, CA
    I'm looking for a trough style feeder for 50 chickens. Something that auto-fills preferably. My FIL is a wood worker so he'll make it for us.

  2. brownfarms

    brownfarms Chillin' With My Peeps

    169
    1
    121
    Jun 24, 2008
    San Diego Area, CA
    Thanks Laura. Those are some GREAT ideas.

    Since that thread was older, does anyone have anything new they'd like to share??

    I need something long........

  3. Beekissed

    Beekissed True BYC Addict

    I don't have a pic right now but I constructed one from PVC pipe...this may work for you. We cut about 2 in. wide strip off one side of a pipe, lengthwise. Added L-joints on the ends with straight pieces approx. 3 ft. long extending up from the L-joints. Imagine a squared off U-shaped feeder. Placed 2x4 pieces to bring it out from the wall a little and attached the upright tubes to the 2x4s with radiator hose style clamps. This makes it easy to adjust the height from large birds down to chicks. Its too slick for roosting on, the limited opening insures little flicking of food out of the trough, and I only have to fill the holding tubes every 3-4 days. I bet something like this could be adapted with a longer trough pipe and T-joints at regular intervals along the trough until it was large enough for 50 birds. I covered the tops of the uprights with plain PVC end caps.

  4. mycountrycabin

    mycountrycabin Chillin' With My Peeps

    123
    0
    129
    Mar 29, 2008
    rockingham,N.C.
    i use a pvc pipe for a feeder



    get a pvc pipe (atleast 2in in diameter) come about 1ft from the bottom and cut a hole (about an inch) and pound it in the ground to where about a 1/2 an inch is showing,get a cap for the top and fill it up

    but for 50 chickens i would go with something bigger like a 10 inch pipe

  5. spook

    spook Chillin' With My Peeps

    I used a Herbalife plastic shake container, cut 3 areas that were about 1 inch high and 3 inches wide, cover side up. Then a 3 lb coffee (plastic) cut at about 1 1/2 inch high then poked holes in the center of the coffee can, bottom and the top lid of the conatiners. Then with a large knot, begin "threading" the (used Bailing twine) string having the bottom being the coffee can layer, then just thread up through the next plastic container and through the lid. Tie it up on the cover or beam( works best for small groups of chicks, 6-9 birds). When you want to fill the feeder, take down , sit on something solid, unscrew lid and fill.
    I imagine you could make a waterer about the same way, only using wire or glue to attach the coffee can to the white canister.
    Someday I'll remember how I uploaded pics again. grrrr. [​IMG]

  6. lost

    lost Chillin' With My Peeps

    499
    1
    141
    May 10, 2008
    ,nc
    [​IMG]
    What i have is a 1 1/2 piece of pvc. With a jucy juice bottle for a funnel. It goes in a bucket with 1 1/2 holes in the bottom feed about every 2 weeks stays dry to. Hop this helps. the white bucket on top covers the hole. the board on the bottom has a 2bt2 to keep the feed in

    Last edited: Jul 9, 2008
  7. spook

    spook Chillin' With My Peeps

    Sorry about that, for a large bunch of chickens, have 2 square hunks of wood, cut them at a 5" square, then cut 2 long boards (what ever your choice is) 5" wide. Using nail gun or hammer, make a V out of "boards" and then nail the ends on. If you want taller feeders, make it larger. Use Chick wire to cover the feeder, then they wont flick it as quickly.
    Good luck [​IMG]

  8. brownfarms

    brownfarms Chillin' With My Peeps

    169
    1
    121
    Jun 24, 2008
    San Diego Area, CA
    Wow! You are all so creative! I never even considered PVC pipe. HMMMMMM.

    Thank you!

  9. ozzie

    ozzie Chillin' With My Peeps

    192
    0
    129
    Nov 12, 2007
    [​IMG]

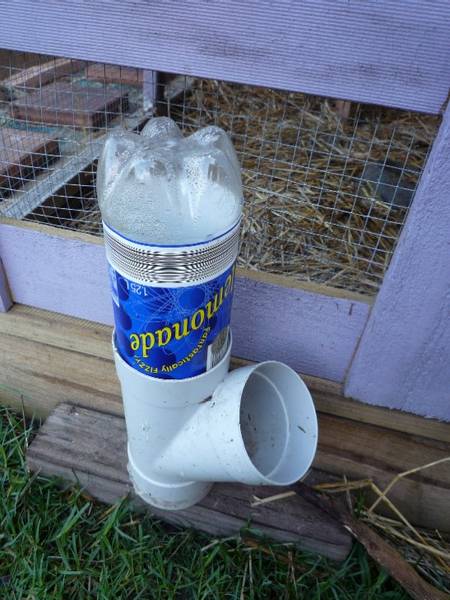

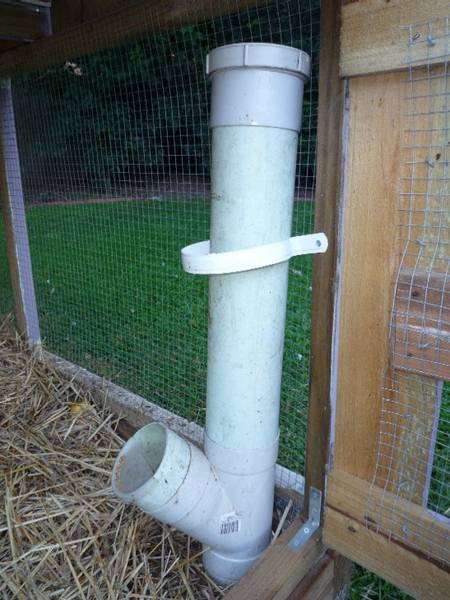

    This is mine - and I also made a waterer - not sure if it will feed that many chickens though - I guess you could always attach more 'openings' with connections...

    [​IMG]

    cheers
    ozzie

    Last edited: Jul 12, 2008
