Water system... heated and cooled.....

Discussion in 'Feeding & Watering Your Flock' started by DaveOmak, Aug 10, 2014.

  1. DaveOmak

    DaveOmak Chillin' With My Peeps

    643
    86
    128
    May 18, 2013
    Omak, Washington
    My Coop
    THIS IS WHERE I GOT THE IDEAS TO BUILD MY WATERER....
    https://www.backyardchickens.com/a/summer-winter-chicken-nipple-waterer ...

    One must give credit where credit us due.... and that idea was a WINNER !!!! winner chicken dinner !!!!!!

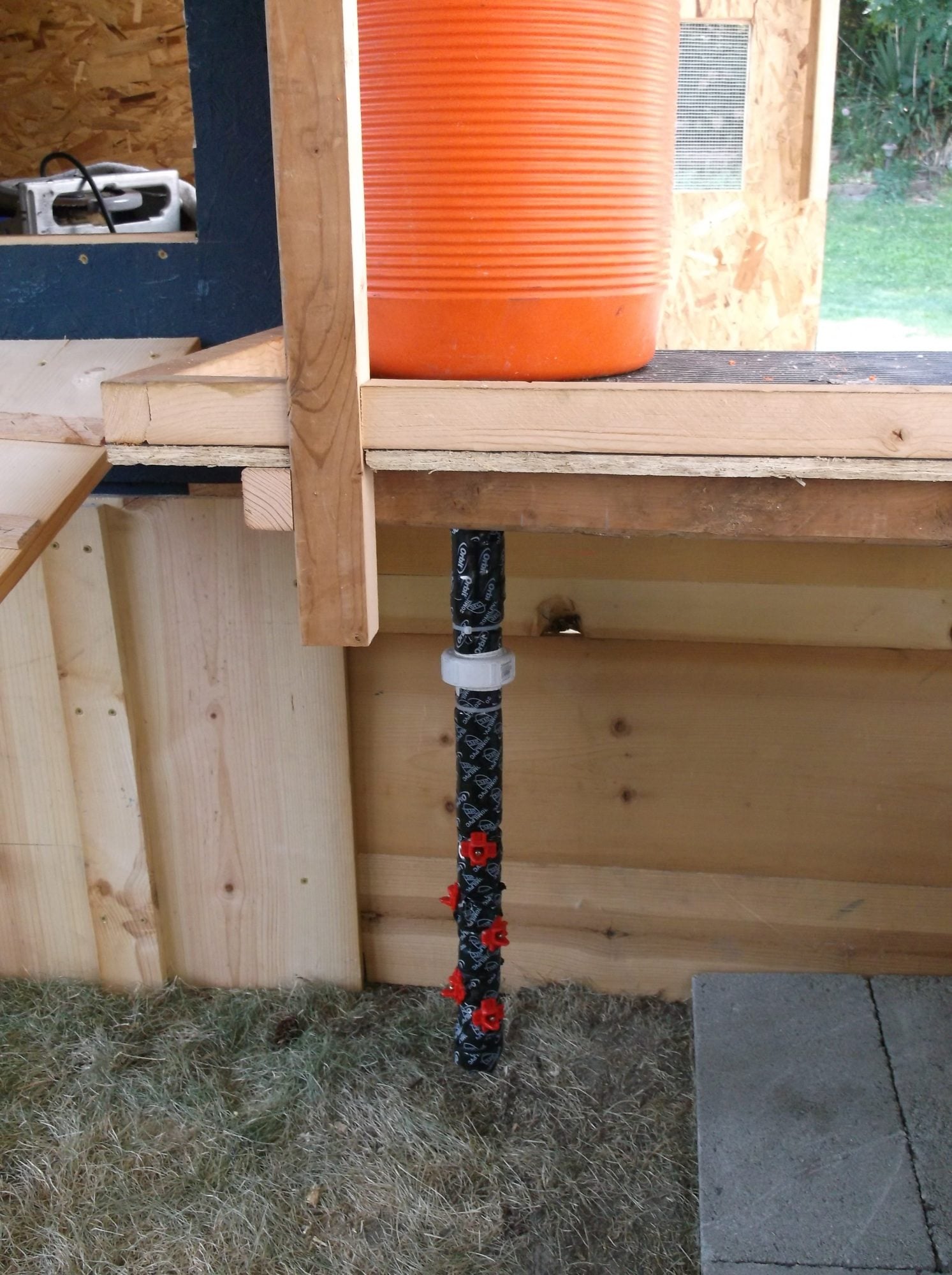

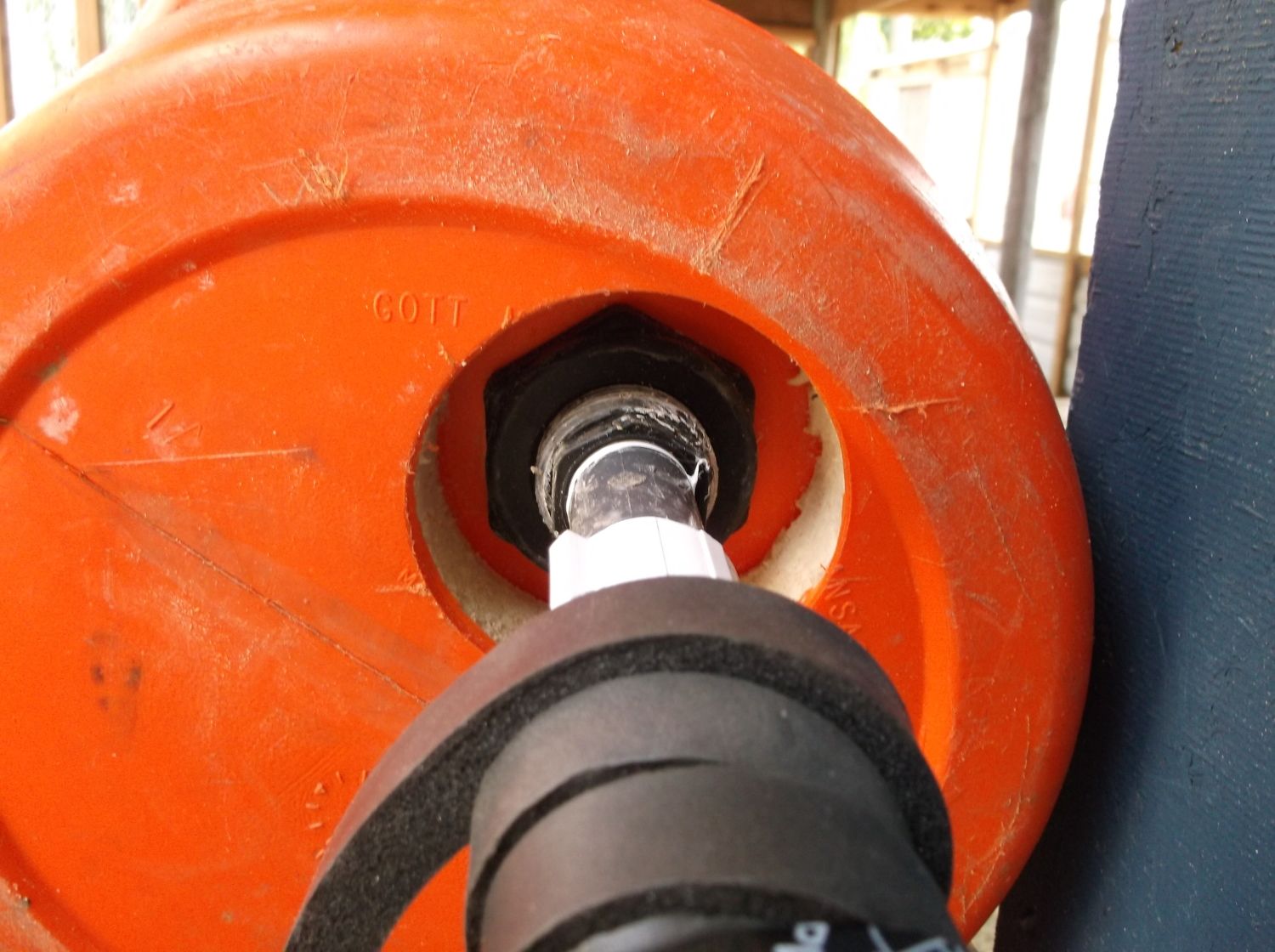

    I had a water dispensing cooler.... hadn't been used in years.... Drilled the inside hole to fit the threaded piece.... ONLY through the inside liner..... let the pilot bit go through the outside liner.... then drilled the outside liner so the "nut" would fit through the hole with room to spare so as to facilitate tightening of the nut.... Gooped the threaded piece and gasket with 5200, inserted and snugged it up with the nut... added water as 5200 needs water to set the sealer..... let it cure.... NO LEAKS....

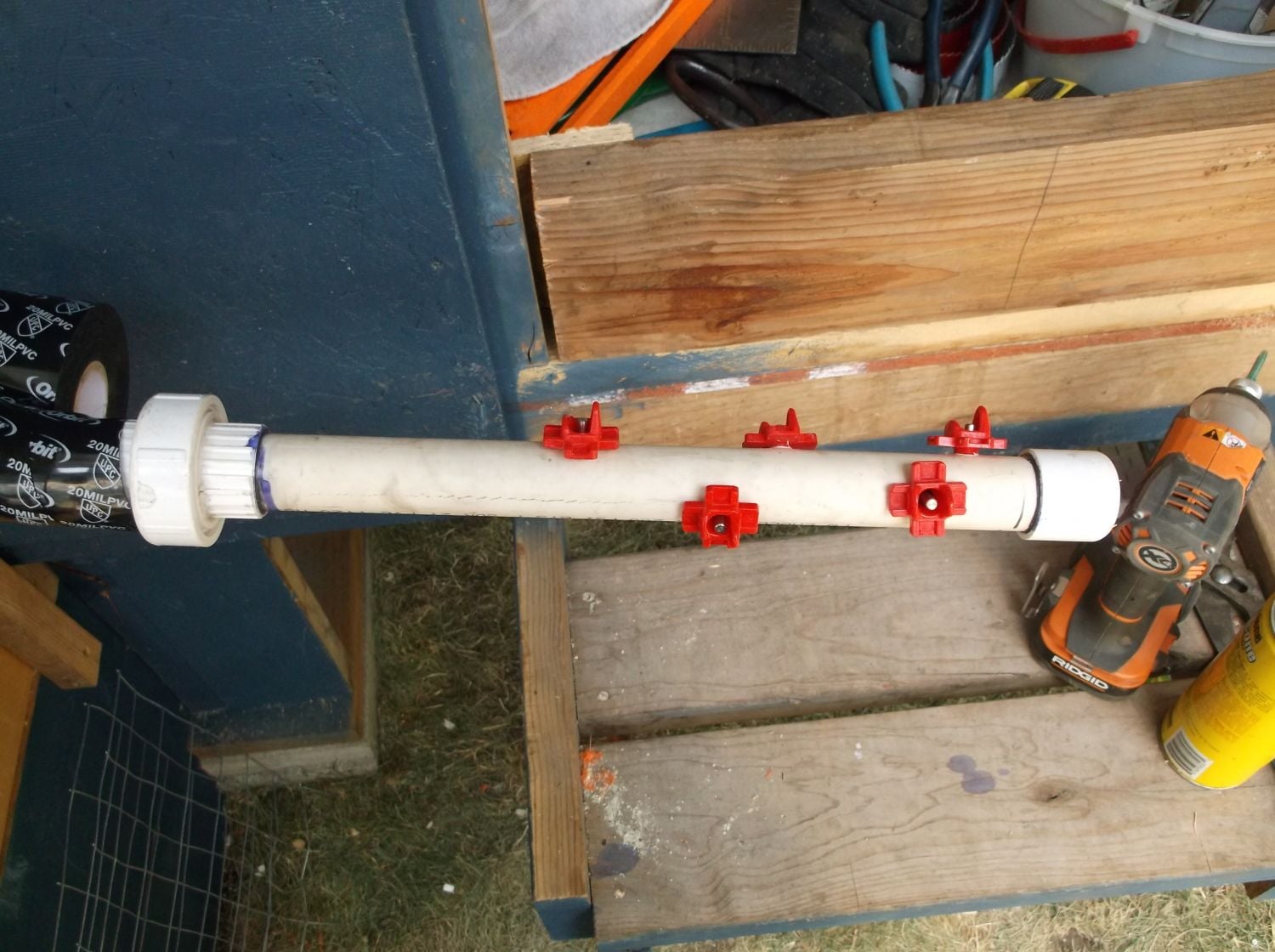

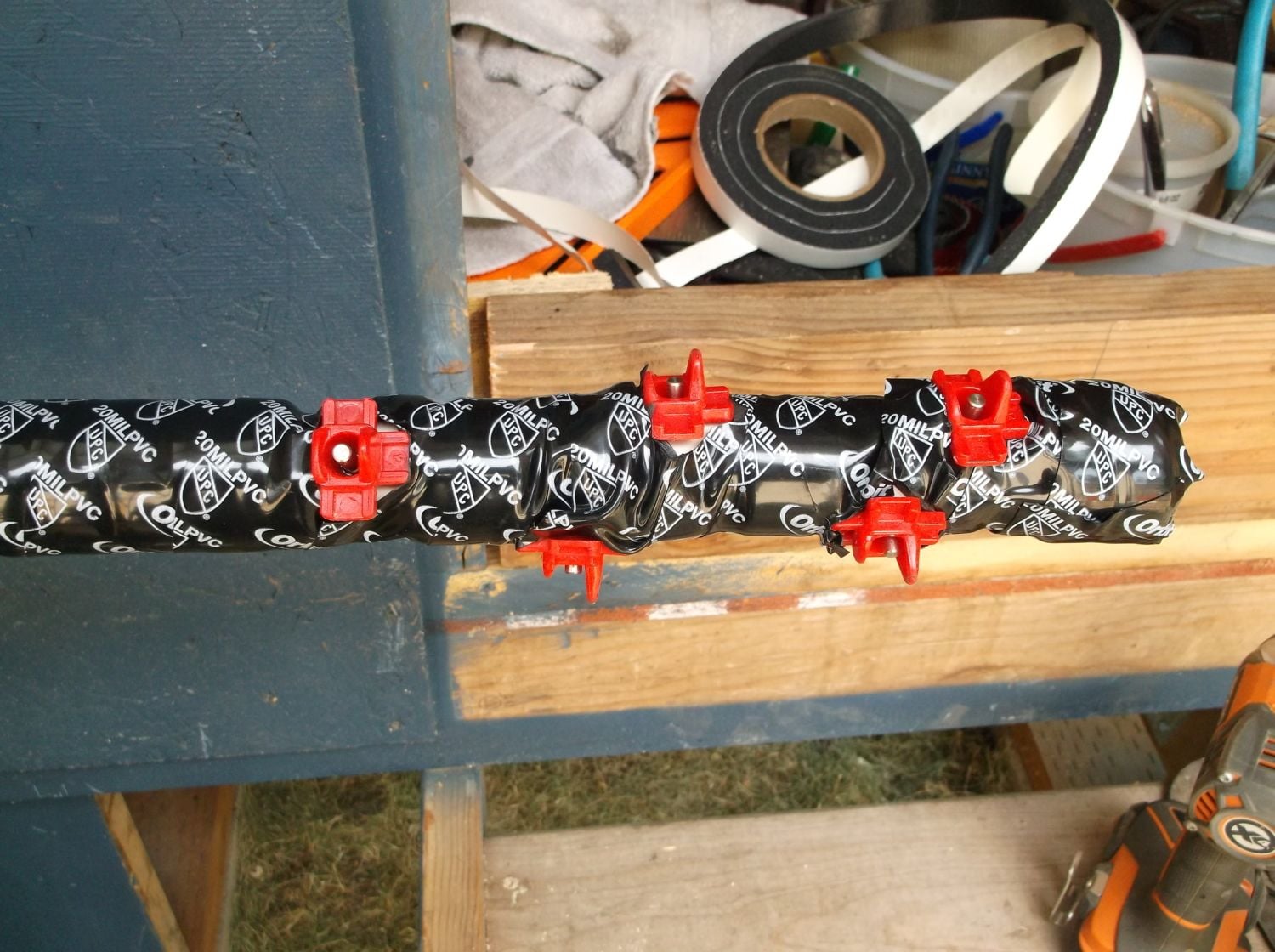

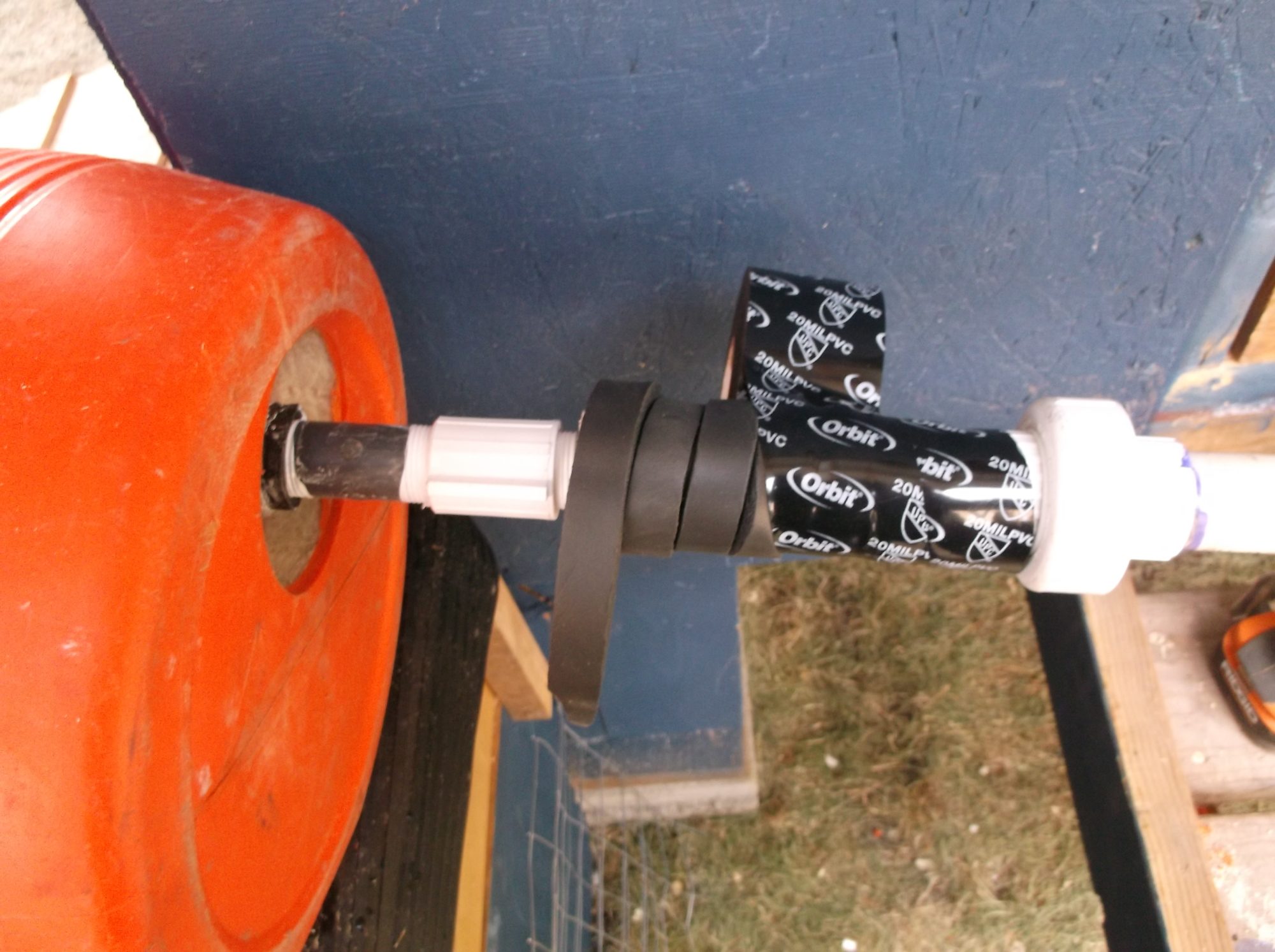

    Added appropriate tubing.... drilled holes for the nipples.... insulated with closed cell foam weather stripping 3/4" thick... over taped to protect the insulation...

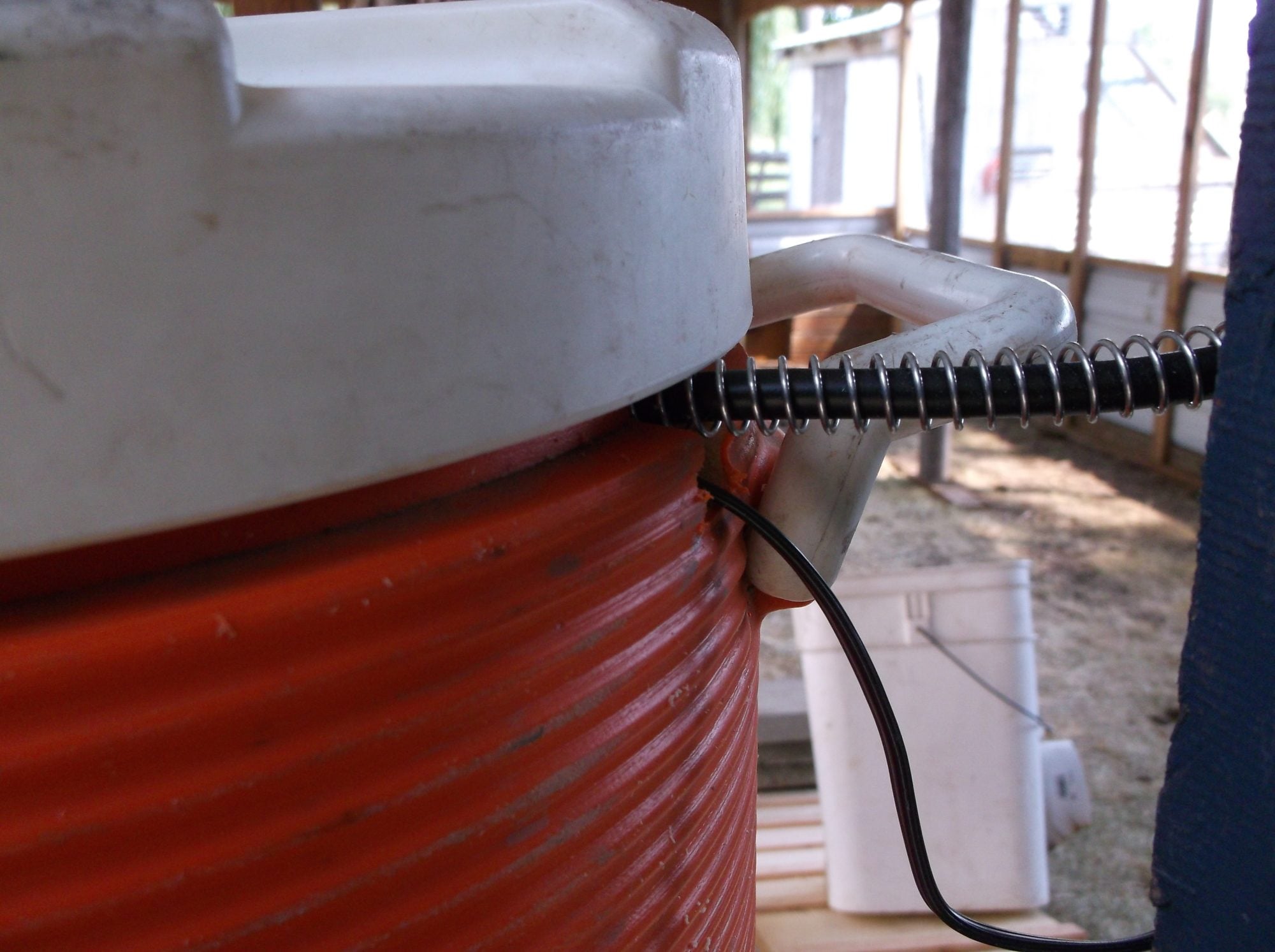

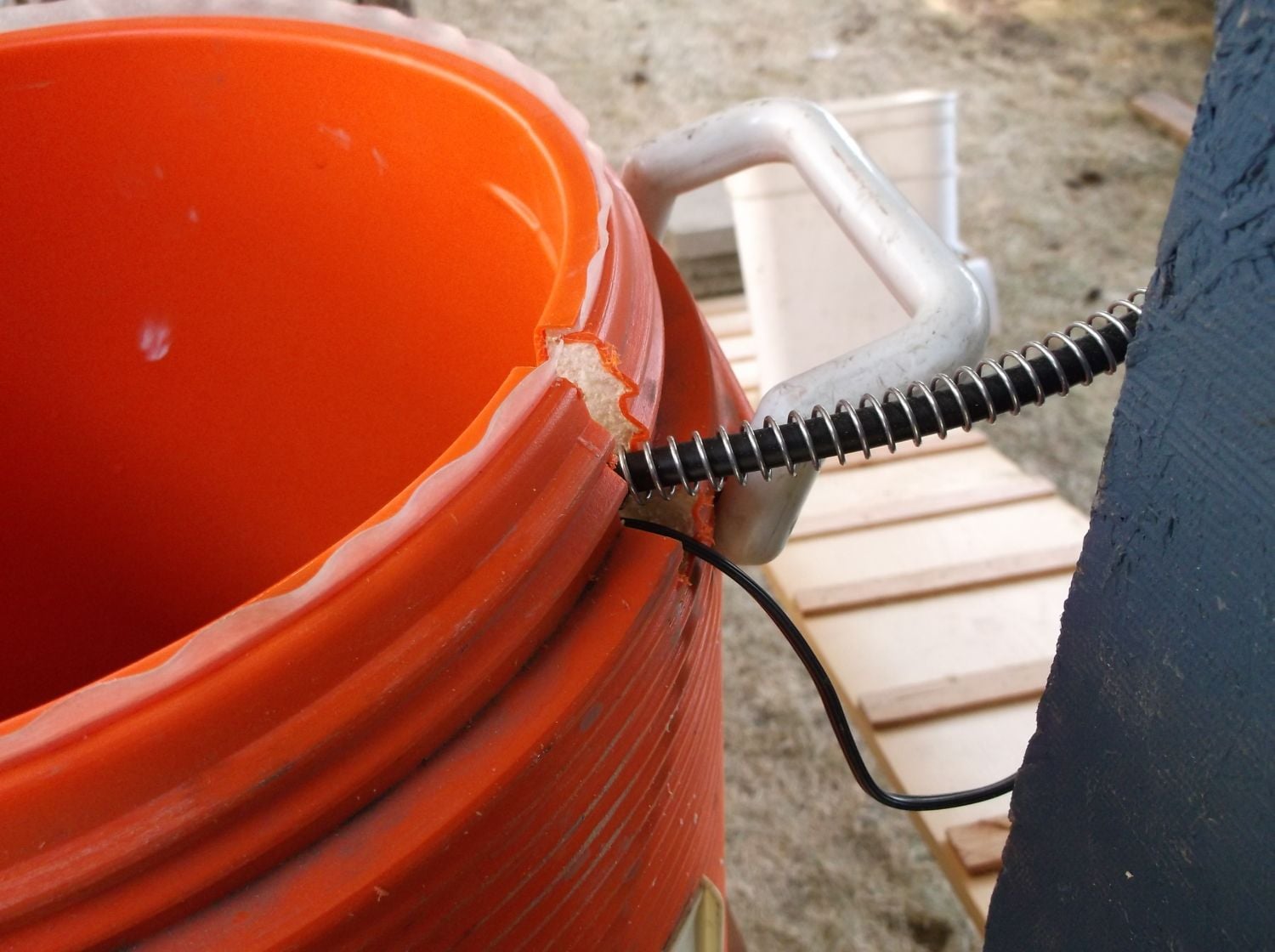

    Heater and pump added... the pump moves warm water during the winter to keep it from freezing....

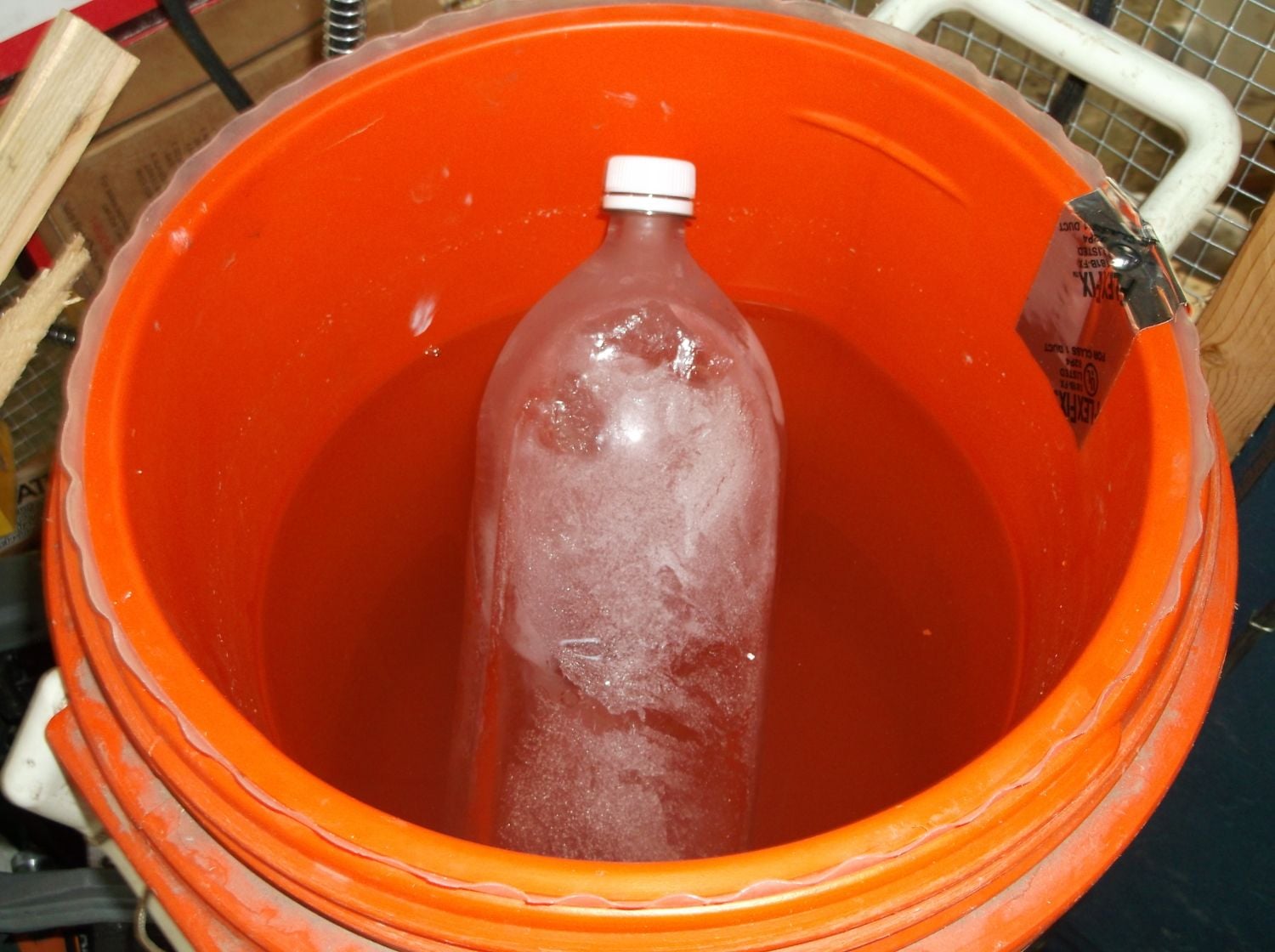

    Ice added to keep the water cool during the summer... No pump or heater needed then....


    [​IMG] [​IMG] [​IMG]

    [​IMG] [​IMG] [​IMG]

    [​IMG] [​IMG] [​IMG]


    [​IMG] [​IMG]

    Last edited: Aug 10, 2014
    1 person likes this.
  2. RJSorensen

    RJSorensen Chicken George

    Your implementation of this concept is very nice, and a clever use of on hand materials as well. Mine is much the same, but with a horizontal dispensing system. I am going to add a vertical section at some point, like yours for the odd sized birds, so thank you for showing this. Your photos are very nice and I am sure they will help a lot of people to transition to this superior style of waterer.

    Best to you and your birds,

    RJ

  3. DaveOmak

    DaveOmak Chillin' With My Peeps

    643
    86
    128
    May 18, 2013
    Omak, Washington
    My Coop

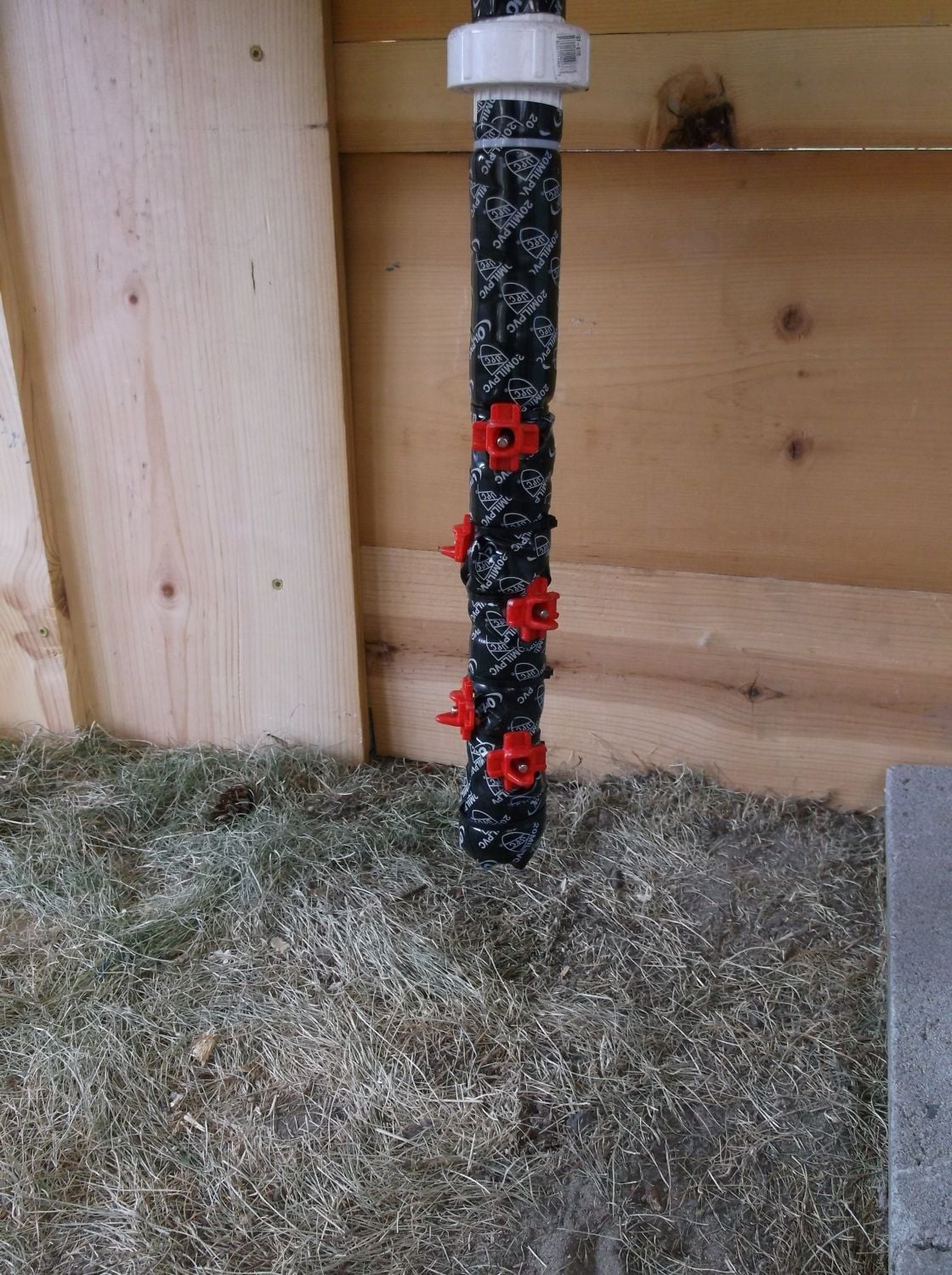

    I had planned on a horizontal system... tried to figure out different heights of nipples and how to accomplish it... Then how to run the tubing from the pump to the end of the watering line... How to mount the "cooler" and access the lid to add ice or the heater.....

    [​IMG] .... Make it vertical.... The chickens will figure stuff out when they get thirsty...

    Everything I read said, "clean water is healthier..".... then healthy it is.... saves money and time in the future...

  4. Leahs Mom

    Leahs Mom Chicken Obsessed

    10,307
    2,435
    421
    Feb 9, 2012
    Northern Indiana
    Have you used it in the winter? (Or is this just ready for the winter and you haven't tested it yet?)

  5. DaveOmak

    DaveOmak Chillin' With My Peeps

    643
    86
    128
    May 18, 2013
    Omak, Washington
    My Coop
    Hasn't seen a winter yet..... but... 250 watts on a thermostat that is designed for a bucket that isn't insulated... should do a fine job.... the pump "hopefully" will last the winter and keep the pipe and nipples thawed....... (so it says in fine print..) All I can do is wait and see.... (and I bought a spare pump when I ordered them.. $7 each)

    If all fails, I will be watering the birds 3 times a day until I can figure something else out..... Believe me..... If I'm carrying water to the birds 3 times a day, I "WILL" figure something out..... In the winter it gets to -0 deg. temps.... and snow is on the ground from Nov. to Mar.

    I did what I thought would work and provide a safety margin.... I could be wrong, been before and will be again.....

    I just absolutely hate doing stuff twice so I spend the extra time and usually money to do it right the first time..... (fingers crossed)

    Last edited: Aug 14, 2014
  6. Leahs Mom

    Leahs Mom Chicken Obsessed

    10,307
    2,435
    421
    Feb 9, 2012
    Northern Indiana
    Keep us updated this winter! [​IMG]

  7. canesisters

    canesisters Chillin' With My Peeps

    2,341
    105
    218
    Aug 18, 2011
    Virginia
    I think this is brilliant!!!
    I've never seen nipples that will work sticking out sideways like that - just the ones that hang down. Where did you get them?

  8. DaveOmak

    DaveOmak Chillin' With My Peeps

    643
    86
    128
    May 18, 2013
    Omak, Washington
    My Coop
    Last edited: Aug 14, 2014
  9. caytris

    caytris New Egg

    1
    0
    6
    Apr 10, 2014
    Can you tell us what heater and pump you ordered for your system? I'm afraid of getting a heater that will overheat the water or not heat it enough. I've seen some people use fountain heaters. Great layout for this system. I think I will set up a heated horizontal waterer in one coop and this vertical one in my other coop and see how they handle the coming winter.

  10. DaveOmak

    DaveOmak Chillin' With My Peeps

    643
    86
    128
    May 18, 2013
    Omak, Washington
    My Coop

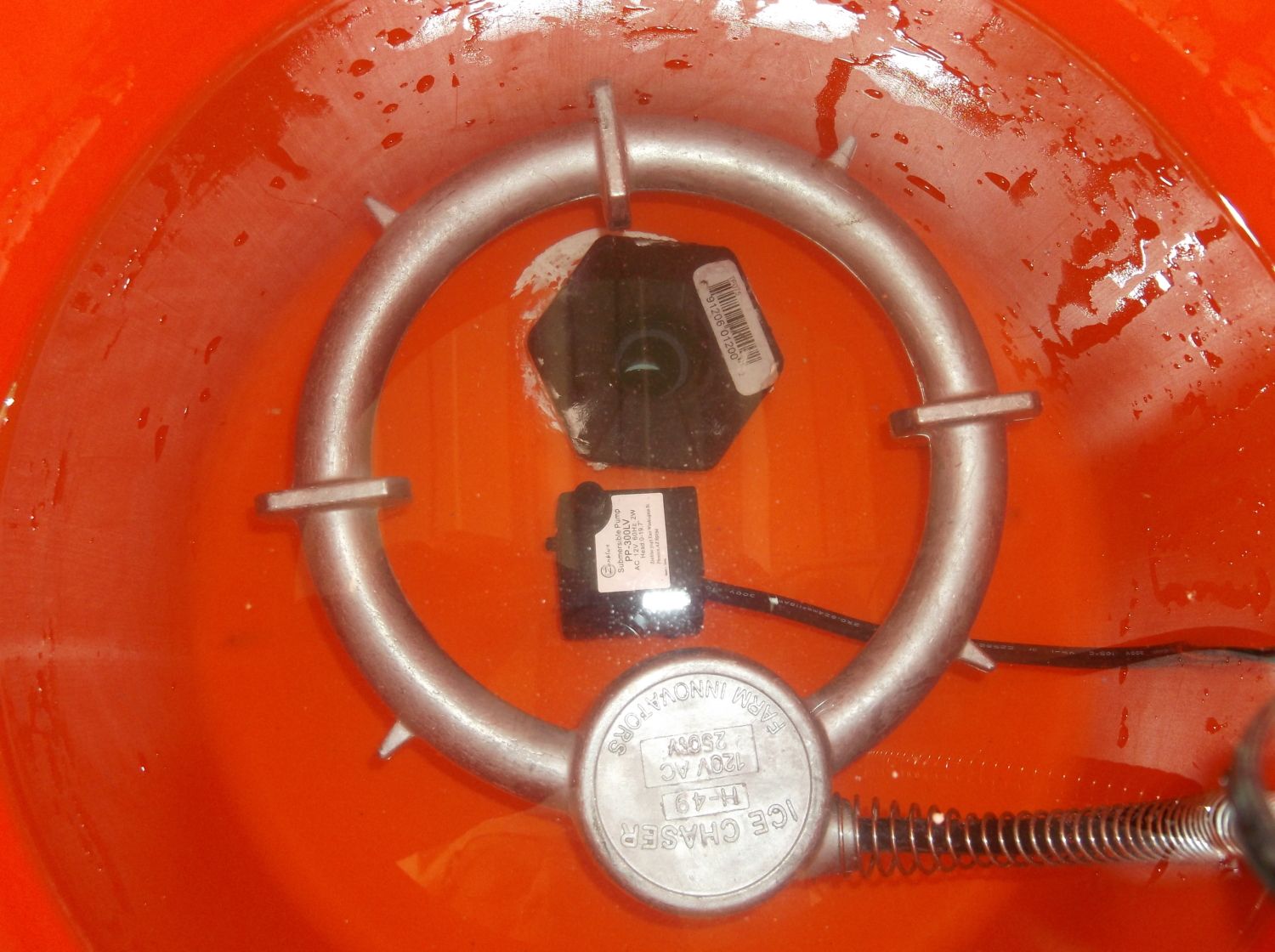

    The heater is totally run on thermostat... and safe in a plastic bucket..... The pump, I attached 1/4" tubing to it and ran the tubing down the plastic pipe to the end of the pipe... It circulates warm water full length of the pipe.... has 2 speeds... Hasn't froze yet BUT... it should keep water flowing... I bought 2 so I would have a back up, in the event the pump died.... I think they were $7....

    http://www.amazon.com/gp/product/B000FK03E8/ref=oh_aui_detailpage_o08_s00?ie=UTF8&psc=1


    http://www.amazon.com/gp/product/B00FIXWZAM/ref=oh_aui_detailpage_o08_s00?ie=UTF8&psc=1

    http://www.amazon.com/Jebao-PP300LV...upplies_3?ie=UTF8&refRID=0BPYK48DFHVHMBS83NBV

    http://www.amazon.com/Replacement-S...upplies_6?ie=UTF8&refRID=0BPYK48DFHVHMBS83NBV

    http://www.amazon.com/Hydrofarm-AAP...=1412609454&sr=1-2&keywords=Water+Pump+40+GPH

    Last edited: Oct 6, 2014
