Wine Crate Nest Boxes

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by D56auction, Feb 20, 2013.

  1. D56auction

    D56auction New Egg

    5
    2
    9
    May 14, 2012

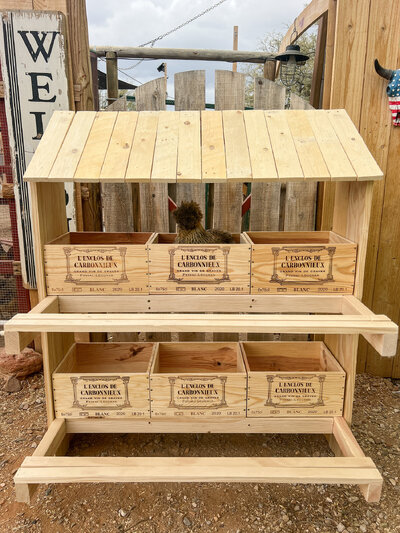

    Here are two nests that I built last summer. I use the 6 box nest for my flock of 25 and it works well. I find the wooden wine crates at a local dealer and get them for free when I buy a few bottles. (It's not hard)

    A few design points...make a STEEP roof to prevent the hens from roosting (and pooping) on the top. This is used inside but the roof keeps the hens out of the boxes except to lay and they seem to like the darkness.

    I cut the boxes down so they are square for space and materials savings. I ran them through the table saw and reused the back piece to shorten them. This wouldn't be necessary.

    The boxes lift out for cleaning, although I will say they stay very clean. Mount your boxes lower than your roosts.

    It anyone is interested in dimensions, let me know.

    Have fun!

    Jack


    [​IMG]

    [​IMG]

    [​IMG]

    2 people like this.
  2. SarahBee

    SarahBee Out Of The Brooder

    36
    2
    24
    Apr 22, 2012
    this looks awesome!!!!

  3. thasista

    thasista Chillin' With My Peeps

    1,117
    33
    143
    Oct 25, 2011
    KY
    My Coop
    That is gorgeous!! I do like the steep roof covering!

  4. TheCrazyChick

    TheCrazyChick Chillin' With My Peeps

    I have a friend who owns a wine store. Will be making a trip there TODAY for sure! I LOVE this. My nest boxes are already done and attached to the side of my coop, but I could see cutting them down to fit and inserting them into the current boxes, then removing to clean. Did I mention I LOVE this?

  5. RedneckGurl

    RedneckGurl Chillin' With My Peeps

    375
    52
    118
    Jan 15, 2013
    Toney, Alabama
    Oooooo....I love this! How very practical and yet so very elegant! I wonder if my local liquor store would part with a few wine boxes the next time I'm there? Can't hurt to ask!

  6. Norskchicklover

    Norskchicklover New Egg

    2
    0
    6
    Mar 14, 2013
    I love those nesting boxes! Was just searching google for Wine Crate nesting boxes and this came up. They are perfect! Would you share dimensions?

  7. D56auction

    D56auction New Egg

    5
    2
    9
    May 14, 2012
    Sorry for the slow response. Here are the dimensions for the two box nest...

    The bottom is
    2 pc 2 x 4 x 28"
    2 pc 2 x 4 x 22"
    1 pc 1 x 3 x 31" for the roost

    The sides are
    2 pc 1 x 12 cut on an angle with 21" in the front and 32" in the back

    The roof is quarter inch plywood - 20 x 33"

    I also have a back to stiffen the boxes and eliminate any drafts and this is also quarter inch plywood 32 x 31.

    The wine boxes were made about 15" square. I removed the back piece, cut down the bottom and sides and put the reinstalled the back in to make the wine crate smaller. You may get lucky and find a 6 bottle crate and not need to do any adjusting. Your overall dimensions will vary a bit in width depending on the size of the wine crates you use. It was a fun little project and could easily be done without power tools.

    Jack

  8. Norskchicklover

    Norskchicklover New Egg

    2
    0
    6
    Mar 14, 2013
    Hi Jack,

    Thank you so much for the dimensions. Do you happen to have the dimensions for the 6 box nest also? I am just now getting to the project, and I'm not usually so good with this kind of thing. I want to make sure I get it right!

    Thank you so much!

    I'm sure my Maran's will just love this. They are after all French, so I'm sure sleeping in wine boxes will be perfect for them!

    Elin

  9. Rikki Bogen

    Rikki Bogen New Egg

    1
    0
    6
    Aug 6, 2013
    Would love the measurements for the 6 box :)
    Thanks
