Gopherboy Farms - The Gopherbator Egg Incubator


GopherBoy Farms
Gopher-Batorâ¢
 http://i255.photobucket.com/albums/hh137/gopherboypeeps/supplyslabeled.jpg



 SUPPLY LIST


 Cooler



 Mesh wire



 Water heater thermostat



 Plug with about 2-3 ft wire



 Light fixture



 40-watt light bulb



 PC fan



 12 Volt transformer



 2-3 feet of PVC pipe



 2 pipe couplings



 2, ½ inch plastic clamps



 Wooden Box
 Shallow pan



 A couple sponges



 Thermometer/hydrometer w/probe



 Water wiggler



Water bottle  Tubing that fits on top of bottle



 Thermometer



 2 old pill bottles
 Various screws



 Wire Nuts
 A Sharpie pen

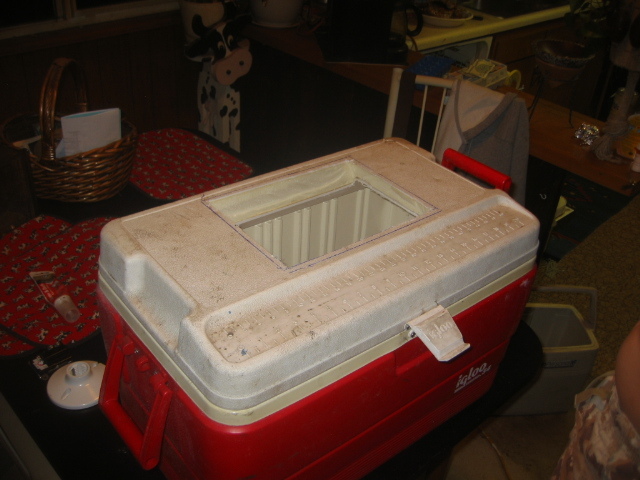

1.  Cut square in lid for viewing window                                           2.use caulking around cut out area to seal glass viewing window
http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0007-7.jpg                     http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0008-13.jpg

3.       Install glass
http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0009-11.jpg

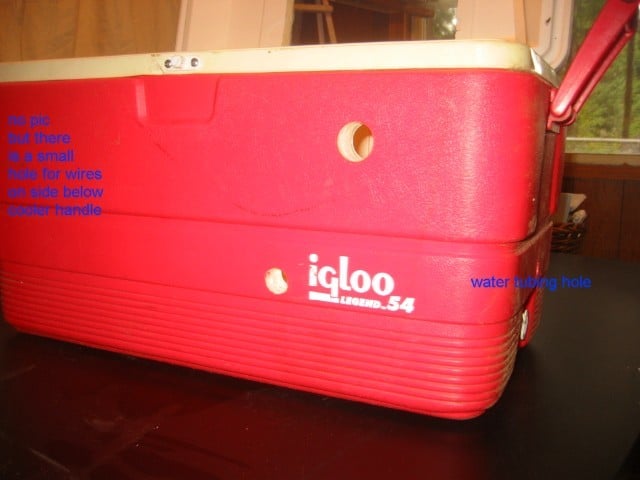

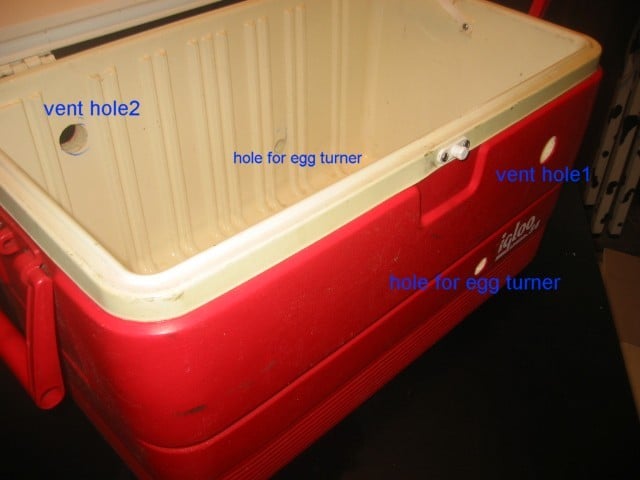

4.     Locate and drill 6 hole in cooler                                         1 hole for auto water (no need to open lid)
         2 vent holes                                                                      1 small hole for wires
         2 hole across from each other for
         http://i255.photobucket.com/albums/hh137/gopherboypeeps/holemarkings1.jpg  exterior operated egg turner
http://i255.photobucket.com/albums/hh137/gopherboypeeps/holemarkings2.jpg



  5.     Place pan with sponges in bottom of cooler
              (we used caulking to hold pan in place)

http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0001_2.jpg

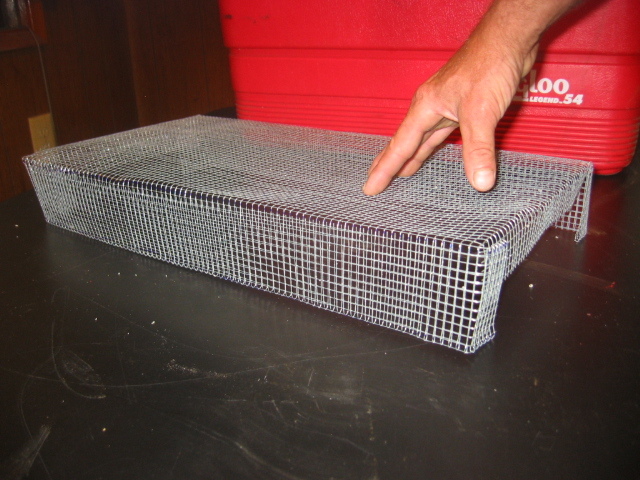

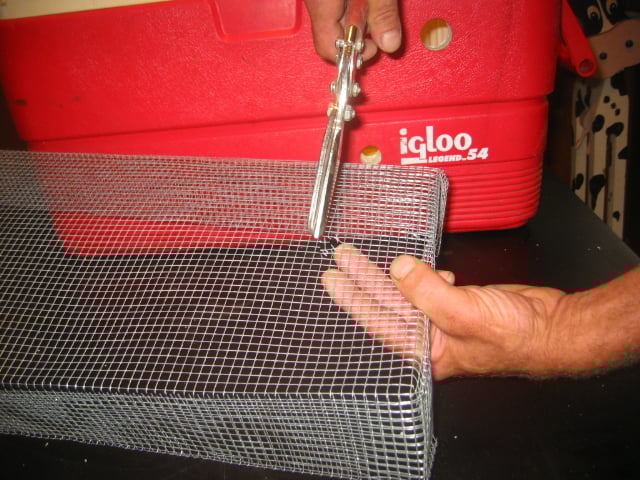

6. Cut and bend wire to fit into the bottom of cooler over pan                  7.     Cut hole in wire for auto water tube

http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0003_2.jpg             http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0004_2.jpg





8.     place wire into cooler                                                            9.  put tubing w/ water bottle attached through hole in cooler,

                                                                                                              then through hole in wire into pan for auto water

http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0005-12.jpg                http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0006-9.jpg





10.     Cut out bottom of wooden box that fits in cooler                11.     cut piece of wire and staple to bottom of box
http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0008_2.jpg                           http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0009_2.jpg




12. attach ½ inch plastic clamps to bottom of box
http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0010_2.jpg



 13. set box on wire with plastic pipe clamps lined up with the predrilled holes
14.slide pipe through one side of cooler then threw both pipe clamps, then threw the hole on other side of cooler

         http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0014-14.jpg

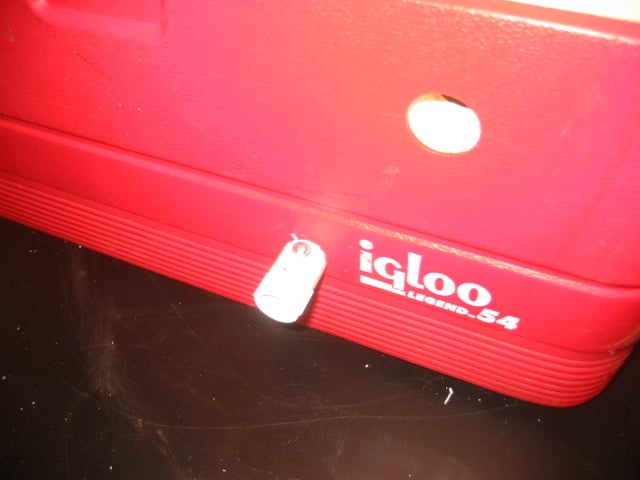

 15.    Cut pipe to ¾ inch on both sides of cooler for handles for externally turning the eggs.
16.    Install couplings on each end of pipe to keep pipe from slipping, back and forth and to use as handles when turning eggs.
http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0013_2.jpg
           17.    Screw box to handle inside    http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0012_2.jpg

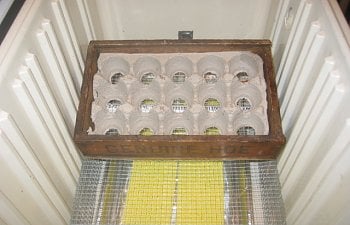

18.    take an egg carton that fits in box and cut holes in bottom                             19.    place egg carton in box

http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0015-16.jpg                                             http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0017-14.jpg




20.    cut spacers in tubing (or use nuts for spacers) to keep PC fan and thermostat away from wall

 21.    Screw PC fan to wall

http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0019-10.jpg








22.   Wire PC fan, light, and thermostat
                   PLUG/LIGHT/THERMOSTAT:
                 *from the plug take the neutral (ribbed) wire to #1 screw on the thermostat
                 * run a short wire from #2 srew on thermostat to the silver screw on the light
                * The other plug wire goes to the gold screw on the light.
                   PC FAN:
               *cut the end of a 12volt transformer off, wire to the black and red wire on PC fan, disregaurd the yellow wire.
                           (if you plug it in and the fan doesnt turn then switch the wires around)

http://i255.photobucket.com/albums/hh137/gopherboypeeps/wire.jpg

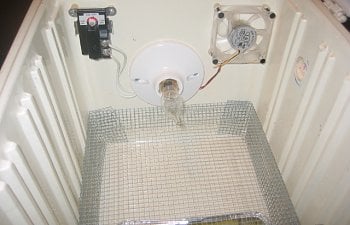

23.    Install thermostat using spacers and screws to wall
24.    Install light

http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0023-4.jpg



25. Cut the bottom off 2 pill bottles (with lids) and slide into holes for air vents
(these work great so you can just unscrew the lids if you need to).

a grinder was used to cut the bottoms of the pill bottles off


http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0025-5.jpg    http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0026-7.jpg   http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0027-6.jpg





                                           26.    place probe from thermometer/hydrometer  inside wiggler toy

                                          27.    sit wiggler toy on egg holder
                                 28.    put 2nd thermometer on wire
                                 29.    fill pan with water
                                 30.    adjust thermostat


http://i255.photobucket.com/albums/hh137/gopherboypeeps/100_0031-5.jpg



                                         31. fill 4-5 baby food jars with warm water put on lids and place on wire
                                            32.    plug in, close lid

                                                 now lets see what happens next........



So far in the Gopher-Bator we have hatched (and they have lived) 9 chicks... (there where some duds in this first batch)

we have 11 in it now and hope this will be our best hatch ever!!!
 updated-12/4/08



Comments (10)

awesome set up, I love it, thanks for sharing this with me. Now I go make some modification to my cooler bator and see if it works for me.
Ema
cool i might try this
wow! I love this! What was your hatch rate?
What is the baby rattle & jars of water for? You said leave the lids on the jars so it doesn't appear to be humidity...
Thank you for sharing your design and step by step assembly, this was very helpful for me to start my project,
Thanks for taking the time do post this! Great ideas and one I'm thinking of using.
i was able to complete my project thanks to you
I am using your info to revamp the bator my husband made as a 4-H Project many years ago, It needs a new thermostat.
I'm thinking the baby food jars would be for temperature stability. The water would hold the heat, making temp. fluctuate less. Just my guess.
Instead of baby food jars, I use the plastic cooler/heating blocks that you put in a picnic cooler instead, they seem to hold temperature more stable. I have just built another bator using an old bedside cabinet, just waiting to see if temperature stabilises good enough to put eggs in next week.
