*CHICKS are HERE!!!* Egg Candling Pics: Progression Though Incubation

post #1 of 725
Thread Starter

Thanks to ZooMummzy, I am doing a test run of my little plywood bator and her little rooster! And I'll be sharing pics! These images are all taken using a point and shoot Canon Powershot 710IS, and the light from an eagle tac  set on high output. Photos are in real colors unless otherwise noted.

Click thumbnails for larger image!

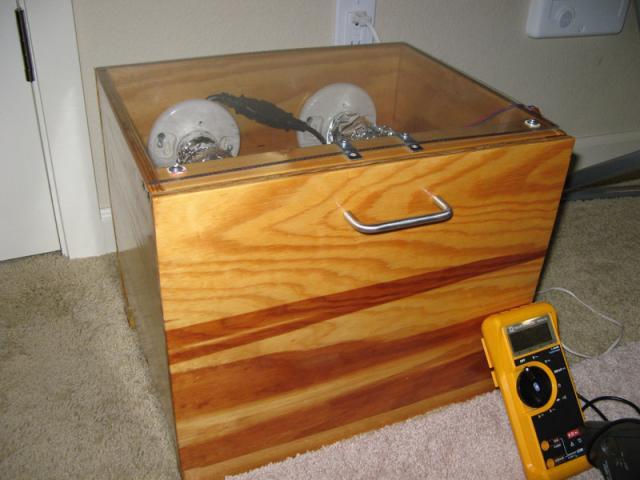

The incubator:



http://www.backyardchickens.com/forum/uploads/thumbs/230_incubator_clear0001.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_incubator_top_view.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_incubator_inside0002.jpg



It's got a clear top for hatch day viewing and two lightbulbs covered in foil because I was too cheap to buy ceramic heat lamps. The reason behind two bulbs is in case one light bulb burns out the incubator won't go cold.  It has a salvaged computer fan and uses a salvaged GQF thermostat. There are about 8 layers of spar urethane coating the little beast so it's water tight. Started making it when I was about 13, so if I were to do it again, it would be much larger and have space planned for a fan/thermostat.  tongue Temperature is measured with a Fluke digital multimeter with thermometer attachment, and humidity is measured via wet/dry bulb methodology.




0 hrs Note that with a bight enough light you can see though brown and green eggs easily. Shell thickness and egg size will impact image quality, so note these are bantam eggs.

http://www.backyardchickens.com/forum/uploads/thumbs/230_fresh_egg_green_small.jpg



This is a great example of a porous egg, not ideal for hatching.
http://www.backyardchickens.com/forum/uploads/thumbs/230_a_porous_egg.jpg



28hrs Not much to see though the egg at this point. If you were to open the egg and look at it under a dissection microscope, you'd see that the head/neural fold has formed, and up to 4 pairs of somites. (Somites are mesodermal  cells which migrate and give rise to tissues such as muscle, bone, and cartilage. Note  the number on the egg, it serves as tracking and to know which side is "up" as I am hand turning 3x a day.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_1_small.jpg





52 hrs If you look closely, you can see the start of the blood island in the middle of the egg. The heart is actively beating by this time and has started to turn; the heart starts out as a tube during development.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_2_small.jpg
May be easier to see after photoshop, it's that darker ring on top of the yolk shadow
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_2_smallps.jpg






76 hrs At this point, limb buds have not only formed but are enlarging and the eye is beginning to become pigmented.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_3_embryo_better_copy.jpg


Some photo editing and you can really see the veins!
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_3_embryo_better_chanel_mix.jpg

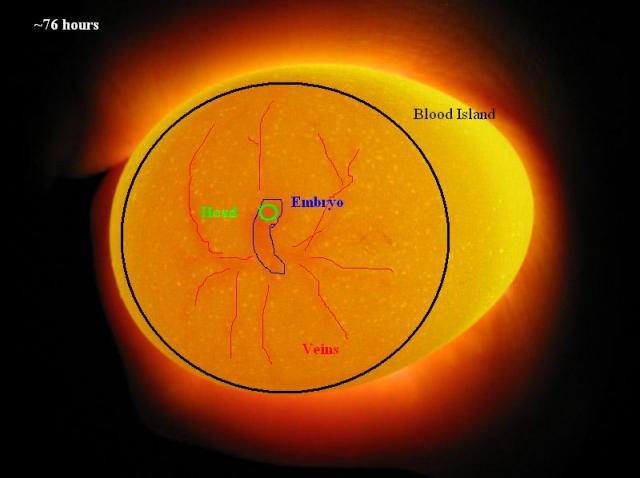

Schematic
http://www.backyardchickens.com/forum/uploads/thumbs/230_230_day_3_embryo_better_copy2ann.jpg

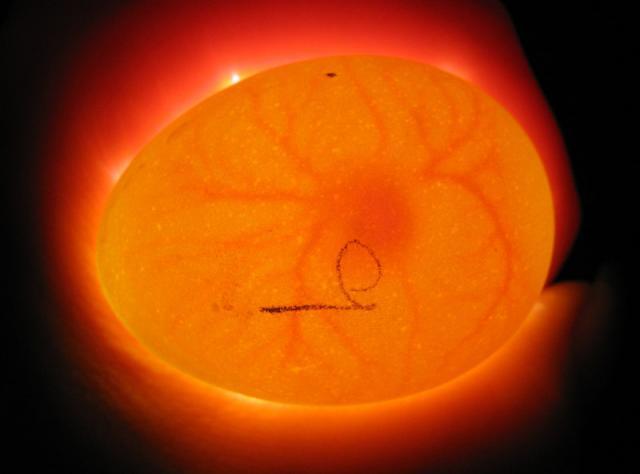

100 hrs The limbs are now starting to look like limbs and the embryo starts to look like what a common person would say is an embryo.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_4_two_small.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_4_side_viewsmall.jpg

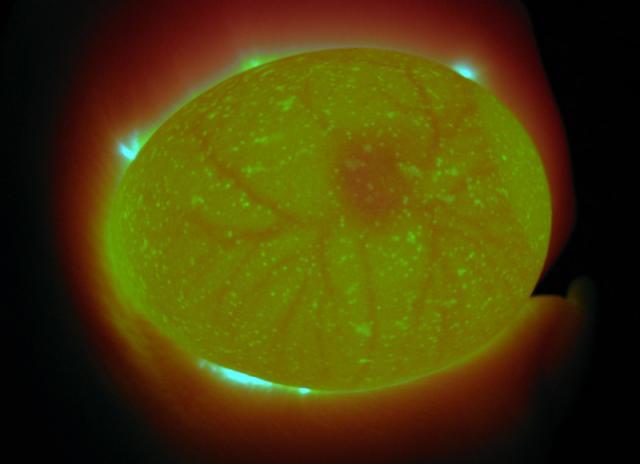

Enhanced to see veins
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_4_smallps.jpg



Day5 On this day, the beak has just become viable and the chick's limb buds are no longer buds and instead will have identifiable digits! The black dot is the eye.




http://www.backyardchickens.com/forum/uploads/thumbs/230_day_5ps.jpg
Edited to enhance veins




http://www.backyardchickens.com/forum/uploads/thumbs/230_day_5psaltered.jpg
A day 3 or so quitter




http://www.backyardchickens.com/forum/uploads/thumbs/230_ps.jpg
Profile view and you can see the veins in my finger too.
http://www.backyardchickens.com/forum/uploads/thumbs/230_profile_and_fingerps.jpg



Day6 It gets harder to take clear vein pics, as there is enough vascularization that it gets a bit washed out.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_62ps.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_psday6.jpg

Enhanced image.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day6psaltered.jpg

Embryo Movement Clip


Day 7 If you were to open them up, you'd see little specks where future feathers would emerge!
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_7_2ps.jpghttp://www.backyardchickens.com/forum/uploads/thumbs/230_day_7ps.jpg





Day 8
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_8_2ps.jpg







Day 9
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_9_2ps.jpg







Day 10
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_10_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_10_3_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_10_2_copy.jpg








Day 11
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_11_2_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_11_3_copy.jpg



  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_11_copy.jpg

Video



Day 12
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_12_1_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_12_3_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_12_copy.jpg



Day 13 If you opened them up, you'd see claws forming!
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_13_2_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_13_copy.jpg











Day 14 It's so dark there is pretty much nothing really to see! Just a bit of space left
http://www.backyardchickens.com/forum/uploads/thumbs/230_day14_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_day_14_2_copy.jpg






Day 15




http://www.backyardchickens.com/forum/uploads/thumbs/230_day_15_copy.jpg

Video


Day 16 You can see toes in the second one!
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_16_copy.jpghttp://www.backyardchickens.com/forum/uploads/thumbs/230_day_16_toes_copy.jpg



Toes video

Day 17


http://www.backyardchickens.com/forum/uploads/thumbs/230_day_17_2_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_day_17_3_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_day_17_copy.jpg



Day 18 Lock down!!!! Since there is plenty of space in the bator, I made little paper cups to put each egg in. Hopefully this will catch the majority of the hatch junk left over from popping out so clean up is a bit easier.
http://www.backyardchickens.com/forum/uploads/thumbs/230_day_18_2_copy.jpg  http://www.backyardchickens.com/forum/uploads/thumbs/230_day_18_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_lock_down.jpg






HATCH DAY Note, there is no plan to open the bator for the next 48 hours. The top is clear so all the action can be seen without compromising the hatch!

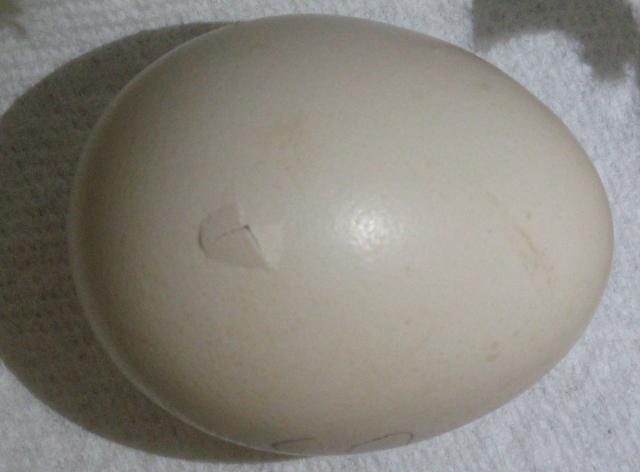

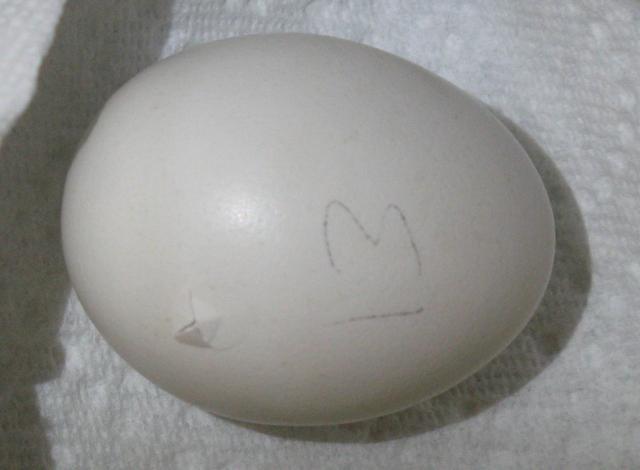

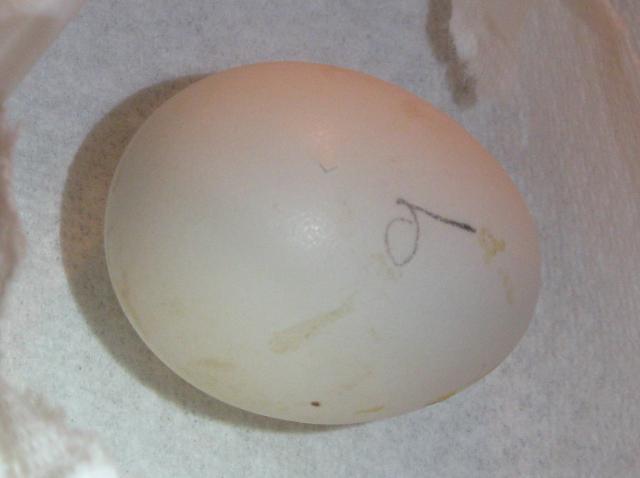

Pips
http://www.backyardchickens.com/forum/uploads/thumbs/230_pip3_copy.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_pip_1_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_pip_2_copy.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_pip_4_copy.jpg


First to hatch: About 14 hours after the first pip at 4am. Note the clean hatch and absence of any blood in the shell. It was ready!
http://www.backyardchickens.com/forum/uploads/thumbs/230_bigger_pip_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_zip_copy.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_shell.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_tired_cihck.jpg

Hatch Video

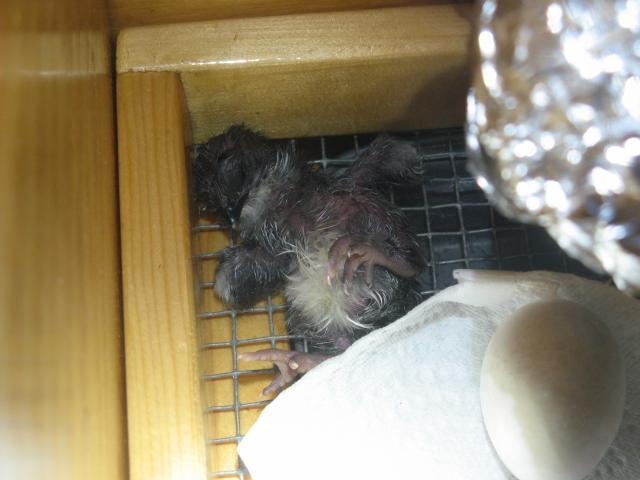

Second to hatch: About 17 hours after the pip at 4am. Could have piped any time between 11pm and 4 am though. Another clean hatch.
http://www.backyardchickens.com/forum/uploads/thumbs/230_nine_1.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_nine_2.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_nine_3.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_9_hatch.jpg

Note the first vid is part of the zipping. The pip to zip can literally be hours to days, but usually, once it starts to zip and sets out to get out, the shifting and cracking process is about 20-30 mintues.
Zipping

This one gets to the point more.
Hatching


30 hours after the first pip, the hatch is now complete! This is about my average time to hatch. I've had some take even longer so there really is no rushing the little guys.
There were 7 fertile eggs that made it to day 3. All 7 hatched on their own without opening the bator between day 18 though post hatch and fluff.




Post hatch shell interior. Note that all the vessels are gone and it's just pink. Not a single drop of blood. The little blob in the bottom is the chick wastes from development; think of it as embryo poo.
http://www.backyardchickens.com/forum/uploads/thumbs/230_shell_interior0014.jpg



And now the best part! The chicks!!!






The chicks have learned how to drink from a hamster water bottle.
http://www.backyardchickens.com/forum/uploads/thumbs/230_brooder_baby0001.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_four0004.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_seven0013.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_group_20006.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_one0009.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_pair0010.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_chick20009.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_chick30010.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_chick_blue0003.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_sleepychick0013.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_ee_x_cochin0012.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_chick_red0008.jpg   http://www.backyardchickens.com/forum/uploads/thumbs/230_chick_pair0006.jpg    http://www.backyardchickens.com/forum/uploads/thumbs/230_chick_30001.jpg


Edited by silkiechicken - 9/23/12 at 10:20am

Need egg candling reference pics? Click HERE!
2011 Coop build! Click Here!



I'm no expert, there is always something to learn, and my birds are livestock, so... yes, I may be quite blunt. wink.png

Reply

Need egg candling reference pics? Click HERE!
2011 Coop build! Click Here!



I'm no expert, there is always something to learn, and my birds are livestock, so... yes, I may be quite blunt. wink.png

Reply
post #2 of 725

thumbsup

From now till Sept 1, make any purchase at www.blueroocreations.com  web store, where every artisan is a veteran or spouse of a veteran, and receive a surprise free handmade gift with your order!

The Blue Roo Creations Mascot, Lancelot, says, "Support Our Troops!"


Follow Along with The Evolution of Atlas



~A dog on its owner's property is a pet; A dog on someone else's property is a predator~



Reply

From now till Sept 1, make any purchase at www.blueroocreations.com  web store, where every artisan is a veteran or spouse of a veteran, and receive a surprise free handmade gift with your order!

The Blue Roo Creations Mascot, Lancelot, says, "Support Our Troops!"


Follow Along with The Evolution of Atlas



~A dog on its owner's property is a pet; A dog on someone else's property is a predator~



Reply
post #3 of 725

Thanks for posting. Gotta get one of those!!!

Crazy country girl who loves her patient DH and loving DD,
Reply
Crazy country girl who loves her patient DH and loving DD,
Reply
post #4 of 725

Oh, now this is gonna be one great thread! Then, when you are all done with it ... you can make a BYC page! Yea!  Great job. Thanks for sharing! smile

RIP my son, Michael Bonham, Jr. 1972-2013

A son, brother, friend, wrestler, father, Army Airborne Ranger, wrestling coach, and so much more....

A memorial video with some of his (too short) life HERE.

Reply

RIP my son, Michael Bonham, Jr. 1972-2013

A son, brother, friend, wrestler, father, Army Airborne Ranger, wrestling coach, and so much more....

A memorial video with some of his (too short) life HERE.

Reply
post #5 of 725

This should be an interesting thread!


I like where this is headed big_smile

"The USDA doesn't get to inspect my turkey."
-silk
Reply
"The USDA doesn't get to inspect my turkey."
-silk
Reply
post #6 of 725

Those are some really cool pictures thumbsup

Thanks for posting them big_smile

Charlette
Loving wife, mother to a teenage boy, 2 canines, 3 Plymouth Rock pullets & foster mom to 1 canine
Reply
Charlette
Loving wife, mother to a teenage boy, 2 canines, 3 Plymouth Rock pullets & foster mom to 1 canine
Reply
post #7 of 725

Thank you so much for posting this!! Mine are at that same stage and I'm really excited!!

Proud Bantum chicken owner!
Reply
Proud Bantum chicken owner!
Reply
post #8 of 725
Thread Starter

Thanks!

If anyone is candling and thinking about tossing eggs, if you are new or don't have a high output flashlight, I always recommend waiting until day 12-14 to toss. (Unless of course something smells.)

Need egg candling reference pics? Click HERE!
2011 Coop build! Click Here!



I'm no expert, there is always something to learn, and my birds are livestock, so... yes, I may be quite blunt. wink.png

Reply

Need egg candling reference pics? Click HERE!
2011 Coop build! Click Here!



I'm no expert, there is always something to learn, and my birds are livestock, so... yes, I may be quite blunt. wink.png

Reply
post #9 of 725

Some really great photo's. Some of the better I have seen. And great explanations to go with em! Thanks for sharing.

"
Reply
"
Reply
post #10 of 725

I am like a kid waiting for Christmas! It has been so exciting for me working with silkiechicken on this project.  This is my first hatch ever.  I am hopefully going to be a Grandmommie if all goes well. The bummer is that I will miss the actual hatch because I will be back in Ohio at the Ohio National Poultry Show!

Thanks for starting this thread and for hatching my baby's babies!


Edited by ZooMummzy - 10/29/09 at 6:38pm
