Hatching Box... Quarantine Box.... Multi Purpose cage....

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by DaveOmak, Oct 11, 2014.

  1. DaveOmak

    DaveOmak Chillin' With My Peeps

    643
    86
    128
    May 18, 2013
    Omak, Washington
    My Coop
    Sooo, I need a quarantine/hatching pen... I built one today.... out of an Apple Bin... that's what we call them here in fruit country...

    Took about 6 hours.... All materials are left from the coop build or something..... For now, I'm locking the rooster in it... the girls need a break... honestly, the roo could handle 20 hens.... 7 is not enough... I'm contemplating eating him.... gonna have to fatten him up first... This pen should do that.... I hope....

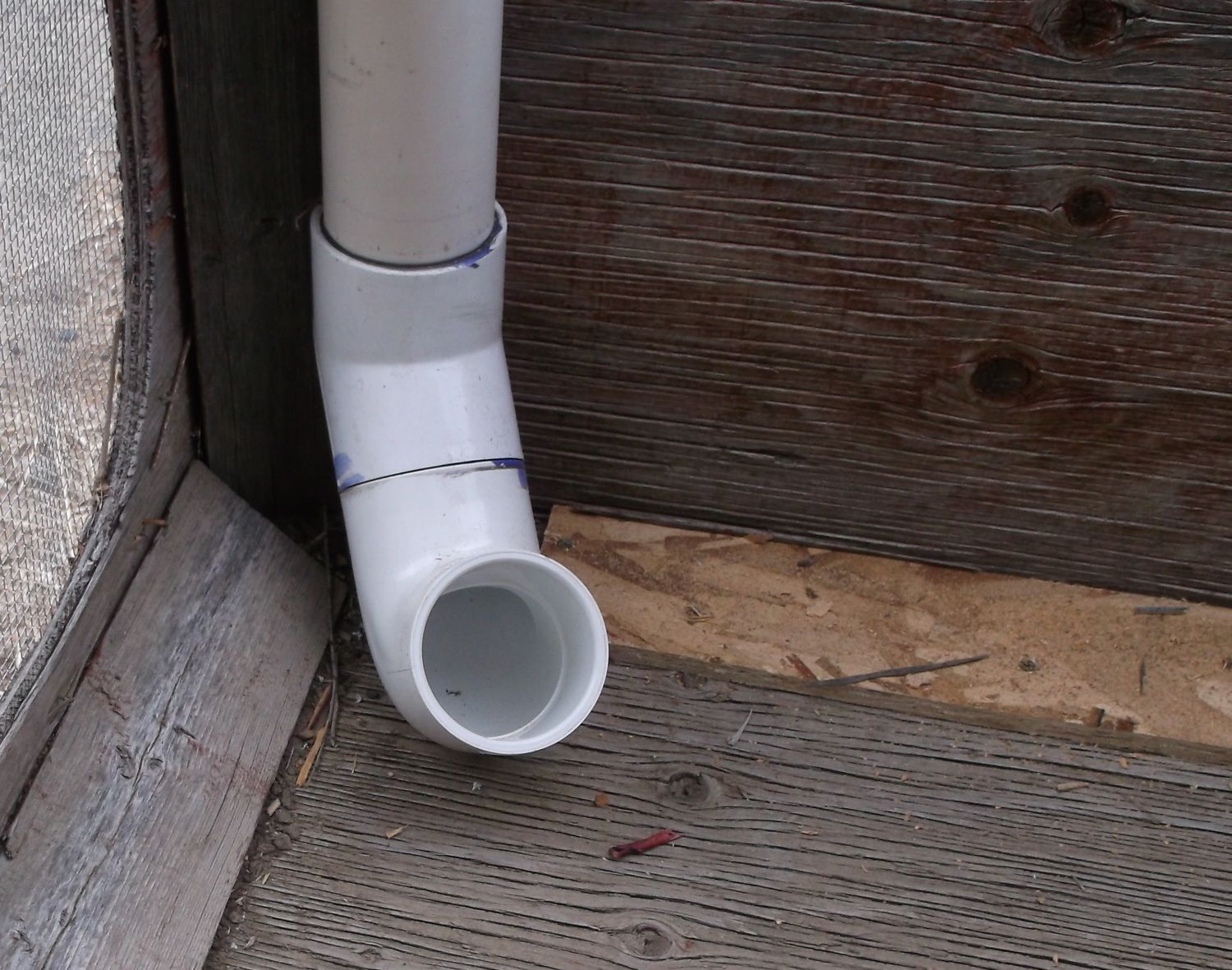

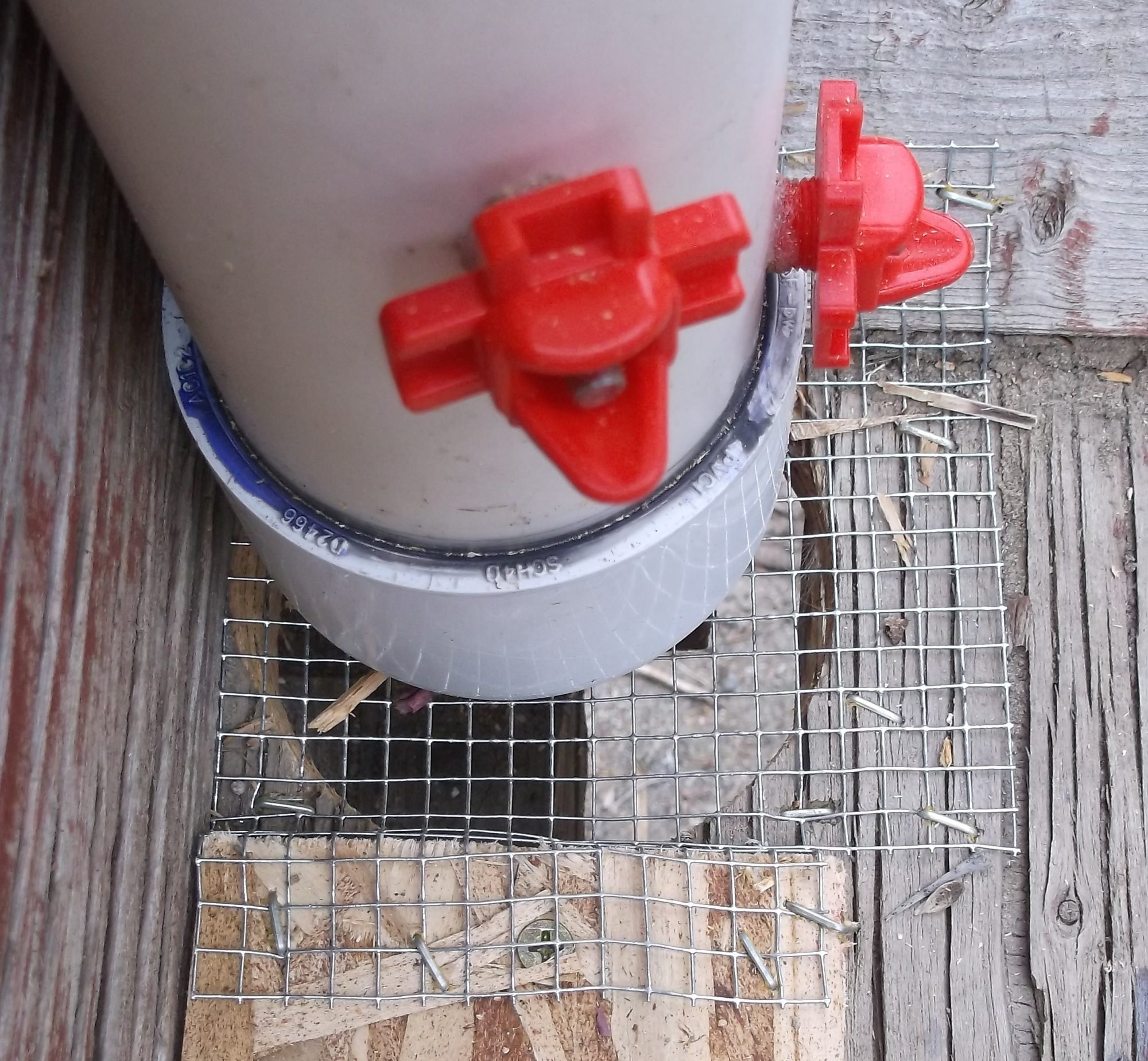

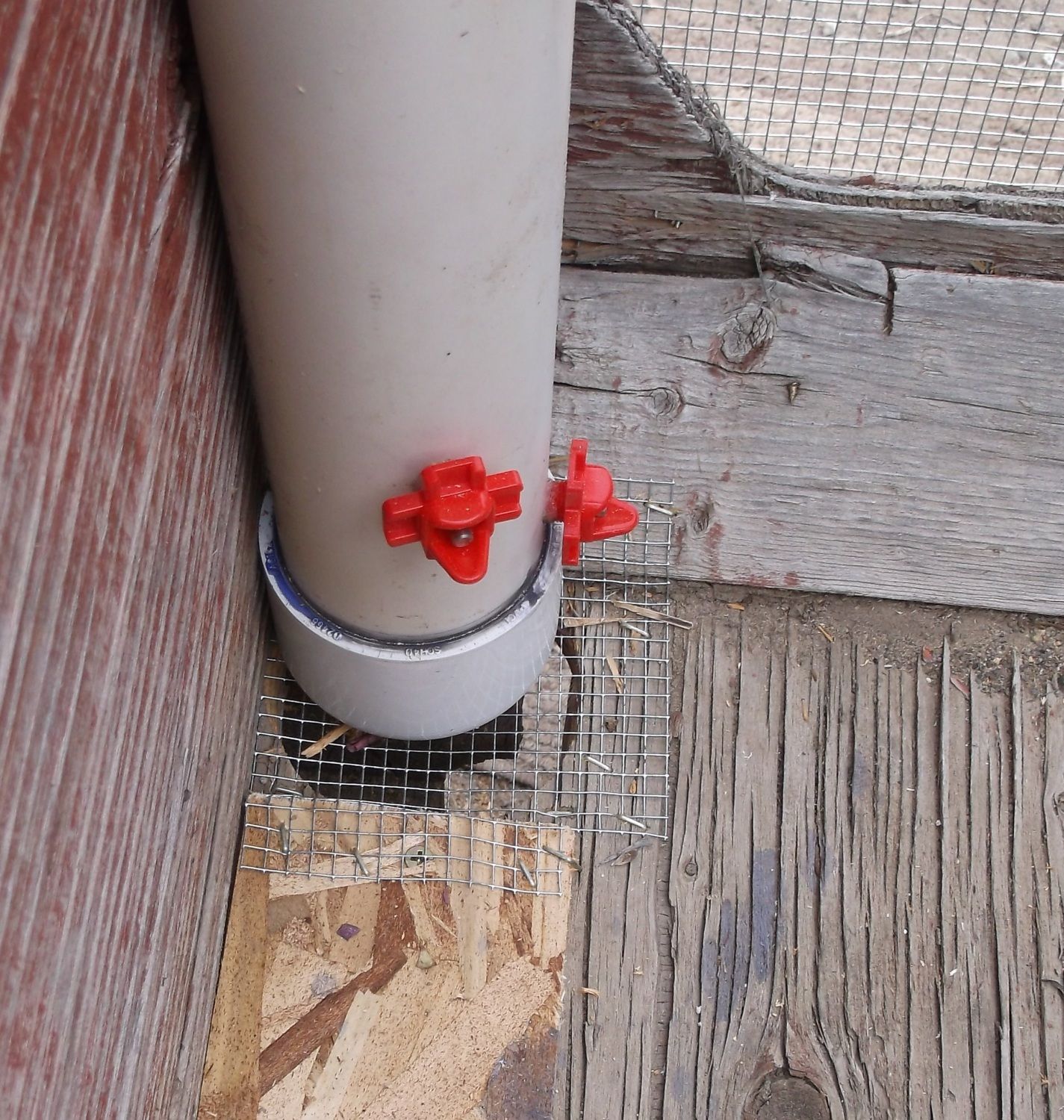

    2 level nipples for chicks and mom.... Cut a hole in the floor for drips to run out and not rot the floor..... put 1/4" screen over the hole to keep varmints out... 2 1/2" PVC feeder... same as the waterer....

    [​IMG] [​IMG] [​IMG]

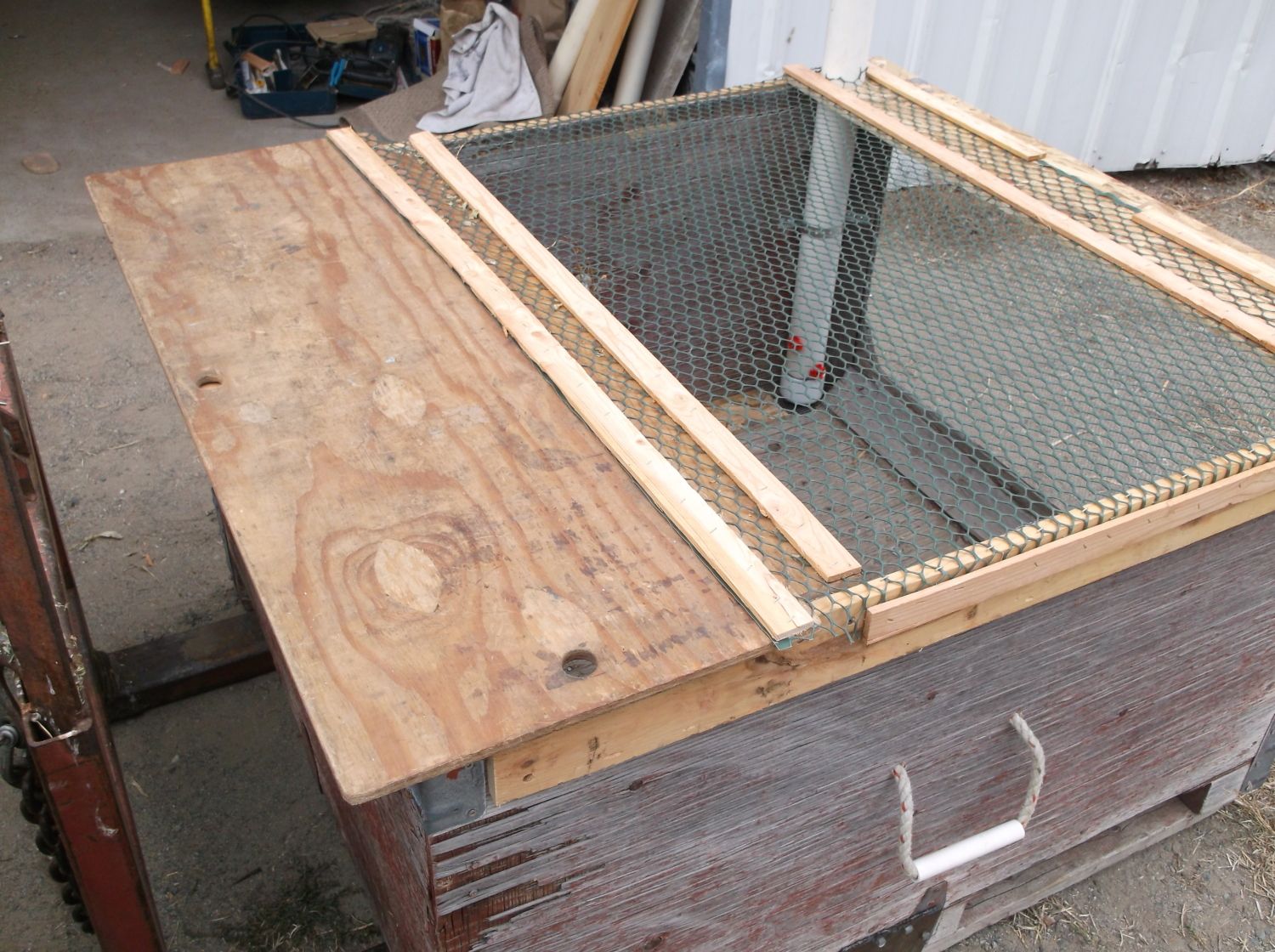

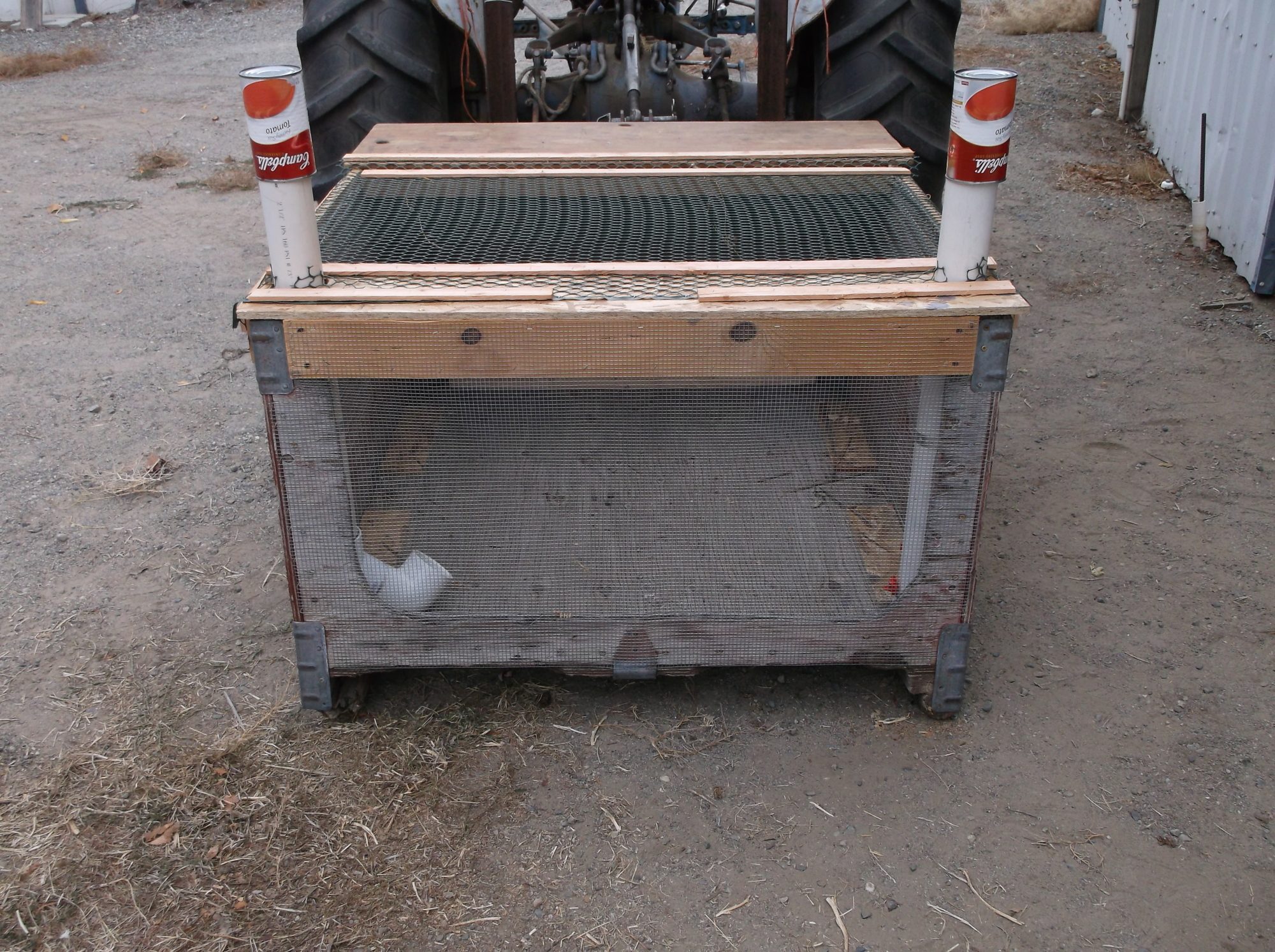

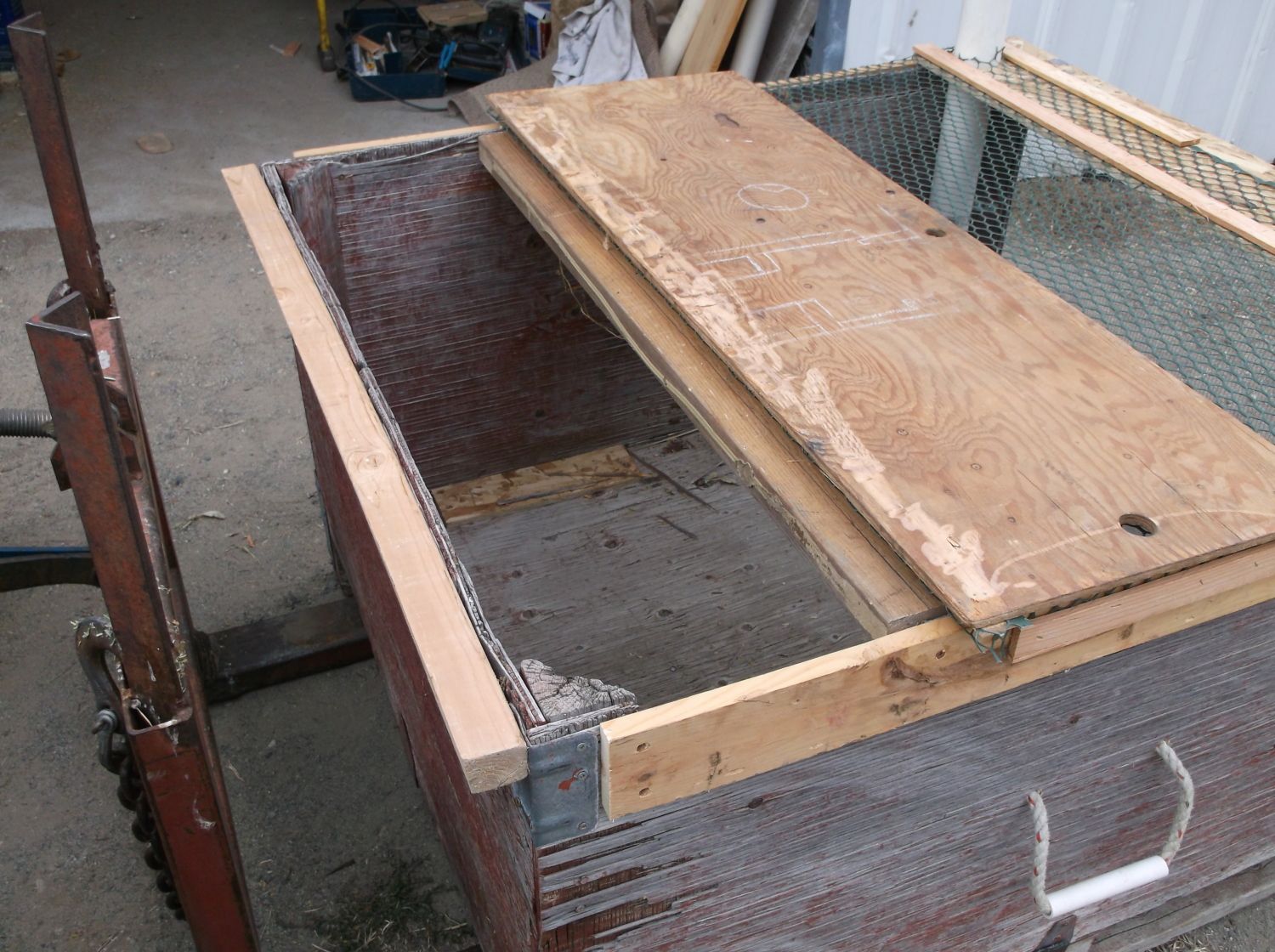

    The box is 4' x 3 1/2'... 14 sq. ft. The door is on the top... hinge is chicken wire... 1/4" mesh on the front... 3/4" green plastic chicken wire on the top.... rope and PVC pipe handles.... Feed and water tubes extend through the top for easy filling... Original drain slots, in the bin, were plugged with scrap wood.... and I can move it with my tractor.... It's going inside the chicken run for now... later I will have to add a roof to separate it from the chickens when quarantining new birds.....


    [​IMG] [​IMG] [​IMG]

  2. sunflour

    sunflour Flock Master Premium Member

    13,848
    2,728
    416
    Jan 10, 2013
    Macon,GA
    Very nicely done.

  3. Northern nurse

    Northern nurse Out Of The Brooder

    47
    5
    24
    May 2, 2014
    Very cool! I,m sure your roo will be very comfortable in there.
