My new tractor

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by MicMoo, Jul 1, 2008.

  1. MicMoo

    MicMoo Chillin' With My Peeps

    132
    0
    119
    Jun 6, 2008
    Tacoma, WA

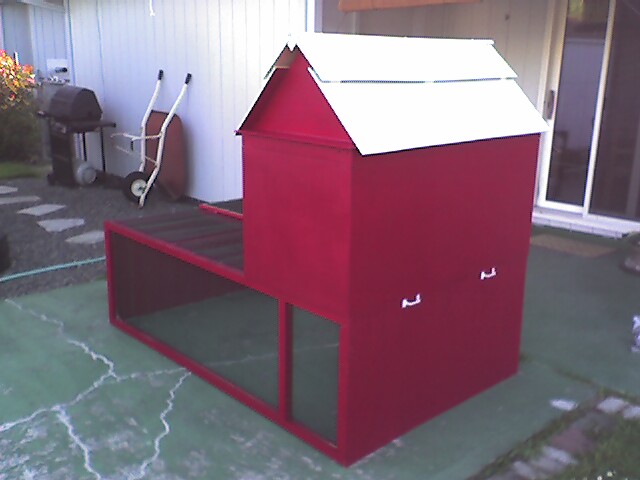

    After about a month of weekends, it's not 100% yet, but it's looking pretty good. It doesn't have a name yet, but I'm starting to like "Chick Inn". It was built with 3-4 bantams in mind, the run measures 6' x 4' x 2', the coop is 2' x 4' x 2' (plus an extra 5cu ft in the 'rafters').

    [​IMG]

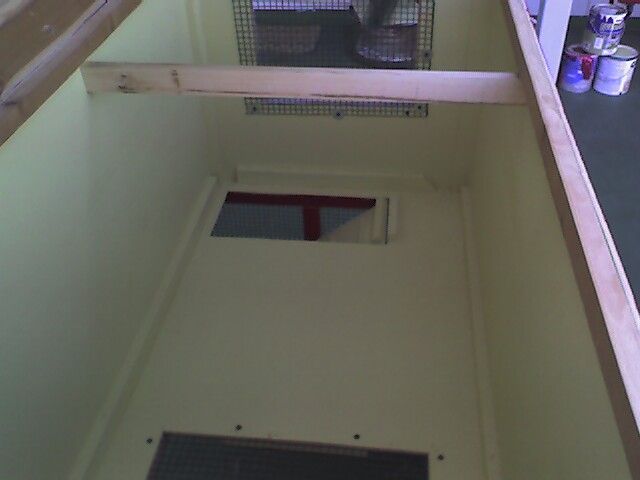

    The top portion of the ramp (colored yellow) is actually a dropping trap door between the coop and the run... however, I haven't really designed a good way to easily open/close the door. I've got an idea, but now just need the time to make it happen.

    [​IMG]

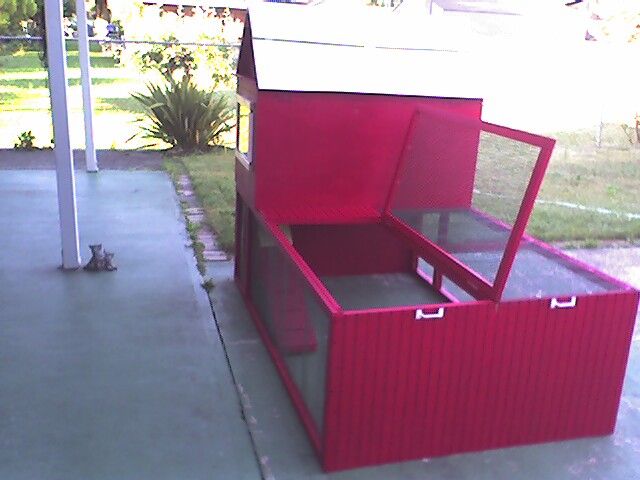

    Access hatch in case it's needed. Funny to watch the neighborhood cats as they come by and visit. They spend lots of time trying to figure out how to get in, they even climb on top. The chickens just ignore them. [​IMG]

    [​IMG]

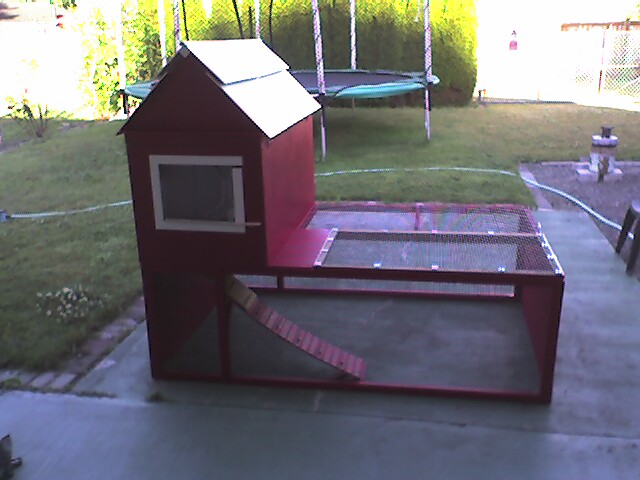

    The entire thing weights about 70 pounds. I'm considering adding removable wheels to the coop side for ease of movement, but my wife doesn't want me to do that because she likes helping to move it... we'll see what she says a few months from now. [​IMG]


    [​IMG]

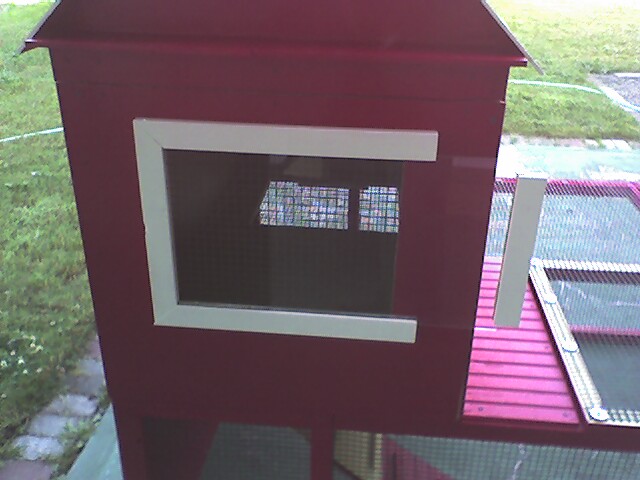

    Here's the sliding window (idea borrowed from others I've seen here). Also, the entire top is hinged, you can see the line above the window, so I can open the coop and clean, feed, etc.

    [​IMG]
    After using it for about a week now, I see some design flaws that will require adjustment. One in particular is that I put an opening below the roosting boards (covered with hardware cloth) so that the roosting chickens would fertilize the ground and not the coop... well, it seems that they aren't too keen right now about roosting over the hole, so I've put the board back in and they're a little more interested now.

    The 1x2 across the top is for hanging the feeder/water... of course, after the fact I realized that I had just made a roost right above their food so I'm going to modify that to make it 'less-than-desirable' as a perching place.

    There are two rounded 1x2s that can't be seen in the picture, mounted flat-side-up. Are those wide enough for bantams, or should I replace them with rounded 1x3 or 1x4?

    [​IMG]

    Here they are being tucked-in to bed on their first night. I've since raised the food and water to keep it clean - boy what a difference that made.

    We've gone ahead and named them. Clockwise from top left; 'Drumstick' the rooster?, 'Bucket', 'Omelette' the Frizzle, and Nugget. There's an anti-rooster ordinance in my city so, in the not too distant future, Drumstick is probably going to accidently trip over an axe and land in a soup pot. [​IMG]

  2. duckman

    duckman Chillin' With My Peeps

    155
    0
    119
    Apr 10, 2008
    michigan
    that is one cool coop i would loveto have me one of those but it would have to be a bit bigger because i have more birds. you did a great job building it. i love the names.

    duckman

  3. Year of the Rooster

    Year of the Rooster Sebright Savvy

    6,076
    16
    263
    Jun 27, 2008
    West Central Ohio
    that looks great. What did you use for the roof? We're planning on building one and might use that kind of roof style.

  4. dangerouschicken

    dangerouschicken Will Barter For Coffee

    2,407
    14
    213
    May 6, 2007
    Columbia Gorge, OR
    It's so cute, I want to live in there.

  5. MicMoo

    MicMoo Chillin' With My Peeps

    132
    0
    119
    Jun 6, 2008
    Tacoma, WA
    Quote:The roof is made of 1/4" birch plywood that's been painted with gloss white outdoor paint. The top roof ridge is covered with a piece of 1/2" PVC pipe that been cut in half to prevent leaks along the seam.

  6. Year of the Rooster

    Year of the Rooster Sebright Savvy

    6,076
    16
    263
    Jun 27, 2008
    West Central Ohio
    ok Thank you [​IMG]

  7. Judymae

    Judymae Chillin' With My Peeps

    837
    0
    159
    Apr 22, 2007
    Merit, Tx
    How adorable!!! You've really done a great job!!

  8. AtRendeAcres

    AtRendeAcres Chillin' With My Peeps

    May 23, 2007
    Clarion County
    [​IMG] it!

    What did you use for top?

  9. rebbetzin

    rebbetzin Chillin' With My Peeps

    Apr 4, 2008
    Tucson AZ
    Wow that is really nice!! You did a good job!!

  10. sweetshoplady

    sweetshoplady Chillin' With My Peeps

    Feb 4, 2008
    Venice, Florida
    That's very nice! Great job!
