Chicken coop made with some 4X8 wood pallets ( pic heavy)

By smcgill, Oct 3, 2014 | Updated: Oct 20, 2014 | | |
Tags:
Rating:
5/5,
  1. smcgill
    Well the girls are bigger now and they have out grown there old coop.
    It was a old rabbit hutch that I had upgraded to a small coop .
    [​IMG]

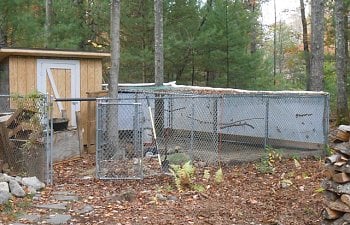

    As you can see we had a dog pen that I had section off , Half for dogs (they sit by the door) the other for chickens.
    When I noticed two out of the six chickens roosting outside (coop to small) ..I thought a new coop is needed.
    The fencing is not very tall and I don't like stooping, so I will build it in the dog side .Winter is also coming !
    So we start the build. Blocks with some gravel.
    [​IMG]

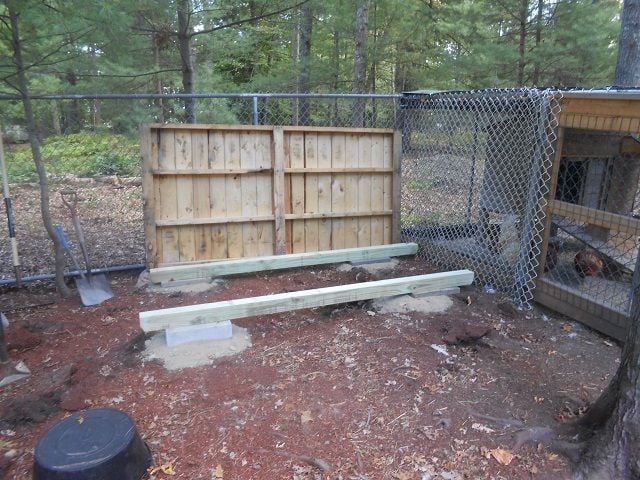

    followed with pressure treated 4X4's
    [​IMG]
    Now we have a good starting point.
    [​IMG]

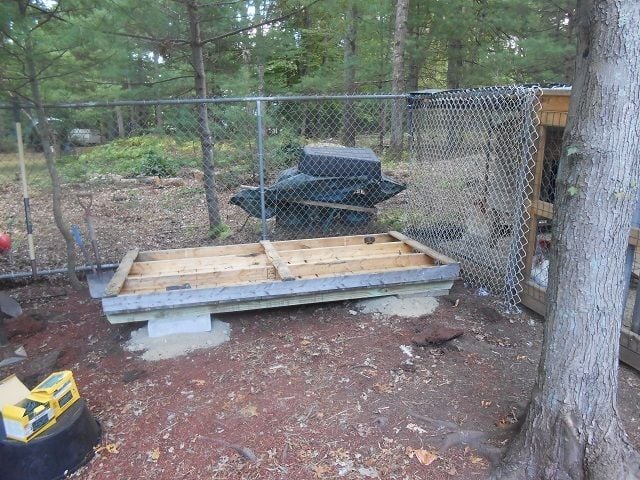

    I am using 4X8 feet wood pallets I had saved with this build in mind.

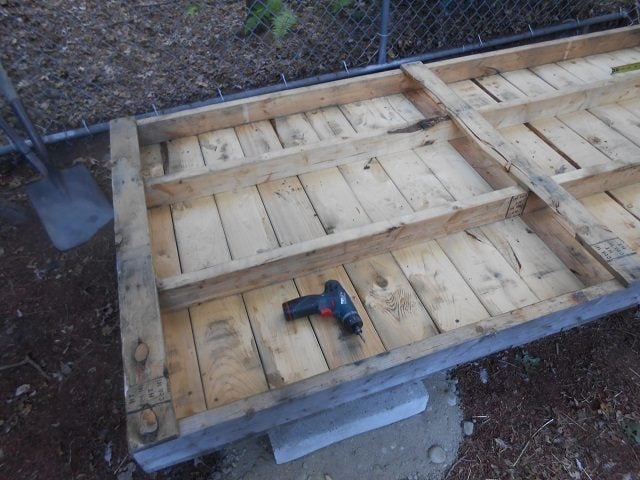

    For the base of the coop I installed one pallet upside down in hopes of keeping critters out.
    [​IMG]

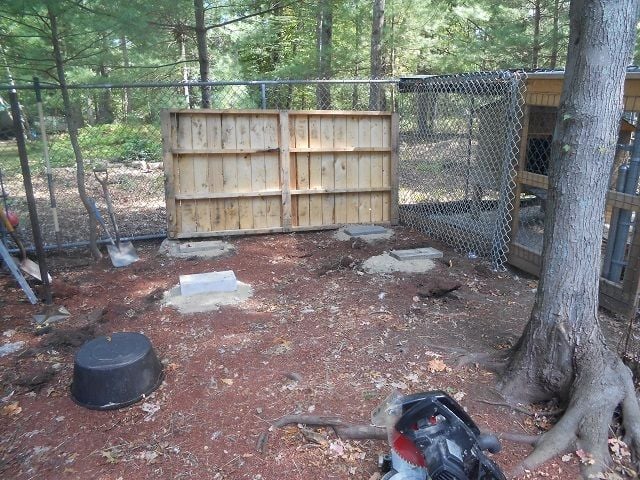

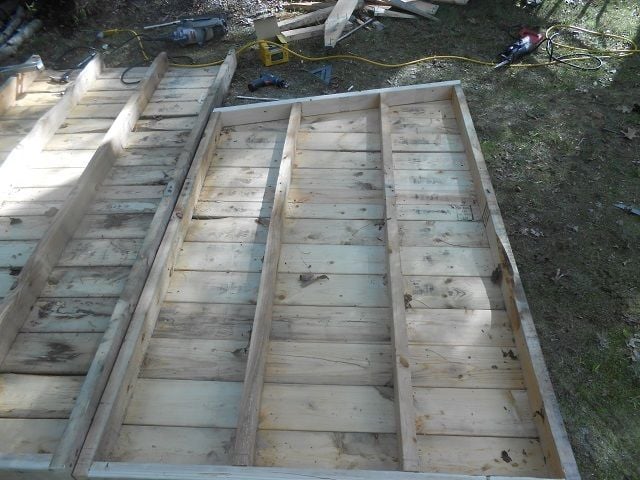

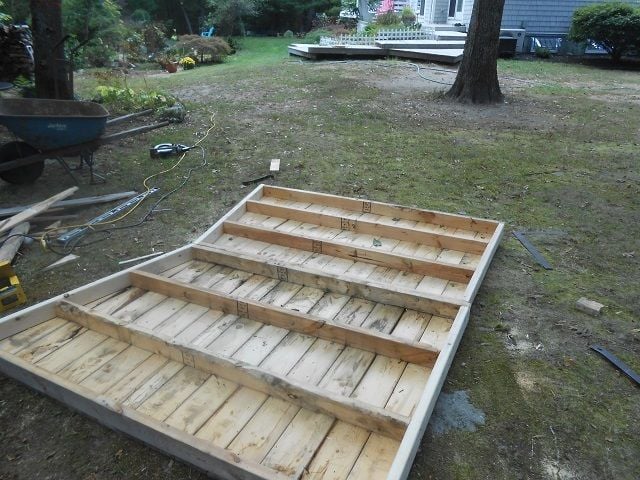

    Next I made up the sides out of other 4x8 pallets
    [​IMG]
    [​IMG]

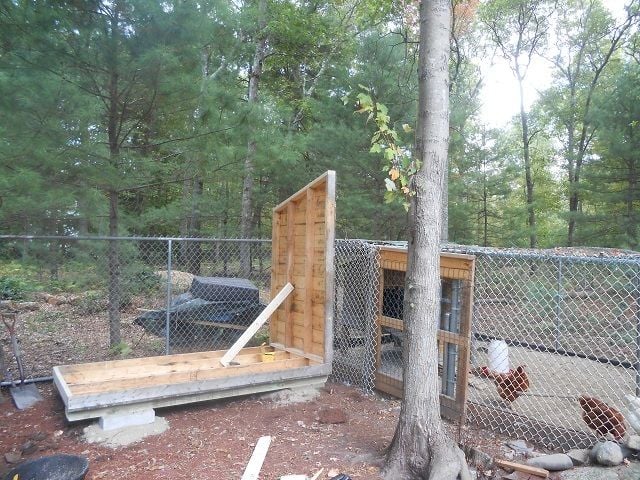

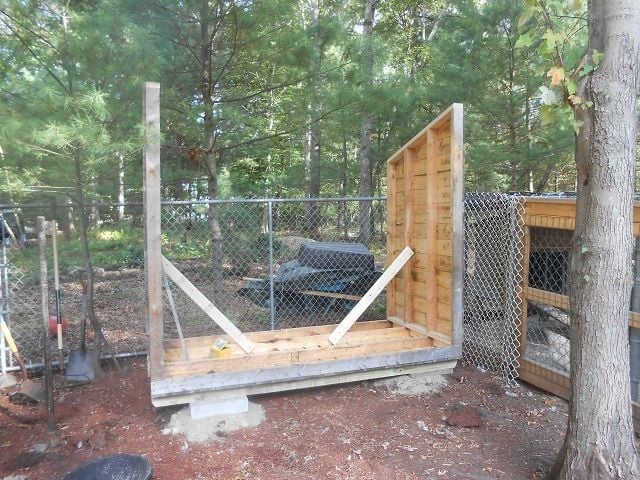

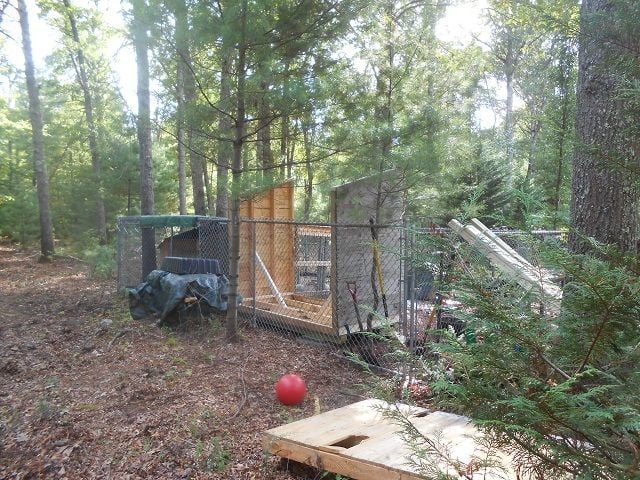

    So I then began installing the sides.
    [​IMG]
    [​IMG]
    [​IMG]
    I will not paint this coop I am hoping it will blend in a little.
    Good so far! Now onto the back wall (I used two pallets cut to 6.5 feet tall) .
    [​IMG]
    [​IMG]
    Hmmm what's going on here???

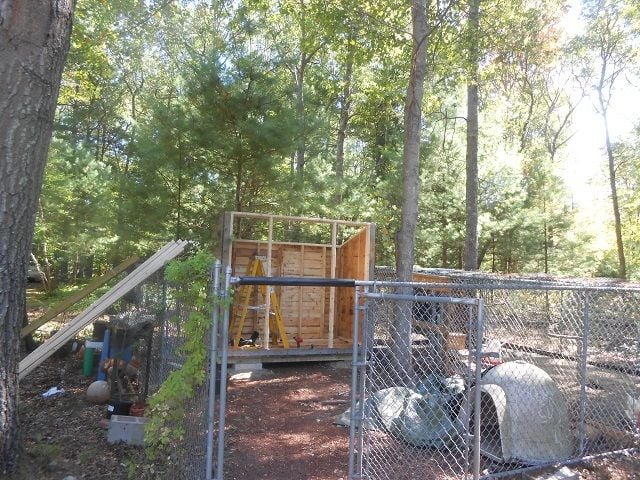

    With that done I started on the front wall @ 7.5 feet tall ( with base just under 8 feet)
    [​IMG]

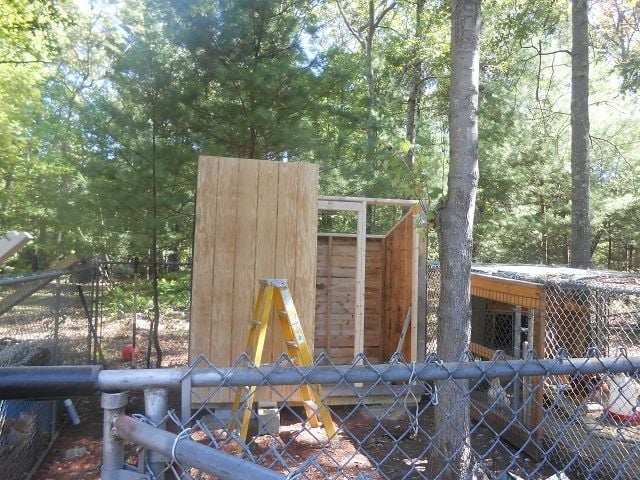

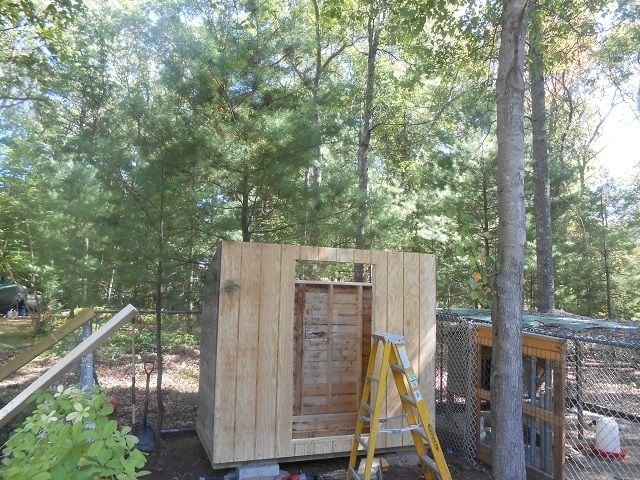

    I decided to us T-111 for the front .I think it will weather to look like the pallets.
    [​IMG]
    [​IMG]

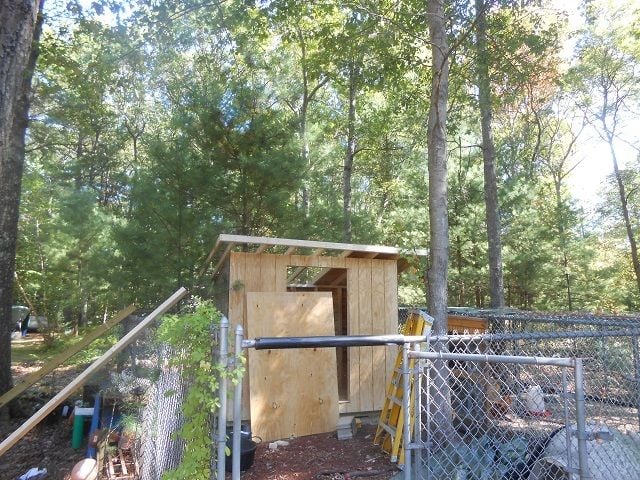

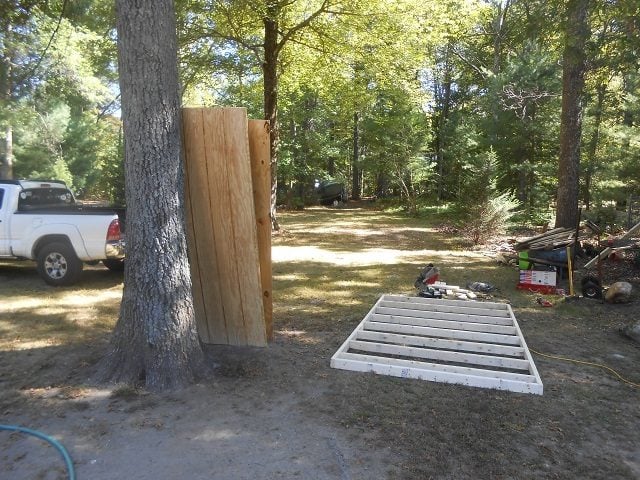

    Looks kind of open so I built a roof 6'x10'
    [​IMG]
    I built the frame first and used it as a table to cut the T-111.
    So when I was done with the T-111, I attached the small piece of 1/2" plywood to the frame and then.... thru it up onto the coop . the bigger one went up next. I had cut and fitted the sections on the ground first.
    [​IMG]

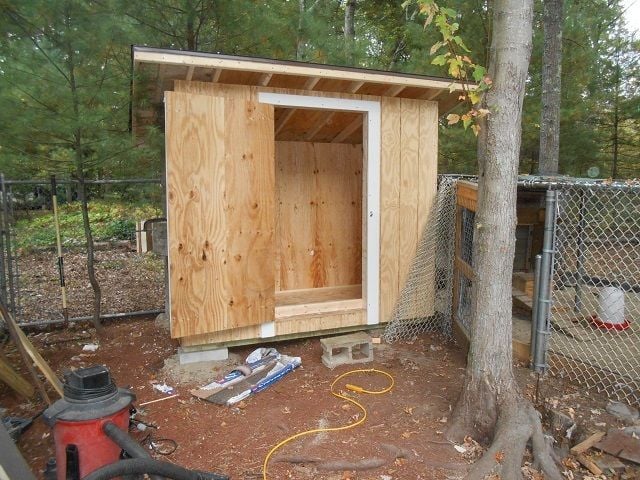

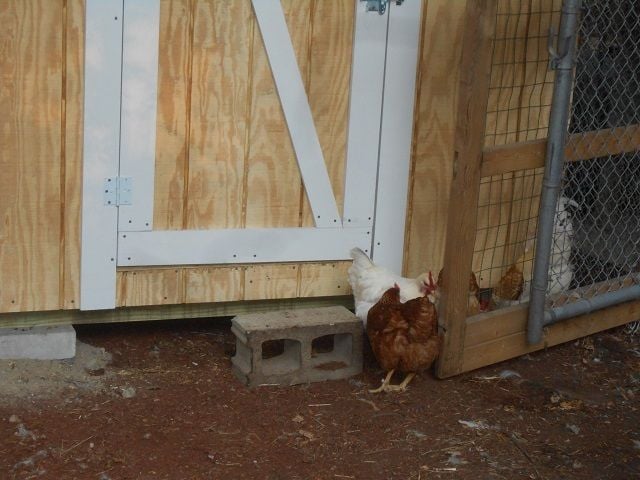

    I used the 2- cutout T-111 pieces for the door. Some primed trim and hinges were added.
    [​IMG]
    [​IMG]
    So now we have this shed....
    [​IMG]
    Cluck Cluck Cluck
    [​IMG]
    Sorry but ( Ha Ha , pun intended) I love this shot!! :)
    [​IMG]

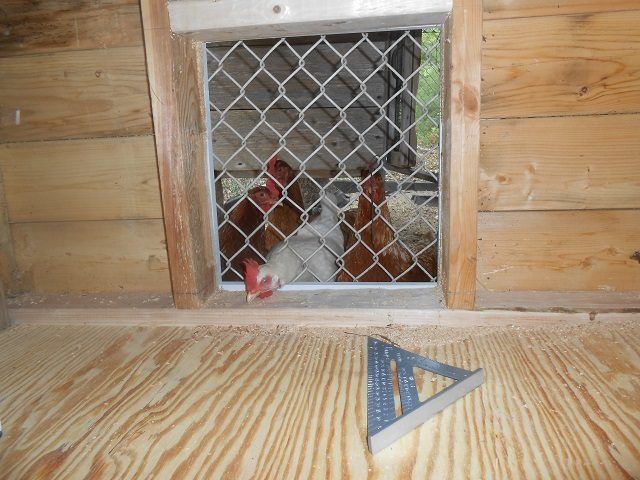

    This is were the chicken will enter the coop ( small ramp)
    I plan on cutting a hole in the fence and attaching it to the coop.
    I now have to add insulation. I have some 2" and 1-1/2 " insulation ( 3-1/2 thickness of 2X4 wall)

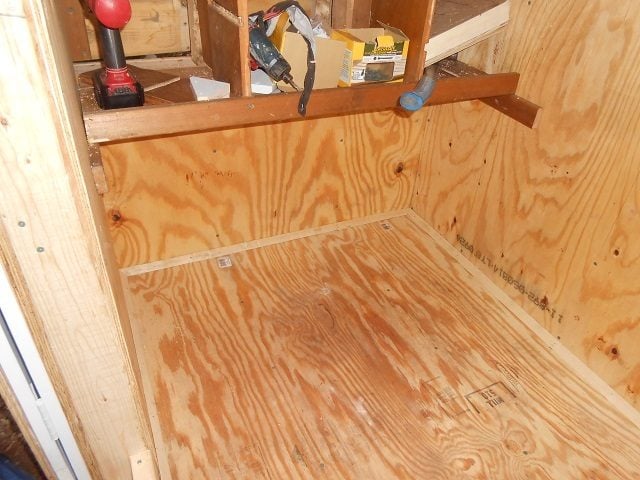

    I installed it in the floor first , then onto the walls! 1/2" plywood was used over that.
    [​IMG]
    I used some 1" wood chamfer to keep the sand from falling thru the cracks.
    [​IMG]
    [​IMG]

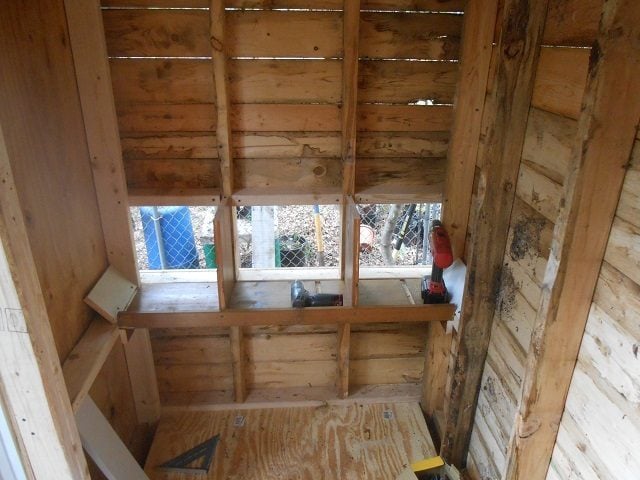

    That tool shelf will be the three nest boxes, see before insulation and plywood.
    [​IMG]
    Yup ... will access from out side. Need pic of that.
    All during this build I felt that I was being watched.
    [​IMG]
    That all the pics I have for now....
    I need to insulate the roof add plywood , vents, perches..........
    Hopefully I finish this coop this weekend!
    I will update!
    Time crawls by...
    OK work has continued!

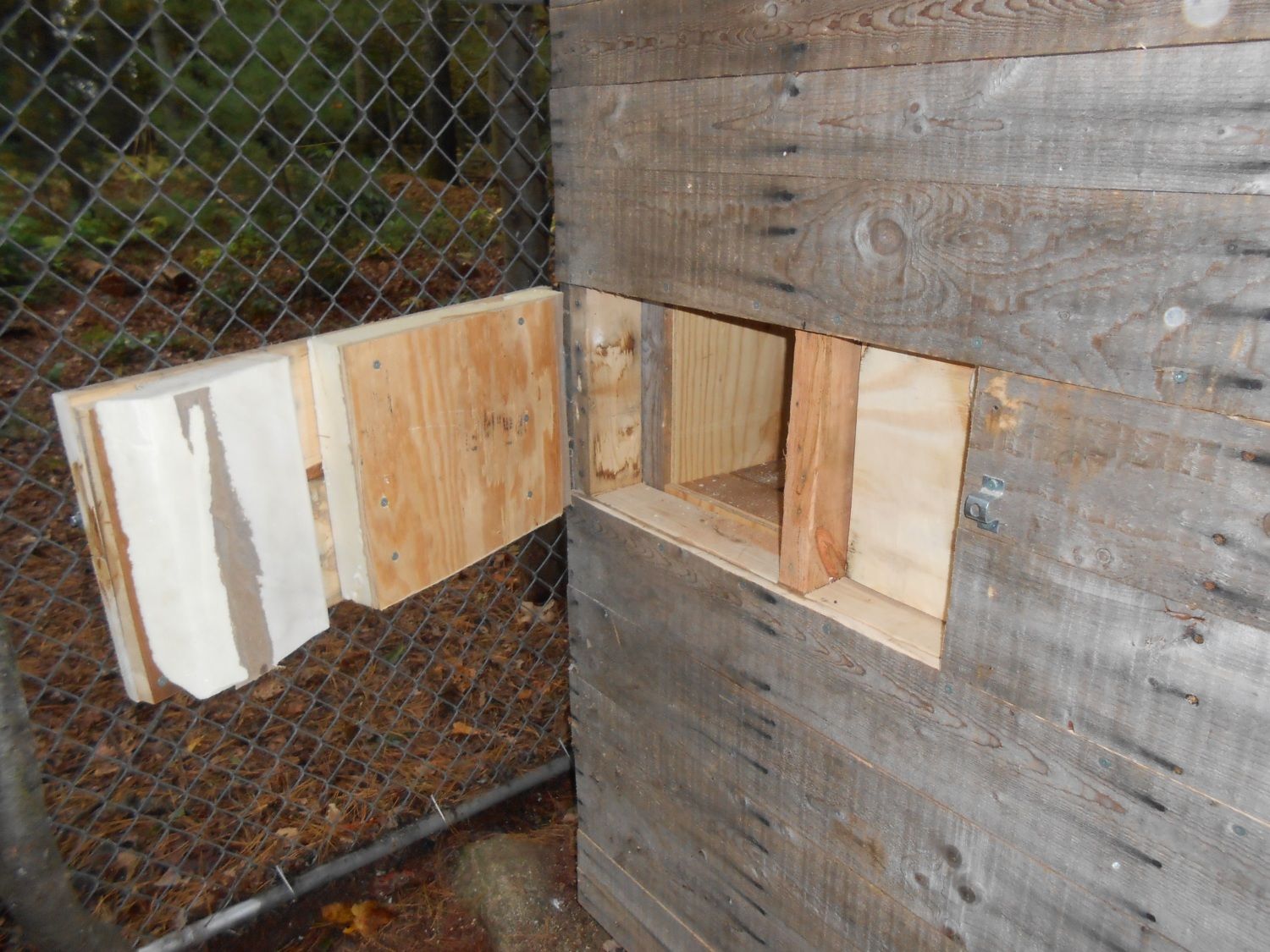

    I finished the nesting area!
    [​IMG]
    [​IMG]

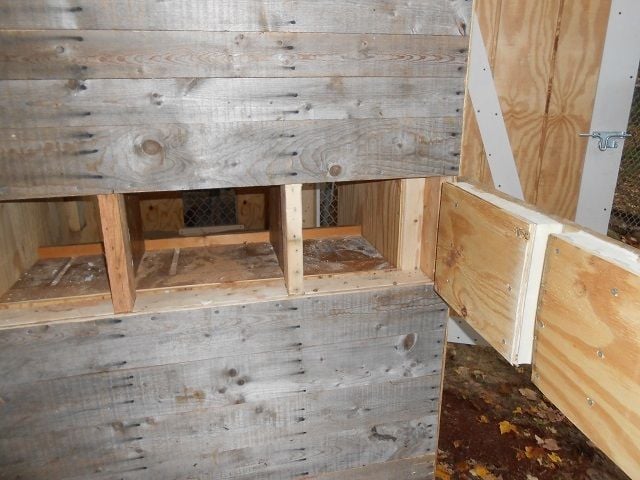

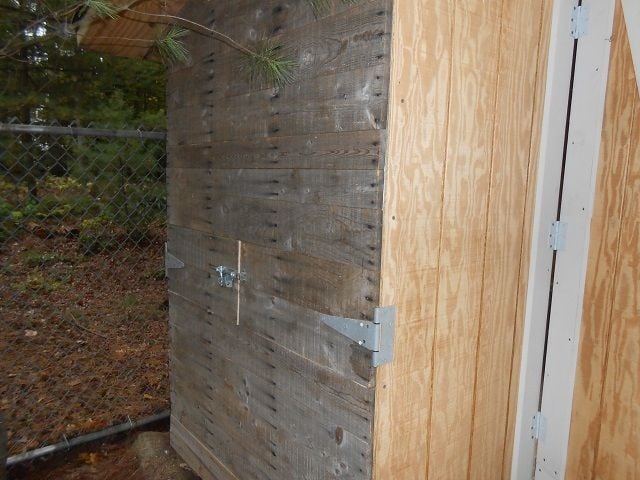

    Here are pics taken from the outside.
    [​IMG]
    [​IMG]
    [​IMG]
    The inspectors couldn't wait !
    [​IMG]
    [​IMG]

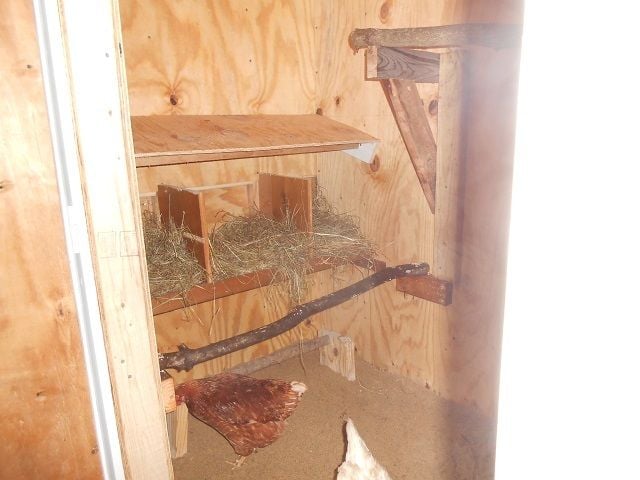

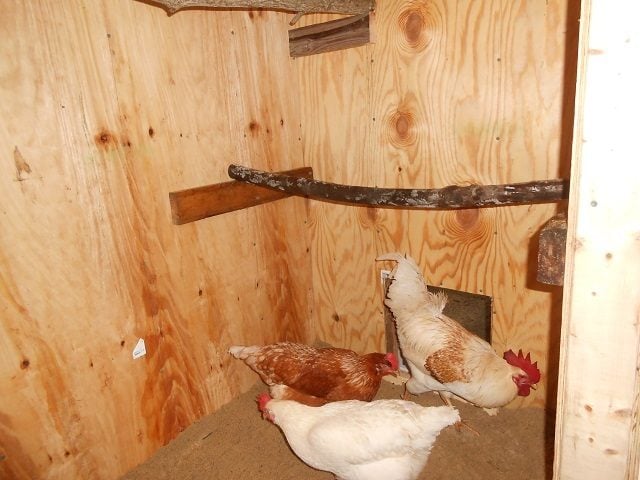

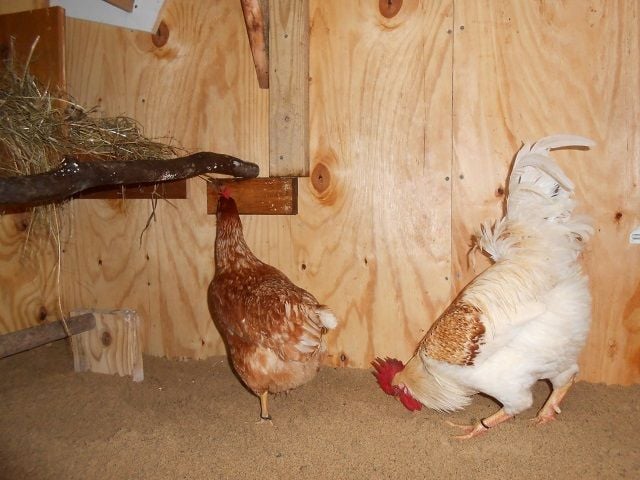

    As you can see I used branches for perches .
    [​IMG]
    [​IMG]
    I did install a sliding door to isolate the coop from the run.
    [​IMG]
    Here is a shot before the fencing was opened.
    [​IMG]
    And after, small ramp was added later.
    [​IMG]

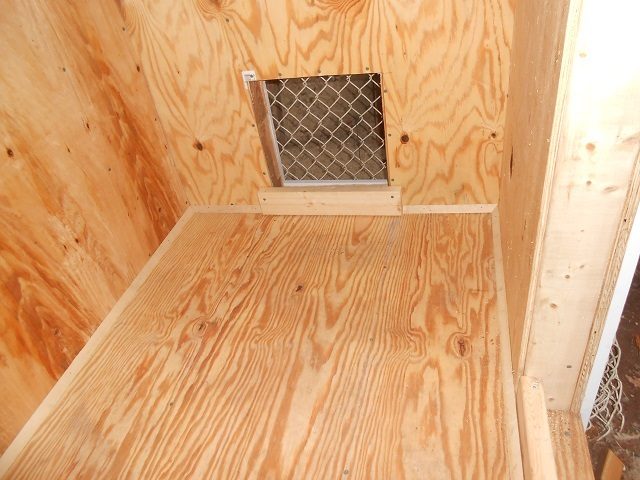

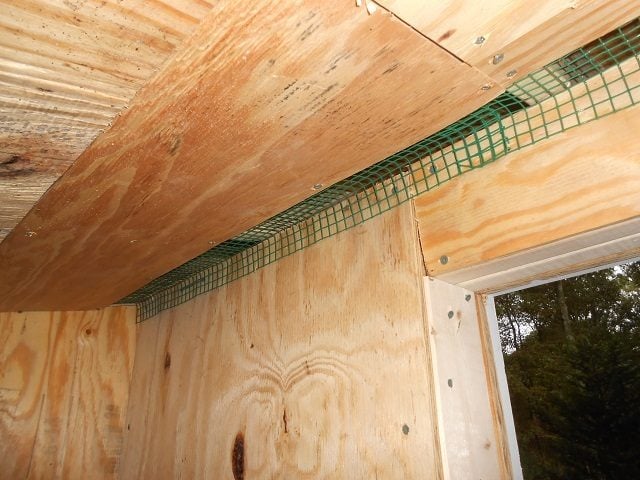

    Here is a shot of the vent inside and outside. I did screw it down with some fender washers.
    [​IMG]
    I did add a 100 watt bulb ^just above here^ that is on a timer .
    [​IMG]

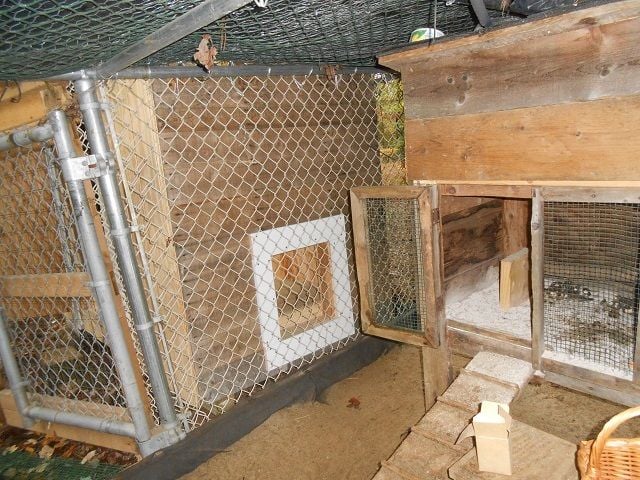

    We have the old, small coop, with the nest boxes sticking out.
    We didn't think they would get so big!
    [​IMG]
    This shows the new and old.
    [​IMG]
    We now have some happy campers!!!
    [​IMG]
    Well most are!
    [​IMG]
    I'm watching you buddy!
    [​IMG][​IMG]
    It's funny what these bugger will do!
    [​IMG]
    [​IMG]
    Opps flash is on!
    [​IMG]
    See Ya!
    Sean
    Updated on October 20th, 2014
    So we are getting closer to winter... I installed some wood then some poly to two sides of the run.
    I also extended the roof covering to cover half.
    [​IMG][​IMG]
    [​IMG]
    [​IMG]
    Half of the roof is covered.
    [​IMG]
    [​IMG]
    He still doesn't trust me!
    I think he likes it.
    Sean
