DIY Thread - Let's see your "Inventions".

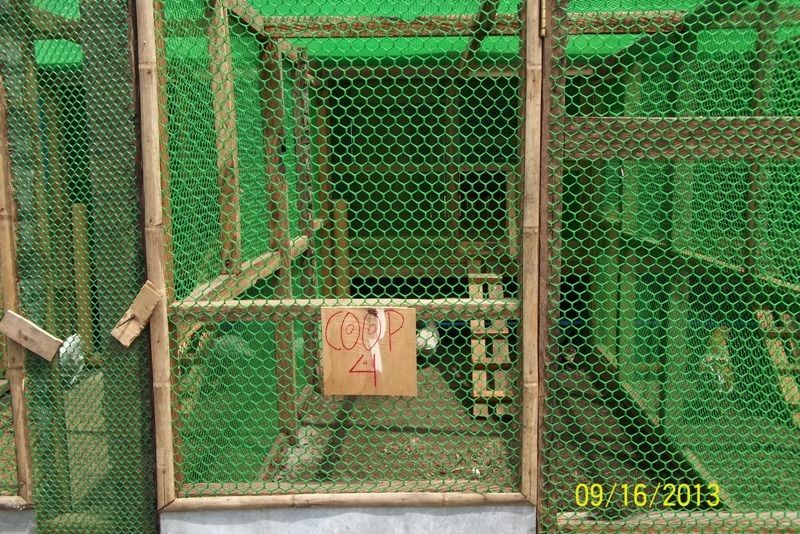

To stop dogs and rats I have a cinder block foundation then 18 inches of plain GI sheet. Then I use polyethyline chicken "wire" above the GI sheet and over the top to stop cats. We dont have mink, weasel, coons, bob cats, skunks, cougars, coyotes, wolves, foxes or dingoes.
You are soo luckey Oz.... I am wondering though.... what is the lifespan of the polyethylene chicken wire.... There your determining factor is salt..... Here in the high desert its UV.

deb

You are soo luckey Oz.... I am wondering though.... what is the lifespan of the polyethylene chicken wire.... There your determining factor is salt..... Here in the high desert its UV.

deb
i have had some for 4 years with no sign of cracking. it is used extensively there in aquaculture. Galvanized chicken wire would last 6 months. Hog wire lasts 2 years - we are replacing with a cinder block/concrete/waste hardwood trimmings fence - same lumber on the coops. I have an endless free supply. The house yard uses bamboo instead of hardwood scrap

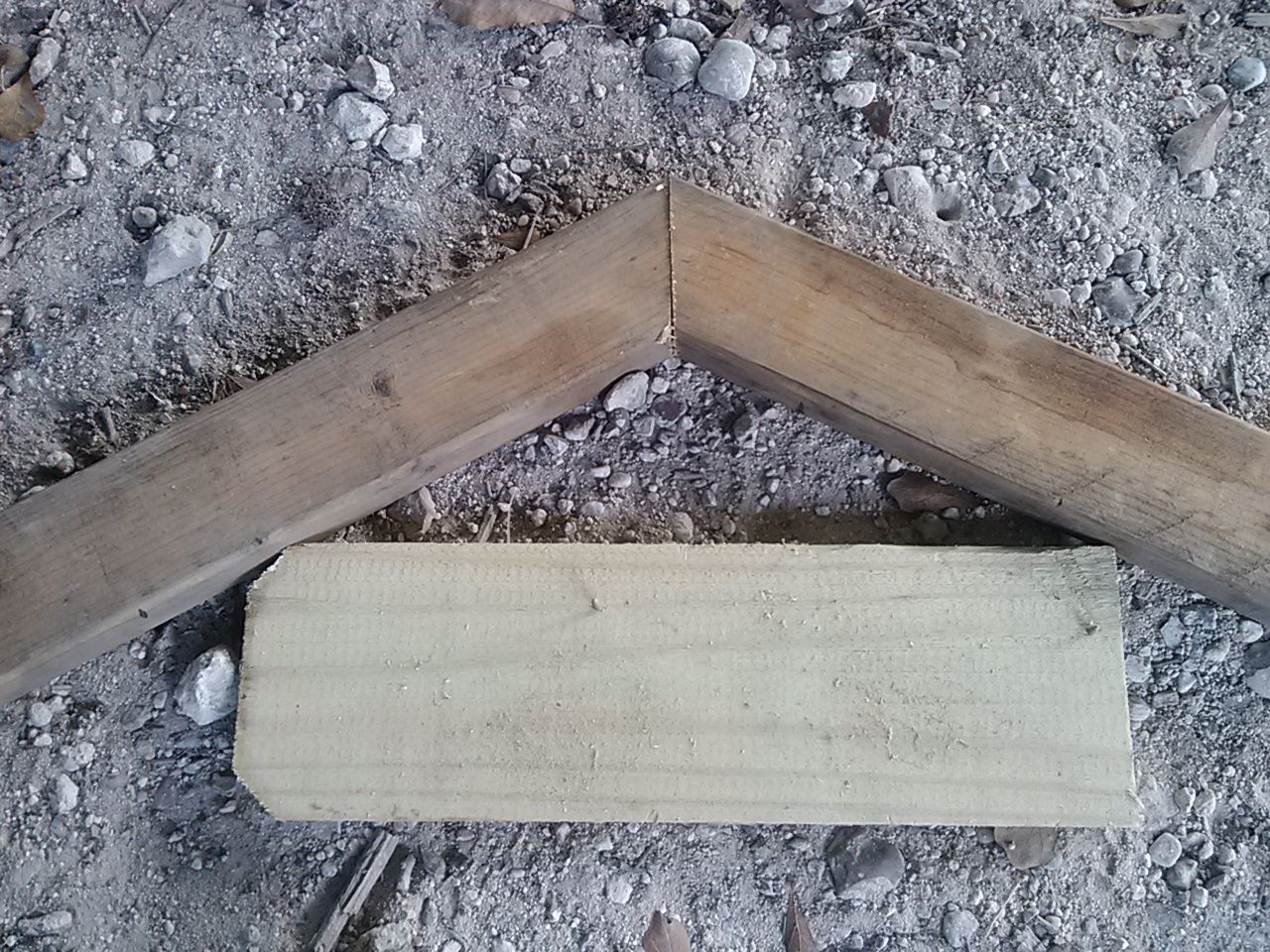

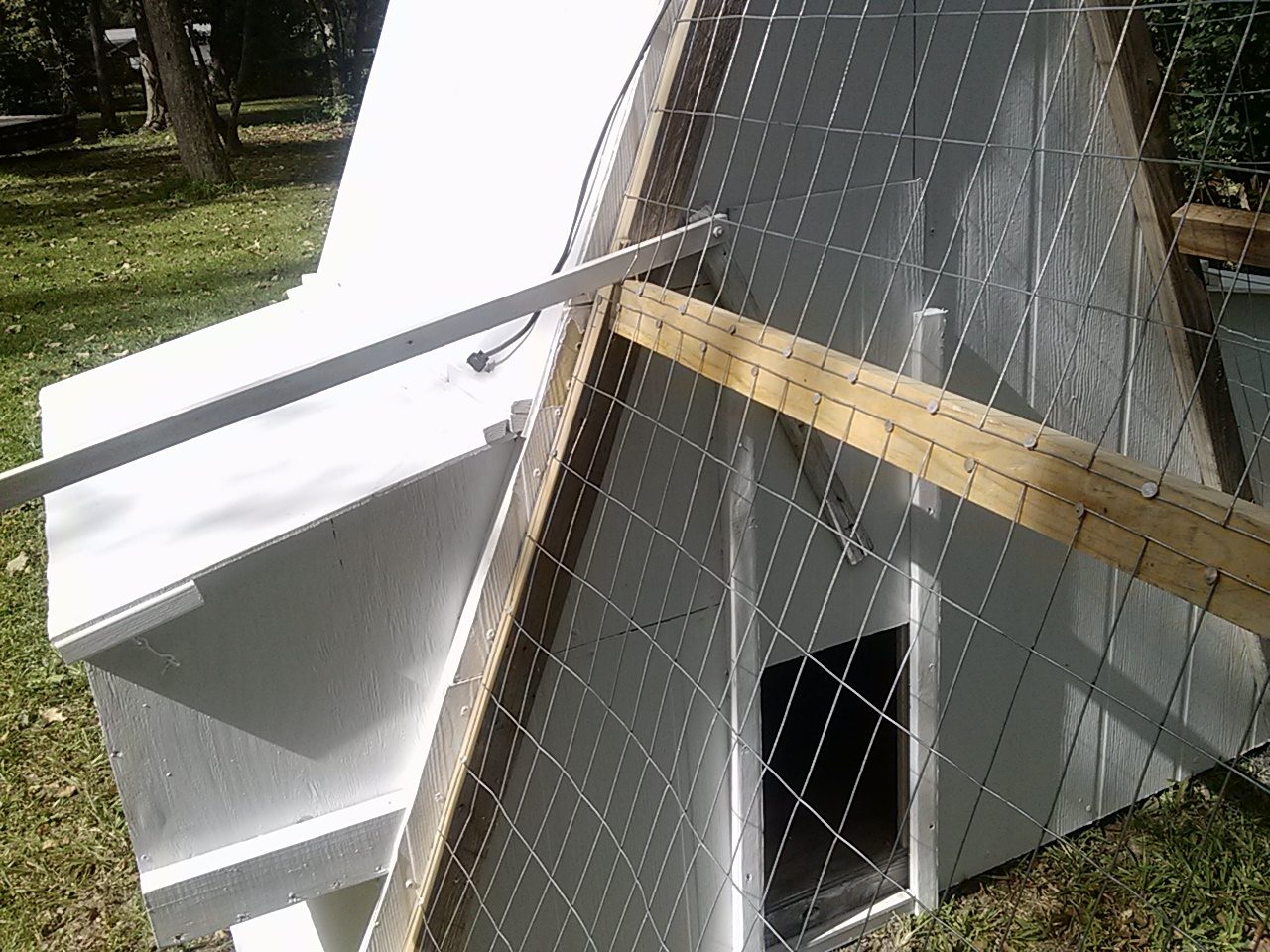

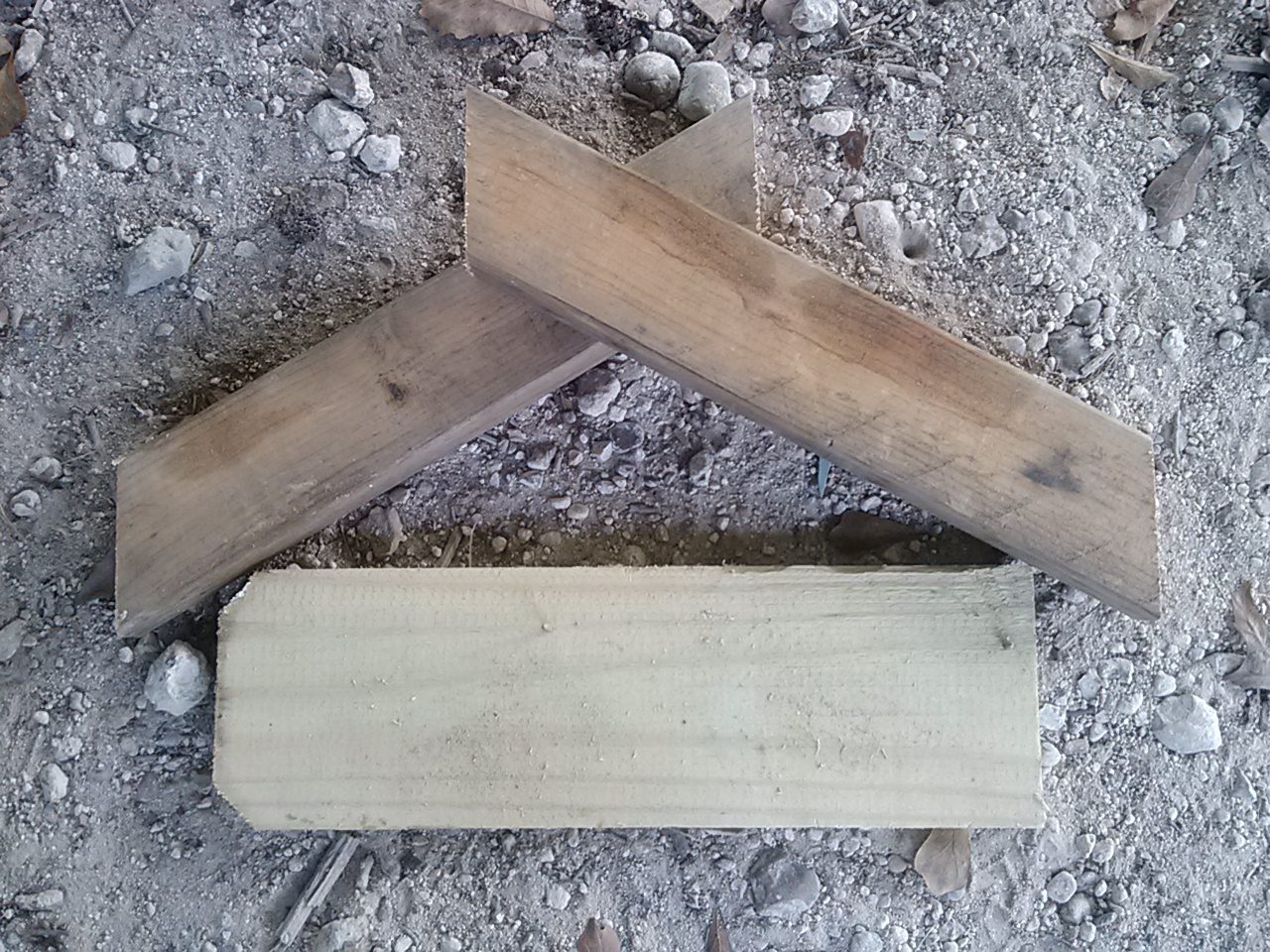

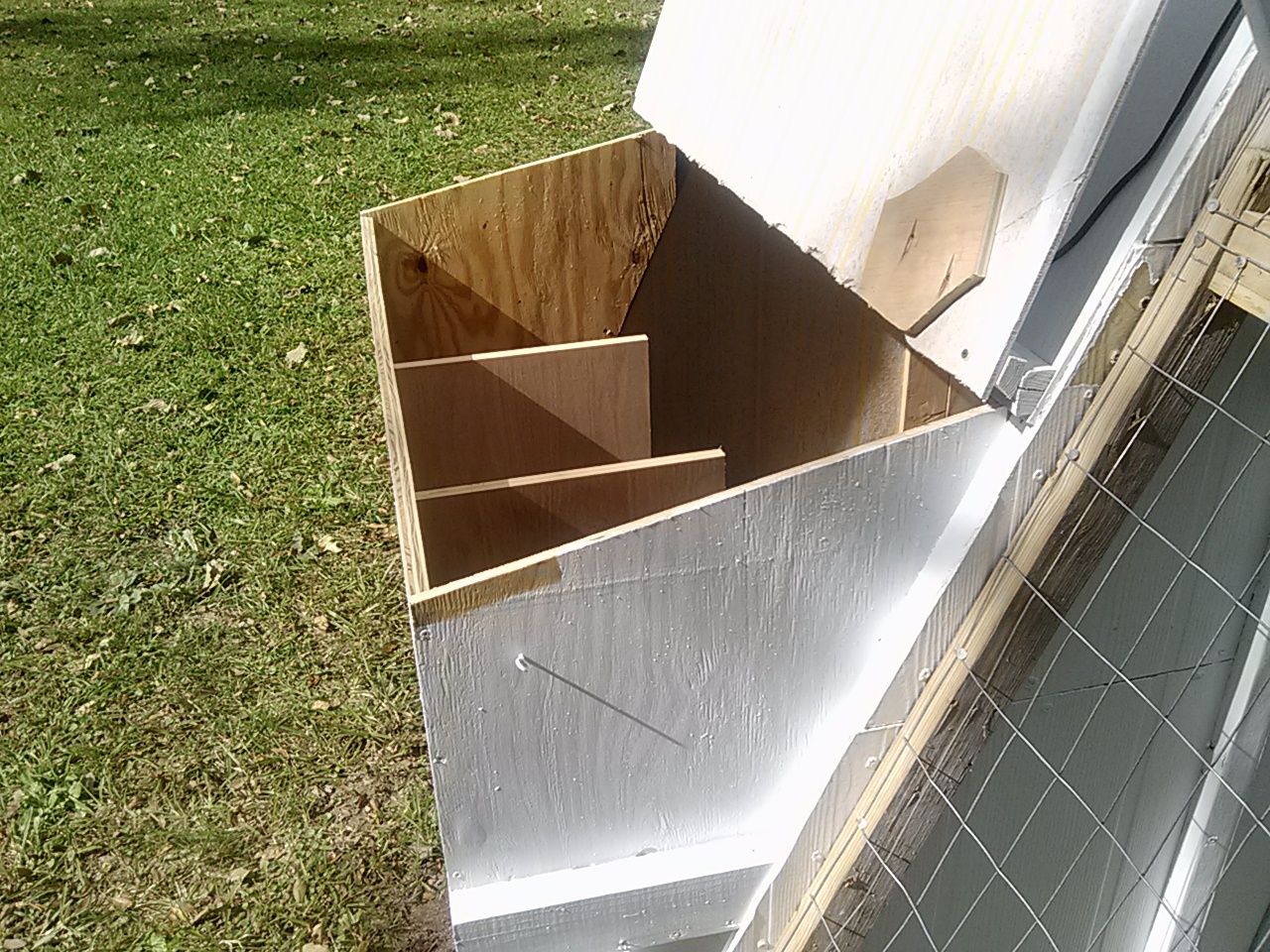

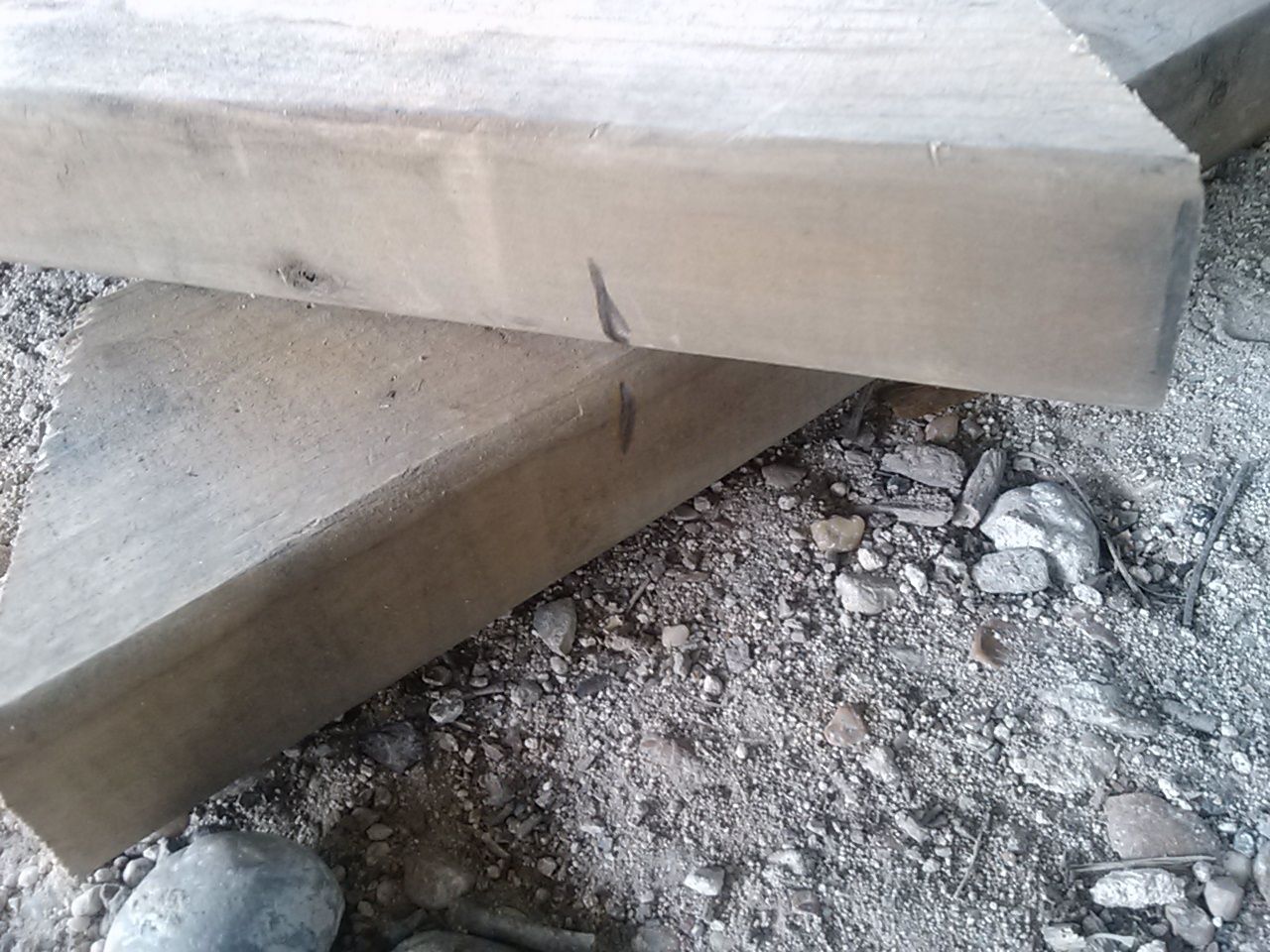

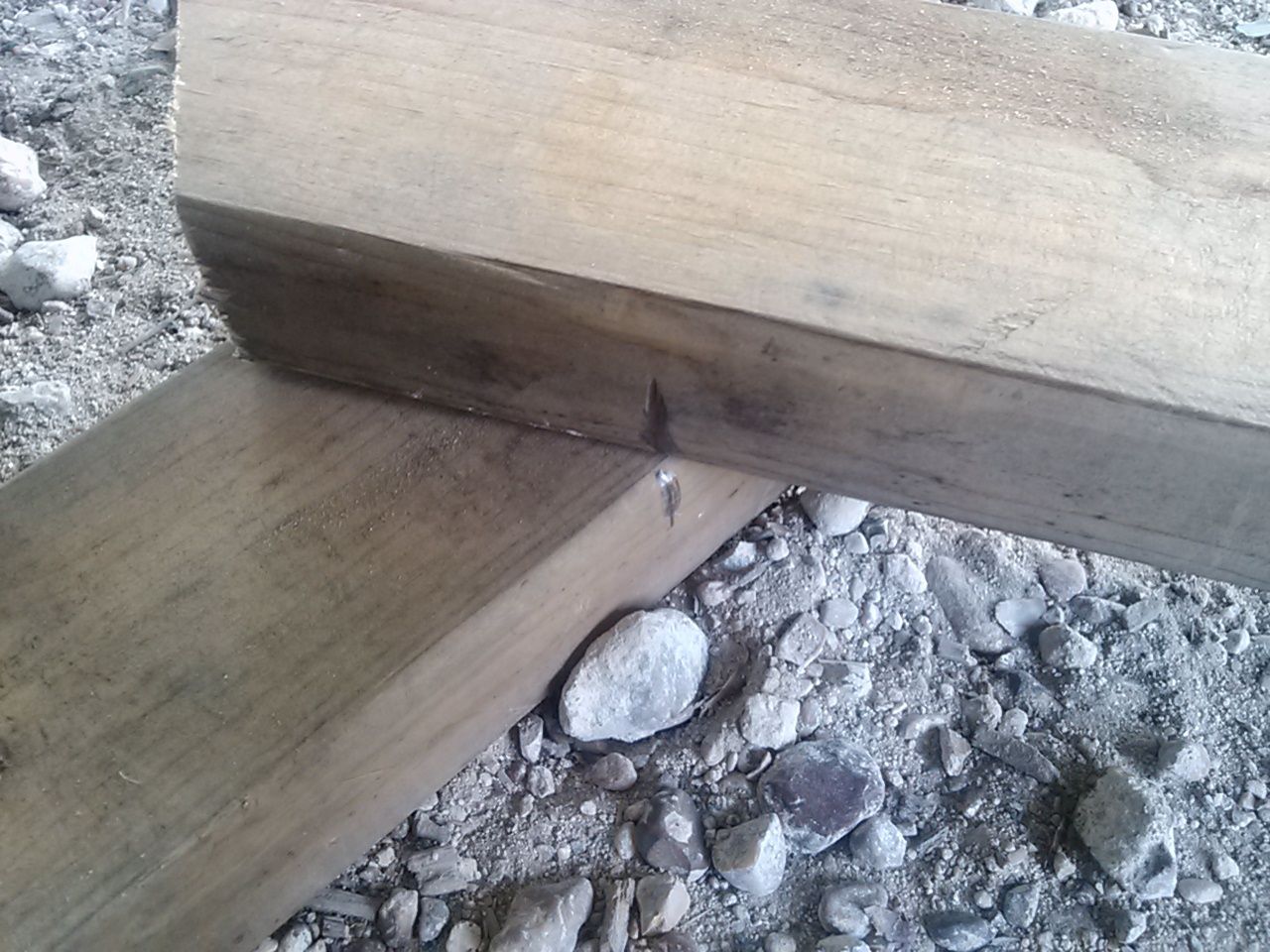

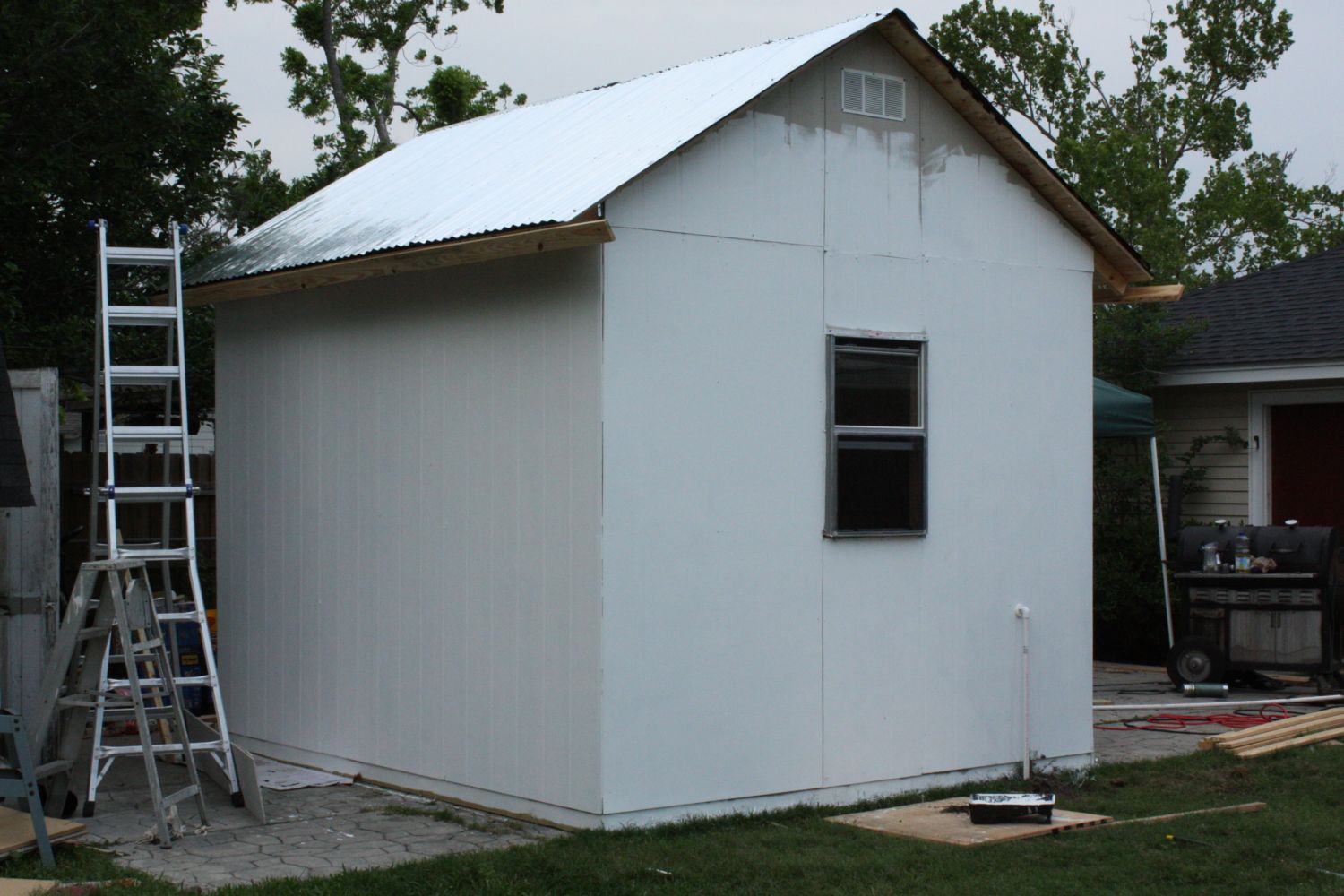

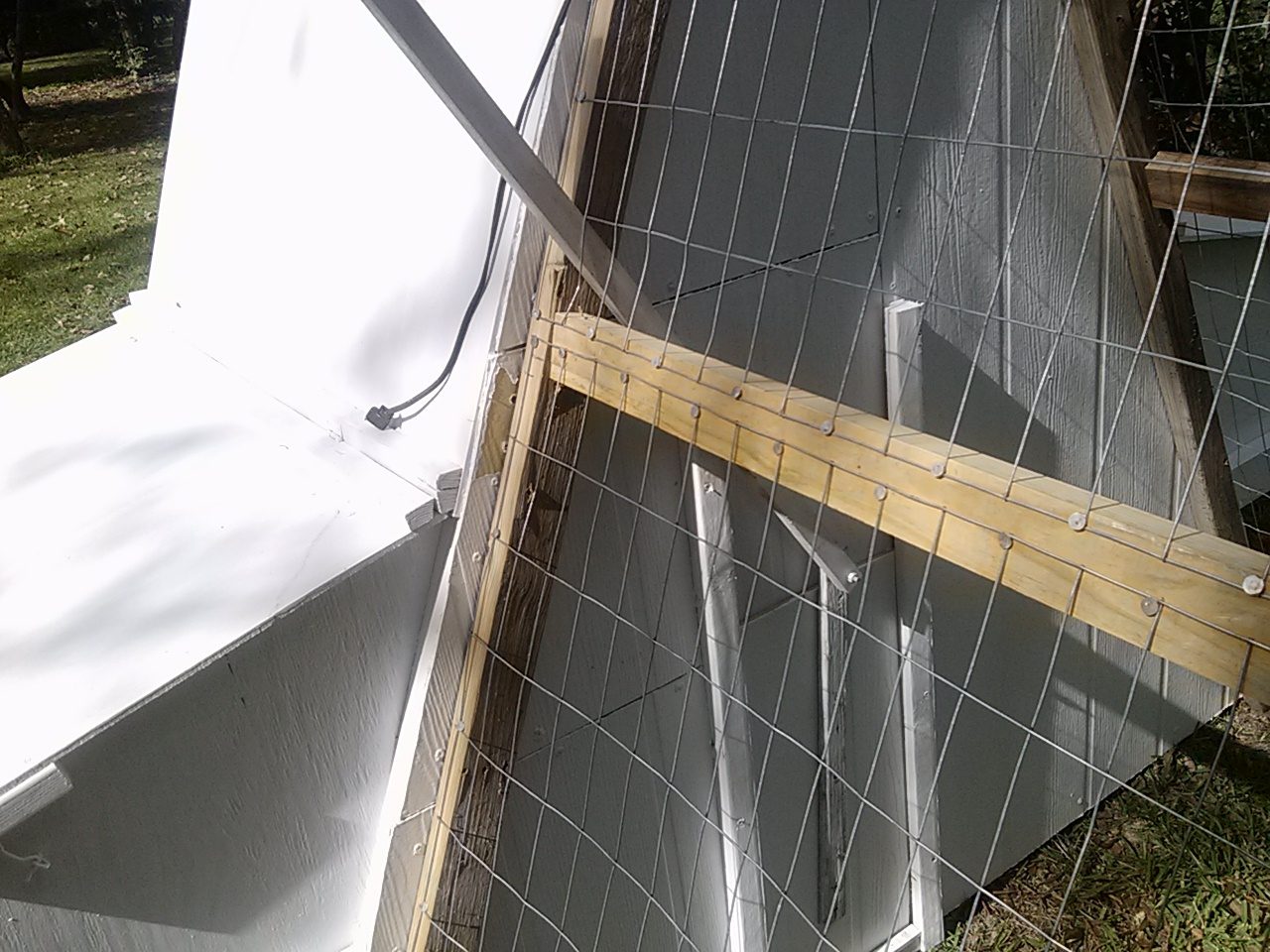

Here's a few more pics of the coop. Now an easy way to decide what angle to cut your roof 2x4s. I know this is just scrap wood but it works the same. The bottom board is as wide as the front of your building. Decide how much overhang you want then bring the tops down till you get the pitch you want. Always making sure they cross at the center of the bottom board. Don't worry you only have to do this once then you'll know the angle of the miter for the rest of the boards. Mark both boards top and bottom the draw a line on each board connecting the two marks. Set your miter so it cuts along the line. That will be your angle. Write it down and use it for the ret of the boards. Here is a 10x12 building I build by myself and I used that to decide on the angle for the roof. ( I wanted storage up top so that's why it's pitched tall)

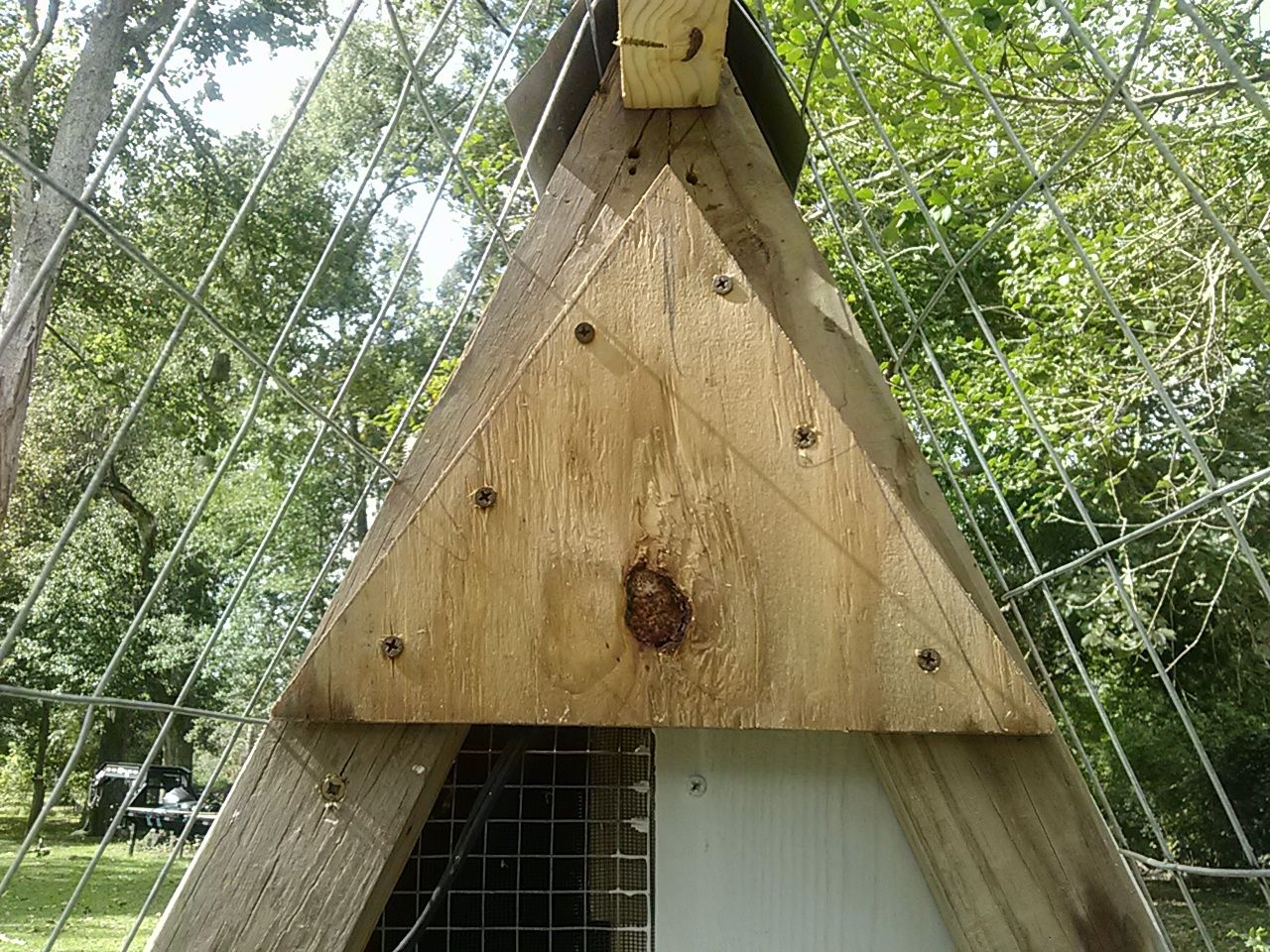

Thank you so much. That was a super explanation. I can do that. Love your shed and the plywood triangle on the apex of the coop. That was really helpful. I want to build something bigger.

Oz Your fence is looking soo good.... I have learned so much about Coconut trees and palm trees from you....

Hey what is that grid of wood for, on top of your thatched roof?

deb
the grid is split bamboo. it is used to keep the thatch from raising in strong winds and breaking. it will extend the life of the thatch by 2 years to 7 years. The coop's rear faces the ocean and from Dec - Feb we have 20mph onshore winds.

some people use fishing nets as below


This is nipa palm

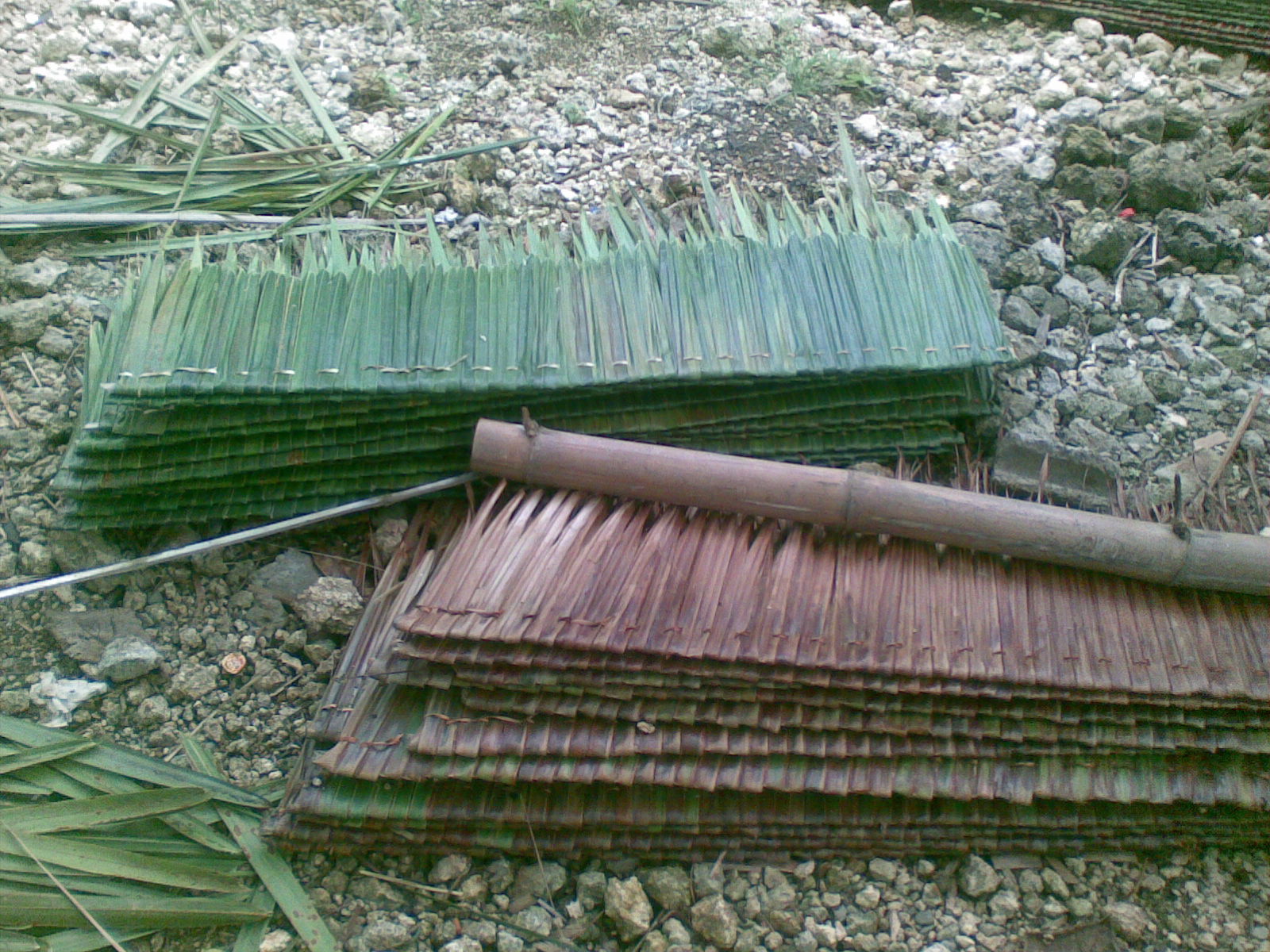

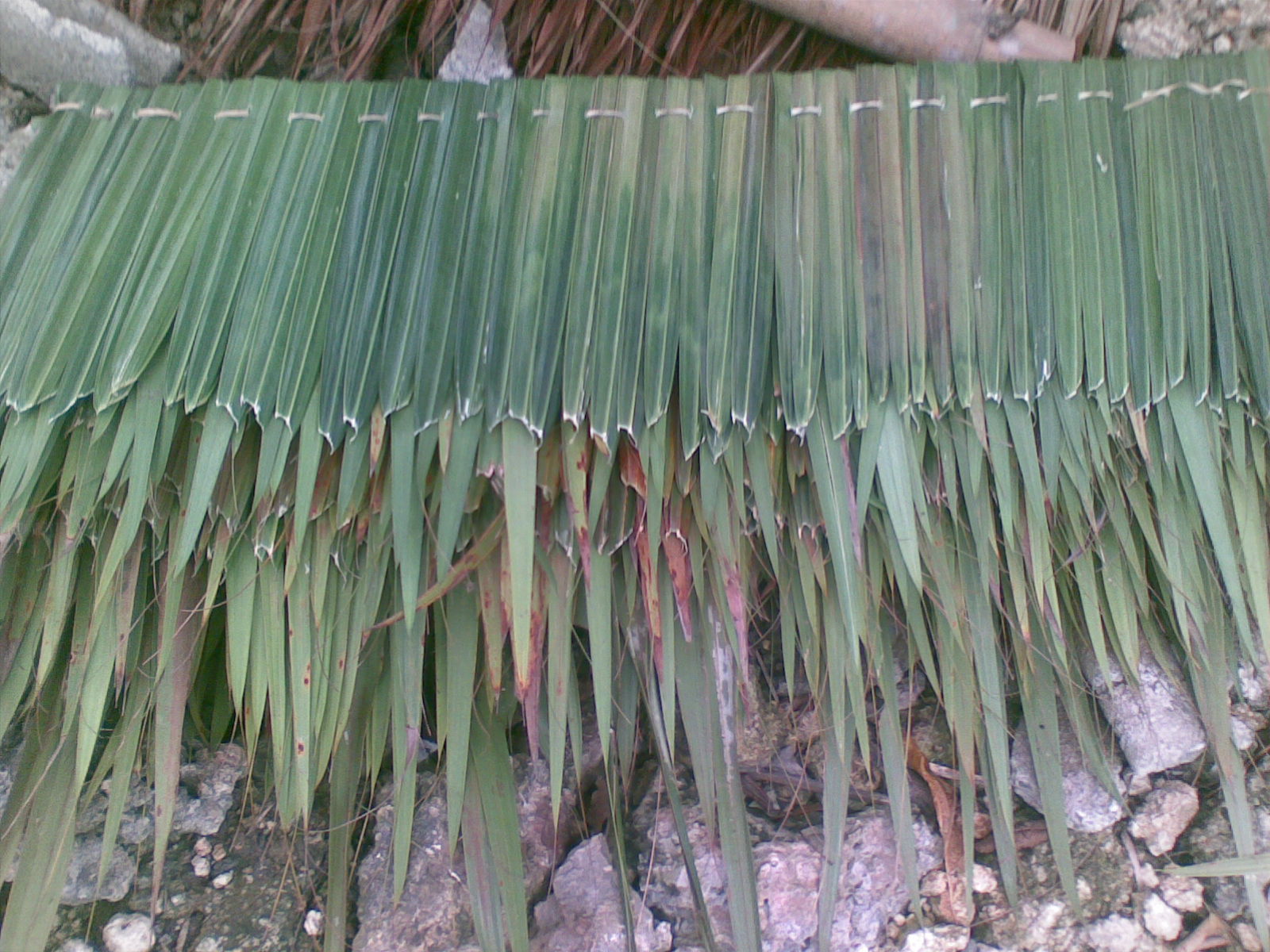

The leaves are cut from the stem, then folded over the stem and pinned with a bamboo ribbon





The lengths are 4ft and you use one every 2 inches so you need 1.5 as many pieces as you have square feet to cover. My coop in the photo has a roof that is 12 x 36 feet. We orderd 700 pieces. The bill was $150 for the nipa.

Super cool!!

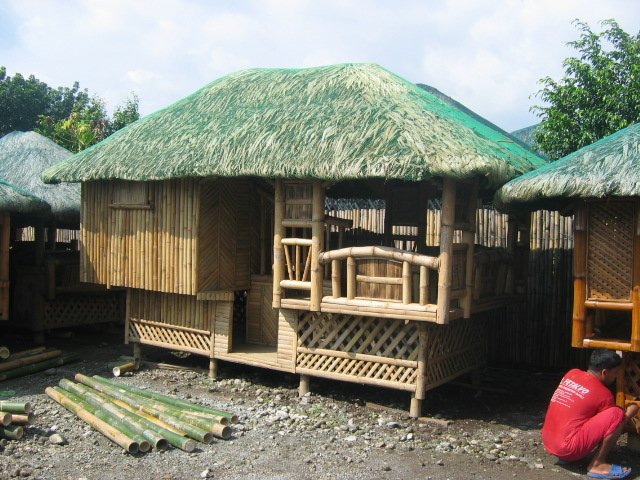

that picture of the nipa hut was the inspiration for my original coop

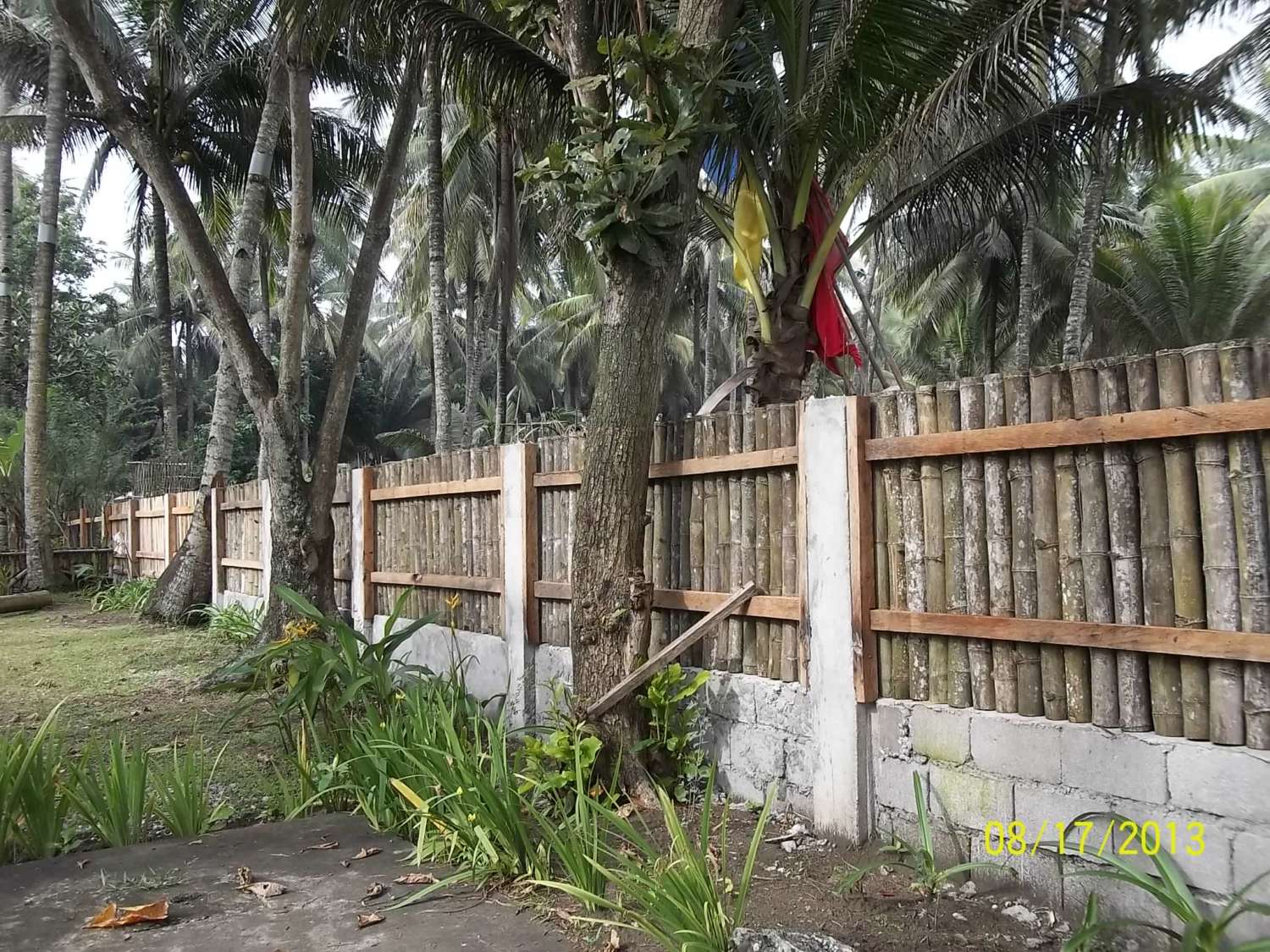

Last January I could not buy bamboo for the walls as it was all sold to build structures for the massive fiesta in the nearby city. I had scrap hardwood from some trees harvested to construct a building so we used the skins of the trees. It worked so well we decided to use it on the fence. I have a friend and a father in law who own hardwood plantations so I now get the scrap from them. There are about 6000 linear feet in the fence.

I wish we could have these cool coops in the U.S.
if my coops were in the usa i would be scrounging pallets. finding scrap in the philippines is much harder as there is way more demand. everything is recycled or repurposed.

my lumber is all from my own trees. once coconut trees hit 60ish years their copra (coconut meat) production falls. We replanted the whole place 4 years ago and will get fruit from the young trees in 3 or 4 more years. I pay a guy 12 cents a board foot to cut the tree and mill it by eye using a chain saw. Its an amazing site to see a guy walk down a felled tree cutting 2x2s 16 feet long.
