Homemade Cabinet incubator. (Made from Wooden Shipping Crate) ^^PICTURE HEAVY!^^

Discussion in 'Incubating & Hatching Eggs' started by quintinp, Feb 22, 2012.

  1. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma

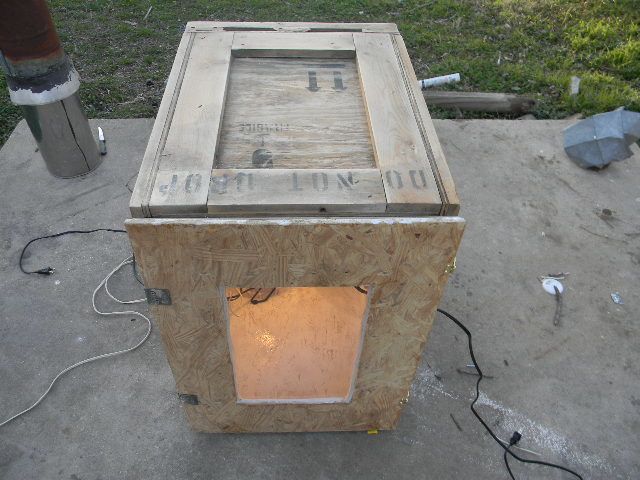

    I am going to post pictures of it when I get it finished. It was basically a nice wooden box when I got it, and it had 1 1/2 inch thick styro foam lining the inside. I covered the styro foam with strand board, and painted the strand board, and put 4 layers of sealer on the strand board. I am going to retire my fridge incubator, and go to this incubator. It can hold 2 little giant auto turners. I also have built 2 hatching trays for it. I am using 2 (75 watt) light bulbs for heating, and I am going to put 2 fans in the bottom. I have a nice door with a huge viewing window. I am also going to use a wafer thermostat.

    It is wired like you would wire a cooler incubator, but instead I am using the wafer thermostat.

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Foam tape for insulation.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Feb 23, 2012
  2. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Check out the pictures! Ask any questions you may have too.

  3. stephanie1992

    stephanie1992 Chillin' With My Peeps

    looks good [​IMG]

  4. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma

    Thanks!

  5. DMRippy

    DMRippy Pallet Queen Premium Member

    14,956
    457
    341
    May 18, 2011
    Nashville
    GREAT JOB!

  6. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Thank You!

  7. kellyn

    kellyn Chillin' With My Peeps

    278
    2
    103
    Nov 17, 2011
    bunnell, Florida
    Dude, you're so good at building incubators! Where'd u buy the foam tape at??? And how much is it for a small roll? My attempt #4 incubator isn't insulated very good. It gets to like 93* in it. Tops.

    Do you know where to get a 12v light fixture/lightbulb at?

    Haha, sorry for the 20 Q's, buti figure you'd know.

    Does yourincubator stay constant throughout? It doesn't get a bit hotter toward your lights?

  8. chicken fever

    chicken fever Chillin' With My Peeps

    925
    5
    113
    Jan 30, 2012
    dallas, tx
    I have a large crate that I could use, how did you insulate etc?

  9. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Thanks!!!
    It is made JUST like my fridge incubator, but a bit fancier Ha ha.
    1. I bought the foam tape at Ace hardware store.
    2. I think I paid like 7-8 dollars for it (I didn't like spending that much for sticky sided foam, but I felt that it was needed) By the way, it sticks on GREAT.
    3. I don't know where to buy that. I don't know why you would want that though.
    4. I said that it was just like my fridge incubator, POSSIBLY BETTER. I haven't got to test it yet, but if it IS like my fridge incubator, then it will be a GOOD incubator.

  10. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    It was insulated with 1 1/2 inch styro foam when I got it.
    I got a sheet of strand board, and covered the inside of the incubator with it. I used caulk and screws to fasten the small sheets of strand board to the inside walls.
    After that I caulked ALL of the cracks. I then painted the inside. After painting it. I put 4 layers of sealer on top of the paint.

    If you have any more questions, just ask.
