How heat resistant is dow styrofoam insulation?

Discussion in 'Incubating & Hatching Eggs' started by sunny & the 5 egg layers, Jan 5, 2012.

  1. sunny & the 5 egg layers

    sunny & the 5 egg layers Overrun With Chickens

    4,713
    159
    296
    Mar 29, 2011
    I have a 1/2 inch Dow Styrofoam insulation and I was wondering how heat resistant it is? Would it be possible for me to use it ontop of my incubator?

  2. Chemguy

    Chemguy Chillin' With My Peeps

    681
    32
    131
    May 30, 2011
    Springfield, Ohio
    Do you mean "will it melt," or do you mean "how well will it insulate?"

  3. sunny & the 5 egg layers

    sunny & the 5 egg layers Overrun With Chickens

    4,713
    159
    296
    Mar 29, 2011
    Quote:I mean "will it burn my house down". [​IMG]

  4. Chemguy

    Chemguy Chillin' With My Peeps

    681
    32
    131
    May 30, 2011
    Springfield, Ohio
    Is the heat source on the top of the incubator? What I'm getting at is that if the heat source is not, then the top of the incubator isn't likely to get any hotter than the rest of the incubator. There are plenty of foam incubators and they don't melt. But, if you have an intense heat source (60W bulb or higher), and if the styrofoam gets too close to it, then the styrofoam will melt.

  5. sunny & the 5 egg layers

    sunny & the 5 egg layers Overrun With Chickens

    4,713
    159
    296
    Mar 29, 2011

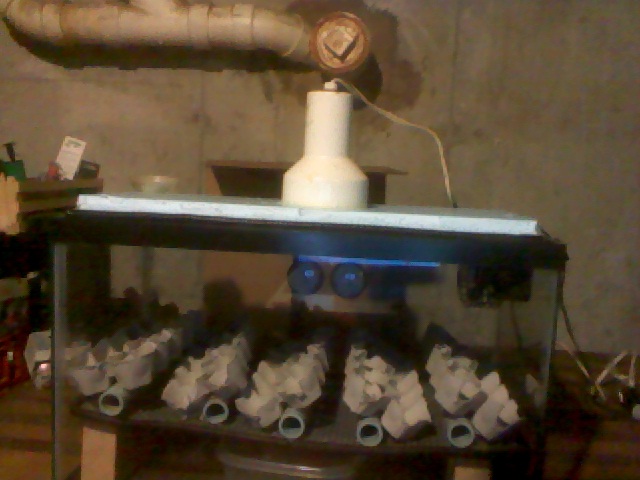

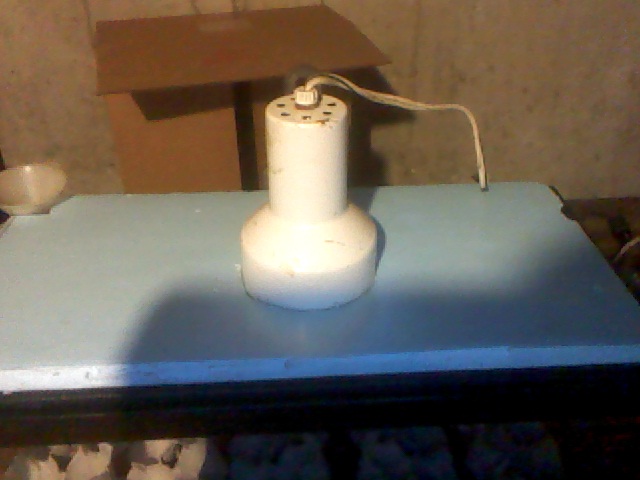

    Quote:Yes, the lamp is touching the styrofoam. The bulb itself is not. The bulb is a 60W. Maybe I should switch the bulb to a 40W? Or trim the styrofoam? Here is a picture of my bator. (Sorry about the quality of the photo.)
    [​IMG]
    [​IMG]

  6. Chemguy

    Chemguy Chillin' With My Peeps

    681
    32
    131
    May 30, 2011
    Springfield, Ohio
    If the cowl of the lamp is hot to the touch, I'd either get a lower watt bulb in there or find a way to break the contact between the metal and the styrofoam. Polystyrene (styrofoam) will start to deform at 90 C (194 F, near the boiling temp of water).

  7. sunny & the 5 egg layers

    sunny & the 5 egg layers Overrun With Chickens

    4,713
    159
    296
    Mar 29, 2011
    Quote:I trimmed the styrofoam so that it is no longer touching the lamp. I also added tin foil around the inside of the foam (between the foam and the lamp) which is also not touching the lamp. Now I just have to raise my humidity.
