I built an Incubator - TEST HATCH COMPLETE

Discussion in 'Incubating & Hatching Eggs' started by ThreeBoysChicks, Dec 27, 2008.

  1. ThreeBoysChicks

    ThreeBoysChicks Chillin' With My Peeps

    Sep 19, 2007
    Thurmont, MD
    I built an incubator!! I must thank MissPrissy and SpeckledHen. It was their threads, which were so great that encouraged me to fall into this trap. There is no stopping me now.

    MissPrissy - https://www.backyardchickens.com/forum/viewtopic.php?id=8510
    SpeckledHen
    - https://www.backyardchickens.com/forum/viewtopic.php?id=43984

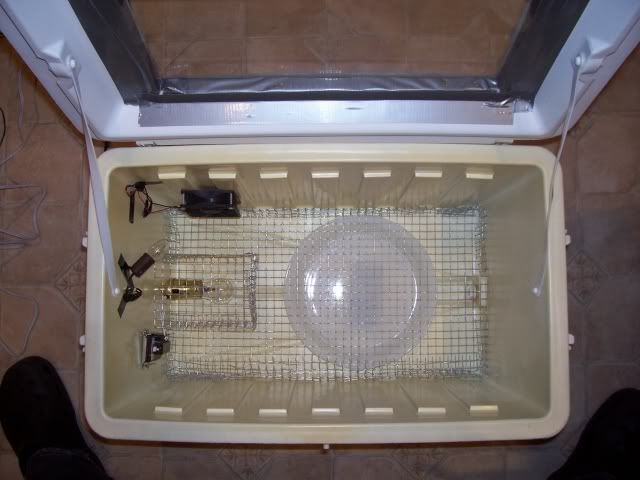

    It
    did not take that much time to assemble once I had the parts. The wiring, which I was most concerned about was not hard at all. Again, great instructions. The hardest part in my mind was bending that hardware cloth which is sharp and frustrating.

    I have been shopping for parts and pieces for the last couple of months.

    Thermos Cooler - $2 at Yard sale.
    PC Fan - Free from Friend
    Fan Adaptor - Free from Co-Worker
    Hardware Cloth - Already Had
    Pie Pan for Bottom Water - $1 from Yard sale.
    NightLight - Only thing I salvaged from one of those DOME Incubators (Never Hatched)
    Hygrometer / Thermometer - Already Had
    Light Ficture (Bottle Type) - $6.98 Home Depot
    Hot Water Heater Thermostat - $8.57 at Home Depot
    Plexiglass (1 on Ouside, 1 Inside) - $3.00 Ace Hardware

    Still to purchase
    Water Wiggler - Still searching for one.....
    Corks

    Total Cost as of now - $21.55

    [​IMG]

    [​IMG]

    [​IMG]

    Cynthia - I am almost ready!!!!! How many eggs would you put in a cooler incubator this size?

    Last edited: Jan 29, 2009
  2. MissPrissy

    MissPrissy Overrun With Chickens Premium Member

    24,442
    49
    371
    May 7, 2007
    Forks, Virginia
    Nice job!!

  3. ThreeBoysChicks

    ThreeBoysChicks Chillin' With My Peeps

    Sep 19, 2007
    Thurmont, MD
    MissPrissy - I thought about you. I didn't have Pink Tape...

  4. speckledhen

    speckledhen Intentional Solitude Premium Member

    Well, you did it! [​IMG] I'd say a dozen to 15 eggs laying on their sides would fit.One thing I did find is that I had to put some aluminum flashing as a deflector directly in front of the bulb or the eggs right there would get way too hot. The WH thermo, we tried, but never were satisfied with, though some people seem to have better luck with them. They have a wide swing, though you are looking for an avg internal egg temp.
    What I would suggest is a dry run with just any eggs, which you'll toss later on. Dont have to be fertile, just need to be in there. Run it with your thermo/hygro inside for several days so you can work out any kinks and tweak it a bit. Put water in your pan and run it just like you would if the eggs were fertile. I find that there is sometimes alot of adjusting to do, but once you get everything set just right, it does okay. You can also calibrate your hygrometer and be sure the thermometer is accurate-those not reading properly are the cause of so many bad hatches.
    Looks good, Ed. Let us know how the dry run goes!

    Last edited: Dec 27, 2008
  5. SterlingAcres

    SterlingAcres Chillin' With My Peeps

    Apr 17, 2008
    Poconos, PA
    Looks good!

  6. ThreeBoysChicks

    ThreeBoysChicks Chillin' With My Peeps

    Sep 19, 2007
    Thurmont, MD
    Quote:I have the Metal shell that was the Power Supply box from the PC. That would work great, I think to shield the eggs just in front of the bulb. Thanks for the advice. I will definately do a dry run. I think I am going to start tomorrow. If they actually were to hatch, they would hatch the day after I leave for our mission trip to the Dominican Republic. My 12 year old will be here and my wife. Ben will do well to move them from the bator to the brooder, etc.

  7. tn.lou

    tn.lou Out Of The Brooder

    84
    2
    39
    May 18, 2008
    Dandridge,Tennessee
    Looks great!! but what about that exposed hot terminal on the thermostat.Could be nasty

  8. Nathan

    Nathan Chillin' With My Peeps

    105
    0
    119
    Dec 10, 2008
    Camas, WA, USA
    Have people found that the $9 water heater thermostats are adequate/reliable enough for incubators? How do they hold temperature compared to the ones in Little Giant GQF, Or Brower?

  9. tn.lou

    tn.lou Out Of The Brooder

    84
    2
    39
    May 18, 2008
    Dandridge,Tennessee
    Quote:I have been using one for over a year with many sucessful hatches.Mine is in a bator made from an old fridge.

  10. WriterofWords

    WriterofWords Has Fainting Chickens

    13,212
    26
    313
    Dec 25, 2007
    Chaparral, New Mexico
    Well I'm impressed, wtg! I use strictly a light bulb for heat in mine, no water heating or thermostat or anything like it. I like yours better, but mine works too!
    [​IMG]
    Forgot to mention, mine was built by 6th graders for a class project lol! We'll do yours this time.

    Last edited: Dec 27, 2008
