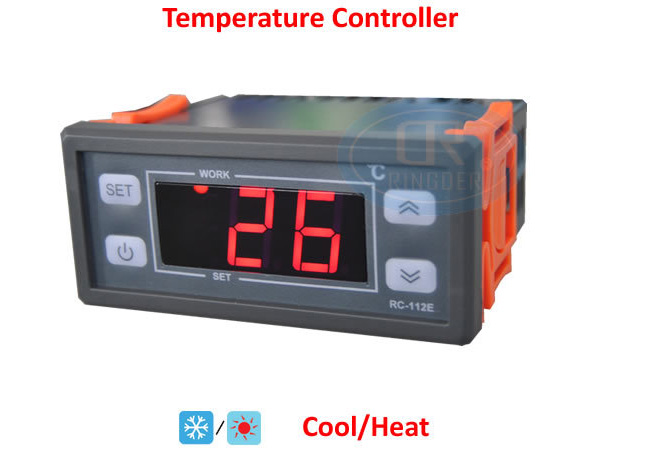

- LED display
- Best cost-effective
- Traditional design
- Temperature measuring and controlling range: -40~99°C
- Relay capacity:10A/250V
- Power supply: 220VAC±15%
- Input: 1 NTC sensor; sensor wire: 2m(standard)
- Accuracy: ±1°C; Resolution: 1°C
- Consumption: ≤3W
- Cut-out size: 71×29(mm)
- Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)
- Output: resistive load≤1100W/220V, inductive load≤275W/220V, filament lamp≤220W/220V
Function Menu:
Code
Function
Setting range
Default
Unit
HC
Mode option
C: refrigeration H
atingC
/
D
Controlling-temp. differential
1~15
3
°C
LS
Lower Temp. limit
-40~setting Temp.
-40
°C
HS
Upper Temp. limit
Setting Temp.~99
99
°C
CA
Temp. calibration
-5~5
0
°C
PT
Compressor delay
0~15
3
Min.
Package Includes:
1 * Temperature Controller
1 * Temperature sensor
1 * Instruction Manual

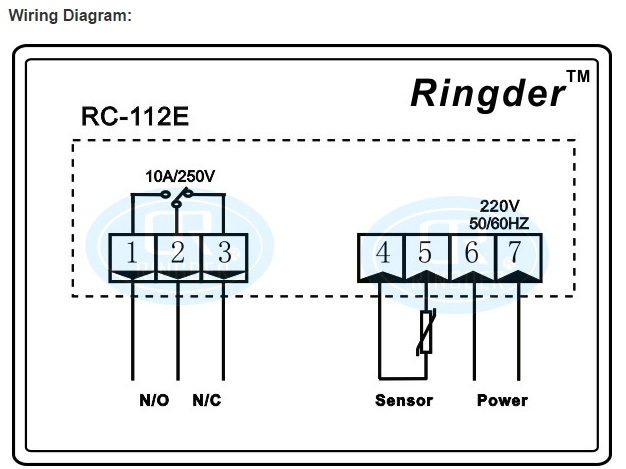

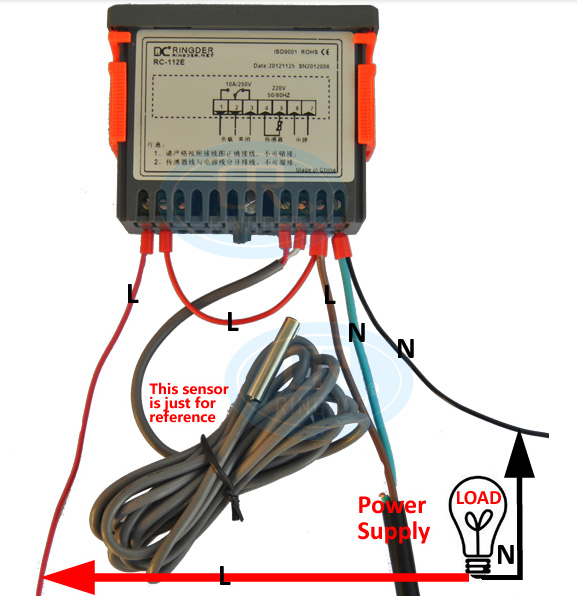

- When the power supply of the controller and the load are same, you may refer to the below real wiring diagram:
- When the power supply of the controller and the load are different, you may refer to the below real wiring diagram:
