My 4x6 Pallet Coop Build (Completed, PIC HEAVY)

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by auto5man, Jun 11, 2013.

  1. auto5man

    auto5man Chillin' With My Peeps

    219
    13
    103
    Jul 27, 2011
    Memphis
    The pallet boards are basically 1x4's (which is 3/4inches x 3 1/2 inches to be exact). As far as length, I got lucky and had a supply of pallet boards that were 6 and 7 feet long (longer than the standard pallet size). My coop is 6x4 so I was fortunate to have long pallet boards that fit the 6ft length, however, if I had increased the dimensions of the coop to like 6x8 or 4 x8, I would have just butt-jointed the boards to increase the length. Another lumber source (some people find dismantling pallets too tough, and I have to admit it was tedious) would be finding reclaimed 1x4's or even fence boards. Either would work for this construction style.

    2 people like this.
  2. chickenlover45

    chickenlover45 Out Of The Brooder

    77
    1
    41
    Jun 25, 2013
    Thank you

  3. chickenlover45

    chickenlover45 Out Of The Brooder

    77
    1
    41
    Jun 25, 2013
    At what stage did you install the nesting boxes

  4. auto5man

    auto5man Chillin' With My Peeps

    219
    13
    103
    Jul 27, 2011
    Memphis
    Construction order: After the basic structure of the 4 walls were complete, I cut out and installed the people access door before installing the roof, getting in and out of the coop to install the roof rafters was much easier that way. Next the rafters were installed, then the OSB part of the roof and tin on top of that (YES! Waterproof now, no more tarp!!). The outside was painted with barn paint at this stage. Next I cut in and made the windows, then the pop door, and then the holes were cut for the nest box, and finally the nestbox structure (which had been pre-built several months before) was attached. This was done BEFORE painting the inside, here are a few pics from the day I attached the nest box:


    [​IMG]

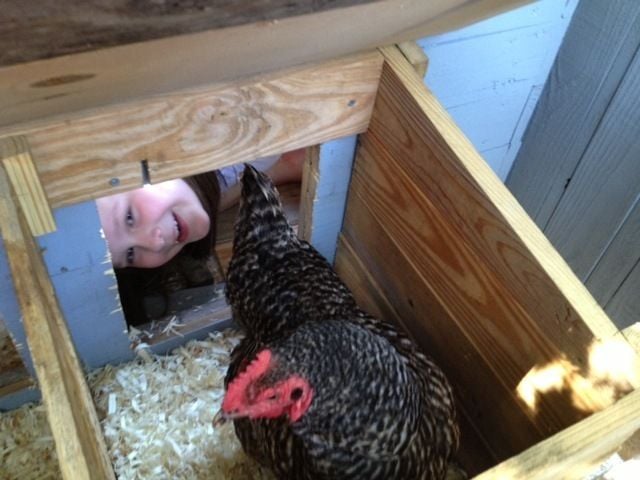

    I was anxious to see how the chickens would react so I put shavings in each nest box and let a couple of them into the coop for a look. As with each new stage in the construction process, they seemed VERY curious and went right into to each nest box for some exploring and 'nesting', lol. The odd shaped blocks (the grey ones) here and there are screwed in to tie in a full length pallet board with one that had been shortened by the cut out (and because of that lost its structural support), I hope the way I'm describing this makes sense.

    [​IMG]

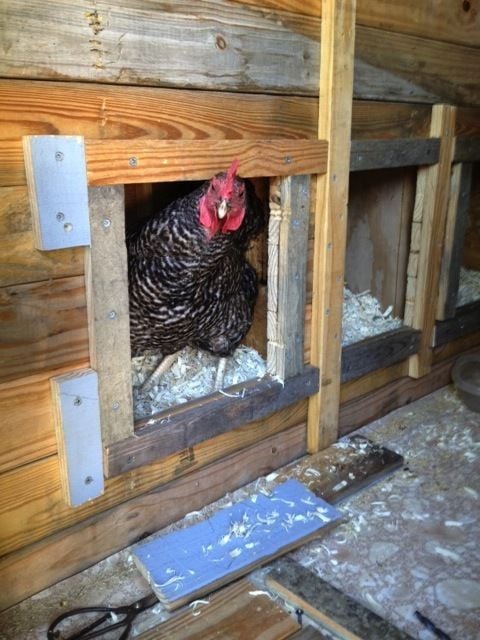

    Each time a cut out is made, you have to frame in the hole with 1x2 or similar material to keep the integrity of the structure intact.
    And from the outside looking in:

    [​IMG]

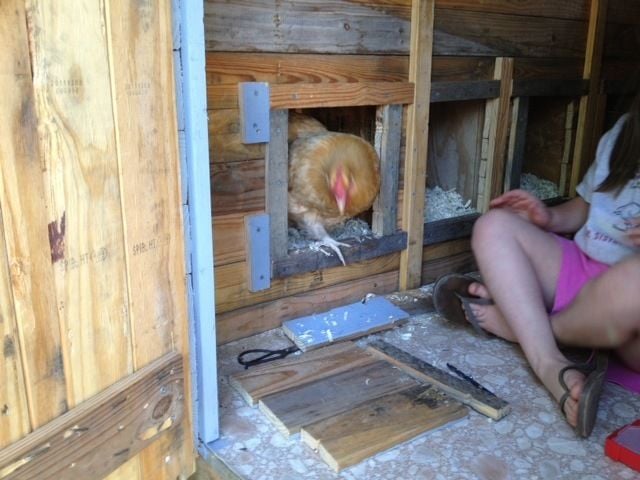

    Cody checking the boxes out:
    [​IMG]

  5. chickenlover45

    chickenlover45 Out Of The Brooder

    77
    1
    41
    Jun 25, 2013
    How do you attach it?

  6. chickenlover45

    chickenlover45 Out Of The Brooder

    77
    1
    41
    Jun 25, 2013
    Do you have any recomendations or directions for you coop

  7. chickenlover45

    chickenlover45 Out Of The Brooder

    77
    1
    41
    Jun 25, 2013
    Not coop nesting box

  8. auto5man

    auto5man Chillin' With My Peeps

    219
    13
    103
    Jul 27, 2011
    Memphis
    Easily attached, but I didn't take a good picture of that. Simply screw in a 1x4 horizontally along bottom wall, then the bottom of the nestbox rests on that in position against the coop wall. It completely supports the weight of of the nest box, then attach nest box to wall of coop with several screws...I can take a better picture of that detail if you need a visual.

  9. auto5man

    auto5man Chillin' With My Peeps

    219
    13
    103
    Jul 27, 2011
    Memphis
    CL, what do you mean? Things I would do differently? Plans?

  10. chickenlover45

    chickenlover45 Out Of The Brooder

    77
    1
    41
    Jun 25, 2013
    Plans and things u would do differently
