My chicken watering solution

Discussion in 'Feeding & Watering Your Flock' started by breakout, Jun 1, 2012.

  1. breakout

    breakout In the Brooder

    65
    5
    31
    May 14, 2012

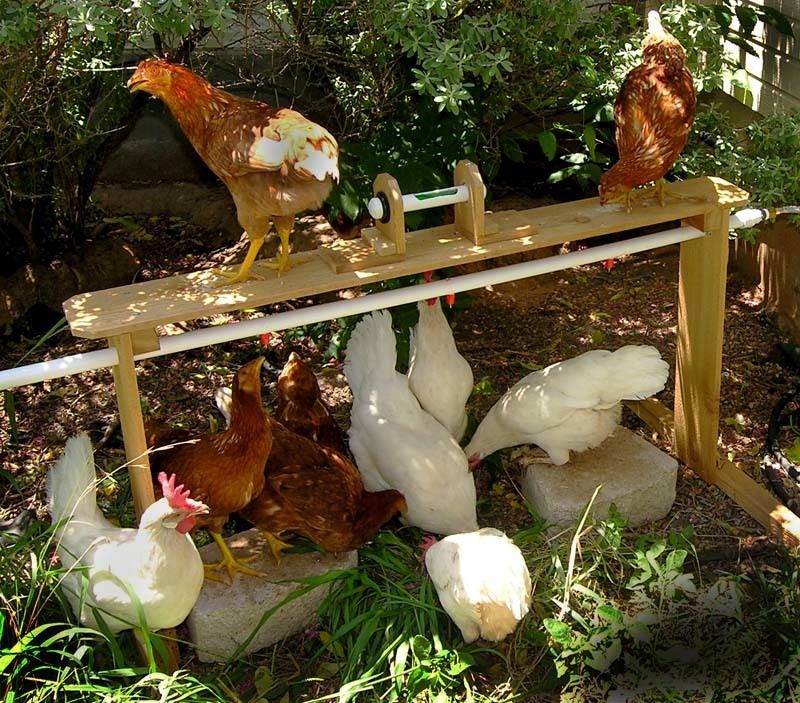

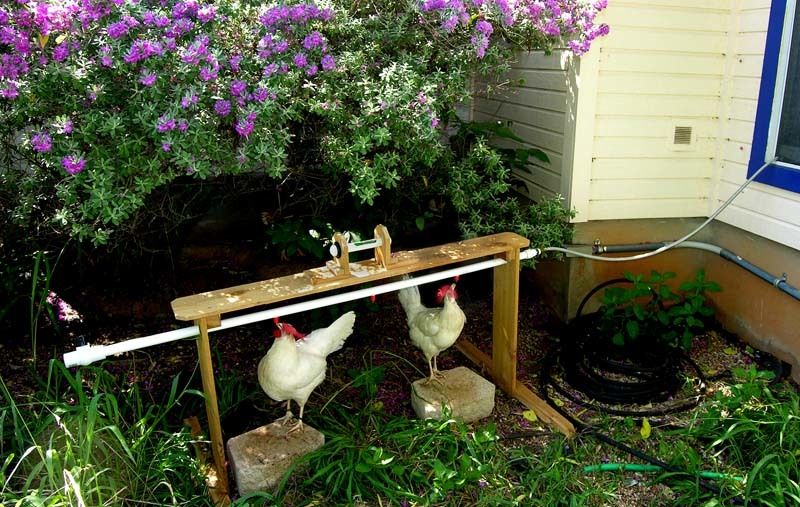

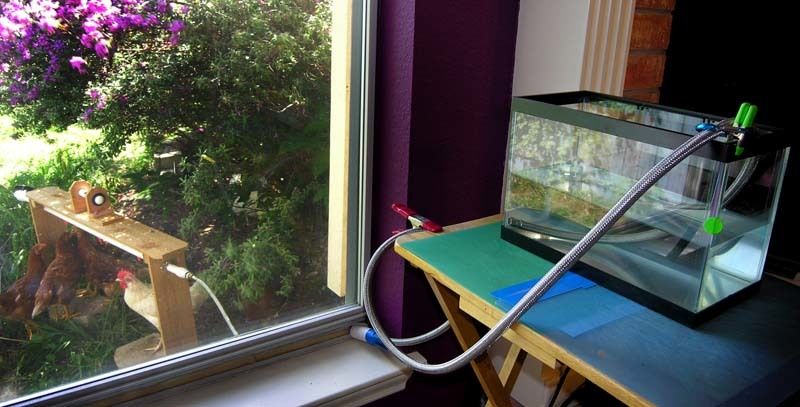

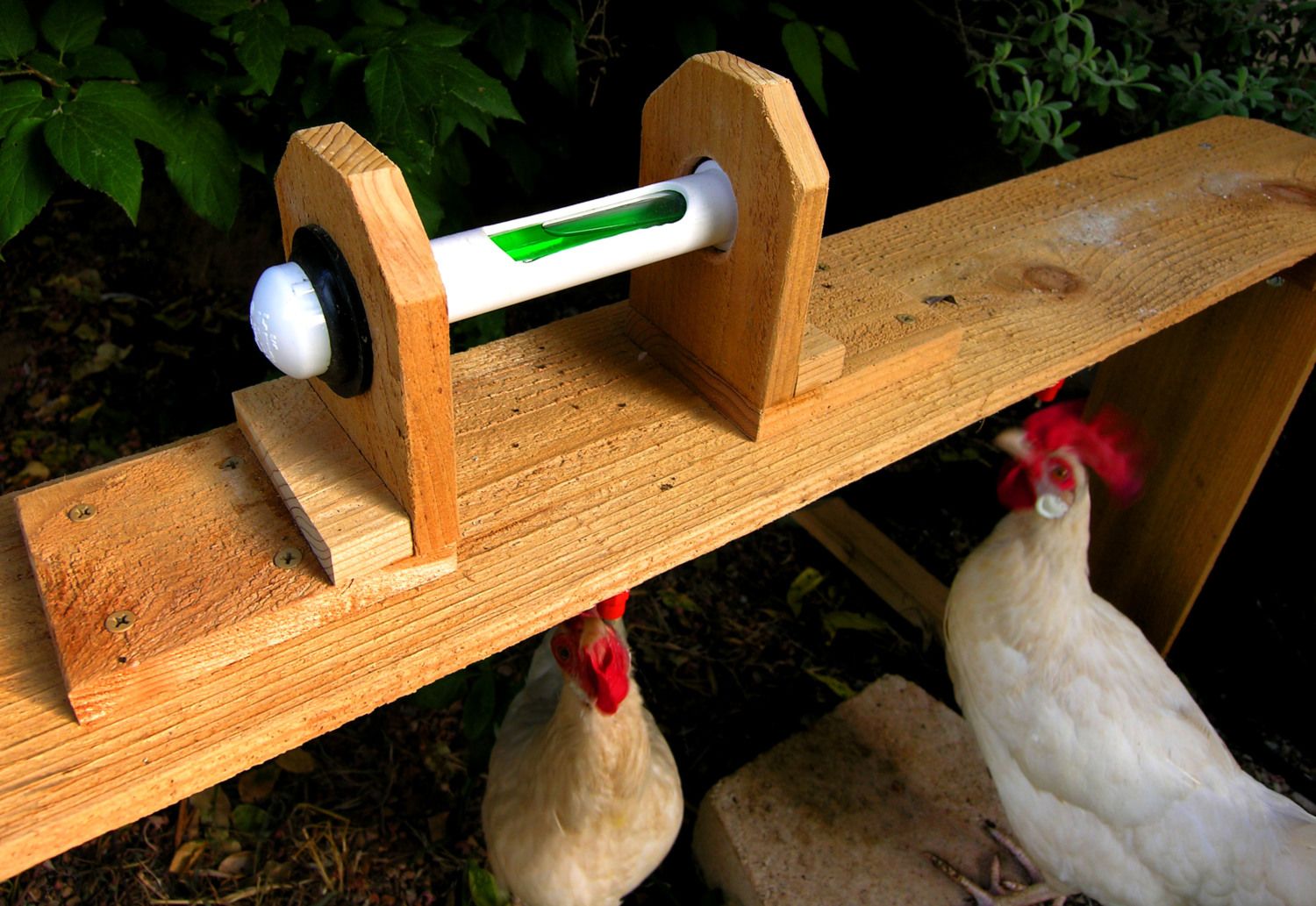

    Thanks to all for the many posts on watering. I spent weeks reading them and researching various solutions before deciding what to do. My initial thought was an automatic bowl hooked up to the house like a dog bowl but it didn't solve the problem of the chickens making a mess in the water and in Texas the water could still get pretty hot. Reading about the nipples they seemed like the way to go but I didn't like using a bucket because of the plastic -- we're trying to produce organic eggs and so we wanted to avoid plastic as much as possible. Drilling a stainless steel bucket seemed like it might be tricky. Also there's the problem of having to bring ice out to the bucket in the summer and having to heat it in the winter. Since the chickens spend the day running in the yard I had the option of having the waterer near the house and I thought if I kept the water in the house the temperature issue would pretty much be handled. So I set up a 2 &1/2 gal glass aquarium and ran a stainless steel hose for an icemaker out the window where it connects to a 3/4" PVC pipe that I built a frame for. The PVC pipe has 3 nipples inserted. Originally I was going to use the stainless steel nipples but they seem to have more problems than the regular ones. The far side of the pipe has a ball valve on it to allow for flushing out the pipe. The water pressure comes from siphoning action since the aquarium is higher. BTW my initial thought was to hook up to the house pressure but the nipples can't work with this unless you buy an expensive pressure reducing setup (drip irrigation stuff can't bring the pressure down enough -- the nipples can only handle maybe 3 pounds of pressure). As it's already pretty hot we add some ice to the aquarium and 1 tablespoon of apple cider vinegar per gal of water to prevent algae. So far it seems to be working well and the chickens learned how to use it quickly. I found it was tough getting the nipples started into the 11/32" holes but putting them into my variable speed drill made it easier to get them started biting. The white handle on the top has a built in level so that I can make sure the far side is down hill. The handle/level was more for my amusement to try to figure out how to make it but hey got to keep it fun right? Hope this is useful for someone trying to figure out what to do.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Jun 6, 2012
    JavaLady likes this.
  2. Mingming

    Mingming Chirping

    239
    3
    93
    Feb 15, 2012
    NJ
    Neat idea! Thanks for sharing! Now to figure out how to make it work for my setup...lol!

  3. ccrow

    ccrow Songster

    203
    26
    181
    May 6, 2010
    Southern Maine
    They look happy... the lengths we go to for our chickens![​IMG]

  4. carolsparkle

    carolsparkle Hatching

    8
    2
    9
    Feb 13, 2012
    Now that looks like an inside job!

    JavaLady likes this.
  5. Lance

    Lance In the Brooder

    16
    0
    22
    Apr 10, 2012
    [​IMG]

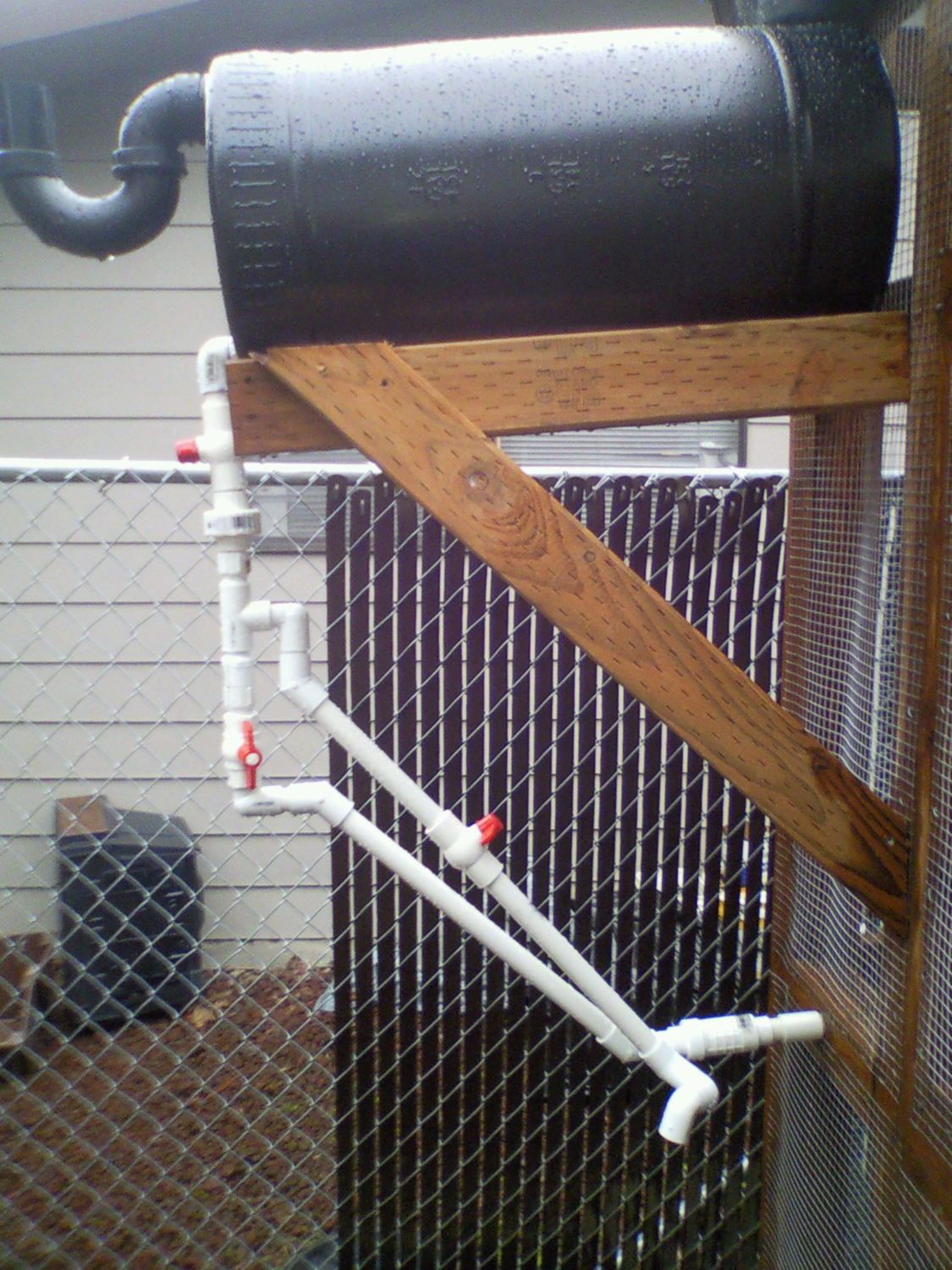

    this is mine, comes off the gutter before going into the barrel.

  6. Red Barn Farms

    Red Barn Farms ~Friendly Fowl~

    3,157
    137
    228
    Apr 12, 2012
    Kentucky Heartland
    Awesome Ideas!! Thanks for sharing.

  7. blondvet

    blondvet In the Brooder

    29
    0
    22
    May 19, 2012
    North Carolina
    What a great idea! Ingenious!!

  8. Hawgon

    Hawgon Songster

    494
    24
    118
    Aug 22, 2011
    Vancouver, WA
    [​IMG]
    [​IMG]

  9. breakout

    breakout In the Brooder

    65
    5
    31
    May 14, 2012
    Well the system seems to be working well. The only problem I have had is keeping the water clean. Since it's in an aquarium it's very obvious when the water starts to get a little cloudy or funky. Initially I was using apple cider vinegar (Bragg's) partly because I often take it myself and liked the idea of the chickens having some since people seemed to think it was good for them. Trouble is I think it could be a problem with my system because things seem to start growing in the tank even with a complete change out of the water once a week. Maybe good (healthy?) things if the "mother" is still active but I'm concerned that they might clog up the relatively narrow hose leading from the acquarium to the nipples or possible clog the nipples thenselves. So we're trying our homemade collodial silver -- about half a dropper per quart of water. So far this seems to be keeping the water clear and based on our experience it would be good for the chickens. Has anyone else used this?

  10. Farmtruck

    Farmtruck Chirping

    14
    1
    74
    Jun 24, 2012
    Meridian, Idaho
    That is a sweet idea!!
