My new test/Beta version waterer

Discussion in 'Feeding & Watering Your Flock' started by Hawgon, Nov 18, 2012.

  1. Hawgon

    Hawgon Chillin' With My Peeps

    494
    20
    118
    Aug 22, 2011
    Vancouver, WA

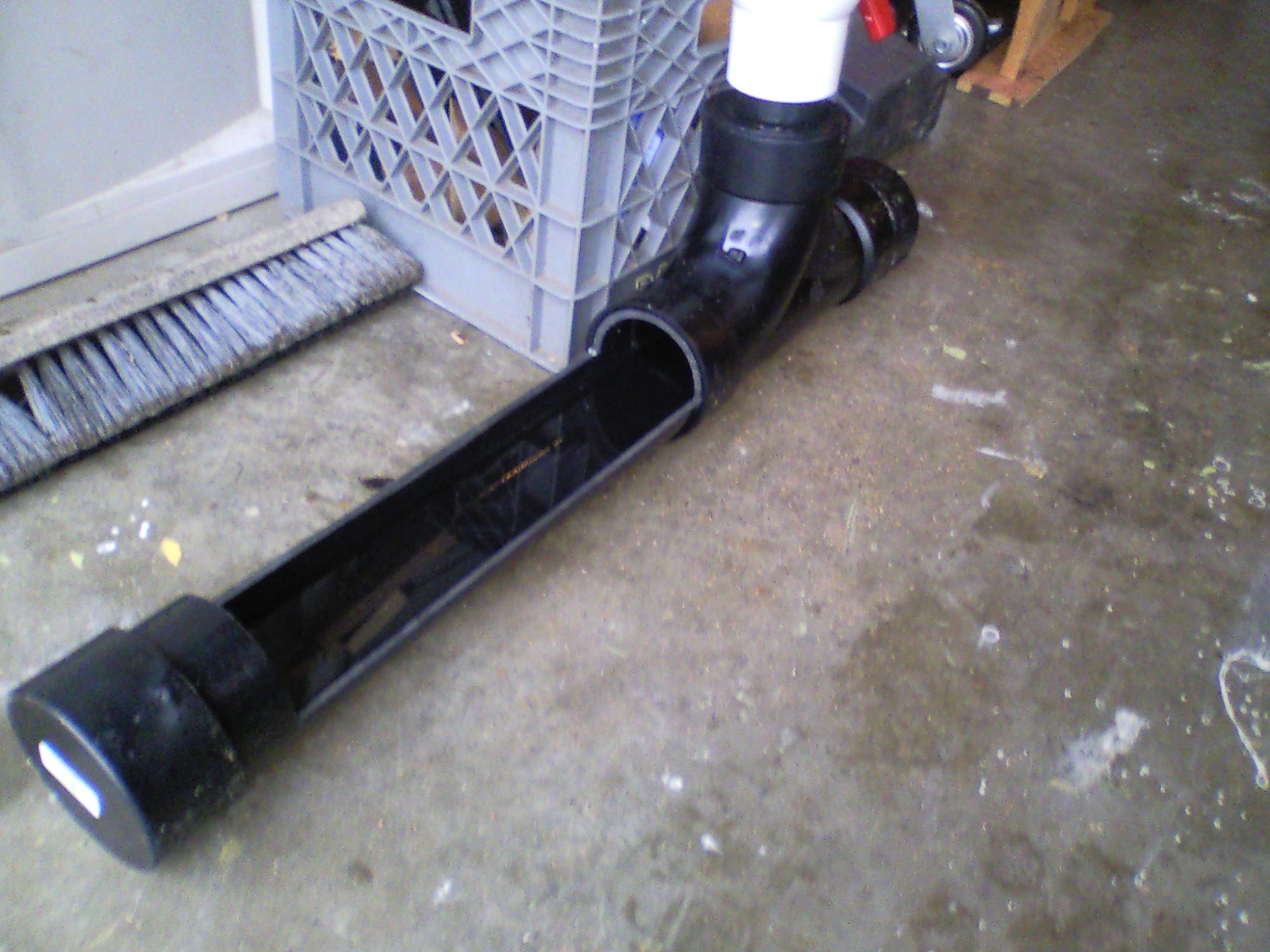

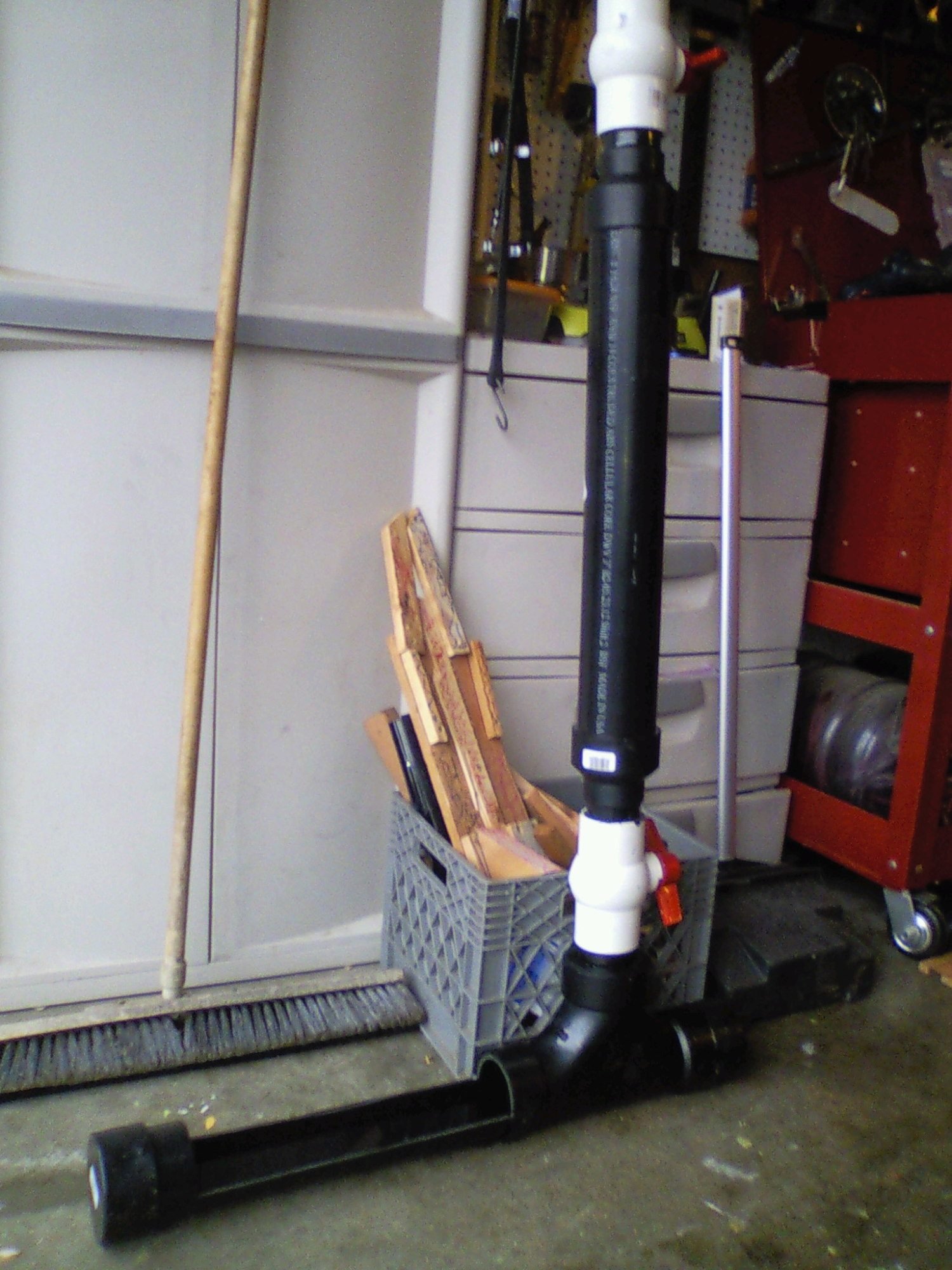

    I got a little bored today and came up with this after building a pipe feeder last week. Have it sitting in the garage full of water to test it and then will install next week. I think hardest part will be getting it level. I think it will work and holds about 2 gallons.

    [​IMG]

    [​IMG]

    [​IMG]

  2. Sally Sunshine

    Sally Sunshine Cattywampus Angel <straightens Halo> Premium Member Project Manager

    56,377
    6,792
    646
    Aug 23, 2012
    Pennsylvania
    My Coop
  3. Bear Foot Farm

    Bear Foot Farm Overrun With Chickens

    5,545
    225
    288
    Mar 31, 2008
    Grifton NC
    How are you controlling the water level?
    There's nothing visible to keep it from overflowing

    Last edited: Nov 23, 2012
  4. Hawgon

    Hawgon Chillin' With My Peeps

    494
    20
    118
    Aug 22, 2011
    Vancouver, WA
    I have extended the vertical tube to about 1" from the bottom of the horizontal trough and by shutting off the top valve and barely having the bottom one open it creates a vacuum, much like the store bought waterers. As the water level drops below the level of the vertical tube opening if refills to that level automatically until it recreates the vacuum. Works great. I refilled it in my garage to test it after gluing it all up and will check on it when I get home from my holiday weekend. Holds close to 2 gallons......

  5. Bear Foot Farm

    Bear Foot Farm Overrun With Chickens

    5,545
    225
    288
    Mar 31, 2008
    Grifton NC
    Quote: I knew it must be something like that, but it's just not obvious in the pictures, and anyone who doesn't understand how the vacuum principle works might try to build one that LOOKS like yours but omits that critical detail.

    It looks good and should work fine

    Quote: If you use it outside, it could go next to a fence post and extend into your run and be filled without entering.
    To put it against a wall inside, you may need to rotate your ball valves 90 degrees

  6. Hawgon

    Hawgon Chillin' With My Peeps

    494
    20
    118
    Aug 22, 2011
    Vancouver, WA
    That is the plan, to match my pipe feeder I have. Work smarter, not harder. Lol

  7. Hawgon

    Hawgon Chillin' With My Peeps

    494
    20
    118
    Aug 22, 2011
    Vancouver, WA
    I filled it on Wed. of last week and no leaks until I got home on Sunday so I will be installing it on or before the weekend and will keep thread updated......Still not sure if it is going to be a time saver or not..especially during the winter....

    Last edited: Nov 27, 2012
  8. TNBEARCHICK

    TNBEARCHICK Chillin' With My Peeps

    3,303
    75
    218
    Feb 17, 2012
    JOHNSON CITY
    Wow love it, think I will try one[​IMG]
