Need a help with electric fence design

Rodrad

Songster
Nov 9, 2020
252
178
128
Southern Indiana
We just lost one 4 months old chicken to, likely, a fox. When I went to lock the chickens in the coop , at about 9 pm Infiana time, one was missing. I couldn’t see any trace of blood or feathers but will check again tomorrow. Our run is 50 ft square and has 4 ft chicken wire around it and electric fence at about 8“ above the ground on the outside the perimeter. I looked but i couldn’t see any dug hole under the fence, but it was dusk so I will check tomorrow.

I know that fox can jump over my low electric fence (I was advised to set it so low to protect raccoons from coming over the fence) but wonder how the fox avoided to touch the wire before deciding to jump over (and clime the fence). I assume it was the fox since the whole chicken is taken away.

I would like to get info about building a better electric fence.
i would appreciate any input.

thank you

Nov 11, 2020
3,582
5,838
426
West Virginia
The problem is if anything jumps ON your fence it won't be on the ground if it touches the wire.To complete the circuit and get a shock the animal has to be standing on the ground and touching the wire at the same time. There is a way around this...


Rodrad

Songster
Nov 9, 2020
252
178
128
Southern Indiana
The problem is if anything jumps ON your fence it won't be on the ground if it touches the wire.To complete the circuit and get a shock the animal has to be standing on the ground and touching the wire at the same time. There is a way around this...
I understand that. However, my electric fence line is within few inches from a chicken wire fence where the animal need to get in order to climb over it. So, I plan to put several more strings of electric fence and there will be not enough space between the lines itself nor towards the chicken wire fence so that the predator should made the contact with both. BTW, my chicken wire fence is grounded since it is attached to the metal posts.

Nov 11, 2020
3,582
5,838
426
West Virginia

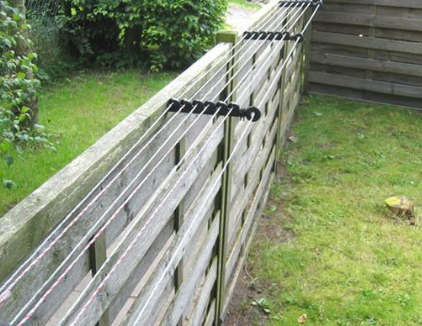

I strongly advise you to run a series of wires extending outward from the fence on top .It will keep foxes and cats out.


Attachments

  • Screenshot 2021-07-21 at 08-24-41 44332-6 jpg (JPEG Image, 800 × 800 pixels) — Scaled (84%).png
    Screenshot 2021-07-21 at 08-24-41 44332-6 jpg (JPEG Image, 800 × 800 pixels) — Scaled (84%).png
    427.7 KB · Views: 45

cmom

Hilltop Farm
Premium Feather Member
14 Years
Nov 18, 2007
31,520
35,452
971
Florida
My Coop
My Coop
I posted a couple of links above that may help you. I have electric wires around my coops and pens, good heavy duty netting covering all of my pens and concrete under the gates all due to losses from predators in the past. So far nothing has gotten past the hot wires. Make sure your fence charger packs a good wallop as the predator won't be phased by a tickle. You want the predator to know the hot wires are there and hurts. I use the poly rope wires. Good luck...

This is the fence charger I have on at my outer coops and anything that touches the wires will hurt. I think the adult predators teach their young that a bird isn't worth getting zapped for.


Rodrad

Songster
Nov 9, 2020
252
178
128
Southern Indiana
3 strands of hot near the bottom and lay chicken wire on the ground .Don't forget to ground the fence wire.Repeat at the top.
Thank you,
my fence is vertical, 4 ft chicken wire, and is grounded. Not sure I understand “lay chicken wire on the ground”. We need vertical fence to prevent chickens for free foraging and possibly going deep in the bordering woods. Our run is 50x50 ft, so it almost as a mini free range!

Last edited:
