Newest coop in progress *Pics*

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by Dingo, Oct 27, 2012.

  1. Dingo

    Dingo Chillin' With My Peeps

    Just thought I'd share. The foot print is 8x8, the tallest wall is 5' 5", I am 5' 0" so it's tall enough for me to stand comfortably. The shortest wall is a hair above 36". This will be the turkey house for the next month until they're sent to freezer camp, then the girls will move in.
    It will have two egg doors, two doors out to the run area, a large door for me to clean the run and a door for me to enter the coop.
    I am going to lay down some sheet vinyl on both the coop floor and the run, the run will have sand the coop will be leaves and shavings.

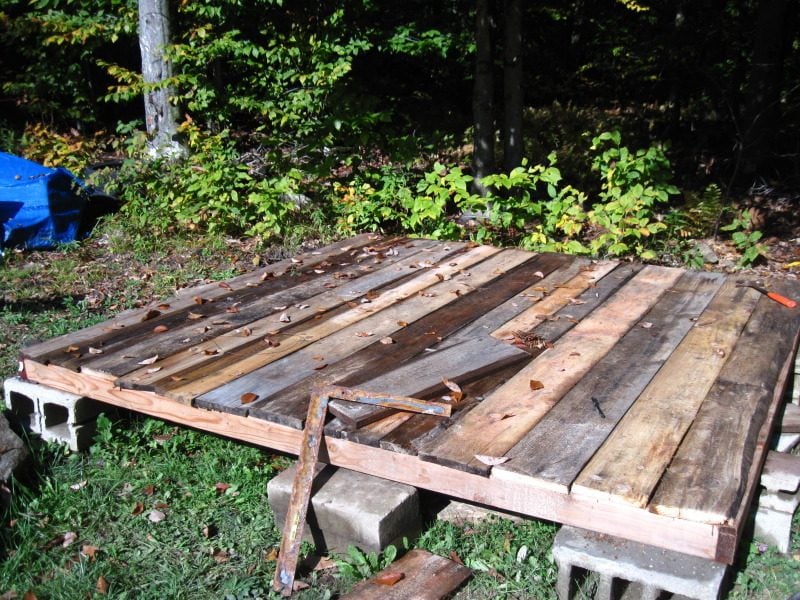

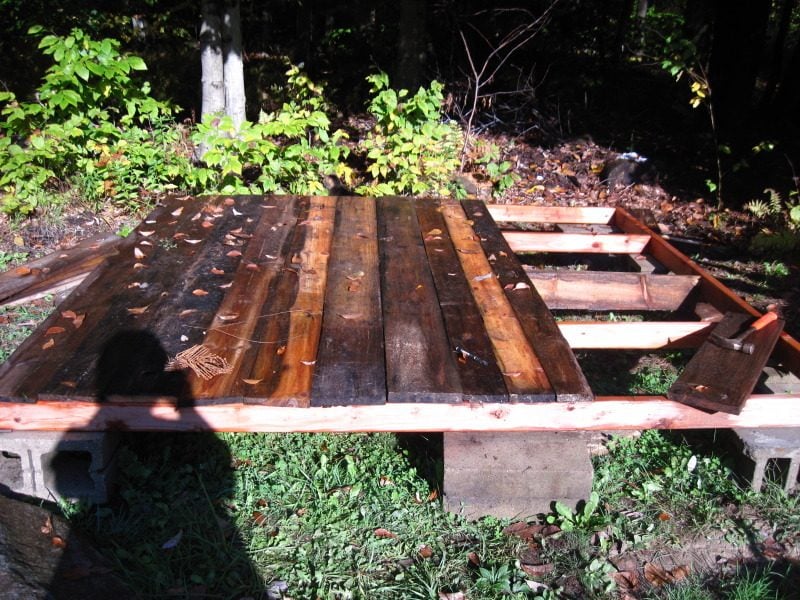

    The angled board at the corner was used to keep it square.
    [​IMG]
    Floor is done.

    [​IMG]

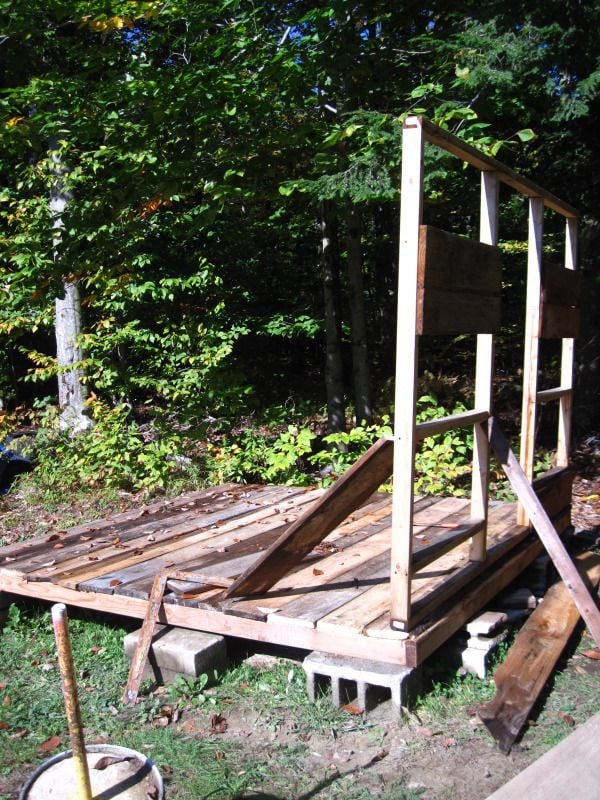

    Time for a wall
    [​IMG]

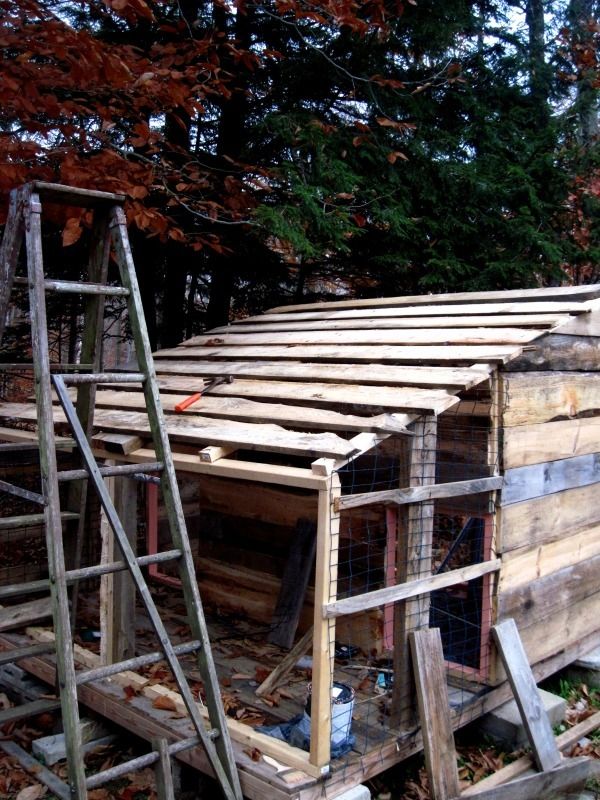

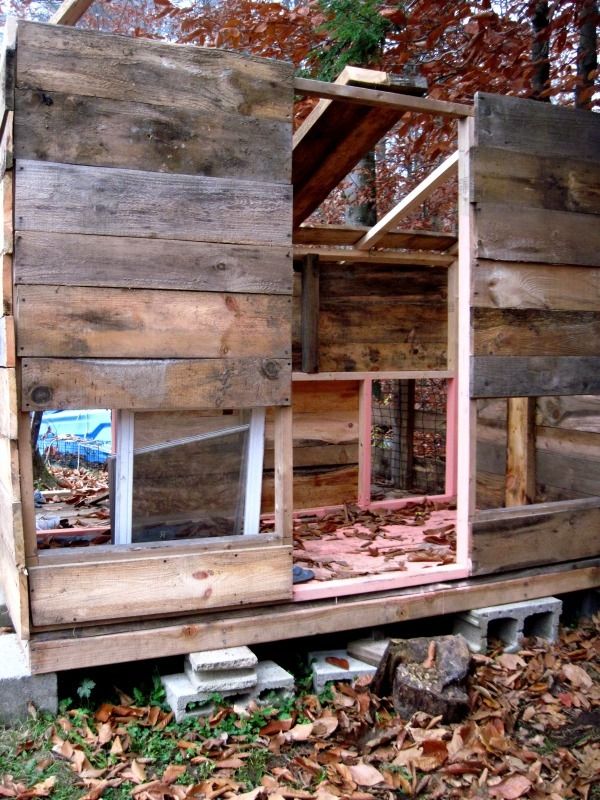

    Today, roof sheathing is up, walls are done.
    [​IMG]

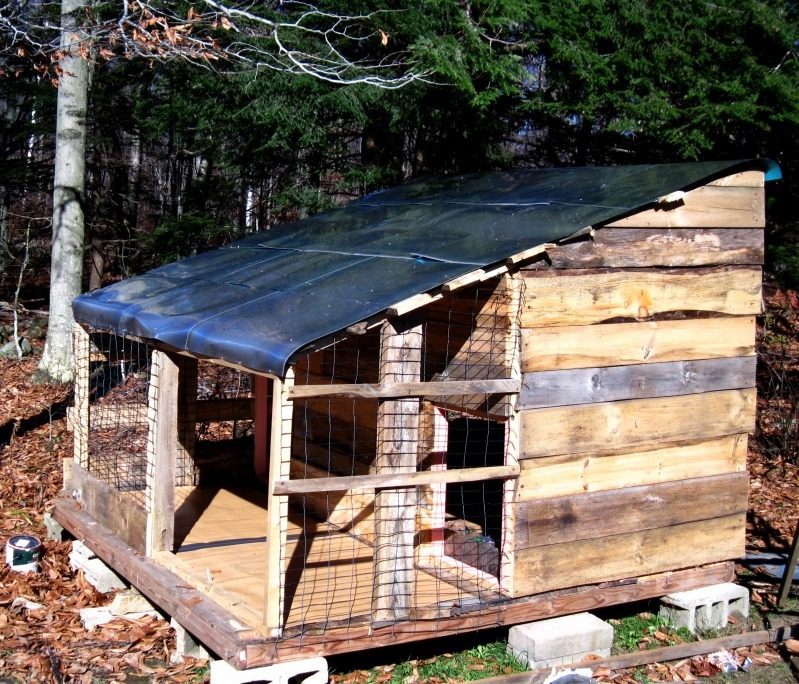

    Just need to finish the roof, make the doors and finish one section of fencing. I may go over the garden fence with chicken wire just to keep them from sticking their heads through.
    [​IMG]

    That's how it stands now, I am going to toss a tarp over the roof and hope for the best with Sandy moving through in a few days and I'm not going to have a chance to work on it again before then.

  2. chicken pickin

    chicken pickin Overrun With Chickens

    7,945
    621
    361
    Mar 3, 2012
    It is looking fantactic. I love the rustic look to it with the boards. I cant wait to see more pics.

    Last edited: Oct 27, 2012
  3. Bocktobery 10

    Bocktobery 10 Chillin' With My Peeps

    542
    35
    151
    Oct 8, 2010
    You TOTALLY made me want to start building another coop! Yours looks great!!! Thanks for sharing!

  4. Dingo

    Dingo Chillin' With My Peeps

    Roof is up, it was not easy with the slope of the roof.
    [​IMG]

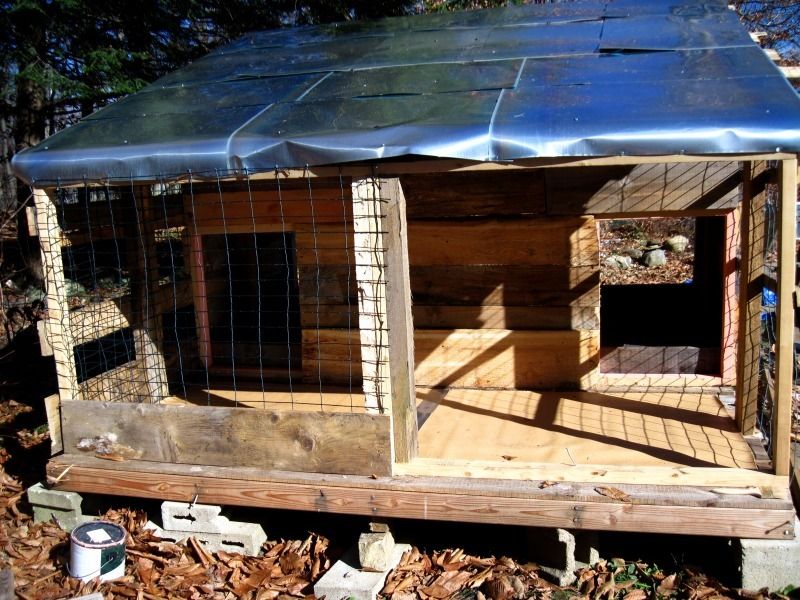

    The sheets of metal buckled a little as I was going along so I'm going to fill the spaces with tar caulk.
    [​IMG]

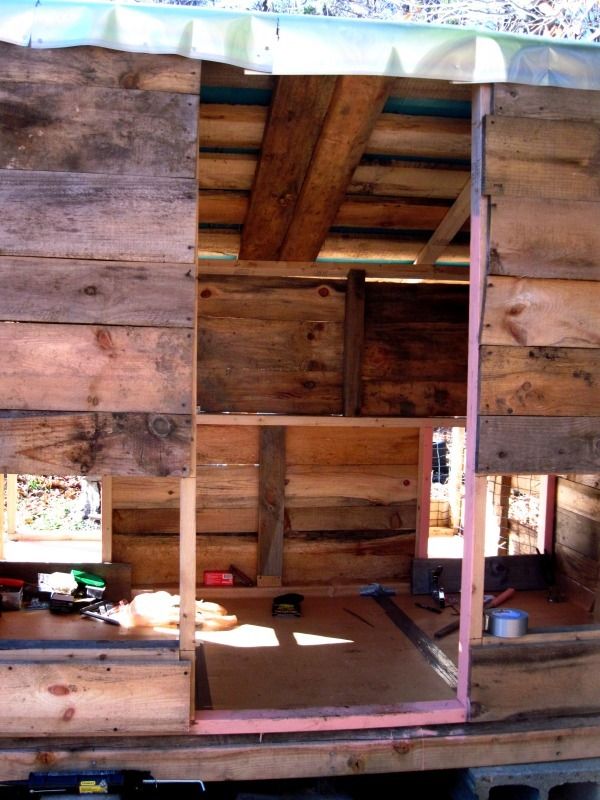

    Also got the floor cover in, not the vinyl sheeting I wanted but beggars mustn't be choosers.
    [​IMG]

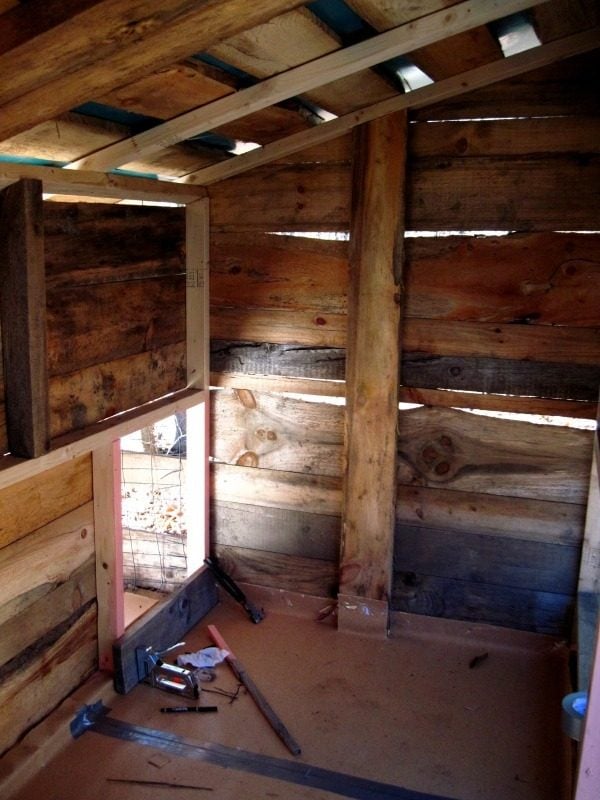

    Inside, I need to figure something out about the gaps between the boards, thoughts?
    [​IMG]

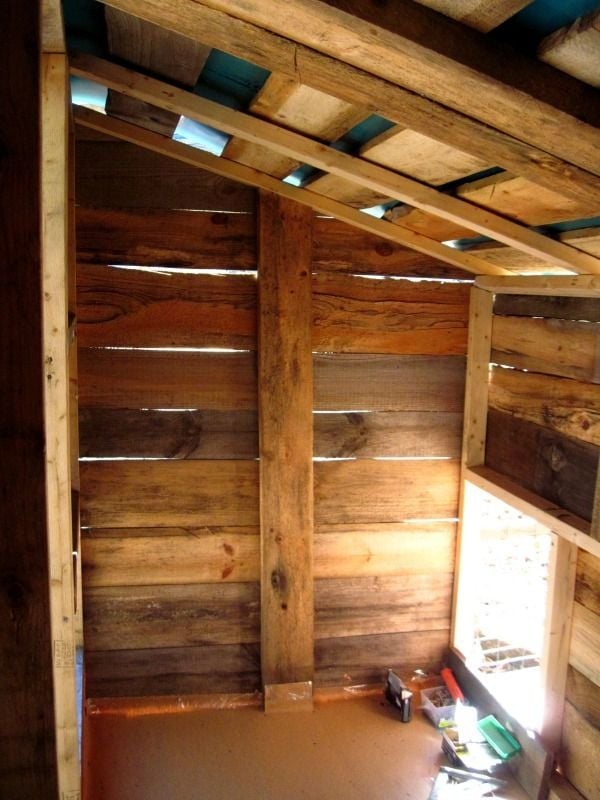

    The other side.
    [​IMG]

    I'm thinking I'll cover the whole ceiling in hardware cloth or chicken wire and leave the gaps between the sheathing open for ventilation. Or I could fill them with that foam gap sealer.

  5. Tin Flamingo

    Tin Flamingo Out Of The Brooder

    65
    0
    36
    Apr 11, 2012



    I wouldn't think the spaces are too big to be a problem. Ventilation is a good thing, but I am in a much milder climate.

  6. Dingo

    Dingo Chillin' With My Peeps

    Some of the gaps aren't too bad, I'm sure if I just paint it they'll be pretty well sealed but there are a couple I need to cover.
    I got the door mostly done, and one nest box door done. I'll try to get more pics up on Wednesday.

  7. Crafty-Duck

    Crafty-Duck Chillin' With My Peeps

    1,178
    36
    148
    May 27, 2012
    Lucky Duck Pond
    Looking good[​IMG]
