The Trap Nesting Thread

Discussion in 'Chicken Behaviors and Egglaying' started by MANOZ, Sep 5, 2011.

  1. galanie

    galanie Treat Dispenser No More

    7,950
    286
    331
    Aug 20, 2010
    Colmesneil,TX
    I'm a Lady with power tools, also [​IMG] Two of us! yay!

  2. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    KI4GOT----no, I didnt get you 2 confused. Still waiting for you to use those power tools. [​IMG] The next few pics is for those who funds are tight. I paid 2 bucks for the hinges,everything else was free.

    The "Gowell Box" stayed in the back of my head for a few weeks.

    [​IMG]

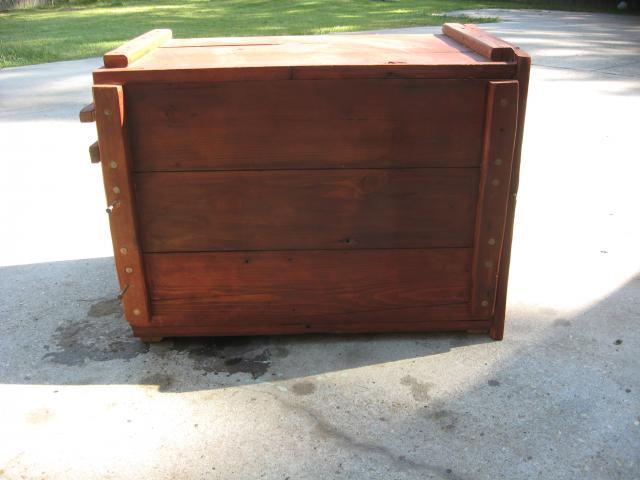

    This is what I came up with regarding that "one box fits all"

    [​IMG]

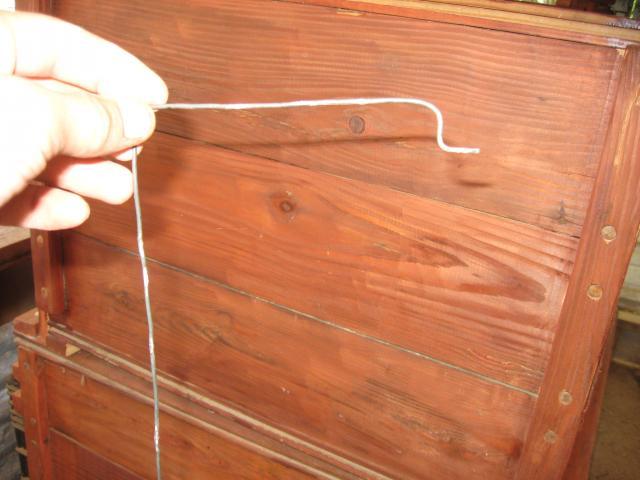

    the trigger to the gowell box

    [​IMG]

    As the hen steps through the middle partition,the trigger wire turns to one side,unseating itself off the tack and letting door drop
    [​IMG]

    Last edited: Oct 5, 2011
  3. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    door in the set position

    [​IMG]

    [​IMG]

    Wire position when door is up
    [​IMG]

    Wire position after bird has passed through the hole
    [​IMG]

    Last edited: Oct 5, 2011
  4. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010

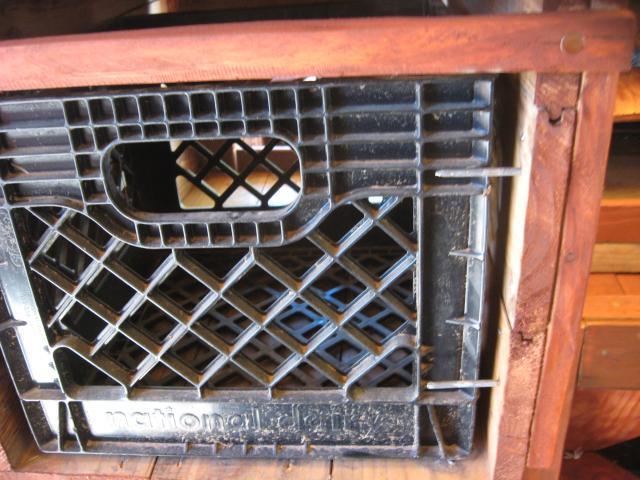

    screwed the 2 crates together and added a scrap piece of hardware cloth

    [​IMG]

  5. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    cant get any cheaper than this [​IMG]

    Last edited: Oct 5, 2011
  6. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

  7. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    this just in this morning:


    [​IMG]


    I finished this quick milk crate trap nest yesterday afternoon,this morning I found it occupied. [​IMG]
    I think it would work good for game hens and bantams,the smaller sized breeds.
    Doesnt have the height space for larger birds,but it does work

    Last edited: Oct 6, 2011
  8. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    [​IMG]

  9. galanie

    galanie Treat Dispenser No More

    7,950
    286
    331
    Aug 20, 2010
    Colmesneil,TX
    Just had an idea. If that's a belt sander you've got, you can clamp it upside down on the workbench and use it for a shaper for those doors once you rough cut the opening. Just a thought.

    ETA: looks like it's not a belt sander now that I see the surface of the board close up. Might be something someone else could try though.

    Last edited: Oct 6, 2011
  10. MANOZ

    MANOZ Chillin' With My Peeps

    276
    24
    121
    May 5, 2010
    Here, I zoomed in to show the trigger wire position after the bird has passed through.

    [​IMG]
