I was asked to show a tutorial of how to assemble the carpenter's wheel block w/ the paper pieced pattern I made so here it is hope it isn't to many pics.

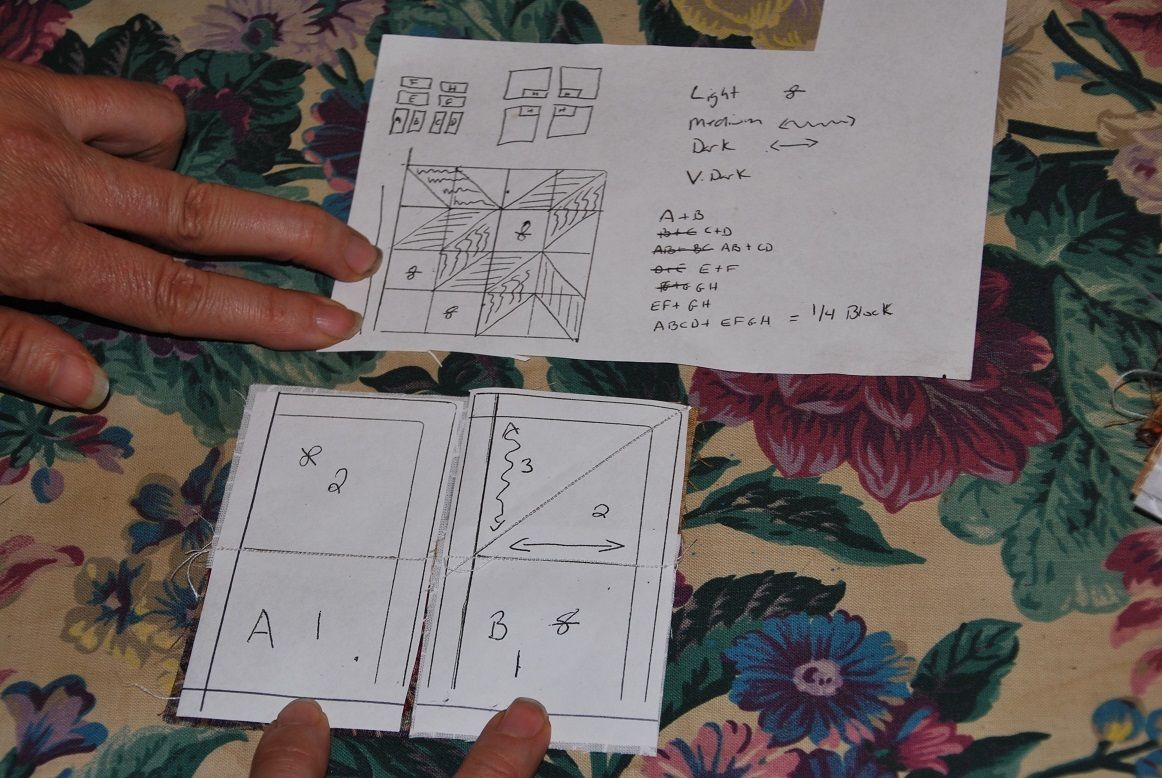

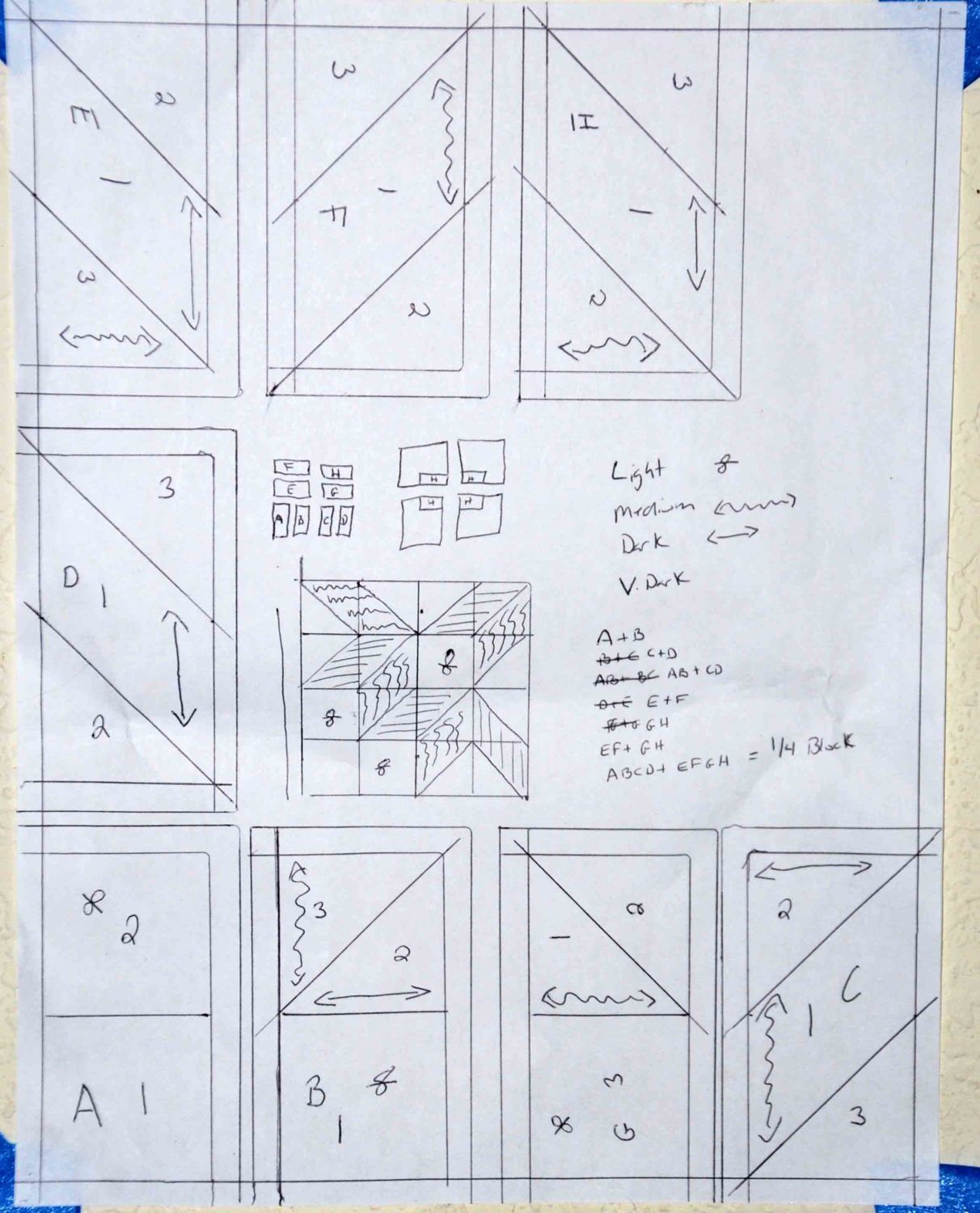

First of all here is the pattern this shows 1/4 of the block, so you will need 4 of these to make one 12 1/2 inch block. The individual rectangles should measure 2 inches by 3.5 inches from outside edges (not the sew line) This will make the 12.5 inch block.

If your working with a fabric that is directional use the arrows for directional placement as well as fabric choice.

The blank selection I marked as "very dark" really is background and doesn't have to be the darkest fabric

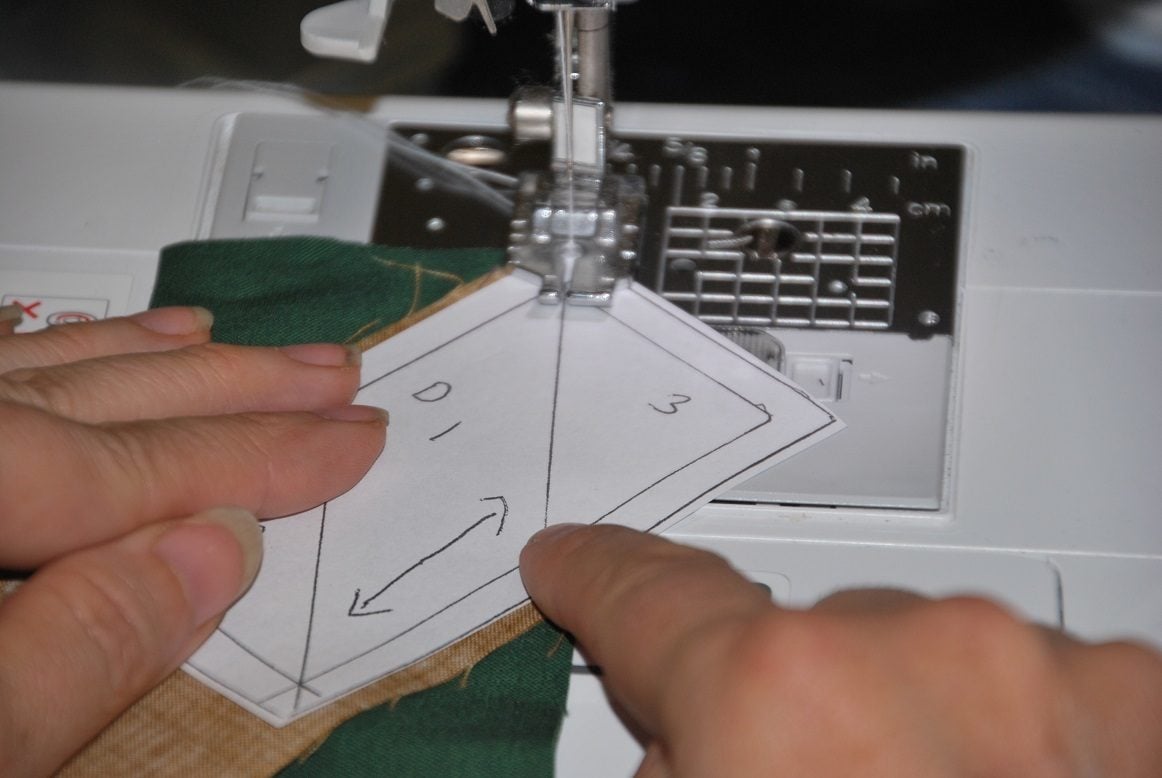

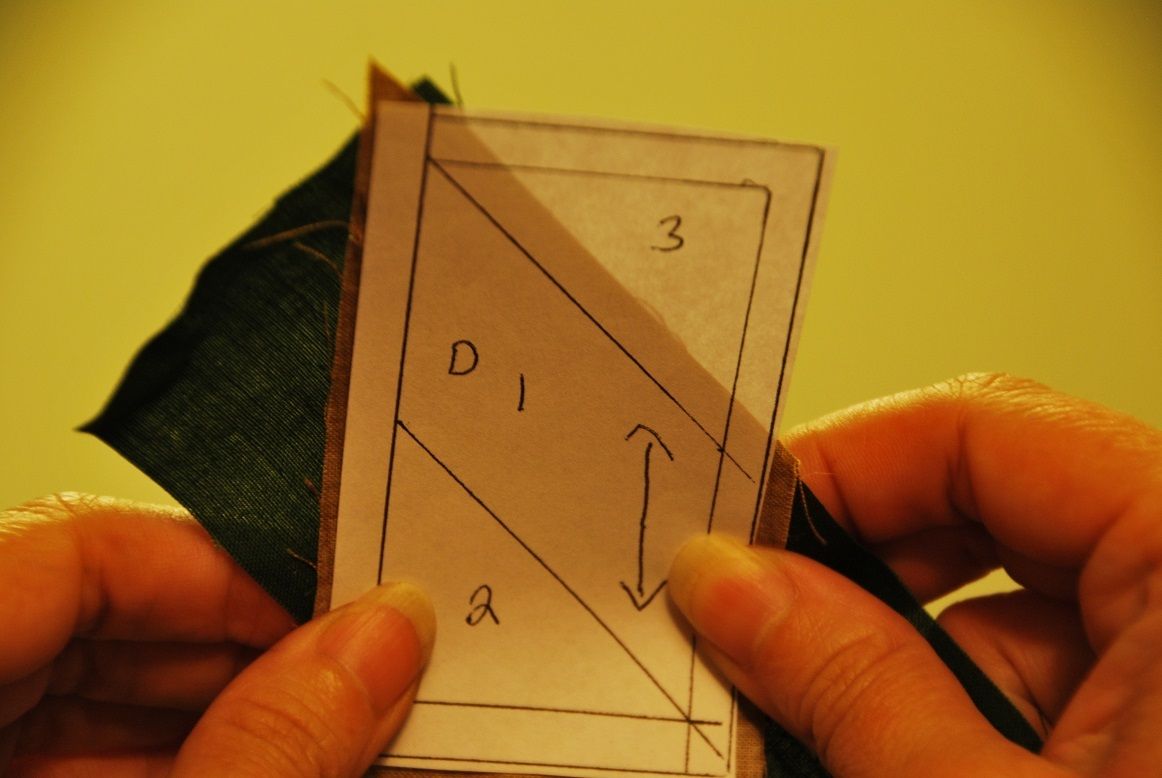

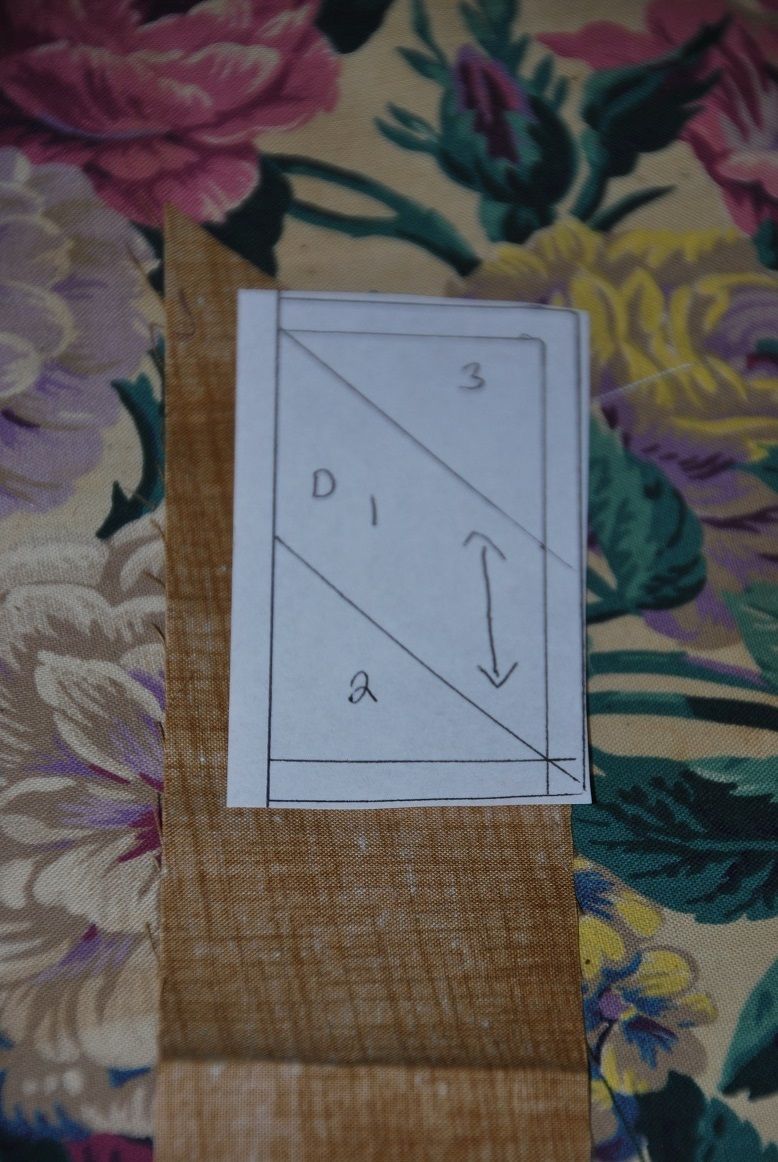

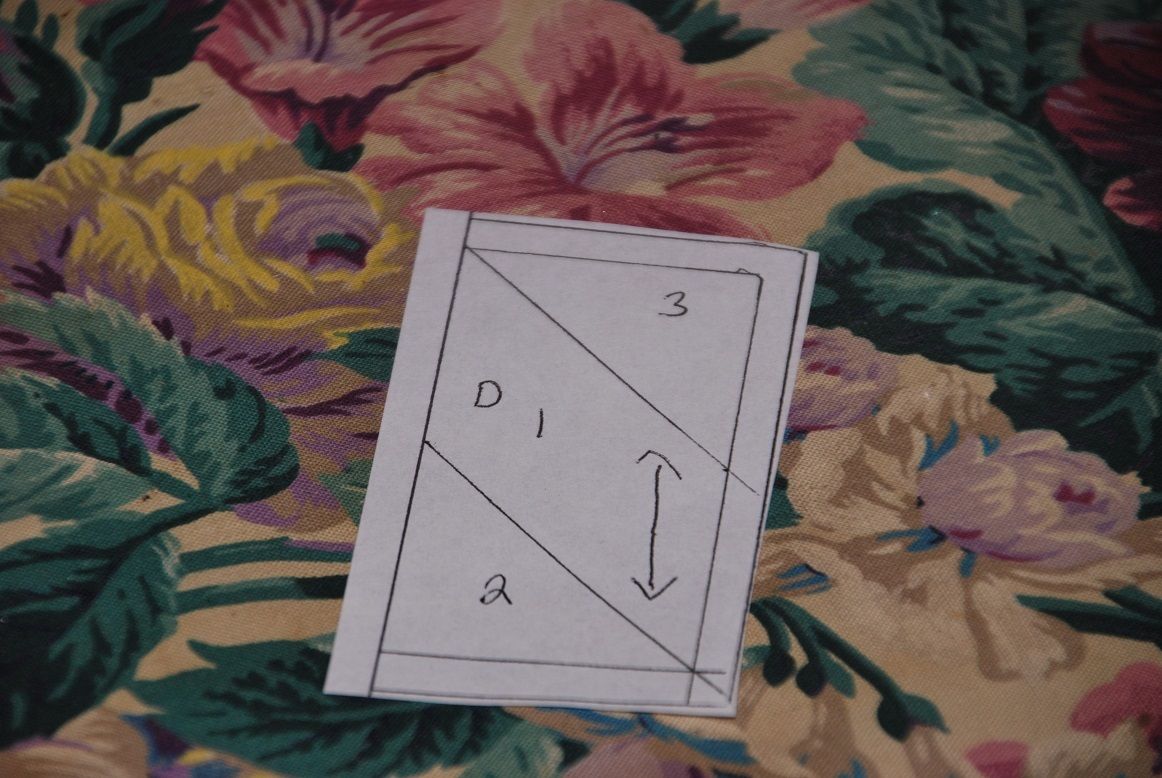

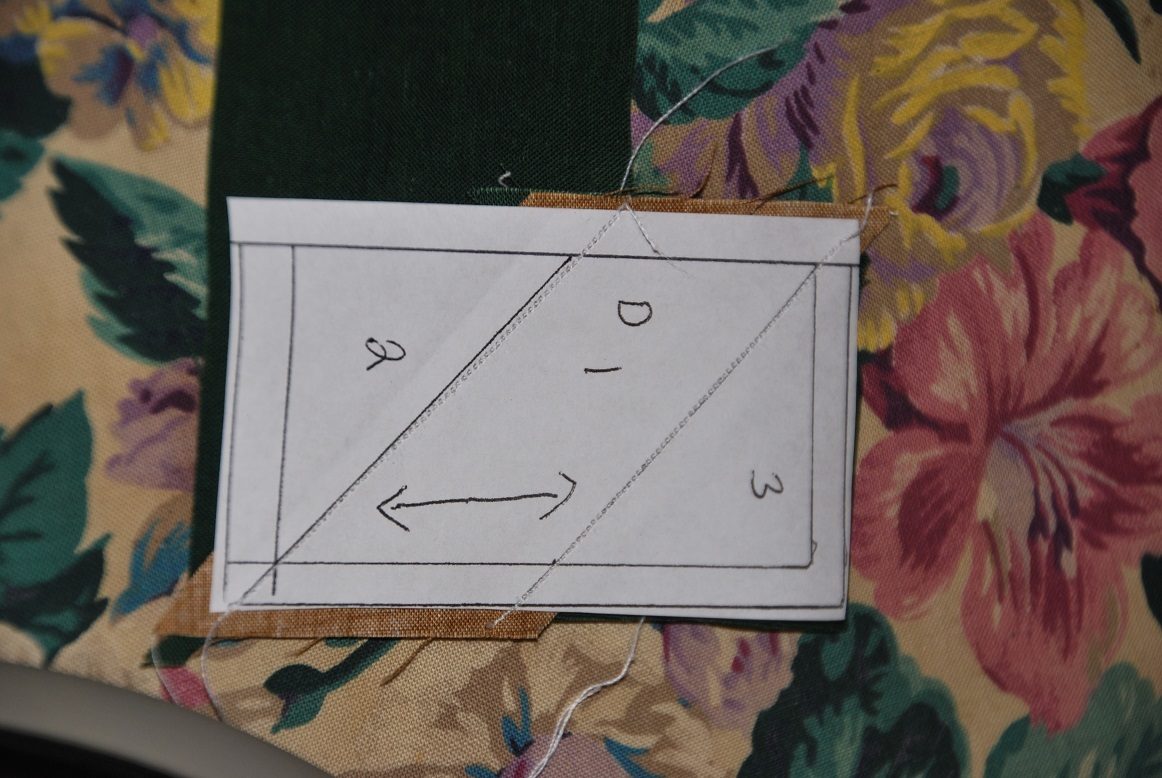

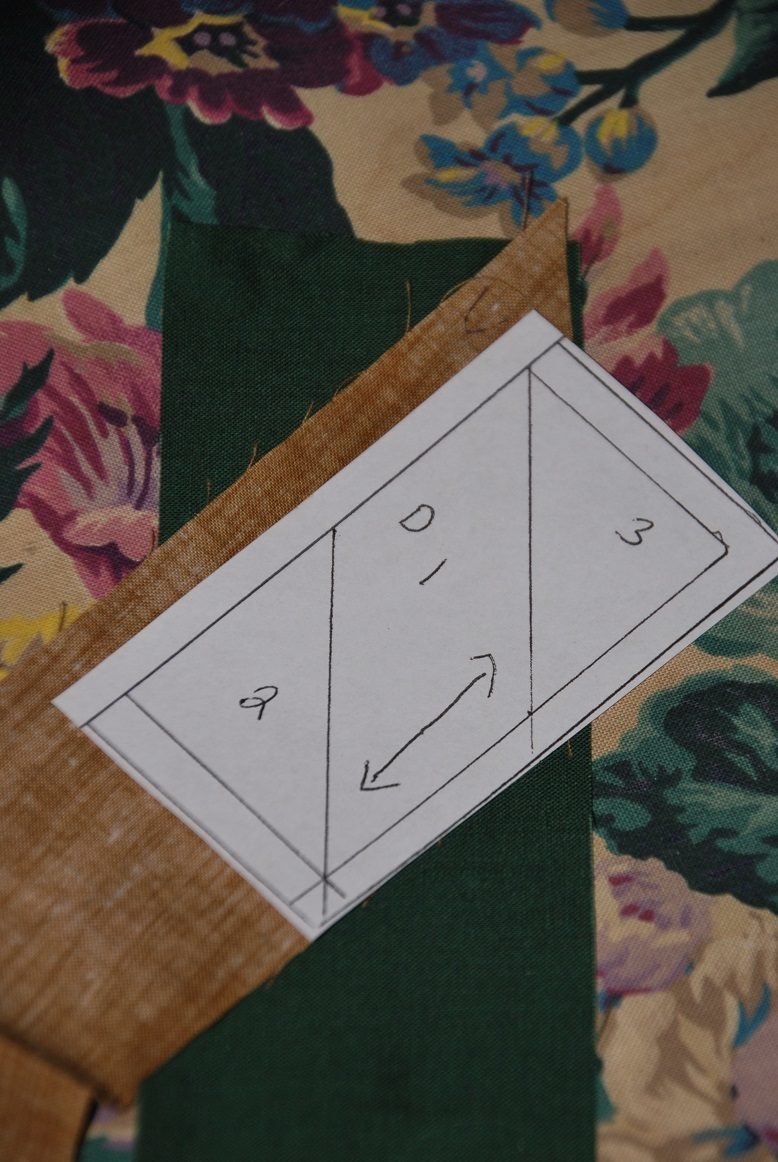

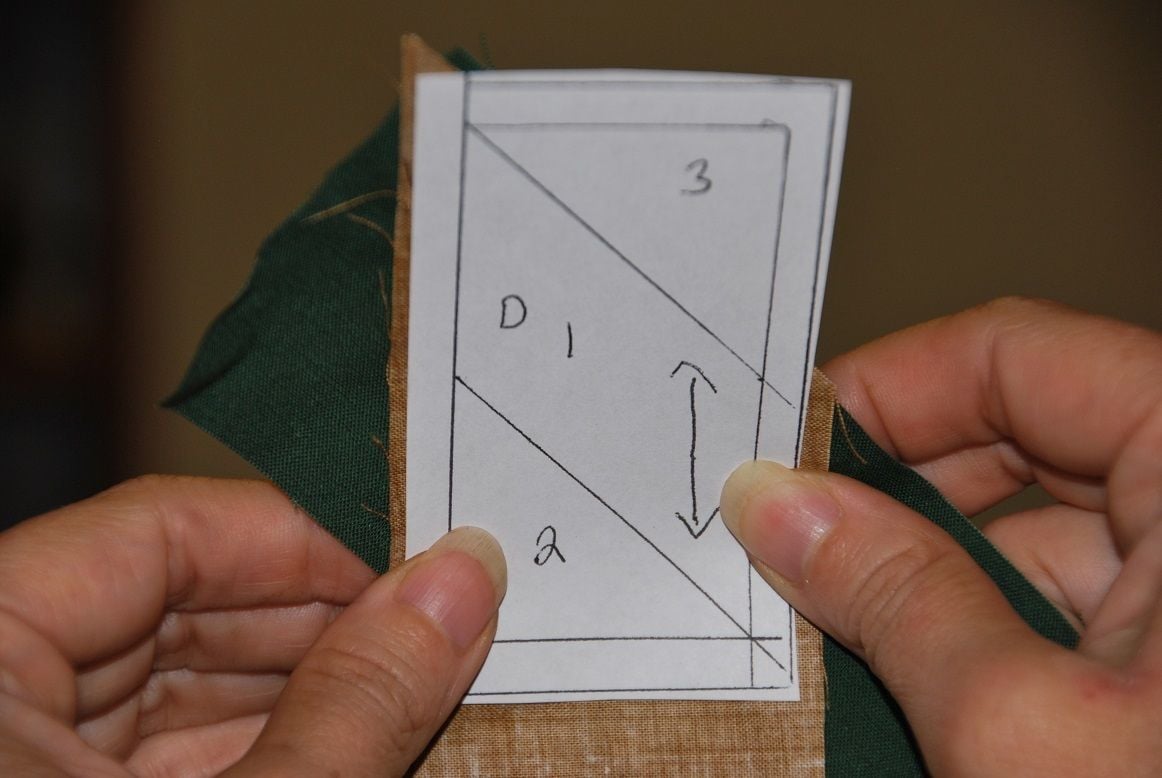

Each rectangle will be sewn first in regular pp fashion

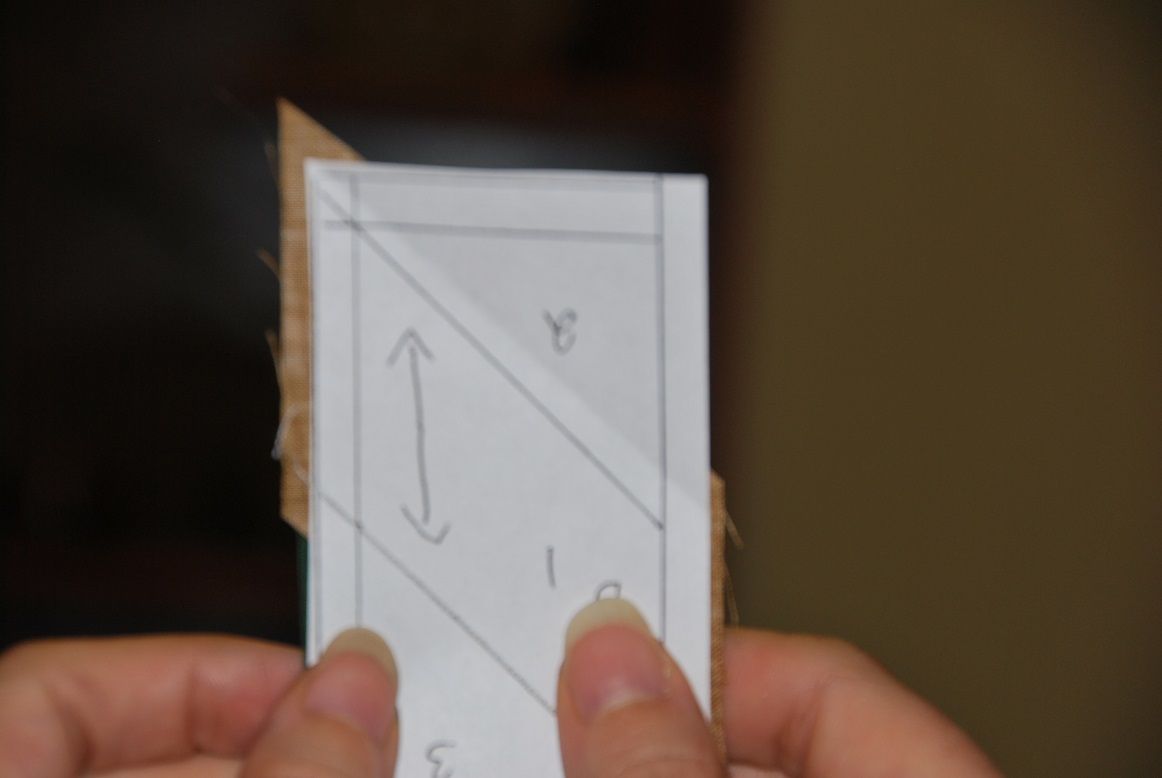

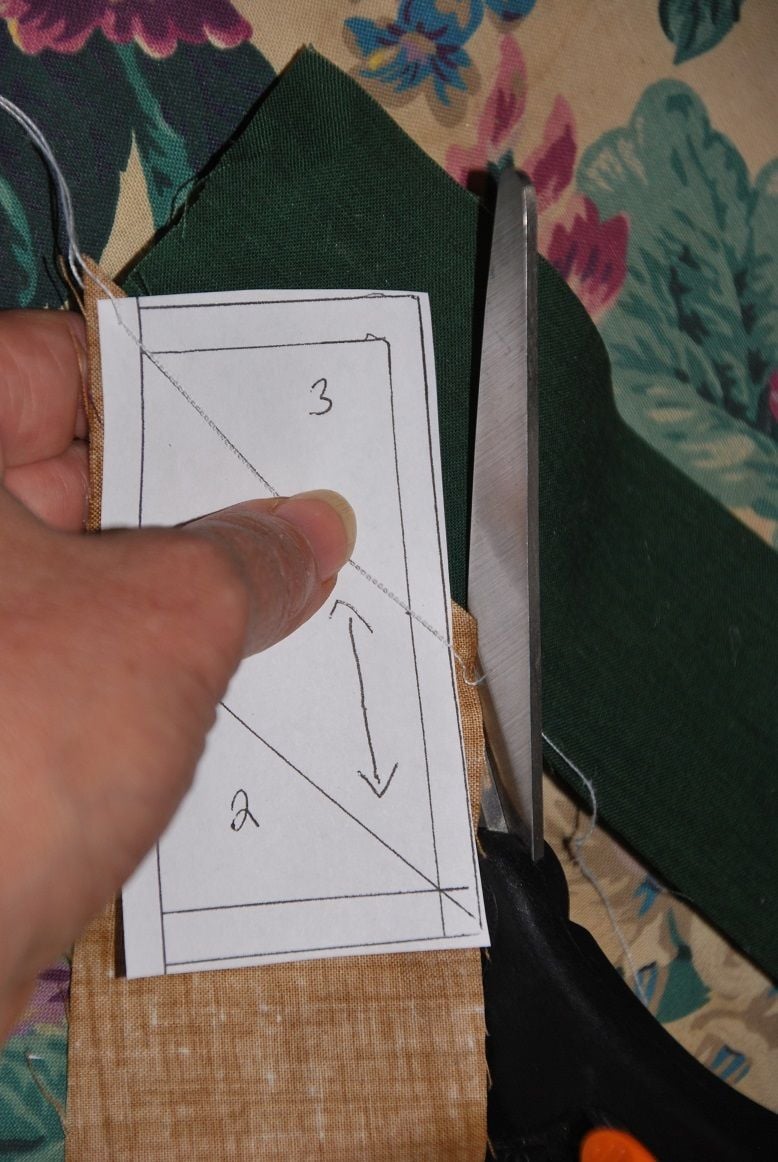

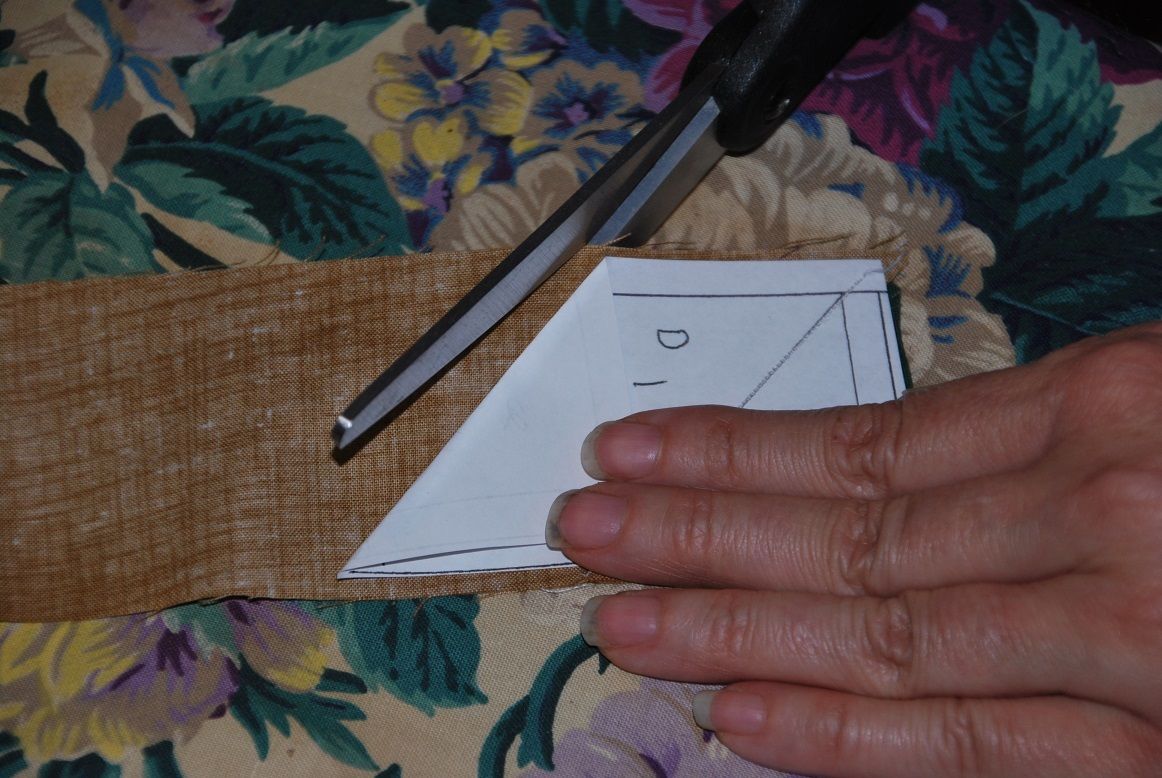

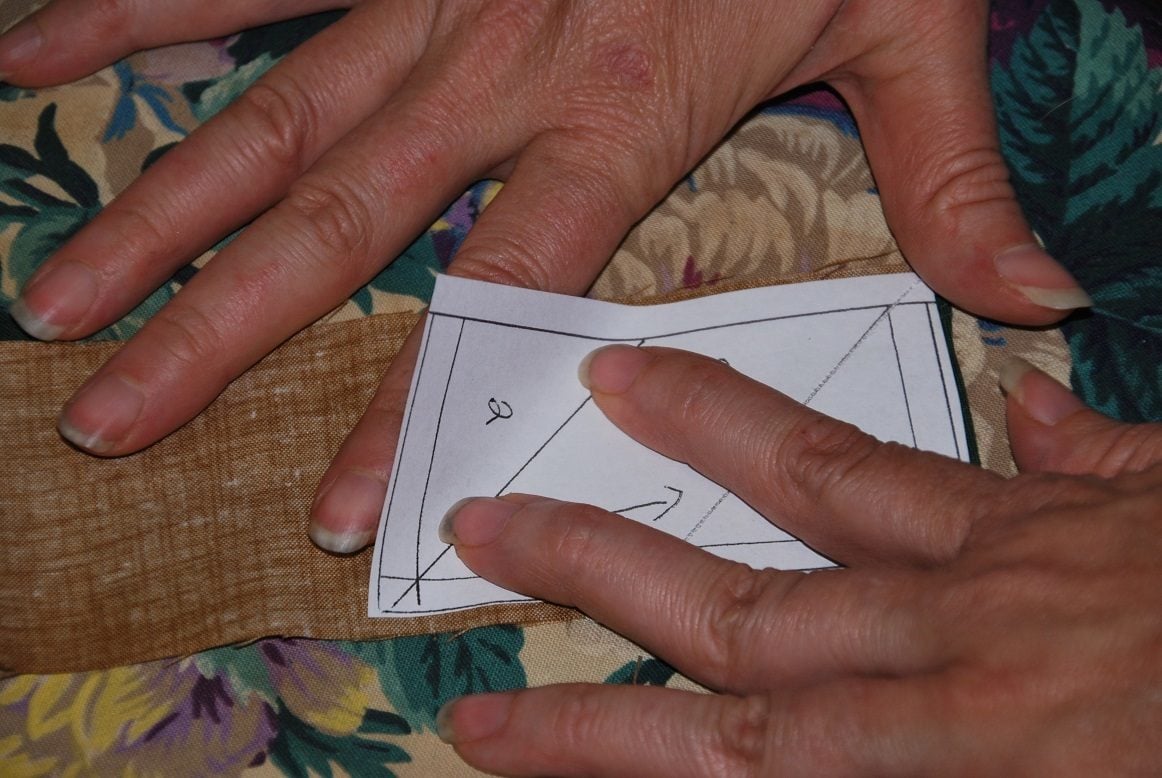

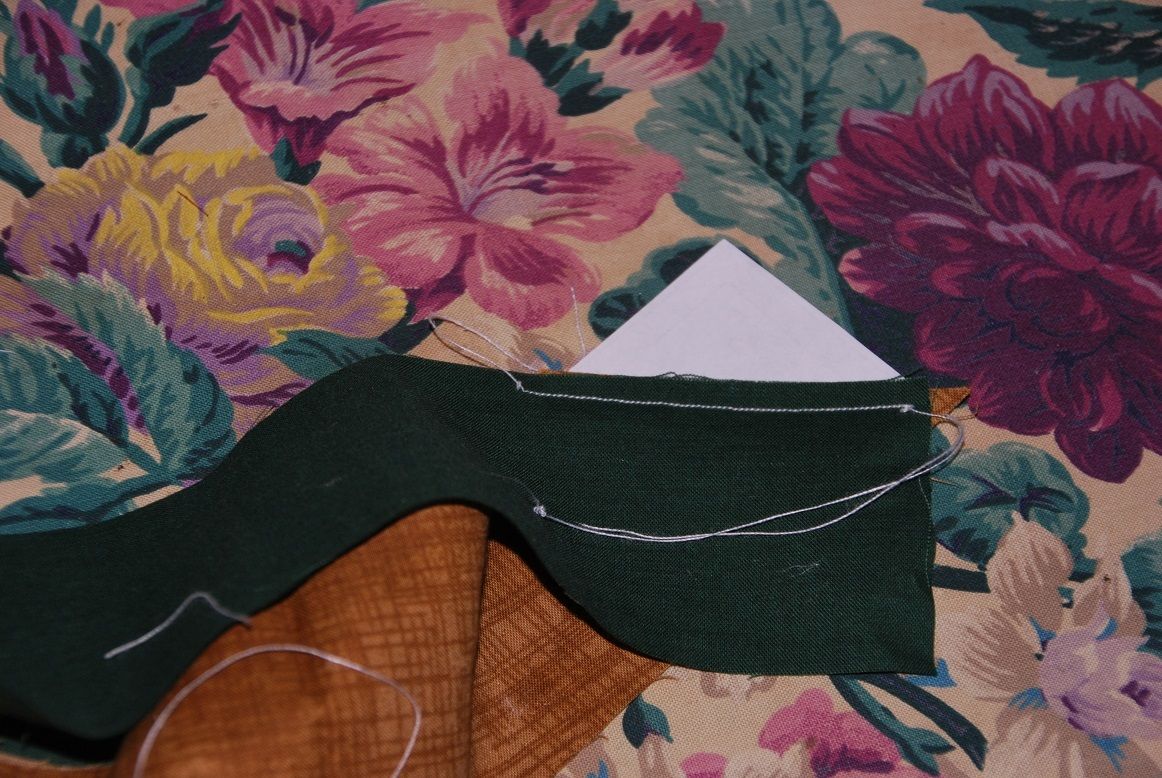

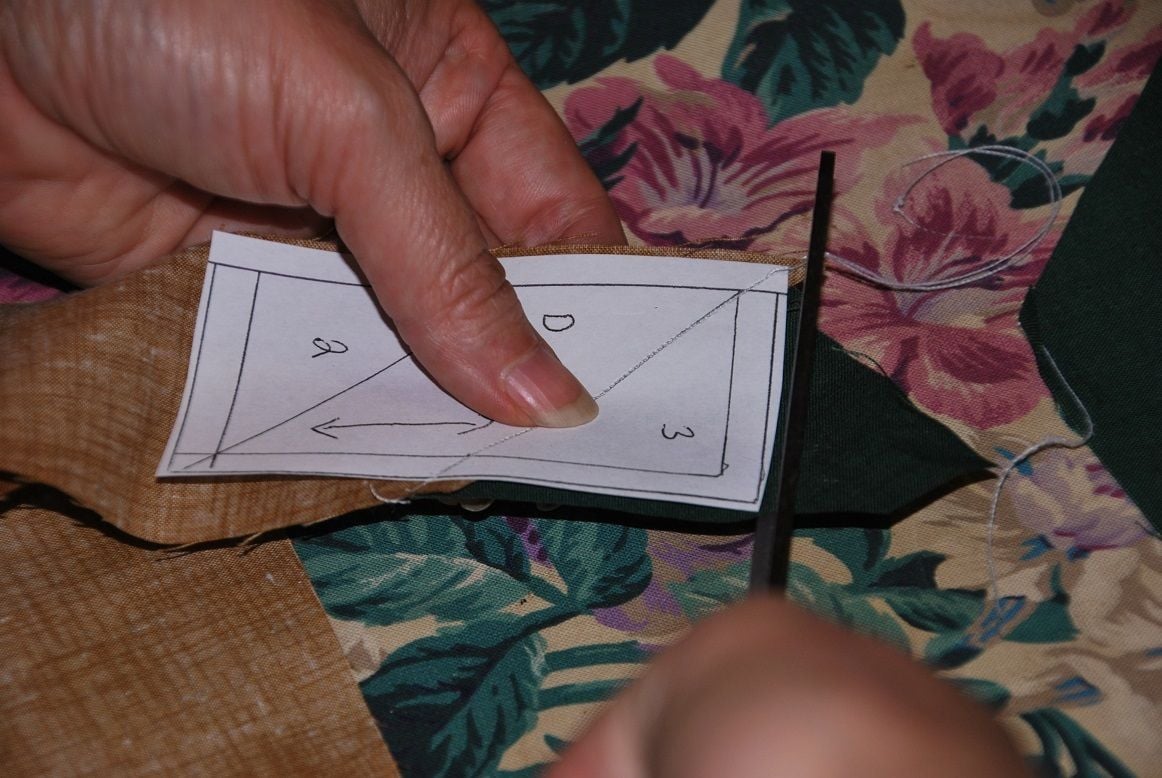

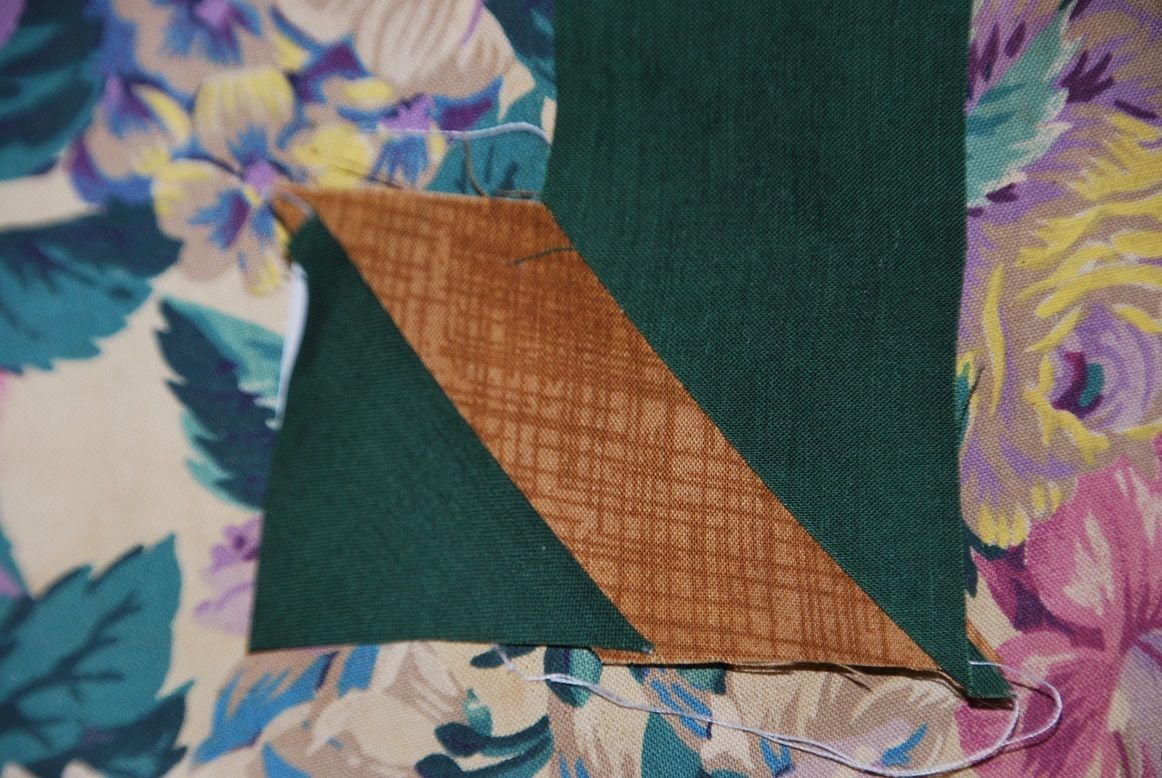

An easy way to trim the long tail at the correct spot is to fold back, not at the sewing line, but a seam allowance past the sewing line.

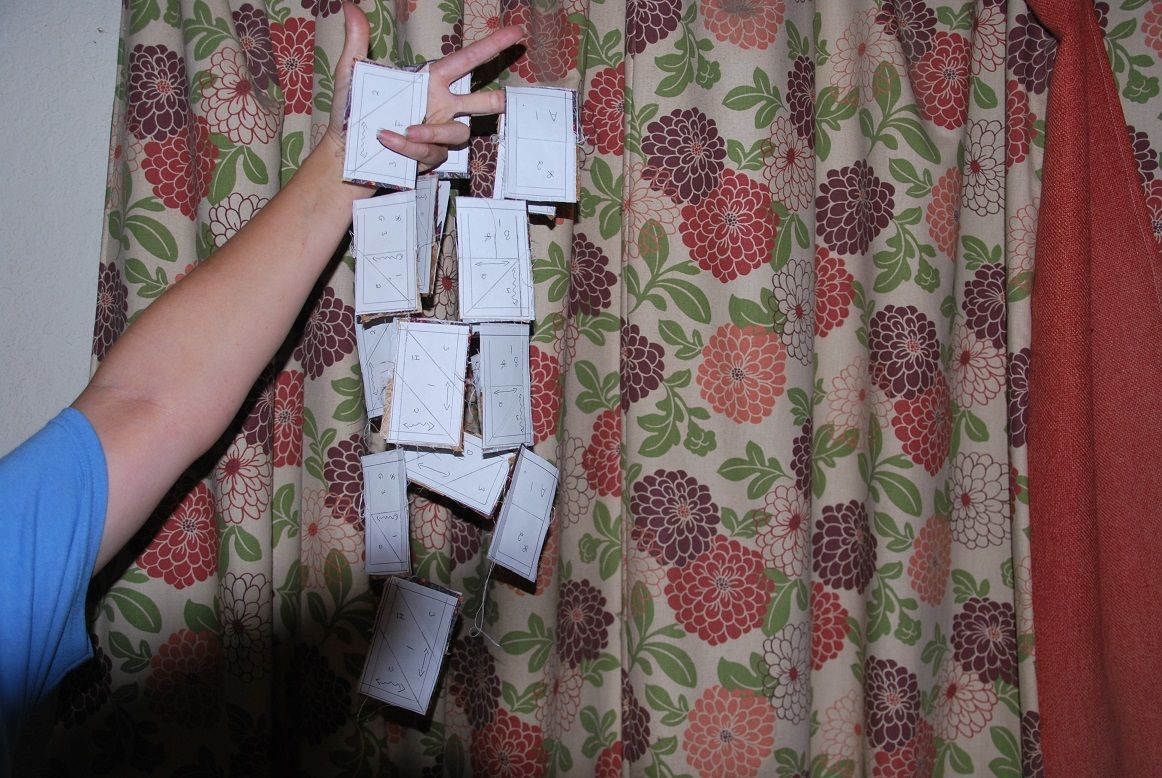

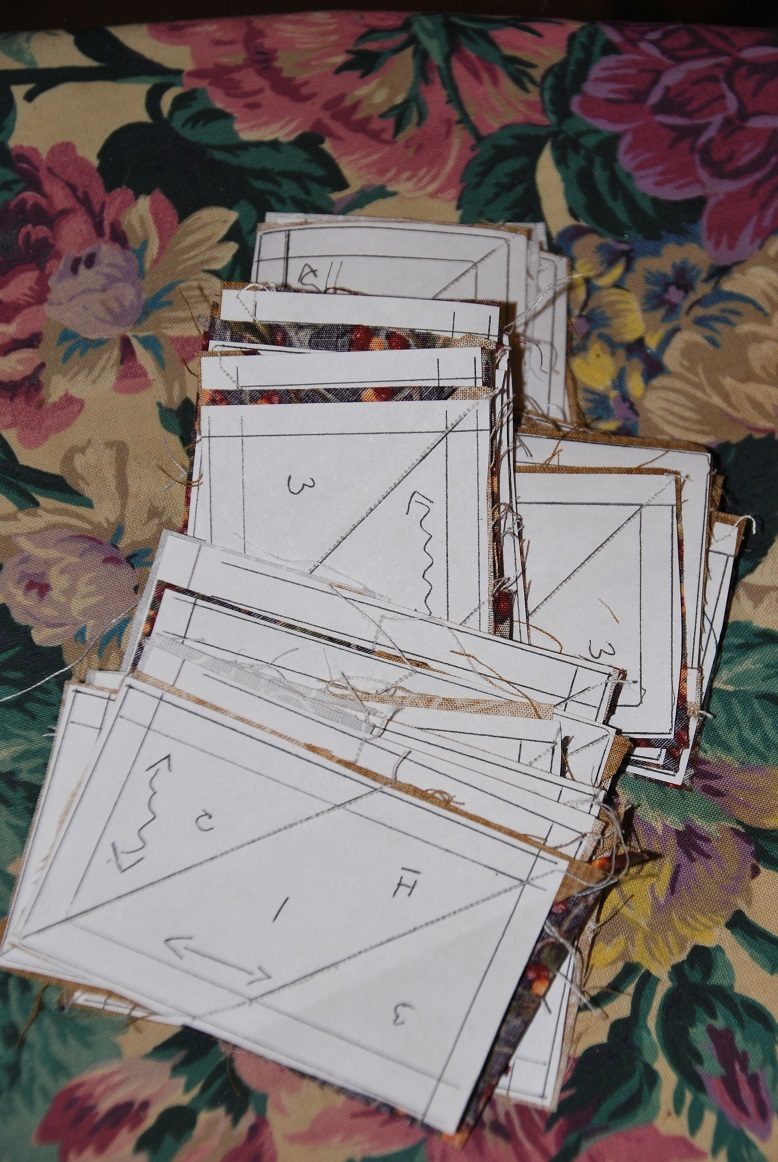

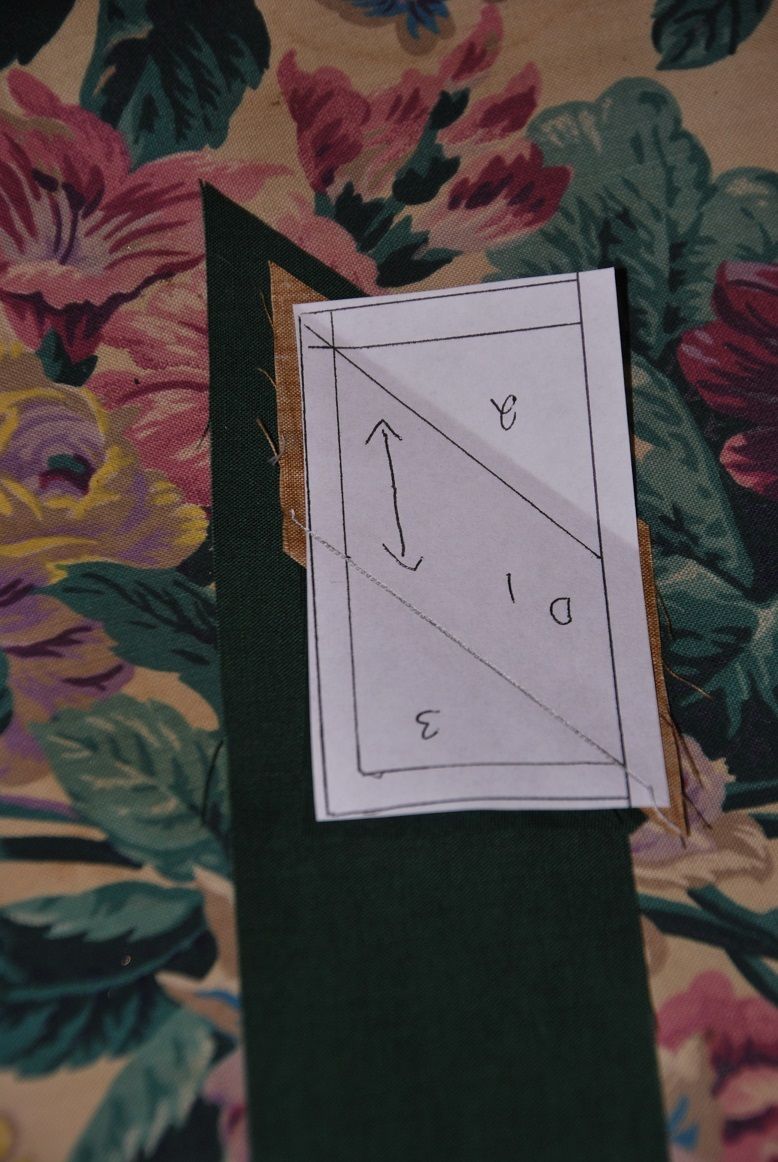

Just repeat this w/ the correct colors and placement X 32

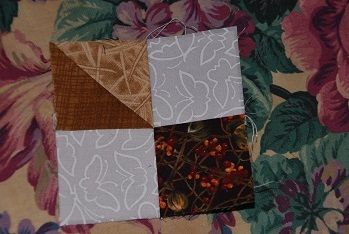

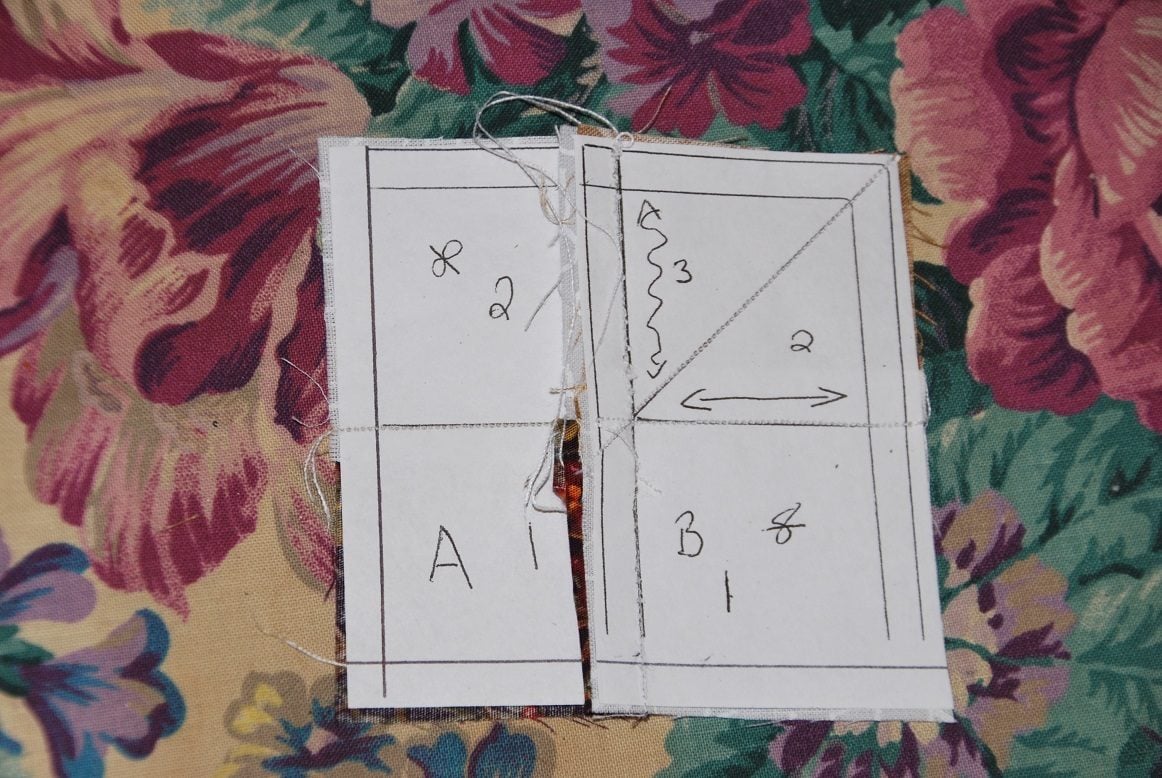

Now place A with B, C-D, E-F, and G-H together

Use the picture for correct placement, but you will have to have the paper side up or things will be backwards and you (at least I do anyway) will get confused.

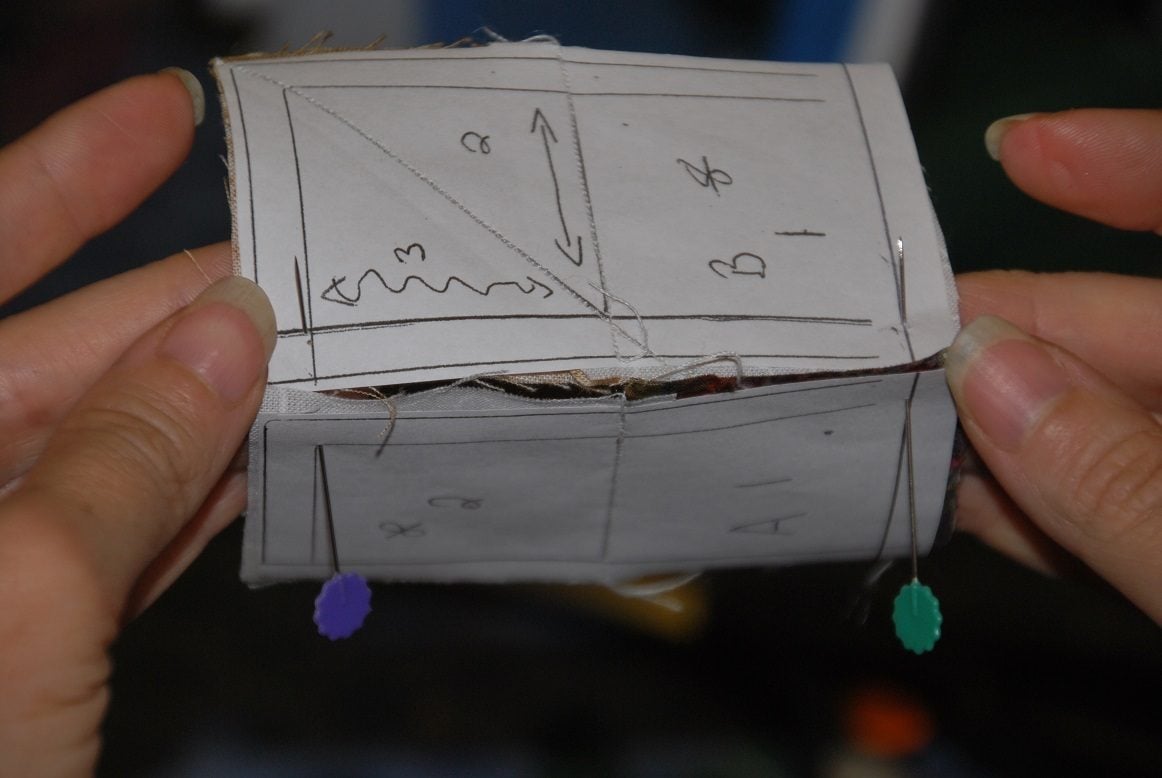

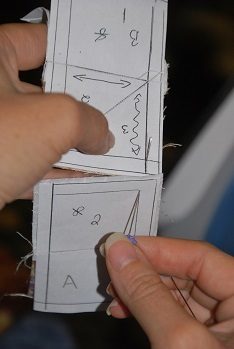

Pin them at corners to keep everything lined up and straight.

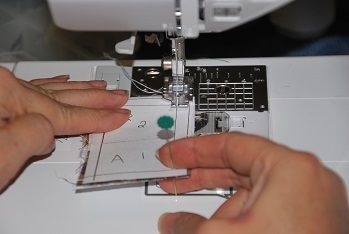

Each step from here on out can be chain pieced

When pressing just press where the majority of the seams that you are sewing across are laying opposite for easier sewing and lining.

Once the sets are finished then you sew AB - CD, EF - GH

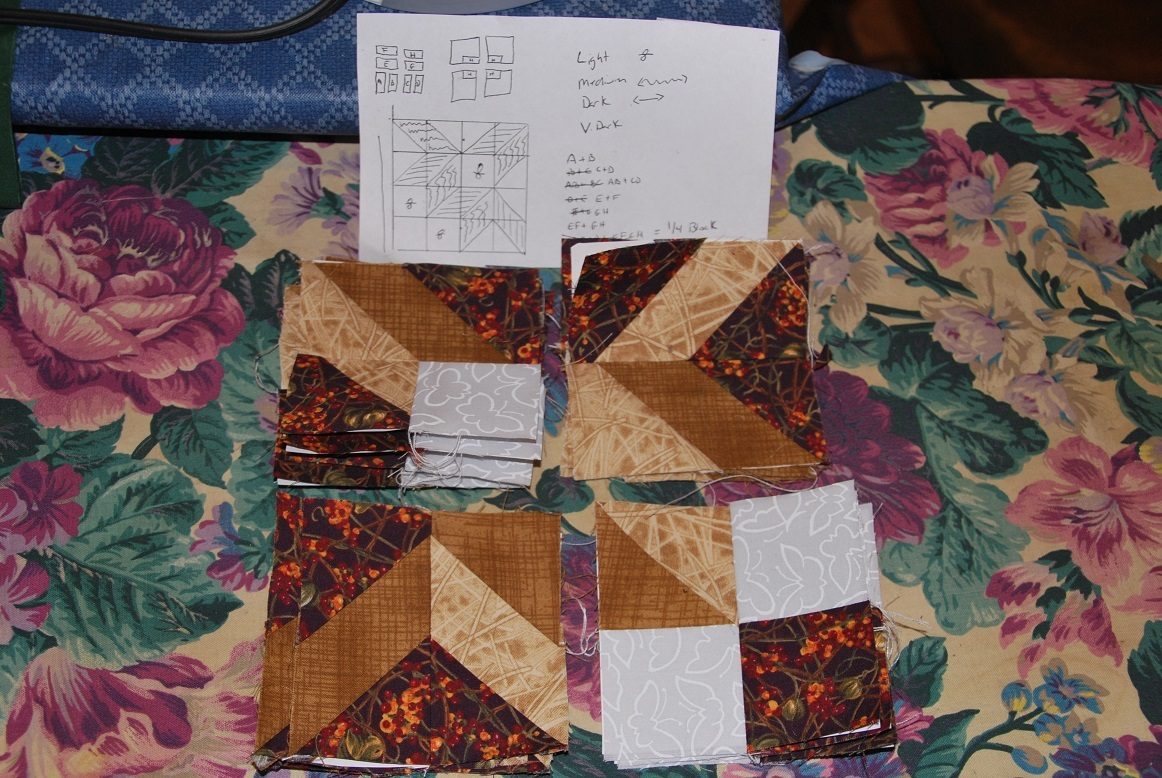

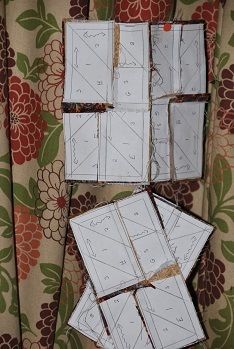

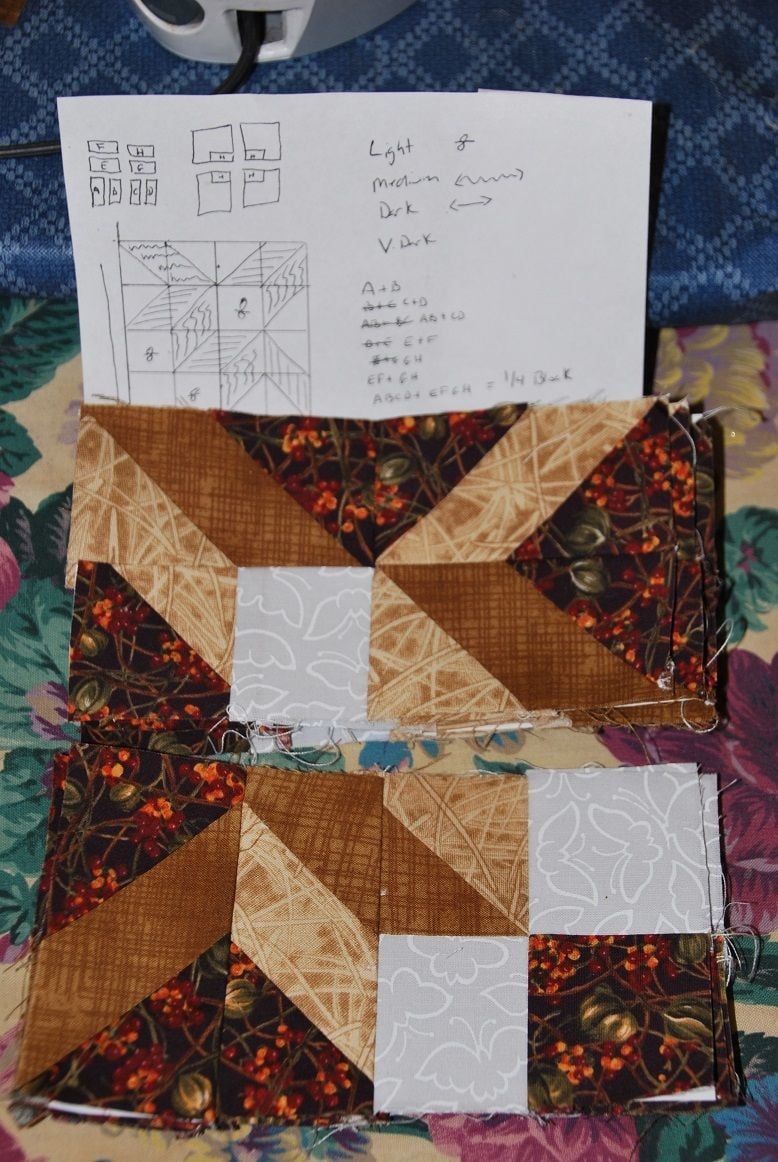

Now you have the 4 quarters

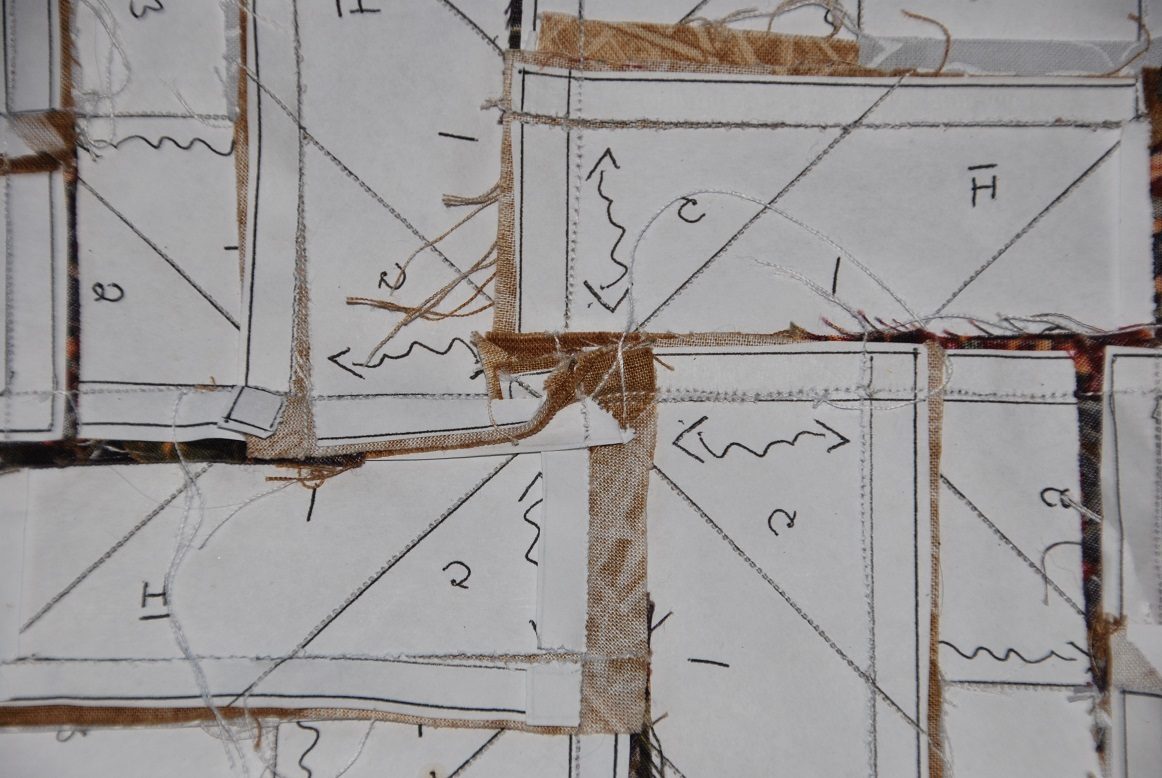

Press the center in a spiral it will lay flatter

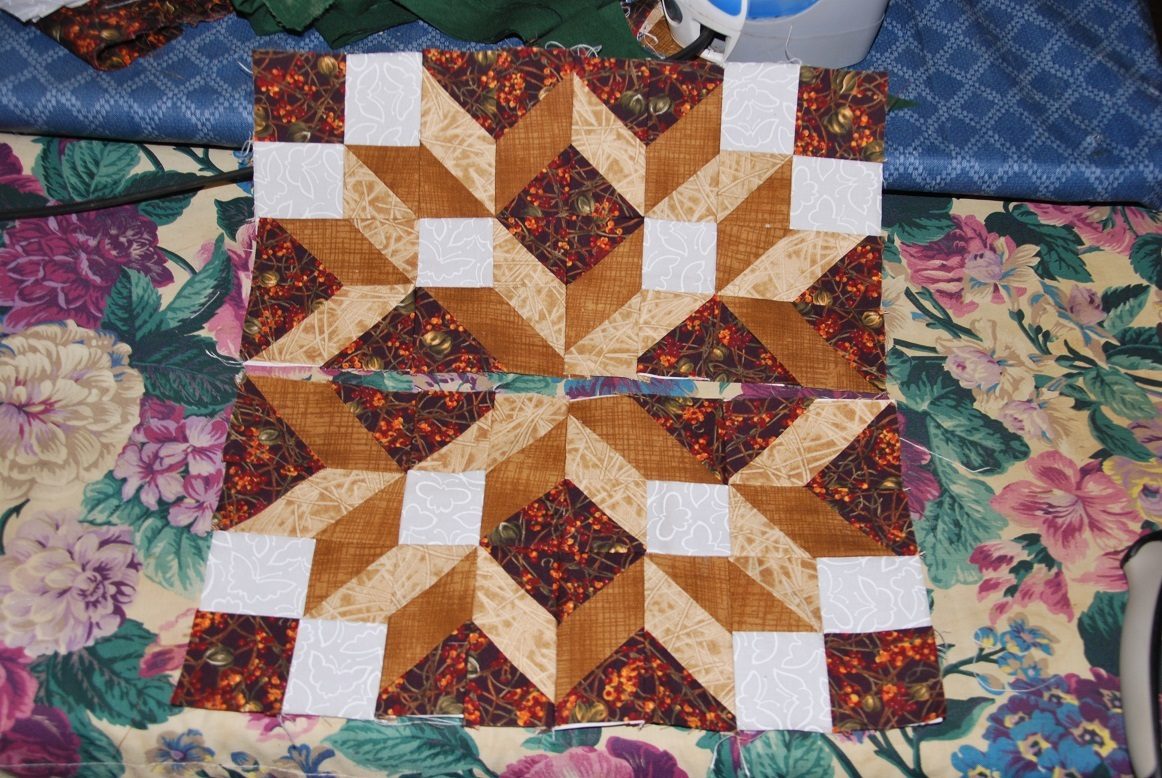

There it is finished.
